How to Choose the Best XY Gantry for Precision Motion Applications

When choosing an XY gantry system for precision motion control—whether for CNC machining, 3D printing, or automated inspection—the most critical decision is matching the gantry’s mechanical design and performance specs to your application’s load, accuracy, and speed requirements. For high-precision tasks like laser cutting or PCB handling, a linear rail-based XY gantry with servo motors and optical encoders offers superior repeatability 1. Conversely, lighter-duty applications such as desktop prototyping may benefit from belt-driven systems using aluminum extrusions. Always prioritize rigidity, positioning accuracy (±0.05 mm or better for industrial use), and compatibility with your controller. Avoid undersized frames that compromise stability.

About XY Gantry

An XY gantry is a two-axis linear motion system that enables controlled movement across a horizontal plane. It consists of two perpendicular axes—X and Y—that support a moving tool or platform, such as a spindle, camera, or print head. These systems are foundational in automation, robotics, and manufacturing equipment where precise spatial control is essential.

Typically constructed from aluminum profiles, steel, or carbon fiber, XY gantries use either belt drives, lead screws, or linear motors to achieve motion. They integrate with stepper or servo motors and are often paired with controllers running G-code or custom software. Common configurations include Cartesian robots, pick-and-place machines, and large-format engraving systems.

The primary use cases span industrial automation, laboratory automation, digital fabrication, and research instrumentation. For example, in semiconductor inspection, XY gantries position sensors with micron-level accuracy. In additive manufacturing, they guide extrusion nozzles or laser heads over build areas. Their modular nature allows integration into custom machinery, making them versatile solutions for engineered systems requiring planar motion.

Why XY Gantry Is Gaining Popularity

The growing demand for automation across industries has driven increased adoption of XY gantry systems. Manufacturers seek cost-effective, scalable solutions for repetitive tasks, and XY gantries offer a balance of precision, flexibility, and ease of integration. With advancements in motion control technology and off-the-shelf components, even small workshops and R&D labs can deploy reliable gantry systems without custom engineering.

One major factor behind their popularity is modularity. Platforms like OpenBuilds, Bosch Rexroth, and Igus DryLin allow users to assemble gantries using standardized parts, reducing development time and maintenance complexity. Additionally, open-source firmware (e.g., GRBL, Marlin) supports seamless integration with CAD/CAM workflows, appealing to makers and engineers alike.

Another driver is the rise of smart factories and Industry 4.0 initiatives, where data-driven processes require precise, programmable motion. XY gantries serve as the backbone for vision-guided robots, automated test equipment, and material handling systems. As businesses aim to improve throughput and reduce human error, these systems provide measurable ROI in quality control and production efficiency.

Types and Variants

Understanding the different types of XY gantries helps match the right configuration to your operational needs. Each variant offers distinct advantages and trade-offs in terms of speed, payload capacity, accuracy, and cost.

1. Belt-Driven Gantries

Belt-driven systems use timing belts and pulleys to transmit motion along the X and Y axes. They are commonly found in 3D printers, laser cutters, and light-duty CNC routers.

Pros: High-speed operation, low noise, relatively inexpensive, easy to maintain.
Cons: Lower positional accuracy due to belt stretch, limited load capacity, less suitable for heavy cutting or high-force applications.

Best for: Rapid prototyping, engraving, and non-contact processes where speed matters more than force.

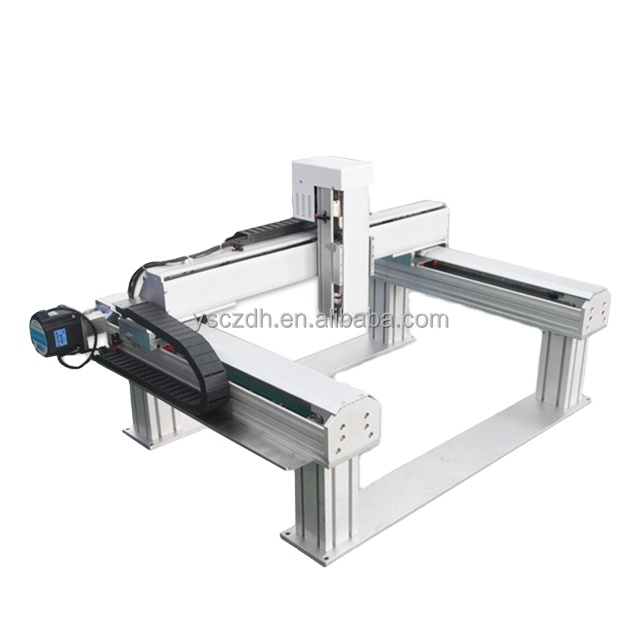

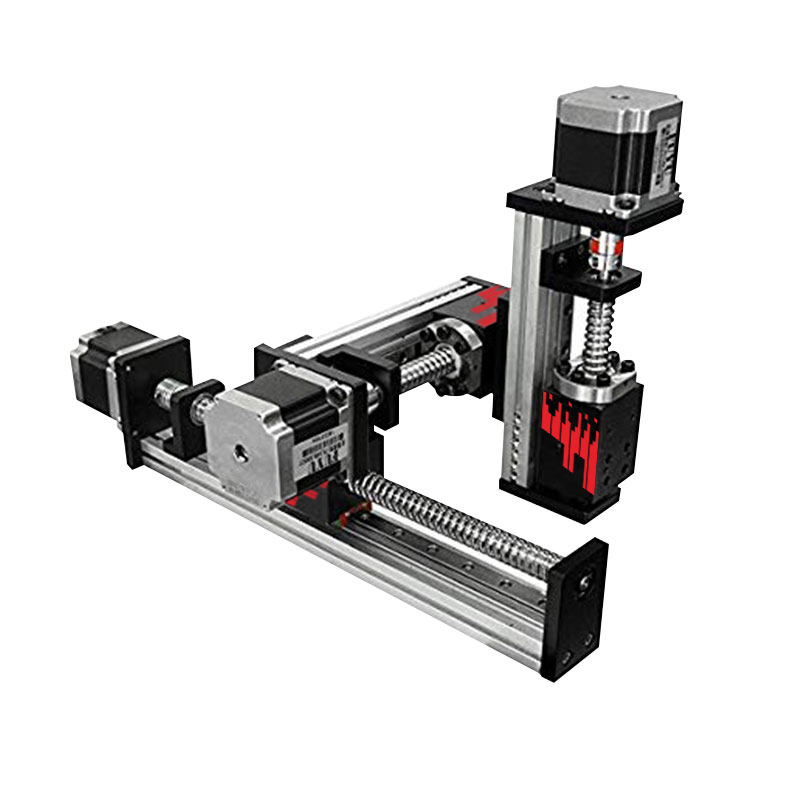

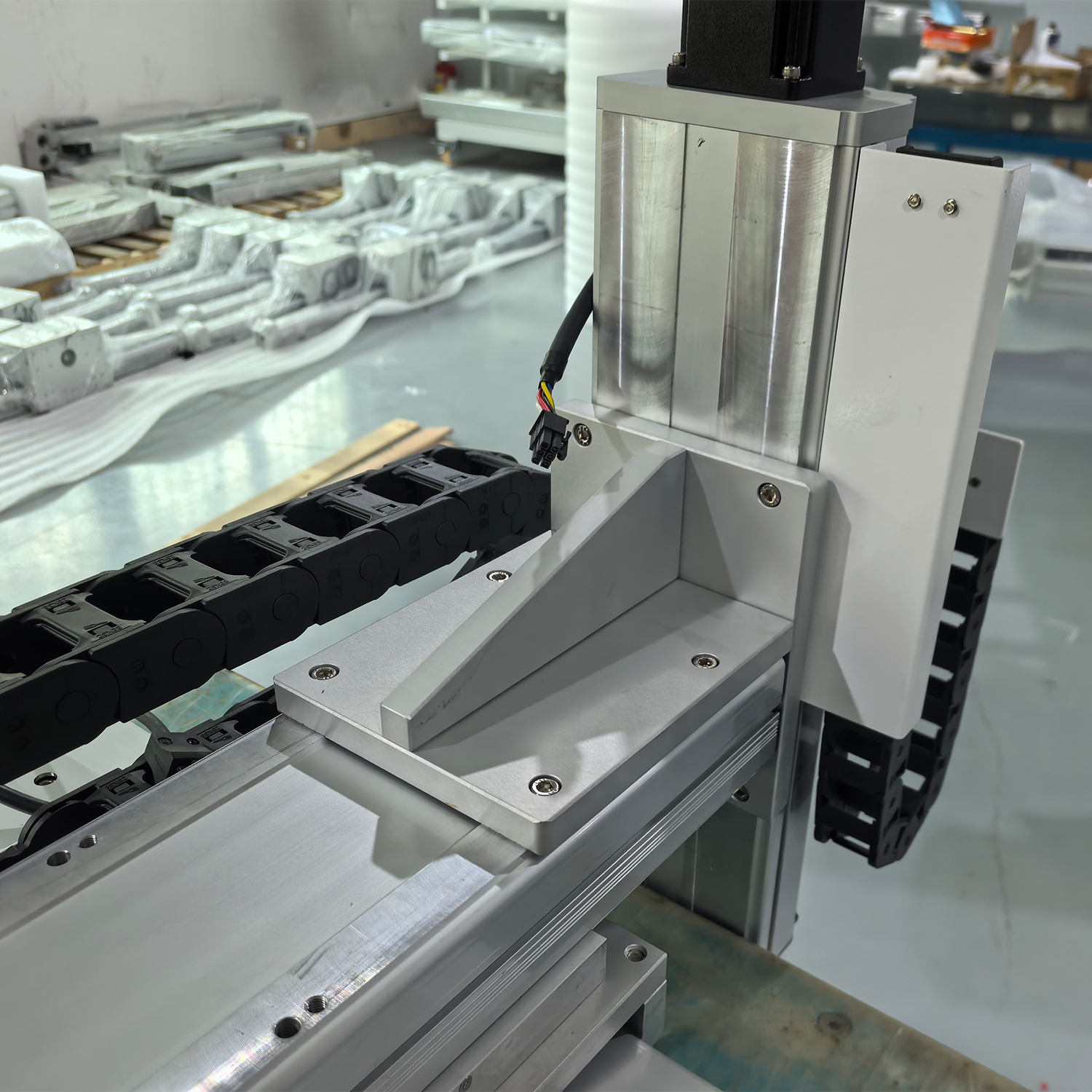

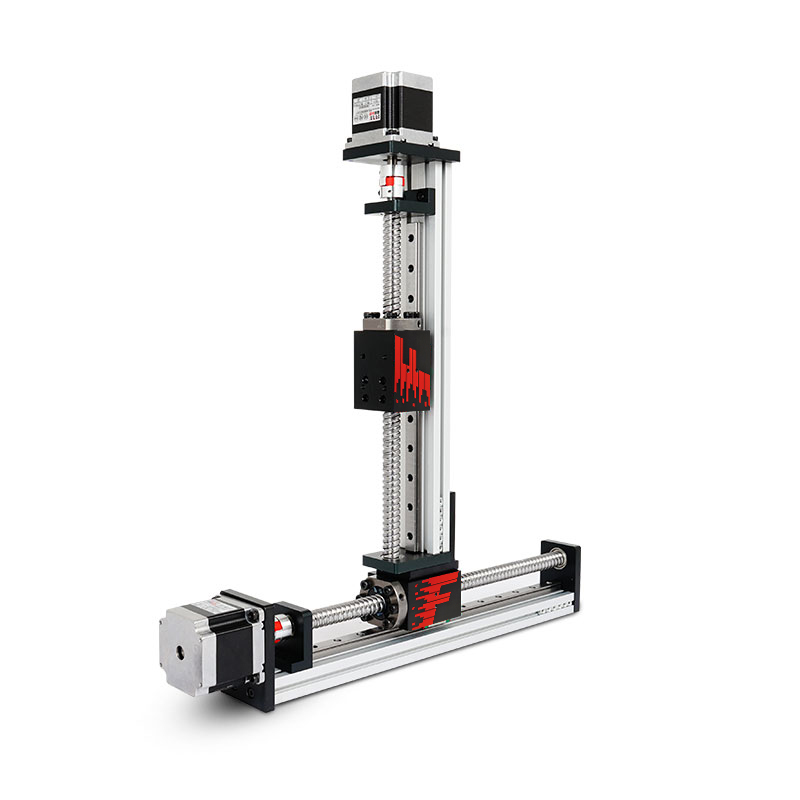

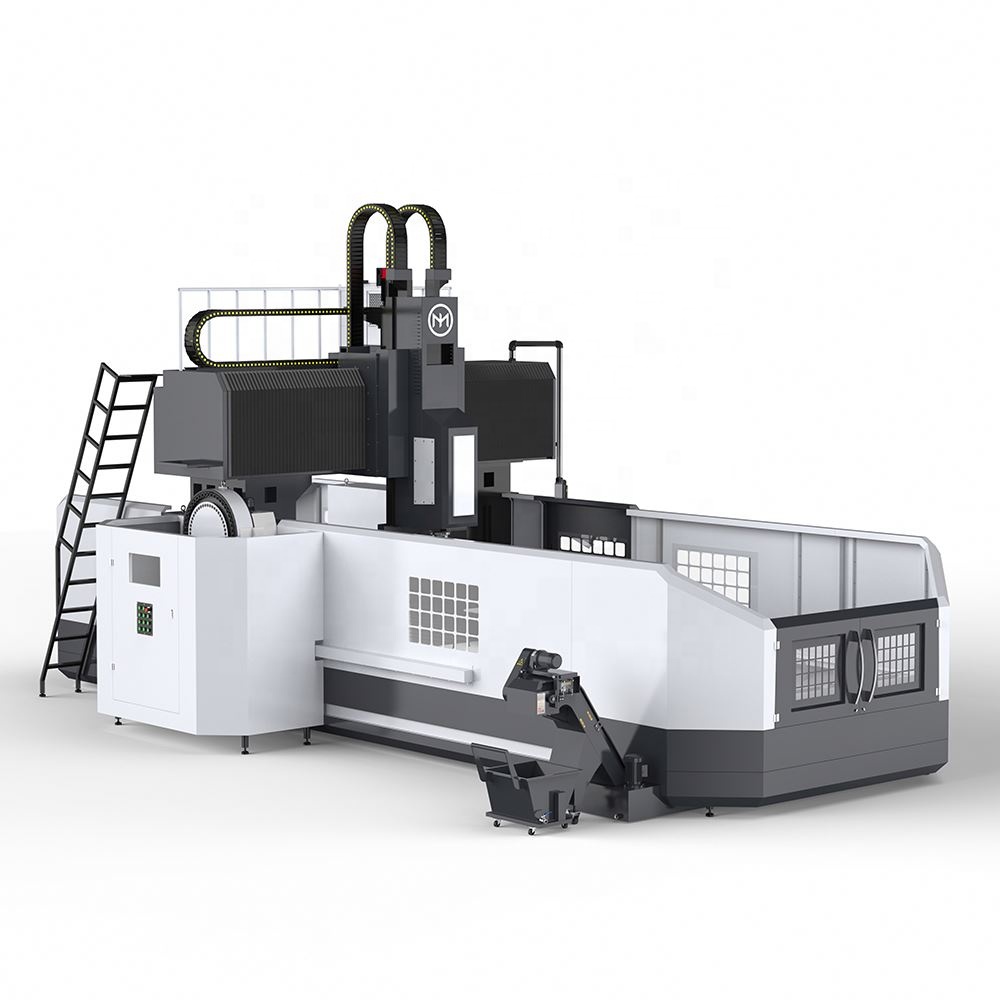

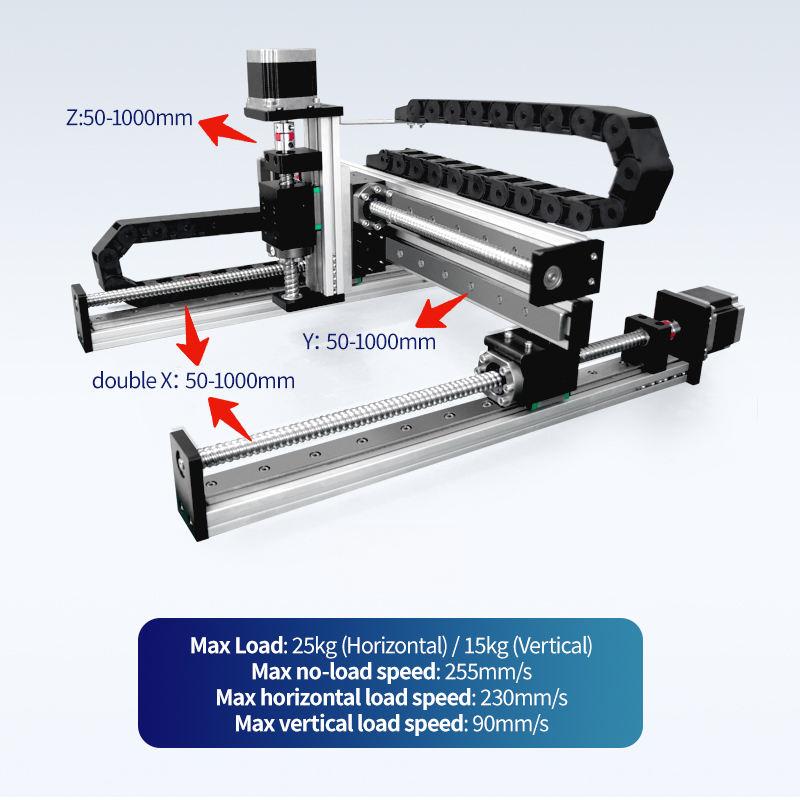

2. Screw-Driven Gantries (Lead Screw or Ball Screw)

These gantries utilize threaded rods (lead screws) or precision ball screws to move the carriage. Ball screws offer higher efficiency and longevity compared to standard lead screws.

Pros: Excellent positional accuracy and repeatability, high thrust capability, minimal backlash (especially with preloaded nuts).
Cons: Slower travel speeds, higher cost (particularly ball screw variants), more complex assembly.

Best for: Applications requiring fine resolution, such as metrology, micro-dispensing, or precision milling.

3. Linear Motor Gantries

Linear motor systems eliminate mechanical transmission elements by directly driving the mover via electromagnetic fields. This results in near-instantaneous acceleration and ultra-high precision.

Pros: Extremely fast, zero mechanical wear, sub-micron accuracy, smooth motion.
Cons: Very high cost, complex control requirements, generates heat and requires cooling.

Best for: Semiconductor manufacturing, high-speed sorting, and advanced research setups where budget is not a constraint.

4. Hybrid Systems

Some designs combine drive technologies—for instance, using belts for the X-axis and a ball screw for the Y-axis—to optimize speed and precision selectively.

Pros: Balanced performance, customizable for specific workflows.
Cons: Increased complexity in tuning and alignment, potential mismatch in dynamic response.

Best for: Specialized automation where one axis demands higher precision than the other.

Key Features and Specifications to Evaluate

Selecting the right XY gantry involves evaluating several technical parameters. Ignoring any of these can lead to poor performance or premature failure.

Load Capacity: Determine the maximum weight the gantry must carry, including tools and fixtures. Exceeding rated loads causes deflection and reduced lifespan.
Travel Range: Ensure the working envelope matches your application dimensions. Consider future scalability when choosing frame size.
Positioning Accuracy and Repeatability: Industrial applications typically require ±0.02–0.05 mm repeatability. Check manufacturer datasheets for tested values under load.
Speed and Acceleration: Measured in mm/s or m/min. High-speed operations need robust motors and stiff structures to avoid vibration.
Rigidity and Frame Material: Aluminum extrusions (e.g., 2020, 4040) are common but may flex under load. Steel or reinforced composites offer better stability for heavy-duty use.
Drive Mechanism Quality: Look for pre-tensioned belts, ground ball screws, or high-pole-count linear motors. Poor-quality drives introduce slop and inaccuracies.
Motor Type and Control Interface: Stepper motors suffice for basic tasks; servos are better for closed-loop feedback and dynamic loads. Verify compatibility with your controller (e.g., Arduino, PLC, CNC board).
Environmental Resistance: In dusty or wet environments, consider sealed bearings and IP-rated components.

Pros and Cons

Advantages of Using an XY Gantry:

Precise, programmable motion across a defined area.
Highly adaptable to various end-effectors (e.g., grippers, lasers, probes).
Scalable from desktop units to multi-meter industrial frames.
Supports automation, reducing labor costs and human variability.
Integrates well with vision systems and IoT-enabled monitoring.

Disadvantages and Limitations:

Requires proper calibration and regular maintenance.
Larger systems occupy significant floor space.
Initial setup can be technically challenging for inexperienced users.
Vibration and resonance issues may arise at high speeds if not properly damped.
Cost escalates quickly with increased precision and size.

An XY gantry is ideal when you need consistent, repeatable planar motion. However, it may not be necessary for simple point-to-point movements or applications with tight space constraints.

How to Choose an XY Gantry

Follow this step-by-step guide to make an informed purchase:

Define Your Application Requirements: List required travel distance, payload, speed, and accuracy. Example: “Need 600x600 mm travel, 5 kg payload, ±0.1 mm accuracy for PCB inspection.”
Select the Drive Type: Use belt drives for speed and affordability, ball screws for precision, and linear motors for high-end performance.
Evaluate Structural Rigidity: Choose thicker-profile aluminum (e.g., 40x80 mm) or steel frames for heavier loads. Avoid flimsy kits marketed for “industrial use” without verified specs.
Check Motor and Controller Compatibility: Ensure stepper/servo ratings match your motion controller. Confirm communication protocols (e.g., Modbus, CANopen, pulse/direction).
Assess Assembly and Calibration Needs: Pre-assembled gantries save time but cost more. DIY kits require mechanical aptitude and alignment tools (e.g., dial indicators).
Avoid Red Flags: Be cautious of brands that don’t publish detailed specifications, lack technical documentation, or have no customer support channels. Also, avoid systems with plastic components in load-bearing paths.

Price & Market Insights

Pricing varies widely based on size, materials, and components. Here's a general breakdown:

Entry-Level (DIY Kits): $200–$800. Suitable for hobbyists and light prototyping. Often use GT2 belts and NEMA 17 steppers.
Mid-Range (Pre-Built Units): $1,000–$5,000. Include linear rails, ball screws, and better controllers. Used in small workshops and labs.
Industrial-Grade: $7,000–$30,000+. Feature hardened components, redundant sensing, and safety interlocks. Found in factory automation.

Value-for-money often lies in mid-range systems from reputable suppliers like Hiwin, THK, or Zaber. Consider total cost of ownership—cheaper models may require frequent recalibration or part replacement.

Top-Seller & Competitive Analysis

Popular models vary by region and application. Below is a comparison of widely used systems:

Model	Drive Type	Max Speed	Accuracy	Price Range
Zaber X-LRQ-DE	Belt + Linear Encoder	1000 mm/s	±0.5 μm	$3,500–$6,000
Igus E-Chains XY System	Belt-Driven	500 mm/s	±0.1 mm	$1,200–$3,000
THK SCR Series	Ball Screw	300 mm/s	±0.02 mm	$4,000–$8,000
OpenBuilds PRO Gantry Kit	Belt-Driven	600 mm/s	±0.2 mm	$700–$1,200

Note: Always verify published specs with independent reviews or lab tests. Some manufacturers inflate performance claims.

Customer Feedback Synthesis

Analysis of user reviews across forums and retail sites reveals consistent patterns:

Common Praises:

“Easy to integrate with existing CNC software.”
“Sturdy construction—no wobble even at full extension.”
“Excellent customer support helped resolve alignment issues.”

Frequent Complaints:

“Belt tension loosened after three months of use.”
“Missing parts in shipment delayed assembly.”
“Documentation was unclear; had to rely on YouTube tutorials.”
“Noise increased over time—likely bearing wear.”

These insights highlight the importance of post-purchase support and component durability. Buyers value clear manuals and accessible technical help.

Sourcing & Supplier Tips

When sourcing an XY gantry, consider both local and international suppliers. Major industrial hubs in Germany, Japan, and the U.S. produce high-quality systems, while Chinese manufacturers offer competitive pricing for standard models.

For single units, authorized distributors (e.g., Misumi, McMaster-Carr) ensure authenticity and warranty coverage.
For bulk orders, direct OEM engagement can yield discounts and customization options.
Always request sample units before large purchases, especially for private-label products.
Inspect incoming shipments for damaged components and verify all hardware is included.
Test run the gantry under simulated load conditions before deployment.

Maintenance, Safety & Legal Considerations

Proper maintenance extends service life and ensures safe operation.

Lubricate linear guides and screws according to manufacturer intervals (typically every 3–6 months).
Inspect belts for cracks and tension loss; replace if elongated beyond 2%.
Secure all electrical connections and grounding points to prevent shock hazards.
Install emergency stop buttons and physical limits (mechanical stops or limit switches).
In commercial settings, comply with OSHA (U.S.) or CE (EU) machinery directives regarding guarding and risk assessment.

Keep logs of maintenance activities and calibrations for audit purposes, especially in regulated industries like medical device manufacturing.

Conclusion

Choosing the best XY gantry depends on aligning technical specifications with real-world application demands. Prioritize structural rigidity, drive mechanism quality, and controller compatibility to ensure long-term reliability. While entry-level systems suit hobbyists and light tasks, industrial applications warrant investment in ball screw or linear motor platforms with proven accuracy and support. By following a structured evaluation process—including load analysis, environmental considerations, and supplier vetting—you can select a system that delivers precision, durability, and value. Always validate claims through testing or third-party reviews before finalizing procurement.

FAQs

What is the typical lifespan of an XY gantry system?
With proper maintenance, industrial-grade gantries last 5–10 years. Belt-driven systems may require drive replacements every 2–3 years under continuous use.
Can I upgrade my existing gantry with linear encoders?
Yes, many systems support retrofitting with linear scales for improved feedback. Confirm mechanical clearance and controller compatibility first.
Are XY gantries suitable for vertical mounting?
Only if designed for it. Vertical use increases load on drives and motors; consult manufacturer guidelines before reorientation.
How do I reduce vibration in my gantry system?
Use damping mounts, optimize acceleration profiles, ensure proper belt tension, and verify squareness of the frame.
What software works with XY gantries?
Common options include GRBL, Mach3, LinuxCNC, and proprietary motion controllers. Ensure firmware supports your command language (G-code, ASCII, etc.).
