How to Choose the Best Wire Harness Machine: A Complete Buying Guide

When choosing a wire harness machine, prioritize automation level, compatibility with wire gauges (e.g., 22–14 AWG), terminal crimping precision, and ease of integration into existing production lines. For high-volume manufacturing, fully automated wire harness machines offer superior speed and consistency 1. If you're evaluating how to choose a wire harness machine, focus on models with modular design, real-time diagnostics, and strong after-sales support to ensure long-term reliability and minimal downtime.

Short Introduction

Selecting the right wire harness machine is critical for manufacturers in automotive, aerospace, industrial equipment, and consumer electronics sectors. These machines automate the assembly of wiring systems—complex networks of wires, connectors, terminals, and protective sleeves—that serve as the nervous system of modern electronic devices and vehicles. With rising demand for electric vehicles and smart appliances, investing in an efficient, accurate, and scalable wire harness machine has become essential for maintaining production quality and competitiveness.

About Wire Harness Machines

A wire harness machine is a specialized piece of industrial equipment designed to cut, strip, crimp, twist, mark, and route electrical wires before assembling them into organized bundles known as wire harnesses. These machines range from semi-automatic benchtop units to fully integrated robotic systems capable of producing thousands of harnesses per day.

Typical applications include automotive wiring looms, aircraft control systems, medical devices, home appliances, and telecommunications infrastructure. The core function of these machines is to replace manual labor with precise, repeatable processes that reduce errors, improve safety, and increase throughput.

Why Wire Harness Machines Are Gaining Popularity

The global shift toward electrification and automation is driving rapid growth in the wire harness machine market. According to industry analysis, the automotive sector alone accounts for over 50% of wire harness demand, fueled by increasing complexity in vehicle electronics 2.

Electric vehicles (EVs) require up to three times more wiring than internal combustion engine vehicles, making automated wire harness production not just beneficial—but necessary. Additionally, advancements in Industry 4.0 technologies have made smart wire harness machines more accessible, allowing even mid-sized manufacturers to adopt connected, data-driven production systems.

Other factors contributing to popularity include labor cost reduction, improved product consistency, compliance with strict safety standards (such as ISO/TS 16949), and reduced material waste due to precise cutting and crimping controls.

Types and Variants

Understanding the different types of wire harness machines helps match capabilities with production needs:

1. Manual Wire Processing Stations

Pros: Low upfront cost, easy to operate, suitable for prototyping or repair work.
Cons: Slow output, inconsistent results, limited scalability.
Best for: Small workshops, R&D labs, low-volume customization.

2. Semi-Automatic Machines

Pros: Balanced cost-performance ratio; operator loads components while machine handles crimping and cutting.
Cons: Still dependent on human input; lower throughput than full automation.
Best for: Medium-volume production, contract manufacturers with variable job types.

3. Fully Automatic Wire Harness Machines

Pros: High-speed operation (up to 3,000 cycles/hour), minimal labor required, consistent quality.
Cons: High initial investment, complex setup, requires trained personnel.
Best for: Large-scale OEMs in automotive or aerospace industries.

4. Robotic & Integrated Assembly Lines

Pros: Full end-to-end automation, integration with MES/SCADA systems, real-time monitoring.
Cons: Very high cost, long lead time for installation, inflexible for frequent model changes.
Best for: High-volume, standardized production environments like EV battery pack wiring.

Key Features and Specifications to Evaluate

When assessing what to look for in a wire harness machine, consider the following technical and operational criteria:

Wire Gauge Range: Ensure the machine supports the AWG sizes used in your products (commonly 28–10 AWG). Verify compatibility with both solid and stranded conductors.
Crimping Force Accuracy: Look for closed-loop servo-controlled crimpers with force monitoring and statistical process control (SPC) reporting.
Cutting Precision: Tolerance should be within ±0.1 mm for reliable termination fit.
Terminal Library Support: Check if the machine can store settings for multiple terminal types (e.g., Fakra, Deutsch, Molex).

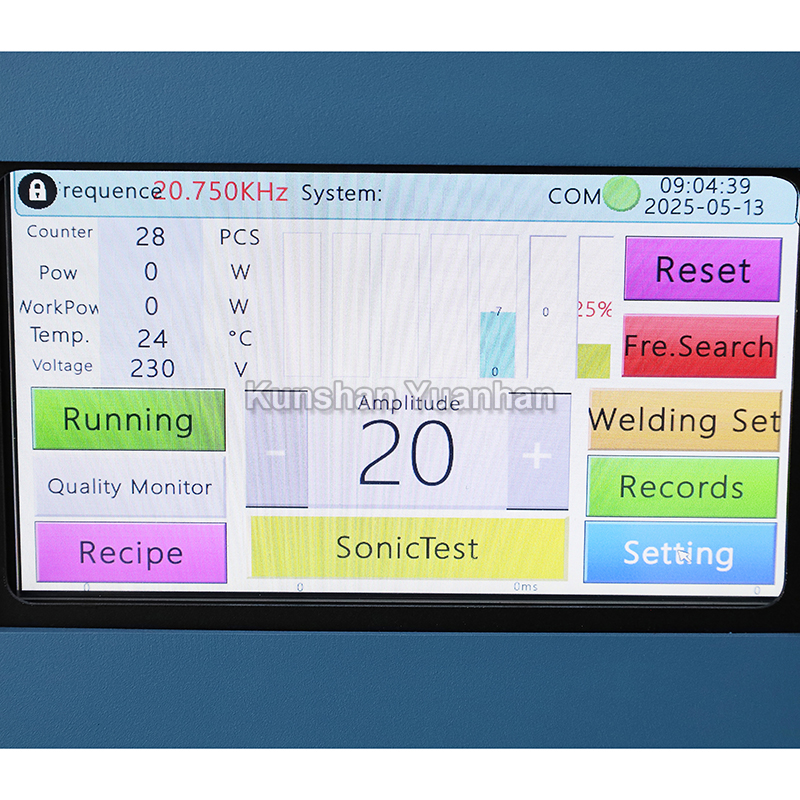

Programmability: Modern machines use touchscreen interfaces with recipe storage, barcode scanning, and error-proofing (poka-yoke).
I/O Connectivity: Ethernet, USB, and digital I/O ports allow integration with factory networks and PLCs.
Safety Interlocks: Essential for operator protection during high-force operations.

Pros and Cons: A Balanced Assessment

Advantages of Using a Wire Harness Machine:

Increased production efficiency and repeatability
Reduced scrap rates through precision control
Improved worker safety by minimizing repetitive strain injuries
Better traceability via built-in data logging
Scalability across product variants with quick changeovers

Disadvantages and Limitations:

High capital expenditure for advanced models
Requires skilled technicians for maintenance and programming
Potential downtime during software updates or mechanical failures
Limited flexibility for highly customized, one-off harness designs
Space requirements may challenge small facilities

How to Choose a Wire Harness Machine

Follow this step-by-step guide to make an informed decision:

Assess Your Production Volume: Determine average daily harness count. Below 500 units/day? Consider semi-automatic. Above 1,000? Explore full automation.
Define Wire and Terminal Requirements: List all wire gauges, insulation types, and connector brands used. Confirm machine compatibility.
Evaluate Automation Needs: Decide between manual loading vs. automatic feeding systems (e.g., reel-to-reel, tray handling).
Check Integration Capabilities: Will it connect to your ERP/MES system? Does it support OPC UA or Modbus protocols?
Review After-Sales Support: Ask about training, spare parts availability, response time for service calls, and warranty terms.
Demand a Trial Run: Request a sample run using your actual components to verify accuracy and speed.
Avoid Red Flags: Be cautious of vendors who don’t provide detailed specs, lack customer references, or pressure quick purchases without demonstrations.

Price & Market Insights

Pricing varies widely based on functionality and origin:

Manual Stations: $1,000 – $5,000
Semi-Automatic Machines: $10,000 – $50,000
Fully Automatic Systems: $80,000 – $300,000+
Robotic Cells: $500,000 and above

Machines from North America or Europe typically command premium prices but often come with better documentation and local support. Asian-made machines (especially from China and Taiwan) offer competitive pricing but vary in build quality—due diligence is crucial. Consider total cost of ownership (TCO), including energy consumption, maintenance, tooling costs, and expected lifespan (typically 8–15 years).

Model Type	Speed (cycles/hr)	Automation Level	Price Range	Best Use Case
Schleuniger CombiCenter 22M	2,200	Fully Auto	$120,000	Medium-to-high volume auto suppliers
Komax Sigma 65	1,800	Fully Auto + Vision	$160,000	Precision aerospace harnesses
Ritmo RT-MINI	800	Semi-Auto	$25,000	Small batch producers
Sumitomo Wiring System AWS-500	1,500	Fully Auto	$95,000	EV component manufacturing

Customer Feedback Synthesis

Analysis of user reviews and industry forums reveals recurring themes:

Common Praises:

"The Komax line reduced our defect rate from 3% to under 0.5%." – Automotive Tier-1 Supplier
"Easy recipe switching saves hours during changeovers." – Industrial Controls Manufacturer
"Reliable German engineering—minimal breakdowns after two years." – European OEM

Frequent Complaints:

"Chinese-made machine failed within six months; no local technician available." – U.S.-based startup
"Software interface is outdated and non-intuitive." – Technician at mid-size firm
"Hidden costs for proprietary crimp tools added $15k to initial quote." – Procurement Manager

Sourcing & Supplier Tips

When sourcing a wire harness machine:

Work with established distributors or directly with OEMs like Schleuniger, Komax, or Sumitomo for reliability.
For budget-conscious buyers, consider certified refurbished units from reputable dealers.
If importing, confirm voltage compatibility (e.g., 220V vs. 380V), CE/UL certification, and shipping logistics.
Negotiate service contracts upfront—some vendors offer free first-year maintenance.
Verify return policies and trial periods before finalizing purchase.

Maintenance, Safety & Legal Considerations

To ensure safe and compliant operation:

Perform routine calibration of cutting and crimping modules every 3–6 months.
Train operators on lockout/tagout (LOTO) procedures and emergency stops.
Use only manufacturer-approved dies and blades to prevent damage and voiding warranties.
Ensure machines meet OSHA (U.S.) or equivalent regional safety regulations for industrial equipment.
Maintain logs of preventive maintenance and quality audits for ISO or IATF 16949 compliance.

Conclusion

Choosing the best wire harness machine depends on your production scale, technical requirements, and long-term strategic goals. For those asking how to choose a wire harness machine, the answer lies in balancing automation level with budget, ensuring compatibility with current and future product lines, and prioritizing vendor support and machine reliability. While entry-level options suit small operations, growing businesses benefit from scalable, intelligent systems that integrate seamlessly into modern manufacturing ecosystems. Always test machines with real-world samples and validate specifications independently before committing.

FAQs

Q: What is the most important factor when buying a wire harness machine?
A: Match the machine’s capacity and precision to your production volume and quality standards—automation isn't always necessary for low-volume runs.

Q: Can one machine handle multiple wire harness designs?
A: Yes, if it has programmable recipes, interchangeable tooling, and flexible feed systems. Confirm this capability with the supplier before purchase.

Q: How often does a wire harness machine need maintenance?
A: Basic cleaning daily; lubrication weekly; full inspection and calibration every 3–6 months depending on usage intensity.

Q: Are used wire harness machines a good option?
A: Refurbished machines from trusted brands can offer value, but verify operational history, remaining lifespan, and availability of spare parts.

Q: Do wire harness machines require special electrical setups?
A: Most industrial models require 220V or 380V three-phase power. Confirm power requirements and grounding needs with facility engineers before installation.
