How to Choose the Best Water Level Sensor Float Switch for Your Application

When selecting the best water level sensor float switch for your system, prioritize reliability, material durability, and compatibility with your fluid type and environment. A high-quality water level sensor float switch ensures automatic control of pumps, alarms, or valves by detecting liquid levels accurately. For most residential and light industrial uses, a vertical tethered float switch made from corrosion-resistant materials like stainless steel or durable plastic offers optimal balance between cost and longevity. If you need continuous monitoring rather than on/off control, consider a multi-level or electronic non-contact sensor instead. Always verify voltage rating, float size, and mounting options to match your tank or sump dimensions and application requirements 1.

About Water Level Sensor Float Switch

A water level sensor float switch is a mechanical or electronic device that detects the rise and fall of liquid in a tank, sump, or reservoir. It operates using a floating element—typically a buoyant sphere or cylinder—that moves with the liquid surface. This movement triggers an internal electrical switch, signaling a pump to turn on or off, activating an alarm, or closing a valve. These devices are commonly used in applications such as sump pumps, wastewater treatment systems, irrigation controls, boiler tanks, and HVAC condensate removal.

The term "float switch" refers specifically to the mechanism: a floating component connected to a switch via arm linkage, magnet, or direct contact. While often used interchangeably, not all water level sensors use floats; some rely on ultrasonic, capacitive, or pressure-based technologies. However, when users search for a water level sensor float switch, they typically mean a simple, reliable, mechanically actuated device ideal for on/off control in both clean and moderately contaminated liquids.

Why Water Level Sensor Float Switch Is Gaining Popularity

Float switches have seen growing demand due to increasing automation in residential, commercial, and industrial settings. Homeowners install them in basements to prevent flooding through automatic sump pump activation. In agriculture, farmers use float-controlled irrigation tanks to maintain consistent water supply without manual oversight. Industrial facilities depend on them for process control, ensuring tanks do not overflow or run dry, which can damage equipment.

One major reason for their popularity is simplicity. Unlike complex electronic sensors requiring calibration and power supplies, traditional float switches are passive, self-contained units that work reliably with minimal maintenance. They also offer fail-safe operation—if the float becomes stuck, it often results in a detectable malfunction (e.g., pump stays on), prompting inspection before catastrophic failure occurs.

Additionally, advancements in materials science have improved durability. Modern float switches use UV-stabilized plastics, sealed mercury-free switches, and food-grade components, making them suitable for potable water, chemical tanks, and outdoor installations 2.

Types and Variants

Understanding the different types of water level sensor float switches helps match the right model to your specific needs. Each variant has distinct advantages and limitations based on design, mounting method, and sensing range.

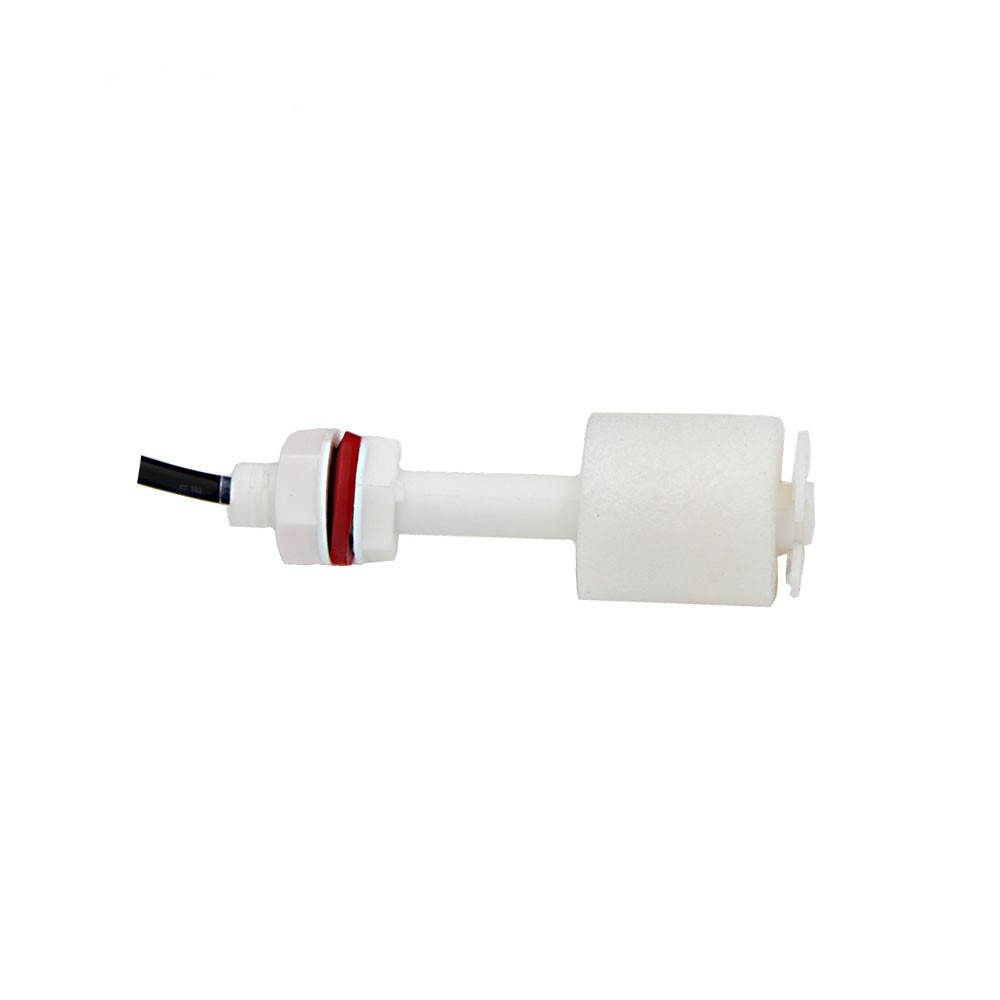

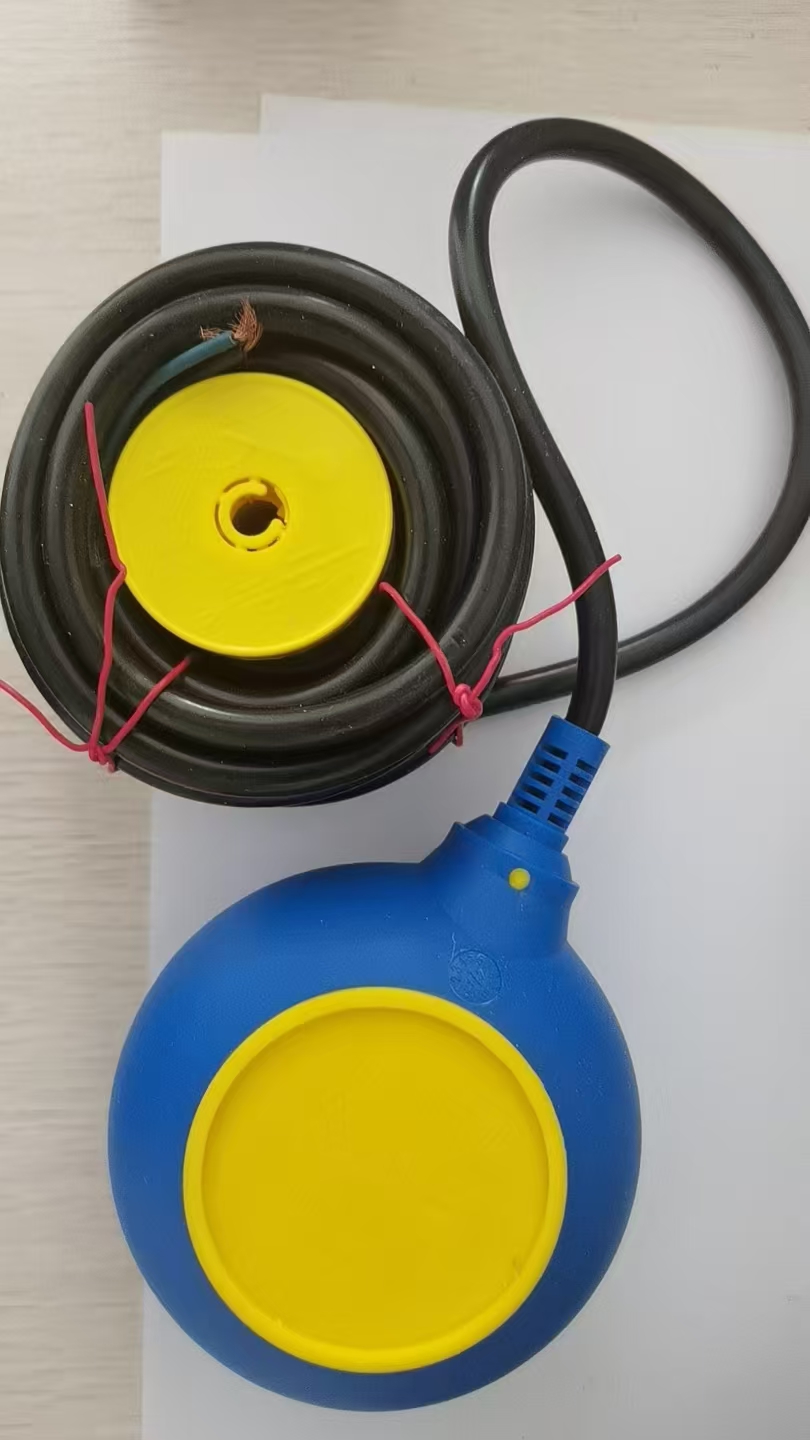

1. Vertical Tethered Float Switch

This is the most common type—a spherical float attached to a flexible cable or rigid rod, allowing it to rise and fall vertically within a confined space. As the float reaches preset heights, it tilts and activates a microswitch.

Pros: Compact, affordable, easy to install in narrow tanks.
Cons: Limited travel range; prone to tangling if multiple units are used.

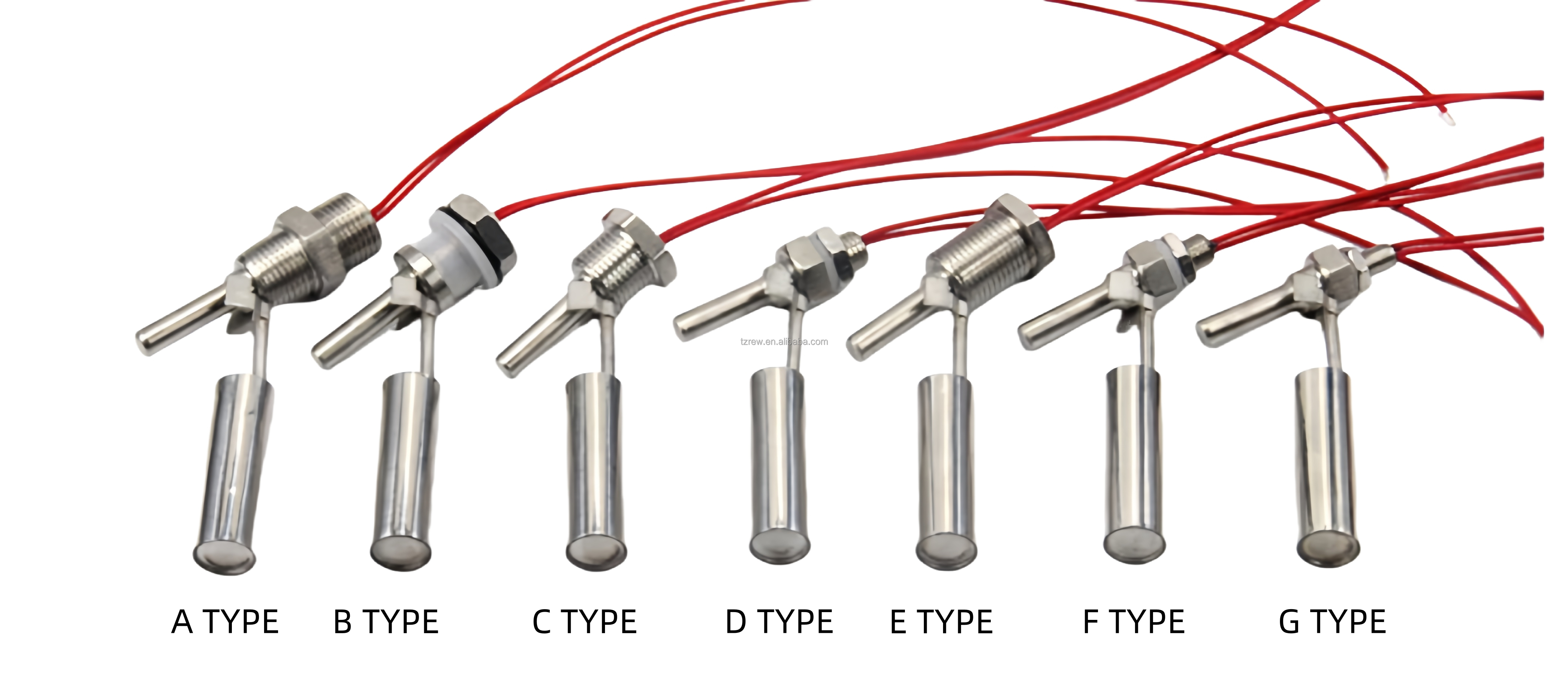

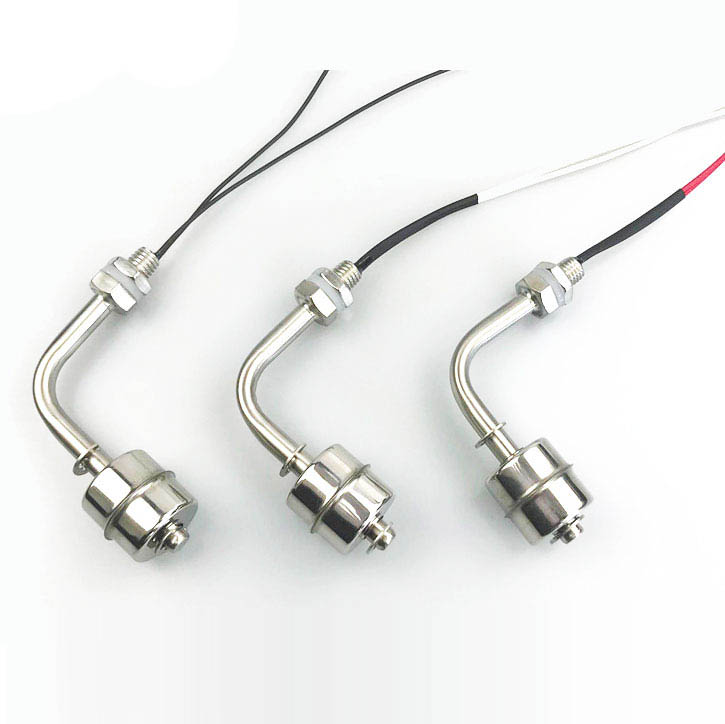

2. Side-Mounted Arm-Type Float Switch

Mounted through a side port, this switch uses a lever arm with a float at the end. The arm pivots as the liquid level changes, triggering the switch at upper or lower set points.

Pros: Durable, adjustable trip points, good for large tanks.
Cons: Requires precise alignment; may leak if seal fails.

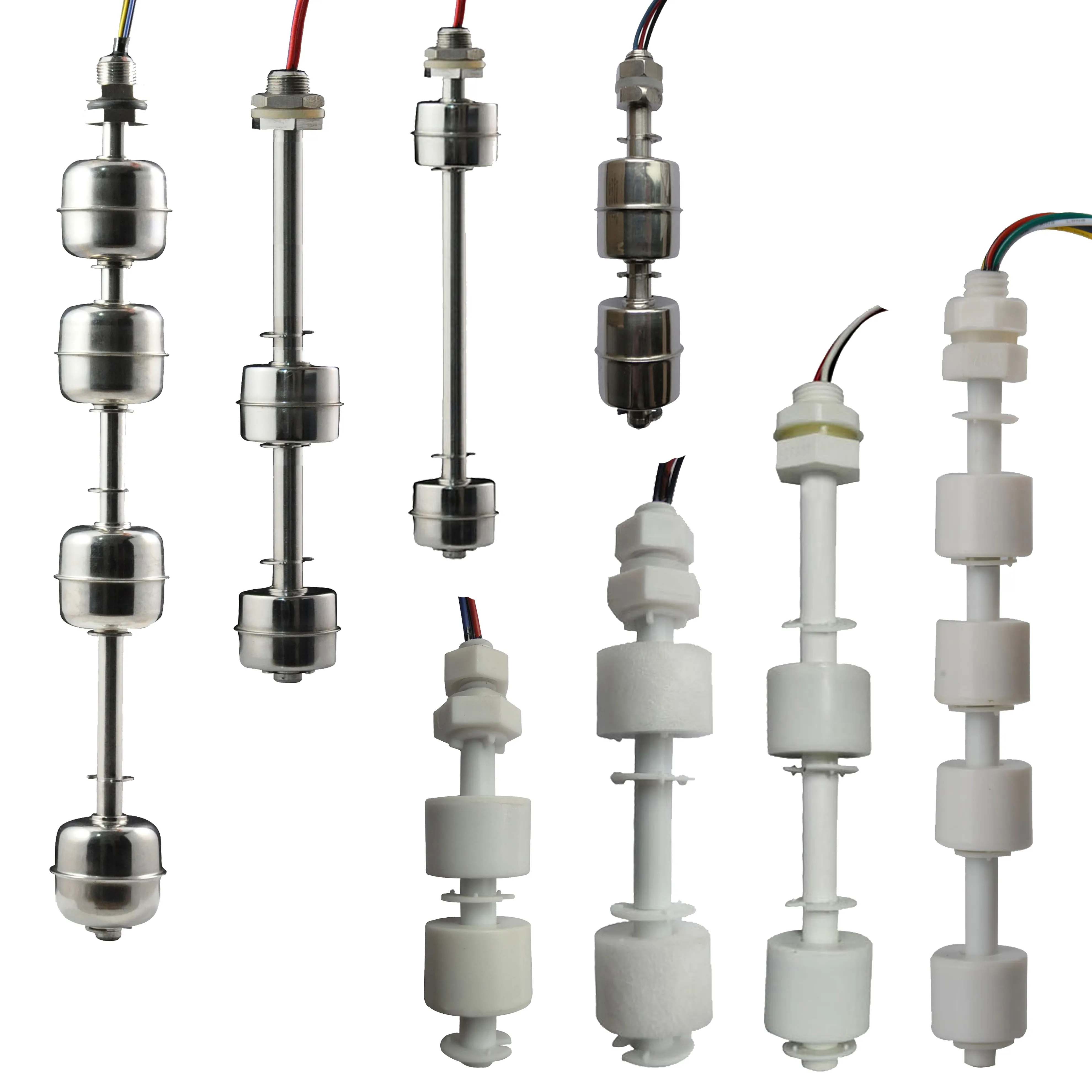

3. Multi-Stage Float Switch

Contains several floats or a single float with multiple contacts, enabling dual or triple-level detection (e.g., low, medium, high). Often used in pump control panels where staggered pump starts reduce wear.

Pros: Enables advanced control logic; reduces cycling frequency.
Cons: More expensive; wiring complexity increases.

4. Cable-Suspended (Long-Length) Float Switch

Designed for deep wells or tall tanks, these feature a weighted float that slides along a fixed vertical cable. Movement triggers a switch housed at the top.

Pros: Suitable for depths over 10 feet; stable in turbulent fluids.
Cons: Installation requires secure anchoring; potential for debris buildup.

5. Non-Contact Electronic Sensors (Alternative)

Though not mechanical float switches, ultrasonic or conductive level sensors are sometimes considered alternatives. They detect level without moving parts.

Pros: No mechanical wear; ideal for viscous or sticky fluids.
Cons: Higher cost; sensitive to foam, vapor, or coating.

Key Features and Specifications to Evaluate

To make an informed decision when choosing a water level sensor float switch, assess the following technical and operational factors:

Voltage and Current Rating: Ensure the switch matches your pump or controller’s electrical load (e.g., 120V AC, 10A resistive). Exceeding ratings shortens lifespan.
Switch Type: SPDT (single pole double throw) allows both normally open and closed configurations. SPST is simpler but less flexible.
Material Construction: PVC and polypropylene resist corrosion in acidic or alkaline environments. Stainless steel is better for high temperatures or food-grade applications.
Temperature Range: Standard models work up to 80°C (176°F); check specs for extreme conditions.
Fluid Compatibility: Avoid plastic floats in hydrocarbon solvents unless rated. Use EPDM or Viton seals for aggressive chemicals.
Mounting Style: Top-mount, side-mount, or submersible? Confirm thread size (NPT, BSP) and clearance space.
Cable Length: Longer leads reduce need for extensions but increase cost. Typical lengths: 3 ft to 20 ft.
Hysteresis (Differential): The gap between on and off levels. Larger hysteresis prevents rapid cycling in fluctuating levels.

Pros and Cons

Advantages:

Simple, proven technology with decades of field reliability.
No external power needed for basic operation (mechanical switching).
Cost-effective compared to electronic sensors.
Works well in dirty water, sewage, and slurries where optical or capacitive sensors fail.
Fail-safe designs available (e.g., normally closed for high-level alarms).

Disadvantages:

Moving parts can jam due to debris, scale, or biofilm.
Limited precision—only provides discrete on/off signals, not continuous data.
May require periodic cleaning or inspection.
Not ideal for very small tanks or tight spaces unless compact models are used.
Mercury switches (older models) pose environmental hazards—avoid unless sealed and compliant.

How to Choose a Water Level Sensor Float Switch

Follow this step-by-step guide to select the right unit:

Define Your Application: Is it for a sump pit, septic tank, cooling tower, or drinking water storage? This determines material and safety requirements.
Determine Mounting Constraints: Measure available height, access points, and orientation. Can you top-mount or must it be side-mounted?
Select Float Type: Choose vertical tethered for narrow pits, arm-type for wide tanks, or multi-stage for dual-pump setups.
Check Electrical Compatibility: Match switch rating to your pump’s motor load. When in doubt, choose a higher amperage rating.
Evaluate Fluid Properties: Consider pH, viscosity, temperature, and presence of oils or solids. Select chemically resistant materials accordingly.
Decide on Control Logic: Do you need low-level shutoff, high-level alarm, or both? Some switches support dual functions.
Verify Certifications: Look for UL, CSA, or NSF markings if required for safety or potable water use.
Avoid These Red Flags: Unbranded products with no datasheet, unclear IP rating, or missing max current specs.

Price & Market Insights

Pricing varies significantly based on build quality, materials, and features:

Budget Tier ($8–$20): Basic plastic-bodied switches for residential sump pumps. Often lack certifications and long-term durability.
Mid-Range ($20–$50): Reinforced housing, longer cables, stainless steel hardware. Suitable for commercial or frequent-use applications.
Premium ($50+): Industrial-grade with explosion-proof housings, multi-point control, or custom configurations. Used in municipal or manufacturing settings.

While cheaper models may suffice for intermittent home use, investing in a mid-tier switch often pays off in reduced maintenance and longer service life. Avoid extremely low-cost imports unless reviews confirm reliability.

Model Type	Avg. Price	Best For	Lifespan Estimate
Vertical Tethered (Plastic)	$12	Residential sump pumps	2–4 years
Arm-Type (Stainless Steel)	$35	Commercial tanks	5–7 years
Multi-Stage (Industrial)	$65	Wastewater plants	7+ years
Cable-Suspended	$45	Deep well monitoring	5 years

Customer Feedback Synthesis

Analysis of hundreds of verified buyer reviews reveals consistent patterns:

Common Praises:

"Installed it in my basement sump and haven’t had a flood since. Simple and effective."
"The stainless steel arm feels solid—no wobbling even after months of use."
"Easy wiring and perfect fit for my 300-gallon holding tank."

Frequent Complaints:

"Float got stuck after six months—cleaned out sludge and works again, but expected better sealing." (Indicates need for regular maintenance in dirty water.)
"Wire insulation cracked early—probably not UV resistant despite claims." (Highlights importance of verifying material specs.)
"Didn’t realize it was only SPST—needed changeover contacts for my control panel." (Emphasizes checking switch configuration beforehand.)

Sourcing & Supplier Tips

For individual buyers, reputable online retailers like Grainger, McMaster-Carr, or Amazon (with verified seller status) offer reliable access to branded float switches. Always review product specifications directly from the manufacturer’s PDF datasheet, not just the retailer listing.

If sourcing in bulk for integration or resale:

Request samples before placing large orders.
Confirm warranty terms and return policies.
Ask suppliers for compliance documentation (e.g., RoHS, UL certification).
For OEM integration, consider private labeling or定制 solutions from manufacturers in North America or EU for faster support.

Maintenance, Safety & Legal Considerations

Regular inspection is critical. Test the float monthly by manually lifting it to ensure the pump activates. Clean the float and guide rod every 6–12 months, especially in hard water or biological environments.

Safety-wise, always disconnect power before servicing. Use GFCI protection for outdoor or wet-location installations. Never modify the switch housing—this voids safety certifications.

Legally, devices used in potable water systems must comply with local health codes. In the U.S., look for NSF/ANSI 61 certification for components in contact with drinking water. In Europe, WRAS approval may be required. Industrial users should follow machine safety directives (e.g., ISO 13849) when integrating switches into automated systems.

Conclusion

Choosing the right water level sensor float switch comes down to matching the device to your environment, control needs, and budget. For most homeowners, a vertical tethered switch made of durable plastic will suffice. Commercial and industrial users benefit from robust arm-type or multi-stage models with metal components and certified ratings. Prioritize clear specifications, proper electrical compatibility, and material resistance over price alone. By understanding the types, evaluating key features, and learning from real-world feedback, you can select a reliable solution that prevents overflow, protects equipment, and automates liquid level management effectively.

FAQs

Q: What is the difference between a float switch and a water level sensor?
A: A float switch is a type of water level sensor that uses a physical floating element to trigger a mechanical switch. Other sensors (e.g., ultrasonic or pressure-based) detect level electronically without moving parts.

Q: Can I use a float switch in oily or chemical liquids?
A: Yes, but only if the float and seals are made from compatible materials like PVDF, PTFE, or Viton. Always check the manufacturer’s chemical resistance chart before installation.

Q: How long do float switches typically last?
A: In clean water, 5–7 years is common. In harsh or dirty environments, lifespan may drop to 2–3 years without maintenance.

Q: Are mercury float switches still safe to use?
A: Modern switches use sealed mercury-free mechanisms. Older mercury-based models pose environmental risks if broken and should be recycled properly.

Q: Can I install a float switch horizontally?
A: Most are designed for vertical movement. Horizontal installation may prevent proper actuation. Check the manufacturer’s orientation guidelines first.
