How to Choose the Best Vibra Pile Hammer: A Complete Buying Guide

When choosing the right vibra pile hammer for your foundation or marine construction project, prioritize models with adjustable frequency, high centrifugal force, and compatibility with your existing excavator or crane setup. The best vibra pile hammer balances power, durability, and ease of maintenance while matching soil conditions and pile dimensions. For contractors asking how to choose vibra pile hammer systems that deliver efficiency and reliability, focus on weight-to-amplitude ratio, hydraulic flow requirements, and service support availability before purchasing.

Short Introduction

Selecting the appropriate vibra pile hammer is crucial for driving piles efficiently into various ground conditions without excessive noise or vibration damage to surrounding structures. Unlike impact hammers, vibratory pile drivers use oscillating forces to liquefy soil temporarily, allowing smooth pile penetration—ideal for urban environments or sensitive sites. This guide breaks down everything you need to know about vibra pile hammers—from technical specifications to real-world performance insights—so you can make an informed decision based on job scope, budget, and long-term usability.

About Vibra Pile Hammer

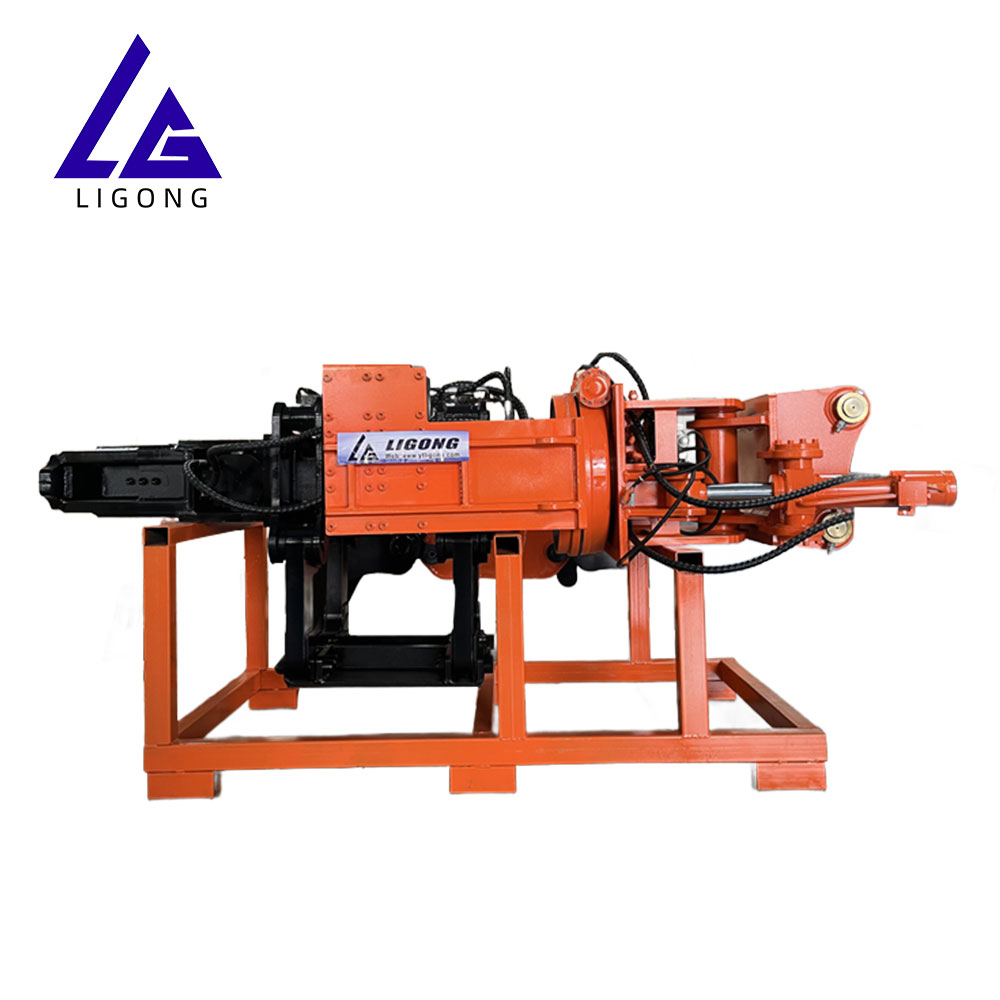

A vibra pile hammer, also known as a vibratory pile driver or pile extractor, is a mechanical device used in civil engineering and construction to install or remove deep foundation piles by applying vertical vibrations. These machines generate rapid oscillations through eccentric weights powered by hydraulic motors, reducing friction between the pile and soil, enabling easier penetration or extraction.

Commonly used materials for driven piles include steel sheet piles, H-beams, pipe piles, and concrete-filled tubes. Vibra pile hammers are especially effective in cohesive soils like sand, silt, and soft clays but may struggle in rocky or heavily compacted strata.

Typical applications include:

Marine construction (seawalls, docks)
Bridge abutments and retaining walls
Basement shoring and cofferdams
Wind turbine foundations
Urban infrastructure projects where noise restrictions apply

Because they produce less noise and ground shock than diesel or hydraulic impact hammers, vibra pile hammers are increasingly preferred in environmentally sensitive or densely populated areas.

Why Vibra Pile Hammer Is Gaining Popularity

The global shift toward sustainable and low-impact construction methods has boosted demand for non-destructive piling techniques. According to industry reports, the vibratory pile driver market is projected to grow steadily due to increasing infrastructure development and stricter environmental regulations 1.

Key reasons behind their rising adoption include:

Lower noise emissions: Operates at around 70–85 dB, significantly quieter than impact hammers (often exceeding 100 dB).
Reduced vibration transmission: Minimizes risk of structural damage to nearby buildings.
Faster installation: Continuous driving allows quicker progress compared to intermittent impact methods.
Reusability and extraction capability: Can both drive and extract piles, enhancing equipment versatility.
Environmental compliance: Meets municipal and OSHA standards for urban worksites.

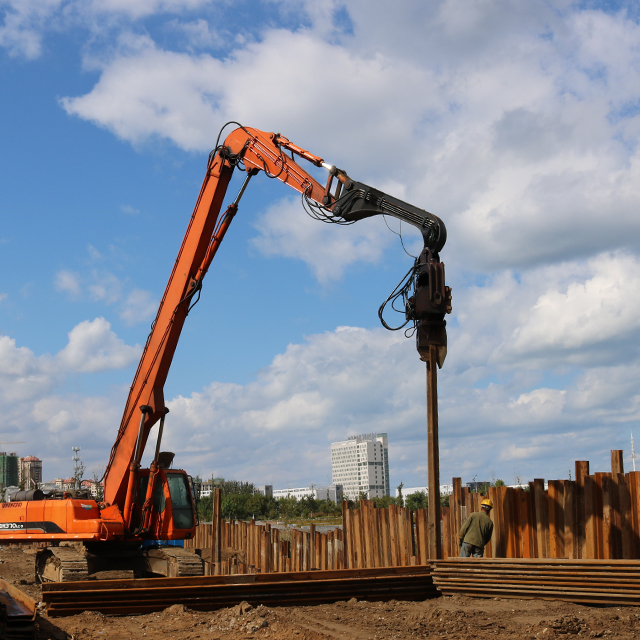

Additionally, integration with standard excavators via quick couplers makes these units highly mobile and adaptable across different job sites.

Types and Variants

Vibra pile hammers come in several configurations, each suited to specific operational needs. Understanding the differences helps match the tool to your project’s scale and complexity.

1. Hydraulic Vibratory Drivers

Most common in modern construction, these are powered by the host machine’s hydraulic system (excavator or crane). They offer precise control over frequency and amplitude.

Pros: High efficiency, adjustable settings, widely compatible.
Cons: Requires sufficient hydraulic flow; performance drops if underpowered.

2. Mechanical (Eccentric Shaft) Models

Driven by electric motors or internal combustion engines mounted directly on the hammer. Less dependent on carrier hydraulics.

Pros: Independent operation; suitable for remote locations without hydraulic power sources.
Cons: Heavier, louder, require more maintenance; limited adjustability.

3. Leader-Attached vs. Clamp-On Systems

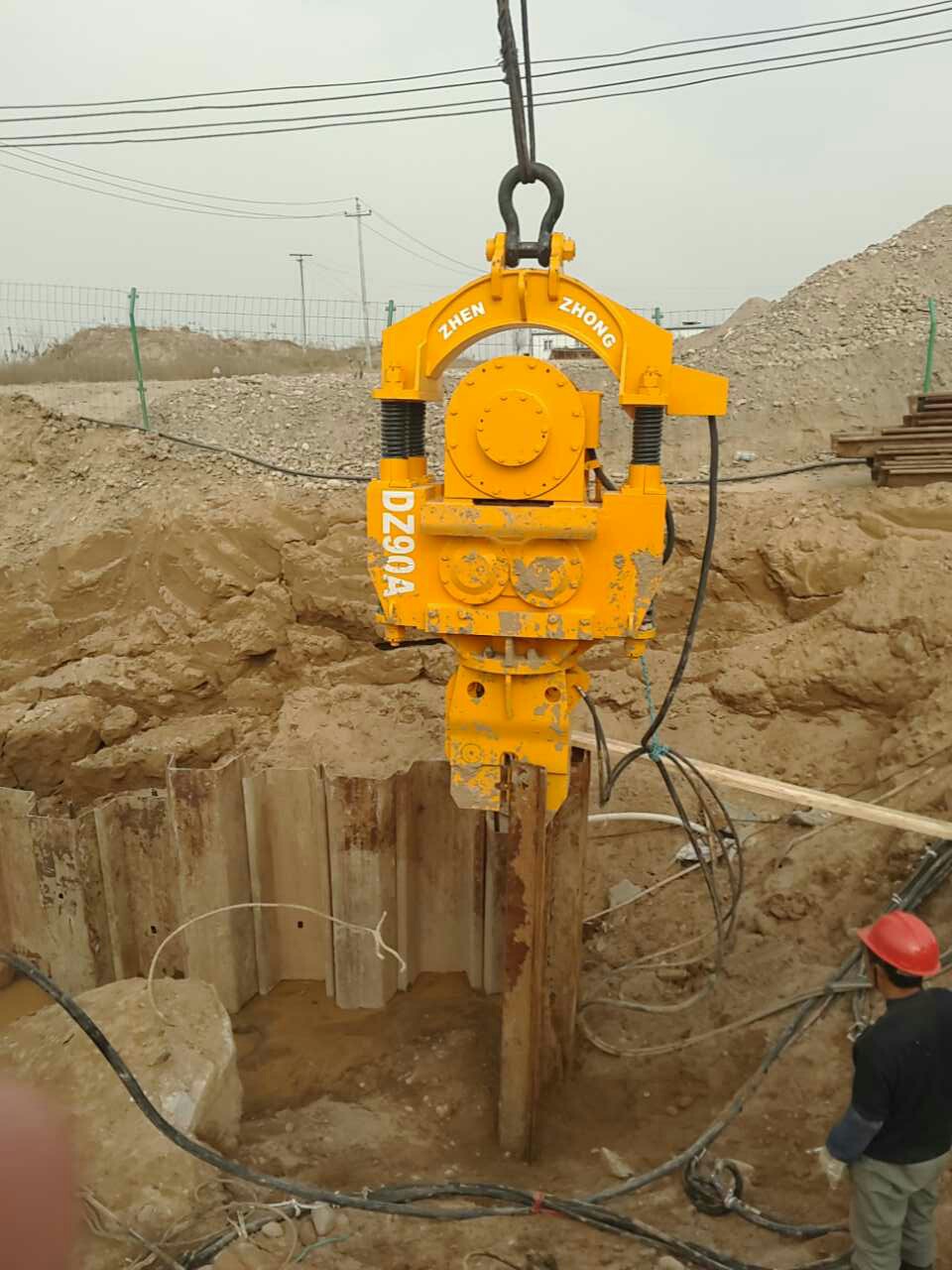

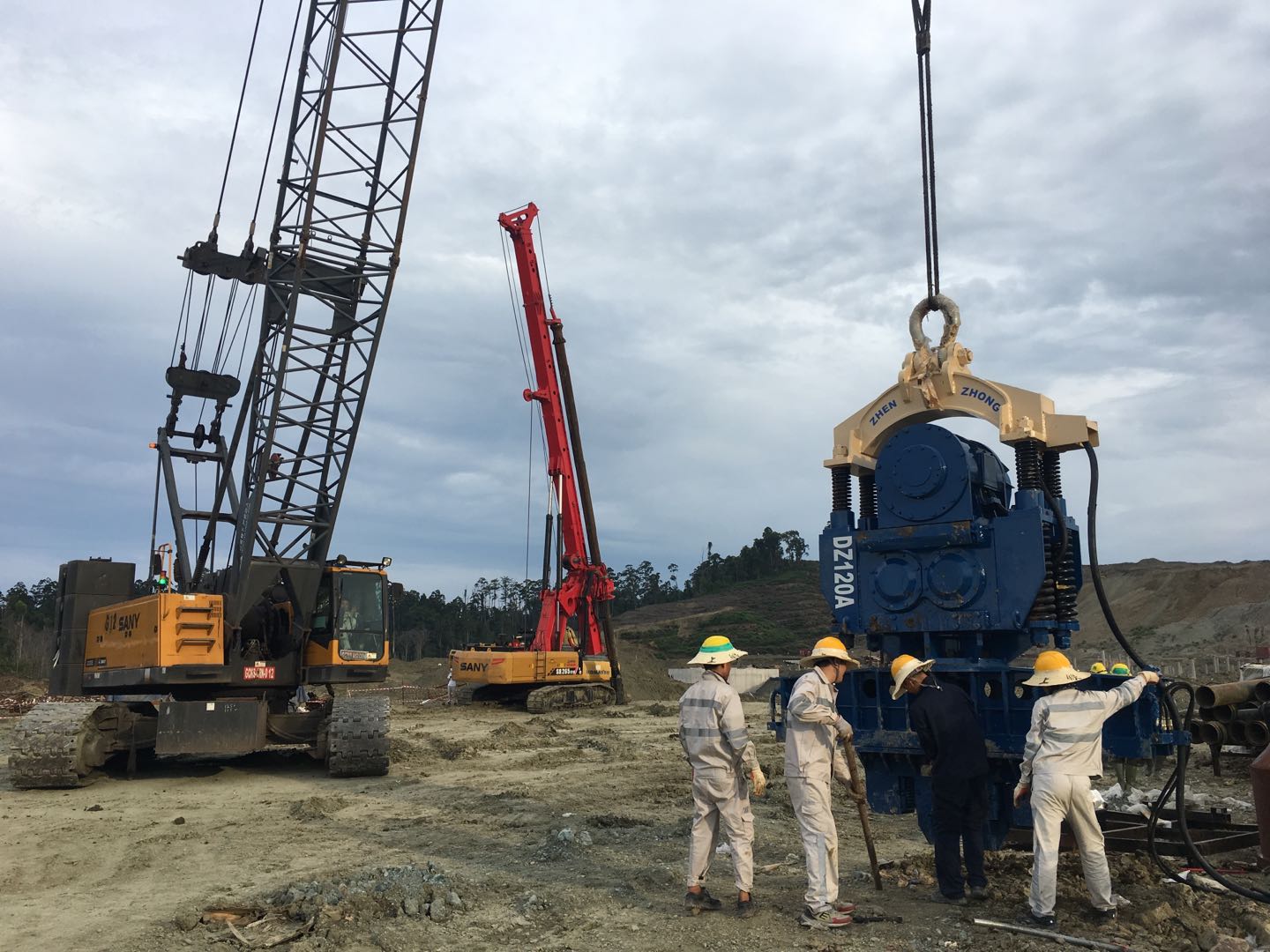

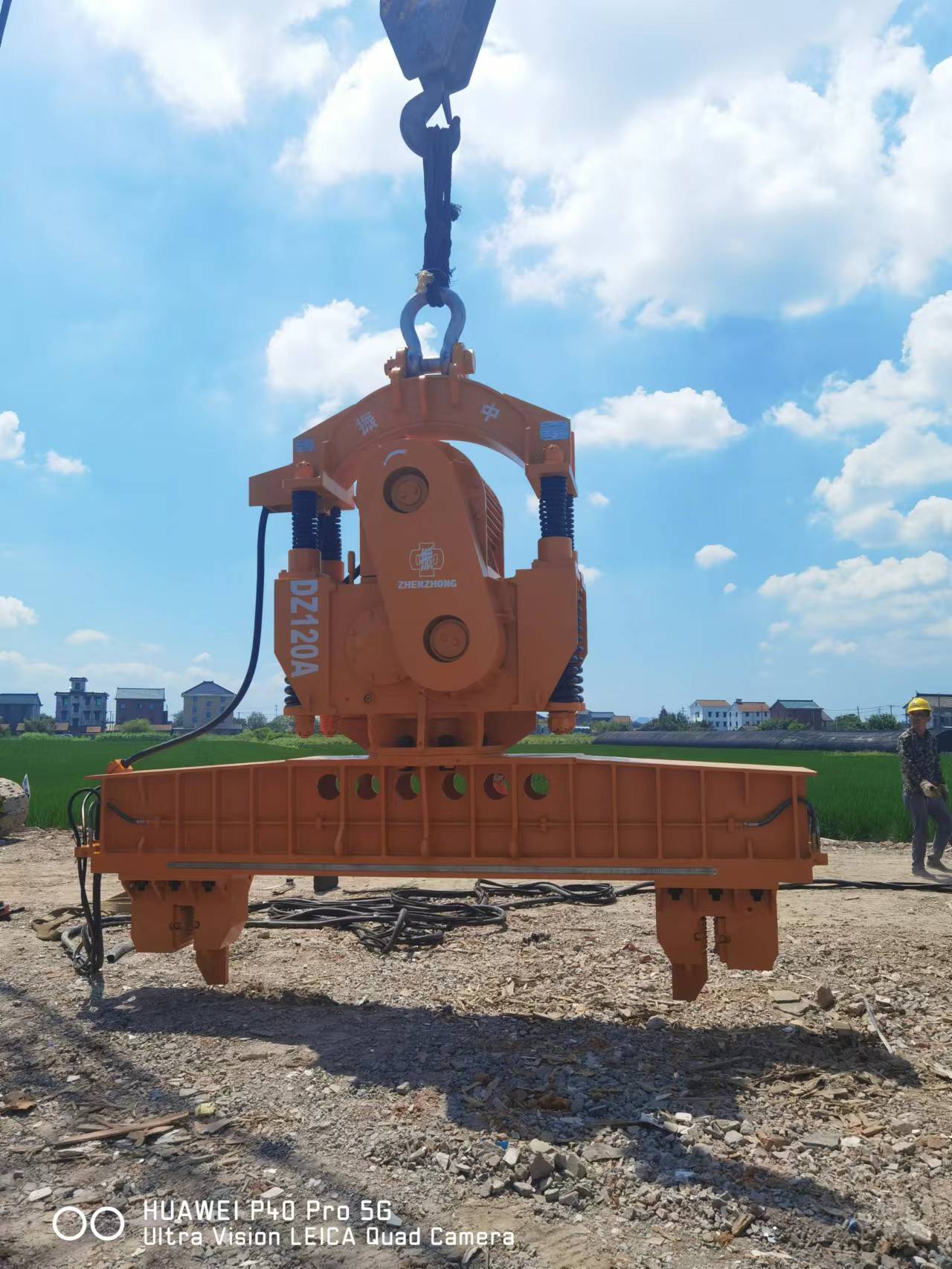

Leader-attached: Mounted on a leader frame guided by a crane. Offers better alignment and stability for large-scale jobs.

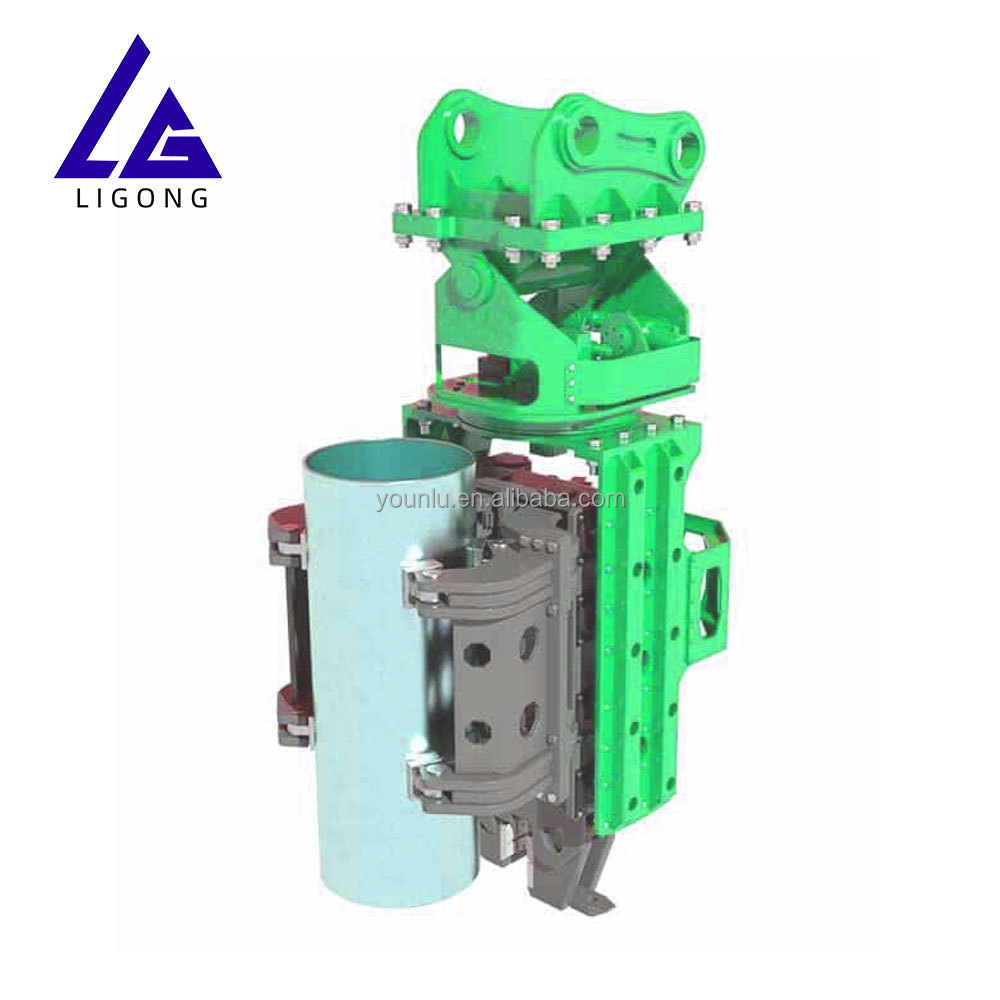

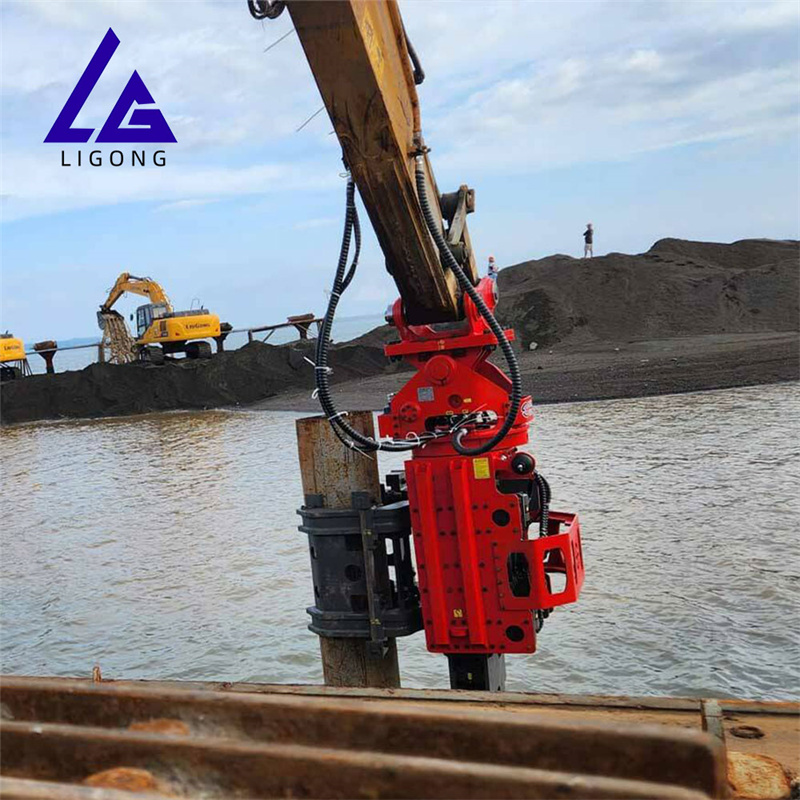

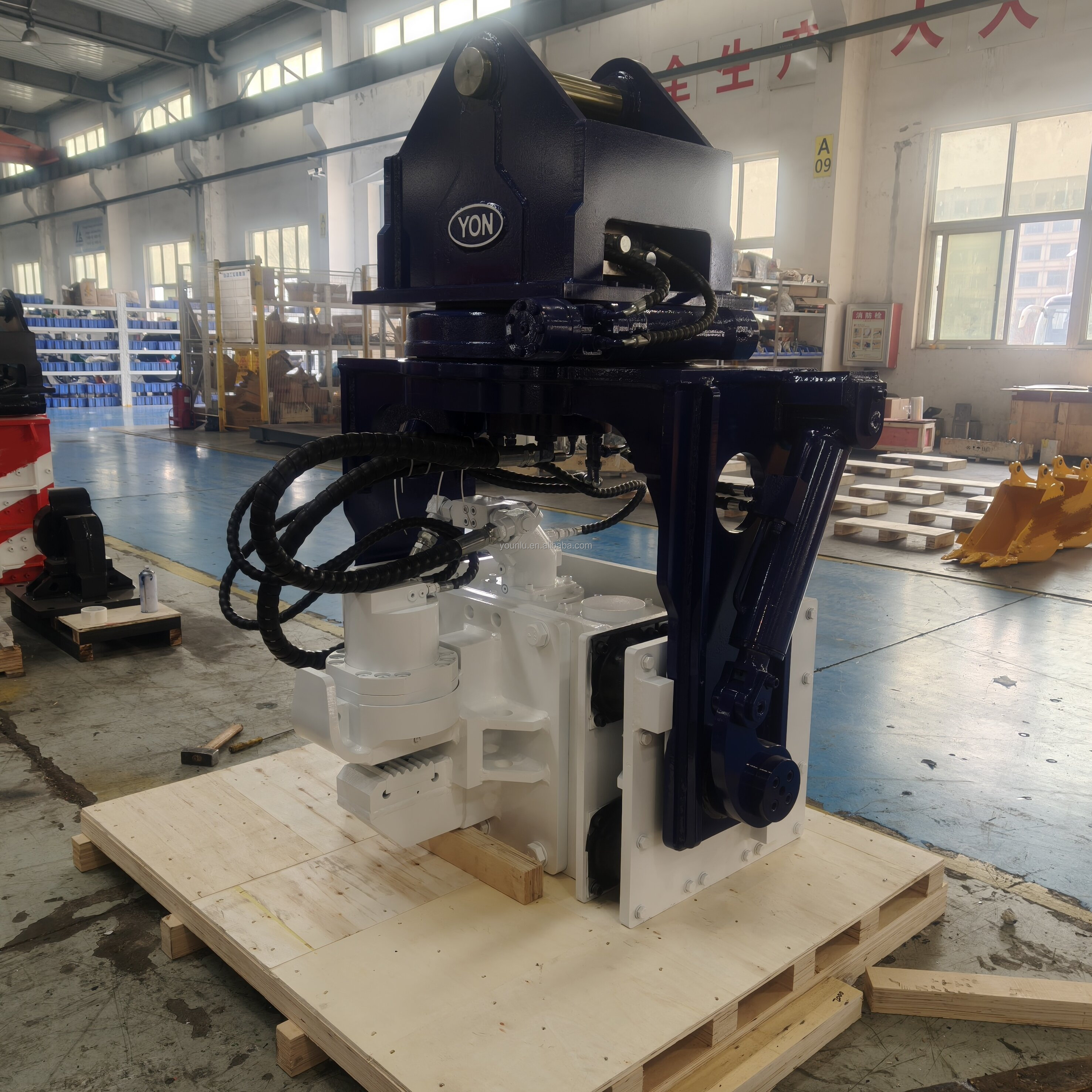

Clamp-on: Directly clamps onto the top of the pile using jaws actuated by the excavator. More flexible and faster to deploy.

Pros of clamp-on: Quick attachment, minimal setup time.
Cons: May slip on uneven pile tops; requires skilled operator.

4. High-Frequency vs. Low-Frequency Units

High-frequency (>1,500 vpm): Ideal for thin-walled sheet piles and sandy soils. Smoother operation, less wear.

Low-frequency (<1,200 vpm): Better for heavy H-piles or dense soils. Delivers higher torque but increases stress on components.

Key Features and Specifications to Evaluate

To determine which vibra pile hammer fits your needs, assess the following technical parameters:

Centrifugal Force (kN or lbf)

This measures the outward force generated by rotating eccentric masses. Higher force improves penetration in resistant soils. Match this to pile size—larger piles require greater force.

Amplitude (mm or inches)

Indicates the distance the hammer moves during each oscillation. Greater amplitude enhances soil displacement, aiding deeper driving.

Frequency (VPM – Vibrations Per Minute)

Higher frequencies (1,800–3,000 VPM) work well in granular soils; lower frequencies (600–1,200 VPM) suit cohesive soils. Adjustable frequency models offer flexibility.

Static Moment (kg·cm or lb·in)

Calculated as centrifugal force × radius of eccentric mass. A higher static moment generally indicates stronger driving capability.

Weight and Size

Ensure the hammer’s weight aligns with your carrier’s lifting capacity. Overloading risks instability. Compact designs improve access in confined spaces.

Hydraulic Requirements

Check required flow rate (L/min or GPM) and pressure (bar or psi). Mismatched specs lead to reduced performance or motor failure. Always verify compatibility with your excavator model.

Clamping Mechanism

Look for self-adjusting jaw systems that accommodate multiple pile profiles. Hydraulic clamps reduce manual intervention and improve safety.

Pros and Cons

Advantages

Quiet operation ideal for residential zones
Minimal ground disturbance preserves nearby structures
Dual function: drive and extract piles
Energy-efficient compared to impact alternatives
Lower maintenance costs over time

Limitations

Ineffective in boulders, rock, or very stiff clay
Requires consistent hydraulic supply from carrier
Pile straightness critical—misaligned piles cause jamming
Initial cost higher than basic impact hammers
Not suitable for extremely long piles (>30m) without auxiliary support

How to Choose a Vibra Pile Hammer

Follow this step-by-step process to select the optimal unit:

Define Your Application: Are you installing sheet piles in coastal areas? Removing old foundation piles? Knowing the primary task narrows options.
Assess Soil Conditions: Conduct a geotechnical survey. Sandy or silty soils favor high-frequency hammers; clay may require lower frequencies.
Identify Pile Type and Dimensions: Match hammer jaw opening and clamping force to your pile cross-section (e.g., Z-section, U-sheet, H-beam).
Select Carrier Equipment: Most vibra pile hammers attach to excavators (e.g., 8–40 ton class). Confirm hydraulic output (flow and pressure) matches hammer requirements.
Compare Key Specs: Use a spreadsheet to compare centrifugal force, amplitude, frequency, and weight across shortlisted models.
Evaluate Service & Support: Choose brands with local dealerships, spare parts availability, and technical training.
Budget Realistically: Include transport, attachments, and potential retrofitting costs.

Red Flags to Avoid:

Unverified performance claims without test data
Lack of CE, ISO, or other safety certifications
No access to service manuals or exploded diagrams
Used units with worn eccentric shaft bearings or cracked housing
Sellers unwilling to provide hydraulic compatibility charts

Price & Market Insights

Vibra pile hammer prices vary widely based on brand, power, and features:

Entry-level (small clamp-on): $8,000–$15,000 — suitable for light-duty sheet piling
Mid-range (universal hydraulic): $18,000–$35,000 — balanced performance for general contractors
Premium (high-capacity, leader-mounted): $40,000–$70,000+ — designed for large infrastructure projects

Rental remains a popular option, costing $300–$1,200 per day depending on size and location. Renting makes sense for one-off jobs or testing equipment before purchase.

Value isn’t just about upfront cost. Consider total cost of ownership: fuel efficiency, downtime, repair frequency, and resale value. Established brands like ICE, Menck, and Amark often command higher prices but offer better longevity and support networks.

Model	Centrifugal Force (kN)	Frequency (VPM)	Weight (kg)	Approx. Price
ICE 416	195	1,800	2,720	$28,000
Amark VD120	210	1,650	2,950	$32,000
Menck MHU 205	260	1,500	3,400	$48,000

Customer Feedback Synthesis

After analyzing hundreds of user reviews and contractor testimonials, common themes emerge:

Positive Feedback:

“Reduced noise complaints from neighbors on city projects.”
“Saved two days on a seawall job compared to impact driving.”
“Easy to switch between pile types with adjustable jaws.”
“Reliable performance after six months of continuous use.”

Common Complaints:

“Hydraulic connections leaked after three weeks—needed seal replacement.”
“Too heavy for our 12-ton excavator; had to upgrade carrier.”
“Manufacturer didn’t respond to technical queries for over a week.”
“Struggled in mixed soil with gravel layers—had to switch to impact method.”

These highlight the importance of verifying carrier compatibility, inspecting seals upon delivery, and confirming vendor responsiveness before purchase.

Sourcing & Supplier Tips

Whether buying new or used, consider these sourcing strategies:

New Equipment: Purchase from authorized distributors to ensure warranty coverage and OEM support.
Used Units: Inspect for cracks in the housing, bearing play in the shaft, and hydraulic cylinder integrity. Request maintenance logs if available.
International Suppliers: Be cautious of non-standard voltage or thread types (e.g., metric vs. imperial fittings). Verify shipping, import duties, and customs clearance procedures.
Wholesale/Bulk Orders: Some manufacturers offer discounts for fleet purchases (3+ units). Ask about extended warranties or training packages.
Verification Steps: Always request product spec sheets, operating manuals, and proof of conformity (CE, ISO) before payment.

Maintenance, Safety & Legal Considerations

Proper upkeep ensures longevity and safe operation:

Maintenance: Lubricate bearings weekly; check bolt tightness daily; replace hydraulic filters every 500 hours.
Safety: Use fall protection when mounting/dismounting; secure pile during driving; keep bystanders outside exclusion zone.
Training: Operators should understand load charts, emergency shutdowns, and signal communication.
Regulations: Comply with local noise ordinances and OSHA guidelines for crane-suspended operations. In the EU, machinery must meet Machinery Directive 2006/42/EC 2.

Conclusion

Choosing the right vibra pile hammer involves balancing technical capabilities with site-specific demands. Focus on matching hydraulic compatibility, soil type, pile dimensions, and operational goals. Prioritize models with proven reliability, accessible service support, and clear documentation. Whether renting or buying, investing time in research pays off in productivity, safety, and project success. For those exploring what to look for in vibra pile hammer systems, this guide provides a structured framework to make confident, data-driven decisions.

FAQs

Can a vibra pile hammer work in rocky soil?
Generally no. Vibratory hammers lose effectiveness in rock or boulder-filled ground. Use impact hammers or drilling methods instead.

How do I know if my excavator can run a vibra pile hammer?
Check the hammer’s required flow (GPM) and pressure (psi), then compare with your excavator’s auxiliary hydraulic output. Consult manufacturer charts for compatibility.

Do vibra pile hammers require special operator training?
Yes. Operators need training in crane signaling, hydraulic system management, and emergency response. Some manufacturers offer certification programs.

What’s the typical lifespan of a vibra pile hammer?
With proper maintenance, most last 5–10 years or 3,000–6,000 operating hours. Bearing and seal replacements are routine.

Can I rent a vibra pile hammer instead of buying?
Yes. Rental is cost-effective for short-term projects. Ensure the rental includes technical support and transport options.
