When selecting a tone board with bass, treble, and mid controls, prioritize models that offer independent frequency adjustment, high-quality potentiometers, and compatibility with your amplifier or audio system. A well-designed tone board bass treble mid configuration allows precise sound shaping, making it ideal for audiophiles, musicians, and DIY audio builders seeking balanced output across all frequencies 1. Look for boards with low noise, smooth taper response, and durable construction—especially if used in live or studio environments. Avoid cheap clones with inconsistent labeling or poor solder joints.

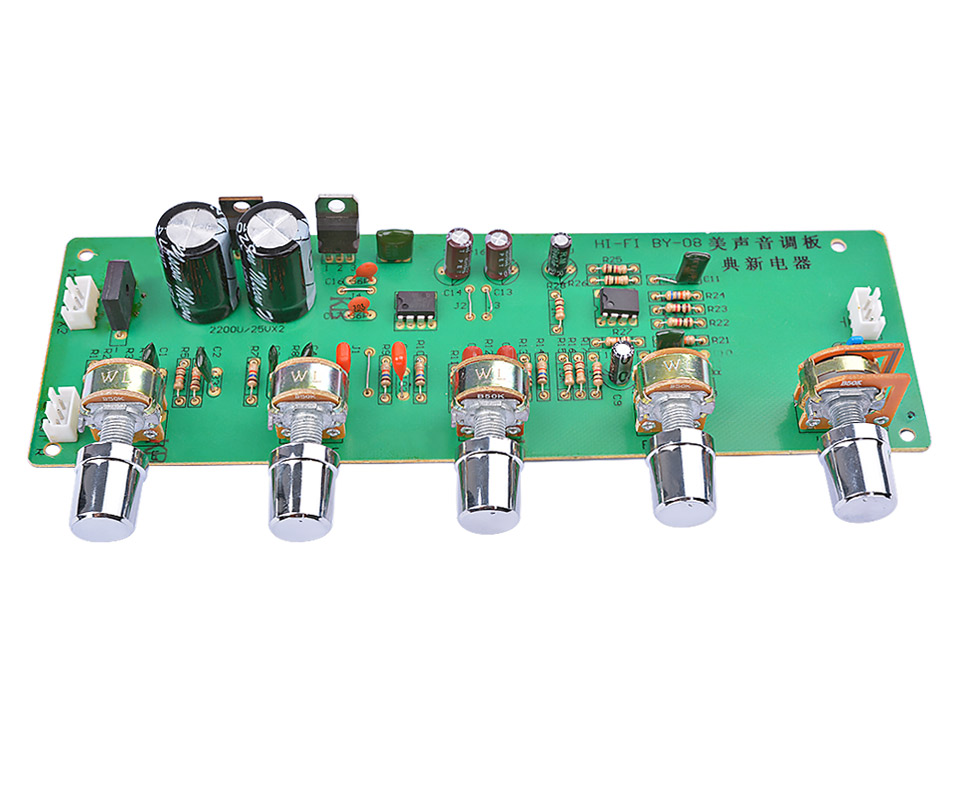

About Tone Board Bass Treble Mid
A tone board with bass, treble, and mid controls is an electronic circuit module designed to adjust specific frequency ranges in an audio signal. These boards are commonly used in guitar amplifiers, hi-fi stereo systems, car audio setups, and custom-built speakers to fine-tune sound characteristics according to listener preference or acoustic environment. The three main sliders or knobs typically control:
- Bass: Low-frequency range (typically 20–250 Hz), affecting depth and punch.
- Mids: Mid-frequency band (around 250 Hz – 4 kHz), influencing vocal clarity and instrument presence.
- Treble: High-frequency range (above 4 kHz), responsible for brightness and detail.
These tone control circuits can be based on passive or active designs. Passive tone boards rely on resistors, capacitors, and inductors without external power, while active versions use operational amplifiers (op-amps) to boost or cut signals more precisely. Active tone boards generally provide greater flexibility and cleaner output, especially when boosting frequencies 2.
Why Tone Board Bass Treble Mid Is Gaining Popularity
The growing interest in personalized audio experiences has driven demand for modular tone control solutions like the tone board bass treble mid setup. With the rise of DIY audio projects, home recording studios, and vintage amp restoration, users want granular control over their sound profile without replacing entire systems.
Additionally, modern listening environments vary widely—from small apartments to outdoor stages—requiring adaptable EQ settings. A dedicated tone board enables real-time adjustments that built-in equalizers may not offer, especially in older or minimalist amplifiers. Musicians appreciate the ability to shape their tone on the fly, while audiophiles value the precision these boards bring to high-fidelity playback.
Online communities and open-source hardware platforms have also contributed to this trend by sharing schematics, modification guides, and user-tested performance data, making it easier than ever to integrate a tone board into existing gear.
Types and Variants
Tone boards with bass, treble, and mid controls come in several configurations, each suited to different applications and skill levels.

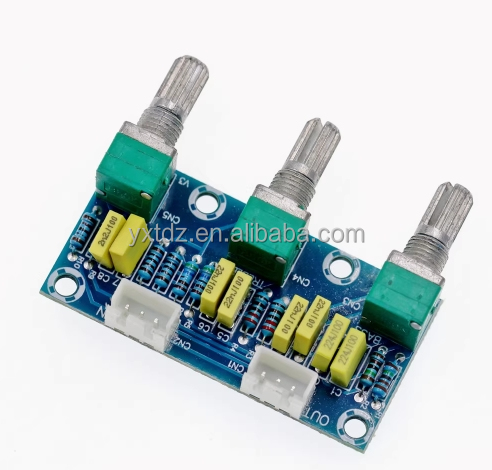

1. Passive Tone Boards
These do not require external power and work by filtering frequencies using RC (resistor-capacitor) networks.
- Pros: Simple design, no power supply needed, minimal signal coloration when well-built.
- Cons: Limited gain capability, potential signal loss when cutting frequencies, less precise than active designs.
Best for: Vintage amp restorations, tube amps where minimal interference is desired.

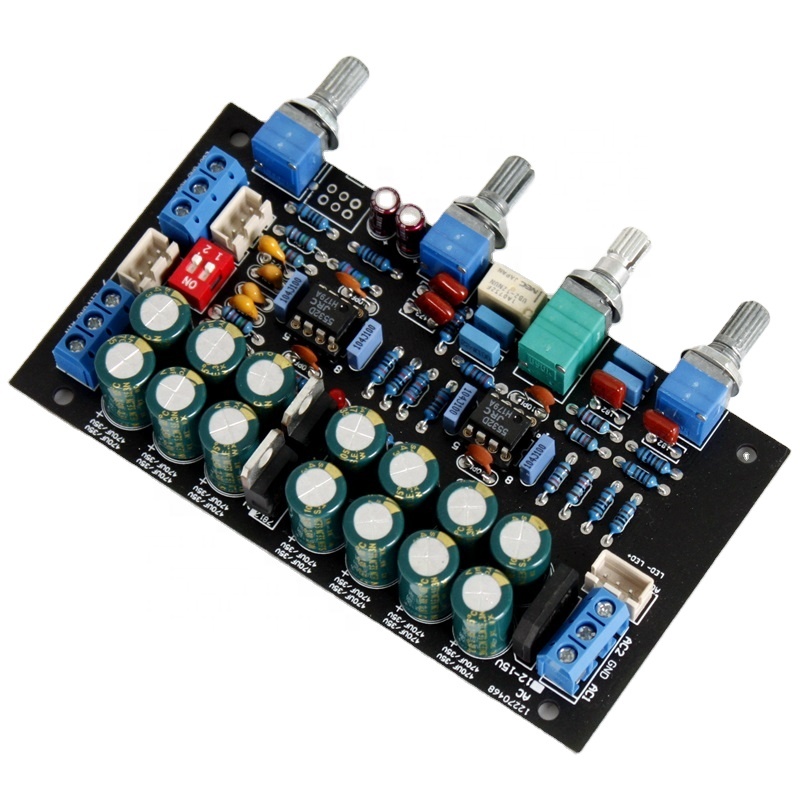

2. Active Tone Boards (Op-Amp Based)
Use powered integrated circuits (like TL072 or NE5532) to amplify or attenuate selected bands.
- Pros: Can boost and cut frequencies, higher precision, better impedance matching.
- Cons: Require DC power (usually ±9V to ±15V), slightly more complex installation.
Best for: Studio monitors, PA systems, or any application requiring wide-ranging EQ adjustments.

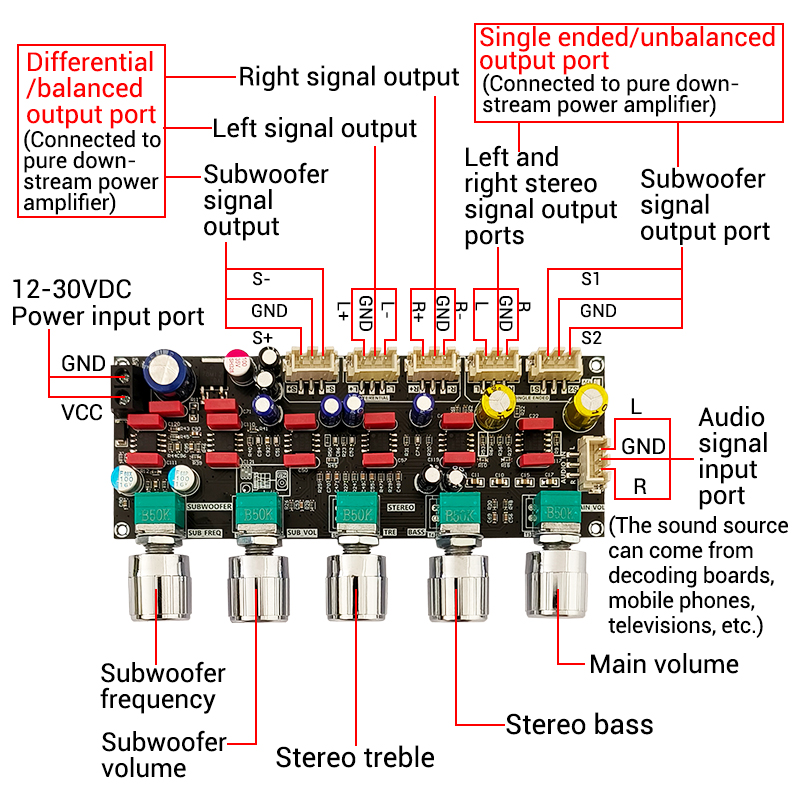

3. Modular vs. Integrated Designs
Modular boards are standalone units that can be added to existing amplifiers or preamps. Integrated ones are built directly into the device’s main PCB.
- Modular Pros: Easy to upgrade or replace; ideal for DIYers.
- Modular Cons: May require additional wiring and enclosure planning.
- Integrated Pros: Cleaner layout, factory-calibrated.
- Integrated Cons: Harder to modify post-manufacture.
4. Baxandall vs. Other Topologies
The Baxandall tone control circuit is one of the most respected designs due to its smooth response and low distortion 3. It's often found in high-end active tone boards.
- Advantages: Symmetrical boost/cut curves, excellent channel separation, minimal interaction between controls.
- Limitations: Requires dual-ganged potentiometers and careful component selection.
Key Features and Specifications to Evaluate
When evaluating a tone board bass treble mid unit, consider the following technical and practical aspects:
Frequency Range and Q Factor
Check the specified center frequencies for each band. Typical values:
- Bass: Centered around 100 Hz
- Mids: Adjustable between 500 Hz – 2 kHz
- Treble: Around 10 kHz
Potentiometer Quality
Use logarithmic (audio taper) pots for natural-sounding volume and tone changes. High-quality sealed or conductive plastic pots last longer and reduce scratchiness.
Signal-to-Noise Ratio (SNR)
Especially important in active boards. Aim for SNR >85 dB to ensure clean output without hiss.
Input/Output Impedance
Must match your source and load devices. Mismatched impedance can cause signal degradation or loading issues. Typical input impedance: 47kΩ–100kΩ; output: ≤10kΩ.
Power Requirements (for Active Boards)
Verify voltage needs (e.g., single 12V or dual ±15V). Some boards include onboard regulators; others require clean external supplies.
PCB Build Quality
Look for FR-4 fiberglass substrate, silk-screened labels, plated through-holes, and consistent soldering. Poorly made boards may suffer from cold joints or trace corrosion.
Pros and Cons
When a Tone Board Bass Treble Mid Is Right for You
- You need precise EQ control beyond basic bass/treble options.
- You’re building or modifying an amplifier, speaker system, or audio interface.
- Your listening environment affects sound balance (e.g., room acoustics coloring mids).
- You want to correct imbalances in lower-cost drivers or legacy equipment.
When It Might Not Be Necessary
- Your system already includes a digital equalizer or DSP processing.
- You lack basic electronics knowledge and fear improper installation.
- Space or power constraints prevent integration (e.g., compact portable devices).
- You only listen to heavily compressed music (e.g., pop, EDM), where tonal nuance matters less.
How to Choose Tone Board Bass Treble Mid
Follow this step-by-step guide to make an informed decision:
- Define Your Use Case: Are you enhancing a guitar amp, improving home stereo clarity, or building a monitor system? This determines whether you need passive or active circuitry.
- Check Compatibility: Ensure the board matches your system’s voltage, impedance, and physical dimensions. Measure available space before ordering.
- Evaluate Control Layout: Prefer separate knobs for each band? Or a rotary switch for mid-frequency selection? Clear labeling is essential.
- Assess Build Materials: Prioritize boards with metal-shaft potentiometers and robust connectors. Avoid flimsy plastic enclosures unless for temporary testing.
- Review Circuit Topology: If possible, identify whether it uses a proven design like Baxandall or shelving filters.
- Read User Feedback: Look for recurring comments about noise, durability, or ease of installation.
- Verify Return Policy: Especially when buying from third-party sellers or overseas suppliers, confirm return options in case of defects.
Red Flags to Avoid
- No schematic or datasheet provided.
- Vague product descriptions (e.g., “high quality” without specs).
- Inconsistent knob labeling or reversed rotation direction.
- Extremely low price compared to known brands—could indicate counterfeit components.
Price & Market Insights
Tone board prices vary significantly based on complexity, brand, and region.
- Budget Tier ($10–$25): Basic passive or simple active boards, often unbranded, sourced from general electronics retailers. Suitable for hobbyists but may lack consistency.
- Mid-Range ($25–$60): Better build quality, often featuring Baxandall circuits or op-amp-based designs. Includes proper shielding and documentation. Ideal for serious DIYers.
- Premium ($60+): Hand-assembled, audiophile-grade components, sometimes with discrete transistors or premium pots (e.g., ALPS, Noble). Used in professional builds.
Value tip: Mid-range boards often offer the best balance between cost and performance. For most users, spending $30–$50 yields reliable results without diminishing returns.
| Model Type | Circuit | Controls | Price Range | Best For |
|---|---|---|---|---|
| Generic 3-Band | Active (LM358) | Bass, Treble, Fixed Mid | $12–$18 | Hobbyist experiments |
| Baxandall Dual Op-Amp | Active (TL072) | Full sweep on all bands | $30–$45 | Hi-Fi preamps |
| Vintage Style Passive | Passive RC | Bass & Treble only | $20–$35 | Guitar amp mods |
| Parametric Mid Module | Active (NE5532) | Selectable mid frequency | $40–$60 | Studio monitoring |
Customer Feedback Synthesis
Based on aggregated reviews from major electronics marketplaces and forum discussions:
Common Praises
- “Much clearer mids after installing the Baxandall board.”
- “Easy to wire and fits perfectly in my project box.”
- “Noticeable improvement in vocal clarity and instrument separation.”
Frequent Complaints
- “One channel was noisy—had to return it.”
- “Knobs turned backwards compared to standard taper.”
- “No instructions included; had to find a schematic online.”
- “Cheap potentiometers started crackling within weeks.”
Sourcing & Supplier Tips
Where you buy your tone board matters:
- Reputable Electronics Retailers: Digi-Key, Mouser, or RS Components offer guaranteed authenticity and detailed specs.
- Specialty Audio Suppliers: Sites like Amplified Parts or Tubedepot cater specifically to amp builders and include application notes.
- Marketplaces (eBay, Amazon, AliExpress): Offer competitive pricing but vary in quality. Filter by seller ratings, read recent reviews, and prefer listings with clear photos and schematics.
For bulk purchases or resale, contact manufacturers directly via Alibaba—but request samples first. Always inspect boards for proper labeling, secure components, and absence of flux residue.
Maintenance, Safety & Legal Considerations
Maintenance: Clean potentiometers periodically with contact cleaner to prevent static and scratching. Store spare boards in anti-static bags.
Safety: Disconnect power before installation. Double-check wiring polarity, especially on active boards requiring DC supply. Avoid touching exposed circuitry when powered.
Compliance: In commercial products, ensure electromagnetic compatibility (EMC) standards are met. While individual hobbyists aren’t usually regulated, selling modified equipment may require FCC certification in the U.S. or CE marking in Europe, depending on emissions and intended use.
Conclusion
Choosing the right tone board bass treble mid solution involves balancing technical requirements, build quality, and intended application. Active Baxandall-type boards offer superior control and are recommended for critical listening environments, while passive designs suit simpler or vintage-style installations. Focus on verified specifications, reputable suppliers, and proper compatibility to avoid common pitfalls. With the correct selection, a tone board enhances audio fidelity, allowing precise customization across the full frequency spectrum.
FAQs
Can I install a tone board in a guitar amp that only has basic tone controls?
Yes, provided there’s space and access to the preamp or power amp stage. You may need to modify the circuit path, so intermediate electronics knowledge is advised.
Do tone boards affect signal strength?
Passive boards can slightly attenuate the signal; active boards maintain or increase level. Proper impedance matching minimizes losses.
What’s the difference between shelving and peaking EQ in tone boards?
Shelving boosts/cuts all frequencies above or below a point (common in bass/treble). Peaking (used in mids) targets a narrow band, offering surgical control.
Are DIY tone board kits worth it?
For learners and tinkerers, yes. Kits teach circuit fundamentals and often cost less than assembled units. However, expect longer assembly time and potential troubleshooting.
How do I test a tone board before final installation?
Use a breadboard or prototype enclosure with a signal generator and headphones/amplifier. Sweep frequencies while adjusting controls to verify smooth response and no distortion.
