How to Choose the Best Temperature Sensor Thermocouple: A Complete Buying Guide

When selecting a temperature sensor thermocouple for industrial, laboratory, or HVAC applications, the best choice depends on your specific environment, accuracy needs, and temperature range. For most high-temperature or rugged environments, a Type K thermocouple with a grounded junction and appropriate sheath material like Inconel offers an optimal balance of durability, response time, and cost-effectiveness 1. Key factors such as thermocouple type (e.g., Type J, K, T, E, N, R, S, B), junction configuration, insulation, and signal compatibility must align with your measurement system and operational demands. Understanding how to choose a temperature sensor thermocouple ensures long-term reliability and avoids common pitfalls like thermal drift or chemical degradation.

About Temperature Sensor Thermocouple

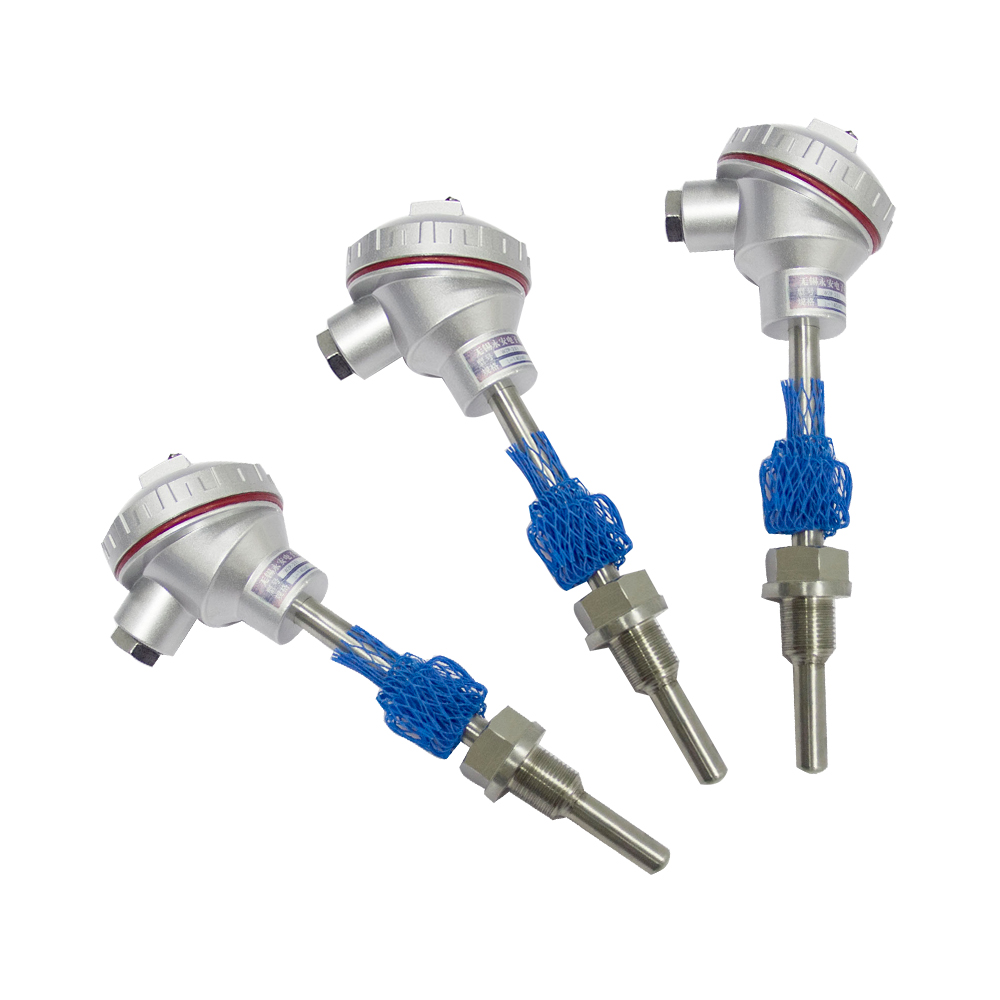

A temperature sensor thermocouple is a widely used device that measures temperature by generating a voltage proportional to the temperature difference between two dissimilar metal wires joined at one end. This principle, known as the Seebeck effect, allows thermocouples to operate without external power and function across extreme temperature ranges—from sub-zero cryogenic conditions to over 2,300°C (4,172°F) in specialized types 2.

Thermocouples are commonly used in manufacturing processes, food processing equipment, furnace monitoring, engine testing, medical devices, and environmental research. Their robustness and fast response make them ideal for dynamic or harsh environments where precision RTDs (Resistance Temperature Detectors) may fail. Unlike digital sensors, thermocouples do not require calibration chips but rely on reference tables and cold-junction compensation in the connected instrumentation.

Why Temperature Sensor Thermocouple Is Gaining Popularity

Temperature sensor thermocouples continue to grow in popularity due to their versatility, wide operating range, and low cost per unit. As automation increases across industries—from smart agriculture to semiconductor fabrication—reliable, real-time temperature monitoring becomes essential. Thermocouples meet this demand with minimal maintenance and proven performance under stress.

Advancements in signal conditioning electronics have also improved thermocouple accuracy, reducing noise interference and enhancing data stability. Additionally, miniaturized probes and wireless transmitters now allow integration into IoT-enabled systems, expanding their use beyond traditional control panels. Their passive design makes them intrinsically safe for explosive or high-voltage environments when properly installed.

Types and Variants

Different thermocouple types are standardized based on metal combinations, each suited for specific temperature ranges and environmental conditions:

• Type K (Chromel-Alumel): Most common; operates from -200°C to +1,260°C. Resistant to oxidation, suitable for general-purpose use. Sensitive to sulfur-rich environments.
• Type J (Iron-Constantan): Range: -40°C to +750°C. Higher output than Type K but prone to rusting above 500°C. Not recommended for vacuum or sulfurous atmospheres.
• Type T (Copper-Constantan): Accurate at low temperatures (-200°C to +350°C). Ideal for food processing and refrigeration. Susceptible to moisture damage if insulation degrades.
• Type E (Chromel-Constantan): High output signal; excellent for cryogenic use (-200°C to +900°C). Non-magnetic, useful in MRI-compatible setups.
• Type N (Nicrosil-Nisil): Stable alternative to Type K; resists green rot and performs well at high temps (+1,280°C max). More expensive but longer-lasting in cyclic heating applications.
• Type R, S (Platinum-Rhodium): Used in high-temperature labs and glass manufacturing (up to 1,768°C). Very stable and accurate but costly and fragile. Require ceramic protection tubes.
• Type B (Platinum-Rhodium): Highest range (up to 1,820°C), used in molten metal and kiln monitoring. Low output at room temp, so not suitable for ambient measurements.

Each variant has trade-offs in cost, sensitivity, longevity, and chemical resistance. Selecting the right type involves matching these characteristics to your application’s thermal profile and exposure risks.

Key Features and Specifications to Evaluate

To determine what to look for in a temperature sensor thermocouple, assess the following technical parameters:

• Temperature Range: Ensure the selected type covers both normal and peak operating temperatures with a safety margin.
• Junction Style: Grounded (fast response, risk of ground loops), Ungrounded (electrically isolated, slower), or Exposed (fastest, only for clean, non-corrosive environments).
• Sheath Material: Stainless steel (general use), Inconel (high heat/corrosion), Ceramic (extreme heat), or PTFE-coated (chemical resistance).
• Insulation Type: Magnesium oxide (standard), fiberglass (flexible), or Teflon (low-temp moisture resistance).
• Probe Length & Diameter: Longer probes increase lag time; thinner diameters respond faster but are less durable.
• Signal Output & Compatibility: Verify millivolt output matches your data logger, controller, or transmitter input specifications.
• Accuracy Class: Standard vs. Special Limits of Error (SLE)—SLE versions offer tighter tolerances, critical in regulated processes.
• Response Time: Depends on mass, junction type, and medium (gas, liquid, solid).

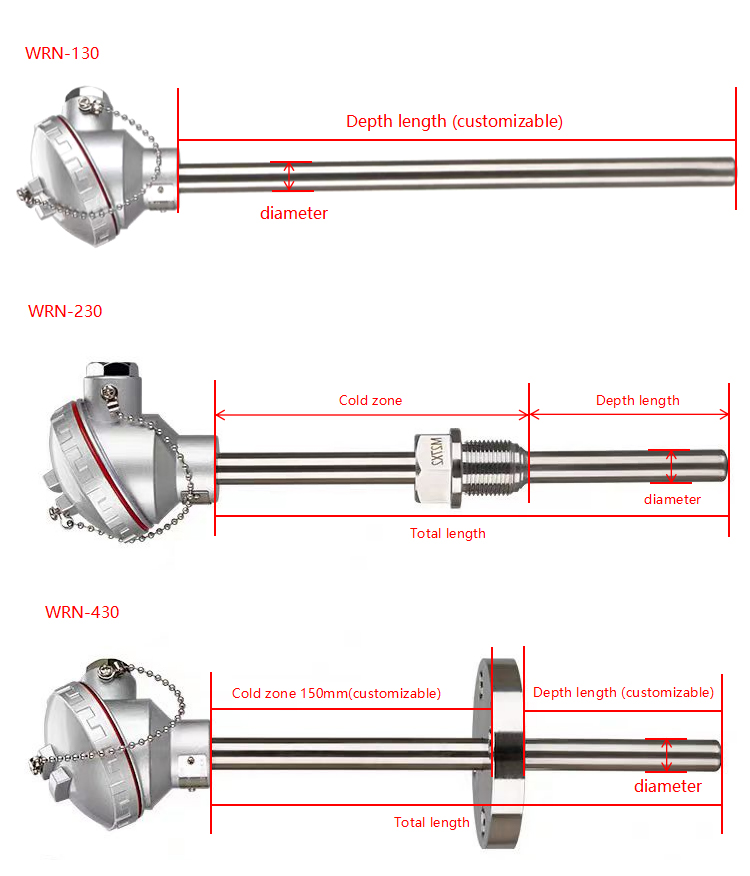

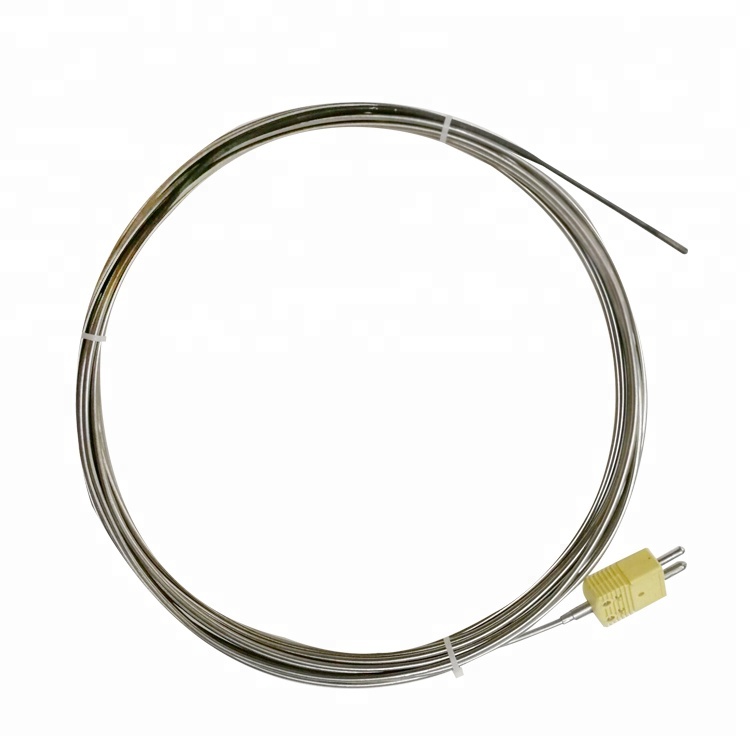

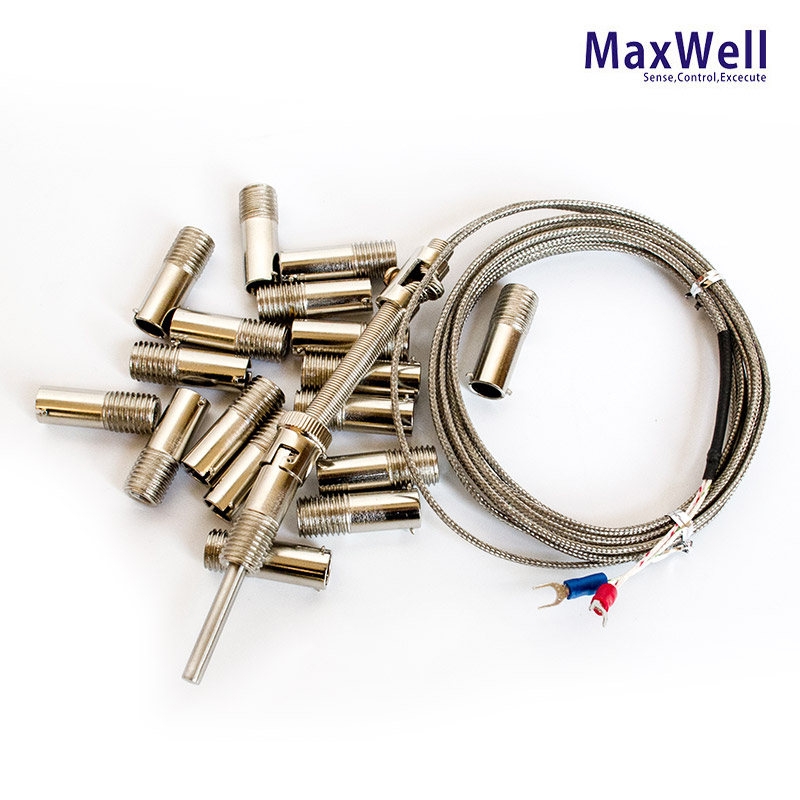

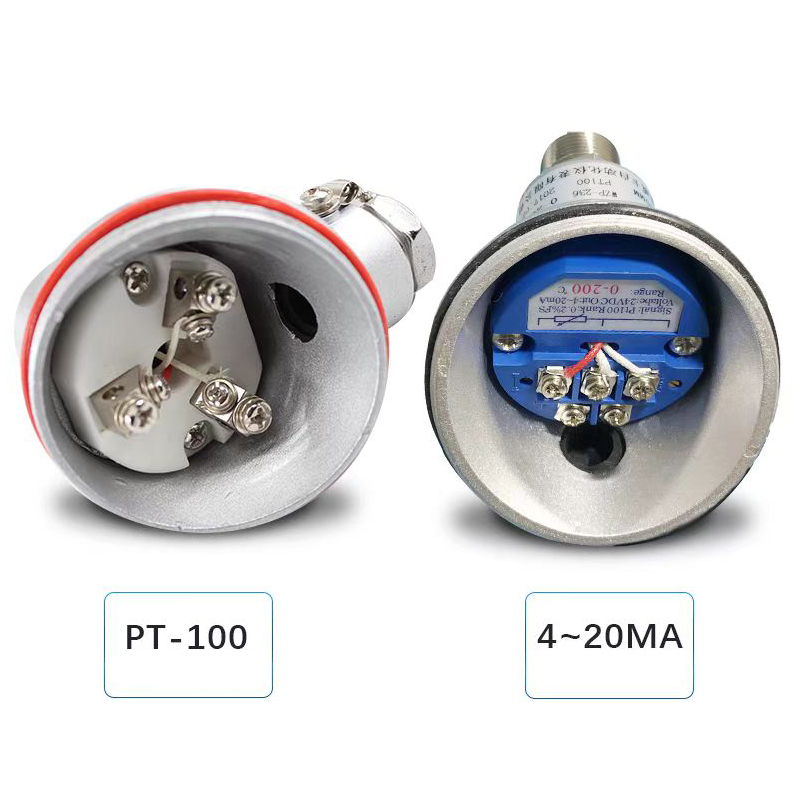

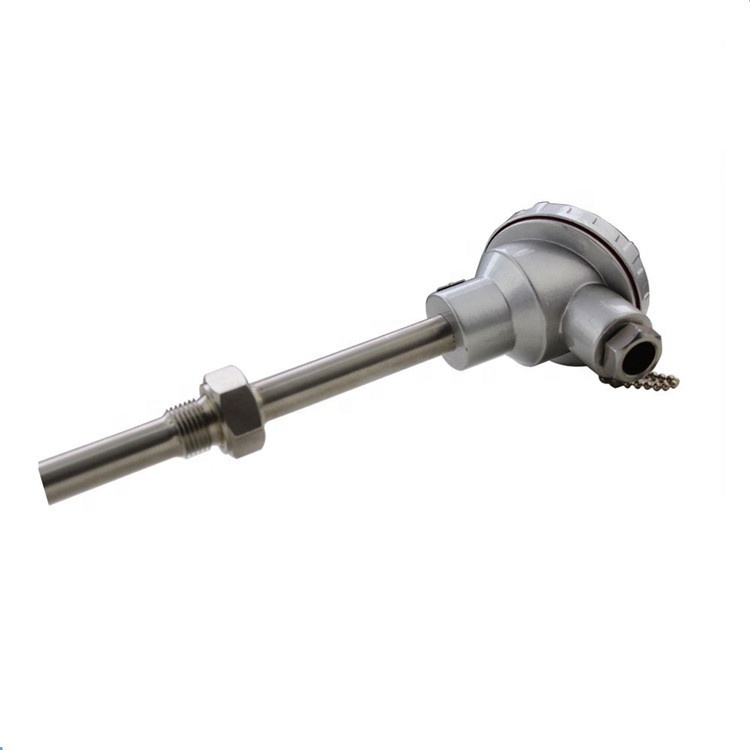

Also consider mechanical features like mounting threads, connectors (e.g., miniature, standard, or M12), and bendability. Some models include integral transmitters converting mV to 4–20 mA signals for long-distance transmission.

Pros and Cons

Advantages:

• Wide temperature measurement range
• No external power required for sensing element
• Rugged construction for industrial settings
• Fast response times, especially with exposed junctions
• Low cost per sensor, ideal for disposable or replaceable setups
• Available in diverse forms: probes, surface sensors, wire pairs

Disadvantages:

• Lower absolute accuracy compared to RTDs or thermistors
• Requires cold-junction compensation in readout device
• Susceptible to electromagnetic interference (EMI) without shielding
• Potential for drift over time, especially in thermal cycling or corrosive environments
• Calibration requires traceable standards and controlled baths
• Metal degradation can affect readings (e.g., 'green rot' in Type K)

Thermocouples are ideal when you need durable, wide-range sensors in non-laboratory environments. They’re less suitable for applications requiring ±0.1°C precision or long-term unattended stability without recalibration.

How to Choose a Temperature Sensor Thermocouple

Follow this step-by-step guide to make an informed decision:

1. Define Your Application: Is it air, liquid, surface, or molten metal measurement? Will it face vibration, moisture, or chemicals?
2. Determine Temperature Range: Choose a type that exceeds your maximum expected temperature by at least 10–15%.
3. Select Junction Type: Use grounded for fast response in conductive media; ungrounded for electrically noisy environments.
4. Pick Sheath Material: Stainless steel for mild conditions; Inconel or ceramic for >1,000°C or corrosive gases.
5. Check Compatibility: Confirm the connector style and signal output work with your existing instruments.
6. Evaluate Response Needs: Thin, exposed junctions react quickly but sacrifice durability.
7. Assess Installation Constraints: Consider probe length, bend radius, and access space.
8. Review Accuracy Requirements: For tight tolerances, select SLE-grade sensors and ensure proper calibration procedures.
9. Look for Certifications: In regulated industries (pharma, aerospace), verify NIST-traceable calibration and compliance with ASTM E230 or IEC 60584.
10. Avoid Red Flags: Be cautious of unlabeled probes, missing calibration data, or unusually low prices indicating counterfeit materials.

Always request specification sheets from suppliers and validate claims against recognized standards. When in doubt, consult engineering documentation or contact technical support before deployment.

Price & Market Insights

Pricing varies significantly based on type, quality, and features. Basic Type K probes start around $10–$25, while high-accuracy SLE or noble-metal types (R, S, B) can exceed $200–$500. Integrated assemblies with transmitters or protective thermowells add $50–$150.

Budget options are available from online marketplaces, but often lack consistency in metallurgy or insulation quality. Mid-tier industrial brands (e.g., Omega, Fluke, Watlow) offer better reliability and documentation. For bulk purchases, expect 10–30% discounts from authorized distributors.

Value isn't solely in upfront cost—consider total lifecycle expenses including replacement frequency, downtime risk, and calibration needs. A slightly more expensive, corrosion-resistant model may outperform cheaper alternatives in aggressive environments.

Type	Temp Range (°C)	Typical Use Case	Avg. Price Range
K	-200 to 1,260	General industrial	$15–$40
J	-40 to 750	Plastics, food	$12–$35
T	-200 to 350	Refrigeration	$18–$45
N	-200 to 1,280	High-cycle furnaces	$25–$60
R/S	Up to 1,768	Lab, glass	$200–$450

Top-Seller & Competitive Analysis

Popular models include the Omega HH-TT-K series handheld probes, Fluke 56-series dual-input thermometers, and Watlow EZ-ZONE RM controllers with integrated thermocouple inputs. These products stand out due to consistent build quality, clear documentation, and global support networks.

Amazon and industrial suppliers like Grainger or Newark carry numerous generic variants. While some perform adequately for intermittent use, user reviews frequently cite inconsistent calibration and short lifespans. Top-selling branded units typically include NIST-traceable certificates, rugged housings, and better cable strain relief.

When comparing options, prioritize transparency in materials and test data over feature lists. A product listing exact alloy percentages and insulation thickness inspires more confidence than vague descriptions like "industrial grade."

Customer Feedback Synthesis

Analysis of verified buyer reviews reveals recurring themes:

Common Praises:

• "Fast delivery and immediate accuracy upon arrival"
• "Durable stainless sheath survived months in a steam line"
• "Perfect fit for my PLC input module—no adapter needed"

Frequent Complaints:

• "Readings drifted after three weeks in a drying oven"
• "Connector broke off during first installation—poor strain relief"
• "No calibration sheet included, had to send it out myself"

Issues often stem from mismatched application expectations rather than inherent flaws. Buyers expecting lab-grade precision from budget sensors report dissatisfaction, whereas those using thermocouples within intended limits generally express satisfaction.

Sourcing & Supplier Tips

Purchase from authorized distributors or directly from manufacturers whenever possible. Third-party sellers on e-commerce platforms may offer lower prices but often lack technical support or warranty services.

For bulk orders, request sample units for field testing before full procurement. Ask about return policies, lead times, and availability of custom lengths or connectors. If sourcing internationally, verify voltage and plug compatibility for any powered accessories.

Inspect received goods for proper labeling, intact cables, and correct termination styles. Cross-check part numbers with manufacturer catalogs to prevent counterfeits.

Maintenance, Safety & Legal Considerations

Regular inspection is crucial. Look for cracked insulation, corroded sheaths, or loose connections. Replace damaged sensors promptly to avoid inaccurate readings or safety hazards.

Ensure proper grounding practices to minimize electrical noise. Avoid routing thermocouple wires near AC power lines to reduce EMI. In hazardous locations, use explosion-proof enclosures and comply with local codes (e.g., NEC Class I Div 1).

In regulated sectors, maintain logs of calibration dates and results. Follow ISO/IEC 17025 guidelines if operating a certified lab. Always adhere to equipment manufacturer instructions regarding installation depth and immersion length to ensure valid measurements.

Conclusion

Choosing the right temperature sensor thermocouple requires balancing application demands with technical specifications. Type K remains the go-to for most industrial uses due to its broad range and affordability, while noble-metal types serve niche high-precision roles. Focus on compatibility, environmental resilience, and supplier credibility to ensure reliable performance. By understanding how to choose a temperature sensor thermocouple through careful evaluation of type, junction, sheath, and accuracy needs, you can optimize both functionality and cost-efficiency in any thermal monitoring setup.

FAQs

Q: What is the most accurate type of temperature sensor thermocouple?
A: Type R and Type S (platinum-rhodium) offer the highest accuracy and stability, especially above 1,000°C, though they are more expensive and delicate.

Q: Can I extend thermocouple wires with regular copper cable?
A: No. Always use extension-grade thermocouple wire matching the sensor type (e.g., KX for Type K) to avoid introducing junction errors.

Q: How often should I calibrate a temperature sensor thermocouple?
A: Annually for general use; more frequently (every 3–6 months) in critical or high-cycling applications. Field verification with a reference probe can supplement formal calibration.

Q: Are all temperature sensor thermocouples interchangeable?
A: Only if they are the same type and have compatible connectors and signal outputs. Mixing types causes significant measurement errors.

Q: What causes a thermocouple to give false readings?
A: Common causes include wire corrosion, poor connections, EMI interference, incorrect cold-junction compensation, or exposure beyond rated limits.
