How to Choose a Table Saw Motor NEMA 3 HP 208 Volt 3 Phase 3450 RPM

When selecting a replacement or upgrade motor for industrial woodworking equipment, the table saw motor NEMA 3 HP 208 volt 3 phase 3450 rpm is a robust and widely compatible option for commercial cabinet shops and heavy-duty applications. This high-performance motor delivers consistent torque and speed under continuous load, making it ideal for facilities using 208V three-phase power systems. If your workshop requires reliable, thermally protected motors with dust and moisture resistance, this NEMA-rated 3 horsepower model running at 3450 RPM offers optimal efficiency and durability. Key considerations include frame size compatibility, service factor, insulation class, and proper electrical wiring setup—factors we’ll explore in depth to ensure you choose the right motor for your saw without overspending or compromising safety.

About Table Saw Motor NEMA 3 HP 208 Volt 3 Phase 3450 RPM

A table saw motor NEMA 3 HP 208 volt 3 phase 3450 rpm refers to a standardized electric induction motor designed specifically for industrial-grade stationary table saws. The designation breaks down as follows: 3 HP indicates its power output; 208 volts is the nominal line voltage; 3-phase means it operates on a balanced three-wire AC power supply commonly found in commercial and industrial settings; and 3450 revolutions per minute (RPM) reflects its full-load speed under typical operating conditions. The “NEMA” rating comes from the National Electrical Manufacturers Association, which sets mechanical and performance standards for motors used across North America.

NEMA Frame 3 motors are typically enclosed in heavy-duty housings that provide protection against dust, oil, and moisture—classified as Type 1 or Type 3R enclosures depending on design. These motors are built to drive large-diameter blades through dense hardwoods and engineered materials without bogging down. They’re often mounted directly onto contractor saws, cabinet saws, or sliding table saws used in production environments where uptime and precision matter.

Why Table Saw Motor NEMA 3 HP 208 Volt 3 Phase 3450 RPM Is Gaining Popularity

The growing preference for 3 HP 208V 3-phase table saw motors stems from several industry trends. First, many modern woodshops and fabrication centers operate on three-phase power due to its superior efficiency, smoother motor operation, and reduced energy costs over time compared to single-phase equivalents. Three-phase motors also start more easily under load and experience less heat buildup during prolonged use.

Additionally, workshops upgrading older single-phase systems are retrofitting machinery to match new electrical infrastructure. The 208-volt standard is common in commercial buildings fed by three-phase wye-configured transformers, making these motors highly compatible with existing building services. As manufacturers phase out inefficient open-frame motors, sealed NEMA designs have become the go-to choice for reliability and compliance with basic environmental protection standards.

Another driver is the increasing demand for consistency in cut quality and feed rates. A 3 HP motor ensures minimal speed drop when cutting thick laminated stock or exotic hardwoods, reducing blade burn and improving edge finish. For businesses billing by the hour or operating on tight production schedules, minimizing downtime caused by motor failure or overheating justifies the higher initial investment.

Types and Variants

While all table saw motor NEMA 3 HP 208 volt 3 phase 3450 rpm units share core specifications, they come in different configurations based on enclosure type, mounting style, and auxiliary features:

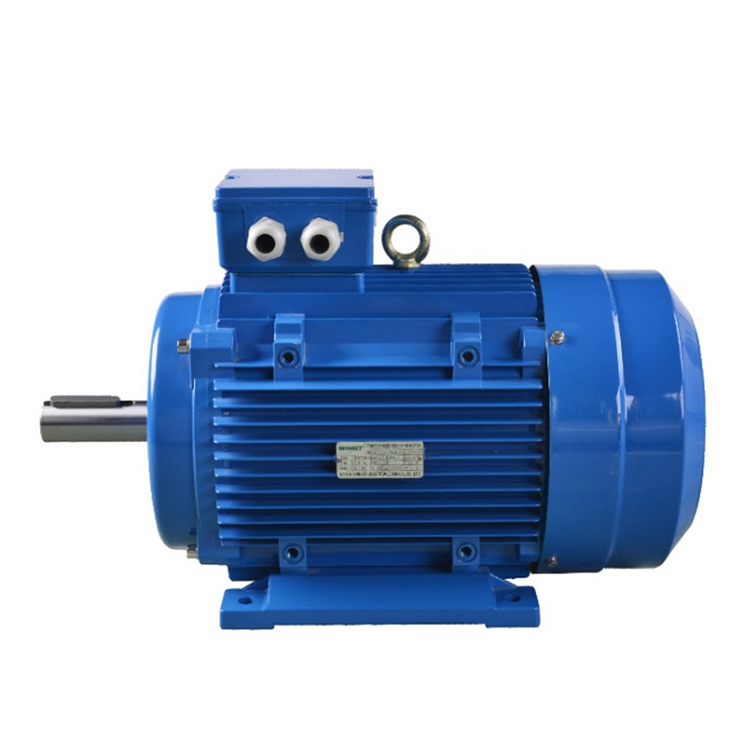

• TEFC (Totally Enclosed Fan-Cooled): Most common variant. Sealed housing prevents dust ingress while a shaft-mounted fan provides cooling. Ideal for dusty shop floors.
  Pros: Durable, low maintenance, suitable for harsh environments.
  Cons: Slightly larger footprint, may require clearance around fins for airflow.
• ODP (Open Drip Proof): Ventilated casing allows internal cooling but offers limited protection against falling debris or liquids.
  Pros: Lower cost, better heat dissipation in clean environments.
  Cons: Unsuitable for sawdust-heavy areas; internal components vulnerable to contamination.
• C-Face vs. Foot Mount: C-face motors attach directly to the saw’s gearbox or pulley system via a threaded front flange, ensuring precise alignment. Foot-mounted versions rely on adjustable base rails.
  Pros of C-face: Rigid connection, no belt tension misalignment.
  Cons: Less flexible for retrofitting non-matching machines.
• Inverter-Ready (Inverter Duty): Designed to handle variable frequency drives (VFDs), allowing speed control. Built with enhanced insulation and rotor construction.
  Pros: Enables RPM adjustment, extends motor life.
  Cons: Higher price; only beneficial if paired with a VFD system.

Always verify whether your saw requires a specific mount type before purchasing. Adapters exist but can introduce vibration or alignment issues.

Key Features and Specifications to Evaluate

To make an informed decision when choosing a how to choose table saw motor NEMA 3 HP 208 volt 3 phase 3450 rpm, evaluate the following technical parameters:

• Service Factor (SF): A multiplier indicating how much overload the motor can handle beyond its rated horsepower. Look for SF ≥ 1.15 for added thermal margin during peak loads.
• Insulation Class: Class F (155°C max) is standard; some premium models offer Class H (180°C), better for hot environments.
• Frame Size: Commonly 184T or 185T for 3 HP motors. Must match your saw’s mounting dimensions and shaft height.
• Shaft Diameter & Length: Typically 5/8" or 7/8" diameter with a keyway. Confirm length matches your pulley setup.
• Capacitor Type: Not applicable for three-phase motors—no start/run capacitors needed.
• Duty Rating: Continuous duty (S1) is essential for table saws running extended shifts.
• Efficiency Rating: Premium Efficient (IE3) motors reduce long-term electricity costs.
• Thermal Protection: Internal resettable protectors prevent burnout from overload or phase loss.

Check manufacturer datasheets carefully. Specifications like locked rotor current and full load amps affect breaker sizing and wire gauge selection.

Pros and Cons

Advantages:

• High starting torque suitable for direct-drive or belt-driven saws.
• Smooth operation with minimal vibration thanks to balanced three-phase input.
• Better energy efficiency than equivalent single-phase motors.
• NEMA 3R-rated enclosures resist dust and light water exposure.
• Longer lifespan under continuous use compared to fractional HP models.

Disadvantages:

• Requires access to 208V three-phase power—unavailable in most residential garages.
• Higher upfront cost than single-phase alternatives.
• Larger physical size may not fit compact saw bases.
• Need for proper phase balancing and grounding to avoid premature failure.
• Not user-serviceable; repairs usually require professional rewind shops.

This motor is best suited for industrial users with compatible electrical service. It’s overkill for hobbyists or part-time makerspaces unless future scalability is planned.

How to Choose a Table Saw Motor NEMA 3 HP 208 Volt 3 Phase 3450 RPM

Follow this step-by-step guide to select the correct motor:

1. Confirm Power Supply: Verify your facility has 208V three-phase power available at the machine location. Use a multimeter to test voltage between phases.
2. Match Frame and Mounting Style: Compare your old motor’s frame number (e.g., 184T) and mounting configuration (C-face, foot mount).
3. Check Shaft Dimensions: Measure shaft diameter, length, and presence of keyway or set screws.
4. Evaluate Service Factor and Insulation: Opt for SF ≥ 1.15 and Class F or H insulation for durability.
5. Ensure Enclosure Suitability: Choose TEFC for dusty shops; ODP only if environment is controlled.
6. Review Speed Compatibility: 3450 RPM is standard, but confirm pulley ratios won’t overspeed the blade.
7. Inspect Terminal Box Orientation: Some motors allow repositioning; others don’t—ensure wiring access isn’t obstructed.
8. Look for Inverter-Rated Windings: Only necessary if using a VFD for speed control.
9. Verify Thermal Overload Protection: Built-in protection adds safety and longevity.
10. Compare Efficiency Ratings: IE3 or NEMA Premium motors save money over time.

Red Flags to Avoid:

• Unbranded motors lacking UL/cUL certification.
• No published service factor or temperature rise data.
• Vague labeling (e.g., “approx. 3 HP”) instead of exact NEMA ratings.
• Priced significantly below market average—could indicate remanufactured or undersized units.

Price & Market Insights

As of 2024, a new genuine table saw motor NEMA 3 HP 208 volt 3 phase 3450 rpm ranges from $350 to $650, depending on brand, efficiency level, and features. Basic TEFC models from reputable suppliers like Baldor-Reliance, WEG, or TECO-Westinghouse start around $400. Premium IE3-efficient or inverter-duty variants reach $600+.

Remanufactured or surplus motors can be found for $200–$300 but carry risks: unknown usage history, worn bearings, or degraded insulation. While tempting for budget builds, they lack warranties and may fail prematurely under heavy use.

Value-wise, investing in a name-brand motor pays off in reliability and support. Cheaper alternatives might save $100 upfront but could cost more in downtime and replacement labor within two years.

Top-Seller & Competitive Analysis

Below is a comparison of leading models currently popular among industrial woodworkers:

Model	Brand	Enclosure	Service Factor	Efficiency	Price Range
184TSC	Baldor-Reliance	TEFC	1.15	NEMA Premium	$580
K3E39UN321	WEG	TEFC	1.15	IE3	$520
3HP3450T3R	ECM Technologies	TEFC	1.0	Standard Efficient	$390
185TVC	Teco-Western	TEFC	1.15	NEMA Premium	$495

Baldor leads in after-sales support and availability of replacement parts. WEG offers excellent value with global manufacturing reach. ECM provides budget-friendly options but with lower service factor. TECO balances performance and price well for mid-tier operations.

Customer Feedback Synthesis

Based on aggregated reviews from industrial equipment retailers and trade forums, users consistently praise TEFC-enclosed 3 HP motors for their quiet operation, durability, and ability to maintain speed under load. Positive feedback often highlights easy installation when replacing like-for-like models and appreciation for clear labeling and terminal diagrams.

Common complaints include incorrect shipping of single-phase versions despite ordering three-phase, missing mounting hardware, and rare cases of bearing noise within six months—often traced to improper storage or misalignment during install. A recurring suggestion is to purchase spare belts and align pulleys precisely to avoid unnecessary strain.

Some buyers regret not verifying rotation direction before final assembly—three-phase motors can run backward if any two leads are swapped. Always perform a test run without the belt first.

Sourcing & Supplier Tips

For individual purchases, trusted sources include authorized distributors such as Grainger, Rexnord, and Motion Industries. Online marketplaces like Amazon Business and Zoro offer convenience but require careful vetting of seller credentials.

If sourcing in bulk (5+ units), consider contacting manufacturers directly for volume discounts or OEM pricing. Reputable brands often work with resellers who can provide documentation for warranty claims.

When receiving a motor, inspect for:

• Physical damage to housing or shaft.
• Presence of nameplate with NEMA ratings and serial number.
• Rotation verification using a phase rotation meter.
• Resistance check across windings (should be balanced within 5%).

Avoid gray-market imports lacking UL listing or traceable support channels.

Maintenance, Safety & Legal Considerations

Regular maintenance extends motor life. Clean cooling fins monthly in dusty environments. Check belt tension every 50 hours of operation. Monitor for unusual noise, excessive heat, or tripped breakers.

Safety practices include locking out power before servicing, using properly rated disconnect switches, and ensuring grounding conductors are intact. Follow NFPA 70 (NEC) and OSHA guidelines for electrical equipment in workplaces.

Legally, motors used in commercial settings should meet local electrical code requirements. In the U.S., UL certification is typically mandatory. Never bypass thermal overload protectors—even temporarily.

Conclusion

The table saw motor NEMA 3 HP 208 volt 3 phase 3450 rpm remains a top choice for professionals seeking powerful, dependable performance in demanding woodworking environments. By matching the motor’s frame, electrical specs, and enclosure type to your saw and facility, you ensure seamless integration and long-term reliability. Prioritize NEMA Premium efficiency, TEFC protection, and a service factor of at least 1.15. While the initial cost may be higher than entry-level options, the return comes in reduced downtime, lower energy bills, and fewer replacements. Whether upgrading an aging unit or building a new station, taking time to assess compatibility and quality will pay dividends in productivity and safety.

FAQs

Q: Can I use a 230V motor on a 208V circuit?
A: Yes, most 230V-rated three-phase motors are designed to operate within ±10% voltage tolerance, so they can run safely at 208V, though with slightly reduced output. Always check the nameplate for acceptable voltage range.

Q: Do I need a starter or overload protector?
A: Yes. A magnetic motor starter with thermal overload protection is required for safe and compliant operation of 3 HP three-phase motors.

Q: How do I reverse the rotation of a three-phase motor?
A: Swap any two of the three line leads (e.g., L1 and L3). Always verify rotation before installing the drive belt.

Q: What wire gauge should I use for a 3 HP 208V 3-phase motor?
A: Typically #12 AWG copper wire is sufficient for runs under 50 feet, assuming 11.5–12.5 amps full load current. Longer distances may require #10 AWG. Confirm with NEC Table 310.16 and local codes.

Q: Are there energy rebates for high-efficiency motors?
A: Some utility companies offer rebates for replacing old motors with NEMA Premium or IE3 models. Check with your local provider or visit 1 for details.
