How to Choose Strip Forming Stamping Equipment: A Complete Buyer's Guide

When selecting the right strip forming stamping solution for your production line, prioritize equipment that offers precision tooling alignment, durable die materials like hardened tool steel, and compatibility with your specific metal strip thickness—this ensures consistent output and minimizes downtime. For those searching for how to choose strip forming stamping systems, a servo-driven inline model with CNC control often delivers the best balance of speed, accuracy, and long-term cost efficiency in high-volume manufacturing environments.

About Strip Forming Stamping

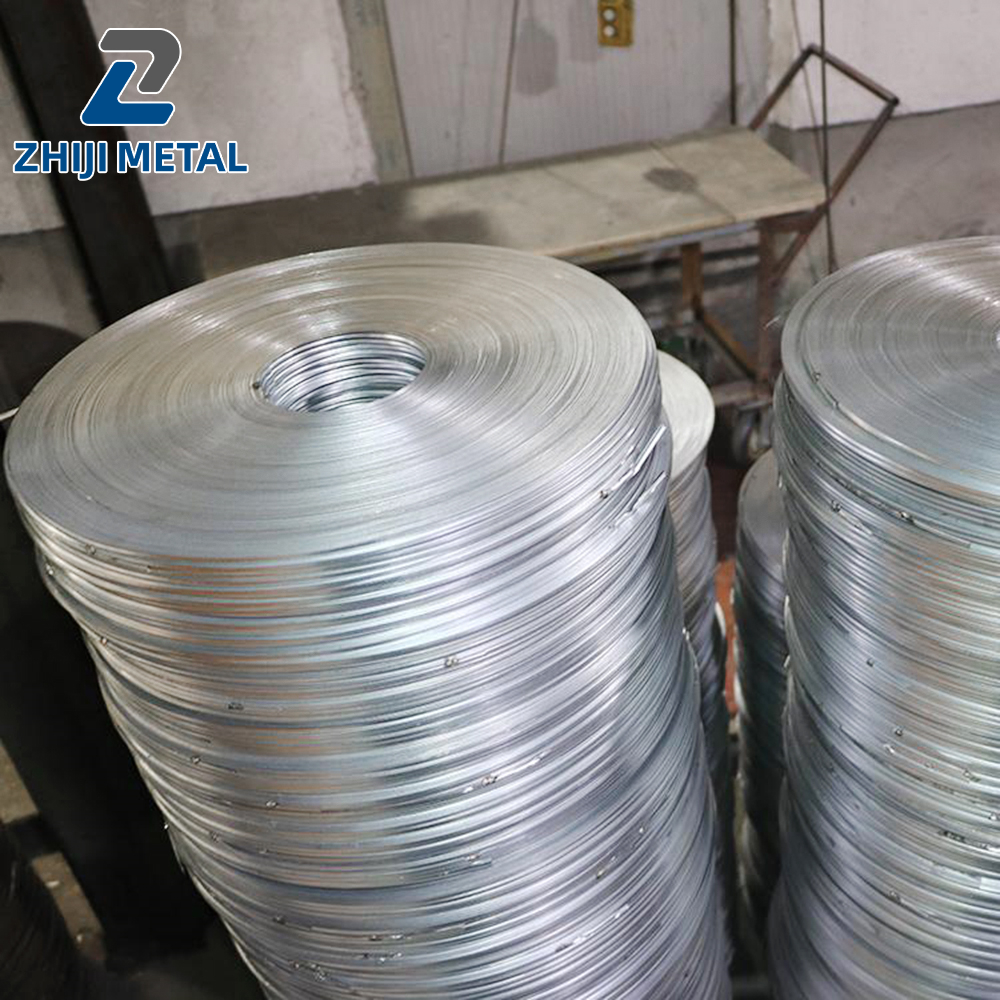

Strip forming stamping is a specialized metalworking process used to transform continuous metal strips into precisely shaped components through progressive or transfer die operations. This technique combines two core processes: forming, which alters the shape of the metal without removing material (e.g., bending, coining, drawing), and stamping, which involves cutting or punching the metal to create final part geometry 1. The metal strip feeds incrementally through a series of stations within a press, where each station performs a distinct operation until the finished part is produced.

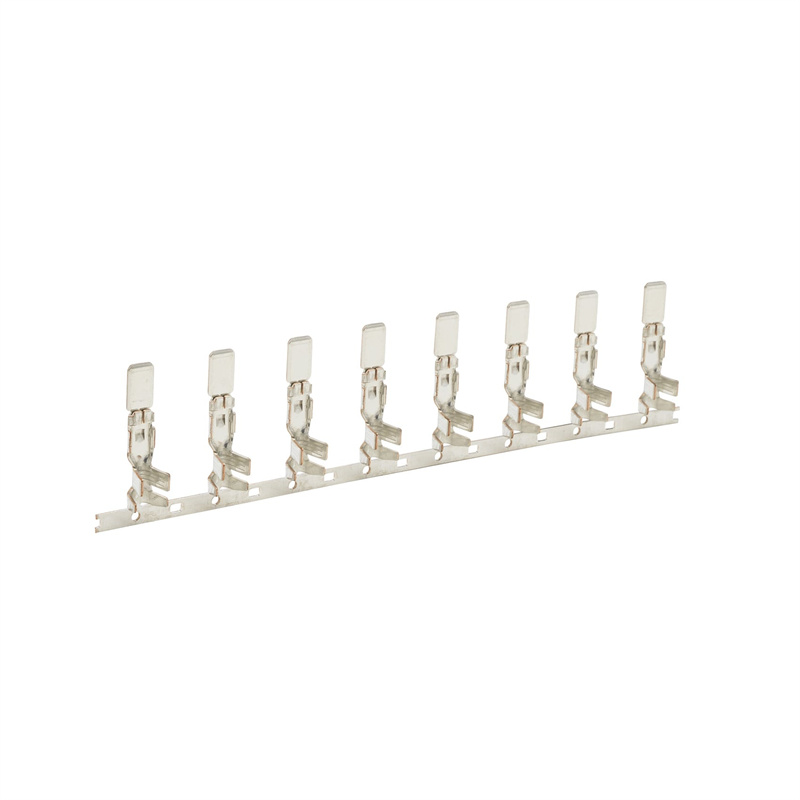

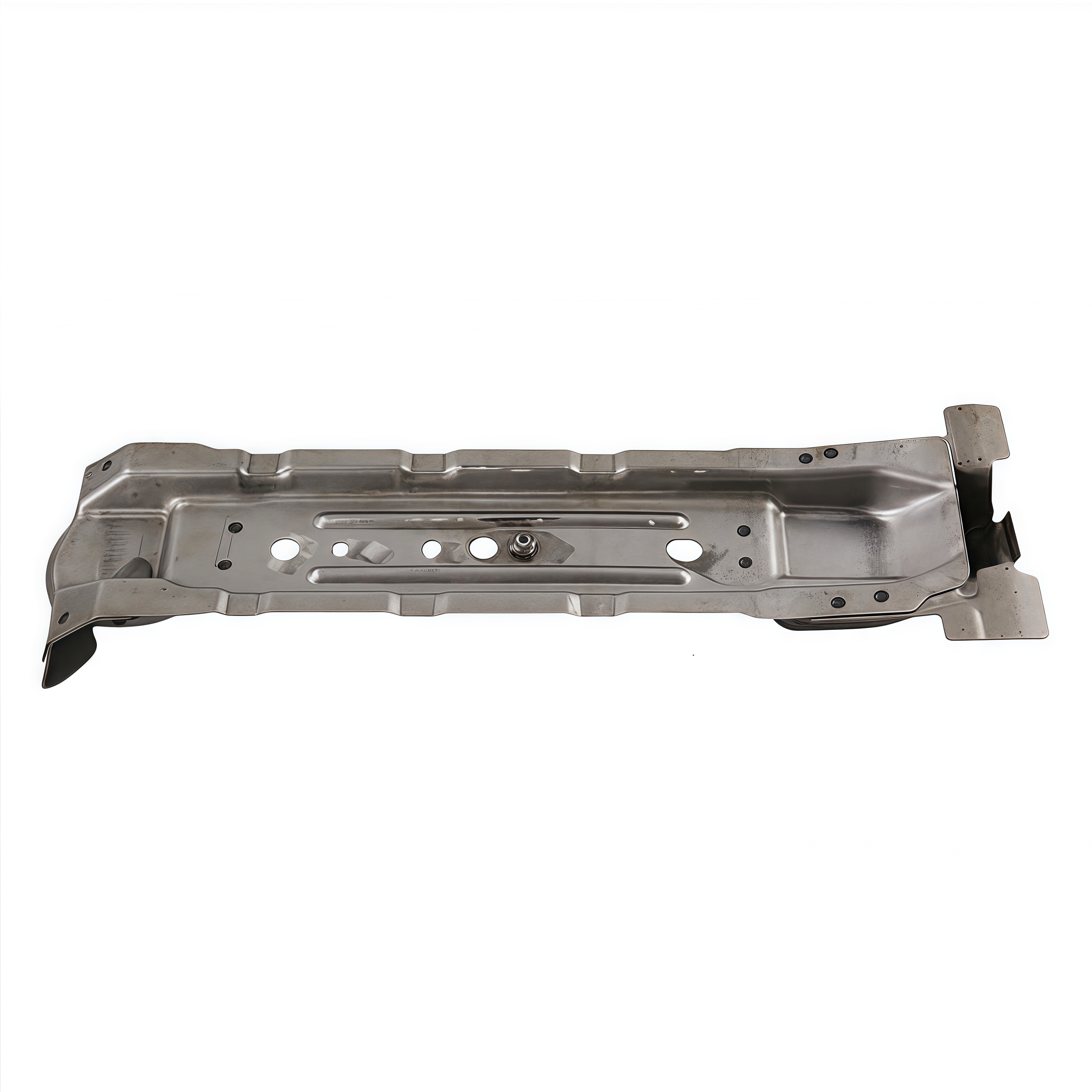

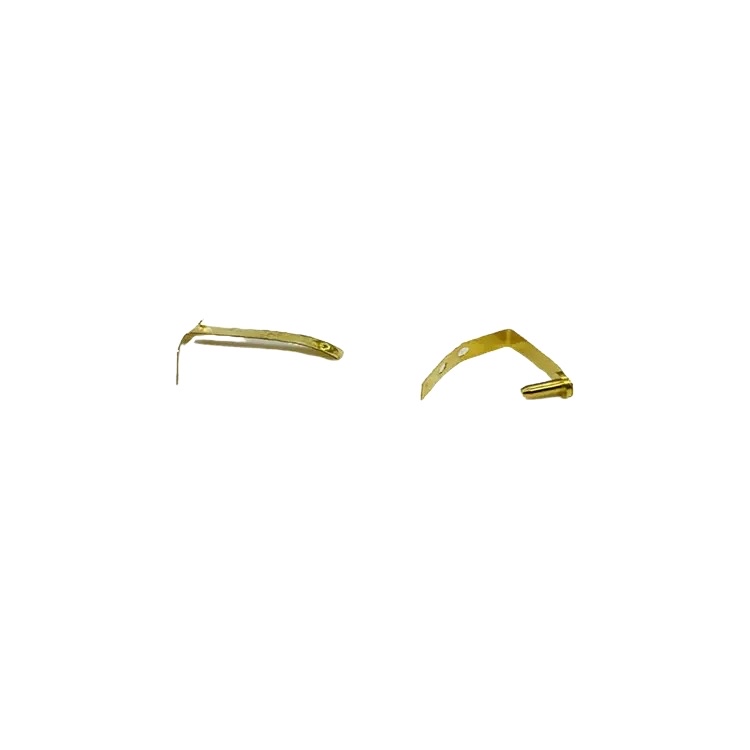

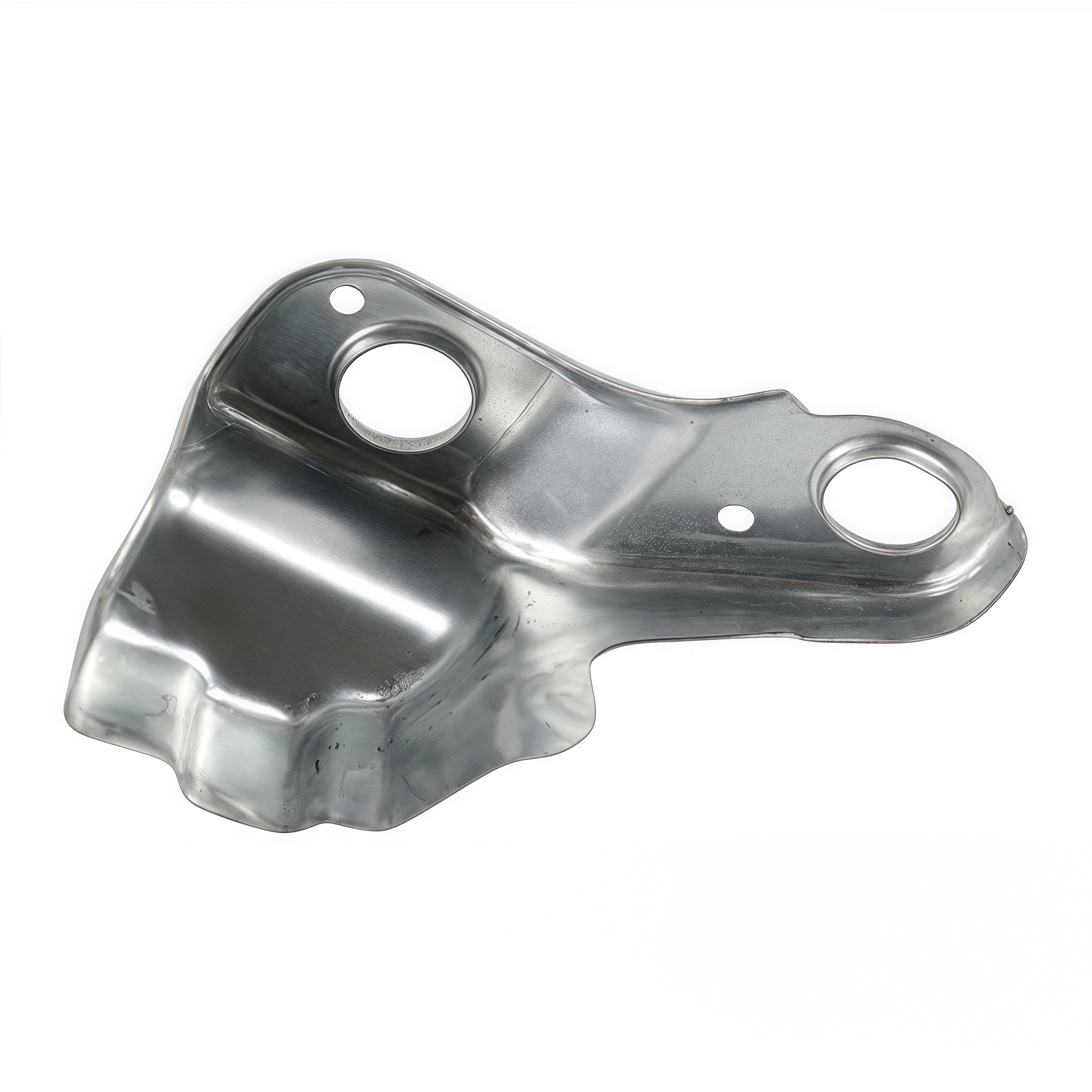

This method is widely used in industries requiring high-volume production of small to medium-sized metal parts, such as automotive components (brackets, clips, sensors), electrical connectors, appliance hardware, and consumer electronics housings. Because it uses coil-fed material, strip forming stamping supports automation and reduces scrap compared to blank-based stamping, making it ideal for lean manufacturing setups.

Why Strip Forming Stamping Is Gaining Popularity

Manufacturers are increasingly adopting strip forming stamping due to its ability to streamline production while maintaining tight tolerances—often within ±0.05 mm. As demand grows for miniaturized, complex metal parts in sectors like medical devices and IoT hardware, this process offers scalable precision at lower per-unit costs.

One major driver is automation integration. Modern strip forming lines can be fully automated from coil loading to part ejection, reducing labor needs and human error. Additionally, advancements in CNC-controlled feed systems and real-time monitoring have improved consistency and reduced setup times. Companies looking for what to look for in strip forming stamping equipment now emphasize smart diagnostics, energy efficiency, and modular designs that allow quick changeovers between product runs.

Environmental considerations also play a role. By optimizing material use and enabling closed-loop recycling of trimmings, strip forming contributes to sustainable manufacturing goals—an important factor for OEMs under regulatory or ESG pressures.

Types and Variants

Different configurations of strip forming stamping systems serve varying production needs. Understanding these types helps buyers match capabilities with their operational scale and complexity requirements.

Progressive Die Systems

In progressive die stamping, the metal strip moves through multiple stations in a single press, with each station performing a different operation (punching, bending, coining). The final station separates the completed part from the carrier strip.

Pros: High speed (up to 1,500 strokes per minute), excellent repeatability, minimal manual handling.
Cons: Complex die design; costly initial tooling; less flexible for frequent product changes.

Transfer Press Systems

These systems use mechanical fingers or robotic arms to move the partially formed parts from one station to the next, typically across multiple presses or zones.

Pros: Suitable for larger or more complex parts; easier maintenance access; better for deep draws or heavy forming.
Cons: Slower than progressive dies; higher footprint; increased mechanical complexity.

Servo-Driven Inline Forming Lines

Equipped with programmable servo motors, these systems offer precise control over feeding, timing, and stroke length. They're ideal for mid-volume, high-mix environments.

Pros: Flexible programming; energy-efficient; supports quick changeovers.
Cons: Higher upfront cost; requires skilled operators for optimal tuning.

Four-Slide Machines (Multi-Slide Presses)

These specialized machines form parts using cams and slides that act from four directions simultaneously, allowing complex bends and twists in a compact space.

Pros: Exceptional for intricate wire or narrow strip forms; fast cycle times.
Cons: Limited to certain geometries; niche application scope.

Key Features and Specifications to Evaluate

To make an informed decision when choosing strip forming stamping equipment, assess the following technical and operational parameters:

Material Compatibility

Ensure the machine handles your required materials—common ones include cold-rolled steel, stainless steel, brass, copper, and aluminum alloys. Check maximum and minimum strip thickness (typically 0.1–3.2 mm) and tensile strength limits.

Press Tonnage and Speed

Tonnage must exceed the total forming and cutting forces needed. Under-sizing leads to tool wear or press damage. For high-speed applications (>500 SPM), consider dynamic load ratings and vibration damping.

Feed System Accuracy

Precision feeding is critical. Look for servo-driven roll feeds with encoder feedback and automatic correction. Repeatability should be within ±0.02 mm per pitch.

Tooling Interface and Changeover Time

Quick-die-change (QDC) systems reduce downtime. Standardized bolsters and hydraulic clamping improve efficiency. Modular tooling allows reuse across similar jobs.

Control System and Connectivity

CNC controls with touchscreen HMIs simplify programming. Support for Industry 4.0 protocols (e.g., OPC UA, MTConnect) enables predictive maintenance and production tracking.

Safety and Compliance

Machines should meet ISO 16092-1 (mechanical press safety) and include light curtains, two-hand controls, emergency stops, and guarding around moving parts.

Pros and Cons

Advantages:

High production rates with consistent quality
Low labor cost per unit after setup
Minimal material waste due to nesting optimization
Scalable from pilot batches to mass production

Disadvantages:

High initial investment in tooling and machinery
Long lead time for custom dies (4–12 weeks typical)
Less economical for very low volumes (<5,000 units/year)
Requires skilled technicians for setup and troubleshooting

Strip forming stamping is best suited for stable, high-demand products. It’s not recommended for prototypes or rapidly changing designs unless using modular or soft-tooling approaches.

How to Choose Strip Forming Stamping Equipment

Follow this step-by-step guide to ensure you select the most appropriate system:

Define Your Production Requirements: Determine annual volume, part complexity, material type, and tolerance needs.
Assess Available Floor Space: Transfer systems require more room than progressive die setups.
Evaluate Automation Needs: Decide whether you need integrated coil payoff, straightening, scrap rewinding, or vision inspection.
Review Tooling Costs: Request quotes from die makers early. Factor in amortization over expected production life.
Check Supplier Support: Prioritize vendors offering training, spare parts availability, and remote diagnostics.
Test Run if Possible: Ask for sample runs using your actual material and design to verify performance.
Avoid These Red Flags: Vendors who don’t provide detailed specs, lack safety certifications, or pressure you into proprietary software-only support.

Price & Market Insights

Pricing varies significantly based on automation level, tonnage, and control sophistication:

Entry-Level Manual Feed Systems: $20,000–$50,000 – suitable for job shops or R&D.
Mid-Range Automated Lines: $80,000–$250,000 – includes servo feed, basic CNC, and safety systems.
High-End Fully Integrated Systems: $300,000–$1M+ – full automation, IoT connectivity, multi-axis control.

Used or refurbished equipment can reduce costs by 30–50%, but inspect thoroughly for frame wear, bearing condition, and outdated controls. Consider leasing options for short-term projects or capacity spikes.

Best value often lies in mid-tier systems from established Asian or European manufacturers, which balance reliability and price. Always compare total cost of ownership (TCO), including power consumption, maintenance, and tooling replacement frequency.

Model Type	Avg. Price Range	Speed (SPM)	Ideal Use Case
Progressive Die Press	$90,000–$200,000	400–1,200	High-volume connectors, terminals
Servo Inline Line	$120,000–$275,000	200–600	Medium mix, precision brackets
Four-Slide Machine	$60,000–$150,000	60–250	Complex bent clips, springs

Top-Seller & Competitive Analysis

Leading brands in the strip forming stamping space include Amada, Schuler, Feintool, and Minster. Each offers unique strengths:

Amada: Known for user-friendly CNC interfaces and modular automation packages. Popular in electronics and automotive supply chains.
Schuler: Offers high-tonnage, robust systems ideal for demanding industrial environments. Strong service network in North America and Europe.
Feintool: Specializes in fine-blanking technology integrated with forming—ideal for ultra-precise parts with burr-free edges.
Minster: U.S.-based manufacturer with reliable mechanical presses; good for traditional high-speed operations.

When comparing top-selling models, focus on mean time between failures (MTBF), energy efficiency ratings, and ease of integration with existing MES/ERP systems. Avoid models with obsolete PLC platforms or limited software updates.

Customer Feedback Synthesis

Analysis of user reviews and industry forums reveals recurring themes:

Common Praises:

“The servo feed eliminated misfeeds we had with older clutch-driven models.”
“After switching to a progressive die line, our output tripled with fewer rejects.”
“CNC interface made programming new jobs much faster than expected.”

Frequent Complaints:

“Die setup took twice as long as promised—needed additional training.”
“Hidden costs for proprietary sensors added thousands post-purchase.”
“Poor documentation for troubleshooting common jams.”

Buyers often underestimate the importance of operator training and ongoing technical support. Those who invest in comprehensive vendor onboarding report higher satisfaction.

Sourcing & Supplier Tips

When sourcing strip forming stamping equipment, consider both direct manufacturers and authorized distributors. Distributors may offer better local support and financing, while direct purchases can reduce markup.

For international suppliers, verify export compliance, shipping terms (FOB vs. CIF), and import duties. Request references from other customers in your region.

If purchasing in bulk or exploring private labeling, negotiate service agreements upfront. Inspect machines before shipment—check for alignment, lubrication, and electrical integrity. Third-party inspection services can help mitigate risk when buying from overseas.

Maintenance, Safety & Legal Considerations

Regular maintenance extends machine life and prevents unplanned downtime. Key tasks include:

Lubricating guides, rolls, and linkages weekly
Inspecting die sets monthly for chipping or wear
Calibrating feed mechanisms quarterly
Updating control software annually

Safety is paramount. Ensure all operators are trained and that lockout/tagout (LOTO) procedures are documented. Guards must comply with OSHA 29 CFR 1910.217 and ANSI B11 standards.

Legally, machines imported or sold in the U.S. or EU must carry CE or UL certification. Verify conformity with local regulations before installation. Non-compliant equipment may void insurance or fail inspections.

Conclusion

Selecting the right strip forming stamping system requires balancing performance, cost, and long-term support. For most industrial buyers evaluating how to choose strip forming stamping solutions, a CNC-controlled progressive or servo-driven inline system offers the strongest return on investment for medium to high-volume production. Prioritize precision feeding, durable tooling, and vendor reliability over minor price differences. Always validate specifications with real-world testing and ensure compliance with regional safety standards to protect both personnel and productivity.

FAQs

What materials can be used in strip forming stamping?
Most cold-rollable metals work well, including steel, stainless steel, brass, copper, and aluminum. Confirm compatibility with your machine’s feed and tooling systems.

How long do stamping dies last?
Hardened tool steel dies typically last 100,000 to 1 million cycles depending on material hardness and lubrication. Regular maintenance extends lifespan.

Can I run small batches profitably with strip forming?
Yes, if using modular tooling or servo-driven systems with quick changeovers. However, very low volumes may favor laser cutting or punch presses.

Is automation necessary for strip forming stamping?
Not always, but automation improves consistency and reduces labor costs, especially above 10,000 units per month.

How do I verify a machine’s claimed accuracy?
Request a test run with your material and measure first-article parts using CMM or optical comparators. Compare results against stated tolerances.
