How to Choose the Best Stainless Steel Reactor 5 m3 for Your Application

When selecting a stainless steel reactor 5 m3, prioritize corrosion resistance, pressure/temperature ratings, and jacket design based on your process needs. For most chemical, pharmaceutical, or food-grade applications, a 316L stainless steel vessel with a ASME-certified cladding, agitator system, and insulated heating/cooling jacket offers optimal performance and longevity. Always verify the manufacturer's compliance with PED or ASME standards, especially if operating above ambient pressures 1. Avoid under-specified units lacking traceable material certifications or inadequate agitation for viscous media. This guide covers every critical factor—from types and features to sourcing and safety—so you can make an informed decision when purchasing a 5 cubic meter stainless steel reactor.

About Stainless Steel Reactor 5 m3

A stainless steel reactor 5 m3 is a pressurized vessel designed for mixing, reacting, heating, or cooling chemical, biological, or industrial substances at a medium production scale. With a capacity of 5,000 liters (approximately 1,320 gallons), this size is commonly used in pilot plants, specialty chemical manufacturing, pharmaceutical synthesis, and food & beverage processing. Constructed primarily from austenitic stainless steels like 304 or 316L, these reactors offer excellent resistance to oxidation, corrosion, and contamination, making them ideal for hygienic or high-purity processes.

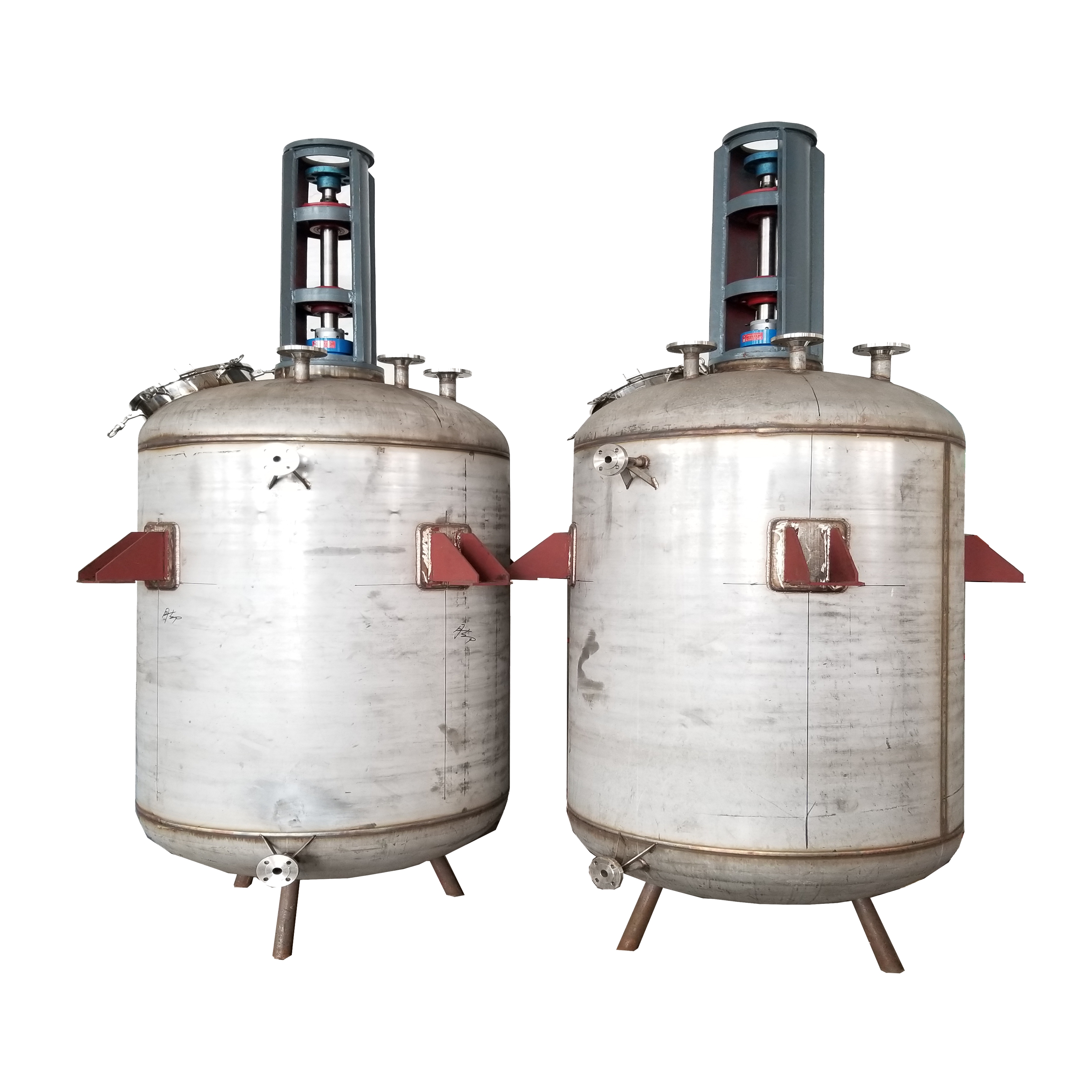

The core structure typically includes a cylindrical tank with dished heads (elliptical or hemispherical), a top-mounted agitator, inlet/outlet ports, temperature sensors, and often a夹套 (jacket) for thermal control. Depending on the application, reactors may be configured as batch or continuous systems and can operate under vacuum or positive pressure. Their modular nature allows integration into larger processing lines, including distillation, filtration, or drying units.

Why Stainless Steel Reactor 5 m3 Is Gaining Popularity

The growing demand for a 5 m3 stainless steel reactor stems from its balance between scalability and operational flexibility. Unlike smaller lab-scale reactors, the 5 m³ size supports semi-commercial production without requiring massive infrastructure investment. At the same time, it remains manageable in terms of footprint, utility requirements, and maintenance compared to larger industrial tanks.

Industries such as fine chemicals, cannabis extraction, biotechnology, and nutraceuticals increasingly adopt these reactors due to stricter hygiene regulations and the need for reproducible, scalable processes. Additionally, advancements in automation and process control have made modern 5 m³ reactors more efficient, safer, and easier to validate—key factors for regulated environments like FDA-compliant facilities.

Types and Variants

Not all stainless steel reactor 5 m3 models are created equal. The main variations depend on design, function, and operating conditions:

1. Atmospheric vs. Pressure Reactors

Atmospheric Reactors: Operate at or near ambient pressure. Suitable for non-volatile reactions, storage, or mixing. Lower cost but limited to low-risk processes.
Pressure Reactors: Designed to withstand internal pressures (typically up to 10 bar or higher). Must comply with pressure equipment directives (e.g., PED in Europe or ASME UG-1 through UG-140 in the U.S.) 2. Ideal for hydrogenation, polymerization, or high-temperature reactions.

2. Jacketed vs. Non-Jacketed

Jacketed Reactors: Feature an outer shell surrounding the vessel for circulating heating or cooling media (e.g., steam, thermal oil, or glycol). Essential for exothermic or endothermic reactions requiring precise temperature control.
Non-Jacketed: Rely on internal coils or external heat exchangers. Less efficient but lower initial cost; suitable only for mild thermal demands.

3. Agitated vs. Static

Agitated Reactors: Equipped with mechanical stirrers (top or bottom-driven) using impellers like anchor, turbine, or propeller types. Critical for homogeneous mixing, especially with viscous materials.
Static Reactors: No moving parts inside. Used for settling, storage, or plug-flow reactions. Simpler but not suitable for complex synthesis.

4. Material Grade: 304 vs. 316L Stainless Steel

304 SS: General-purpose grade with good corrosion resistance in mild environments. Cost-effective but not recommended for chloride exposure.
316L SS: Contains molybdenum for superior resistance to pitting and crevice corrosion. Preferred for marine, acidic, or saline environments and pharmaceutical use.

Key Features and Specifications to Evaluate

To ensure reliability and suitability, assess the following parameters before purchasing a stainless steel reactor 5 m3:

Material Certification: Confirm mill test reports (MTRs) for 316L or equivalent. Traceability ensures quality and regulatory compliance.
Design Pressure & Temperature: Must exceed your process requirements by a safety margin (typically 1.5x). Check both maximum allowable working pressure (MAWP) and vacuum rating.
Jacket Type: Half-pipe coil, dimple, or full double-wall? Each has different heat transfer efficiency and pressure tolerance.
Agitation System: Motor power (kW), RPM range, seal type (mechanical vs. magnetic), and impeller configuration should match fluid viscosity and reaction dynamics.
Surface Finish: Ra ≤ 0.8 µm (32 Ra) is standard for sanitary applications. Electropolishing enhances cleanability and corrosion resistance.
Nozzles and Connections: Verify number, size, and location of ports (inlets, vents, probes, CIP spray balls).
Insulation: Optional but valuable for energy efficiency and operator safety. Typically mineral wool or foam glass covered with cladding.
Control Integration: Look for compatibility with PLCs, SCADA systems, or standalone control panels with data logging.

Pros and Cons

Advantages

Durable and long-lasting with proper maintenance
Resistant to corrosion, staining, and microbial growth
Easily cleaned and sterilized (CIP/SIP capable)
Highly recyclable and environmentally sustainable
Compatible with aggressive solvents and high temperatures

Disadvantages

Higher upfront cost than glass-lined or carbon steel alternatives
Weight requires reinforced flooring or support structures
Thermal conductivity is lower than copper or aluminum—requires effective jacket design
Potential for galvanic corrosion if connected to dissimilar metals

Best suited for: Pharmaceutical batches, edible oil processing, cosmetic formulations, and wastewater treatment where purity and durability matter.

Less ideal for: Highly abrasive slurries (may require lined reactors) or ultra-high-pressure (>15 bar) gas-phase reactions unless specially engineered.

How to Choose a Stainless Steel Reactor 5 m3

Follow this step-by-step checklist to select the right unit:

Define Process Requirements: List required temperature, pressure, residence time, and mixing intensity. Will you handle corrosive acids or sterile products?
Select Material Grade: Opt for 316L if chlorides, salts, or organic acids are present. Request MTRs from suppliers.
Choose Configuration: Decide between top-agitated or side-entry mixers, jacketed or non-jacketed, and vertical vs. horizontal orientation.
Verify Compliance: Ensure the reactor meets applicable codes (ASME, PED, or local regulations). Ask for stamped drawings and inspection records.
Evaluate Agitation Needs: Calculate torque and power requirements based on viscosity. Anchor impellers work well for thick gels; turbines suit low-viscosity fluids.
Review Fabrication Quality: Inspect weld finish (TIG preferred), surface polish, and alignment. Poor welding can lead to stress cracking.
Assess Automation Compatibility: Confirm sensor inputs (RTD, pH, level) and output interfaces (4–20 mA, Modbus) match your control system.
Check Supplier Reputation: Look for companies with proven track record, technical support, and spare parts availability.
Avoid Red Flags: No documentation, vague specs, unusually low prices, or refusal to provide test certificates.

Price & Market Insights

The price of a stainless steel reactor 5 m3 varies widely depending on configuration:

Basic atmospheric model: $15,000 – $25,000 USD
Pressurized, jacketed, agitated (316L): $35,000 – $60,000 USD
ASME-certified with full automation: $70,000+ USD

Prices are influenced by region, labor costs, and component sourcing. Chinese manufacturers often offer competitive pricing but may lack detailed documentation. European and North American fabricators typically charge more but provide better compliance traceability and after-sales service. Consider total cost of ownership—not just purchase price—but also installation, maintenance, and downtime risks.

Top-Seller & Competitive Analysis

While specific brand recommendations are avoided due to regional variability, leading manufacturers include Sulzer, Pfaudler, De Dietrich, and various specialized Chinese OEMs like Wuxi Qier or Jinan Longchang. When comparing top-selling models, focus on build quality, certification depth, and user feedback rather than brand名气.

Feature	Budget Model	Mid-Range	Premium (ASME/PED)
Material	304 SS	316L SS	316L + Clad Options
Pressure Rating	< 3 bar	6–10 bar	Up to 15+ bar
Jacket Type	Dimple	Half-Pipe Coil	Double Wall / Full Welded
Agitator Drive	Top Entry, Mechanical Seal	Top/BOTTOM, Double Seal	Magnetic Coupling Option
Certification	None or Local	PED or CRN	ASME U-Stamp, PED Module H
Approx. Price (USD)	$18,000–$25,000	$35,000–$50,000	$55,000–$80,000+

Customer Feedback Synthesis

Based on aggregated reviews and industry forums, buyers frequently praise:

Long-term durability of 316L reactors in aggressive environments
Smooth operation of well-balanced agitators with minimal vibration
Effective heat transfer from properly designed jackets
Responsive technical support from reputable suppliers

Common complaints include:

Inadequate documentation or missing CE/PED markings
Poor weld quality leading to leaks or crevices
Underpowered motors for viscous mixing tasks
Delays in delivery or lack of spare parts inventory

Sourcing & Supplier Tips

When sourcing a stainless steel reactor 5 m3, consider both domestic and international options. Domestic suppliers offer faster response times and easier compliance verification but at a premium. Offshore manufacturers can reduce costs significantly but require careful vetting.

Request factory audits or third-party inspections (e.g., SGS, BV)
Ask for reference projects or client testimonials
Negotiate terms: payment milestones, warranty (typically 12 months), and shipping logistics
For bulk purchases, explore OEM partnerships or private labeling
Always inspect upon delivery: check for shipping damage, verify dimensions, and confirm included components

Maintenance, Safety & Legal Considerations

Proper operation ensures longevity and personnel safety:

Regular Inspection: Check seals, gaskets, and welds annually. Use non-destructive testing (NDT) for pressure vessels.
Cleaning: Follow CIP (Clean-in-Place) protocols. Avoid chlorinated cleaners on 316L to prevent stress corrosion cracking.
Pressure Relief: Install certified safety valves and rupture discs per local code.
Operator Training: Ensure staff understand lockout/tagout (LOTO), emergency shutdown, and hazard communication.
Regulatory Compliance: In the U.S., pressure vessels must meet ASME Boiler and Pressure Vessel Code Section VIII. In Europe, adherence to the Pressure Equipment Directive (PED 2014/68/EU) is mandatory 3. Local authorities may require registration or periodic recertification.

Conclusion

Choosing the right stainless steel reactor 5 m3 involves balancing technical specifications, regulatory compliance, and lifecycle value. Prioritize material quality (preferably 316L), verified pressure ratings, and full documentation. While budget models exist, investing in an ASME- or PED-compliant unit with robust agitation and thermal control pays off in reliability, safety, and reduced downtime. Whether you're scaling up R&D or optimizing production, a well-chosen 5 m³ reactor forms the backbone of efficient, compliant processing.

FAQs

What is the typical lifespan of a stainless steel reactor 5 m3?
With proper maintenance, a 316L stainless steel reactor can last 15–25 years or longer, depending on operating conditions and corrosion exposure.

Can I customize nozzle locations and port sizes?
Yes, most manufacturers allow customization of nozzle layout, flange types, and instrumentation ports during fabrication.

Do I need ASME certification for a 5 m3 reactor?
If operating above certain pressure thresholds (e.g., >15 psi gauge pressure), ASME certification is legally required in many jurisdictions, including the U.S. Always verify with local authorities.

How do I prevent contamination in pharmaceutical applications?
Use electropolished 316L surfaces, SIP (sterilize-in-place) capability, and fully drainable designs with no dead legs.

Is insulation necessary for a 5 m3 reactor?
Insulation improves energy efficiency and prevents condensation or burns. It’s highly recommended for reactors operating above 60°C or below ambient temperatures.
