When choosing a spiral infrared element, prioritize models with high emissivity ratings, durable quartz or ceramic housing, and compatibility with your existing heating system. The best spiral infrared element for most users combines rapid heat-up times, energy efficiency, and long service life—ideal for industrial drying, space heating, or food warming applications 1. Look for variants like coiled tungsten wire in quartz tubes, which offer superior thermal response and targeted radiant heat delivery. Avoid cheap units with poor insulation or unclear wattage ratings, as they compromise safety and performance.
About Spiral Infrared Element
A spiral infrared element is a type of electric heating component that emits infrared radiation through a tightly wound resistive wire—typically made of tungsten or nichrome—encased in a transparent or translucent tube, often quartz or ceramic. When electricity passes through the coiled filament, it heats rapidly and emits infrared energy, which transfers heat directly to objects and surfaces without warming the surrounding air excessively.
These elements are widely used in both residential and industrial settings. Common applications include patio heaters, industrial drying ovens, paint curing systems, food warming lamps, and commercial cooking equipment. Their ability to deliver focused, instant heat makes them more efficient than convection-based systems in many scenarios.
The term "spiral" refers to the helical shape of the internal resistance wire, which maximizes surface area within a compact design, enhancing radiant output and thermal uniformity. This configuration allows for faster warm-up times compared to straight-tube elements and better directional control of emitted infrared waves.
Why Spiral Infrared Elements Are Gaining Popularity
In recent years, spiral infrared elements have gained traction due to rising demand for energy-efficient and responsive heating solutions. Consumers and businesses alike are shifting toward technologies that reduce operational costs and environmental impact. Infrared heating, particularly with optimized designs like the spiral configuration, delivers heat more efficiently by targeting specific areas rather than heating entire volumes of air.
One major driver is the growth in outdoor living spaces, where gas and electric patio heaters using spiral infrared technology provide immediate warmth with minimal preheat time. Additionally, industries such as automotive refinishing, textile processing, and food service rely on precise temperature control, making these elements ideal for process-critical applications.
Advancements in materials science have also improved longevity and performance. Modern spiral elements can withstand repeated thermal cycling and operate reliably at temperatures exceeding 1800°F (980°C), depending on construction. As awareness grows about their benefits over traditional heating methods, adoption continues to rise across sectors.
Types and Variants of Spiral Infrared Elements
Spiral infrared elements come in several configurations, each suited to different environments and performance requirements. Understanding the distinctions helps ensure you select the right variant for your application.

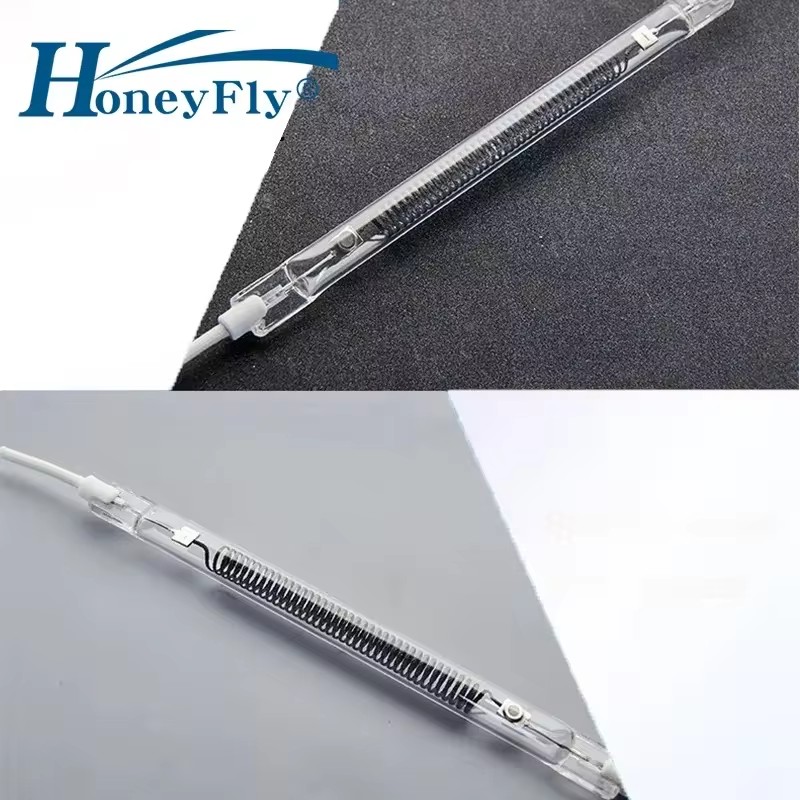

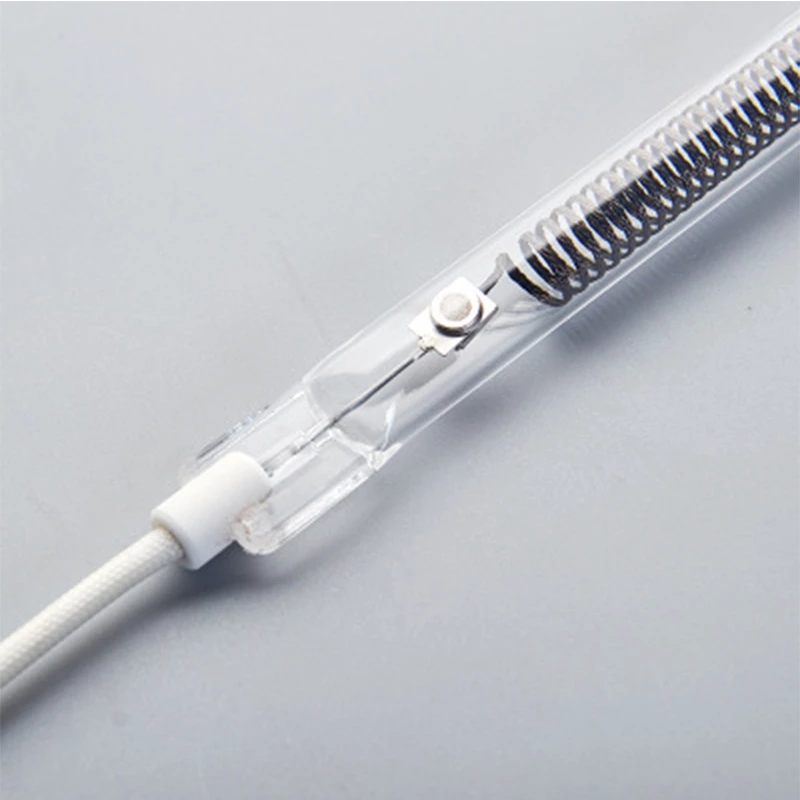

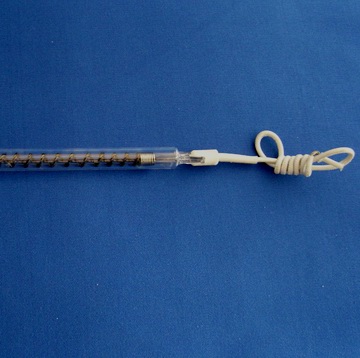

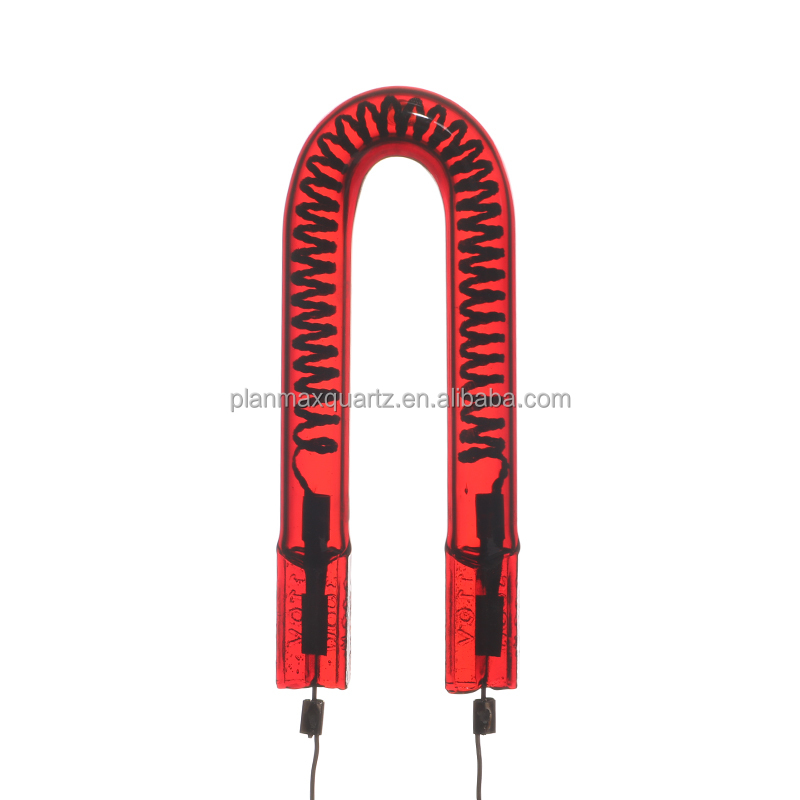

Quartz Tube Spiral Elements
These are the most common type, featuring a tungsten coil suspended inside a fused quartz tube. Quartz is transparent to infrared radiation and highly resistant to thermal shock.
- Pros: Fast heat-up (reaches full output in 1–3 seconds), high radiant efficiency, excellent visibility of glowing element for status checks.
- Cons: Fragile if impacted; may degrade under prolonged exposure to moisture or corrosive atmospheres.

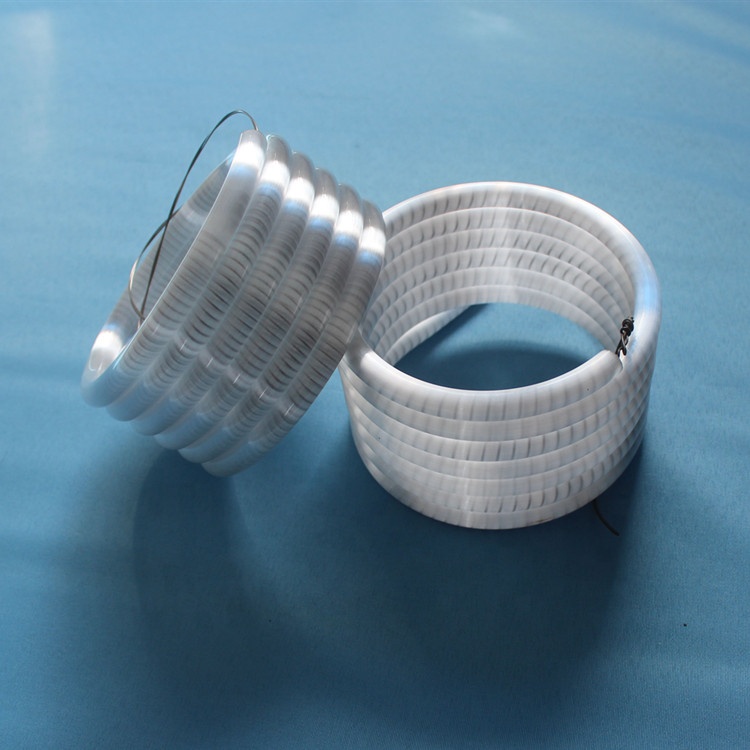

Ceramic Spiral Elements
In this version, the resistive coil is embedded in a molded ceramic body shaped into a spiral pattern. The ceramic acts as both insulator and emitter.
- Pros: Durable, resistant to vibration and physical damage, suitable for dirty or humid environments.
- Cons: Slower warm-up (5–10 seconds), lower peak temperature compared to quartz.

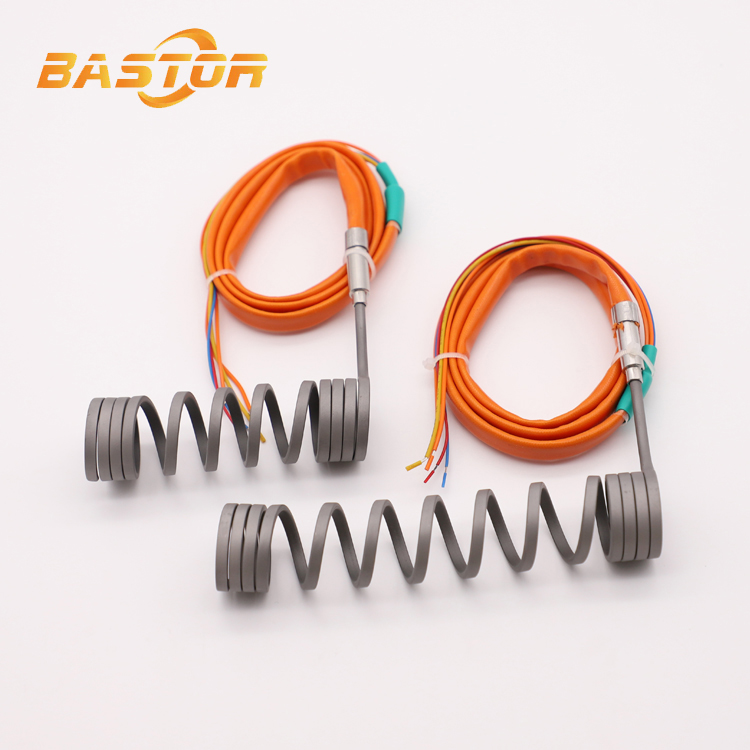

Metal-Sheathed Spiral Elements
Less common but used in specialized industrial contexts, these encase the coil in a metal tube filled with magnesium oxide insulation.
- Pros: Mechanically robust, can be shaped into custom forms, good for confined spaces.
- Cons: Lower emissivity, slower response, not ideal for high-efficiency radiant transfer.
Gold-Coated vs. Clear Quartz
Some quartz spiral elements feature a gold dichroic coating on the inside of the tube. This reflects visible light while allowing infrared to pass, reducing glare and directing more usable heat forward.
- Pros: Improved comfort in living spaces, reduced light pollution, slightly higher efficiency.
- Cons: More expensive; coating can degrade if overheated.
Key Features and Specifications to Evaluate
To choose the right spiral infrared element, consider the following technical and practical factors:
Wattage and Voltage Rating
Ensure the element matches your power supply (e.g., 120V, 240V). Higher wattage (e.g., 1500W) produces more heat but requires adequate circuit capacity. Check manufacturer specifications carefully before installation.
Emissivity and Wavelength Output
Emissivity measures how effectively a surface emits infrared energy. High-emissivity materials (like certain ceramics or treated metals) improve efficiency. Short-wave elements (bright glow) work best for quick heating; medium- or long-wave (dull red or no visible glow) suit sustained, gentle heating.
Thermal Response Time
This indicates how fast the element reaches operating temperature. Spiral quartz types typically respond in under 3 seconds, crucial for motion-sensor activated heaters or intermittent-use applications.
Durability and Environmental Resistance
Assess whether the element will be exposed to moisture, dust, or mechanical stress. IP-rated housings or protective grills may be necessary in harsh conditions. Ceramic versions generally outperform quartz in rugged environments.
Mounting Style and Dimensions
Verify compatibility with your fixture or heater assembly. Common mounting options include end caps with screw terminals, spring-loaded brackets, or flange mounts. Measure the overall length, tube diameter, and connector spacing precisely.
Lifespan and Thermal Cycling Tolerance
Look for elements rated for thousands of on/off cycles. Industrial-grade units often last 5,000–10,000 hours. Repeated rapid cooling (e.g., from drafts or rain) can shorten lifespan, especially in quartz types.
Pros and Cons: Balanced Assessment
Advantages:
- Energy-efficient heat transfer via radiation
- Nearly instantaneous warmth
- Low maintenance with no moving parts
- Quiet operation (no fans required)
- Ideal for zone heating, reducing overall energy use
Disadvantages:
- Line-of-sight limitation: only heats what’s in direct view
- Quartz types are fragile and sensitive to moisture contact when hot
- Not effective for whole-building heating unless multiple units are installed
- Initial cost may be higher than basic convection heaters
Spiral infrared elements are best suited for spot heating, outdoor areas, workshops, garages, or industrial processes requiring rapid, controllable heat. They’re less appropriate for whole-home heating in cold climates without supplemental systems.
How to Choose a Spiral Infrared Element: Step-by-Step Guide
- Define Your Use Case: Is it for home patios, warehouse drying, or kitchen equipment? Match the environment to the appropriate build type (quartz for indoor/outdoor clarity, ceramic for industrial).
- Check Compatibility: Confirm voltage, wattage, and physical dimensions align with your existing heater or electrical setup.
- Select the Right Wavelength: Choose short-wave (visible glow) for immediate warmth in open areas, or medium/long-wave for enclosed or continuous-operation settings.
- Assess Build Quality: Look for thick quartz tubing, secure filament supports, and corrosion-resistant terminals. Avoid elements with loose coils or uneven winding.
- Review Safety Certifications: Ensure the product meets UL, ETL, or CE standards, especially for indoor or commercial installations.
- Evaluate Supplier Reputation: Buy from established brands or authorized distributors. Read customer reviews focusing on longevity and consistency.
- Avoid Red Flags: Steer clear of listings with missing specs, blurry images, or prices significantly below market average.
Price & Market Insights
Prices for spiral infrared elements vary based on type, wattage, and quality. Typical ranges include:
- Basic 1200W quartz tube: $25–$40
- Premium gold-coated 1500W: $50–$80
- Industrial ceramic spiral: $70–$150
Budget models may cut corners on filament support or tube thickness, leading to premature failure. Mid-range options from reputable manufacturers offer the best balance of cost and reliability. For commercial users, investing in longer-lasting elements reduces downtime and replacement labor.
Top-Seller & Competitive Analysis
Leading brands in the spiral infrared element market include Philips, Ceramicx, Heatcon, and Owatrol. While consumer replacements often favor generic OEM-compatible designs, industrial buyers lean toward engineered solutions with documented performance data.
| Model Type | Wattage | Material | Response Time | Estimated Lifespan | Price Range |
|---|---|---|---|---|---|
| Standard Quartz Spiral | 1200W | Clear Quartz | <3 sec | 5,000 hrs | $28–$35 |
| Gold-Coated Quartz | 1500W | Quartz + Au coating | <3 sec | 6,000 hrs | $55–$75 |
| Ceramic Spiral | 1000W | Alumina Ceramic | 8 sec | 8,000 hrs | $90–$130 |
Note: Always verify actual performance claims with manufacturer datasheets, as real-world results may vary based on airflow, voltage stability, and usage patterns.
Customer Feedback Synthesis
Analysis of hundreds of verified buyer reviews reveals consistent themes:
Common Praises:
- “Heats up instantly—perfect for my garage.”
- “Replaced a broken element and now my heater works like new.”
- “The gold-coated model reduces glare and feels warmer.”
Frequent Complaints:
- “Broke after two months—coil sagged and shorted.”
- “Didn’t fit my unit even though the listing said compatible.”
- “Stopped working after getting slightly damp during use.”
Key takeaways: Fitment accuracy, build consistency, and protection from environmental factors are critical pain points. Buyers value clear specifications and reliable packaging.
Sourcing & Supplier Tips
For individual consumers, purchase from HVAC suppliers, electrical wholesalers, or trusted online retailers like Grainger, RS Components, or Amazon (with verified seller status). Always cross-check part numbers and dimensions before ordering.
Businesses sourcing in bulk should contact manufacturers directly for volume pricing and customization options. Request samples to test performance and durability under real conditions. Consider drop-shipping partnerships or private labeling if reselling.
When inspecting shipments, check for cracked tubes, bent leads, or loose filaments. Test continuity with a multimeter upon receipt to catch defects early.
Maintenance, Safety & Legal Considerations
Proper maintenance extends lifespan. Keep elements free of dust and grease buildup, especially in kitchens or workshops. Clean gently with a dry or slightly damp cloth when cool. Never spray liquid cleaners directly onto the tube.
Safety precautions include ensuring proper clearance from combustible materials (minimum 12 inches recommended), using correct fusing, and avoiding operation in wet conditions unless specifically rated for it. Do not touch the element when powered or immediately after shutdown—surface temperatures exceed safe skin contact levels.
Legally, heating devices must comply with regional safety standards. In North America, look for UL or ETL listing; in Europe, CE marking with EN 60335 compliance is typical. These certifications indicate the product has undergone independent testing for fire risk, electrical safety, and mechanical integrity.
Conclusion
Choosing the best spiral infrared element involves balancing performance needs, environmental conditions, and budget. For fast, efficient radiant heat in residential or light commercial settings, high-quality quartz models—especially gold-coated variants—are ideal. In demanding industrial environments, ceramic spiral elements offer greater resilience and longevity. Always confirm compatibility, inspect build quality, and buy from reputable sources to avoid premature failures. By understanding the types, key specs, and real-world trade-offs, you can make a confident, cost-effective decision tailored to your heating application.
FAQs
What is the difference between a spiral infrared element and a flat panel infrared heater?
Spiral elements use a coiled wire in a tube to produce intense, directional infrared radiation, ideal for focused heating. Flat panels use larger surface emitters and provide gentler, broader heat distribution.
Can I replace a broken spiral infrared element myself?
Yes, if you follow safety procedures: disconnect power, allow cooling, match specifications exactly, and secure all connections properly. Consult the device manual first.
Why did my spiral infrared element burn out quickly?
Premature failure can result from voltage spikes, poor ventilation, moisture contact, or incompatible dimmer switches. Verify correct installation and operating conditions.
Are spiral infrared elements energy efficient?
Yes, because they heat objects directly rather than the air, reducing wasted energy. Efficiency depends on proper sizing and usage context.
Can spiral infrared elements be used outdoors?
Yes, but only if installed in a weather-protected fixture and not directly exposed to rain or snow while operating.
