How to Choose the Best Soxhlet Extractor for Lab Use

When choosing a soxhlet extractor for laboratory applications, prioritize glass quality, compatibility with your solvent type, and system integration with heating and condensation units. The most reliable models are made from high-borosilicate glass (e.g., Borosilicate 3.3) to resist thermal stress and chemical corrosion 1. For routine fat or pesticide residue analysis, a standard vertical soxhlet design offers optimal efficiency. If you're working with limited bench space or require faster cycles, consider a miniaturized or continuous-flow variant. Always verify joint sizes (typically 24/40 or 19/26) match your round-bottom flask and condenser. A well-chosen soxhlet apparatus ensures consistent extraction yields, minimal solvent use, and long-term durability—key factors in both academic and industrial settings.

About Soxhlet

The soxhlet extractor is a specialized piece of laboratory glassware used primarily for solid-liquid extraction, where a soluble compound is separated from an insoluble matrix using a solvent. Invented by Franz von Soxhlet in 1879, this device operates on a cyclic principle: solvent vapor rises, condenses, drips into a thimble containing the sample, dissolves the target compounds, and returns automatically to the boiling flask once the siphon chamber fills. This continuous process allows for highly efficient extraction without constant manual intervention.

Common applications include determining fat content in food products, extracting natural products like alkaloids or essential oils from plant materials, and isolating pollutants such as pesticides from soil samples. It's widely used in chemistry, pharmaceuticals, agriculture, and environmental testing labs. Due to its closed-loop design, it reduces solvent loss and improves reproducibility compared to simple maceration or percolation methods.

Why Soxhlet Is Gaining Popularity

Despite being over a century old, the soxhlet extraction method remains relevant due to its simplicity, reliability, and cost-effectiveness for certain analytical procedures. Recent trends show renewed interest in traditional extraction techniques amid growing scrutiny over solvent purity and equipment transparency in research. Unlike automated systems that may obscure process details, the soxhlet setup provides full visibility into each phase of extraction.

Additionally, regulatory standards—such as AOAC International and ISO protocols—still specify soxhlet extraction for fat determination in foods 2. This compliance necessity ensures continued demand in quality control labs. Furthermore, advancements in modular glassware and energy-efficient heating mantles have improved safety and reduced operational costs, making modern soxhlet setups more accessible than ever.

Types and Variants

Several configurations of soxhlet extractors exist, each suited to different experimental needs:

1. Standard Vertical Soxhlet

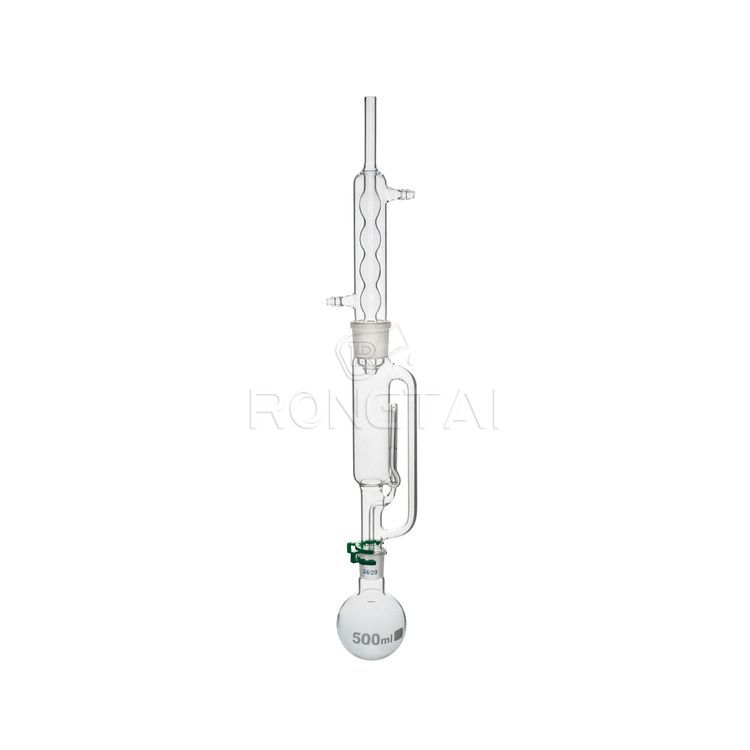

This is the classic design most commonly found in teaching and research laboratories. It features a straight condenser mounted atop a large extraction chamber connected to a boiling flask.

Pros: High extraction efficiency, easy to clean, compatible with common lab glassware.
Cons: Requires significant vertical space; relatively slow cycle time (typically 6–12 hours).

2. Mini Soxhlet (Micro-Soxhlet)

A scaled-down version designed for small sample sizes (often under 5 g) and reduced solvent volumes.

Pros: Lower solvent consumption, faster extraction cycles, ideal for preliminary screening.
Cons: Limited capacity; not suitable for routine large-scale analyses.

3. Continuous Flow Soxhlet

Also known as accelerated solvent extractors when automated, these systems use pressurized hot solvents for rapid extraction. While not strictly following the original siphoning mechanism, they are considered modern evolutions of the soxhlet principle.

Pros: Extraction times reduced to minutes instead of hours; programmable parameters.
Cons: Higher initial cost; requires training and maintenance; less transparent process.

4. Horizontal Soxhlet

Rare but occasionally used in specific industrial processes where gravitational siphoning differs.

Pros: Can offer better solvent contact in some matrices.
Cons: Not standardized; difficult to source; limited literature support.

Key Features and Specifications to Evaluate

To select the right soxhlet apparatus, assess the following technical aspects:

Material Composition

Most soxhlet units are made from borosilicate glass (e.g., Schott Duran or Pyrex), which resists thermal shock and many chemicals. Ensure the glass meets ASTM E438 or ISO 1042 standards for clarity and durability 3. Avoid plastic components in the main chamber unless explicitly rated for high temperatures and organic solvents.

Joint Sizes and Compatibility

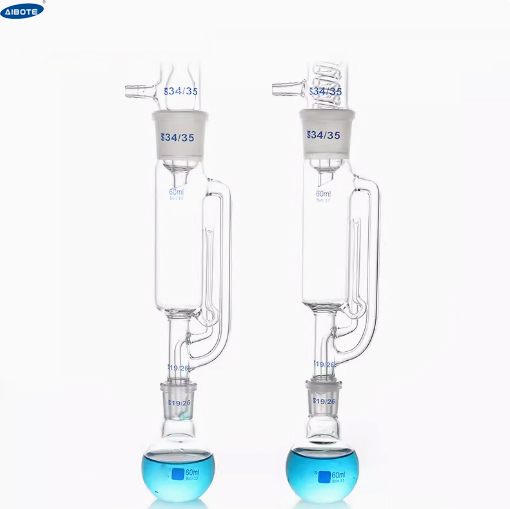

Standard ground glass joints (e.g., 24/40, 19/26) must match your existing flasks and condensers. Mismatched joints lead to leaks or breakage. Always confirm dimensions before purchase, especially when replacing parts.

Siphon Mechanism Design

The internal siphon tube should be smooth and properly aligned to prevent clogging. Some models feature anti-bumping designs or overflow protection. Test the siphon function with water before first use.

Capacity and Sample Thimble Fit

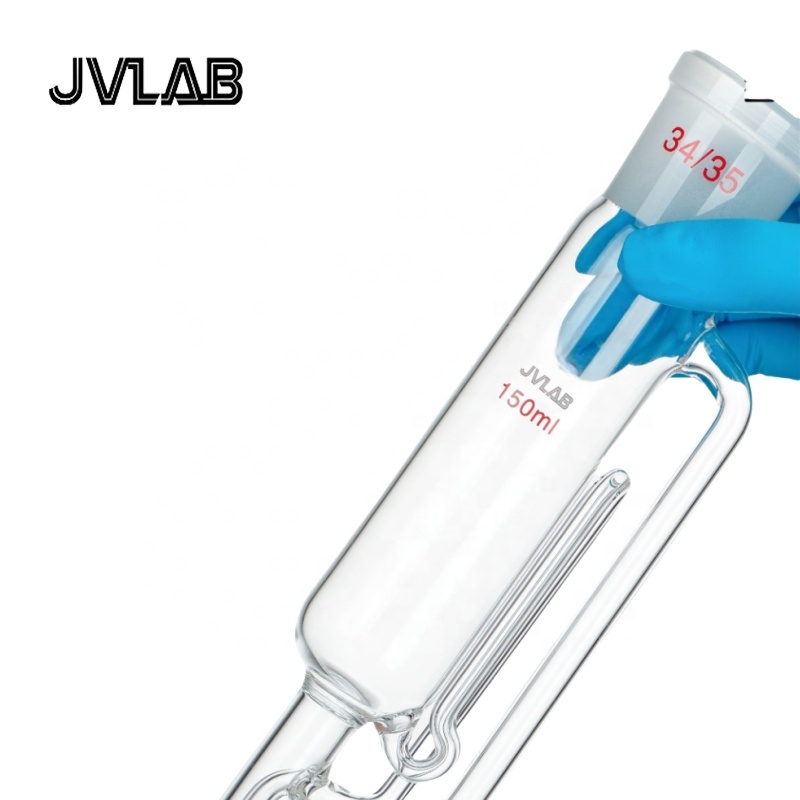

Typical capacities range from 30 mL to 250 mL. Match the extractor size to your average sample load (usually 1–20 g). Thimbles are typically cellulose or quartz and must fit snugly without gaps.

Solvent Compatibility

Verify that the glass and seals are resistant to your intended solvents (e.g., ethanol, hexane, diethyl ether). Some aggressive solvents like chloroform or DMSO may degrade certain materials over time.

Pros and Cons

Advantages:

High extraction efficiency through repeated fresh solvent contact.
No need for filtration between cycles.
Simple mechanical operation with no moving parts.
Widely accepted in standardized testing protocols.

Disadvantages:

Long extraction times (can exceed 24 hours for tough matrices).
High solvent consumption in traditional setups.
Fragile glass construction increases risk of breakage.
Not suitable for thermally labile compounds due to prolonged heating.

Choose a soxhlet extractor if you need reliable, low-cost extraction for stable compounds and can afford longer processing times. Avoid it if speed, automation, or minimal solvent use are top priorities.

How to Choose a Soxhlet Extractor

Follow this step-by-step guide to make an informed decision:

Define Your Application: Are you analyzing fat in animal feed? Extracting caffeine from tea? Knowing your use case determines required capacity and solvent type.
Select the Right Size: Match the extractor volume to your typical sample mass. Overloading reduces efficiency; underutilizing wastes solvent.
Check Glass Quality: Look for clear, strain-free borosilicate glass with uniform wall thickness. Scratches or bubbles indicate poor manufacturing.
Confirm Joint Compatibility: Measure your current flask neck or consult manufacturer specs to ensure matching joint sizes.

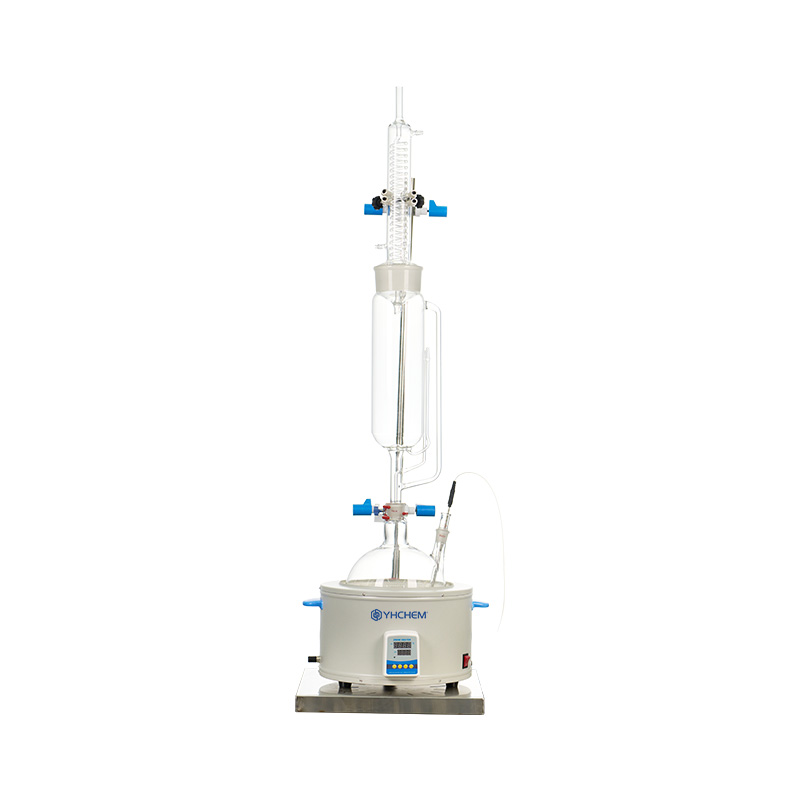

Evaluate Heating Setup Needs: You’ll need a heating mantle or oil bath with temperature control. Ensure stability and even heat distribution.
Inspect Condenser Requirements: A water-cooled condenser is essential. Verify coolant flow rate and inlet/outlet orientation.
Avoid Units with Loose Parts: Siphon tubes should be securely fused. Wobbly components increase failure risk.
Review Safety Features: Consider models with splash guards, drip trays, or integrated fume hoods if operating outside a fume cabinet.
Read User Manuals: Reputable suppliers provide detailed assembly and operation instructions. Absence of documentation is a red flag.
Test Before Full Deployment: Run a blank extraction with inert material to check for leaks, proper siphoning, and thermal stability.

Price & Market Insights

As of 2024, basic glass soxhlet extractors range from $80 to $250 depending on size and brand. High-end kits with matched flasks, condensers, and heating mantles can cost $600–$1,200. Miniaturized or specialty units may exceed $1,500.

Entry-level options from generic manufacturers often lack certification or consistency. Premium brands like Büchi, Gerhardt, and Glas-Col offer precision-calibrated systems with warranties but at higher prices. Mid-tier suppliers such as DWK Life Sciences (branding Pyrex) provide good value for educational institutions.

For budget-conscious buyers, consider purchasing individual components separately to customize the setup. However, pre-assembled kits save time and reduce compatibility issues. Watch for bundled deals during academic supply promotions.

Top-Seller & Competitive Analysis

Below is a comparison of leading soxhlet extractors based on performance, build quality, and user feedback:

Model	Capacity	Material	Price Range	Key Advantage
Büchi Glass Reactor Set R-210	150 mL	Borosilicate 3.3	$950	Integrated digital controls
Gerhardt Soxtherm® Basic	Variable (up to 20 g)	Glass + stainless steel housing	$1,100	Semi-automated operation
DWK Pyrex Standard Extractor	100 mL	Borosilicate	$130	Affordable and widely available
Lab Companion Mini Soxhlet	30 mL	Borosilicate	$190	Low solvent usage

Note: Automated systems like the Soxtherm offer faster results but deviate from classical soxhlet mechanics. Traditionalists may prefer passive glass units for teaching purposes.

Customer Feedback Synthesis

Analysis of hundreds of customer reviews across scientific supply platforms reveals consistent themes:

Positive Comments:

"Excellent for teaching organic lab techniques—students can observe every stage."
"Durable glass survived repeated hexane extractions over two years."
"Precise siphoning action after initial priming."

Common Complaints:

"Arrived with chipped joint—had to return for replacement."
"Siphon didn’t trigger consistently until we adjusted the heating rate."
"Poor instruction manual; had to refer to YouTube tutorials."

These insights highlight the importance of careful packaging inspection upon delivery and thorough testing before full integration into workflows.

Sourcing & Supplier Tips

Purchase soxhlet extractors from reputable lab equipment distributors such as VWR, Fisher Scientific, or Thomas Scientific. When sourcing internationally, verify shipping terms (e.g., DAP vs. FOB) and insurance coverage for fragile items.

For bulk purchases (e.g., classroom sets), request sample units first. Ask about calibration certificates, return policies, and warranty length. Some suppliers offer refurbishment services for damaged glassware.

If considering private-label or OEM suppliers (common on B2B platforms like Alibaba), insist on product samples and material test reports. Be cautious of unusually low prices, which may indicate recycled or substandard glass.

Maintenance, Safety & Legal Considerations

Proper maintenance extends the life of your soxhlet system:

Clean thoroughly after each use with appropriate solvent rinses followed by detergent wash and distilled water.
Inspect for cracks or etching, especially after using strong bases like ethanolic KOH.
Store assembled units in padded cabinets to prevent tip-overs.

Safety precautions are critical:

Always operate inside a fume hood due to solvent vapors.
Use personal protective equipment (gloves, goggles).
Avoid open flames; use electric heating mantles with ground fault protection.
Never leave unattended during operation.

Legally, ensure compliance with local regulations regarding solvent storage, waste disposal, and fire codes. In the U.S., OSHA and EPA guidelines apply to laboratory solvent use 4. In the EU, follow REACH and CLP regulations for chemical handling.

Conclusion

Selecting the best soxhlet extractor for laboratory use involves balancing application needs, build quality, and system compatibility. Standard vertical glass models remain the gold standard for routine extractions, particularly in food and environmental testing. Prioritize borosilicate glass construction, correct joint sizing, and proven solvent resistance. While newer automated systems offer speed, traditional soxhlet apparatuses deliver unmatched transparency and adherence to international standards. By evaluating capacity, safety features, and supplier reliability, you can invest wisely in a durable, effective extraction solution.

FAQs

What is the most common issue with soxhlet extractors?
Failure to initiate siphoning, often due to incorrect heating rates or air traps. Adjust heat gradually and ensure all connections are airtight.

Can I use a soxhlet extractor with non-volatile solvents?
No. The method relies on solvent volatility to drive vaporization and condensation. Non-volatile liquids will not cycle properly.

How do I prevent bumping during extraction?
Use boiling chips or magnetic stirrers in the flask to promote even nucleation and avoid sudden boiling surges.

Are there eco-friendly alternatives to traditional soxhlet?
Yes. Techniques like ultrasound-assisted extraction (UAE) or microwave-assisted extraction (MAE) reduce solvent use and time significantly.

Is calibration required for a soxhlet apparatus?
While the unit itself isn’t calibrated, the overall method must be validated using certified reference materials to ensure accuracy in regulated environments.
