How to Choose the Best Solar Water Pump 3HP: Ultimate Buying Guide

When choosing a solar water pump 3hp for agricultural irrigation or rural water supply, prioritize systems with high-efficiency submersible pumps paired with at least 2,400 watts of solar panel capacity. A well-matched solar water pump 3hp setup delivers consistent flow rates up to 150 meters head pressure, making it ideal for deep wells and large-scale farming. Look for MPPT charge controllers, corrosion-resistant materials, and IP68-rated motors to ensure durability in harsh environments 1. Avoid undersized solar arrays, as they lead to underperformance during cloudy days.

Short Introduction

Selecting the right solar water pump 3hp system requires balancing power output, water delivery needs, and environmental conditions. These pumps are increasingly used in off-grid farms, livestock watering, and municipal water projects where grid electricity is unavailable or costly. The ideal configuration includes a 3 horsepower (approximately 2.2 kW) DC or AC solar-powered motor connected to a photovoltaic array capable of generating sufficient peak wattage even under partial sunlight. This guide breaks down everything you need to know before purchasing, including types, specifications, pricing trends, and real-world performance insights to help you make an informed decision.

About Solar Water Pump 3HP

A solar water pump 3hp is designed to move large volumes of water using energy from sunlight. It typically consists of a pump unit (submersible or surface), solar panels, a controller, and sometimes batteries or inverters. The '3hp' refers to the mechanical output equivalent of a traditional 3-horsepower electric motor, which translates to about 2,237 watts of hydraulic power. These systems are commonly deployed in remote areas for irrigation, drinking water supply, and industrial applications where access to the electrical grid is limited.

Solar water pumps rated at 3hp can lift water from depths exceeding 100 meters and deliver flow rates between 40,000 to 70,000 liters per day, depending on solar irradiance and total dynamic head (TDH). They are especially effective in regions with high daily sun exposure, such as arid and semi-arid zones across Africa, India, and Latin America 2.

Why Solar Water Pump 3HP Is Gaining Popularity

The demand for solar water pump 3hp units has surged due to rising fuel costs, unreliable grid infrastructure, and increasing focus on sustainable agriculture. Farmers and rural communities are turning to solar solutions to reduce long-term operational expenses and minimize carbon emissions. Unlike diesel-powered pumps, solar systems have no ongoing fuel cost and require less maintenance over time.

Government incentives in countries like India and Kenya have further accelerated adoption by subsidizing up to 90% of installation costs for eligible users. Additionally, advancements in photovoltaic efficiency and motor design now allow 3hp solar pumps to perform comparably to conventional electric or diesel models under optimal conditions.

Types and Variants

There are two primary configurations for solar water pump 3hp systems: submersible and surface pumps. Each serves different depth and application requirements.

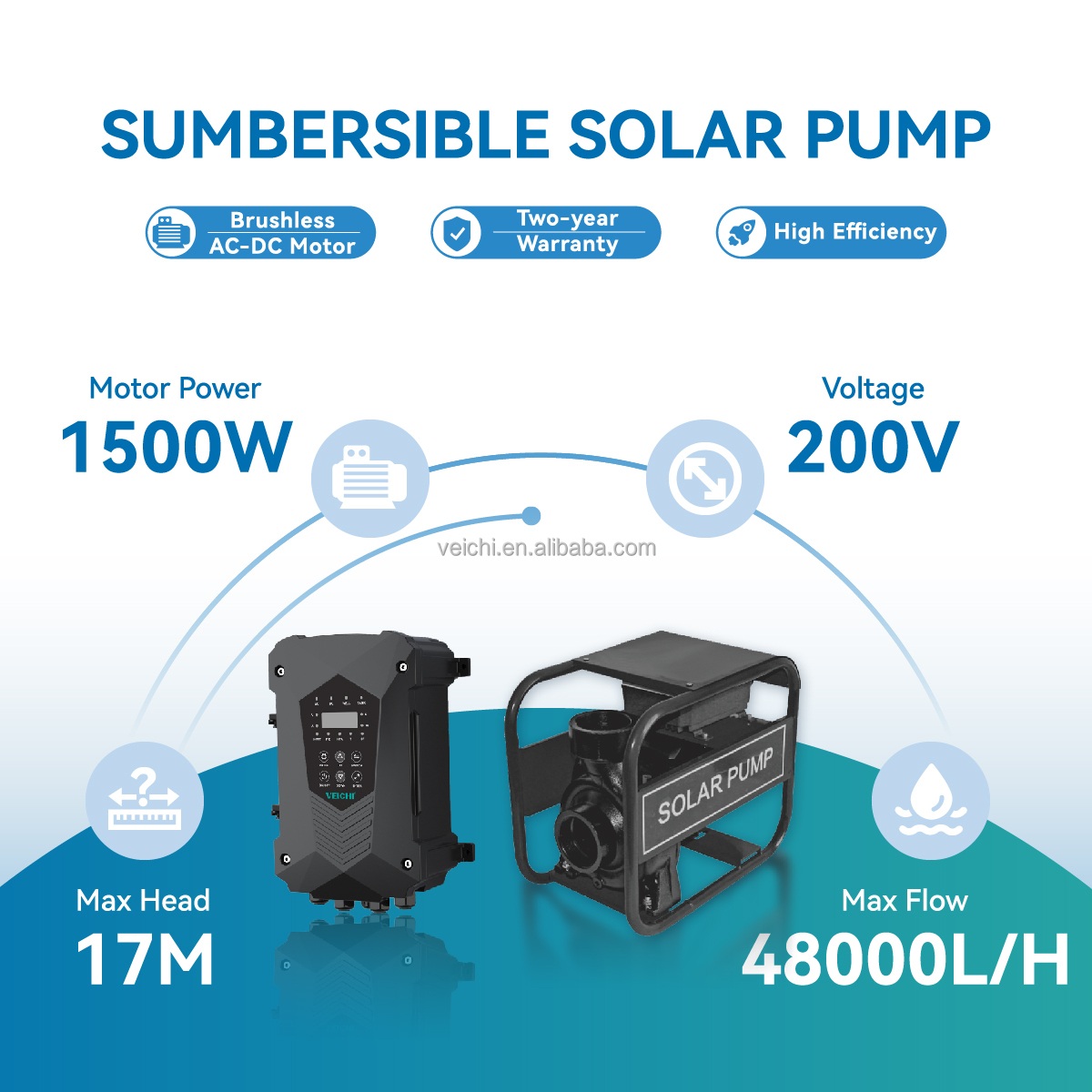

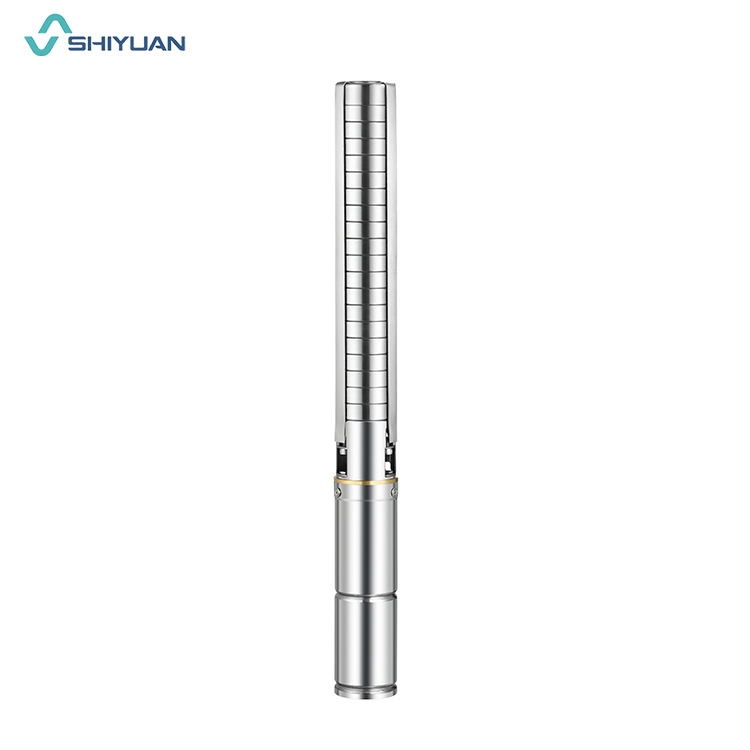

Submersible Solar Pumps

Pros: Suitable for deep borewells (up to 200m), quieter operation, higher efficiency due to direct immersion.
Cons: More expensive to install and repair; requires professional lowering into the well.

Ideal for groundwater extraction in agricultural fields or villages relying on deep aquifers.

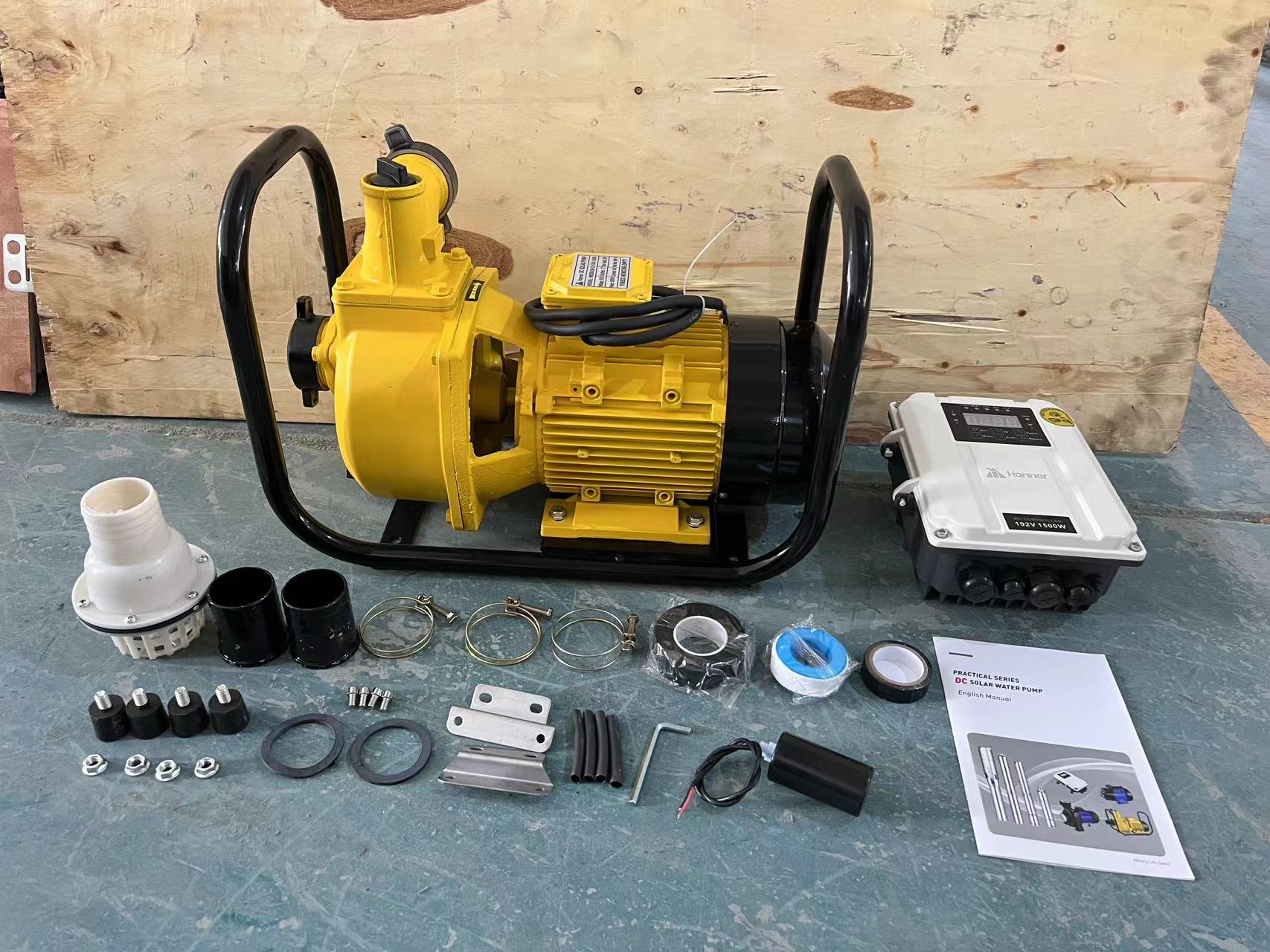

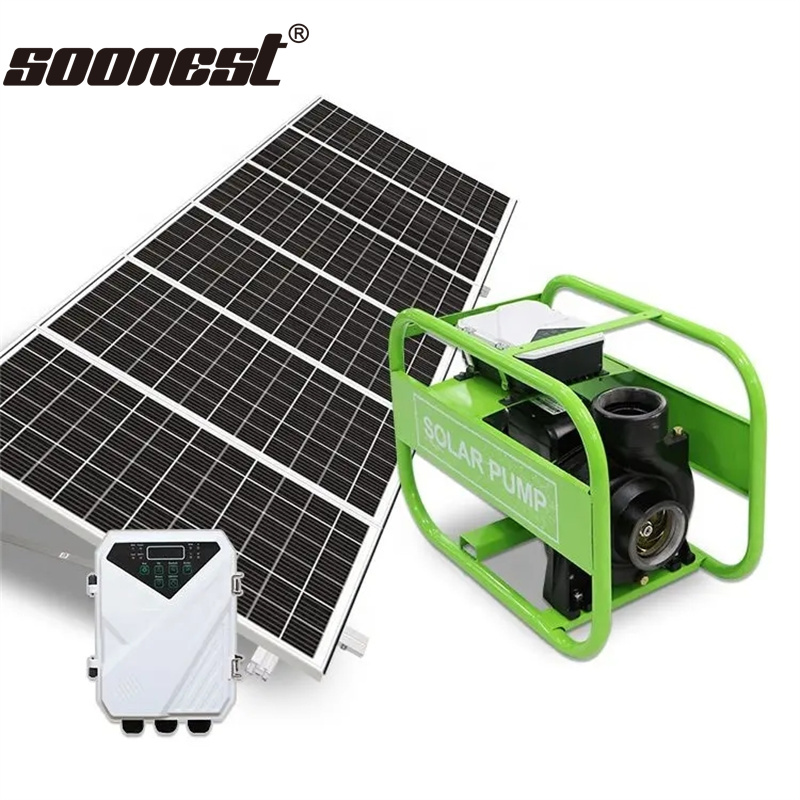

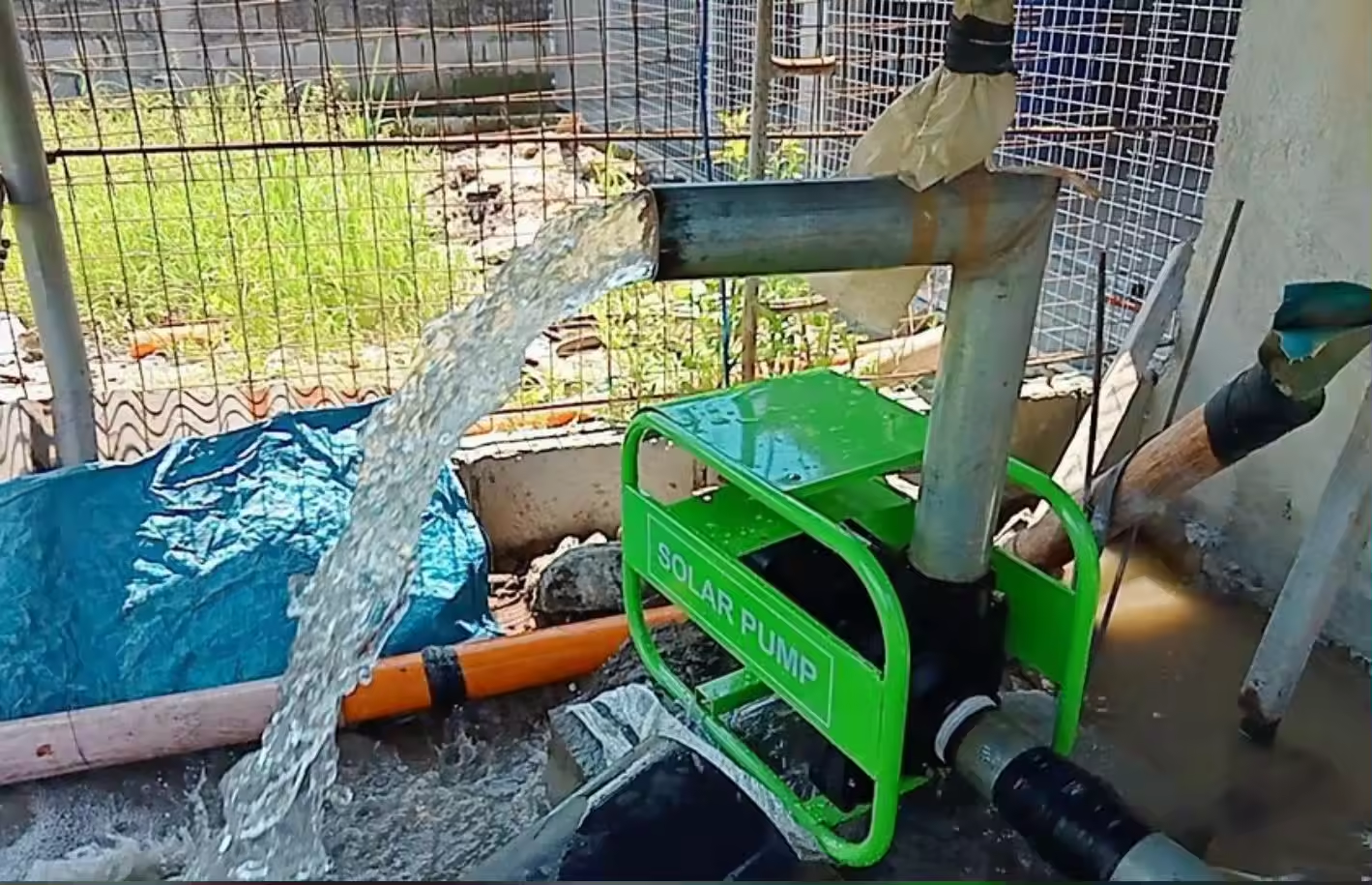

Surface Solar Pumps

Pros: Easier maintenance, lower upfront cost, accessible for inspection.
Cons: Limited suction height (typically under 8 meters); not suitable for very deep sources.

Better suited for shallow wells, rivers, or reservoirs where water is readily accessible.

Additionally, solar water pumps come in DC and AC variants:

DC Solar Pumps: Directly powered by solar panels without an inverter. Most common for 3hp systems due to simplicity and efficiency.
AC Solar Pumps: Require an inverter to convert DC power from panels to AC. Allow integration with backup generators or hybrid systems but introduce energy loss.

Key Features and Specifications to Evaluate

To select the best solar water pump 3hp for your needs, assess these technical and practical parameters:

Total Dynamic Head (TDH): Measure the vertical distance plus friction losses from source to discharge point. Ensure the pump can handle your maximum TDH, especially during dry seasons.
Flow Rate Requirements: Determine how many liters per hour or day you need. For example, drip irrigation for 5 acres may require 50,000 L/day.
Solar Panel Sizing: A 3hp pump usually needs 2,000–3,000W of solar panels. Monocrystalline panels are preferred for their efficiency in low-light conditions.

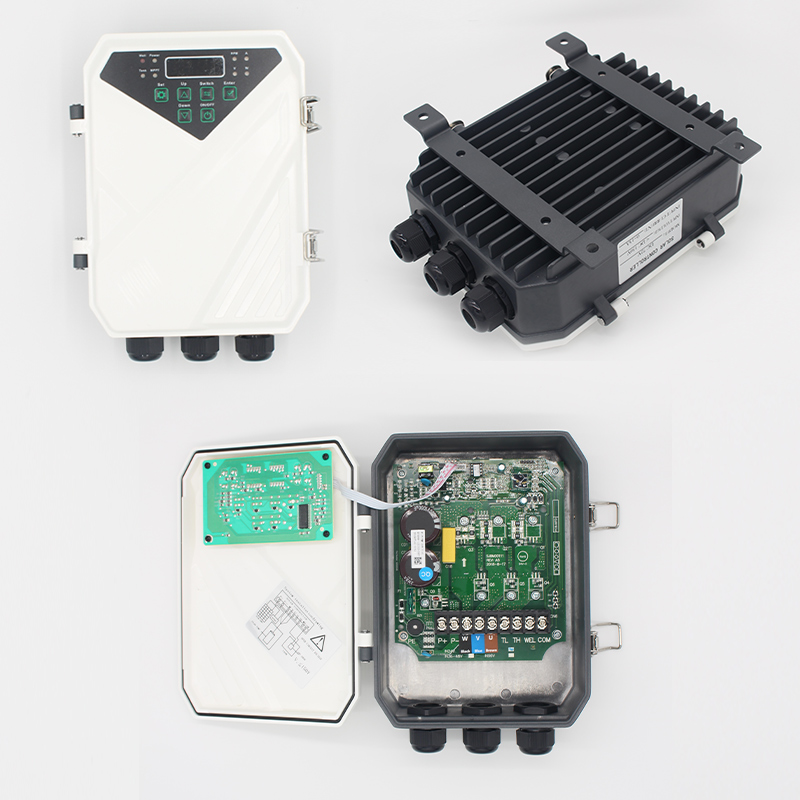

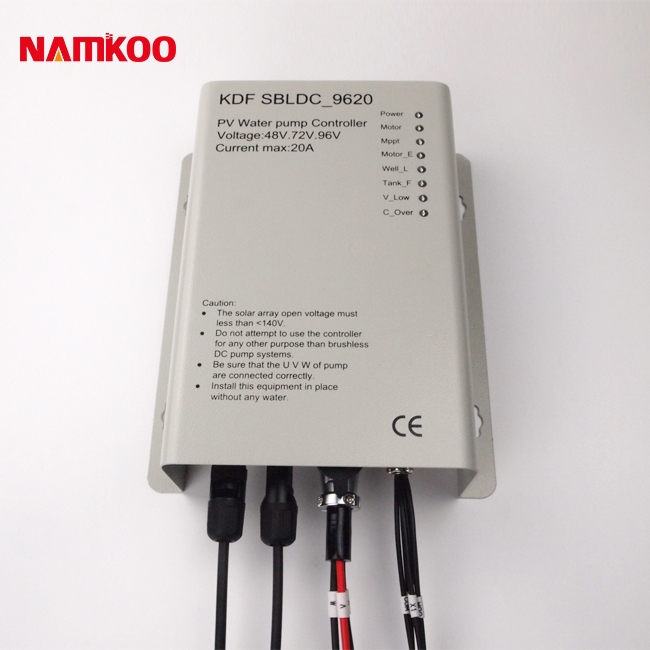

Controller Type: MPPT (Maximum Power Point Tracking) controllers optimize energy use and improve performance by up to 30% compared to PWM types.
Motor Protection: Look for dry-run protection, overheat shutdown, and phase failure detection, especially in variable sunlight conditions.
Material Quality: Stainless steel or cast iron casings resist corrosion in saline or mineral-rich water.
IP Rating: Motors should be at least IP68 rated for dust-tight and continuous submersion capability.

Pros and Cons

Advantages

No fuel or electricity bills after initial investment.
Environmentally friendly with zero operational emissions.
Low maintenance compared to diesel engines.
Long lifespan—solar panels last 20+ years; pumps often come with 5-year warranties.
Autonomous operation with automatic start/stop based on sunlight.

Limitations

Performance depends on weather and daylight hours—no pumping at night unless battery-backed.
High initial cost, though decreasing annually.
Requires adequate space for solar array installation with unobstructed sun exposure.
Not ideal for locations with frequent cloud cover or short daylight periods.

How to Choose a Solar Water Pump 3HP

Follow this step-by-step checklist when evaluating options:

Assess Your Water Needs: Calculate daily water volume and required lifting height. Use pump curves provided by manufacturers to match performance specs.
Determine Site Conditions: Check average sunlight hours, ambient temperature, and water quality (e.g., sandy or salty content).
Select Pump Type: Choose submersible for deep wells (>20m), surface for shallow sources.
Size the Solar Array Correctly: Match panel wattage to pump input requirements. Oversize by 10–20% to account for dust, aging, and partial shading.
Verify Controller Compatibility: Ensure the controller supports the pump’s voltage and current draw. Prefer MPPT for better yield.
Check Warranty and Support: Reputable brands offer minimum 2-year warranty on pumps and 5+ years on panels.
Avoid Red Flags: Be cautious of sellers who don’t provide full system schematics, lack certified test reports, or refuse to share performance data under varying irradiance levels.

Price & Market Insights

The total cost of a complete solar water pump 3hp system ranges from $2,500 to $5,500 USD, depending on components and brand. Basic kits include pump, panels, and controller. Premium packages may add telemetry, remote monitoring, or hybrid inverters.

Entry-level systems ($2,500–$3,200) often use poly-crystalline panels and basic PWM controllers. Mid-range ($3,200–$4,200) feature monocrystalline panels and MPPT technology. High-end ($4,200+) include stainless steel pumps, smart controls, and extended warranties.

Prices vary significantly by region due to import duties, local subsidies, and availability. Always request itemized quotes and compare apples-to-apples—including shipping, taxes, and installation fees.

Model Type	Pump Depth	Solar Input (W)	Max Flow Rate	Approx. Price (USD)
Submersible DC	Up to 180m	2,400	65,000 L/day	$3,800
Surface AC + Inverter	Up to 7m suction	3,000	70,000 L/day	$4,500
Hybrid Submersible	Up to 150m	2,700	60,000 L/day	$5,200

Top-Seller & Competitive Analysis

Leading brands in the solar water pump 3hp market include Lorentz, SunPumps, Shakti Pumps, and Clent Solar. Lorentz PSk2 series is known for its German engineering and robust performance in high-head applications. SunPumps TR series offers excellent reliability in North American climates. Indian manufacturers like Shakti provide cost-effective alternatives with strong after-sales service in Asia and Africa.

When comparing top sellers, examine third-party test results, customer service responsiveness, and spare parts availability. Some budget models may claim 3hp output but operate inefficiently under real-world conditions. Always verify actual field performance rather than relying solely on brochure claims.

Customer Feedback Synthesis

Analysis of user reviews reveals recurring themes:

Positive: Users praise long-term savings, ease of automation, and reduced labor compared to diesel pumps. Many report trouble-free operation for over three years.
Criticisms: Common complaints include inadequate technical support, delayed deliveries, and mismatched panel-pump combinations leading to low output during monsoon or winter months.
Surprises: Some buyers were unaware that solar pumps stop at sunset and expected nighttime operation without adding batteries—a costly oversight.

Overall satisfaction increases when buyers receive proper system sizing guidance before purchase.

Sourcing & Supplier Tips

Purchase from authorized distributors or suppliers with proven track records in solar water pumping. For bulk orders (e.g., government or NGO projects), request factory audits or sample testing. When sourcing internationally, confirm compatibility with local voltages and mounting standards.

Consider working with integrators who offer turnkey installation services. Verify return policies and warranty terms—some suppliers exclude damage caused by improper installation or sand ingress.

If buying online, check seller ratings, look for detailed product documentation, and confirm whether customs clearance is included.

Maintenance, Safety & Legal Considerations

Regular maintenance includes cleaning solar panels every 2–4 weeks (more frequently in dusty areas), inspecting cables for wear, and checking for algae or sediment buildup in intake filters. Submersible pumps should be pulled annually for inspection if operating in sandy water.

Safety precautions: Install grounding rods for lightning protection, use waterproof connectors, and place combiner boxes out of reach of children or animals.

Legally, some regions require permits for groundwater extraction or restrict pump sizes based on aquifer sustainability. Check local regulations before installation to avoid fines or disconnection.

Conclusion

A solar water pump 3hp is a powerful, sustainable solution for large-scale water transfer in off-grid settings. Success depends on accurate system sizing, quality components, and understanding site-specific challenges. Prioritize MPPT controllers, durable pump materials, and reputable suppliers. While the upfront cost is significant, the long-term savings and environmental benefits make it a smart investment for farmers, municipalities, and development agencies alike. By following this guide, you can confidently choose a system that meets your water needs reliably for years to come.

FAQs

Can a solar water pump 3hp run at night?
No, unless paired with a battery storage system. Most solar pumps operate only during daylight hours.

How many solar panels are needed for a 3hp solar water pump?
Typically 8–12 monocrystalline panels of 300W each (total 2,400–3,000W), depending on location and pump efficiency.

What is the lifespan of a 3hp solar water pump?
The pump motor lasts 5–10 years; solar panels typically last 20–25 years with proper care.

Can I use a solar water pump 3hp for drip irrigation?
Yes, provided the system delivers consistent pressure and flow rate matching your crop’s needs.

Do solar water pumps work on cloudy days?
Yes, but at reduced capacity. Output drops significantly during heavy overcast; oversizing the array helps maintain performance.
