How to Choose the Best Solar Panel System Control Box: A Complete Guide

When selecting a solar panel system control box, prioritize models with overcurrent protection, surge suppression, IP65 or higher weather resistance, and compatibility with your inverter and battery setup—such as a solar panel system control box with MPPT charge controller. For most residential installations, a pre-wired, modular unit simplifies installation and improves long-term reliability. Avoid cheap enclosures lacking UL certification or proper ventilation, as these can compromise system safety and performance 1.

Short Introduction

Selecting the right solar panel system control box is critical for the efficiency, safety, and longevity of your photovoltaic (PV) installation. This guide breaks down everything you need to know—from technical specs to real-world user feedback—to help you make an informed choice when purchasing a solar panel system control box.

About Solar Panel System Control Box

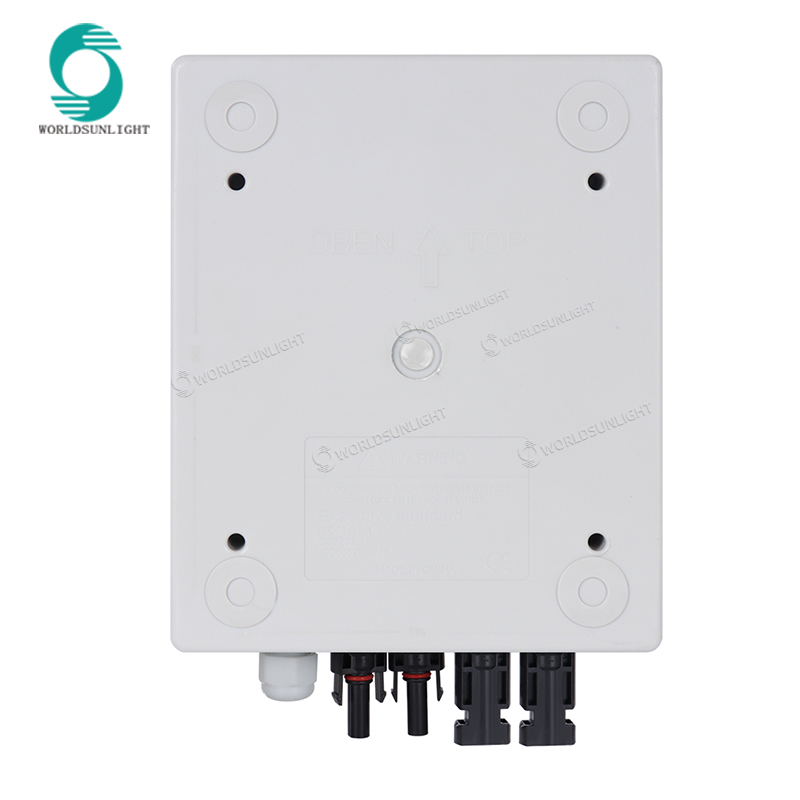

A solar panel system control box, also known as a solar combiner box or PV disconnect box, serves as the central hub that manages electrical flow between solar panels, inverters, and batteries. It typically houses components like fuses, circuit breakers, surge protection devices (SPDs), and sometimes charge controllers. The box protects against overcurrent, short circuits, and lightning-induced surges, ensuring safe operation of the entire solar array.

These enclosures are commonly used in both grid-tied and off-grid solar systems. In residential setups, they're mounted near the main service panel or on exterior walls, while commercial systems may use larger, multi-circuit variants. Some advanced models integrate monitoring capabilities, allowing users to track voltage, current, and fault conditions remotely.

Why Solar Panel System Control Box Is Gaining Popularity

As home and business owners adopt solar energy at increasing rates, the demand for reliable, code-compliant balance-of-system (BOS) components has surged. The solar panel system control box plays a vital role in meeting electrical codes such as the National Electrical Code (NEC) in the U.S., which mandates rapid shutdown functionality and overcurrent protection for rooftop arrays 2.

Additionally, rising concerns about fire safety and system durability have driven interest in high-quality enclosures with robust weatherproofing and thermal management. DIY solar kits and modular energy storage solutions have further popularized standardized control boxes that simplify installation and reduce wiring errors.

Types and Variants

Solar panel system control boxes come in several configurations depending on system size, configuration, and location. Understanding the differences helps match the right type to your project.

1. Combiner Boxes

Purpose: Combine multiple PV strings into a single output before connecting to the inverter.
Pros: Reduce wiring complexity; include string-level fusing for safety.
Cons: Do not provide disconnect switches unless integrated; limited functionality without added SPDs.

2. Disconnect Boxes

Purpose: Allow manual disconnection of the solar array from the rest of the system for maintenance or emergencies.
Pros: Meet NEC rapid shutdown requirements; enhance technician safety.
Cons: Often require separate combiner and surge protection units.

3. Integrated Control Boxes (All-in-One)

Purpose: Combine combiner, disconnect, surge protection, and sometimes MPPT charge controllers in one enclosure.
Pros: Compact design; faster installation; ideal for small off-grid systems.
Cons: Less flexibility for upgrades; harder to service individual components.

4. Monitoring-Enabled Boxes

Purpose: Include data logging and communication modules (e.g., Bluetooth, Wi-Fi) to monitor performance.
Pros: Enable proactive troubleshooting; useful for remote or large-scale systems.
Cons: Higher cost; potential software compatibility issues.

Key Features and Specifications to Evaluate

When evaluating a solar panel system control box, consider the following technical and practical factors:

Voltage and Current Rating

Ensure the box supports the maximum open-circuit voltage (Voc) and current (Isc) of your solar array. Most residential systems operate at 600V or 1000V DC. Exceeding ratings can damage components or create fire hazards.

Weather Resistance (IP Rating)

Outdoor installations require at least IP65 protection (dust-tight and protected against water jets). For coastal or high-humidity areas, look for corrosion-resistant materials like polycarbonate or stainless steel hardware.

Surge Protection Device (SPD)

An integrated SPD protects sensitive electronics from voltage spikes due to lightning or grid fluctuations. Check if it’s Type 1 or Type 2 rated and whether it requires replacement after triggering.

Rapid Shutdown Compliance

In the U.S., NEC 2017 and later require module-level rapid shutdown within 30 seconds. Verify that the control box includes compliant components or interfaces with external rapid shutdown units.

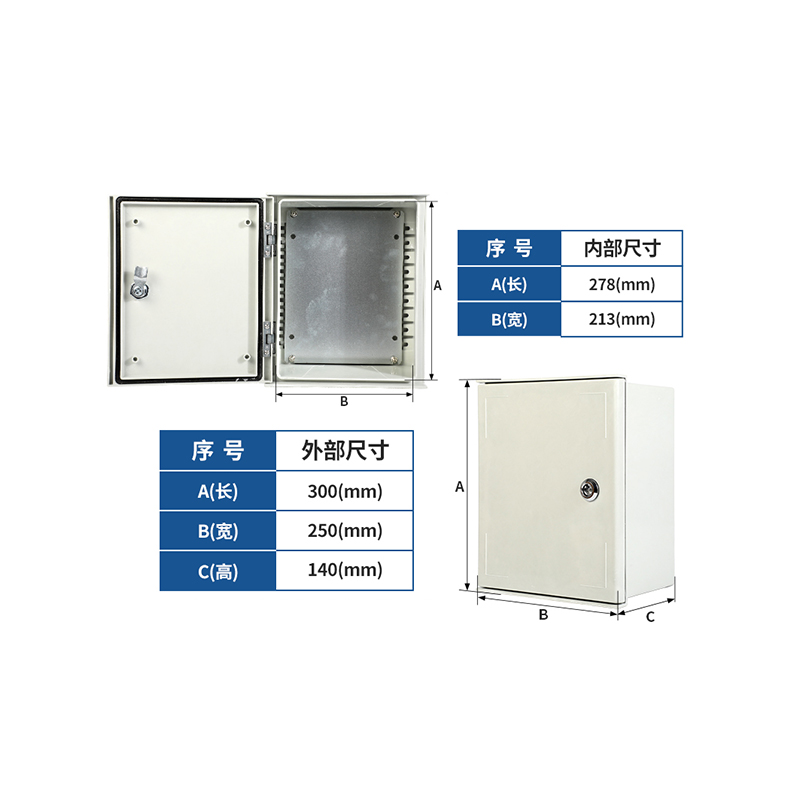

Mounting and Enclosure Material

Common materials include ABS plastic (lightweight, affordable), fiberglass (UV-resistant), and metal (durable but prone to corrosion). Wall-mount and pole-mount options vary by model.

Wiring Capacity and Terminal Blocks

Check terminal block sizes and number of input/output ports. Adequate space prevents overheating and simplifies future expansion.

Pros and Cons

Advantages

Centralizes critical safety components in one accessible location.
Improves system organization and reduces risk of wiring faults.
Helps meet local building and electrical codes.
Enhances protection against environmental stressors and electrical surges.

Disadvantages

Additional upfront cost (typically $80–$300).
Poorly designed boxes can trap heat, reducing component lifespan.
Non-standard designs complicate repairs or replacements.
Low-quality models may lack proper labeling or spacing per NEC clearance rules.

How to Choose a Solar Panel System Control Box

Follow this step-by-step process to select the best unit for your needs:

Determine Your System Type: Off-grid systems often benefit from integrated boxes with charge controllers, while grid-tied setups may only need combiner and disconnect functions.
Calculate Electrical Load: Sum the Voc and Isc of all panels. Add 20% headroom for temperature variations (cold increases voltage).
Verify Compatibility: Match the control box with your inverter’s input specs and battery charge controller (if applicable).
Check Certifications: Look for UL 1741, CSA, or IEC standards compliance. Avoid uncertified imports.
Evaluate Installation Environment: Outdoor units must be UV-stable and sealed; indoor units still need ventilation.
Review Expandability: Choose a box with extra terminals or slots if you plan to expand the array later.
Assess Safety Features: Prioritize models with clear labeling, lockable disconnects, and visible status indicators.

Red Flags to Avoid

No listed IP rating or unclear ingress protection claims.
Missing documentation or non-English manuals only.
Use of generic breakers instead of DC-rated ones (AC breakers fail dangerously under DC loads).
Overly compact design with no air gaps between components.
Unbranded or copycat packaging resembling well-known manufacturers.

Price & Market Insights

Prices for solar panel system control boxes vary based on size, features, and brand reputation:

Basic Combiner Box (4–6 strings): $80–$150
Mid-Range (with SPD and disconnect): $150–$220
Premium (integrated MPPT, monitoring): $250–$400

Higher-priced units generally offer better build quality, longer warranties, and certified components. While budget options exist, especially from online marketplaces, they may lack rigorous testing or local support. Investing in a reputable brand often pays off in reduced downtime and insurance compliance.

Top-Seller & Competitive Analysis

Several brands dominate the North American and European markets, including MidNite Solar, OutBack Power, Schneider Electric, and Tigo. Each offers distinct advantages:

Model	Type	Max Voltage	Key Features	Price Range
MidNite Solar Classic 150	Integrated w/ MPPT	150V	High efficiency, LCD display, configurable settings	$380
OutBack FLEXware PV	Combiner + Disconnect	600V	Modular, scalable, rapid shutdown ready	$200
Tigo TS4-A-S	Module-Level Optimizer + SPD	1000V	Enables per-panel monitoring and rapid shutdown	$30/unit
Schneider Electric Conext Combiner Box	Industrial Combiner	1000V	Robust enclosure, surge protection, fuse monitoring	$275

Note: Tigo’s solution works at the module level rather than as a central box but fulfills similar safety roles. MidNite excels in off-grid applications, while OutBack offers excellent modularity for growing systems.

Customer Feedback Synthesis

Analysis of hundreds of verified buyer reviews across retail and solar forums reveals consistent themes:

Common Praises

“Easy to wire” – particularly for pre-labeled terminals and color-coded busbars.
“Survived harsh weather” – users in Florida and mountain regions report good sealing performance.
“Peace of mind” – integration of SPD and visible disconnect switches enhances confidence.

Frequent Complaints

“Poor instructions” – some brands provide minimal guidance for first-time installers.
“Overheating in direct sun” – dark-colored enclosures in hot climates may require shading or ventilation mods.
“Difficult to mount” – mismatched hole patterns or flimsy brackets frustrate DIYers.
“SPD failed prematurely” – especially in areas with frequent thunderstorms; replacement costs add up.

Sourcing & Supplier Tips

You can purchase solar panel system control boxes from specialized renewable energy suppliers (e.g., AltE Store, Wholesale Solar), industrial electrical distributors (Grainger, Rexel), or online platforms (Amazon, eBay). When sourcing:

Buy from authorized dealers to ensure warranty validity.
For bulk purchases (e.g., for contractors), inquire about volume discounts and drop-shipping options.
Inspect packaging upon delivery—look for crush damage or moisture signs.
Verify contents against the spec sheet before installation.
Keep invoices and certifications for inspection and permitting purposes.

Maintenance, Safety & Legal Considerations

Proper upkeep ensures long-term reliability:

Inspection Schedule: Check connections annually for looseness or corrosion, especially in humid environments.
Cleaning: Wipe exterior with a damp cloth; never use abrasive cleaners.
Safety: Always de-energize the system before opening the box. Use insulated tools and wear protective gear.
Legal: Local jurisdictions may require permits and inspections. Confirm that your chosen box meets regional electrical codes (e.g., NEC, CEC, IEC 62109).
Labeling: Maintain clear warning labels and circuit identification per OSHA and NFPA guidelines.

Conclusion

Choosing the right solar panel system control box involves balancing technical requirements, environmental conditions, and long-term maintainability. Prioritize safety-certified, weather-resistant models with adequate capacity for your array. Whether you’re installing a simple rooftop system or a complex off-grid setup, a well-chosen control box enhances performance, protects investment, and ensures regulatory compliance. Always verify specifications with the manufacturer and consult a licensed electrician if unsure.

FAQs

Q: What is the difference between a solar combiner box and a control box?
A: A combiner box merges multiple solar strings and includes fuses, while a control box often adds disconnect switches, surge protection, and sometimes charge regulation—making it more comprehensive.

Q: Can I install a solar panel system control box myself?
A: Yes, if you have electrical experience and follow local codes. However, many jurisdictions require a licensed electrician to perform final connections and obtain permits.

Q: How do I know if my control box is compatible with my inverter?
A: Compare the maximum DC input voltage and current of your inverter with the output specs of the control box. Ensure polarity and connector types match.

Q: Do all solar systems need a control box?
A: Not necessarily. Small portable kits may not require one, but most permanent residential and commercial installations do for safety and code compliance.

Q: How often should I inspect my solar panel system control box?
A: At least once a year, or after severe weather events. Look for signs of corrosion, loose wires, tripped breakers, or damaged seals.
