How to Choose the Best Slip Ring for Your Application: A Complete Buying Guide

When selecting a slip ring for your rotating electromechanical system, prioritize durability, signal integrity, and environmental compatibility. For applications requiring continuous rotation with stable power or data transmission—such as wind turbines, robotics, or medical imaging equipment—a properly chosen slip ring ensures long-term reliability and minimal maintenance. Key factors include current rating, number of circuits, rotational speed, and protection against dust or moisture. Understanding how to choose a slip ring based on your specific operational demands—like whether you need a mercury-wetted, capsule, or through-hole design—can prevent premature failure and costly downtime 1. This guide breaks down all critical considerations to help you make an informed decision.

About Slip Rings

A slip ring, also known as a rotary electrical joint or collector, is an electromechanical device that allows the transmission of power, signals, or data between a stationary structure and a rotating component. It eliminates the risk of wire tangling and enables uninterrupted 360-degree rotation in machinery. Commonly used in industrial automation, surveillance systems, radar platforms, and renewable energy installations, slip rings are essential wherever dynamic connectivity is required across moving parts.

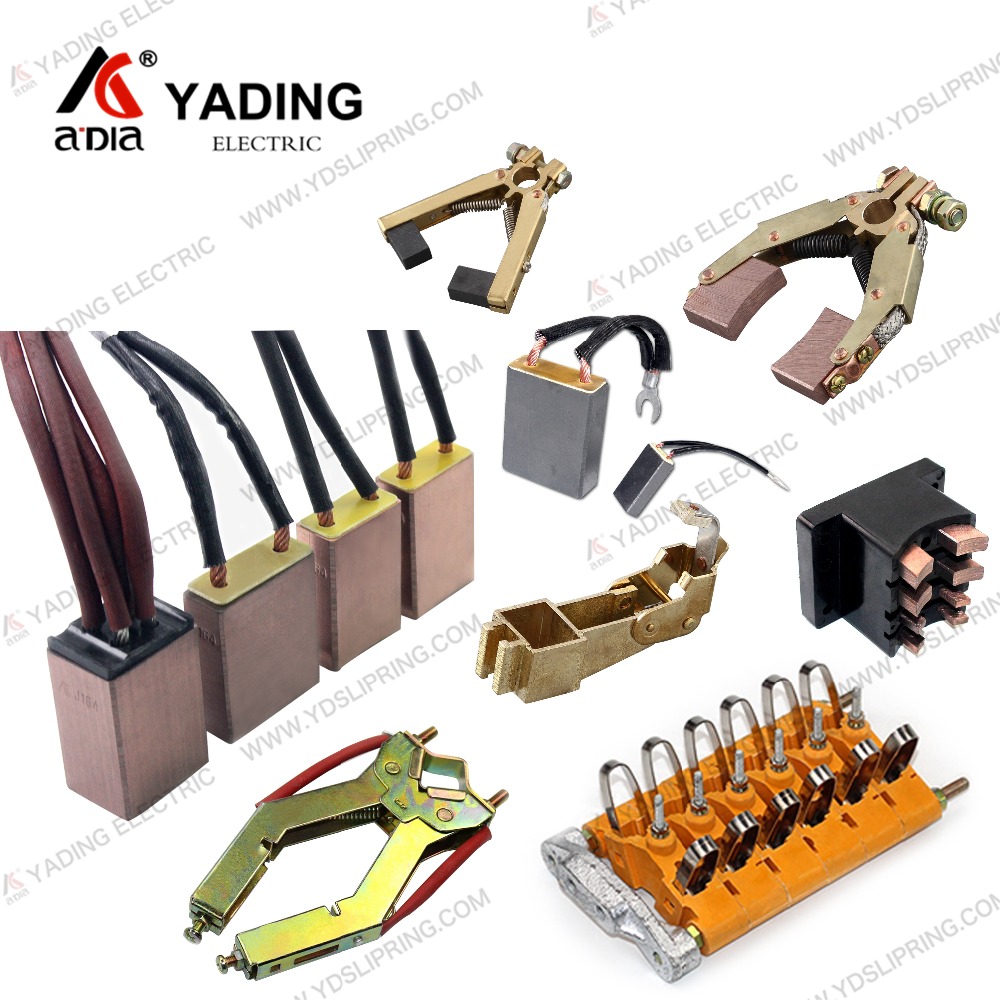

At its core, a slip ring consists of conductive rings mounted on a rotating shaft and stationary brushes (or contacts) that maintain sliding contact with the rings. As the shaft turns, electrical continuity is preserved, allowing current or signals to flow without interruption. Modern variants support not only power but also high-frequency signals such as Ethernet, USB, HDMI, and even fluid or pneumatic transfer in hybrid models.

Why Slip Rings Are Gaining Popularity

The growing demand for automation, precision engineering, and smart infrastructure has significantly increased the use of slip rings across industries. With advancements in robotics, unmanned aerial vehicles (UAVs), and automated manufacturing lines, there's a rising need for compact, reliable components that enable seamless motion while maintaining signal fidelity.

In wind energy, pitch control systems rely on slip rings to monitor blade angles and adjust positioning dynamically. In medical devices like CT scanners, slip rings allow continuous gantry rotation for real-time imaging without cable constraints. Similarly, packaging machines, cable reels, and satellite communication antennas benefit from consistent electrical transfer during prolonged operation.

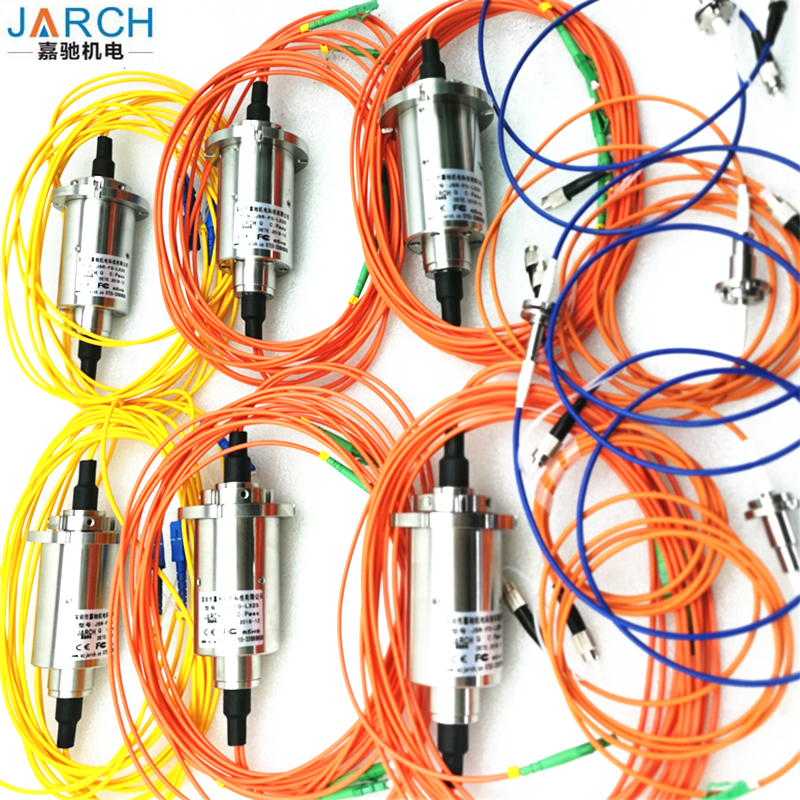

Moreover, miniaturization trends have led to smaller, more efficient designs suitable for space-constrained applications. The integration of fiber optic rotary joints (FORJs) alongside traditional electrical slip rings further expands their utility in high-speed data environments.

Types and Variants

Different applications require different types of slip rings. Below are the most common configurations available today:

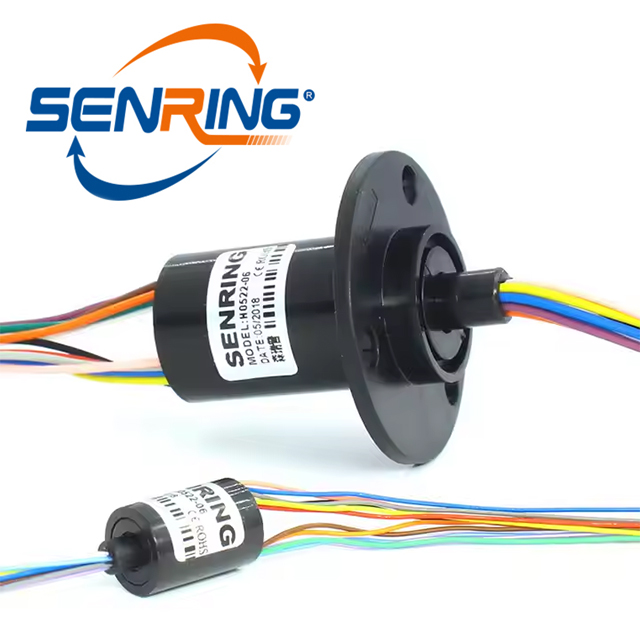

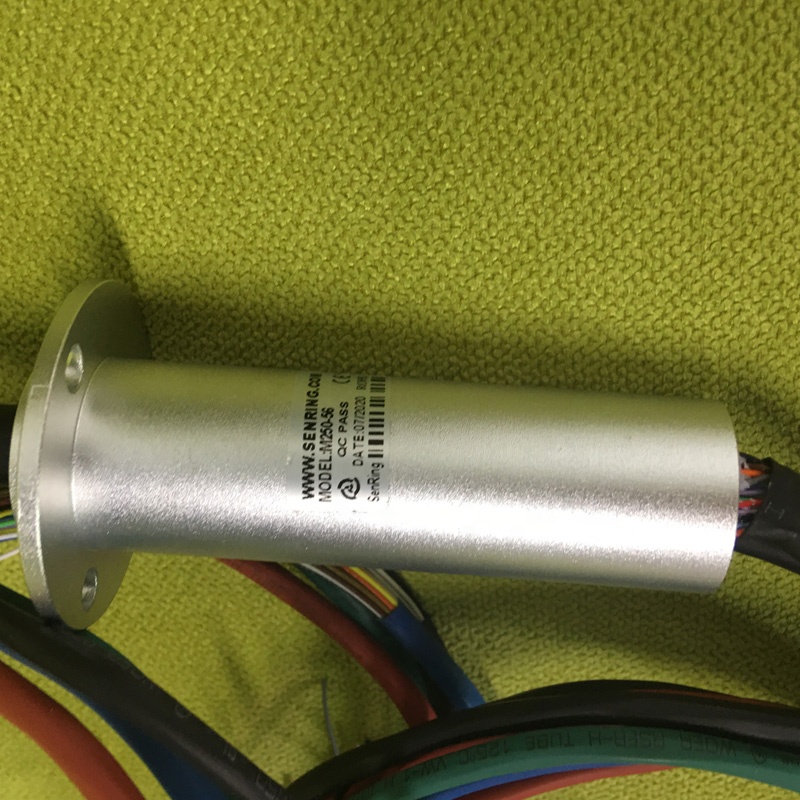

Capsule Slip Rings

Pros: Compact size, cost-effective, easy to install, ideal for low-to-mid circuit counts.
Cons: Limited lifespan under heavy loads, not suitable for high-speed or harsh environments.

Commonly used in small robotic arms and CCTV cameras, these sealed units offer basic functionality in confined spaces.

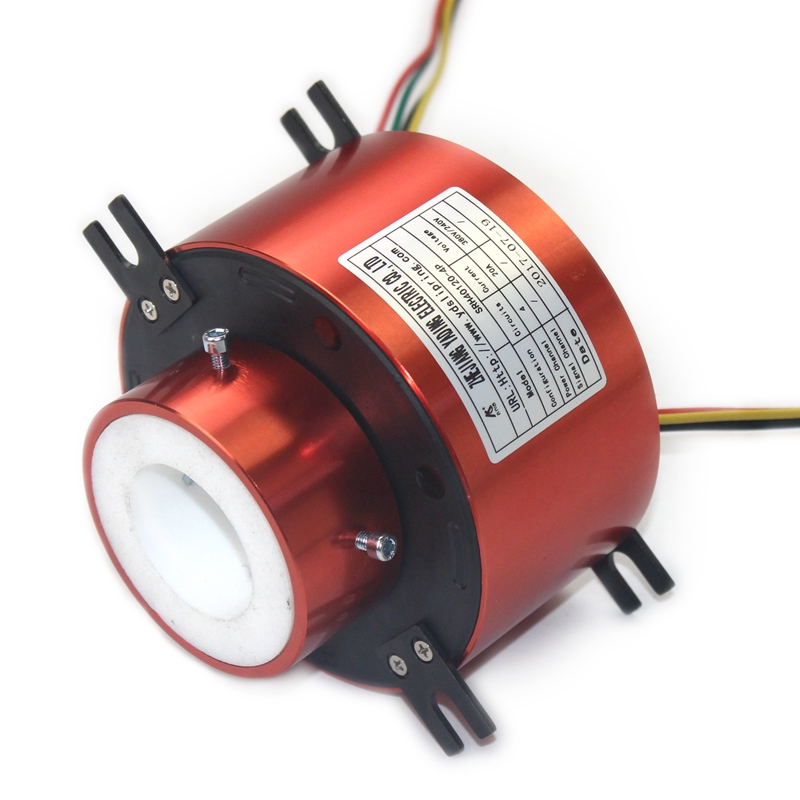

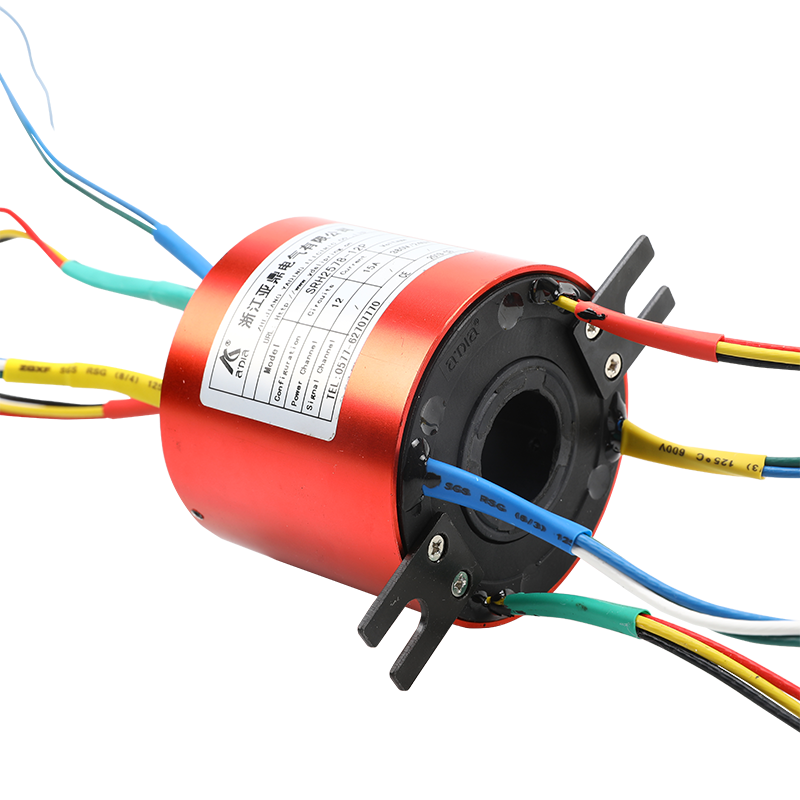

Through-Hole (Pancake) Slip Rings

Pros: Central bore allows passage of shafts, tubes, or wiring; saves space in axial layouts.
Cons: Larger diameter may not fit tight enclosures; potential for uneven wear if misaligned.

Frequently found in indexing tables and cable winding systems where internal routing is necessary.

Mercury-Wetted Slip Rings

Pros: Extremely low contact resistance, no mechanical wear due to liquid metal conduction, excellent for sensitive instrumentation.
Cons: Not environmentally safe; restricted in certain regions; unsuitable for high-temperature or vacuum applications.

Used in test equipment and some military-grade systems where vibration resistance and signal stability are critical 2.

Wireless Slip Rings (Inductive Coupling)

Pros: No physical contact, zero wear, maintenance-free, resistant to contamination.
Cons: Lower efficiency, limited power transfer capability, higher cost.

Suitable for cleanroom environments or food processing equipment where debris or particulates could interfere with brush contact.

Hybrid Slip Rings

Pros: Combine electrical, fluid, and pneumatic pathways in one unit; reduce assembly complexity.
Cons: Custom designs increase lead time and cost; harder to service individually.

Applied in automated machining centers needing simultaneous coolant delivery and sensor feedback.

Key Features and Specifications to Evaluate

To determine what to look for in a slip ring, consider the following technical parameters:

Current Rating: Ranges from milliamps for signal circuits to over 100A for heavy-duty motors. Always derate by 20% for thermal safety.
Voltage Rating: Typically up to 600V AC/DC; verify insulation class and creepage distances.
Number of Circuits: From 2 to hundreds, depending on multiplexing needs. Separate power and signal circuits to avoid noise interference.
Rotational Speed (RPM): Standard models handle up to 3,000 RPM; high-speed versions exceed 10,000 RPM with specialized bearings.
Electrical Noise & Crosstalk: Critical for analog or digital signals. Look for gold-plated contacts and shielded housing.
Operating Temperature: Industrial-grade units operate between -40°C to +85°C; extended ranges require custom sealing.
IP Rating: IP54 offers splash resistance; IP65 or higher recommended for outdoor or washdown environments.
Lifetime (in millions of revolutions): Capsule types last ~5M revs; precious metal brushes can exceed 100M under optimal conditions.

Additionally, evaluate mounting options (flange, set screw, clamping hub), connector types (terminal block, flying leads, M-type connectors), and EMI/RFI shielding requirements.

Pros and Cons

Advantages:

Enables continuous rotation without cable twisting
Supports multiple signal types (analog, digital, power)
Available in modular or integrated forms
Can be customized for extreme environments

Disadvantages:

Brush wear requires periodic inspection or replacement
Potential for electrical noise in poorly designed units
Limited performance at very high speeds or currents
Some materials (e.g., mercury) pose regulatory challenges

Slip rings are best suited for applications involving repetitive rotation and persistent connectivity. They are less ideal for static setups or situations where wireless alternatives (like inductive coupling or RF transmission) suffice.

How to Choose a Slip Ring

Follow this step-by-step checklist when evaluating options:

Define Application Requirements: Identify whether you need power-only, signal-only, or mixed transmission.
List Circuit Types and Counts: Include voltage levels, signal bandwidth, and isolation needs.
Determine Mechanical Constraints: Shaft diameter, available axial/radial space, maximum RPM, and load type (radial/thrust).
Evaluate Environmental Conditions: Dust, moisture, temperature extremes, and exposure to chemicals affect material selection.
Select Contact Material: Gold-gold for low-current signals, copper-graphite for high-power applications.
Choose Mounting Style: Through-bore, split-core, or end-mounted based on integration feasibility.
Assess Maintenance Tolerance: If access is difficult, opt for longer-life or maintenance-free technologies.
Verify Compliance Standards: Check for CE, RoHS, UL, or ATEX certifications if operating in regulated sectors.
Request Test Reports or Samples: Especially for custom designs, validate performance before full procurement.
Avoid Red Flags: Unverified lifetime claims, lack of IP ratings, missing datasheets, or vague warranty terms.

Price & Market Insights

Pricing varies widely based on complexity and volume:

Basic Capsule Models: $20–$100 (low circuit count, consumer-grade)
Industrial Through-Bore Units: $150–$800 (multi-circuit, sealed housings)
Custom Hybrid or High-Speed Designs: $1,000–$5,000+ (engineered solutions with NRE fees)

High-end brands like Moog, Schleifring, and Cobham command premium pricing due to proven reliability and global support networks. However, Asian manufacturers offer competitive alternatives with shorter lead times, though quality consistency should be verified through sample testing. For budget-conscious buyers, mid-tier suppliers provide balanced value when specifications align closely with standard offerings.

Top-Seller & Competitive Analysis

Model	Type	Circuits	RPM Max	IP Rating	Price Range
Schleifring COMBIVID系列	Through-hole	12 power + 4 signal	3,000	IP65	$650
Moog CS Series	Capsule	6	2,500	IP54	$220
Cobham Meridian	Modular	Up to 96	1,800	IP68	$3,200
Micro Precision MP-TH15	Through-bore	8	4,000	IP67	$480

Top-selling models emphasize durability, modularity, and ease of integration. Buyers often favor units with pre-wired harnesses and standardized footprints. When comparing competitors, assess not just price but also technical documentation availability, customer service responsiveness, and field reliability records.

Customer Feedback Synthesis

Analysis of user reviews and industry forums reveals recurring themes:

Positive Feedback:

Reliable performance in long-running automation cells
Compact designs enabling retrofit into legacy machines
Clear labeling and color-coded wiring simplify installation
Effective EMI suppression in CNC and servo applications

Common Complaints:

Premature brush wear in dusty environments without adequate sealing
Noise issues when transmitting analog sensor data without shielding
Long lead times for custom configurations
Inconsistent quality from lesser-known vendors despite attractive pricing

Users recommend investing in higher IP-rated models even if initial conditions seem benign, as contamination often develops over time.

Sourcing & Supplier Tips

When sourcing slip rings:

Purchase from authorized distributors or directly from OEMs to avoid counterfeits.
For bulk orders (>50 units), negotiate volume discounts and request batch testing reports.
Consider consignment inventory agreements if usage is predictable but intermittent.
Verify return policies and warranty coverage (ideally 1–2 years).
If using third-party integrators, ensure they provide traceable calibration and burn-in testing.

For prototyping, many suppliers offer evaluation kits with interchangeable modules to test compatibility before scaling production.

Maintenance, Safety & Legal Considerations

Regular inspection is crucial. Monitor for excessive sparking, rising contact resistance, or abnormal heating. Clean contacts only with approved solvents; never use abrasive materials. Replace worn brushes according to manufacturer intervals—typically every 2–5 years depending on duty cycle.

Safety-wise, de-energize the system before servicing. Use insulated tools and follow lockout/tagout procedures. In explosive atmospheres (e.g., oil rigs, grain silos), select slip rings certified under ATEX or IECEx standards.

Legally, ensure compliance with local electrical codes (NEC, CEC, etc.) and electromagnetic compatibility regulations (FCC Part 15, EMC Directive). Avoid mercury-based units unless explicitly permitted and safely contained.

Conclusion

Choosing the right slip ring involves balancing electrical requirements, mechanical integration, environmental resilience, and lifecycle costs. Whether you're designing a new machine or upgrading an existing system, understanding how to choose a slip ring—by assessing circuit needs, speed, durability, and supplier credibility—ensures optimal performance. Prioritize well-documented products from reputable manufacturers, and always validate specifications against real-world operating conditions. With proper selection and maintenance, a high-quality slip ring provides years of trouble-free service in demanding applications.

FAQs

What is the average lifespan of a slip ring?
Lifespan varies by type and usage. Capsule models typically last 5–10 million revolutions, while precious-metal contact rings can exceed 100 million under clean, moderate-load conditions. Regular maintenance extends life.

Can slip rings transmit Ethernet or USB signals?
Yes, many modern slip rings support high-speed data protocols including Gigabit Ethernet, CANbus, Profibus, and USB 2.0/3.0. Ensure the model specifies bandwidth compatibility and uses twisted-pair shielding.

Are there wireless alternatives to traditional slip rings?
Yes, inductive coupling and RF-based systems offer contactless power and signal transfer. These are ideal for sterile or high-vibration environments but have limitations in power capacity and range.

How do I reduce electrical noise in a slip ring system?
Use separate power and signal circuits, employ twisted/shielded cables, select gold-plated contacts, and ensure proper grounding. Some models include built-in filtering or differential signaling.

Can I replace a failed slip ring myself?
In most cases, yes—especially with modular or capsule types. Follow manufacturer instructions, ensure correct alignment, and check continuity after installation. For complex or high-voltage units, consult a qualified technician.
