How to Choose a Semi Automatic Rotary Cup Screen Printing Machine

When selecting the best semi automatic rotary cup screen printing machine for your production needs, prioritize precision, ease of maintenance, and compatibility with your substrate types—especially if you're printing on cups, bottles, or other cylindrical items. These machines offer consistent ink deposition, reduced solvent evaporation, and improved print repeatability over traditional open-flood systems. For small to mid-volume operations seeking efficiency without full automation, a semi automatic rotary cup system strikes an ideal balance between cost and performance 1. Key considerations include print head configuration, rotary fixture stability, vacuum or mechanical cup rotation control, and squeegee pressure adjustability.

About Semi Automatic Rotary Cup Screen Printing Machines

A semi automatic rotary cup screen printing machine is designed specifically for printing high-quality graphics onto curved or cylindrical surfaces such as drinkware, cosmetic containers, pens, and medical tubes. Unlike flatbed screen printers, these machines use a rotating fixture that turns the object beneath a stationary or oscillating print head. The 'rotary cup' refers to both the shape of the item being printed and the rotational motion required during the print stroke.

The term 'semi automatic' indicates that while the print cycle (flood, downstroke, print, upstroke) is mechanically driven, manual loading and unloading of substrates are still required. This makes it ideal for businesses that need higher throughput than manual presses but aren't ready for fully automated inline systems.

These machines typically integrate a sealed ink cup system—a closed reservoir that prevents ink drying and ensures uniform ink distribution across the stencil. This feature significantly reduces waste and improves consistency, especially when using UV-curable or solvent-based inks common in industrial decoration applications.

Why Semi Automatic Rotary Cup Screen Printing Machines Are Gaining Popularity

Demand for personalized drinkware, promotional products, and custom packaging has surged in recent years. As brands and contract decorators seek efficient ways to produce short to medium runs with high repeatability, semi automatic rotary cup screen printing machines have become increasingly popular.

One major driver is operational efficiency. Compared to manual printing, semi automatic systems reduce human error and increase output by up to 300%, depending on operator skill and part complexity. Additionally, the sealed ink cup minimizes downtime caused by clogged meshes—a frequent issue in open ink tray setups.

Another reason for their growing adoption is versatility. Modern models can be adapted for various diameters and heights through interchangeable chucks or adjustable fixtures. This flexibility allows one machine to handle multiple product lines, reducing capital investment.

Environmental and safety benefits also contribute to their appeal. Because the ink remains enclosed, there’s less solvent exposure and lower VOC emissions, improving workplace safety and compliance with environmental standards.

Types and Variants

Semi automatic rotary cup screen printing machines come in several configurations, each suited to different production scales and application requirements:

Single-Station Rotary Printers

• Pros: Compact footprint, lower cost, easy setup for simple jobs.
• Cons: Lower throughput; suitable only for very small batches or prototyping.
• Ideal for startups or shops with limited space testing new cup or tube designs.

Multi-Head Rotary Systems (2–6 Stations)

• Pros: Higher productivity; enables multi-color printing without re-fixturing.
• Cons: More complex alignment; requires precise registration controls.
• Best for businesses running regular multi-color jobs on tumblers, mugs, or aerosol cans.

Turret-Based vs. Inline Configurations

• Turret-style: Uses a rotating table to move substrates between stations. Saves floor space but may limit maximum part size.
• Inline: Stations are arranged linearly. Allows larger or irregularly shaped items but takes more room.

Standard vs. Heavy-Duty Industrial Models

• Standard: Designed for light-duty use (e.g., promotional items), often made with aluminum frames.
• Heavy-duty: Built with cast iron or steel components for continuous operation in factory environments.

Choosing the right type depends on your volume, part dimensions, color count, and long-term scalability goals.

Key Features and Specifications to Evaluate

To make an informed decision, assess the following technical aspects before purchasing:

• Ink Cup Size and Compatibility: Ensure the sealed ink cup matches your mesh frame size (commonly 20×24" or metric equivalents). Verify whether the system supports quick-change cups for job switching.

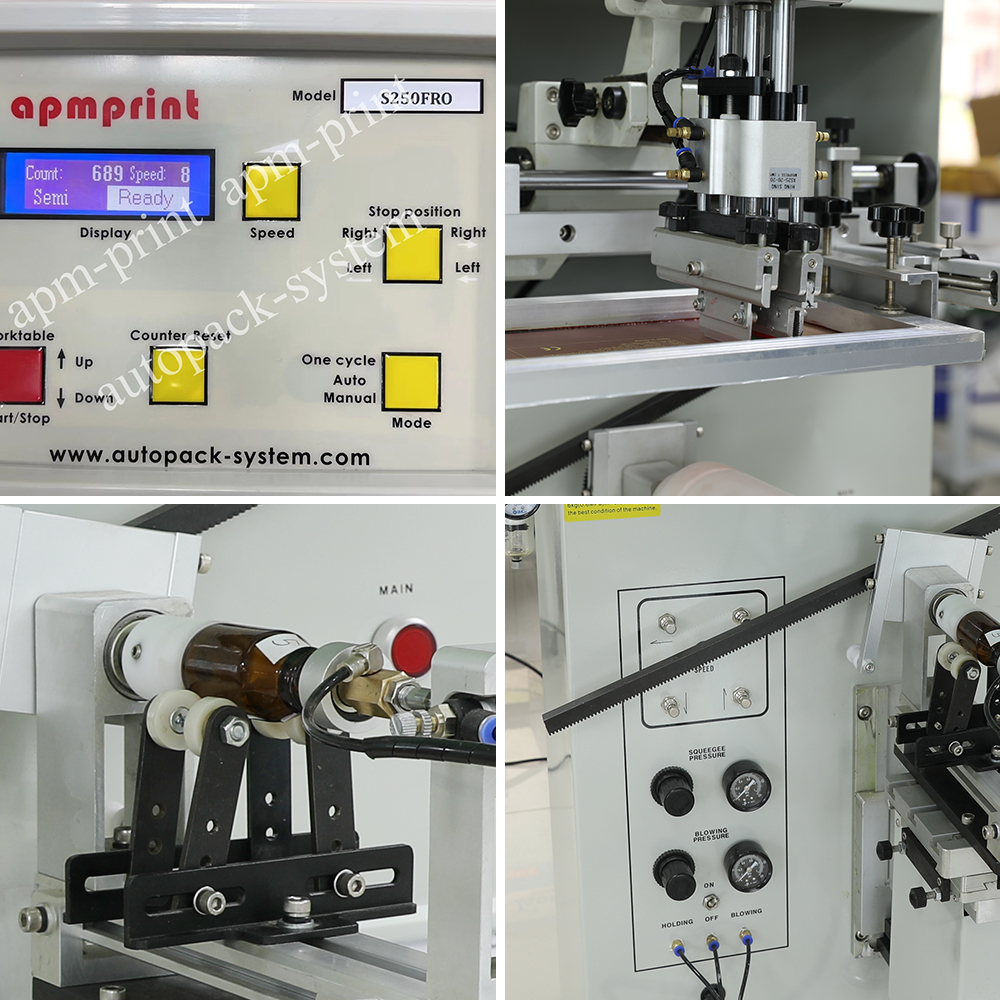

• Rotary Fixture Precision: Look for adjustable collets or vacuum chucks that securely hold items without slippage. Runout should be under 0.1 mm for fine-detail printing.
• Print Stroke Control: Pneumatic systems offer smoother action than spring-loaded arms. Adjustable stroke speed and dwell time enhance print quality on sensitive materials.
• Squeegee Angle & Pressure Adjustment: Digital readouts or calibrated dials help maintain consistency across shifts.
• Registration System: Micro-adjustments (X, Y, θ) at each station are essential for multi-color work. Some advanced models include optical registration sensors.
• Frame Clamping Mechanism: Quick-release clamps save time during screen changes. Check for rigidity—flexible mounts cause image distortion.

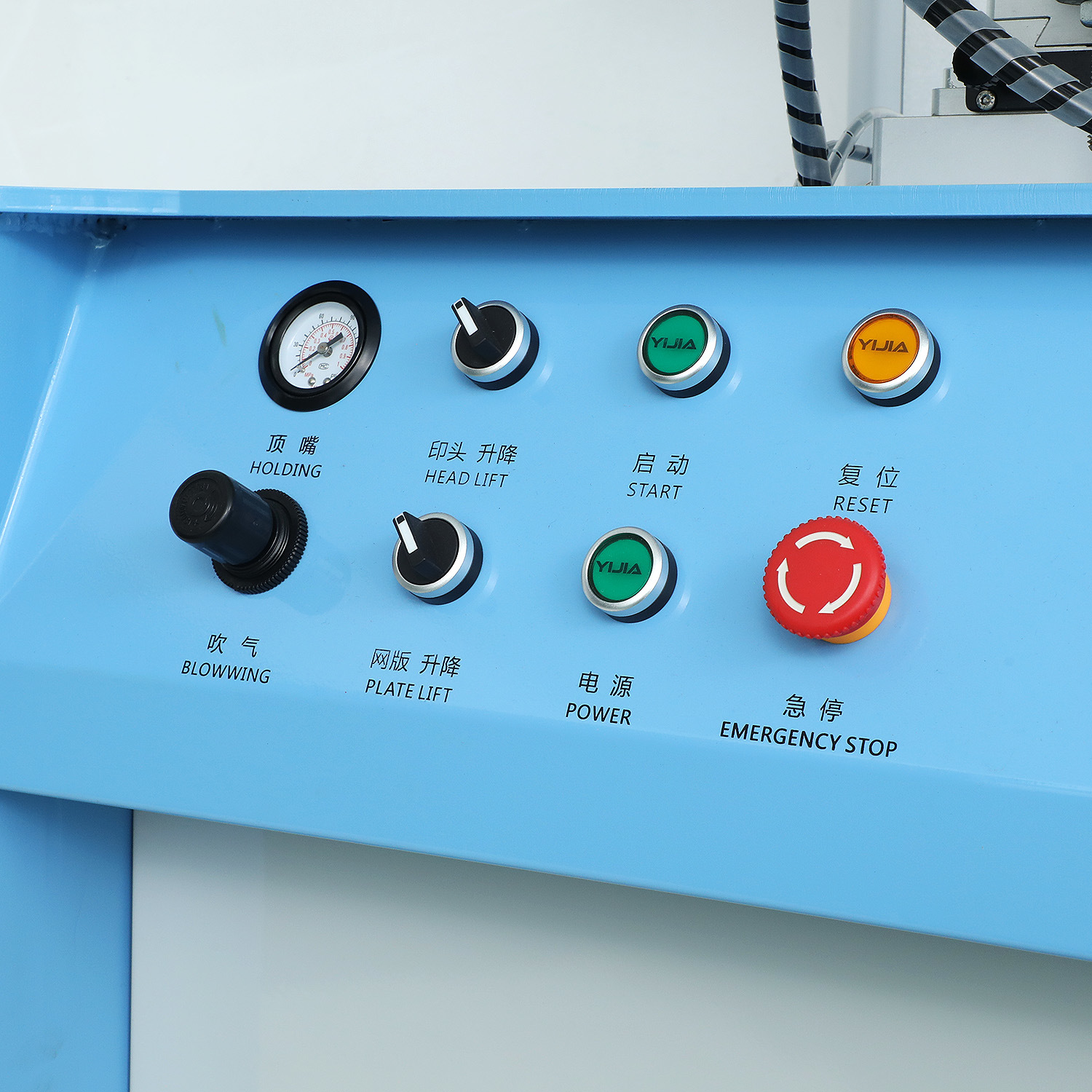

• Control Interface: Basic models use toggle switches; upgraded versions feature touchscreen PLCs with recipe storage.
• Footprint and Clearance: Measure available space and confirm ceiling height clearance, especially for taller containers.

Always request sample prints or demo videos to evaluate real-world performance.

Pros and Cons: A Balanced Assessment

Advantages

• Improved ink consistency due to sealed cup technology.
• Higher throughput than manual printing with minimal training.
• Better edge definition and registration accuracy on curved surfaces.
• Reduced solvent usage and operator exposure.
• Scalable from single-color to multi-color setups.

Limitations

• Not suitable for non-cylindrical or flat objects without modification.
• Setup time increases with number of colors and part changes.
• Requires skilled operators for optimal results, particularly in color matching.
• Limited automation—still relies on manual loading/unloading.
• Higher initial cost than manual presses.

This machine is ideal if you frequently print on round items and want repeatable quality. It's less beneficial for mixed-format shops doing mostly flat printing.

How to Choose a Semi Automatic Rotary Cup Screen Printing Machine

Follow this step-by-step guide to ensure you select the right model:

1. Define Your Production Needs: Estimate average daily output, number of colors per job, and typical substrate sizes.
2. Determine Required Stations: One station for single-color jobs; add stations for additional colors or redundancy.
3. Check Substrate Compatibility: Confirm maximum and minimum diameter/height capacity. Ask about custom chuck options.
4. Evaluate Build Quality: Inspect frame material, bearing quality, and pneumatic components. Avoid plastic gears or flimsy linkages.
5. Assess Ease of Setup: Look for tool-free adjustments, digital displays, and intuitive controls.
6. Review Service and Support: Check warranty length, spare parts availability, and technical support responsiveness.
7. Request a Print Sample: Send your artwork and substrate to the supplier for a live test run.
8. Avoid Red Flags: No user manual in English, vague specifications, lack of CE or ISO certification, no after-sales service network.

Be cautious of overly low-priced machines—they may cut corners on durability or safety features.

Price & Market Insights

Pricing varies widely based on configuration and origin:

• Entry-level (1–2 color): $3,000–$6,000. Often sourced from Asia; adequate for startups but may require upgrades sooner.
• Mid-range (2–4 color): $7,000–$15,000. Includes better build quality, digital controls, and enhanced registration.
• Industrial-grade (4+ color): $18,000–$30,000+. Made in Europe or North America; built for 24/7 operation with full diagnostics.

While Chinese manufacturers dominate the budget segment, European brands like Kammann or Thieme offer superior precision and longevity. Consider total cost of ownership—not just purchase price—when evaluating value. Factor in maintenance, downtime risk, and ink savings from sealed cup systems.

Top-Seller & Competitive Analysis

Below is a comparison of leading models in the semi automatic rotary cup screen printing market:

Model	Stations	Ink System	Max Part Height	Price Range	Notable Feature
Kammann KSR-4	4	Sealed Cup	300 mm	$22,000	Precision German engineering, servo-driven indexing
Thieme TSM-Rotary	6	Sealed Cup + Vacuum Chuck	350 mm	$28,000	Optical registration, modular design
Roland DG SC-540	2	Closed Ink Cup	250 mm	$9,500	User-friendly interface, compact size
Wangda WD-CUP6	6	Sealed Cup	400 mm	$14,000	High stroke adjustability, economical option

Note: Always verify current pricing and specifications directly with distributors, as models may vary by region.

Customer Feedback Synthesis

Based on aggregated reviews from industry forums, reseller sites, and user testimonials:

Common Praises:

• 'The sealed ink system keeps solvents from drying overnight.'
• 'Registration holds tight even after weeks of use.'
• 'Easy to train new operators thanks to clear markings and controls.'
• 'Durable construction—some users report over 10 years of service.'

Frequent Complaints:

• 'Initial setup took longer than expected due to unclear instructions.'
• 'After-sales support was slow to respond to technical issues.'
• 'Chucks didn’t fit odd-shaped bottles without customization.'
• 'Lower-cost models showed wear on drive belts within six months.'

Users emphasize the importance of vendor reliability and access to replacement parts.

Sourcing & Supplier Tips

When sourcing a semi automatic rotary cup screen printing machine:

• Buy Direct vs. Distributor: Buying from a local distributor often includes installation and training, though prices may be higher.
• Verify Certifications: Look for CE, UL, or ISO 9001 marks indicating adherence to manufacturing and safety standards.
• Ask for References: Reputable suppliers will provide contactable customers who’ve used the machine for at least a year.
• Negotiate Spare Parts Kits: Include common wear items (seals,刮刀胶条, O-rings) in your initial order.
• Consider Lead Times: Imported machines may take 8–12 weeks for delivery; plan accordingly.
• Inspect Upon Arrival: Check for shipping damage, missing components, and proper function before signing off.

For bulk buyers or resellers, inquire about white-label options or private branding agreements.

Maintenance, Safety & Legal Considerations

Regular maintenance extends machine life and ensures consistent print quality:

• Clean ink cups and doctor blades after each job to prevent clogging.
• Lubricate rotary bearings and guide rods monthly using manufacturer-recommended grease.
• Inspect air filters and regulators weekly in dusty environments.
• Replace worn squeegees promptly to avoid inconsistent ink laydown.

Safety practices include:

• Using protective gloves and goggles when handling solvents.
• Installing emergency stop buttons within reach.
• Ensuring proper ventilation in printing areas to manage fumes.

Legally, ensure compliance with local occupational health and safety regulations (e.g., OSHA in the U.S.). If exporting decorated goods, confirm ink compliance with FDA, REACH, or RoHS as applicable to end-use (e.g., food-contact surfaces).

Conclusion

Selecting the right semi automatic rotary cup screen printing machine requires balancing performance, budget, and future growth. These systems deliver superior print consistency and efficiency for cylindrical substrates, making them a smart investment for specialty decorators. Focus on build quality, ease of adjustment, and supplier support rather than just upfront cost. Whether you're printing branded tumblers or medical vials, choosing a reliable model with scalable capabilities ensures long-term success in competitive markets.

FAQs

What types of materials can I print on with a semi automatic rotary cup screen printing machine?
You can print on plastics (PP, PE, PET), glass, metal, and coated paperboard, provided they have a cylindrical shape and can be securely held by the rotary fixture.

How do I clean the sealed ink cup system?
Remove the cup from the print head, disassemble according to the manual, and wipe internal surfaces with appropriate solvent. Reassemble carefully to maintain seal integrity.

Can I upgrade from a 2-color to a 4-color machine later?
Some modular models allow expansion, but most units are fixed-station. Confirm expandability with the manufacturer before purchase.

Is training available for operating these machines?
Yes, many suppliers offer on-site or virtual training sessions covering setup, maintenance, and troubleshooting.

Do these machines require compressed air?
Most semi automatic rotary cup printers use pneumatic cylinders for print stroke actuation, so a clean, dry air supply (typically 6–8 bar) is necessary.
