How to Choose the Best Rexroth Proportional Valve: A Complete Buying Guide

When selecting a Rexroth proportional valve for your hydraulic system, prioritize precision control, compatibility with your system’s flow and pressure requirements, and durability under continuous operation. The right choice—such as a 4WRZEH rexroth proportional valve with integrated electronics—can significantly improve response time and energy efficiency in applications like injection molding or mobile hydraulics 1. Focus on spool type, control signal (e.g., 0–10 V or 4–20 mA), and whether digital feedback is needed. Avoid mismatched flow ratings or unverified third-party clones that compromise performance.

Short Introduction

Rexroth proportional valves, manufactured by Bosch Rexroth, are high-performance electro-hydraulic components designed to regulate fluid flow and pressure with precise, variable control. Unlike simple on/off directional valves, proportional valves modulate output in direct relation to an electrical input signal, enabling smooth motion control in complex machinery. They are widely used in industrial automation, construction equipment, plastics manufacturing, and test rigs where accurate actuator positioning is critical.

About Rexroth Proportional Valve

A Rexroth proportional valve uses electromagnetic coils to proportionally shift a spool within the valve body, controlling the direction and volume of hydraulic fluid. This allows for dynamic adjustment of cylinder speed, motor torque, or force without mechanical linkages. These valves typically integrate electronic drivers (either onboard or external) that translate low-power control signals into precise hydraulic responses.

Common applications include CNC presses, excavator boom controls, rolling mills, and automated assembly lines. Their ability to deliver consistent, repeatable performance under varying loads makes them ideal for closed-loop control systems. Many modern variants feature digital communication interfaces such as CANopen or analog feedback for real-time monitoring and diagnostics.

Why Rexroth Proportional Valve Is Gaining Popularity

As industries move toward smarter, more efficient machinery, demand for responsive and energy-saving hydraulic components has surged. Rexroth proportional valves meet this need through superior linearity, fast response times, and long service life. Their integration with Industry 4.0 systems—supporting predictive maintenance and remote tuning—has further boosted adoption across manufacturing and mobile equipment sectors.

Additionally, advancements in materials and coil design have reduced heat generation and improved resistance to contamination, making these valves more reliable in harsh environments. Users also appreciate the availability of configurable settings via software tools like Bosch Rexroth Hydrostatic Optimization Software (HOS), which helps tailor valve behavior to specific machine dynamics.

Types and Variants

Rexroth offers several series of proportional valves, each suited to different operational needs:

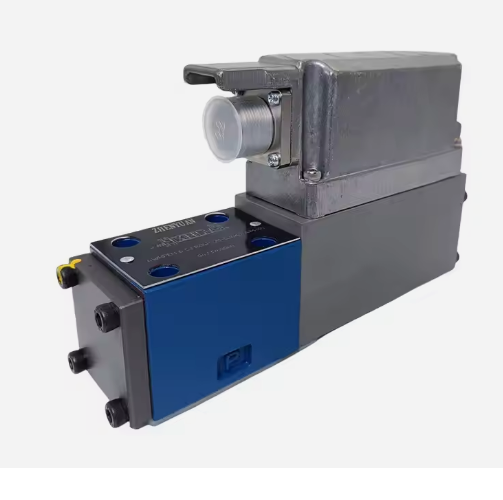

1. 4WRA(E) Series – High-Precision Servo-Proportional Valves

• Pros: Exceptional accuracy, fast response, ideal for closed-loop servo applications.
• Cons: Higher cost, sensitive to fluid cleanliness, requires clean oil filtration (typically below 10 μm).
• Best for: Test benches, high-speed forming machines.

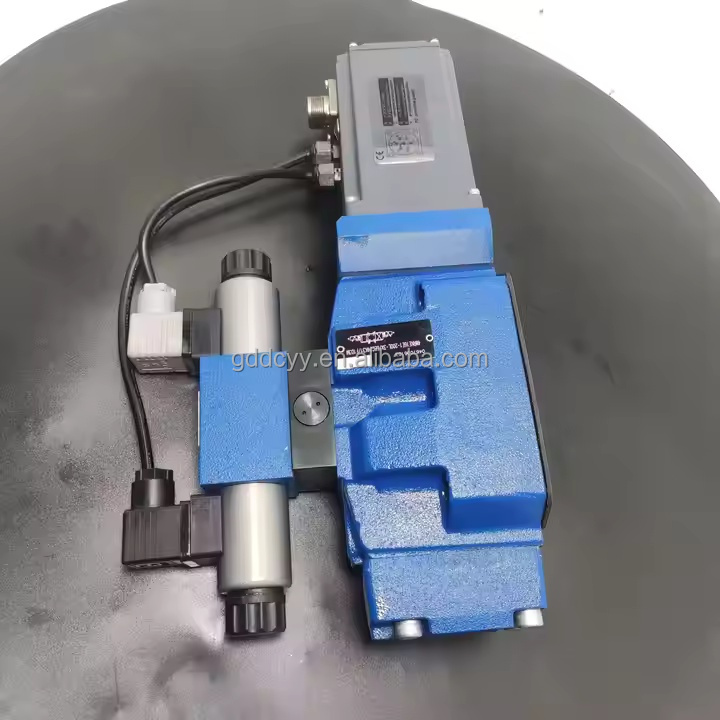

2. 4WRZ / 4WRZE Series – Pilot-Operated Proportional Directional Valves

• Pros: Handles higher flow rates (up to 1,000 L/min), robust design, suitable for heavy-duty industrial use.
• Cons: Slightly slower response than direct-acting types; may require external pilot supply.
• Best for: Injection molding machines, large presses.

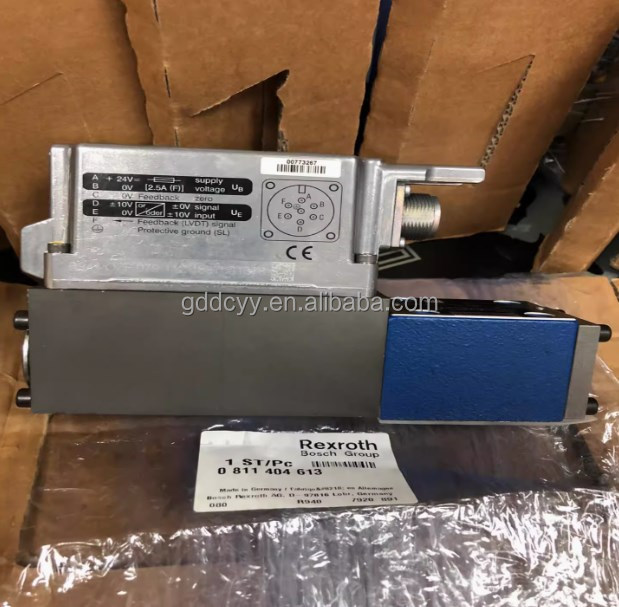

3. 4WRPH Series – High-Frequency Response Valves

• Pros: Designed for rapid cycling and vibration control; excellent frequency response up to 250 Hz.
• Cons: Limited to smaller flow ranges; higher power consumption.
• Best for: Dynamic testing systems, simulation rigs.

4. M-3SED, M-SED Types – Proportional Pressure Relief and Reducing Valves

• Pros: Maintain constant pressure despite load changes; energy-efficient in variable-load scenarios.
• Cons: Not suitable for directional control; limited to pressure regulation tasks.
• Best for: Hydraulic power units, circuit protection.

Key Features and Specifications to Evaluate

When evaluating a how to choose rexroth proportional valve, consider the following technical parameters:

• Flow Rate (L/min): Match the valve’s nominal flow to your pump output and actuator requirements. Undersized valves cause pressure drops; oversized ones reduce control resolution.
• Pressure Rating (bar): Ensure maximum working pressure exceeds system peaks by at least 20%.
• Control Signal Type: Analog inputs (0–10 V, ±10 V, 4–20 mA) are common. Digital protocols (e.g., SAE J1939, CAN bus) offer better noise immunity in mobile applications.
• Spool Configuration: Tandem center, open center, or closed center affect leakage and standby behavior. Choose based on whether the actuator must float, hold, or drift when de-energized.

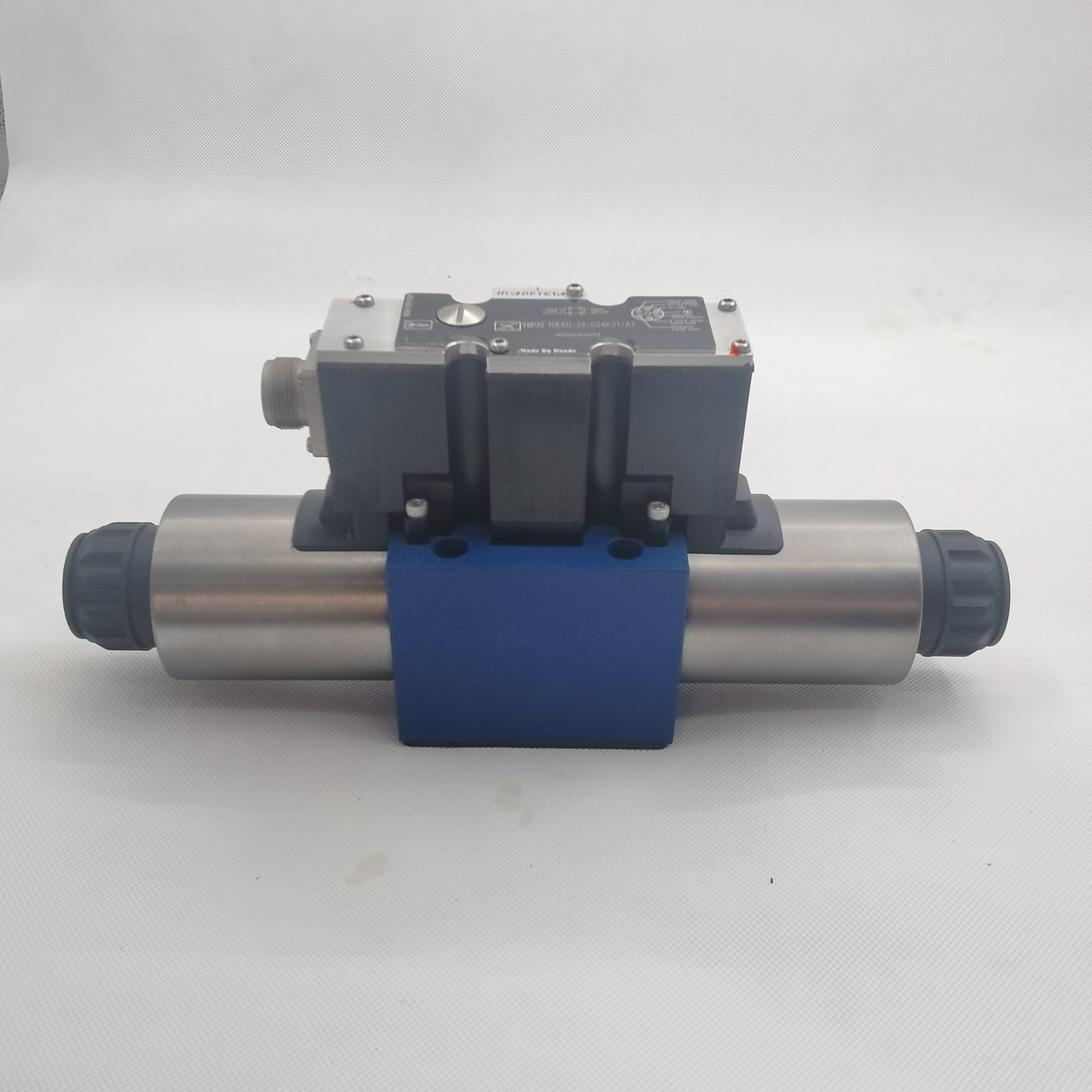

• Integrated Electronics (OBE vs. DBE): Onboard electronics (OBE) simplify wiring but limit adjustability. External drivers (DBE) allow fine-tuning via software.
• Feedback Type: Some models include LVDT or Hall-effect sensors for position feedback, improving stability in precision tasks.
• Mounting Style:: Subplate-mounted (NG6, NG10) are standard; cartridge versions exist for custom manifolds.

Pros and Cons

Advantages of Using Rexroth Proportional Valves

• Precise, stepless control over speed and force
• Energy savings due to load-synchronous operation
• Digital configurability enhances adaptability
• High reliability when maintained properly
• Wide range of certified models compliant with ISO 4413 and EN 982

Limitations and Challenges

• Higher initial cost compared to solenoid-operated valves
• Sensitivity to contaminated hydraulic fluid—requires good filtration
• Complex troubleshooting without proper diagnostic tools
• Limited interchangeability with non-Rexroth systems without adapters

How to Choose Rexroth Proportional Valve

Follow this step-by-step guide to ensure you select the optimal model:

1. Define Your Application Needs: Determine if you need directional control, pressure regulation, or flow modulation.
2. Check System Parameters: Record max flow, operating pressure, voltage supply, and control signal format.
3. Select Valve Type: Choose between direct-acting (faster, lower flow) and pilot-operated (higher flow, moderate speed).
4. Evaluate Feedback Requirements: If precision is critical (e.g., robotic arms), opt for models with integrated position feedback.
5. Verify Mounting Compatibility: Confirm subplate size (NG6, NG10) or manifold interface matches existing setup.
6. Review Environmental Conditions: For outdoor or dirty environments, ensure IP65-rated enclosures and corrosion-resistant coatings.
7. Avoid Red Flags: Beware of sellers offering "compatible" or "replica" Rexroth valves without official certification. Performance and safety cannot be guaranteed.

Always consult the latest datasheet from the manufacturer before finalizing a selection 2.

Price & Market Insights

Rexroth proportional valves vary widely in price depending on type, flow capacity, and electronics integration:

• Entry-level models (e.g., 4WRE6E): $400–$700
• Mid-range (e.g., 4WRZ16): $1,200–$2,500
• High-end servo-proportional (e.g., 4WRA): $3,000–$6,000+

Prices reflect build quality, response time, and support for advanced features like fieldbus connectivity. While third-party alternatives exist, they often lack the same level of testing and long-term reliability. For mission-critical systems, investing in genuine Rexroth components usually offers better total cost of ownership due to longer lifespan and lower downtime.

Model	Max Flow (L/min)	Pressure (bar)	Electronics	Approx. Price
4WRE6E1X	40	315	OBE	$550
4WRZ16W	500	350	DBE	$1,900
4WRA10	100	350	External	$4,200

Top-Seller & Competitive Analysis

The 4WRZ series remains one of the most popular choices due to its balance of flow capacity, durability, and ease of integration. It outperforms many competitors in sustained high-pressure operations and offers optional stroke transducers for enhanced control.

Compared to similar offerings from Parker or Eaton, Rexroth valves generally provide tighter hysteresis (<2%) and better repeatability. However, some users report that competitor brands may offer slightly lower prices for equivalent flow ratings, though often with fewer digital features or less global service support.

Customer Feedback Synthesis

Analysis of user reviews and industry forums reveals consistent themes:

• Positive Feedback: Operators praise the smooth control, minimal lag, and long-term reliability. Many highlight the value of downloadable tuning software and built-in diagnostics.
• Common Complaints: Some note that replacement coils can be expensive, and initial setup requires technical expertise. A few users reported issues with counterfeit parts purchased through unauthorized distributors.

To avoid disappointment, verify authenticity through Bosch Rexroth’s authorized dealer network.

Sourcing & Supplier Tips

Purchase Rexroth proportional valves only from authorized distributors or directly through the Bosch Rexroth e-commerce platform 2. When buying in bulk, request product traceability documents and batch numbers. For OEM integrators, consider entering into a direct procurement agreement for volume discounts and faster lead times.

If sourcing second-hand units, inspect for:
- Physical damage to coil housing
- Cleanliness of mounting surfaces
- Presence of original nameplate and serial number
- Functionality test using recommended voltage input

Avoid suppliers who cannot provide datasheets or warranty information.

Maintenance, Safety & Legal Considerations

Regular maintenance includes checking coil resistance, cleaning filters, and verifying zero-point calibration every 6–12 months. Always depressurize the system before servicing. Use lockout/tagout procedures in industrial settings.

Rexroth valves comply with EU Machinery Directive 2006/42/EC and ISO 13849-1 for functional safety. In North America, ensure compliance with NFPA 79 and OSHA standards when integrating into new machinery. Never modify internal components unless performed by certified technicians.

Conclusion

Selecting the right Rexroth proportional valve involves matching technical specifications to your application’s demands while prioritizing authenticity and long-term support. Models like the 4WRZ or 4WRA series offer proven performance in demanding environments. By focusing on flow, pressure, control signal, and feedback needs—and avoiding unverified clones—you can achieve reliable, efficient hydraulic control. Always refer to official documentation and consult technical support when uncertain.

FAQs

Q: What is the difference between a Rexroth proportional valve and a solenoid valve?
A: Proportional valves provide variable control based on input signal strength, while solenoid valves are typically on/off. Proportional types allow smoother, more precise actuator movement.

Q: Can I replace a worn Rexroth proportional valve coil myself?
A: Yes, most coils are field-replaceable. Ensure you match voltage, connector type, and plug-in code (e.g., MS1, MS2). Verify polarity during installation.

Q: How do I know if my system needs a pilot-operated or direct-acting valve?
A: Use direct-acting for flows under 60 L/min and fast response needs. Choose pilot-operated for higher flows (over 100 L/min) where slight delay is acceptable.

Q: Are there energy-saving benefits to using a Rexroth proportional valve?
A: Yes. By adjusting flow and pressure only as needed, these valves reduce pump workload and heat generation, lowering overall energy consumption.

Q: Where can I find firmware updates or tuning software for digital Rexroth valves?
A: Visit the official Bosch Rexroth customer portal or contact technical support for access to configuration tools like HOS or IndraWorks.
