How to Choose the Best Relay Connector for Your Application

When selecting a relay connector for industrial automation, automotive systems, or control panel design, the best choice depends on your specific electrical load, environmental conditions, and compatibility needs. A high-quality relay connector with screw terminals and PCB mounting offers secure wiring and long-term reliability in demanding applications. Key factors include current rating (typically 5–10A), coil voltage (e.g., 12VDC, 24VDC, 120VAC), contact configuration (SPDT, DPDT), insulation material, and whether you need plug-in, socket-mounted, or PCB-integrated designs. Always verify pin layout compatibility with your relay model to avoid installation errors1. For most users, choosing a modular relay connector from a reputable manufacturer ensures interchangeability and easier maintenance.

About Relay Connectors

A relay connector is an electromechanical interface component designed to securely mount and wire an electromagnetic relay into a circuit. It acts as a bridge between the relay and the printed circuit board (PCB) or terminal block system, allowing for easy replacement and standardized integration. These connectors come in various configurations, including plug-in bases, PCB sockets, and DIN rail-mount housings, depending on the application.

Relay connectors are commonly used in industrial control panels, HVAC systems, automotive electronics, power distribution units, and building automation. They support both signal switching and moderate power loads by enabling relays to switch higher-voltage or higher-current circuits using a low-power control signal. This isolation enhances safety and reduces wear on control components like PLCs or microcontrollers.

The physical design typically includes metal contacts that align precisely with the relay’s pins, insulating housing made of thermoplastic materials (such as nylon or polycarbonate), and termination options such as screw terminals, spring clamps, or solder joints. Some models also feature labeling windows, LED indicators, or built-in surge suppression.

Why Relay Connectors Are Gaining Popularity

As automation and smart control systems expand across manufacturing, energy management, and transportation sectors, the demand for reliable, modular electrical components has increased significantly. Relay connectors play a crucial role in this trend due to their ability to simplify maintenance, reduce downtime, and improve system scalability.

One major driver is the shift toward modular design in industrial equipment. Engineers prefer plug-and-play relay systems because they allow quick field replacements without desoldering or rewiring entire boards. This modularity supports predictive maintenance strategies and reduces repair time during production line stoppages.

Additionally, advancements in relay technology—such as sealed relays for harsh environments and solid-state hybrid variants—have expanded the use cases where relay connectors are essential. With growing emphasis on energy efficiency and remote monitoring, many new relay connectors now integrate diagnostics or status feedback capabilities.

Types and Variants of Relay Connectors

Understanding the different types of relay connectors is vital when determining which one suits your project. Each variant serves distinct mechanical, electrical, and environmental requirements.

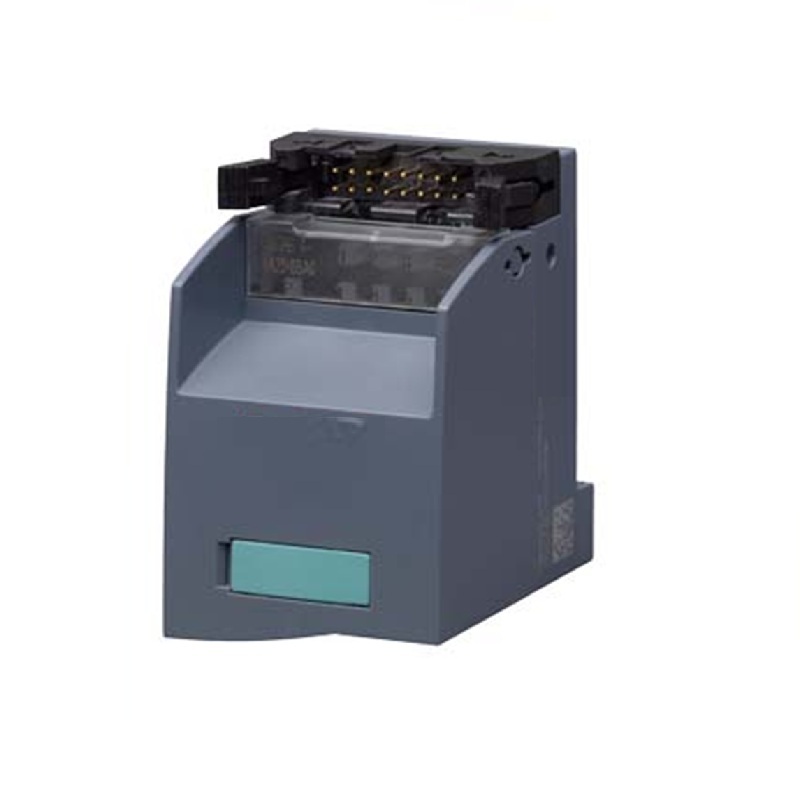

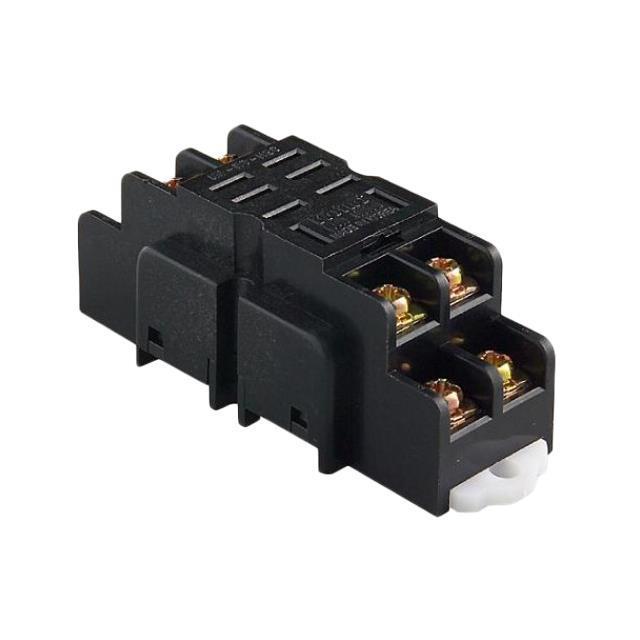

1. Plug-In Relay Sockets

These are among the most common types, designed to accept standard electromagnetic relays (e.g., ISO 280, DIN 7670/EN 50295 compliant relays). The relay plugs directly into the socket, which is then wired to the circuit via screw or spring terminals.

Pros: Easy replacement, widely available, cost-effective.
Cons: Less secure in high-vibration environments; may require locking mechanisms.

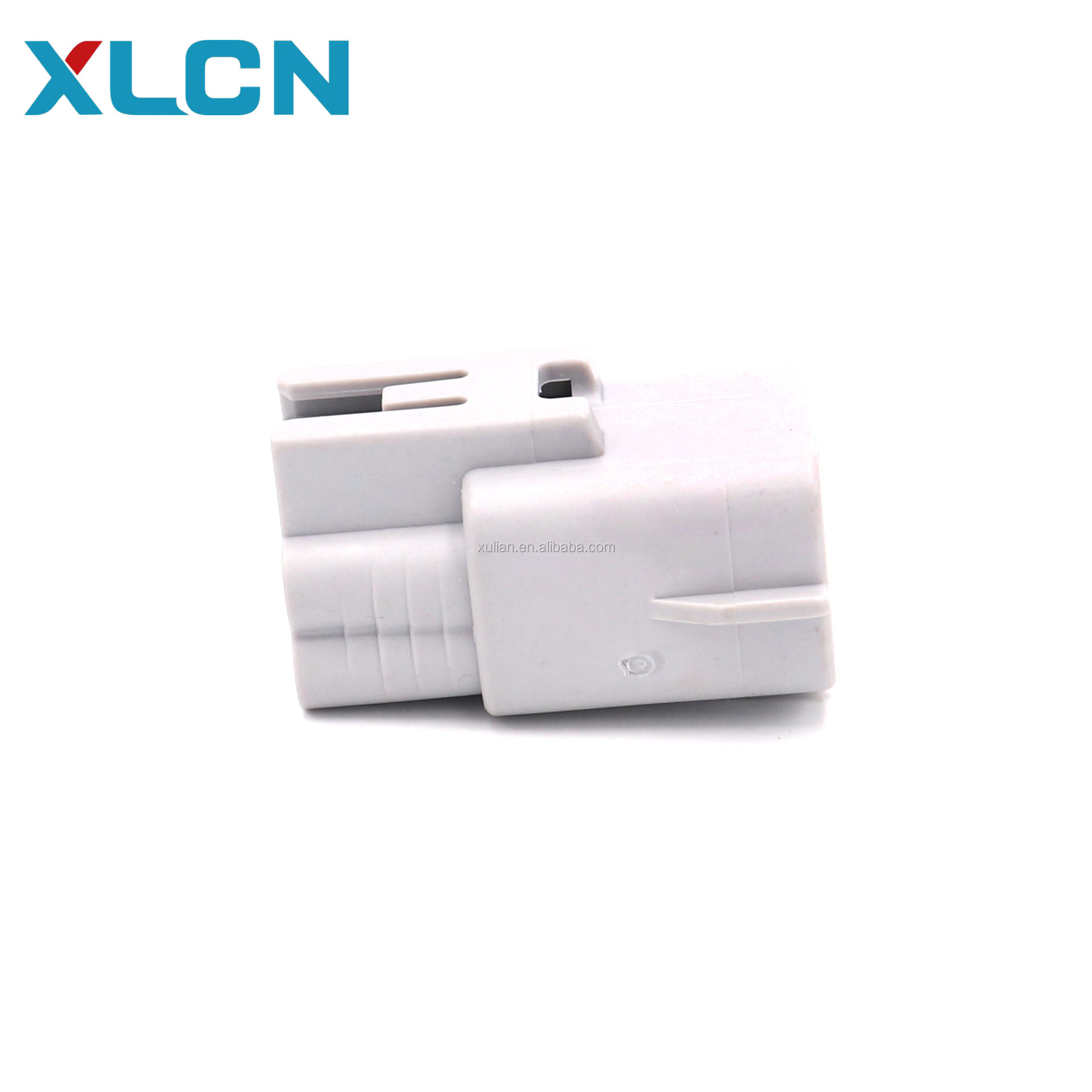

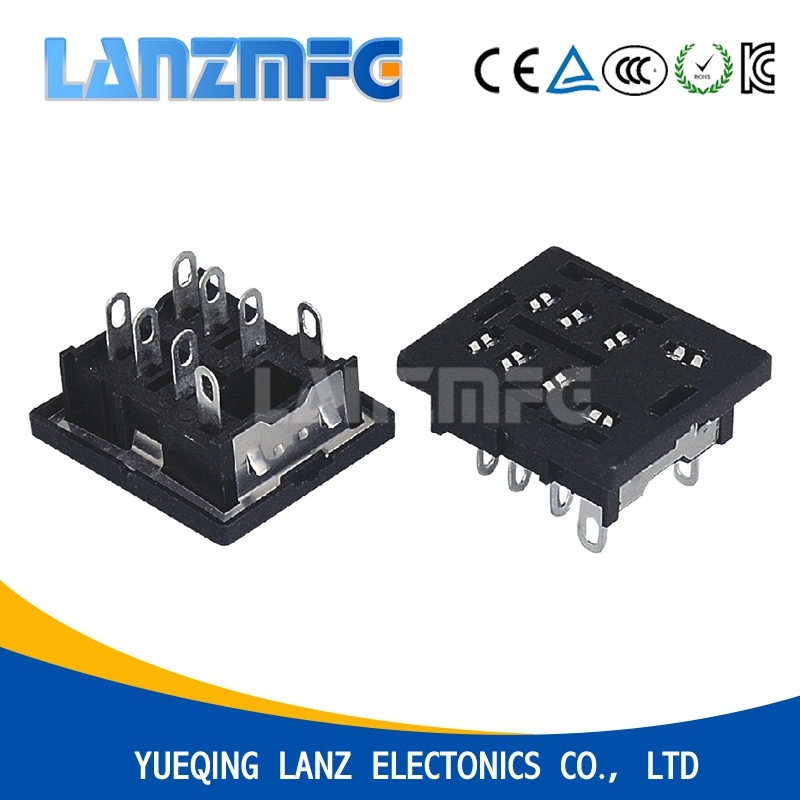

2. PCB Mount Relay Sockets

Designed for direct soldering onto printed circuit boards, these sockets provide a permanent yet replaceable interface for relays. Common in consumer electronics and embedded control modules.

Pros: Compact, stable connection, suitable for automated assembly.
Cons: Requires rework if socket fails; limited current handling compared to panel-mounted versions.

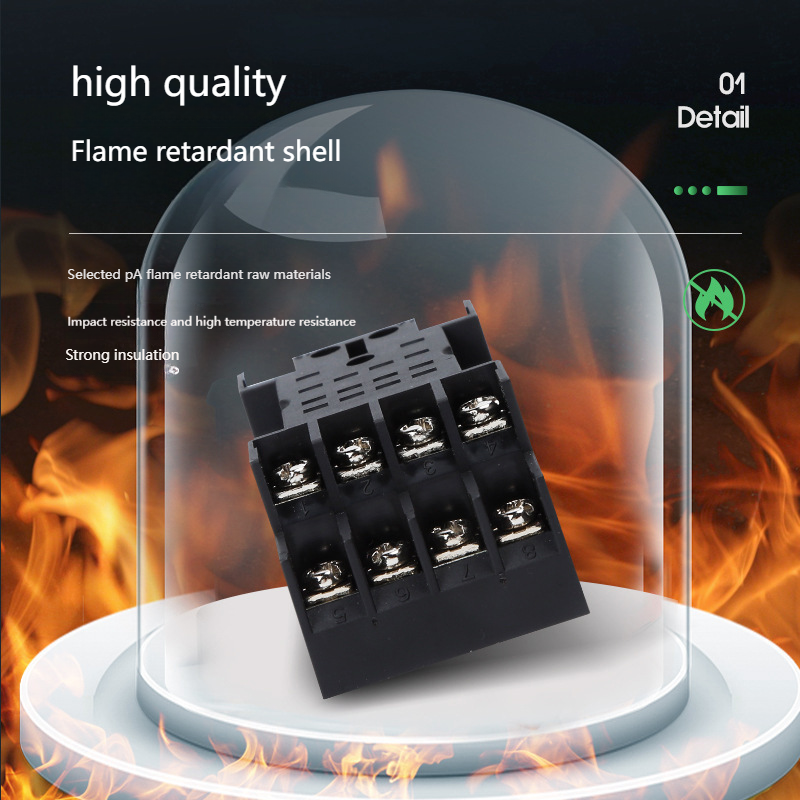

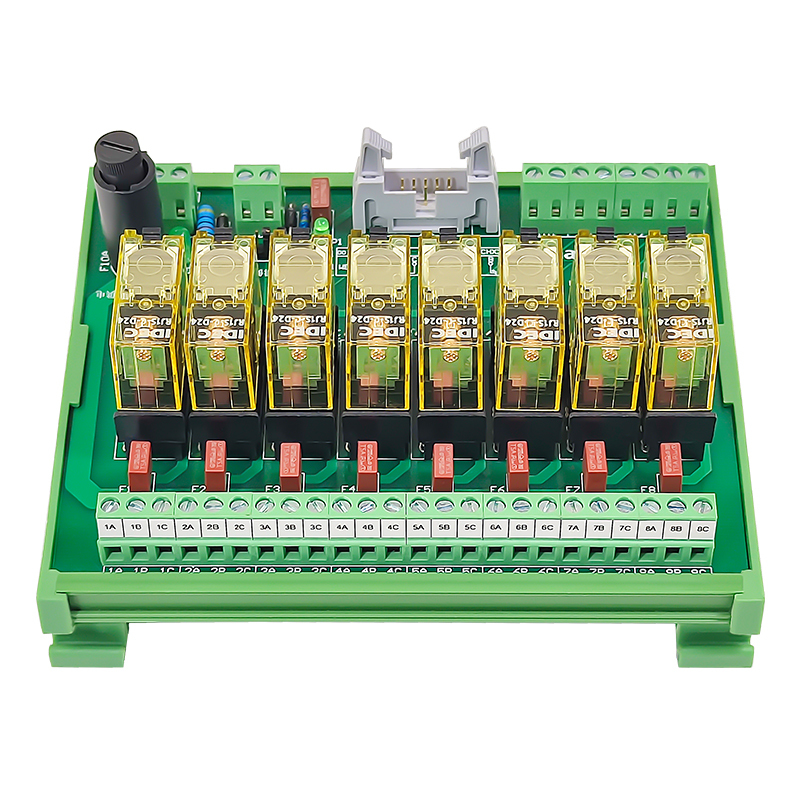

3. Terminal Block Style Connectors

Used with larger industrial relays, these connectors resemble terminal blocks with integrated relay holders. Often mounted on DIN rails inside control cabinets.

Pros: High current capacity, excellent vibration resistance, clear labeling.
Cons: Bulky, more expensive, not interchangeable with standard relays.

4. Hybrid & Solid-State Relay Adapters

Specialized connectors designed for solid-state relays (SSRs) or hybrid models that combine semiconductor switching with mechanical relay form factors.

Pros: No moving parts, silent operation, longer life under frequent cycling.
Cons: Generate heat; require proper thermal management; often non-standard pinouts.

Key Features and Specifications to Evaluate

To make an informed decision when purchasing a relay connector, consider the following technical and practical criteria:

Voltage and Current Rating: Ensure the connector supports the maximum load current and control voltage of your relay. Standard ratings range from 5A at 250VAC to 16A for heavy-duty models.
Coil Voltage Compatibility: Match the connector’s intended relay type (e.g., 12VDC, 24VDC, 120VAC) to avoid miswiring.
Contact Configuration: Confirm whether your relay uses SPDT (Single Pole Double Throw), DPDT (Double Pole Double Throw), or multi-pole arrangements. The connector must match exactly.
Insulation Material: Look for UL94 V-0 rated plastics like PBT or PA66 for flame resistance and durability.
Termination Type: Screw terminals offer strong connections but take longer to install; spring-clamp terminals enable faster wiring and are ideal for vibration-prone areas.
Mechanical Locking: Some sockets include latches or screws to prevent accidental disconnection.
Environmental Protection: For outdoor or industrial settings, choose IP67-rated or sealed connectors to resist dust and moisture.
Mounting Method: Decide between panel mount, DIN rail, or PCB mount based on enclosure design and accessibility needs.

Pros and Cons: When to Use a Relay Connector

Advantages:

Enables fast relay replacement without rewiring.
Improves serviceability and reduces equipment downtime.
Supports standardization across multiple machines or installations.
Reduces risk of incorrect relay orientation during installation.
Allows testing and bench verification before deployment.

Disadvantages:

Adds cost and complexity to simple circuits.
Introduces additional contact points, potentially increasing failure risk over time.
May require extra space within enclosures.
Not always necessary in compact, sealed, or disposable devices.

In general, relay connectors are recommended for any application requiring regular maintenance, mission-critical uptime, or modular upgrades. They are less justified in low-cost consumer products with expected short lifespans.

How to Choose a Relay Connector: Step-by-Step Guide

Follow this structured approach to select the right relay connector for your needs:

Identify the Relay Model: Determine the exact relay type (e.g., Omron LY2, Finder 40.52, TE Connectivity RT1T) and check its pin configuration (e.g., 8-pin, 14-pin).
Check Electrical Requirements: Review the relay’s maximum switching current, control voltage, and contact arrangement.
Select Mounting Type: Decide whether you need PCB mount, panel mount, or DIN rail installation based on your control cabinet layout.
Choose Termination Style: Opt for screw terminals for high-reliability connections or spring clamps for tool-free, rapid installation.
Evaluate Environmental Conditions: If exposed to moisture, dust, or vibration, prioritize sealed housings and locking features.
Verify Supplier Reputation: Purchase from authorized distributors or manufacturers known for consistent quality (e.g., TE Connectivity, Phoenix Contact, Weidmüller).
Avoid Generic Unbranded Models: Low-cost clones may have inconsistent tolerances or substandard insulation—verify material certifications if possible.

Red flags to watch for include mismatched pin layouts, lack of datasheets, absence of UL/CE markings, and unclear current ratings.

Price & Market Insights

Relay connectors vary widely in price based on brand, current rating, and features. Basic 8-pin plug-in sockets typically cost between $1.50 and $5.00 each in single quantities. Industrial-grade versions with DIN rail mounts or enhanced protection can range from $8 to $25.

High-end connectors from brands like Phoenix Contact or Weidmüller often exceed $20 but offer superior durability, labeling options, and compliance with industrial standards. For budget-conscious buyers, generic alternatives are available but should be evaluated carefully for safety and longevity.

Bulk pricing is common for orders over 100 units, with discounts up to 30–50%. However, always test a sample unit before placing large orders to ensure compatibility and build quality. Value is best assessed not just by upfront cost but by total cost of ownership—including ease of maintenance and mean time between failures (MTBF).

Model	Type	Current Rating	Mounting	Price Range (USD)
TE Connectivity RT1T Socket	Plug-in, 8-pin	10A @ 250VAC	Panel/Screw Terminal	$2.20 – $3.80
Phoenix Contact AXC 8/14	DIN Rail, Terminal Block	16A @ 400VAC	DIN Rail	$14.50 – $18.00
Omron LY2 Socket	PCB Mount	8A @ 250VAC	Through-hole PCB	$1.75 – $2.90
Weidmüller RELAY-W 14P	Hybrid SSR Adapter	12A @ 240VAC	DIN Rail	$21.00 – $25.00

Customer Feedback Synthesis

Analysis of user reviews across major electronics suppliers reveals consistent themes regarding satisfaction and pain points.

Common Praises:

“Easy to wire and holds relays securely.”
“Clear terminal labels save time during installation.”
“Durable construction—even after multiple insertions, contacts remain tight.”
“Perfect fit for [brand] relays, no alignment issues.”

Frequent Complaints:

“Cheap knockoffs had bent pins out of the box.”
“No polarity indication led to incorrect coil wiring.”
“Spring clamps lost tension after six months in a vibrating machine.”
“Missing documentation made troubleshooting difficult.”

These insights highlight the importance of sourcing from trusted vendors and verifying product specifications before purchase.

Sourcing & Supplier Tips

When buying relay connectors, especially for commercial or industrial use, consider the following sourcing strategies:

Purchase from authorized distributors such as Digi-Key, Mouser, RS Components, or Newark to ensure authenticity and traceability.
For bulk procurement, request samples to evaluate fit, finish, and terminal quality before committing.
Consider working with suppliers offering kitting services—pre-assembled relay and socket pairs can reduce labor costs.
If importing internationally, verify customs classifications and conformity with local electrical codes (e.g., CCC in China, RCM in Australia).
Always check return policies and warranty terms, particularly when ordering online.

Maintenance, Safety & Legal Considerations

Proper use of relay connectors contributes to long-term system safety and reliability.

Maintenance: Periodically inspect for loose wires, overheating signs (discoloration), or corrosion—especially in humid environments.
Safety: Always de-energize circuits before replacing relays. Use insulated tools and follow lockout/tagout procedures in industrial settings.
Legal Compliance: In regulated industries, ensure connectors meet relevant standards such as UL 60947-4-1 (low-voltage switching devices) or IEC 61810 (electromechanical relays).
Labeling: Clearly mark inputs, outputs, and coil terminals to prevent miswiring during servicing.

Conclusion

Choosing the right relay connector involves balancing electrical performance, mechanical compatibility, environmental resilience, and long-term maintainability. Whether you're designing a new control panel or replacing aging components, investing in a well-specified, high-quality connector improves system uptime and simplifies troubleshooting. Focus on matching the connector to your relay model, verify current and voltage ratings, and prioritize trusted brands for critical applications. By following a structured selection process, you can ensure reliable connectivity and efficient maintenance for years to come.

FAQs

What is the difference between a relay socket and a relay connector?
The terms are often used interchangeably, but 'relay socket' usually refers to the base that accepts the relay pins, while 'relay connector' may include integrated wiring interfaces like terminal blocks or DIN rail mounts.

Can I reuse a relay connector after removing the relay?
Yes, most high-quality connectors can withstand hundreds of insertion cycles. However, inspect for bent pins or worn contacts before reuse, especially in high-vibration environments.

Do all 8-pin relays fit the same connector?
No—while many follow the IEC/DIN standard pin layout, some manufacturers use proprietary spacing or pin diameters. Always confirm compatibility with the relay datasheet.

Are there waterproof relay connectors available?
Yes, certain models are rated IP67 or higher, featuring sealed housings and gasketed covers. These are ideal for outdoor, marine, or washdown applications.

How do I prevent relay connectors from overheating?
Ensure tight wire connections, use correct wire gauge, avoid exceeding current ratings, and provide adequate ventilation. Overheating often results from loose terminations rather than the connector itself.
