How to Choose the Best Reflow Oven Machine: A Complete Buying Guide

When choosing the best reflow oven machine for your electronics manufacturing or prototyping needs, prioritize temperature precision, heating zone count, and airflow uniformity to ensure reliable soldering results. For most small to mid-scale operations, a compact convection reflow oven with at least 5 heating zones and PID temperature control offers the optimal balance of performance and value1. If you're evaluating how to choose a reflow oven machine, focus first on thermal profiling capabilities and software integration, as these directly impact repeatability and defect rates in PCB assembly.

About Reflow Oven Machine

A reflow oven machine is a specialized thermal processing system used primarily in surface mount technology (SMT) to solder electronic components onto printed circuit boards (PCBs). The process involves applying solder paste to PCB pads, placing components, and then passing the board through a controlled heating environment where the solder melts and solidifies to form permanent electrical and mechanical connections.

These machines are essential in both industrial production lines and smaller-scale electronics development labs. They use a series of heated zones to gradually raise the temperature of the PCB according to a precise thermal profile—typically involving preheat, soak, reflow, and cooling stages. This ensures that solder joints form correctly without damaging heat-sensitive components.

Reflow ovens differ from wave soldering systems in that they are designed specifically for surface-mounted parts rather than through-hole components. Modern reflow systems often integrate advanced sensors, programmable logic controllers (PLCs), and data logging to support consistent, high-yield manufacturing.

Why Reflow Oven Machine Is Gaining Popularity

The growing demand for compact, high-performance electronics has driven increased adoption of reflow oven machines across industries. As consumer devices become more miniaturized and complex, manufacturers require precise, repeatable soldering methods that manual irons or basic hot plates cannot provide.

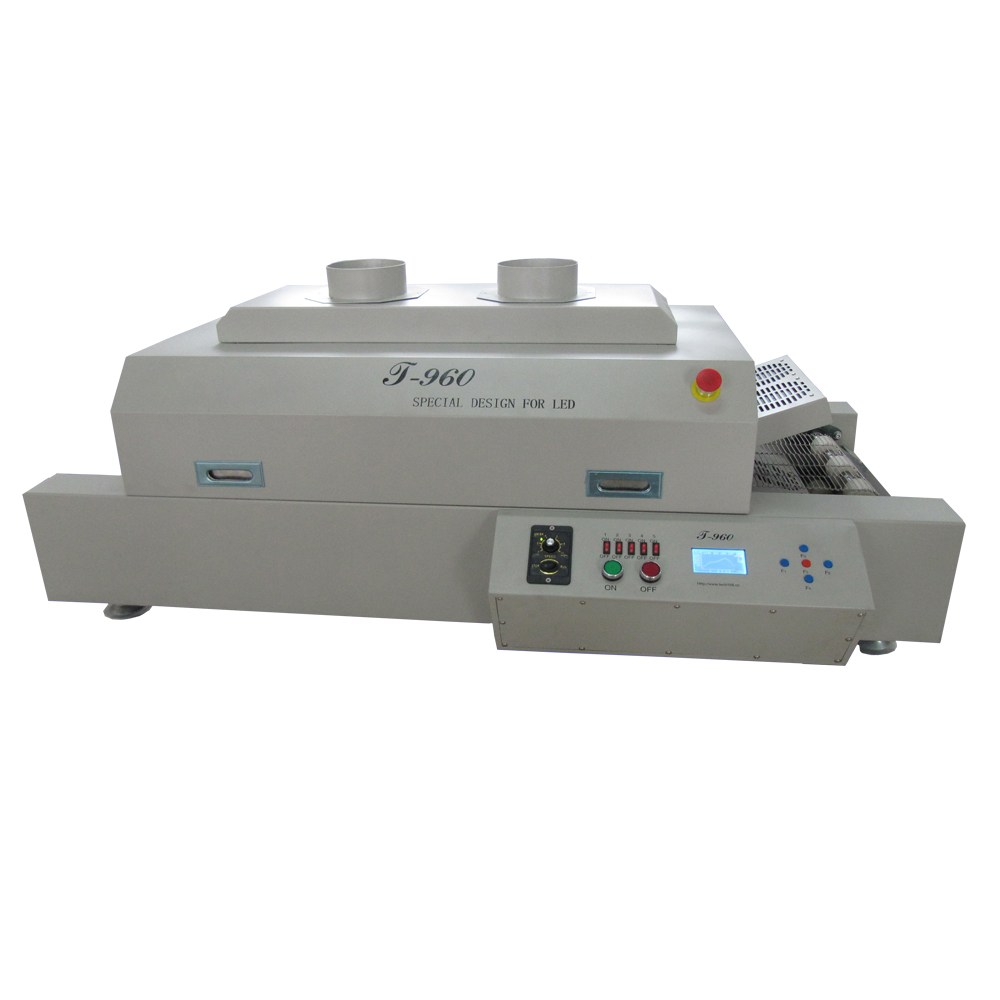

One major factor behind the rise in popularity is the accessibility of smaller benchtop reflow ovens for prototyping and low-volume production. These units allow startups, educational institutions, and R&D departments to perform professional-grade SMT assembly without investing in full-scale production lines.

Additionally, advancements in automation and IoT-enabled monitoring have made reflow ovens smarter and easier to integrate into existing workflows. With real-time thermal profiling and remote diagnostics, engineers can optimize processes and reduce defects like tombstoning, bridging, or cold joints.

Another reason for their increasing relevance is the global shift toward Industry 4.0 practices, where traceability, process control, and data-driven decision-making are critical. Reflow ovens equipped with Ethernet or USB interfaces enable detailed logging of each run, supporting quality assurance standards such as ISO 9001 or IPC-A-610.

Types and Variants

Reflow ovens come in several configurations, each suited to different production scales and technical requirements:

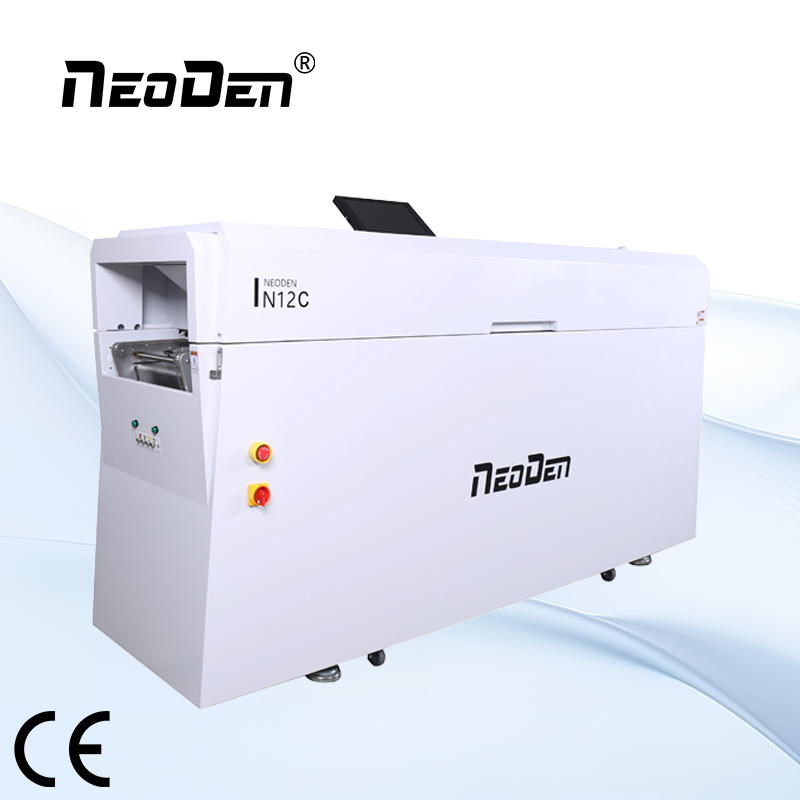

1. Convection Reflow Ovens

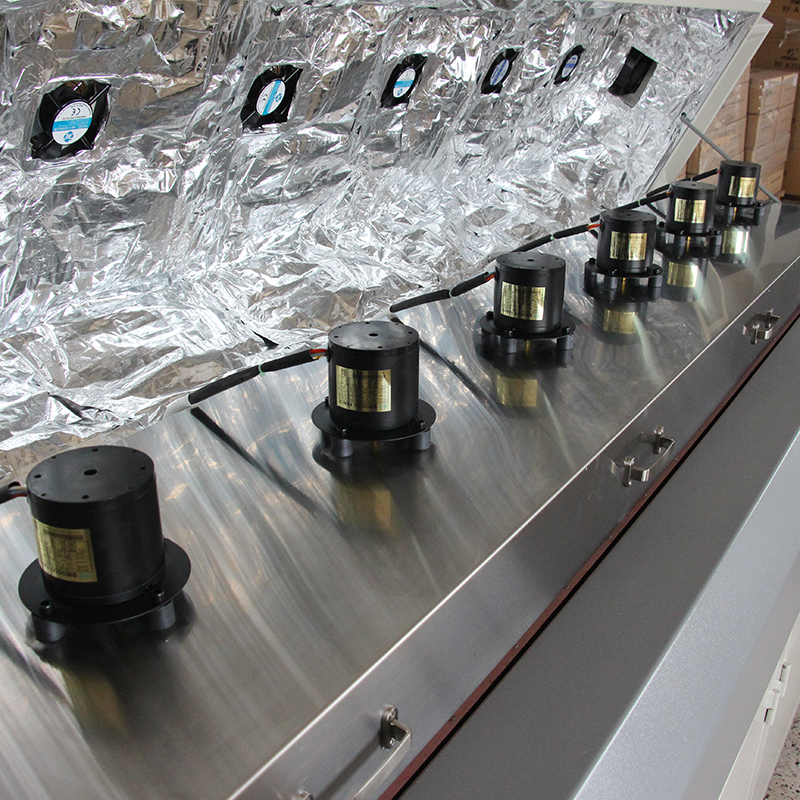

The most common type, convection ovens use forced hot air circulated by fans to heat PCBs uniformly. They offer excellent temperature control and are suitable for lead-free and leaded solder profiles.

Pros: High thermal consistency, ideal for dense boards, supports nitrogen inerting.
Cons: Higher energy consumption, requires regular filter maintenance.

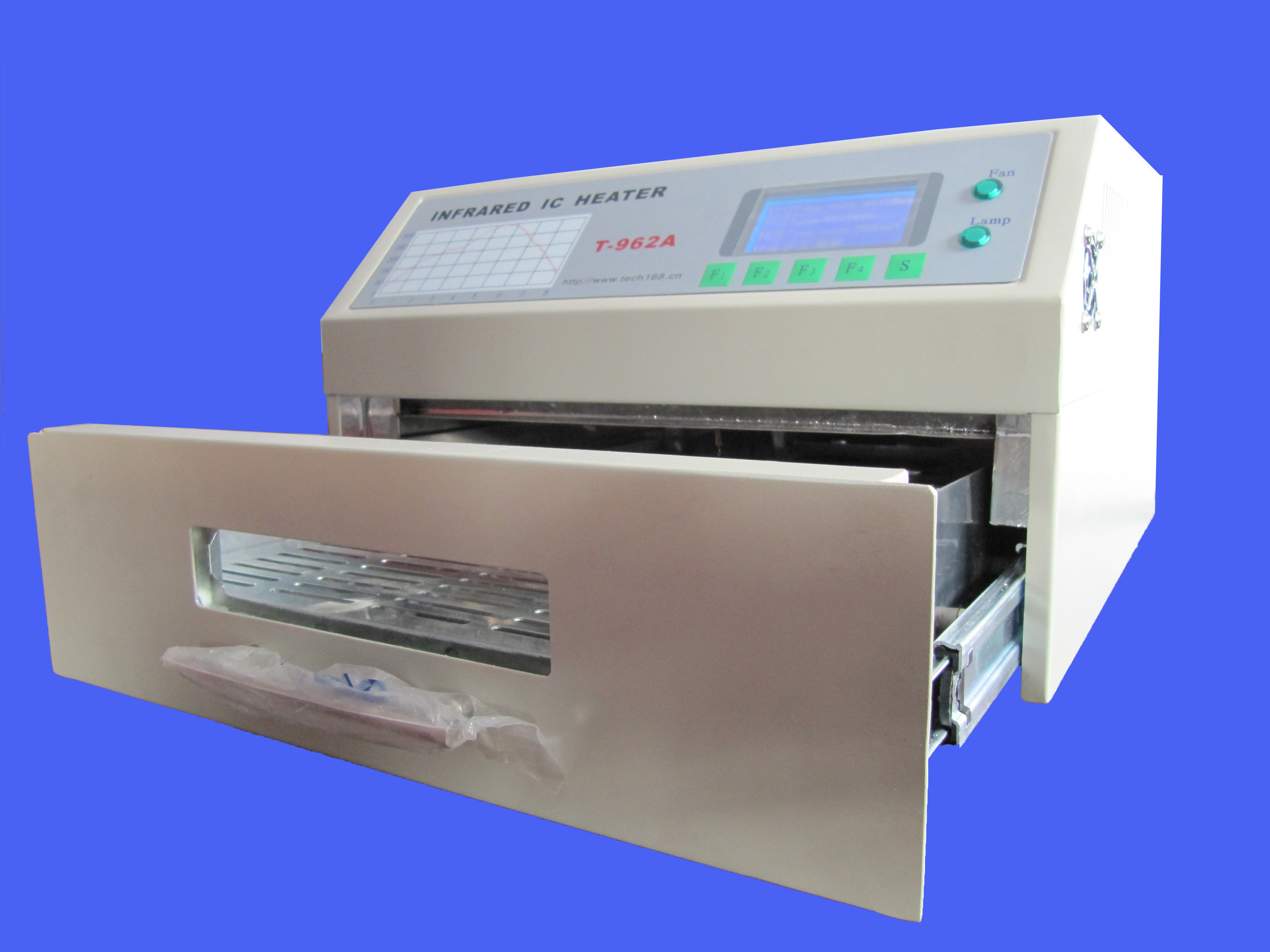

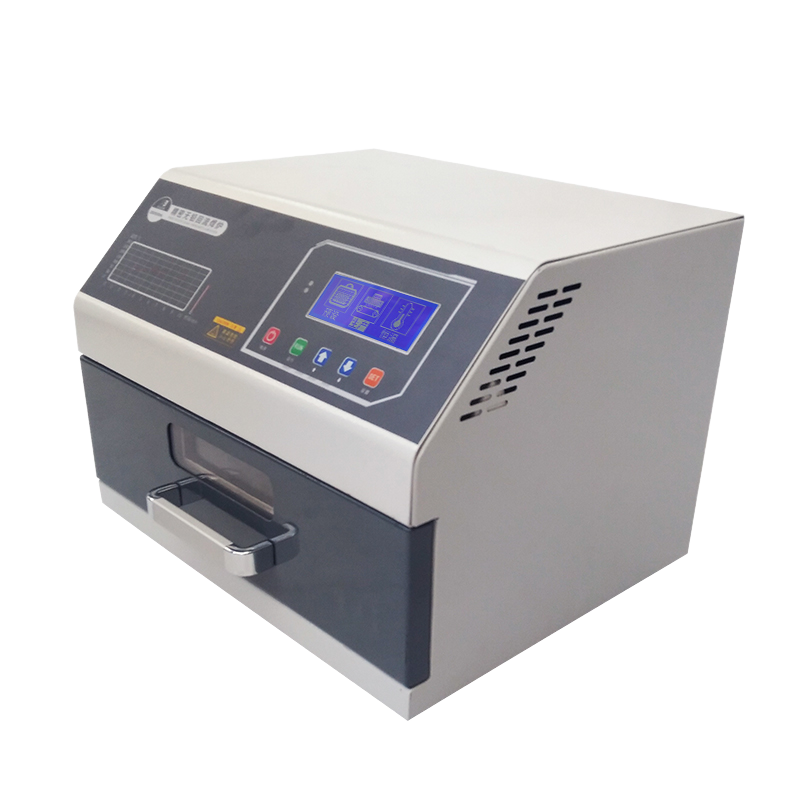

2. Infrared (IR) Reflow Ovens

These use infrared radiation to transfer heat directly to components and boards. While less common today, some hybrid models combine IR with convection.

Pros: Fast heating response, lower initial cost.
Cons: Uneven heating on boards with mixed component heights, risk of overheating dark-colored parts.

3. Vapor Phase Reflow Ovens

Utilize condensation of inert liquid vapor (like perfluoropolyether) to transfer heat. Known for exceptional thermal uniformity and oxygen-free environment.

Pros: Extremely even heating, minimal oxidation, energy efficient.
Cons: High fluid cost, limited scalability, specialized maintenance needs.

4. Hybrid Reflow Ovens

Combine two technologies—typically IR + convection—to leverage benefits of both. Used in niche applications requiring rapid ramp-up and fine control.

Pros: Flexible thermal response, good for complex profiles.
Cons: More complex calibration, higher failure risk due to multiple systems.

Key Features and Specifications to Evaluate

To make an informed decision on what to look for in a reflow oven machine, consider the following technical aspects:

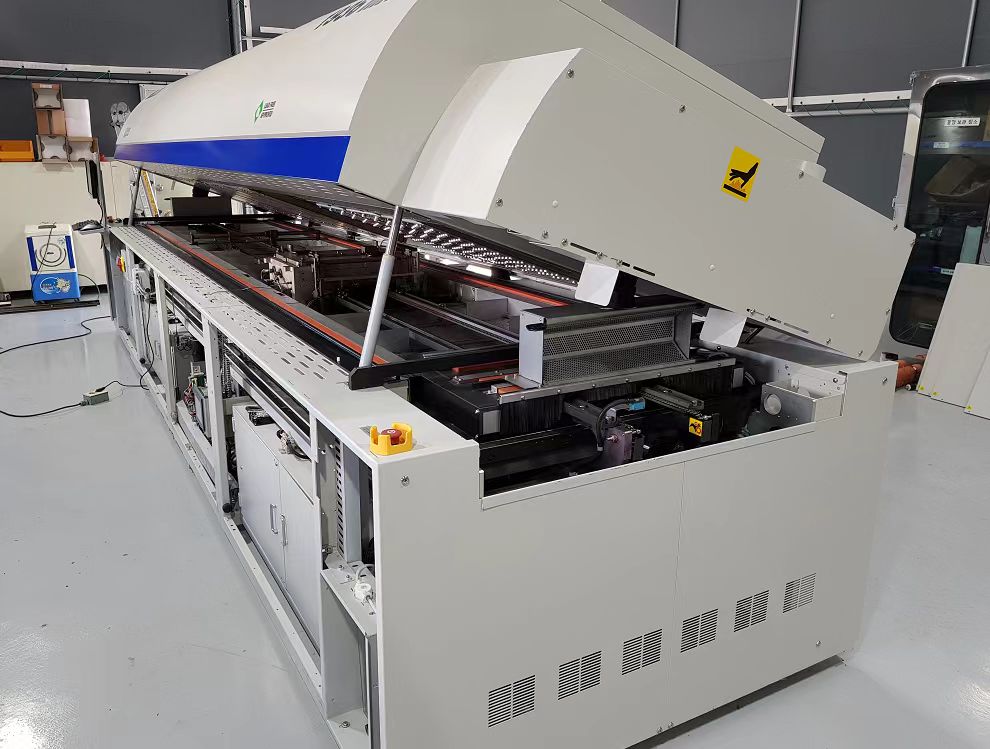

Number of Heating Zones: Determines control granularity. Entry-level models may have 4–5 zones; industrial systems range from 8 to 12. More zones allow finer profile shaping.
Temperature Range and Accuracy: Should cover at least 50°C to 300°C with ±1°C accuracy. Lead-free solder typically requires peaks around 240–250°C.
Airflow Design: Uniform airflow prevents shadowing effects. Look for cross-convection or turbulent flow designs.
Cooling Efficiency: Active cooling sections help prevent thermal damage post-reflow. Ideal cooling rate: ≥3°C/sec.
Conveyor Width and Speed Control: Must accommodate your largest PCBs. Adjustable speed (e.g., 20–200 cm/min) allows optimization for different board types.
Control Interface and Software: Touchscreen HMIs with recipe storage, USB export, and profiling tools improve usability. Some support integration with MES systems.
Nitrogen Compatibility: Reduces oxidation and improves wetting. Important for high-reliability or fine-pitch assemblies.
Safety Features: Overheat protection, emergency stop, door interlocks, and fire suppression systems enhance operational safety.

Pros and Cons

Advantages of Using a Reflow Oven Machine:

High repeatability and consistency in solder joint quality.
Supports high-density and fine-pitch components (e.g., 0201, QFN, BGA).
Scalable from prototype to mass production.
Reduces labor costs compared to hand soldering.
Enables compliance with IPC standards.

Disadvantages and Limitations:

Initial investment can be high, especially for nitrogen-capable or vapor-phase systems.
Requires skilled setup and periodic recalibration.
Benchtop models may lack throughput for large batches.
Vapor phase fluids are expensive and regulated in some regions.
Energy consumption increases with number of zones and operating hours.

How to Choose a Reflow Oven Machine

Follow this step-by-step guide to select the right model based on your specific needs:

Define Your Production Volume: For occasional prototyping, a 5-zone benchtop convection oven suffices. For continuous production, consider 8+ zones with wider conveyors.
Determine Board Size and Complexity: Measure maximum PCB dimensions and check if components include BGAs or ultra-fine pitch ICs, which demand tighter thermal control.
Select Heating Type: Prioritize convection for general use. Consider vapor phase only if working with aerospace, medical, or high-mix/high-reliability products.
Evaluate Temperature Profiling Tools: Ensure the oven includes built-in thermocouples or supports external profilers. Real-time graphing and auto-tuning features save time.
Check Connectivity Options: Models with Ethernet, USB, or RS-485 allow data backup and integration with factory networks.
Review Safety and Compliance: Confirm CE, UL, or RoHS certification depending on your region. Verify internal wiring meets electrical safety codes.
Assess After-Sales Support: Look for vendors offering training, firmware updates, and spare parts availability.
Avoid Red Flags: Steer clear of units with no documentation, unclear warranty terms, or unverified temperature claims. Avoid sellers who don’t provide access to user manuals or calibration procedures.

Price & Market Insights

Pricing varies significantly based on capacity, features, and brand reputation:

Benchtop Models (5–6 zones): $2,000 – $6,000. Suitable for labs and small workshops.
Midsized Systems (8 zones): $8,000 – $15,000. Common in contract manufacturers and medium-volume facilities.
High-End Industrial Ovens (10–12 zones): $20,000 – $50,000+. Found in automotive, defense, and medical electronics production.
Vapor Phase Units: Start around $25,000 and go up to $70,000+, depending on chamber size and automation level.

When assessing value, compare not just upfront cost but also long-term reliability, service costs, and uptime. Chinese OEMs offer competitive pricing but may lack robust customer support. Established brands like Heller, BTU, and Rehm provide premium build quality and global service networks but at a higher price point.

Top-Seller & Competitive Analysis

Below is a comparison of widely used reflow oven models across segments:

Model	Zones	Max Temp	Width Capacity	Key Feature	Approx. Price
Heller 1700EXL	10	300°C	510 mm	Nitrogen optimization, intuitive HMI	$38,000
BTU Pyramax 150	8	300°C	508 mm	Low N₂ consumption, modular design	$29,000
Rehm Thermal Systems Vision	12	300°C	500 mm	Vision alignment, vacuum reflow option	$52,000
Toko TO-860	8	300°C	460 mm	Cost-effective, simple interface	$12,000
Setech STC-800	6	280°C	300 mm	Benchtop, USB profiling	$4,500

Note: Always verify specifications directly with manufacturers, as configurations may vary by region and optional add-ons.

Customer Feedback Synthesis

Analysis of user reviews and industry forums reveals recurring themes:

Common Praises:

"Excellent temperature stability over long runs."
"Easy to set up profiles using included software."
"Reliable performance with minimal drift after months of use."
"Compact footprint fits well in shared lab spaces."

Frequent Complaints:

"Cooling section too slow, causing warping on thin boards."
"Fan noise above average in quiet environments."
"Limited technical support response outside business hours."
"Calibration required more frequently than expected."

Users consistently emphasize the importance of proper installation and regular maintenance to sustain performance. Those who invested time in learning thermal profiling reported fewer defects and better ROI.

Sourcing & Supplier Tips

When sourcing a reflow oven machine, consider the following:

Purchase from authorized distributors to ensure warranty validity.
For bulk orders, negotiate service packages or extended warranties.
If importing, confirm voltage compatibility (e.g., 208V vs. 220–240V) and local regulatory compliance.
Request demo units or factory acceptance tests when possible.
Inspect packaging upon delivery; report any shipping damage immediately.
Verify return policy and restocking fees before purchase.

Maintenance, Safety & Legal Considerations

Proper upkeep ensures longevity and safe operation:

Clean conveyor belts and filters weekly to prevent contamination and airflow blockage.
Perform monthly thermocouple checks using a calibrated reference probe.
Lubricate moving parts per manufacturer guidelines.
Ensure exhaust systems are vented properly, especially when running lead-free solder.
Train operators on emergency shutdown procedures and fire risks associated with overheated components.
In the U.S., comply with OSHA ventilation standards; in EU, adhere to Machinery Directive 2006/42/EC.
Store flammable materials away from the unit and maintain clear clearance around the oven.

Conclusion

Selecting the right reflow oven machine requires balancing technical capability, budget, and intended application. For most users seeking reliable performance without excessive overhead, a mid-range convection reflow oven with 6–8 heating zones, precise temperature control, and solid software support delivers strong value. Always validate specifications with real-world testing and prioritize vendors offering transparent documentation and responsive support. Whether you're building prototypes or scaling production, a well-chosen reflow oven enhances yield, consistency, and long-term efficiency.

FAQs

What is the ideal number of heating zones in a reflow oven?
For general-purpose use, 6 to 8 zones provide sufficient control. High-complexity boards benefit from 10 or more zones for refined thermal management.

Can I use a reflow oven for lead-free soldering?
Yes, provided the oven reaches at least 250°C peak temperature and maintains stable profiles. Most modern convection models support both leaded and lead-free processes.

How often should a reflow oven be calibrated?
Manufacturers typically recommend quarterly calibration, though high-use environments may require monthly checks. Always follow the specific model’s service manual.

Do reflow ovens consume a lot of power?
Power usage ranges from 3 kW (benchtop) to over 15 kW (industrial). Check your facility's electrical capacity before installation.

Is nitrogen necessary for reflow soldering?
Not always. Nitrogen reduces oxidation and improves joint quality, especially for fine-pitch or high-reliability boards, but it adds operational cost. Use it selectively based on product requirements.
