How to Choose Progressive Die Metal Stamping for High-Volume Production

When selecting a progressive die metal stamping process for high-volume manufacturing, prioritize tool durability, material compatibility, and design complexity to ensure long-term efficiency and part consistency. A well-chosen system can reduce per-unit costs significantly while maintaining tight tolerances—especially critical in industries like automotive and electronics. For those asking how to choose progressive die metal stamping, focus first on your production volume, required precision, and the type of metal being formed. Investing in hardened steel dies with automated feed systems often delivers the best return for runs exceeding 10,000 units annually.

About progressive die metal stamping

Progressive die metal stamping is a specialized cold-forming manufacturing technique where a coil of sheet metal passes through a series of stations within a single die set, each performing a distinct operation such as punching, bending, coining, or blanking. With each press stroke, the strip advances incrementally, allowing multiple operations to occur sequentially in one continuous cycle 1. This method excels at producing complex, high-precision metal components at rapid speeds—often hundreds or thousands of parts per hour.

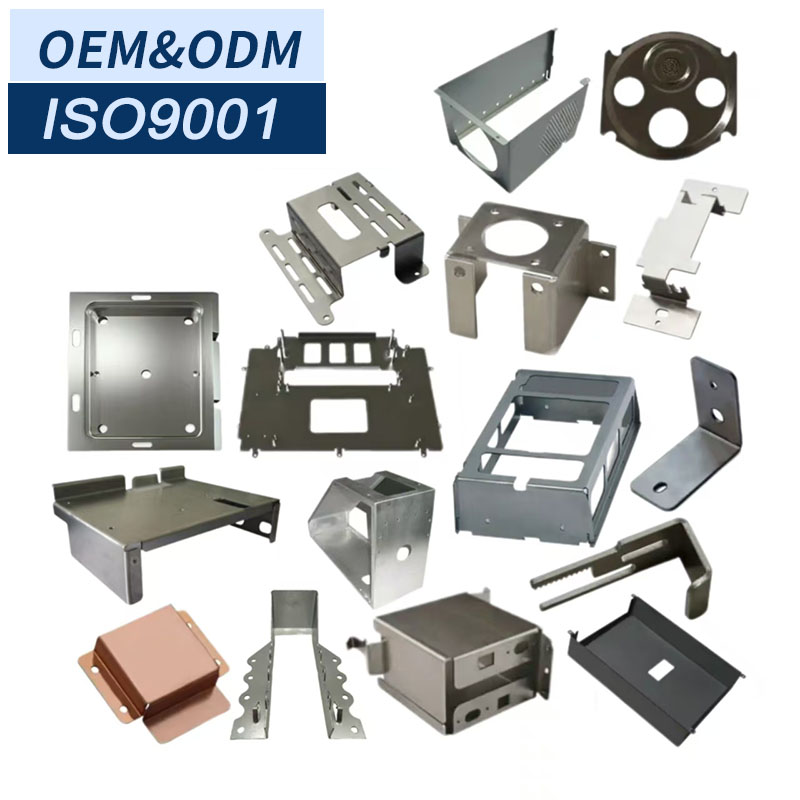

Common applications include electrical connectors, automotive brackets, sensor housings, and appliance hardware. Because each station builds upon the last, the final component is only complete after exiting the last stage of the die. The process relies heavily on precise alignment, consistent material feed, and robust tooling to maintain dimensional accuracy across large batches.

Why progressive die metal stamping is gaining popularity

The demand for progressive die metal stamping has grown due to its unmatched efficiency in mass production environments. Manufacturers seeking lean operations are increasingly adopting this method to minimize labor costs, reduce material waste, and improve repeatability. Unlike single-stage stamping, which requires manual handling between steps, progressive dies automate the entire sequence, reducing human error and increasing throughput.

Industries such as automotive, consumer electronics, and medical devices benefit from tighter tolerances and faster time-to-market when using progressive dies. Additionally, advancements in CNC machining and CAD/CAM software have made it easier and more cost-effective to design and produce highly intricate dies, lowering entry barriers for mid-sized manufacturers 2.

Types and variants

While all progressive dies operate under the same fundamental principle, several variations exist based on design complexity, feeding mechanism, and application needs:

• Straight Progressive Dies: These use a linear arrangement of stations along a straight path. They’re simple to set up and ideal for medium-complexity parts.
  • Pros: Easy maintenance, straightforward troubleshooting, compatible with standard presses.
  • Cons: Limited number of operations due to space constraints; longer strips may require larger floor space.

• Zig-Zag (or Serpentine) Progressive Dies: Designed for wider coils, these dies alternate left and right stations to maximize material usage and allow more operations without extending the die length.
  • Pros: Higher material utilization, supports more stages in compact layouts.
  • Cons: Complex setup; requires precise edge guidance to prevent misalignment.

• Transfer Progressive Dies: Though technically not fully progressive, they combine aspects of transfer and progressive systems by using mechanical fingers to move parts between stations.
  • Pros: Suitable for very large or thick components that can’t be carried by carrier strips.
  • Cons: Slower than true progressive dies; higher equipment cost.

• Multi-Lane Progressive Dies: Process multiple parallel strips simultaneously, multiplying output per stroke.
  • Pros: Dramatically increases production rate; efficient for small, identical parts.
  • Cons: High initial cost; demands uniform material quality across lanes.

Key features and specifications to evaluate

To make an informed decision when evaluating progressive die metal stamping options, consider the following technical and operational factors:

1. Material Compatibility: Ensure the die is designed for your specific metal type—steel, aluminum, brass, or specialty alloys. Harder materials require tool steels with higher wear resistance.
2. Tolerance Requirements: Look for dies capable of holding ±0.005 inches or tighter if needed. Precision-ground components and guided punches enhance consistency.
3. Production Speed (Strokes Per Minute - SPM): Match the die’s optimal SPM range with your press capabilities. Exceeding recommended speeds accelerates wear.
4. Strip Layout Efficiency: Evaluate how efficiently the part is nested on the coil. Poor layout leads to excessive scrap.
5. Die Set Standardization: Prefer dies built to common standards (e.g., MS, GA, or DIN) for easier replacement and serviceability.
6. Lubrication System Integration: Some advanced systems include internal lubricant channels to reduce friction and extend tool life.
7. Carry Strip Design: Assess whether the carry strip provides sufficient strength to transport the workpiece without deformation but allows easy separation post-stamping.

Pros and cons

Understanding the strengths and limitations of progressive die metal stamping helps determine if it aligns with your production goals.

Advantages:

• High-speed production with minimal operator intervention
• Excellent repeatability and dimensional consistency
• Lower labor cost per unit over high volumes
• Reduced secondary operations due to integrated forming steps
• Scalable for automation and inline inspection

Disadvantages:

• High initial tooling cost (ranging from $10,000 to over $100,000)
• Long lead times for die fabrication and testing
• Inflexible design changes once the die is built
• Requires consistent raw material properties (thickness, hardness)
• Not economical for low-volume or prototype runs

This method is best suited for production runs exceeding 10,000 pieces annually. For prototyping or small batches, alternative methods like laser cutting or turret punching may offer better value.

How to choose progressive die metal stamping

Selecting the right progressive die involves a structured evaluation process. Follow this step-by-step guide to avoid costly mistakes:

1. Define Your Production Volume: If you expect fewer than 5,000 units/year, reconsider whether progressive die stamping is justified. High setup costs demand scale.
2. Analyze Part Complexity: Map out all required operations (pierce, bend, form, etc.). More than 10–12 stages may require custom engineering.
3. Choose Material Type and Thickness: Communicate exact specifications to the die designer. Variations affect punch clearance, stripping force, and wear rates.
4. Select a Reputable Toolmaker: Prioritize shops with experience in your industry. Ask for references and sample work.
5. Review Strip Layout and Nesting Efficiency: Request a simulation or layout drawing showing material flow and scrap percentage.

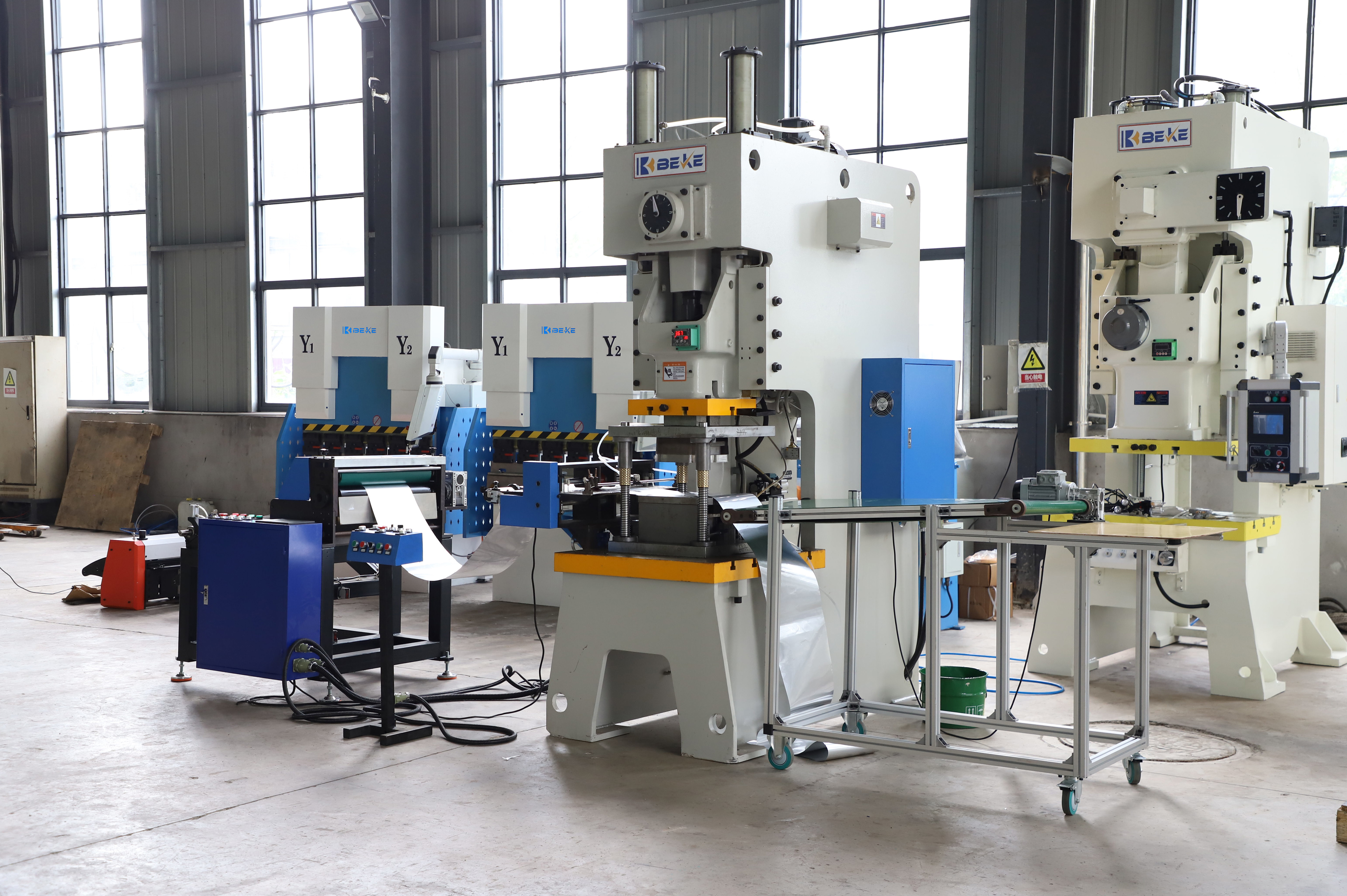

6. Evaluate Press Compatibility: Confirm tonnage, bed size, shut height, and feed system match your existing or planned press.
7. Assess Maintenance Support: Inquire about spare parts availability, rebuild timelines, and technical support access.
8. Avoid Red Flags: Be cautious of vendors who don’t provide detailed design reviews, lack quality certifications (ISO 9001), or pressure quick decisions without data.

Ask potential suppliers: “Can you provide a full process capability study (Cp/Cpk) for similar past projects?” This demonstrates their commitment to measurable quality.

Price & market insights

Pricing for progressive die metal stamping varies widely depending on complexity, size, and material. As a general benchmark:

• Simple dies (3–6 stations): $10,000 – $25,000
• Moderate complexity (7–12 stations): $25,000 – $60,000
• High-complexity, multi-lane dies: $60,000 – $150,000+

Unit part pricing typically ranges from $0.05 to $2.00, influenced by material cost, thickness, and secondary finishing needs. While offshore tooling (e.g., China, India) may offer 30–50% lower upfront costs, factor in longer lead times, communication delays, and potential rework expenses 3.

For best value, consider domestic suppliers for critical, high-mix applications and offshore partners for standardized, high-volume components with stable designs.

Variety	Avg. Tooling Cost	Best Use Case	SPM Range	Maintenance Frequency
Straight Progressive	$15k–$40k	Medium-run brackets, clips	80–200	Every 100k cycles
Zig-Zag Progressive	$30k–$70k	High-density connector strips	60–150	Every 75k cycles
Multi-Lane Progressive	$70k–$120k	Small electronic terminals	100–250	Every 50k cycles

Top-seller & competitive analysis

Leading progressive die manufacturers such as Mitsui Seiki, Komatsu, and Cincinnati Incorporated emphasize precision-ground components, modular construction, and integration with Industry 4.0 monitoring systems. Top-selling models often feature quick-change die systems, real-time tonnage monitoring, and predictive maintenance alerts.

When comparing top sellers, assess not just performance but also lifecycle support. For example, some premium brands offer remote diagnostics and digital twin modeling to simulate wear patterns. However, these benefits come at a premium price point—best justified in mission-critical or high-downtime-cost environments.

Independent tool shops may lack brand recognition but often deliver comparable quality at lower prices, especially for non-standard configurations. Always request test samples and review process documentation before committing.

Customer feedback synthesis

Analysis of user experiences reveals recurring themes in satisfaction and frustration:

Common Praises:

• “Parts come off the press ready to assemble—no rework needed.”
• “After break-in, we’ve achieved over 1 million cycles without adjustment.”
• “The automated feed sync eliminated jams we had with older dies.”

Frequent Complaints:

• “Initial setup took three weeks longer than promised.”
• “Minor material thickness variation caused premature punch chipping.”
• “No spare parts inventory—waited six weeks for a broken stripper plate.”

These insights highlight the importance of clear communication, rigorous incoming material inspection, and planning for spares during procurement.

Sourcing & supplier tips

Whether sourcing domestically or internationally, follow these guidelines:

• Request a detailed project plan including design review milestones, sampling schedule, and acceptance criteria.
• Verify supplier certifications (ISO 9001, IATF 16949 for automotive).
• Negotiate terms for first-article inspection reports (FAIR) and PPAP documentation.
• Consider starting with a pilot run before full-scale production.
• For bulk orders, discuss consignment inventory or vendor-managed stock options to reduce your carrying costs.
• Inspect delivered dies for surface finish quality, alignment pins, and proper labeling of components.

If working with overseas suppliers, use third-party inspection services prior to shipment. Clarify responsibilities for shipping damage, customs delays, and warranty claims upfront.

Maintenance, safety & legal considerations

Proper maintenance ensures longevity and safe operation. Establish a routine that includes:

• Daily cleaning of die surfaces and removal of metal fines
• Weekly inspection of springs, strippers, and guide posts
• Monthly lubrication of moving elements and checking fastener torque
• Regular sharpening schedules based on cycle count, not failure

Safety protocols must comply with OSHA and local regulations. Key practices include lockout/tagout (LOTO), light curtains, two-hand controls, and regular press maintenance. Dies should include anti-repeat devices and proper guarding to prevent accidental operation.

Legally, ensure compliance with REACH, RoHS (for electronic components), and any industry-specific standards such as UL or ASME. Maintain records of material certifications and process validations for audit readiness.

Conclusion

Progressive die metal stamping offers exceptional efficiency and precision for high-volume metal part production. To determine what to look for in progressive die metal stamping, focus on your volume needs, part complexity, and long-term support requirements. While the initial investment is substantial, the payoff in reduced labor, minimized waste, and consistent quality makes it a smart choice for scalable manufacturing. Choose experienced suppliers, validate designs thoroughly, and plan for ongoing maintenance to maximize ROI.

FAQs

What is the typical lifespan of a progressive die?
With proper maintenance, progressive dies can last between 500,000 and 5 million strokes, depending on material hardness and operating conditions. Hardened tool steels and coated components extend life.

Can progressive dies be modified after fabrication?
Limited modifications are possible, such as adding relief cuts or replacing worn sections. Major design changes usually require a new die due to interdependent station geometry.

How do I know if my part is suitable for progressive die stamping?
Ideal candidates are flat or moderately formed parts with consistent geometry, produced in volumes above 10,000 units/year. Parts requiring deep draws or variable thicknesses may not be suitable.

What causes premature die failure?
Common causes include improper lubrication, incorrect press alignment, inconsistent material thickness, and exceeding rated speed or tonnage. Regular inspection helps prevent sudden breakdowns.

Are there alternatives to progressive die stamping?
Yes. For low volumes, consider turret punching or laser cutting. For simpler shapes, compound dies may suffice. Transfer presses suit large, heavy parts unsuitable for strip feeding.
