How to Choose Polycarbonate Sheet Lexan: Ultimate Buying Guide

When choosing a durable, lightweight, and impact-resistant glazing material, polycarbonate sheet Lexan is often the top choice for both residential and industrial applications. If you're wondering how to choose polycarbonate sheet Lexan wisely, focus on thickness, UV protection, multi-wall vs. solid construction, and fire rating—these factors directly affect performance and longevity. For most outdoor or high-impact environments, opt for UV-coated, twin-wall or solid sheets with a minimum 3mm thickness and UL94 flame resistance rating 1. Avoid uncoated sheets for exterior use, as they degrade quickly under sunlight.

About Polycarbonate Sheet Lexan

Polycarbonate sheet Lexan refers to high-performance thermoplastic panels made from polycarbonate resin, originally developed by General Electric and now produced globally under various brand names, with Lexan being one of the most recognized trademarks owned by SABIC 1. These sheets are known for their exceptional strength-to-weight ratio, transparency, and thermal insulation properties.

Commonly used as an alternative to glass, polycarbonate sheet Lexan finds application in greenhouses, skylights, patio covers, machine guards, sound barriers, and protective enclosures. Its ability to transmit light while resisting shattering makes it ideal where safety and durability are priorities. Unlike acrylic or standard plastic sheets, Lexan maintains structural integrity under extreme temperatures (typically -40°C to +120°C) and resists yellowing when properly coated.

Why Polycarbonate Sheet Lexan Is Gaining Popularity

The growing preference for polycarbonate sheet Lexan stems from its versatility and performance advantages over traditional materials. Homeowners and contractors alike seek long-term solutions that reduce maintenance and replacement costs. With increasing demand for energy-efficient building designs, multi-wall polycarbonate sheets offer superior thermal insulation compared to single-pane glass.

Additionally, urban development projects and DIY renovations have driven interest in transparent yet secure materials. Polycarbonate’s resistance to vandalism and natural elements makes it suitable for security windows, bus shelters, and storm-prone regions. The material's recyclability also aligns with sustainability goals in modern construction.

Types and Variants

Understanding the different types of polycarbonate sheet Lexan is crucial for making an informed decision based on your specific needs. Each variant offers unique benefits and trade-offs:

Solid Sheets

Pros: Highest impact resistance (up to 200 times stronger than glass), excellent clarity, scratch-resistant options available, ideal for security glazing.
Cons: Heavier than multi-wall types, less insulating, higher cost per square foot.

Solid Lexan sheets are best suited for applications requiring maximum protection, such as bullet-resistant barriers or hurricane windows.

Twin-Wall (Double-Wall)

Pros: Good thermal insulation, lighter weight, cost-effective for roofing and glazing, widely available.
Cons: Lower impact strength than solid sheets, potential for condensation buildup, limited aesthetic appeal due to ribbed interior.

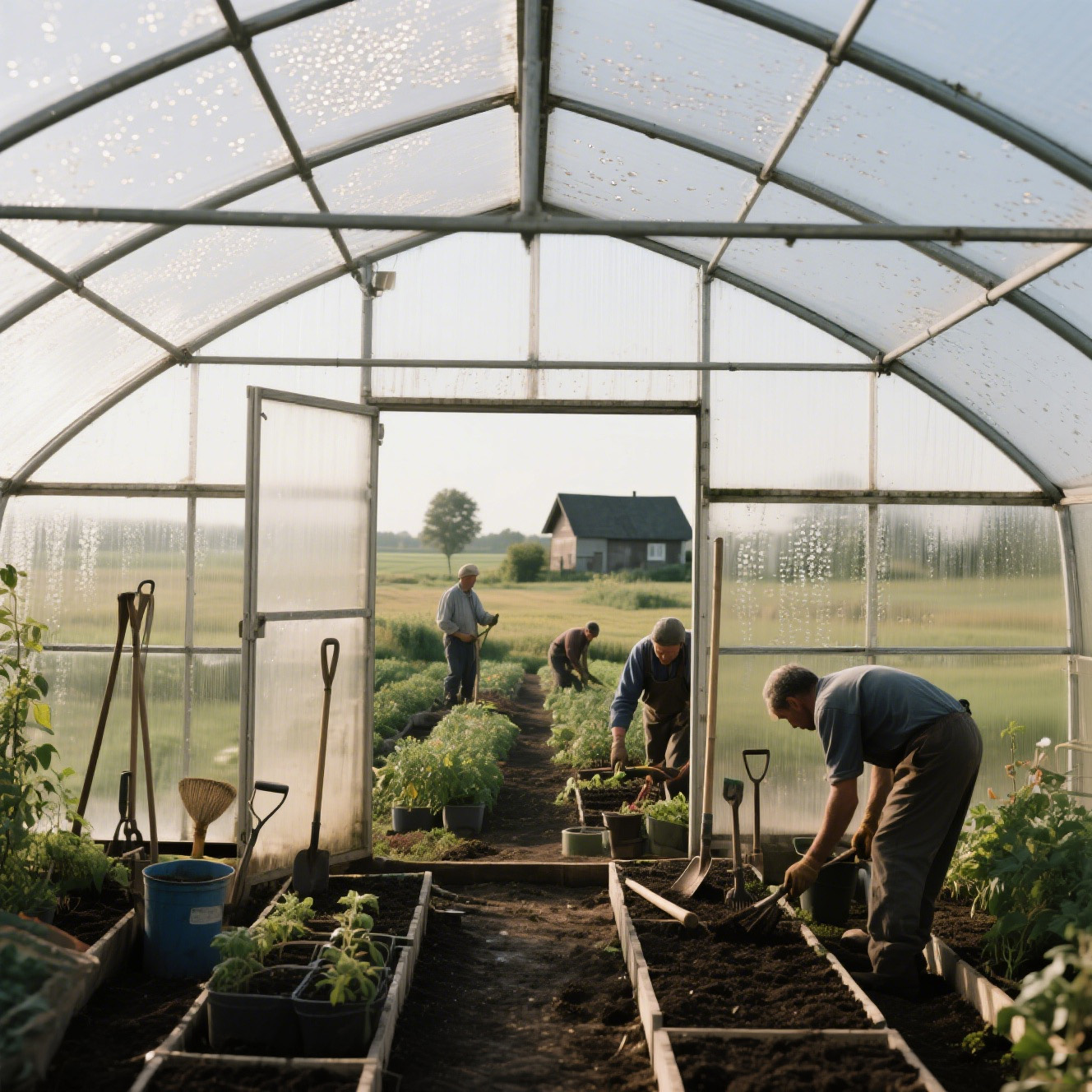

Popular in greenhouses and sunrooms where light diffusion and heat retention matter more than structural rigidity.

Multi-Wall (Triple or Quadruple Wall)

Pros: Superior insulation (U-values comparable to double-glazed glass), excellent sound dampening, efficient for large roof spans.
Cons: More complex installation, higher initial cost, reduced optical clarity due to internal walls.

Ideal for commercial buildings aiming for LEED certification or improved HVAC efficiency.

Corrugated Sheets

Pros: Easy to install over curved surfaces, self-draining profile, commonly used in agricultural and industrial roofing.
Cons: Less wind uplift resistance without proper fastening, prone to leaks if not installed correctly.

Best for barns, sheds, and carports needing economical coverings with decent weather resistance.

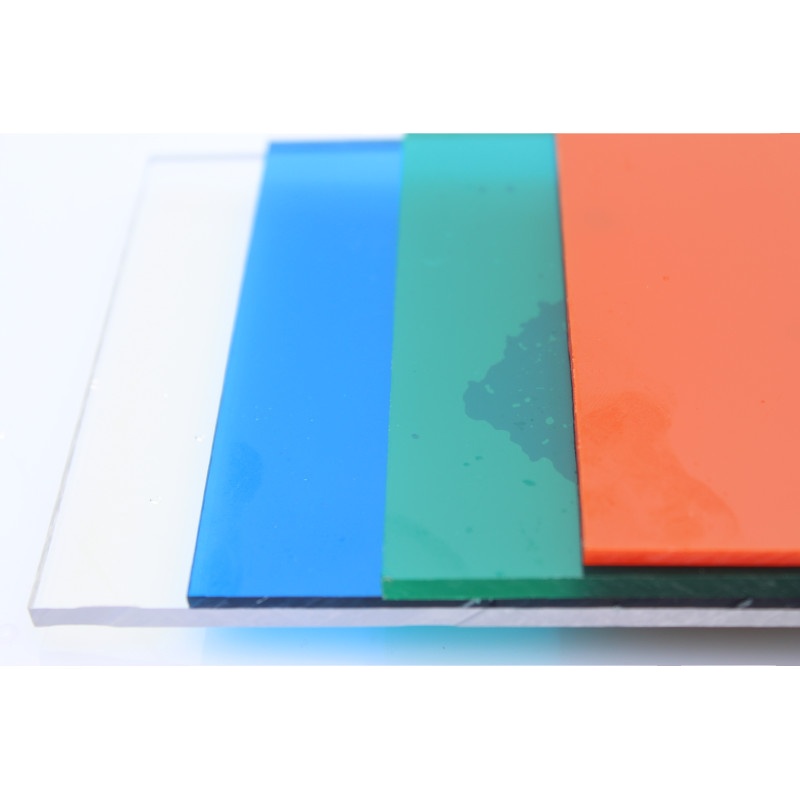

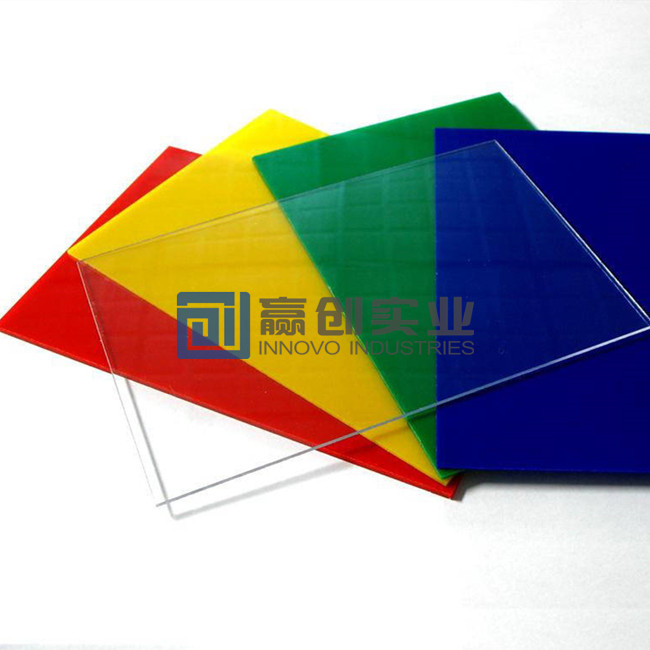

Textured and Tinted Options

Available in frosted, matte, or colored finishes for privacy or design purposes. Bronze, blue, and opal tints help control solar gain and glare. Always verify UV protection remains intact with tinted variants.

Key Features and Specifications to Evaluate

To ensure you select the right polycarbonate sheet Lexan, assess these critical specifications:

Thickness: Ranges from 1mm to over 20mm. Thicker sheets provide better insulation and strength. Use 2–3mm for light-duty enclosures; 6mm+ for roofs or high-wind areas.
UV Protection: Look for co-extruded UV layer on at least one side (preferably both). Unprotected sheets yellow and become brittle within 1–2 years outdoors.
Light Transmission: Typically 75%–90%. Higher transmission suits greenhouses; lower may be preferred for glare reduction.
Fire Rating: Check for UL94 V-0, V-1, or V-2 ratings. V-0 indicates self-extinguishing within 10 seconds after flame removal—essential for commercial installations.
Thermal Conductivity (U-value): Multi-wall sheets can achieve U-values as low as 1.4 W/m²K. Lower values mean better insulation.
Span Rating: Manufacturer-specified maximum distance between supports. Exceeding this leads to sagging or failure.
Chemical Resistance: Resistant to dilute acids and alkalis but avoid exposure to hydrocarbons and chlorinated solvents.

Always refer to technical data sheets (TDS) from the manufacturer before finalizing a purchase.

Pros and Cons

Advantages:

Extremely impact-resistant—even small-caliber bullets may not penetrate thick solid grades.
Up to 50% lighter than glass, easing transport and installation.
Can be cold-curved for arched structures (within manufacturer limits).
Long service life (10–15+ years with UV protection).
Non-conductive and inherently flame-retardant in many formulations.

Disadvantages:

More expensive than acrylic or fiberglass.
Scratches more easily than glass unless treated with hard coating.
Requires compatible sealants and fasteners to prevent stress cracking.
Improper ventilation in multi-wall sheets causes condensation.
Limited availability of wide widths in some regions.

Choose polycarbonate sheet Lexan when safety, durability, and thermal performance are key. Avoid it for high-abrasion environments unless using abrasion-resistant (AR) coated versions.

How to Choose Polycarbonate Sheet Lexan

Follow this step-by-step guide to make a confident selection:

Determine Application: Is it for roofing, glazing, shielding, or decorative use? This dictates type and thickness.
Assess Environmental Exposure: Full sun? Coastal salt air? High snow load? Opt for UV-protected, thicker gauges in harsh climates.
Select Construction Type: Solid for impact resistance, multi-wall for insulation, corrugated for simple roofing.
Check Fire Codes: Verify required flame spread index and smoke development ratings for indoor or public spaces.
Verify Dimensions: Confirm width, length, and thickness match framing or support structure spacing.
Evaluate Light Needs: Clear for full visibility, opaque or tinted for diffused lighting or privacy.
Inspect Edges and Packaging: Sealed edges prevent moisture ingress in multi-wall sheets. Never leave ends open.
Avoid Common Pitfalls: Don’t use silicone sealants containing acetic acid (vinegar-smell)—they degrade polycarbonate. Use neutral-cure silicones only.

Red flags include missing UV coating labels, unusually low prices (may indicate recycled content), and lack of technical documentation.

Price & Market Insights

Pricing varies significantly by type, thickness, and region. As of recent market observations:

Solid Sheets: $3–$8 per sq ft (1.5mm–6mm)
Twin-Wall: $1.50–$3.50 per sq ft (10mm–16mm)
Triple-Wall: $2.50–$5.00 per sq ft
Corrugated: $1.00–$2.50 per linear foot depending on profile

Premium AR-coated or fire-rated variants command 20–40% higher prices. Bulk purchases (e.g., 50+ sheets) often qualify for discounts. Online retailers like Grainger, McMaster-Carr, and specialty plastics suppliers offer competitive rates, though local distributors may provide faster delivery and cut-to-size services.

Value-for-money depends on lifecycle cost. A slightly more expensive UV-stabilized sheet lasts twice as long as a cheap alternative, reducing replacement frequency.

Top-Seller & Competitive Analysis

While Lexan remains a benchmark brand, generic polycarbonate sheets from manufacturers like Plaskolite, Palram, and Polygal offer similar performance at lower price points. Below is a comparison of popular models:

Product	Type	Thickness	UV Protection	Fire Rating	Approx. Price/sq ft
SABIC Lexan TC	Solid	3mm	Yes (both sides)	UL94 V-0	$5.75
Palram SunLite PC	Twin-Wall	10mm	Yes (top side)	Class B	$2.20
Polygal Multi-Excel	Triple-Wall	16mm	Yes	UL94 V-2	$4.10
Plaskolite ProtectAR	Solid (AR-coated)	6mm	Yes	UL94 V-0	$7.50

Note: Always confirm current specs with supplier, as formulations change. Brand-name products typically offer tighter quality control and longer warranties (10+ years).

Customer Feedback Synthesis

Analysis of user reviews across e-commerce platforms and contractor forums reveals consistent themes:

Positive Feedback:

“Installed Lexan roofing on my patio—survived two hurricanes with no damage.”
“Lightweight and easy to cut with a fine-tooth saw.”
“The twin-wall panel keeps my greenhouse warm even in winter.”

Common Complaints:

“Yellowed after 18 months—later realized I bought non-UV version.”
“Condensation built up inside triple-wall sheet—needed vented end caps.”
“Scratched during installation because I didn’t remove the protective film carefully.”

Most issues stem from incorrect product selection or improper handling—not material flaws. Reading installation guides beforehand prevents many problems.

Sourcing & Supplier Tips

Buy from reputable suppliers who provide datasheets and warranty information. Local plastic fabricators often stock common sizes and can cut to order. For large projects, consider direct sourcing from regional distributors to reduce shipping costs.

When buying in bulk, request samples to test color, clarity, and rigidity. Inspect packaging for damage and ensure UV-protected sheets are wrapped in opaque film to prevent pre-installation degradation.

If reselling or distributing, partner with brands offering dealer programs and marketing support. Verify return policies—some sellers don’t accept cut or custom-cut material returns.

Maintenance, Safety & Legal Considerations

Clean polycarbonate sheet Lexan with mild soap and water; avoid ammonia-based cleaners (e.g., window sprays) which can craze the surface. Use soft cloths or sponges to prevent scratches.

For safety, always wear gloves and eye protection when cutting. Drilling requires sharp bits and slow speeds to avoid melting. Fasten with rubber washers and allow space for thermal expansion (polycarbonate expands nearly 3x more than PVC).

Legally, check local building codes—some jurisdictions require stamped engineering drawings for roof installations. In commercial settings, adherence to ASTM E84 (surface burning characteristics) may be mandatory. Always follow manufacturer-recommended installation practices to maintain warranty validity.

Conclusion

Selecting the right polycarbonate sheet Lexan involves balancing application requirements, environmental conditions, and budget. Prioritize UV protection, appropriate thickness, and fire ratings based on use case. Solid sheets excel in high-impact scenarios, while multi-wall configurations offer superior insulation for architectural glazing. Though premium brands like Lexan command higher prices, they often deliver longer service life and better technical support. By evaluating key specs and avoiding common mistakes—such as using incorrect sealants or skipping edge seals—you’ll maximize durability and performance. Whether you’re building a greenhouse, shelter, or protective barrier, understanding what to look for in polycarbonate sheet Lexan ensures a smart, lasting investment.

FAQs

Can I drill holes in polycarbonate sheet Lexan myself?
Yes, but use sharp drill bits at low speed and support the sheet to prevent chipping. Pre-drill larger holes to accommodate thermal expansion.

Do I need special tools to cut polycarbonate sheets?
Standard circular saws with fine-tooth blades (at least 20 teeth per inch) work well. Jigsaws are suitable for curves. Always clamp the sheet securely.

How do I prevent condensation in multi-wall polycarbonate?
Install vented end caps and ensure continuous airflow along the channels. Avoid sealing both ends airtight.

Is polycarbonate sheet Lexan recyclable?
Yes, polycarbonate is recyclable under resin code #7. Contact local recycling centers to confirm acceptance.

Can I bend polycarbonate sheets for curved roofs?
Yes, cold-curving is possible within the manufacturer’s specified minimum radius (usually 150–200 times the thickness). Do not exceed this limit to avoid stress fractures.
