How to Choose the Best Piezo Electric Spindle for Precision Machining

When selecting a piezo electric spindle for high-precision machining tasks, prioritize models with stable frequency response, low thermal drift, and compatibility with your CNC system. The best piezo electric spindle options deliver micron-level accuracy, ideal for micro-milling, engraving, and semiconductor processing. Key factors include resonant frequency range (typically 10–100 kHz), force output (measured in Newtons), dynamic stiffness, and integration ease with motion controllers 1. Avoid units lacking EMI shielding or proper thermal compensation if operating in sensitive environments. For most industrial users, a preloaded piezoelectric spindle with closed-loop feedback offers optimal repeatability and longevity.

About Piezo Electric Spindle

A piezo electric spindle is a precision motion device that uses piezoelectric materials—typically ceramics like lead zirconate titanate (PZT)—to generate extremely fine, controlled movements through electrical stimulation. Unlike traditional motor-driven spindles, which rely on rotational electromagnetism, piezo electric spindles operate on the inverse piezoelectric effect: when voltage is applied, the material expands or contracts at microscopic levels, enabling sub-nanometer positioning accuracy.

These spindles are primarily used in ultra-precision machining applications where conventional motors fall short. Common use cases include micro-drilling, laser alignment systems, optical fiber positioning, watchmaking, medical device manufacturing, and semiconductor wafer processing. Due to their near-instant response time and lack of magnetic interference, piezo electric spindles are also favored in cleanroom environments and scanning probe microscopy.

Why Piezo Electric Spindle Is Gaining Popularity

The growing demand for miniaturization in electronics, biomedical devices, and aerospace components has driven increased interest in piezo electric spindle technology. As manufacturers push toward tighter tolerances—often below ±1 micron—traditional mechanical drives struggle with backlash, inertia, and thermal expansion issues. Piezo-based systems eliminate many of these limitations by offering direct-drive actuation with no rotating parts.

Additionally, advancements in control electronics and sensor integration have made piezo systems more accessible and easier to integrate into existing CNC platforms. Their energy efficiency, minimal heat generation, and silent operation further enhance appeal across R&D labs and production floors alike. According to industry analysts, the global piezoelectric devices market is projected to grow significantly over the next decade, fueled in part by automation and nanotechnology trends 2.

Types and Variants

Piezo electric spindles come in several configurations, each suited to different operational needs. Understanding these variants helps ensure you select the right type for your application.

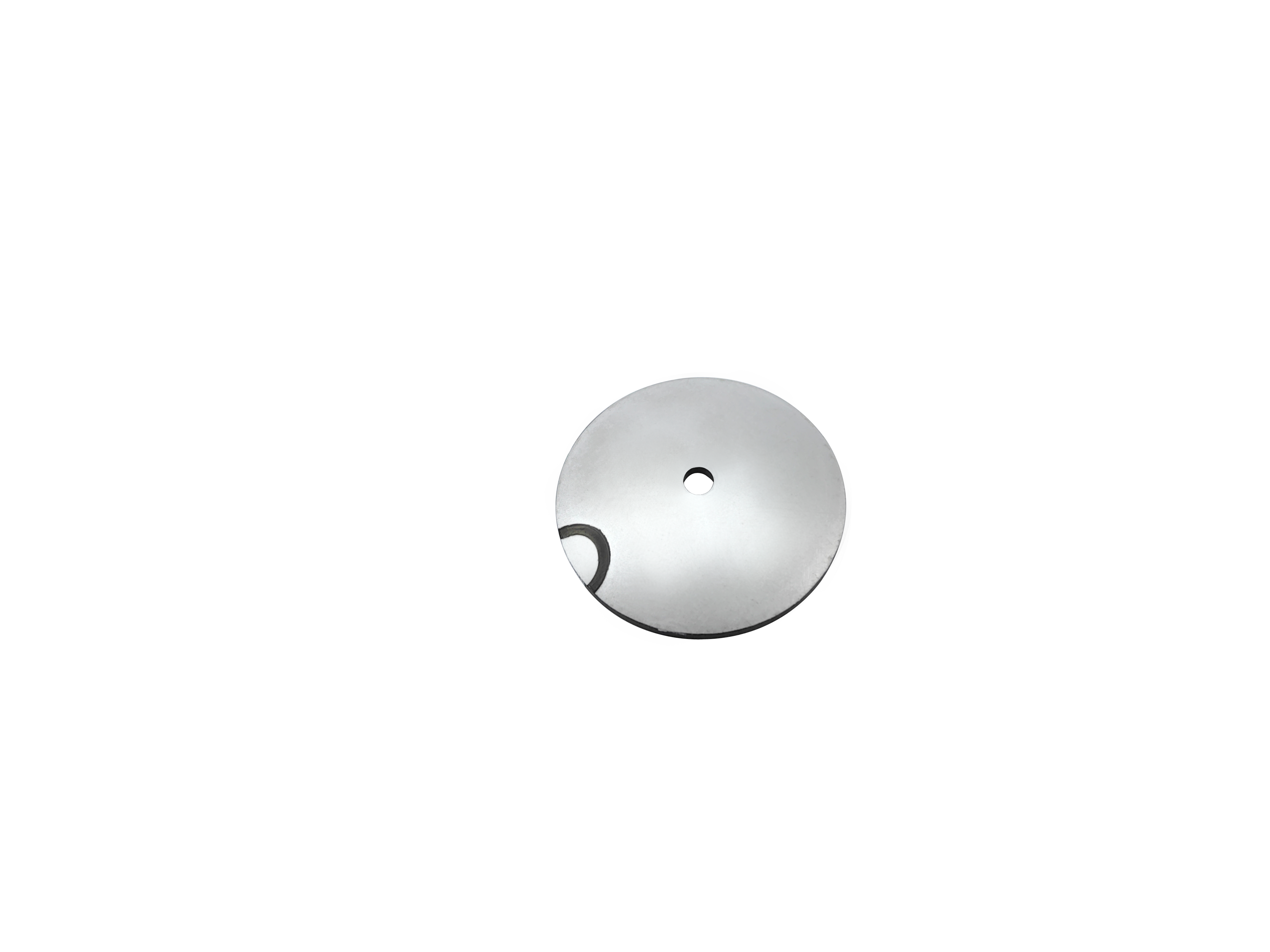

1. Stack-Type Piezo Spindles

These consist of multiple layers of piezoelectric ceramic stacked together. When energized, each layer expands slightly, resulting in cumulative linear displacement.

Pros: High force output (up to several kN), fast response, compact design.
Cons: Limited stroke length (usually under 100 µm), sensitive to tensile loads.

2. Tube-Type Piezo Spindles

Cylindrical actuators capable of both axial and radial motion. Often used in scanning probe microscopy or fluid injection systems.

Pros: Multi-axis capability, smooth motion profile.
Cons: Lower stiffness compared to stack types, complex driving requirements.

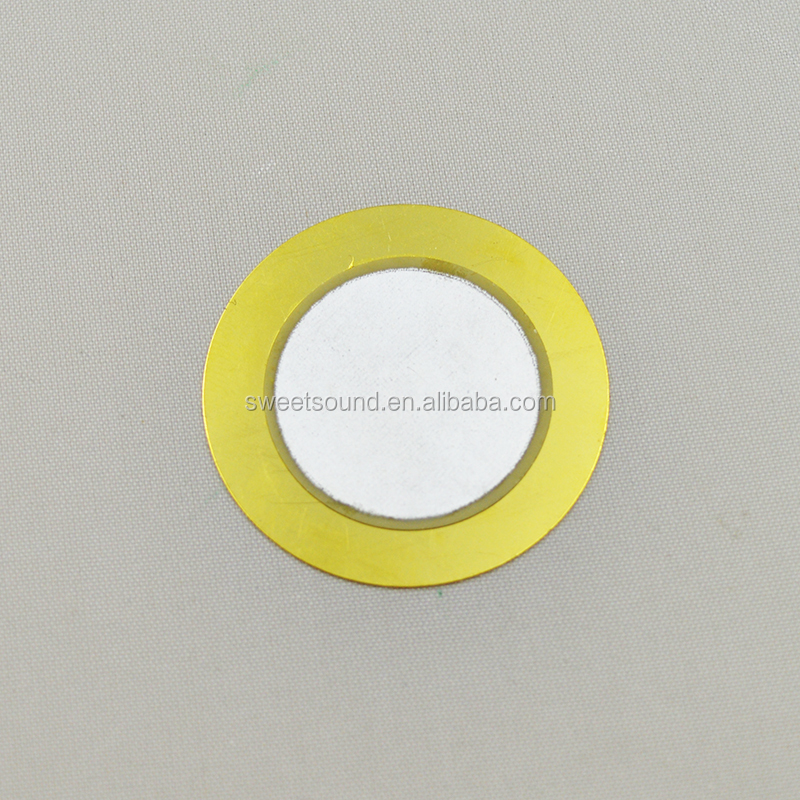

3. Bimorph/Bender-Type Spindles

Thin strips or membranes composed of two piezoelectric layers bonded together. One expands while the other contracts, causing bending motion.

Pros: Larger deflection angles, suitable for low-force applications like valves or mirrors.
Cons: Low force generation, prone to fatigue over time.

4. Inchworm & Stepping Piezo Spindles

Use sequential clamping and extension phases to achieve longer travel distances (up to several millimeters) while maintaining nanometer precision.

Pros: Extended range without sacrificing resolution.
Cons: Slower speed, more complex control algorithms required.

Key Features and Specifications to Evaluate

Selecting the right piezo electric spindle requires careful evaluation of technical parameters. Below are the most critical specifications to consider:

Displacement Range: Measured in micrometers (µm) or nanometers (nm). Determine how much movement your process requires. Most standard piezo spindles offer 1–100 µm strokes.
Force Output: Expressed in Newtons (N). Higher force models are better for cutting or pressing tasks. Typical ranges vary from 10 N to over 1,000 N depending on size and type.
Resonant Frequency: Indicates maximum operating speed before instability occurs. A higher value (e.g., >50 kHz) allows faster cycling, important for dynamic applications.
Linearity & Hysteresis: Piezo materials naturally exhibit hysteresis (lag between input voltage and output motion). Look for models with integrated strain gauges or capacitive sensors for closed-loop correction.
Thermal Drift: Temperature changes can cause dimensional shifts. Units with thermal compensation or low-CTE (coefficient of thermal expansion) housings perform better in fluctuating environments.
Voltage Requirements: Most piezo spindles require high-voltage drivers (60–150 V). Ensure compatibility with available power supplies and safety protocols.
Environmental Sealing: For cleanrooms or vacuum applications, verify IP rating or UHV (ultra-high vacuum) compatibility.

Pros and Cons

Advantages

Extremely high positional accuracy (sub-nanometer resolution).
No electromagnetic interference—ideal for sensitive instrumentation.
Fast response times (microsecond-level activation).
No wear mechanisms due to absence of gears or bearings.
Low power consumption during static holding.

Limitations

Limited travel distance in single-element designs.
Sensitive to overvoltage, mechanical shock, and tensile stress.
Requires specialized high-voltage amplifiers and controllers.
Potential for creep (slow drift under constant load).
Higher initial cost than conventional actuators.

Piezo electric spindles are ideal when precision, stability, and responsiveness are paramount. However, they may not be cost-effective for large-scale displacement or heavy-duty machining unless combined with hybrid mechanisms.

How to Choose a Piezo Electric Spindle

Follow this step-by-step guide to make an informed decision:

Define Your Application Needs: Are you performing micro-machining, optical alignment, or vibration suppression? Identify required stroke, force, speed, and environmental conditions.
Determine Motion Type: Do you need linear, rotary, or multi-axis motion? Some piezo spindles offer rotational torque via ultrasonic motors or walking drives.
Evaluate Integration Requirements: Check interface compatibility—mounting dimensions, signal connectors, and controller communication (e.g., analog input, digital RS-485, or EtherCAT).
Decide Between Open-Loop vs Closed-Loop: Open-loop systems are cheaper but less accurate. Closed-loop versions use position feedback for real-time correction, essential for long-term stability.
Assess Environmental Conditions: If operating in vacuum, high humidity, or extreme temperatures, confirm material ratings and sealing standards.
Review Supplier Support: Look for detailed datasheets, calibration certificates, software SDKs, and responsive technical support.
Beware of Red Flags: Avoid vendors who don’t provide hysteresis curves, thermal drift data, or resonant frequency specs. Also, be cautious of exaggerated claims about stroke or durability without test evidence.

Price & Market Insights

Pricing for piezo electric spindles varies widely based on performance tier and features:

Entry-Level (Basic Stack Actuators): $150–$500. Suitable for lab experiments or non-critical positioning.
Mid-Range (Closed-Loop, Preloaded Models): $800–$2,500. Ideal for industrial automation and precision machining setups.
High-End (UHV-Compatible, Multi-Axis Systems): $3,000–$10,000+. Used in semiconductor tools, aerospace testing, and advanced research.

Value isn't always tied to price. Some mid-tier brands offer excellent repeatability and customer service at lower costs than premium names. Always compare total system cost—including driver electronics and software licenses—before making a purchase. Buying kits that bundle spindle, amplifier, and cable can save 10–20% versus individual components.

Top-Seller & Competitive Analysis

Several manufacturers dominate the piezo electric spindle space, each with distinct strengths.

Model	Max Stroke	Force Output	Closed-Loop?	Approx. Price
PI Q-545.240	30 µm	1,200 N	Yes	$2,100
Thorlabs AE0520D	20 µm	400 N	No	$650
Nano-Meta PMN-ZT-15	15 µm	900 N	Yes	$1,750
Tamura PZT-20L	40 µm	600 N	No	$480

Note: Prices are approximate and may vary by region and distributor. PI (Physik Instrumente) leads in industrial reliability, while Thorlabs excels in accessibility and educational support. Emerging Asian suppliers offer competitive pricing but may lack comprehensive documentation.

Customer Feedback Synthesis

Analysis of user reviews from engineering forums, academic publications, and retail platforms reveals consistent themes:

Common Praises:
Users frequently commend piezo electric spindles for their “exceptional precision,” “smooth motion,” and “reliability in long-duration experiments.” Engineers appreciate the lack of backlash and ability to maintain position without power. Many highlight seamless integration with National Instruments DAQ systems or MATLAB toolboxes.

Frequent Complaints:
Some buyers report unexpected failure under off-axis loading, emphasizing the need for precise alignment during installation. Others note that driver units are often sold separately, leading to budget overruns. A recurring issue involves inadequate thermal management in continuous-use scenarios, causing gradual performance degradation.

Sourcing & Supplier Tips

When sourcing piezo electric spindles:

Purchase from authorized distributors to ensure authenticity and warranty coverage.
For bulk purchases (5+ units), request sample testing and negotiate bundled driver packages.
Consider OEM partnerships if integrating into proprietary equipment—some manufacturers offer custom shaping or firmware tuning.
Verify return policies and calibration intervals. Reputable brands typically offer recalibration services every 12–24 months.
Check for CE, RoHS, or ISO 9001 compliance, especially for export or regulated industries.

Maintenance, Safety & Legal Considerations

To maximize lifespan and ensure safe operation:

Never exceed maximum voltage or mechanical load limits specified by the manufacturer.
Use insulating gloves and tools when handling high-voltage connections.
Protect piezo elements from moisture and dust; even minor contamination can degrade performance.
Implement soft-start circuits to prevent voltage spikes during power-up.
Store unused spindles in dry, temperature-controlled environments with zero preload.

Legally, ensure compliance with local electrical safety regulations (e.g., UL, IEC 61010). In medical or aviation applications, additional certification (such as FDA or DO-160) may be required. Always consult product documentation for specific regulatory details.

Conclusion

Choosing the right piezo electric spindle hinges on matching technical specifications to your precision motion needs. Whether you're building a nano-positioning stage or upgrading a micro-machining center, focus on displacement range, force output, feedback type, and environmental resilience. While higher-end models offer superior accuracy and durability, many mid-range options deliver excellent value for industrial and research applications. Prioritize vendors with transparent specifications, strong support, and proven reliability. By carefully evaluating your requirements and avoiding common pitfalls, you can leverage piezo technology to achieve unprecedented levels of control and consistency.

FAQs

What is the typical lifespan of a piezo electric spindle?
With proper use, most piezo spindles last over 100 million cycles. Lifespan depends on operating voltage, mechanical preload, and environmental conditions.

Can piezo electric spindles rotate?
Standard piezo actuators produce linear or bending motion. Rotary motion requires specialized designs like ultrasonic piezomotors or inchworm mechanisms.

Do I need a special driver for a piezo electric spindle?
Yes. Piezo spindles require high-voltage amplifiers (typically 60–150 V). Drivers must match capacitance and bandwidth requirements to avoid signal distortion.

Are piezo spindles affected by temperature changes?
Yes. Thermal expansion can cause drift. Use spindles with built-in sensors or low-thermal-drift materials for stable performance.

Where can I find replacement parts or repair services?
Contact the original manufacturer or authorized service centers. Attempting DIY repairs can permanently damage the piezoelectric element.
