How to Choose the Best PCB Antenna: A Complete Buying Guide

When selecting a pcb antenna for your wireless application, prioritize frequency compatibility, radiation efficiency, and board space constraints. The right choice—such as a microstrip patch, inverted-F (PIFA), or meandered trace antenna—depends on your device’s size, operating band (e.g., 2.4 GHz for Bluetooth/Wi-Fi), and environmental conditions. For compact IoT devices, consider chip or ceramic pcb antennas for space savings; for higher performance, planar inverted-F antennas (PIFAs) offer better gain and bandwidth 1. Always verify impedance matching (typically 50 Ω) and test in the final enclosure to avoid detuning. This guide covers how to choose pcb antenna designs based on real-world performance factors.

About PCB Antenna

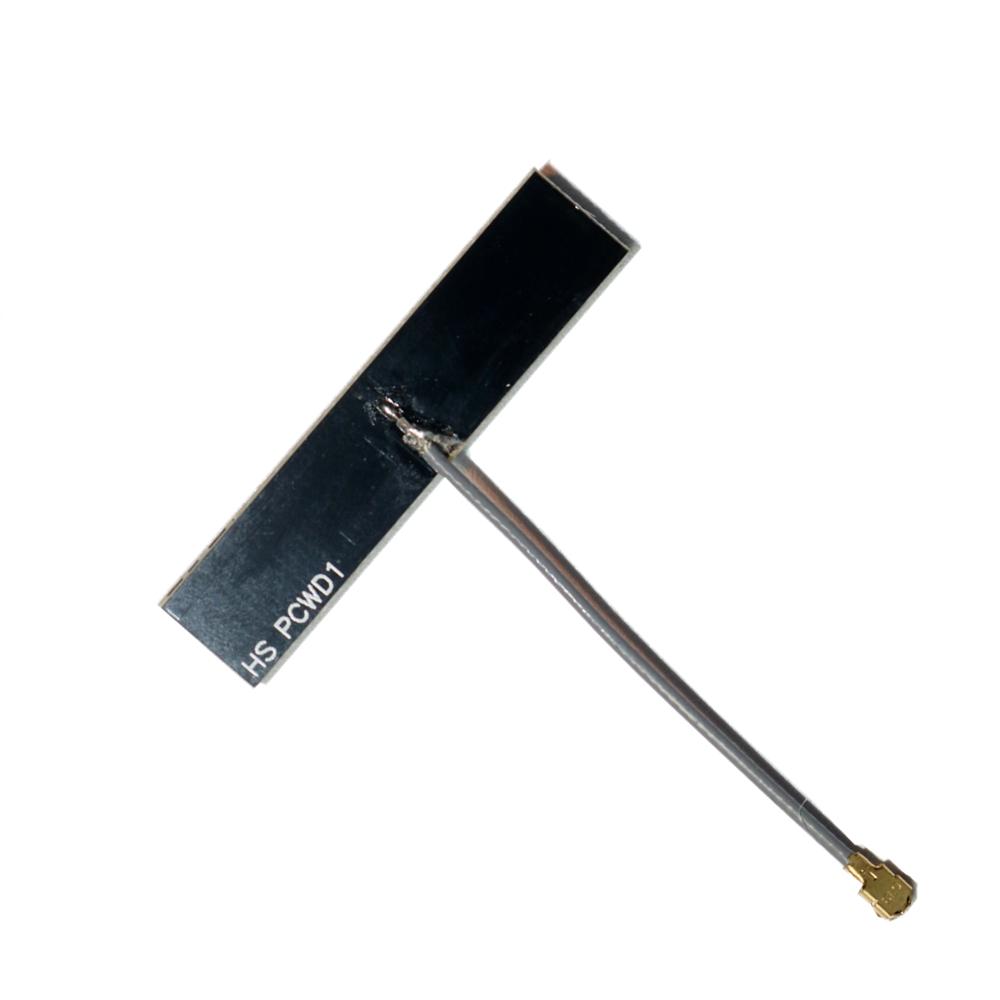

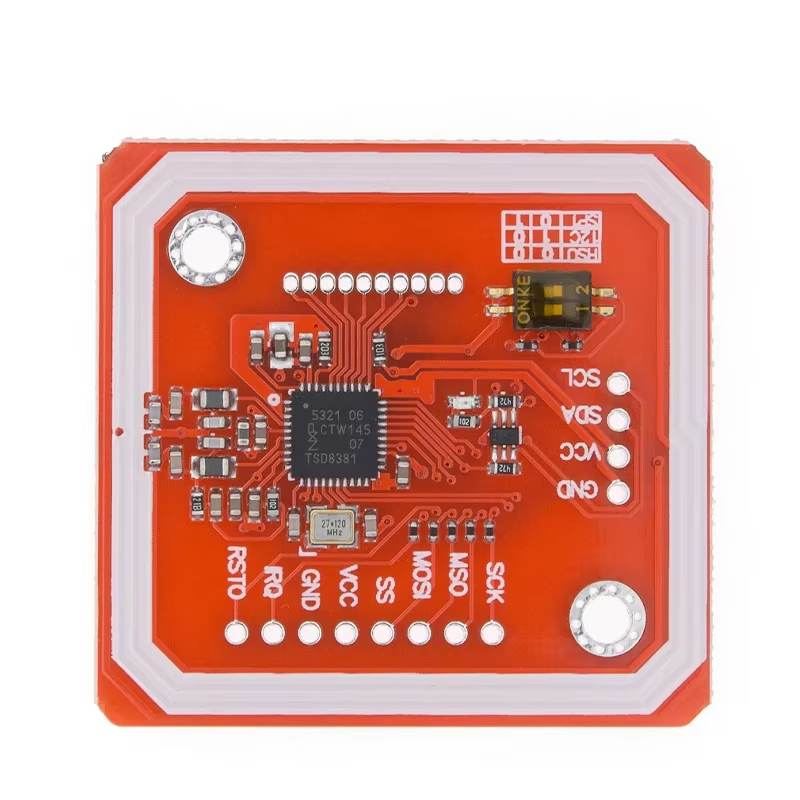

A printed circuit board (PCB) antenna is an integral radiating element fabricated directly onto the device’s circuit board using copper traces shaped into specific geometries. Unlike external or embedded antennas, PCB antennas are cost-effective and customizable, making them ideal for mass-produced electronics such as Wi-Fi routers, Bluetooth modules, smart sensors, and IoT devices. These antennas function by converting electrical signals from the transceiver into electromagnetic waves and vice versa, enabling wireless communication over various protocols including BLE, Zigbee, LoRa, and Wi-Fi.

Common applications include wearable tech, home automation systems, medical monitoring devices, and industrial telemetry units where minimizing component count and assembly complexity is crucial. Because they're etched into the PCB layout, their performance is highly dependent on design accuracy, ground plane configuration, and surrounding components—a factor that differentiates them significantly from off-the-shelf module-based solutions.

Why PCB Antenna Is Gaining Popularity

The growing demand for smaller, lighter, and more integrated electronic devices has driven widespread adoption of PCB antennas across consumer and industrial markets. One major reason is cost efficiency: eliminating discrete antenna components reduces bill-of-materials (BOM) expenses and simplifies supply chain logistics. Additionally, since no additional parts need soldering or mounting, manufacturing yields improve while failure points decrease.

Another driver is miniaturization. As products like fitness trackers, smartwatches, and hearing aids shrink in size, internal space becomes extremely limited. A well-designed pcb antenna uses otherwise unused areas of the board, maximizing spatial efficiency without compromising aesthetics or requiring protruding elements 2.

Moreover, with advancements in simulation tools like ANSYS HFSS and CST Microwave Studio, engineers can model and optimize antenna behavior before prototyping, reducing development time and improving first-pass success rates. This accessibility empowers even small development teams to implement reliable RF performance using custom pcb antenna layouts.

Types and Variants

Different pcb antenna types serve distinct use cases depending on bandwidth, gain, polarization, and physical footprint requirements. Below are the most common variants:

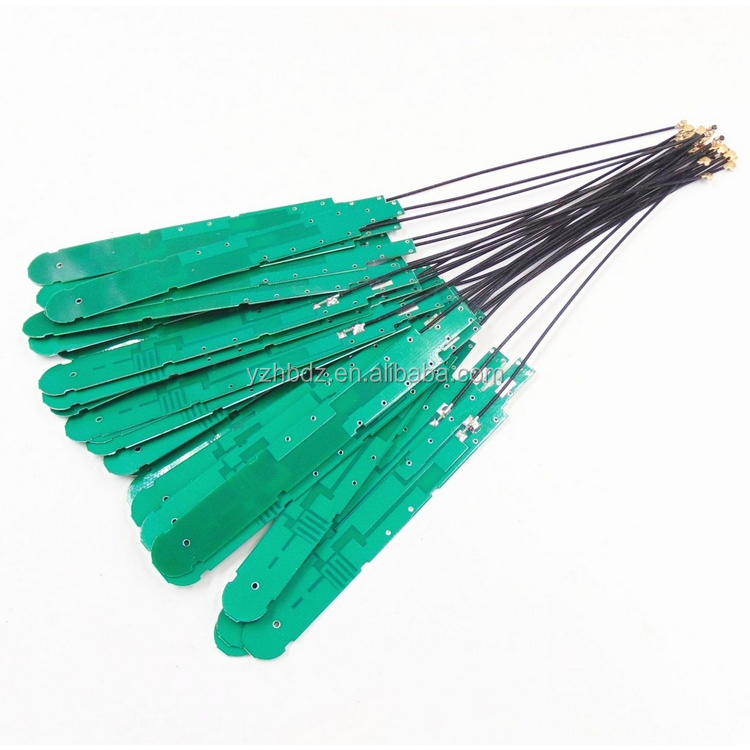

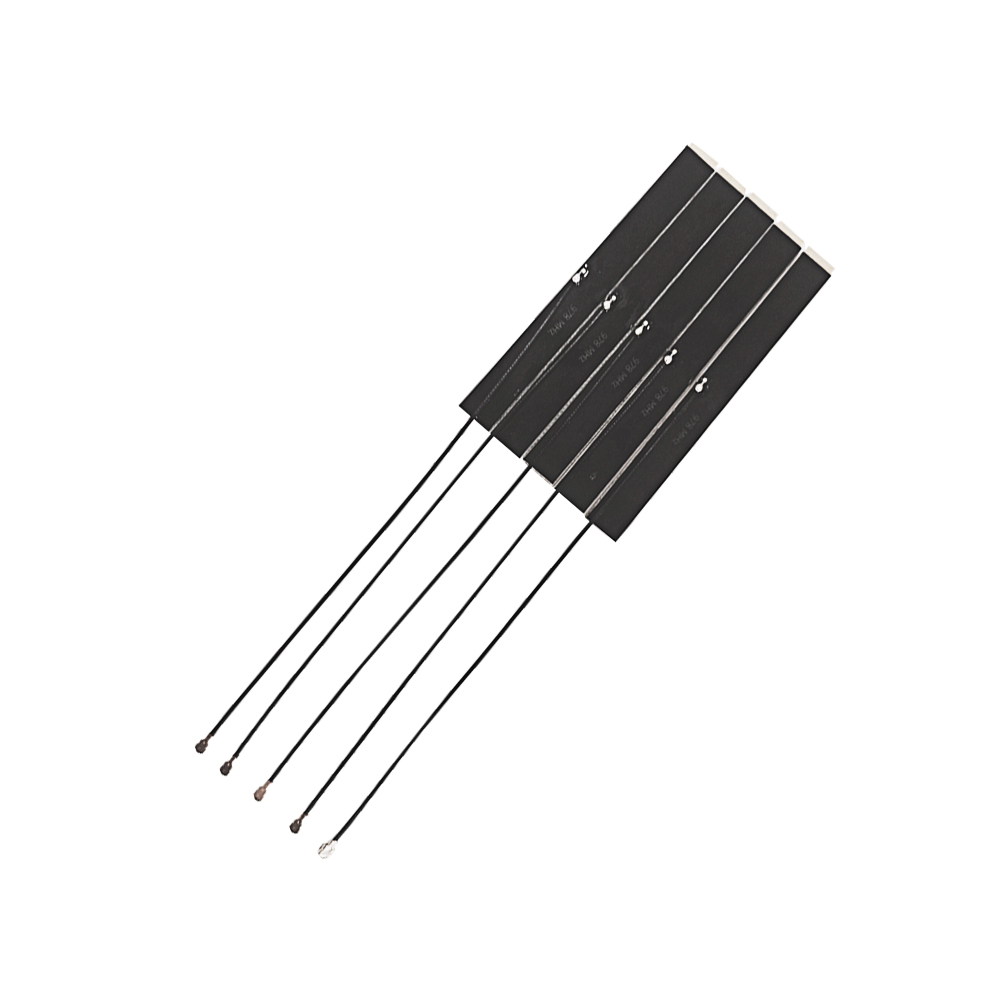

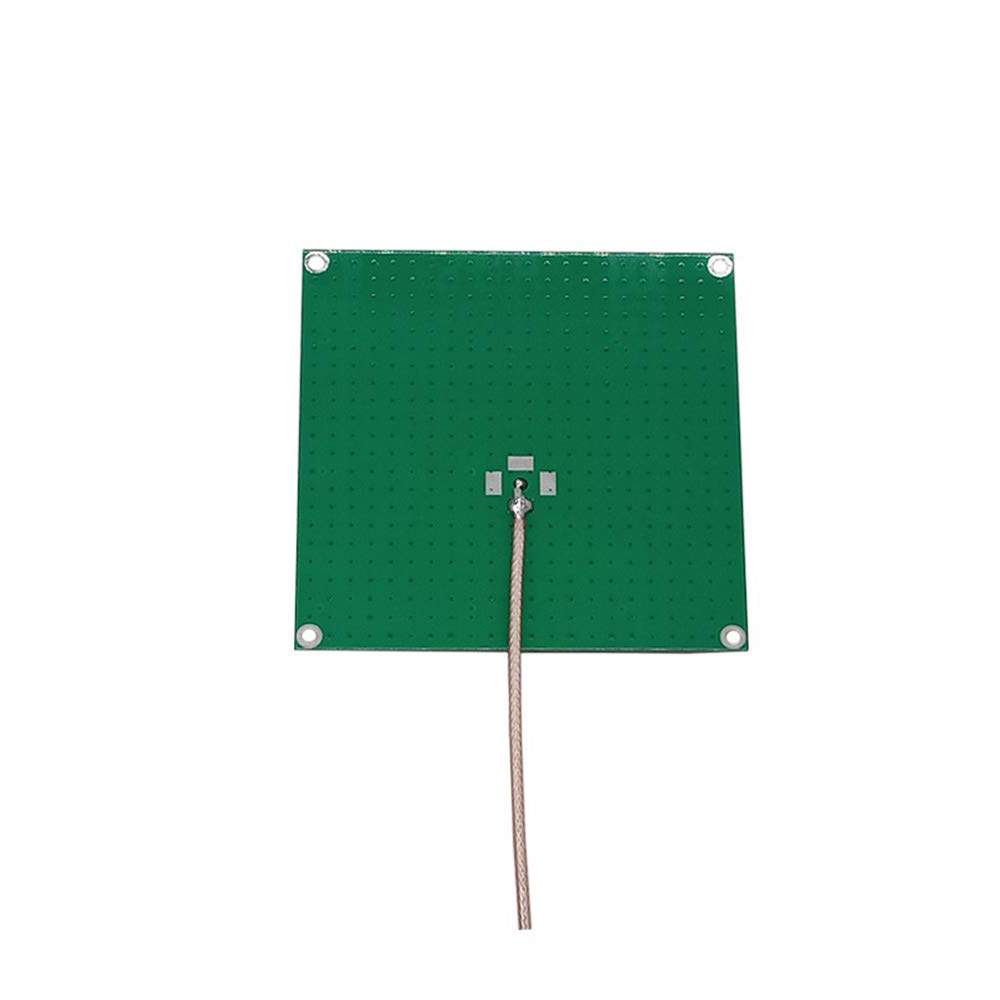

Microstrip Patch Antenna

Pros: High directivity, moderate gain, suitable for directional applications.
Cons: Requires large ground plane, narrow bandwidth, sensitive to nearby materials.
Best for: Fixed-position devices like access points or gateways operating at 5 GHz.

Inverted-F Antenna (PIFA)

Pros: Compact, low profile, good impedance match, widely used in mobile devices.
Cons: Narrow bandwidth, performance degrades if ground plane is altered.
Best for: Handheld gadgets such as smartphones, remotes, and portable medical equipment.

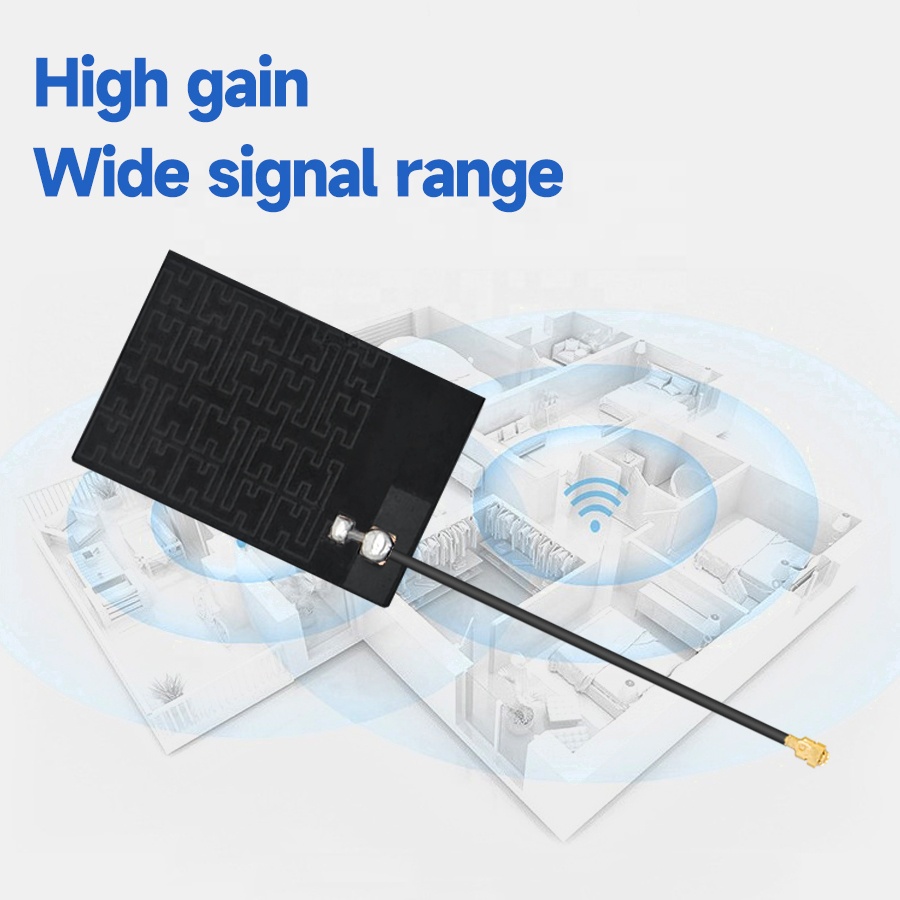

Meandered Line Antenna

Pros: Space-efficient due to folded trace path, supports multiband operation with tuning.
Cons: Lower radiation efficiency due to high current path resistance.
Best for: Small IoT nodes where length must be minimized but some loss is acceptable.

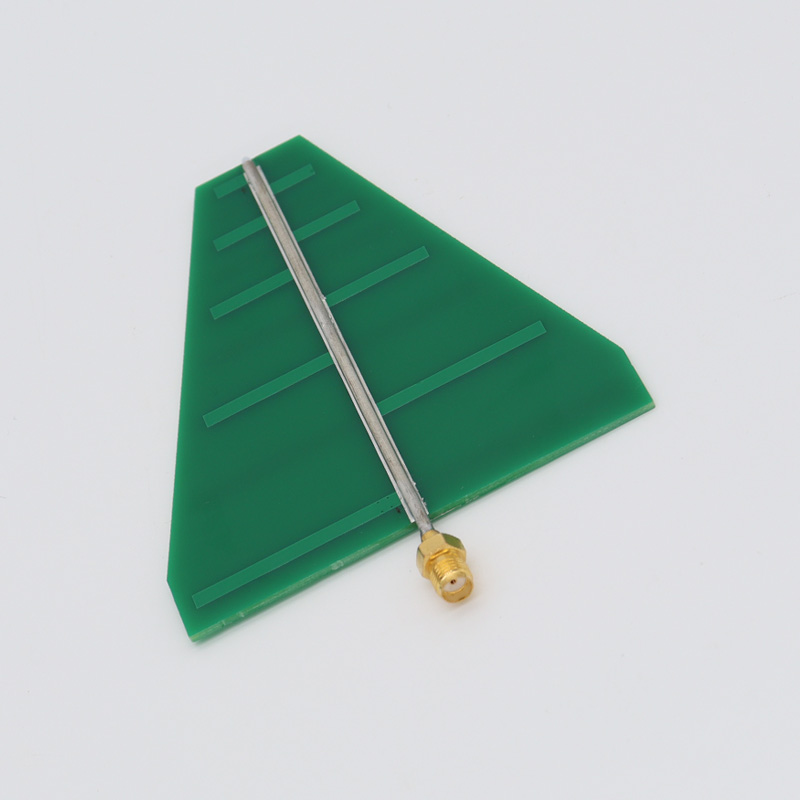

Monopole and Dipole Traces

Pros: Simple design, predictable performance, easy to tune.
Cons: Require sufficient clearance and ground plane; dipole needs balun for single-ended ICs.
Best for: Development boards, test fixtures, and UHF RFID readers.

Chip/Ceramic Antennas (Surface-Mount)

Though not strictly 'etched' PCB antennas, these SMD components are often compared when evaluating options. They save layout effort but add BOM cost.

Pros: Pre-tuned, consistent performance, minimal design overhead.
Cons: More expensive than trace antennas, less flexible in integration.
Best for: Rapid prototyping or when internal space allows only tiny radiators.

Key Features and Specifications to Evaluate

To ensure optimal performance, assess the following parameters when choosing or designing a pcb antenna:

Operating Frequency: Must align precisely with your wireless standard (e.g., 868 MHz, 915 MHz, 2.4 GHz). Mismatch leads to poor signal transmission.
Impedance Matching: Target 50 Ω at the feed point. Use matching networks (LC circuits) if necessary to minimize return loss (S11 < -10 dB).
Radiation Efficiency: Indicates how much input power is converted to radio waves. Aim for >50% in constrained environments.
Gain and Directivity: Measured in dBi. Higher gain improves range but may reduce omnidirectionality.
Bandwidth: Should cover the entire channel range of your protocol (e.g., 2.4–2.4835 GHz for Wi-Fi).
Polarization: Linear or circular; affects orientation sensitivity during communication.
Size and Clearance: Maintain recommended keep-out zones free of components, traces, and metal shields.
Ground Plane Requirements: Some antennas require minimum dimensions below or adjacent to the radiator—verify this in datasheets or simulations.

Always simulate and measure performance in the final product housing, as plastics with high dielectric constants (like ABS) can detune the antenna.

Pros and Cons

Advantages of Using a PCB Antenna

Low production cost after initial design validation.
No extra components or connectors required.
Full customization possible for unique form factors.
Better mechanical reliability (no loose parts).
Easier FCC/CE certification when properly isolated.

Disadvantages and Limitations

Design complexity requires RF expertise.
Sensitive to changes in PCB stack-up, materials, or nearby components.
Performance varies significantly between prototypes if not carefully controlled.
Difficult to modify post-fabrication; re-spin may be needed.
Lower efficiency compared to external whip or helical antennas.

Use a pcb antenna when volume production, size constraints, or cost control are priorities. Avoid it if you lack access to proper simulation tools or experienced RF designers.

How to Choose a PCB Antenna

Selecting the right pcb antenna involves both technical evaluation and practical considerations. Follow this step-by-step guide:

Define Your Wireless Requirements: Identify frequency band, data rate, protocol (BLE, Wi-Fi, etc.), and expected range.
Assess Available Board Space: Measure available area and determine whether edge-mounted, center-placed, or L-shaped designs are feasible.
Choose Antenna Type Based on Trade-offs: Balance size, efficiency, and ease of integration. PIFA is often best for handhelds; meandered lines suit tight spaces.
Review Reference Designs: Check manufacturer app notes (e.g., Nordic Semiconductor, Texas Instruments) for proven layouts.
Simulate Before Fabrication: Use EM simulation software to predict performance under realistic conditions.
Prototype and Test: Build sample boards and measure S11, radiation patterns, and throughput in real-world scenarios.
Validate in Final Enclosure: Plastics, batteries, and displays affect tuning—always test in the actual product case.
Document Design for Reproducibility: Record stack-up details, material grades (e.g., FR-4 vs. Rogers), and copper thickness.

Red flags to avoid:

Ignoring ground plane continuity.
Placing noisy digital traces near the antenna feed line.
Using non-standard PCB materials without recalculating impedance.
Skipping OTA (over-the-air) testing.

Price & Market Insights

One of the main advantages of pcb antennas is that they add no incremental component cost once designed. However, the engineering investment can be significant. Expect to spend 40–100 hours on simulation, tuning, and compliance testing for a new design, especially for multiband or high-reliability applications.

In contrast, using a surface-mount ceramic antenna adds $0.10 to $1.50 per unit depending on brand and performance level. While seemingly minor, this adds up in high-volume production. Therefore, pcb antennas offer superior long-term value despite higher upfront design costs.

For startups or low-volume projects, pre-certified modules with integrated antennas (e.g., ESP32-WROOM, nRF52840) may provide better ROI by reducing development risk and speeding time-to-market.

Top-Seller & Competitive Analysis

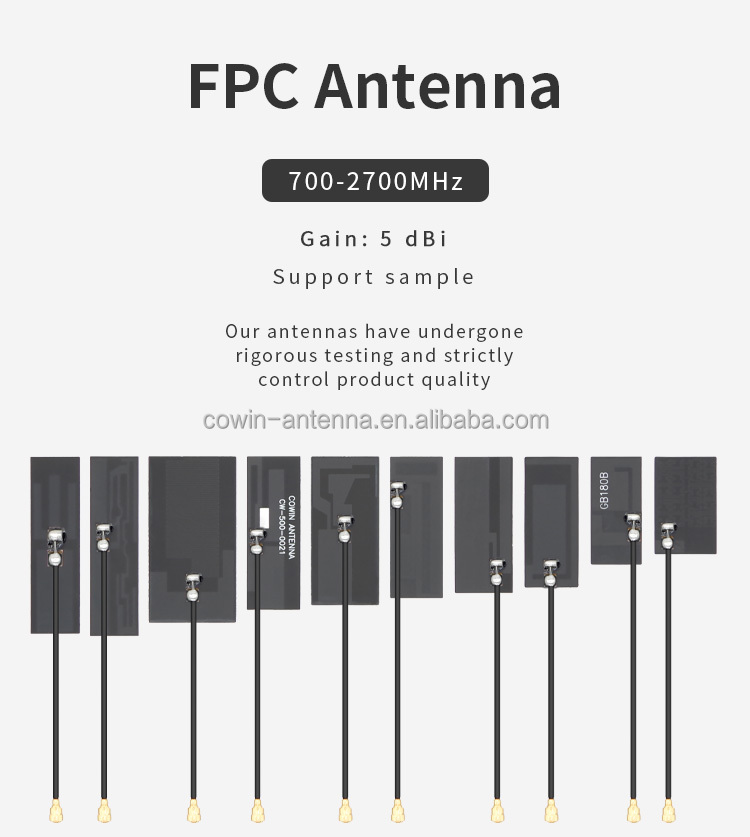

While true pcb antennas are custom-designed, many developers compare them against popular SMD alternatives. Below is a comparison of leading embedded antenna types often considered alongside pcb antenna solutions:

Model	Type	Freq. Range	Efficiency	Cost/Unit	Best Use Case
Murata LXA25AGHK	Ceramic Chip	2.4–2.5 GHz	>70%	$0.85	Compact wearables
TAOG5G Series	Flexible PCB	5.1–5.9 GHz	>60%	$1.20	Wi-Fi 6 modules
Custom PIFA	Etched Trace	868/915/2.4 GHz	50–65%	$0.00*	High-volume IoT

*Excludes design labor. Actual cost depends on production scale.

Customer Feedback Synthesis

Analysis of user experiences—from engineering forums, distributor reviews, and open-source project logs—reveals recurring themes:

Common Praises:

"Reduced assembly steps improved our yield." – Manufacturing lead, smart lock company.
"Saved nearly $0.75/unit at scale by switching from chip to pcb antenna." – Hardware startup founder.
"Clean aesthetic—no visible antenna bulge on the casing." – Industrial designer.

Recurring Complaints:

"First batch failed radiated emissions tests due to poor grounding." – Embedded systems engineer.
"Changing the battery location shifted resonance frequency—we had to respin." – Product developer.
"Lack of documentation made debugging difficult." – DIY robotics enthusiast.

These insights highlight the importance of thorough pre-production validation and clear design documentation.

Sourcing & Supplier Tips

Since pcb antennas are part of the board itself, sourcing focuses on PCB fabrication quality rather than component procurement. Choose a reputable fabricator experienced in RF designs. Key tips:

Specify controlled impedance traces and consistent dielectric thickness.
Use low-loss substrates (e.g., Rogers RO4350B) for high-frequency (>3 GHz) or high-efficiency needs.
Request impedance test coupons on panel edges for verification.
Ensure copper plating uniformity, especially for fine-pitched antenna features.
Work with suppliers offering impedance measurement services.

For hybrid approaches (e.g., adding SMD antennas), source from authorized distributors like Digi-Key, Mouser, or LCSC to avoid counterfeit parts.

Maintenance, Safety & Legal Considerations

PCB antennas require no maintenance under normal conditions. However, exposure to moisture, corrosion, or mechanical stress can degrade performance. Conformal coating may help in harsh environments but should be applied carefully—some coatings alter permittivity and detune the antenna.

Safety-wise, ensure the antenna complies with SAR (Specific Absorption Rate) limits if used near the human body. Also, maintain safe distances from high-voltage circuits to prevent arcing.

Legally, all wireless devices must meet regulatory standards such as FCC Part 15 (USA), RED Directive (EU), and IC RSS (Canada). Even if the antenna is internal, the entire system must pass radiated emission and immunity tests. Consider pre-compliance testing early to avoid costly delays.

Conclusion

Choosing the right pcb antenna involves balancing performance, cost, and design resources. Custom trace antennas offer excellent scalability and integration benefits for high-volume products, while SMD alternatives suit rapid development cycles. Focus on frequency alignment, impedance matching, and real-world testing to ensure reliability. If you have RF design capability, a well-executed pcb antenna can deliver strong performance with minimal added cost. For those lacking expertise, leveraging reference designs or certified modules is a prudent alternative. Ultimately, understanding your application’s constraints will guide the best decision when figuring out how to choose pcb antenna solutions effectively.

FAQs

Q: Can I replace a chip antenna with a pcb antenna?
A: Yes, but only if you have the RF design capability to model, tune, and validate the new layout. Ensure equivalent bandwidth and efficiency.

Q: Do pcb antennas need a ground plane?
A: Most types do—especially PIFAs and monopoles. The ground acts as a counterpoise. Check design guidelines for minimum size and placement.

Q: How do I test a pcb antenna’s performance?
A: Use a vector network analyzer (VNA) to measure S11/return loss. For full validation, conduct OTA testing in anechoic chambers to assess gain and radiation pattern.

Q: What causes a pcb antenna to detune?
A: Nearby metal objects, batteries, displays, or changes in PCB material or stack-up. Always finalize the antenna design after all mechanical elements are fixed.

Q: Are pcb antennas suitable for 5G or mmWave?
A: Generally not for consumer mmWave bands due to extreme precision requirements and losses in standard FR-4. Specialized high-frequency laminates and advanced packaging are typically used instead.
