How to Choose the Best Overhead Crane 10t: A Complete Buying Guide

When selecting an overhead crane 10t for industrial lifting tasks, prioritize structural compatibility, duty cycle rating, and safety compliance. The right model should match your facility's bay width, ceiling height, and load frequency. For most medium-duty manufacturing or warehouse environments, a double-girder electric overhead traveling crane offers optimal durability and lifting stability 1. Key factors like span length, lift height, and control type (pendant vs. radio) significantly impact performance. Always verify the crane’s classification under FEM or CMAA standards to ensure long-term reliability and worker safety when handling consistent 10-ton loads.

About Overhead Crane 10t

An overhead crane 10t—also known as a 10-ton bridge crane—is a material handling system designed to lift and move heavy loads horizontally and vertically within industrial facilities. It consists of parallel runways mounted on elevated support structures, with a traveling bridge spanning between them. Attached to the bridge is a hoist that lifts the load. These cranes are commonly used in steel mills, fabrication shops, warehouses, and automotive plants where repetitive or high-capacity lifting is required.

The '10t' designation refers to the maximum rated capacity—10 metric tons, or approximately 22,046 pounds. This capacity makes it suitable for moving large machinery, raw materials like steel coils, and heavy castings. Unlike mobile cranes, overhead cranes are fixed installations, offering greater precision, efficiency, and space utilization in enclosed environments.

Why Overhead Crane 10t Is Gaining Popularity

Industries are increasingly adopting 10-ton overhead cranes due to rising automation demands, labor cost pressures, and the need for improved workplace safety. Manual lifting of heavy components poses significant injury risks and inefficiencies. An overhead crane 10t reduces reliance on forklifts and human labor, streamlining production flow and minimizing downtime.

Additionally, modern designs incorporate energy-efficient motors, digital load monitoring, and remote diagnostics, making them more reliable and easier to maintain. As factories adopt lean manufacturing principles, the ability to integrate cranes into automated workflows has made the overhead crane 10t a strategic investment rather than just a lifting tool 2.

Types and Variants

Understanding the different types of 10-ton overhead cranes helps match capabilities with operational needs. Each variant has distinct advantages and limitations based on structure, mobility, and application context.

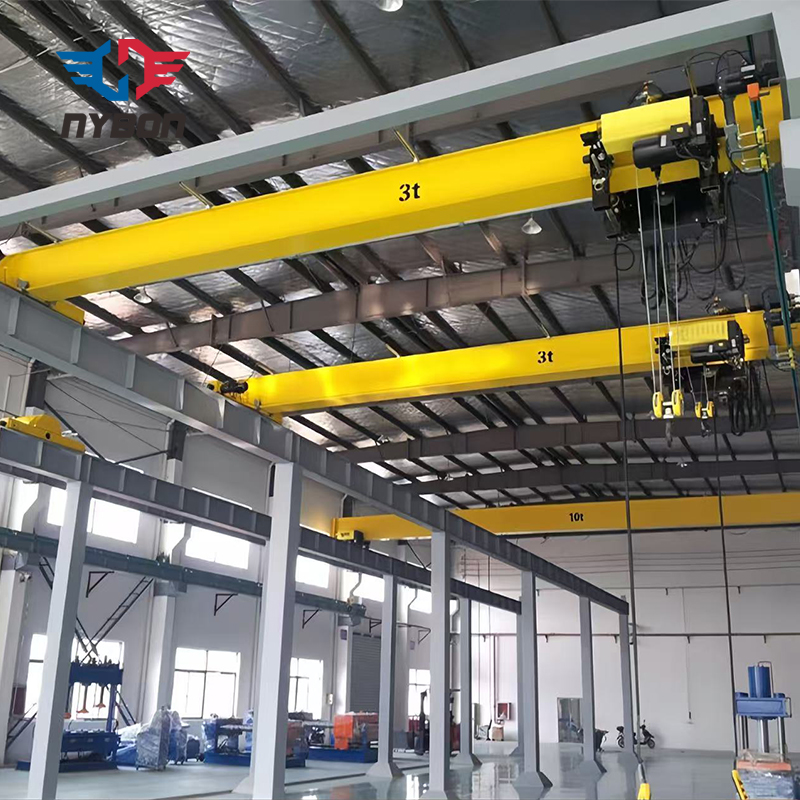

Single-Girder Overhead Crane

This design uses one main beam (girder) supported by end trucks running on runway beams. It’s lighter and less expensive than double-girder models.

Pros: Lower cost, reduced weight, simpler installation, adequate for light-to-medium usage.
Cons: Limited lift height due to hoist hanging below the girder; not ideal for high-cycle operations.

Best suited for applications with lower daily usage and where budget constraints exist.

Double-Girder Overhead Crane

Features two parallel girders, allowing the hoist to be mounted between them rather than beneath. This increases vertical lift range and structural strength.

Pros: Greater lift height, higher durability, better suited for heavy-duty cycles and precise positioning.
Cons: Higher initial cost, more complex installation, requires stronger building support.

Ideal for continuous operation environments such as foundries or heavy fabrication lines.

Underhung vs. Top-Running Cranes

Refers to how the crane travels along the runway beams.

Underhung: Wheels run on the bottom flange of the runway beam. Lighter and cheaper but limited in span and capacity.
Top-running: Trucks ride on top of the runway rails. Supports longer spans and heavier loads, including full 10-ton capacity reliably.

For a true 10t application, top-running systems are generally recommended.

Monorail vs. Bridge Cranes

While both are overhead systems, monorails follow a single track path and are used for linear movement. Bridge cranes offer two-dimensional coverage across a rectangular area. Most 10-ton systems are bridge cranes due to their flexibility.

Key Features and Specifications to Evaluate

Selecting the right overhead crane 10t involves assessing several technical and operational parameters:

Span Length: Distance between runway columns. Must align with facility layout. Standard spans range from 10m to 30m (33–98 ft), but custom options exist.
Lift Height: Vertical distance from floor to hook. Ensure clearance for tallest loads plus safety margin.
Duty Cycle (Service Class): Defined by standards like CMAA (USA) or FEM (Europe). Classes range from A (infrequent use) to F (continuous heavy use). For regular 10-ton lifts, aim for at least Class D.
Hoist Type: Electric wire rope or chain hoists. Wire rope handles 10t better; chain is for lighter side loads.
Control System: Options include pendant push-button, radio remote, or cabin-operated controls. Radio remotes enhance operator mobility and safety.
Bridge Speed & Travel Speed: Adjustable speeds improve load control. Look for variable frequency drives (VFDs) for smooth acceleration.
Power Supply: Typically 3-phase 480V in North America. Confirm electrical infrastructure compatibility.

Pros and Cons

Advantages

High lifting capacity ideal for industrial machinery and raw materials.
Maximizes floor space by operating overhead.
Improves worker safety by reducing manual lifting hazards.
Increases productivity through faster, repeatable load movements.
Long service life with proper maintenance—often exceeding 20 years.

Limitations

Requires substantial structural reinforcement in buildings.
Higher upfront cost compared to jib or gantry cranes.
Installation can disrupt ongoing operations if not planned carefully.
Not portable—limited to designated bays unless multiple runways are installed.
Maintenance must be scheduled regularly to avoid downtime.

A 10-ton overhead crane is best suited for permanent installations with consistent lifting needs. It may be overkill for occasional use or small workshops.

How to Choose Overhead Crane 10t

Follow this step-by-step guide to make a confident purchase:

Assess Facility Requirements: Measure bay width, ceiling clearance, and column spacing. Verify roof or runway beam strength—consult a structural engineer if needed.
Determine Usage Frequency: Will the crane operate multiple shifts per day? If yes, select a higher service class (CMAA D-F).
Select Crane Type: Choose double-girder, top-running models for full 10t performance and longevity.
Evaluate Hoist Specifications: Ensure the hoist is rated for 10 tons with safety margins (typically 5:1 design factor). Include overload protection.
Choose Control Method: Pendant controls are economical; radio remotes offer better visibility and ergonomics.
Review Safety Features: Look for limit switches, emergency stops, anti-collision sensors, and phase reversal protection.
Check Compliance Standards: Confirm adherence to OSHA (USA), CSA (Canada), or local regulations. Equipment should meet ASME B30.2 or equivalent.
Request Site Assessment: Reputable suppliers provide free site evaluations to customize solutions.
Compare Quotes: Obtain detailed proposals including installation, training, and warranty terms.
Avoid Red Flags: Be cautious of unusually low prices, vague specifications, lack of certification documentation, or refusal to provide references.

Price & Market Insights

The cost of an overhead crane 10t varies widely based on configuration, materials, and region. As of 2024:

Basic Single-Girder System: $30,000–$50,000 USD (including hoist and installation).
Double-Girder, Top-Running Crane: $60,000–$100,000+ USD.
Custom or High-Duty Models: Can exceed $120,000 with advanced controls and integration features.

Used or refurbished units may cost 30–50% less but require thorough inspection. Consider total cost of ownership—energy efficiency, maintenance intervals, and expected lifespan influence long-term value. While premium brands often command higher prices, they typically offer better build quality and technical support 3.

Top-Seller & Competitive Analysis

Several manufacturers dominate the 10-ton overhead crane market, each with unique strengths:

Model/Brand	Type	Capacity	Key Features	Approx. Price
Konecranes SmartLink 10t	Double-girder, top-running	10,000 kg	VFD controls, TRUCONNECT® monitoring, modular design	$95,000
Columbus McKinnon MODERNAIR	Single/double option	10t	Lightweight design, integrated hoist, CMAA compliance	$55,000–$75,000
Demag DC-Pro	Double-girder	10t	FEM-compliant, robust construction, scalable automation	$105,000
SWF Krantechnik UNITOP	Double-girder	10t	Precision engineering, low headroom, energy-saving drives	$98,000

Note: Prices are estimates and vary by region and customization. Always request formal quotes based on your exact requirements.

Customer Feedback Synthesis

Analysis of user reviews and industry reports reveals common themes:

Positive Feedback:
Users consistently praise reliability, ease of integration, and time savings. Operators appreciate ergonomic controls and smooth motion provided by VFD-equipped models. Long-term owners highlight durability and minimal breakdowns when maintenance is performed.

Common Complaints:
Some buyers report unexpected site modification costs due to inadequate initial structural assessment. Others note delays in delivery or commissioning, especially with overseas suppliers. A few mention difficulty sourcing replacement parts for lesser-known brands.

To mitigate risks, choose suppliers with strong local service networks and clear project timelines.

Sourcing & Supplier Tips

When purchasing an overhead crane 10t:

Buy from certified manufacturers or authorized dealers who provide full documentation.
Consider working with integrators who offer turnkey solutions—including design, installation, and training.
For bulk purchases (e.g., multiple cranes), negotiate bundled pricing and extended warranties.
If importing, verify customs compliance, voltage compatibility, and availability of technical support.
Before accepting delivery, conduct a pre-shipment inspection or request test reports (load test certificates, weld inspections).
Ensure the supplier provides operation manuals, maintenance schedules, and compliance labels.

Maintenance, Safety & Legal Considerations

Safety is paramount when operating a 10-ton overhead crane. Follow these guidelines:

Regular Inspections: Perform daily visual checks and monthly/biannual professional inspections per OSHA 1910.179 or local equivalents.
Lubrication & Wear Checks: Monitor wheels, rails, wire ropes, and brakes. Replace worn components promptly.
Operator Training: Only trained personnel should operate the crane. Include load handling, emergency procedures, and communication protocols.
Load Testing: After installation or major repair, perform a proof load test (usually 125% of rated capacity) under controlled conditions.
Compliance: Register the crane if required by local law. Keep records of inspections, repairs, and certifications.
Modifications: Never alter the crane without manufacturer approval—this voids warranties and creates liability.

Conclusion

Choosing the right overhead crane 10t requires careful evaluation of your facility’s structural capacity, workload demands, and long-term goals. Double-girder, top-running models with CMAA Class D or higher ratings deliver the best performance for frequent 10-ton lifts. Prioritize safety features, proper installation, and ongoing maintenance to maximize uptime and protect workers. While initial investment is significant, the return in productivity, safety, and operational efficiency justifies the cost in most industrial settings. By following this guide, you can confidently select a crane that meets both current and future needs.

FAQs

What is the average lifespan of an overhead crane 10t?
A well-maintained 10-ton overhead crane can last 20–30 years, depending on usage intensity and environmental conditions.

Can I install an overhead crane 10t in an existing building?
Yes, but only after verifying structural integrity. Older buildings may require reinforcement to support crane loads and dynamic forces.

What safety standards apply to overhead cranes in the U.S.?
In the U.S., overhead cranes must comply with OSHA 1910.179 and follow design guidelines from ASME B30.2. CMAA specifications are also widely referenced.

Do I need a qualified inspector for routine crane maintenance?
Yes, periodic inspections (quarterly, annually) must be conducted by a qualified person as defined by OSHA, with documented findings.

How much headroom does a 10-ton overhead crane require?
Headroom depends on type: single-girder cranes need more clearance below the runway; double-girder designs offer lower overall height. Consult manufacturer specs for exact measurements based on span and lift height.
