How to Choose the Best LED Aluminium Profile Channel for Your Project

When selecting the right led aluminium profile channel, prioritize profiles made from high-purity extruded aluminum with a smooth internal finish to ensure even light diffusion and maximum heat dissipation. For most residential and commercial installations, recessed or surface-mounted channels with frosted polycarbonate covers offer the best balance of aesthetics, performance, and durability. Always match the profile size and shape to your LED strip width and intended application—whether it’s cove lighting, under-cabinet accents, or architectural detailing—to avoid hotspots and achieve seamless illumination 1. Consider whether you need IP-rated protection for moisture or dust exposure, especially in bathrooms, kitchens, or outdoor environments.

Short Introduction

LED aluminium profile channels are essential components in modern lighting design, offering both functional and aesthetic benefits. They provide structural support for LED strips while enhancing thermal management, protecting delicate electronics, and diffusing light evenly to eliminate glare and dark spots. Whether used in homes, offices, retail spaces, or outdoor settings, these profiles help create clean, professional-grade lighting effects. This guide will walk you through everything you need to know before purchasing a led aluminium profile channel, ensuring your choice aligns with your project’s technical needs and visual goals.

About LED Aluminium Profile Channels

An LED aluminium profile channel is a specially designed housing—typically made from extruded aluminum—that holds flexible LED strips securely in place. These channels often come with a protective cover (usually made of polycarbonate or PMMA) that softens and spreads the light output. The aluminum body acts as a heatsink, prolonging the lifespan of LEDs by preventing overheating—a common cause of lumen degradation over time.

Common applications include:

Recessed ceiling cove lighting
Under-cabinet kitchen lighting

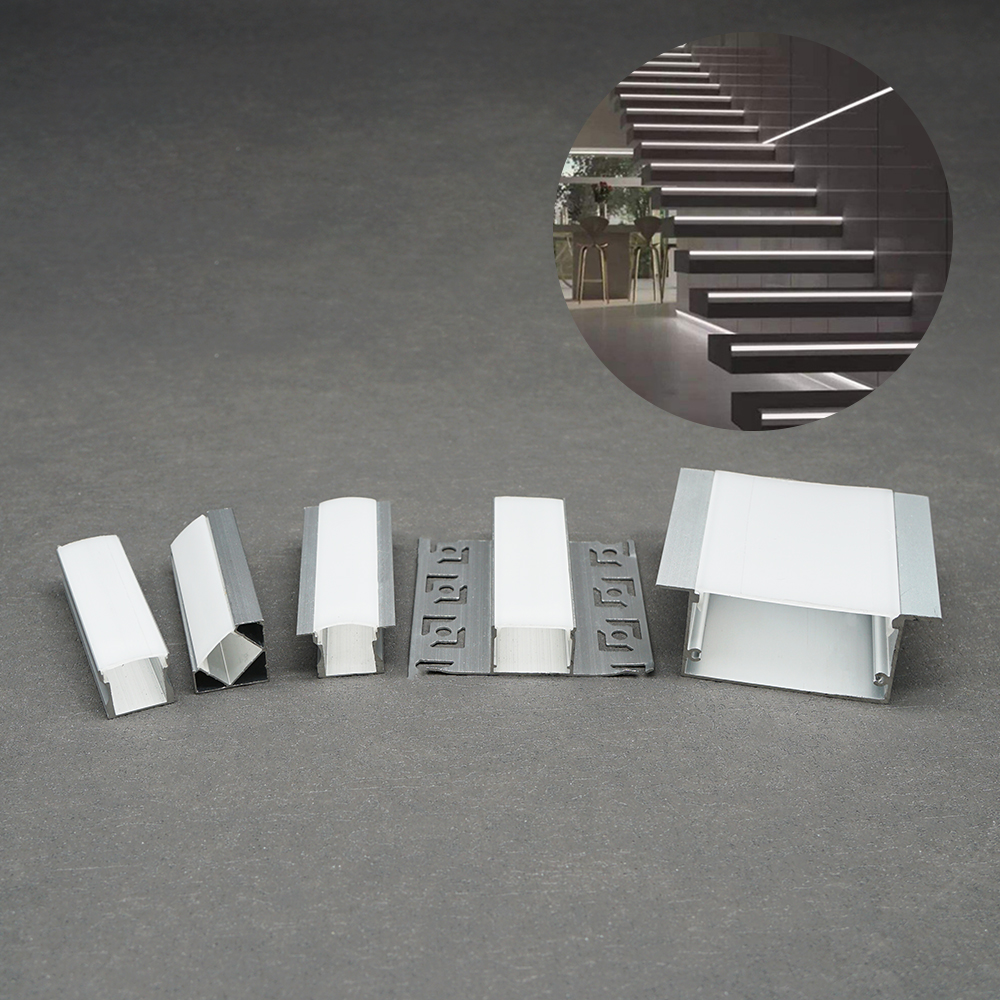

Stair tread illumination
Wall grazing or accent lighting
Outdoor step and pathway lighting
Display case and shelving highlights

They are widely used in both new construction and retrofit projects due to their versatility and compatibility with various LED formats.

Why LED Aluminium Profile Channels Are Gaining Popularity

The growing adoption of LED technology in architectural and interior design has driven demand for better integration solutions. Bare LED strips often produce uneven light patterns, visible dots, and excessive brightness, which detract from high-end finishes. A well-designed led aluminium profile channel solves these issues by providing uniform diffusion and a sleek, built-in appearance.

Additionally, architects and DIY enthusiasts alike appreciate the added protection against physical damage, dust, and moisture—especially when using IP65 or IP67 rated models. With increasing focus on energy efficiency and long-term maintenance reduction, investing in quality aluminum profiles makes economic sense despite higher upfront costs 2.

Types and Variants

Different profiles suit different installation methods and design objectives. Here are the most common types:

1. Surface-Mounted Profiles

These attach directly onto walls, ceilings, or surfaces without requiring cutouts.

Pros: Easy to install; ideal for retrofits; no carpentry required.
Cons: Visible hardware may affect aesthetics; protrudes slightly from surface.

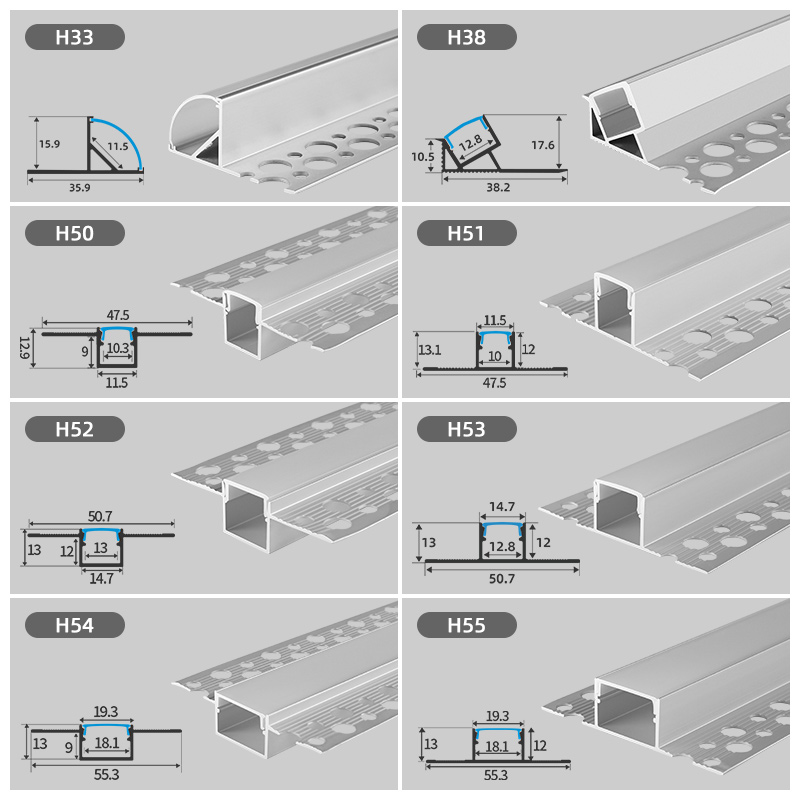

2. Recessed Profiles

Installed within a cavity in drywall, wood, or concrete to sit flush with the surface.

Pros: Clean, minimalist look; hidden light source enhances ambient effect.
Cons: Requires precise cutting during construction or renovation; more labor-intensive.

3. Corner Profiles

Designed for mounting along edges or corners, commonly used in cabinetry or furniture.

Pros: Enables indirect corner lighting; space-efficient.
Cons: Limited diffusion angle; may require custom cutting.

4. Pendant or Suspension Profiles

Used for linear suspended fixtures in commercial or decorative settings.

Pros: Creates striking visual lines; suitable for task or ambient lighting.
Cons: Higher cost; requires secure overhead anchoring.

5. Outdoor/Rated Profiles

IP65+ sealed versions designed for wet or exposed locations.

Pros: Weather-resistant; durable in harsh conditions.
Cons: More expensive; heavier due to sealing gaskets.

Key Features and Specifications to Evaluate

To make an informed decision, assess the following criteria:

Material Quality

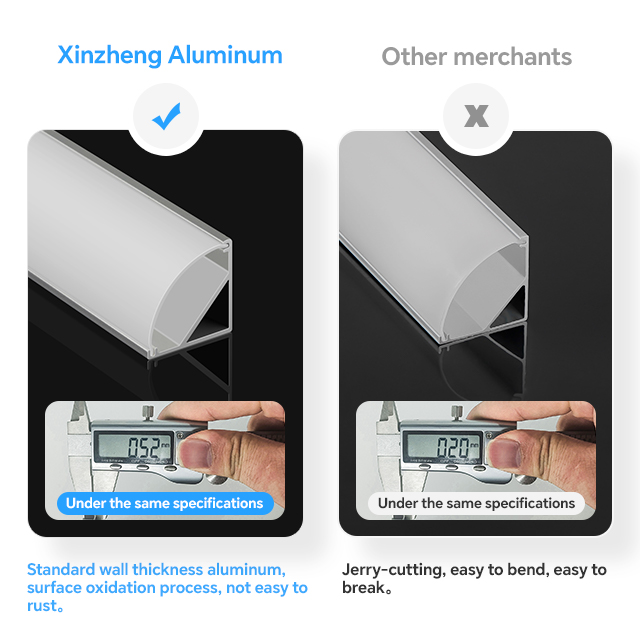

Look for 6063-T5 grade extruded aluminum, known for excellent thermal conductivity and corrosion resistance. Avoid thin-walled or recycled aluminum profiles that may warp under heat.

Internal Finish

A mirrored or white-coated interior reflects more light, improving efficiency. Matte finishes absorb some output but reduce glare.

Cover Type

Frosted covers diffuse light evenly and hide individual diodes. Clear covers preserve brightness but show LED dots. Opal diffusers offer the softest glow.

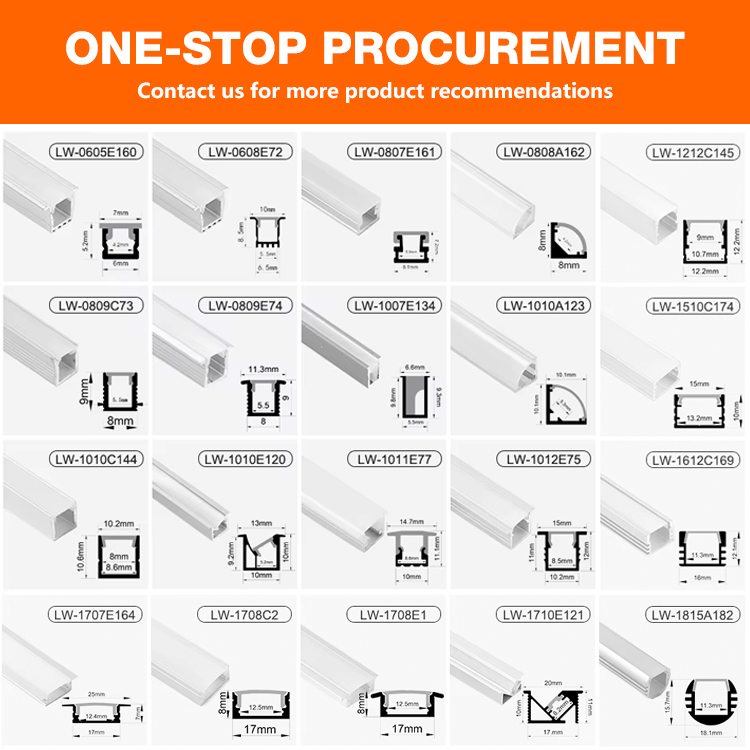

Dimensions and Compatibility

Match the internal width to your LED strip (e.g., 8mm, 10mm, 12mm). Ensure height clearance fits your installation space.

Thermal Performance

Larger cross-sectional area improves heat dissipation. Check manufacturer data for thermal resistance if running high-density strips (e.g., 24W/m or above).

Mounting Options

Clips, adhesive pads, screws, or magnetic attachments affect ease of installation and stability.

IP Rating

For damp areas like bathrooms: IP65 minimum. For outdoor use: IP67 recommended. Verify seal integrity at end caps and joints.

Pros and Cons

Advantages:

Extends LED lifespan via improved cooling
Provides uniform, glare-free illumination
Protects LEDs from dust, impact, and UV exposure
Offers professional finish in architectural designs
Available in customizable lengths and finishes

Disadvantages:

Higher initial cost than bare strips
Installation complexity varies by type (especially recessed)
May require painting or finishing to match surroundings
Limited flexibility once installed

Best suited for: Long-term installations, high-visibility areas, humid environments, and premium interiors.

Less ideal for: Temporary setups, low-budget experiments, or situations where frequent access to LEDs is needed.

How to Choose an LED Aluminium Profile Channel

Follow this step-by-step checklist:

Determine the Application: Is it indoor, outdoor, recessed, or surface-mounted? This dictates IP rating and mechanical design.
Select the Right Size: Measure your LED strip width and thickness. Confirm internal cavity dimensions match.
Evaluate Diffuser Needs: Choose frosted for soft light, clear for intensity, opal for ultra-diffused effects.
Check Mounting Method: Prefer clip-in systems for easy servicing, screw mounts for permanence.
Assess Thermal Requirements: High-output LEDs (>18W/m) need larger profiles or active ventilation.
Verify Cut-to-Length Capability: Most aluminum profiles can be cut onsite with a hacksaw or miter saw.
Review End Caps and Connectors: Look for silicone-sealed end caps and joiners for waterproof continuity.
Consider Finish Options: Anodized, painted, or powder-coated finishes affect color matching and durability.
Inspect Supplier Documentation: Request spec sheets with photometric data, material certifications, and warranty terms.
Beware of Red Flags: Extremely low prices, missing IP ratings, vague specifications, or lack of test reports suggest substandard products.

Price & Market Insights

Pricing varies significantly based on material, length, IP rating, and brand reputation.

Budget Tier ($1–$3 per foot): Thin aluminum, basic diffusers, limited IP options. Suitable for non-critical indoor use.
Mid-Range ($3–$6 per foot): Solid 6063 aluminum, frosted/opal covers, IP65 options. Ideal for most home and office installations.
Premium ($6–$10+ per foot): Architectural-grade finishes, full weatherproofing, modular connectors, certified thermal performance. Used in commercial and exterior projects.

Buying in bulk (e.g., 100ft+) typically reduces unit cost by 15–30%. However, always verify consistency across batches.

Model Type	Material	IP Rating	Avg. Price/Foot	Ideal Use Case
Surface-Mount U-Shape	6063 Aluminum	IP20	$2.50	Kitchen under-cabinet
Recessed Square	6063 Aluminum + Frosted PC	IP65	$4.80	Cove lighting
Outdoor Corner	Anodized Al + Silicone Seal	IP67	$7.20	Deck steps, signage

Top-Seller & Competitive Analysis

Leading brands such as HEP Lighting, Luminoodle, and SELN offer reliable performance and consistent tolerances. Top-selling models often feature tool-free clip-in diffusers, integrated mounting clips, and multi-angle adjustability. When comparing options, examine customer reviews for mentions of warping, yellowing covers, or poor seal longevity. Some budget brands skimp on end cap design, leading to moisture ingress even in IP-rated units.

Modular connection systems (like push-fit or magnetic joints) enhance scalability for large-scale installations. Also, consider whether accessories like corner brackets, suspension kits, or driver housings are available separately.

Customer Feedback Synthesis

Analysis of hundreds of verified buyer reviews reveals recurring themes:

Common Praises:

“Light looks so much smoother compared to bare strips.”
“Easy to cut and install with included clips.”
“Great heat dissipation—my LEDs haven’t dimmed after a year.”
“Perfect for creating a modern, built-in look.”

Frequent Complaints:

“Diffuser arrived scratched.”
“End caps don’t fit tightly—water got inside.”
“Aluminum feels thinner than expected.”
“No hardware included despite product images showing screws.”

These insights highlight the importance of inspecting packaging, verifying included components, and choosing reputable suppliers.

Sourcing & Supplier Tips

You can purchase led aluminium profile channels from online marketplaces (Amazon, eBay), specialty lighting retailers, or direct-from-factory platforms like Alibaba for bulk orders. For small projects, stick to local distributors or established e-commerce sellers with return policies.

For wholesale purchases:

Request samples before committing to large volumes.
Confirm compliance with regional electrical safety standards (e.g., UL, CE, RoHS).
Negotiate MOQs (Minimum Order Quantities); many factories accept 50–100 meter batches.
Ask about OEM labeling or custom lengths.

Upon delivery, inspect for straightness, surface blemishes, and proper sealing components.

Maintenance, Safety & Legal Considerations

Regular maintenance includes wiping down covers with a soft cloth and mild cleaner. Avoid abrasive materials that could scratch polycarbonate. In outdoor settings, check seals annually for cracking or compression loss.

Safety-wise, never exceed the recommended wattage for enclosed profiles—overheating can degrade insulation or pose fire risks. Ensure all wiring complies with local building codes, especially when embedding into walls or ceilings.

While most profiles themselves aren’t regulated, their final installation may fall under electrical or construction codes. Always follow national or regional guidelines for low-voltage lighting systems.

Conclusion

Choosing the right led aluminium profile channel involves balancing material quality, application requirements, and installation logistics. Prioritize thermally efficient extruded aluminum, appropriate IP ratings, and compatible diffusers to maximize performance and longevity. While budget options exist, mid-range profiles from trusted manufacturers deliver the best value for most residential and light commercial uses. By carefully matching the profile type to your lighting goal—whether it's ambient cove lighting or durable outdoor accents—you’ll achieve a polished, professional result that stands the test of time.

FAQs

Can I paint my LED aluminium profile channel?
Yes, but only if using high-temperature resistant paint. Sand the surface first and apply primer for adhesion. Avoid blocking ventilation slots.

Do LED profiles work with any strip?
Most do, as long as the width matches the channel’s internal dimension. Always double-check measurements before ordering.

How do I connect two LED profiles end-to-end?
Use joining clips or internal connector bars. For waterproof models, select silicone-sealed couplers rated for your IP level.

Are aluminium profiles necessary for all LED strips?
Not mandatory, but highly recommended for permanent installations, high-output strips, or where appearance matters.

Can I install LED profiles on curved surfaces?
Only if the profile is specifically designed for bending. Standard rigid channels cannot conform to curves without modification.
