How to Choose Kelly Bar Repair Parts: A Complete Buying Guide

When selecting kelly bar repair parts, prioritize compatibility with your drilling rig model, material strength (preferably high-grade alloy steel), and wear resistance to ensure long-term performance. Look for OEM-equivalent or upgraded components such as kelly bushings, side plates, pinion gears, and quill assemblies that match original specifications while offering improved durability. A well-chosen kelly bar repair kit can significantly reduce downtime and maintenance costs, especially when sourced from reputable suppliers who provide detailed specs and fitment guides 1. Understanding how to choose kelly bar repair parts based on load capacity, corrosion resistance, and ease of installation is essential for operators maintaining rotary drilling equipment.

Short Introduction

Kelly bar repair parts are critical components used in the maintenance and restoration of kelly bars—central elements in rotary drilling rigs used across geotechnical, foundation, and water well industries. These parts include bushings, locks, pins, adapters, and internal spline segments that endure extreme torque, lateral stress, and repetitive motion. Over time, these components degrade due to abrasion, impact loading, and environmental exposure, necessitating replacement or refurbishment. Choosing the right repair parts ensures operational continuity, reduces costly rig downtime, and maintains drilling precision.

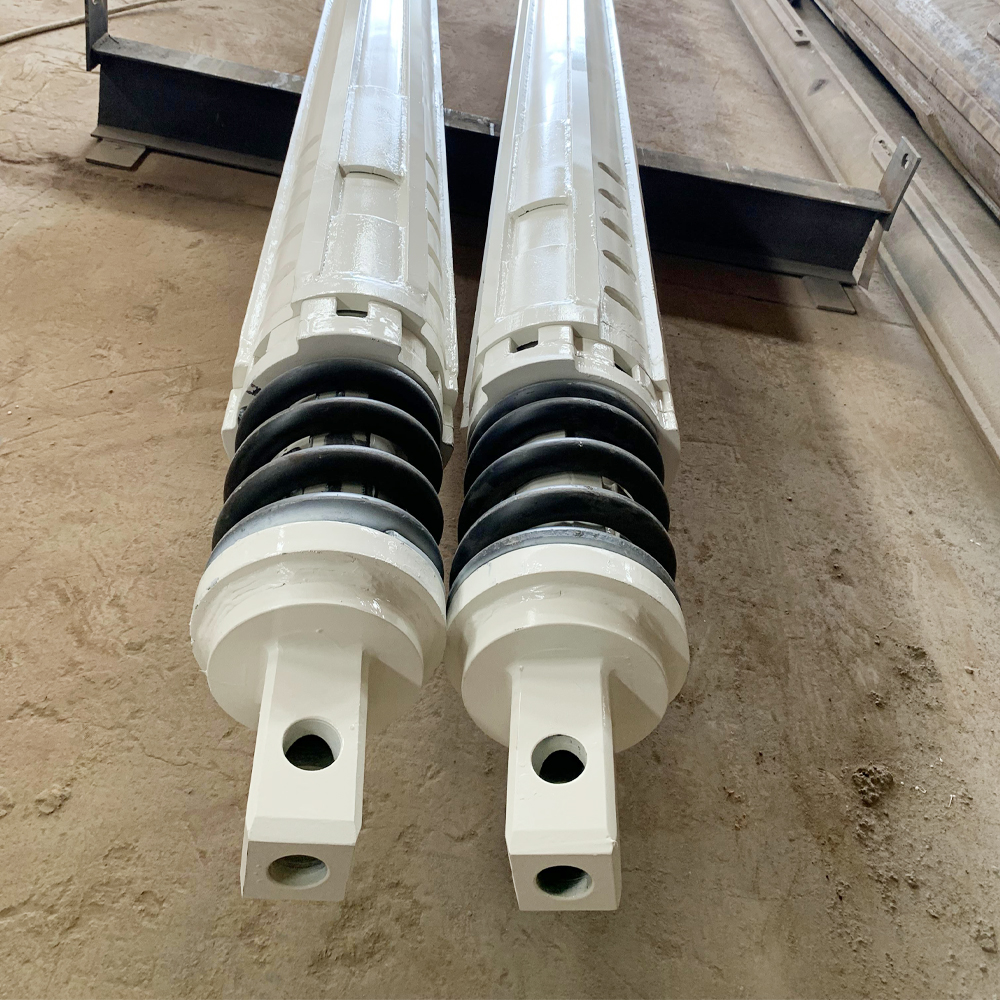

About Kelly Bar Repair Parts

Kelly bar repair parts refer to individual components designed to restore or enhance the functionality of a kelly bar—a long, square or hexagonal steel shaft that transmits rotational force from the top drive to the drill string in rotary drilling systems. Common applications include foundation piling, soil nailing, mineral exploration, and environmental sampling. The kelly bar moves vertically within the mast while rotating, enabling incremental drilling depth adjustments. Because of this dual-motion design, its connection points and load-bearing surfaces suffer significant mechanical stress.

Repair parts typically include:

Kelly bushings: Connect the top drive to the kelly bar; subject to wear from constant rotation.
Locking pins and sleeves: Secure telescoping sections in multi-section kelly bars.
Spline segments: Internal grooves that allow smooth extension/retraction under torque.
Wear strips and guide pads: Reduce friction between nested tubes.
Bottom hole assemblies (BHA) connectors: Interface with augers or core barrels.

These components must be precisely machined to maintain alignment and minimize play during operation 2.

Why Kelly Bar Repair Parts Are Gaining Popularity

The rising demand for kelly bar repair parts reflects broader industry trends toward cost-efficient maintenance and extended equipment lifecycle management. As new drilling rigs become increasingly expensive, operators seek ways to maximize ROI by repairing rather than replacing major components. Additionally, supply chain delays have made sourcing full kelly bars difficult, increasing reliance on modular repair solutions.

Another driver is the growth of urban infrastructure projects requiring deep foundation work—such as high-rise buildings, bridges, and subway systems—where reliability of drilling equipment directly affects project timelines. Operators now view preventive replacement of high-wear kelly bar components as a strategic move to avoid unexpected breakdowns. Upgraded aftermarket parts with enhanced coatings or heat-treated alloys also contribute to the trend, offering longer service life than original equipment in some cases.

Types and Variants

Different kelly bar designs require specific repair part configurations. Understanding the type you're working with is crucial before purchasing replacements.

1. Single-Section Kelly Bars

Used primarily in smaller drilling rigs or shallow-depth applications.

Pros: Simpler design, fewer failure points, easier alignment.
Cons: Limited depth capability, less versatility.
Common repair needs: Top drive bushings, lower coupling threads.

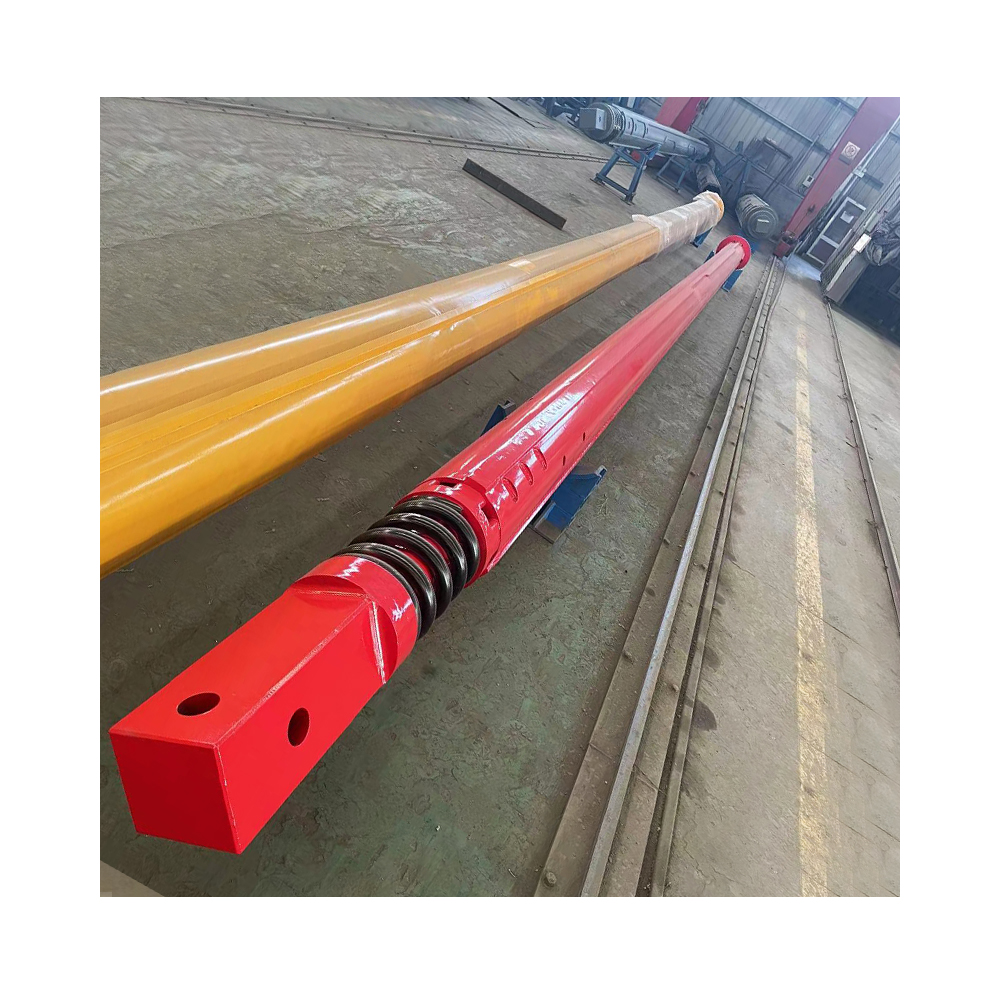

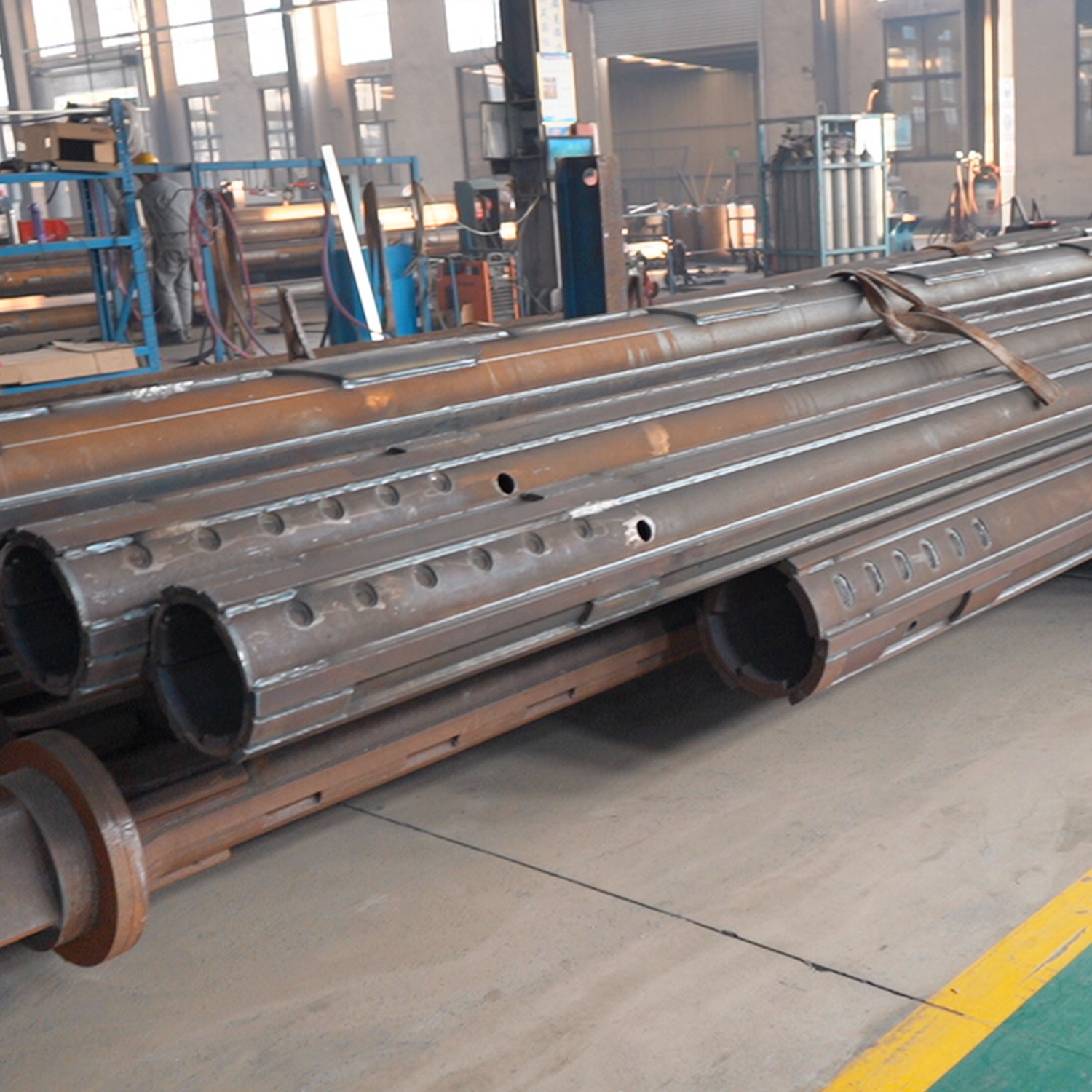

2. Telescopic (Multi-Section) Kelly Bars

Feature nested tubular sections that extend incrementally during drilling. Widely used in large foundation rigs.

Pros: Greater drilling depth without adding rig height; efficient for variable ground conditions.
Cons: Complex internal mechanisms; higher wear at interlock zones.
Common repair needs: Inner splines, locking pins, wear bands, centering bushings.

3. Hexagonal vs. Square Profile Kelly Bars

Determined by cross-sectional shape affecting torque transmission and wear distribution.

Hexagonal: Offers smoother rotation and even load distribution; slightly more expensive to manufacture.
Square: More common, simpler machining, but prone to corner wear.
Repair consideration: Replacement bushings and guides must match profile exactly.

4. Mechanical Lock vs. Hydraulic Lock Systems

Refers to how telescopic sections engage/disengage.

Mechanical lock: Uses spring-loaded pins; reliable but slower to operate.
Hydraulic lock: Faster engagement via hydraulic pressure; requires seals and piston maintenance.
Repair implications: Hydraulic variants need O-rings, cylinder rebuild kits, and valve checks.

Key Features and Specifications to Evaluate

To make an informed decision when choosing kelly bar repair parts, assess the following technical attributes:

Material Composition: High-strength alloy steels like 4140 or 4340 are preferred for their toughness and fatigue resistance. Surface treatments such as induction hardening or nitriding improve wear life.
Tolerance & Fitment: Precision machining within ±0.005 inches ensures minimal backlash and vibration. Always verify dimensions against OEM blueprints if available.
Load Rating: Match or exceed original torque and axial load specifications. Exceeding limits leads to premature failure.
Corrosion Resistance: In wet or saline environments, look for zinc plating, powder coating, or stainless inserts.
Interchangeability: Some aftermarket parts are designed as direct replacements; others may require minor modifications. Confirm compatibility with your rig brand (e.g., Soilmec, Casagrande, Bauer).
Lubrication Requirements: Sealed grease points or self-lubricating bushings reduce maintenance frequency.

Pros and Cons

Advantages of Using Quality Kelly Bar Repair Parts:

Cost savings compared to replacing entire kelly bars.
Reduced equipment downtime through targeted repairs.
Opportunity to upgrade materials (e.g., harder alloys) beyond OEM standards.
Supports sustainable practices by extending equipment life.

Disadvantages and Limitations:

Poorly matched parts can lead to misalignment, excessive vibration, or catastrophic failure.
Aftermarket parts may lack traceability or certification documentation.
Installation often requires specialized tools and expertise.
Not all damage is repairable—severe bending or cracking may necessitate full replacement.

This makes it unsuitable for severely damaged kelly bars where structural integrity is compromised.

How to Choose Kelly Bar Repair Parts

Follow this step-by-step guide to ensure you select the correct and reliable components:

Identify Your Kelly Bar Model and Manufacturer: Note the make, model, serial number, and section count. This helps narrow down compatible parts.
Inspect Worn Components: Remove old parts and examine wear patterns. Uniform wear suggests normal use; localized gouging may indicate misalignment.
Measure Critical Dimensions: Use calipers to record outer diameter, inner bore, length, spline count, and pitch. Compare with supplier specs.
Determine Required Upgrades: Decide whether standard replacements suffice or if upgraded materials (e.g., tungsten carbide strips) are justified based on operating conditions.
Verify Supplier Credentials: Choose vendors with engineering support, product testing data, and return policies. Avoid sellers who don’t provide detailed specifications.
Check for Certification Standards: Look for compliance with ISO 9001, API Q1, or CE marking where applicable.
Avoid Red Flags: No dimensional drawings, vague descriptions like "fits most rigs," or unusually low prices relative to market average.

Price & Market Insights

Pricing varies widely depending on component type, material quality, and origin.

Bushings and Wear Strips: $80–$300 each.
Locking Pin Assemblies: $150–$600 per set.
Full Repair Kits (multi-component): $800–$2,500.
Custom-Machined Spline Segments: $400–$1,200 based on complexity.

OEM parts typically cost 20–40% more than equivalent aftermarket options but offer guaranteed fit and traceability. Chinese and Eastern European manufacturers dominate the mid-tier market, offering competitive pricing with mixed quality control. North American and Western European suppliers tend to focus on premium, engineered solutions with better documentation and technical support.

For budget-conscious buyers, consider rebuilding kits with replaceable wear components instead of solid units. However, always balance initial cost against expected service life and risk of failure.

Component	OEM Price Range	Aftermarket Price Range	Expected Lifespan	Notes
Kelly Bushing	$220–$350	$120–$200	6–12 months	Heat-treated versions last longer
Locking Pin Set	$450–$600	$280–$400	12–18 months	Hydraulic seals add $75+
Wear Strip Kit (4 pcs)	$300–$450	$180–$260	4–8 months	Carbide-coated lasts 2x longer
Spline Segment	$900–$1,300	$500–$800	18+ months	Custom machining may be needed

Top-Seller & Competitive Analysis

Leading brands in the kelly bar repair space include Tracto-Technik, Drilltech Solutions, RigWorks, and Northerndrill. While none dominate universally, certain models stand out:

RigWorks Heavy-Duty Bushing Kit: Known for induction-hardened bores and anti-rotation tabs; fits multiple Soilmec models.
Drilltech Pro-Lock Pin System: Features oversized pins with replaceable bronze bushings; popular among contractors in abrasive soils.
Northerndrill Universal Repair Pack: Includes gaskets, seals, and alignment tools; ideal for field technicians.

When comparing top sellers, evaluate not just price but included accessories, warranty (typically 6–12 months), and availability of technical drawings. Some kits come with installation instructions and torque specs, which adds value for less experienced crews.

Customer Feedback Synthesis

Analysis of user reviews from industry forums, distributor sites, and equipment networks reveals consistent themes:

Common Praises:

"Extended our kelly bar life by over a year with the carbide wear strips."
"Exact fit for our Bauer BG 20—no adjustment needed."
"Fast shipping and clear spec sheets made ordering easy."

Recurring Complaints:

"Received wrong spline count—supplier didn’t confirm model first."
"Cheap pins wore out in three weeks; won’t buy budget brand again."
"No return policy for custom-machined parts—even though they didn’t fit."

These highlight the importance of confirming compatibility and choosing suppliers with responsive customer service.

Sourcing & Supplier Tips

Where you buy matters as much as what you buy. Consider these strategies:

Specialty Distributors: Companies focused on drilling consumables often carry tested, application-specific parts.
Direct-from-Manufacturer: Ideal for bulk orders or custom specs; may offer CAD drawings and metallurgical reports.
Online Marketplaces (e.g., Alibaba, eBay): Use cautiously. Filter for suppliers with verified business status, request samples, and insist on inspection before payment.
Local Machine Shops: Can fabricate certain components if originals are obsolete, but ensure proper heat treatment and QA processes.

For resellers or fleet managers, explore wholesale programs with tiered pricing. Always request a sample batch for fit-testing before committing to large purchases.

Maintenance, Safety & Legal Considerations

Proper installation and ongoing care are vital for safety and performance:

Follow manufacturer-recommended torque values when assembling pins and fasteners.
Lubricate sliding surfaces regularly with high-viscosity grease suitable for heavy loads.
Inspect for cracks, deformation, or excessive play at every maintenance cycle.
Retain records of part serial numbers and installation dates for traceability.
In regulated environments (e.g., EU, Canada), ensure components meet relevant machinery directives or provincial safety codes.

Never operate a kelly bar with known defects—failure under load can cause severe injury or equipment damage.

Conclusion

Selecting the right kelly bar repair parts requires careful evaluation of compatibility, material quality, and supplier reliability. Whether replacing worn bushings or rebuilding a telescopic mechanism, investing in precision-engineered components pays off in reduced downtime and improved drilling efficiency. Focus on measurable specs over branding, verify fit before purchase, and prioritize safety-certified materials when possible. By understanding what to look for in kelly bar repair parts and avoiding common pitfalls, operators can maintain peak performance without overspending on unnecessary upgrades.

FAQs

Q: How do I know if my kelly bar needs repair parts or full replacement?
A: Minor wear on bushings or pins can be fixed with repair parts. If there's visible bending, twisting, or deep cracking in the main shaft, a full replacement is safer.

Q: Are aftermarket kelly bar repair parts reliable?
A: Yes, many aftermarket parts meet or exceed OEM quality—especially from established engineering suppliers. Always check material certifications and dimensional accuracy.

Q: Can I mix OEM and aftermarket components?
A: Generally yes, but ensure compatibility in size, hardness, and tolerance. Mismatched materials may accelerate wear.

Q: How often should kelly bar components be inspected?
A: Inspect after every 100 operating hours or monthly, whichever comes first. Increase frequency in harsh or abrasive ground conditions.

Q: What tools are needed to install kelly bar repair parts?
A: Basic requirements include torque wrenches, dial indicators, hydraulic presses (for press-fit components), and alignment gauges. Refer to service manuals for model-specific procedures.
