How to Choose the Best Hydraulic Rod End: A Complete Buying Guide

When selecting a hydraulic rod end, prioritize load capacity, material strength, and misalignment tolerance to ensure long-term reliability in demanding applications like construction equipment or agricultural machinery. The right how to choose hydraulic rod end decision depends on understanding critical factors such as bore size, thread type, spherical bearing quality, and environmental resistance. For heavy-duty use, opt for heat-treated alloy steel with a PTFE-lined bushing to reduce maintenance and prevent galling. Always verify dynamic load ratings and check compatibility with existing hydraulic cylinder rods—mismatched threads or shank diameters are common installation errors. This guide breaks down every essential consideration to help you make an informed, value-driven purchase.

About Hydraulic Rod Ends

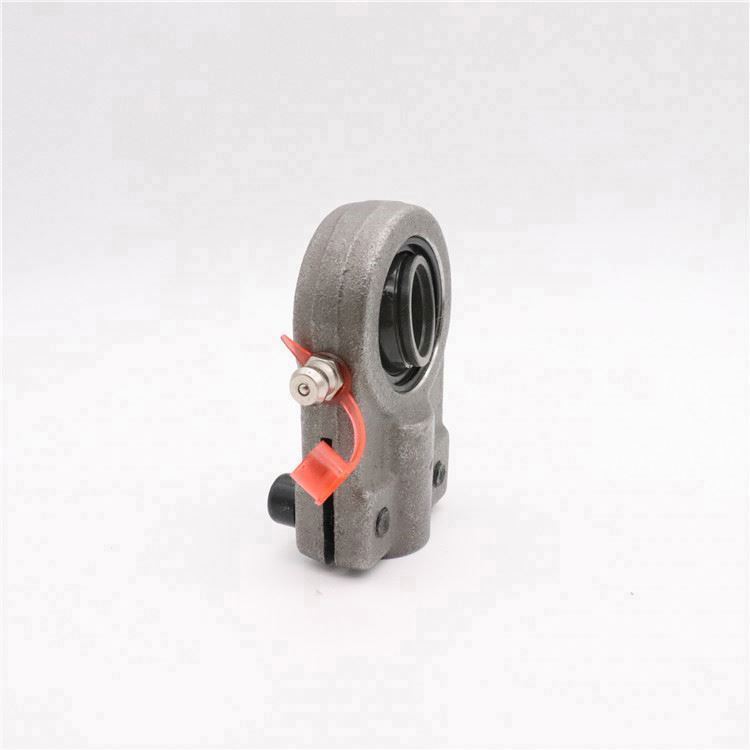

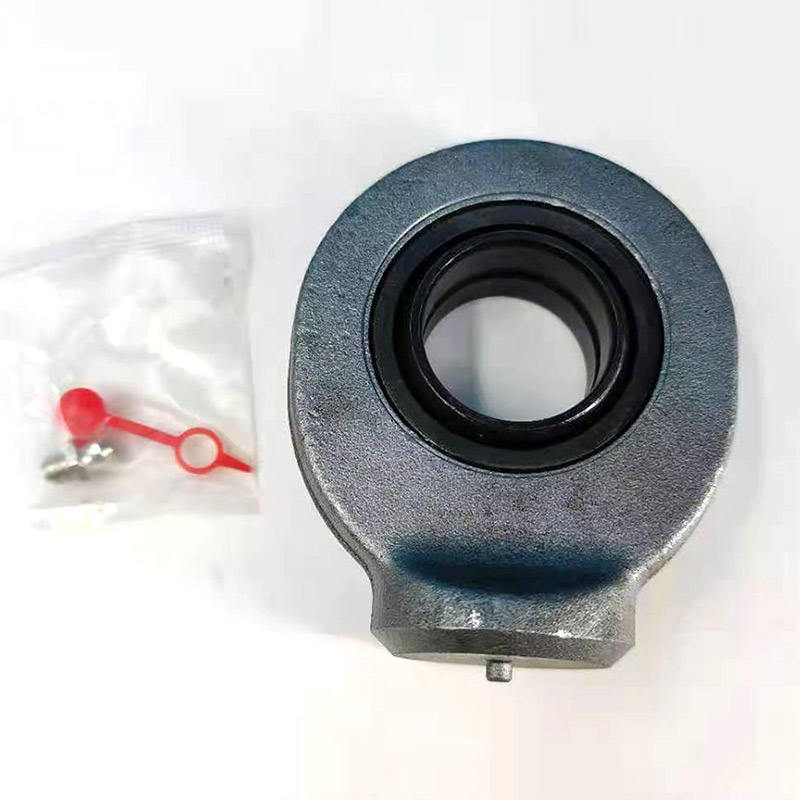

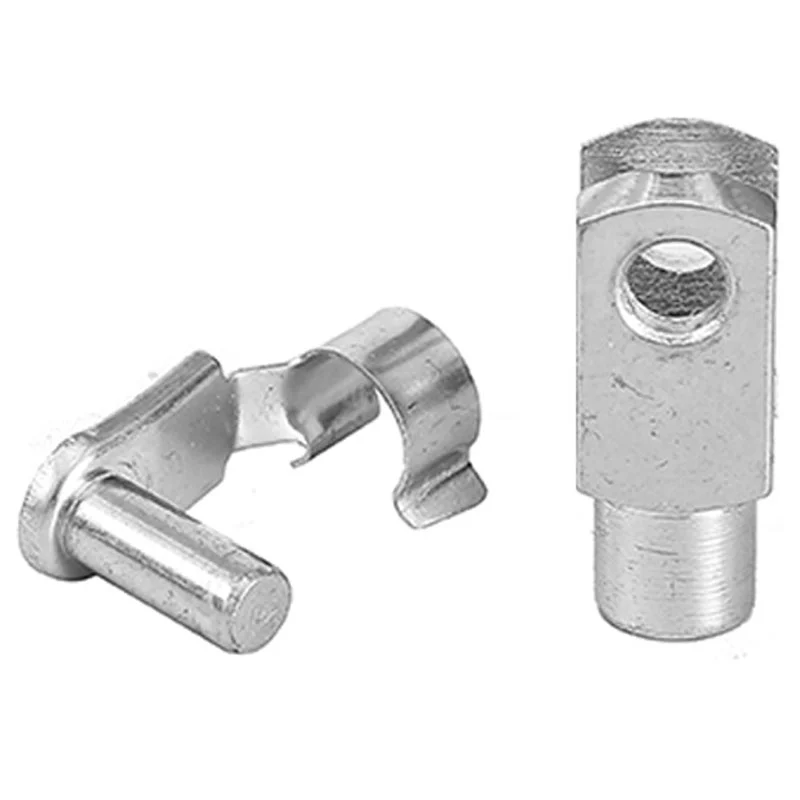

A hydraulic rod end, also known as a rod eye or clevis joint, is a precision mechanical component used to connect hydraulic cylinder rods to external linkages, control arms, or mounting points. It allows controlled articulation under high loads while maintaining structural integrity. Typically installed at the piston rod end of a hydraulic cylinder, these joints enable angular movement (misalignment compensation) between connected parts, which is crucial in mobile hydraulics where rigid connections would lead to binding or premature wear.

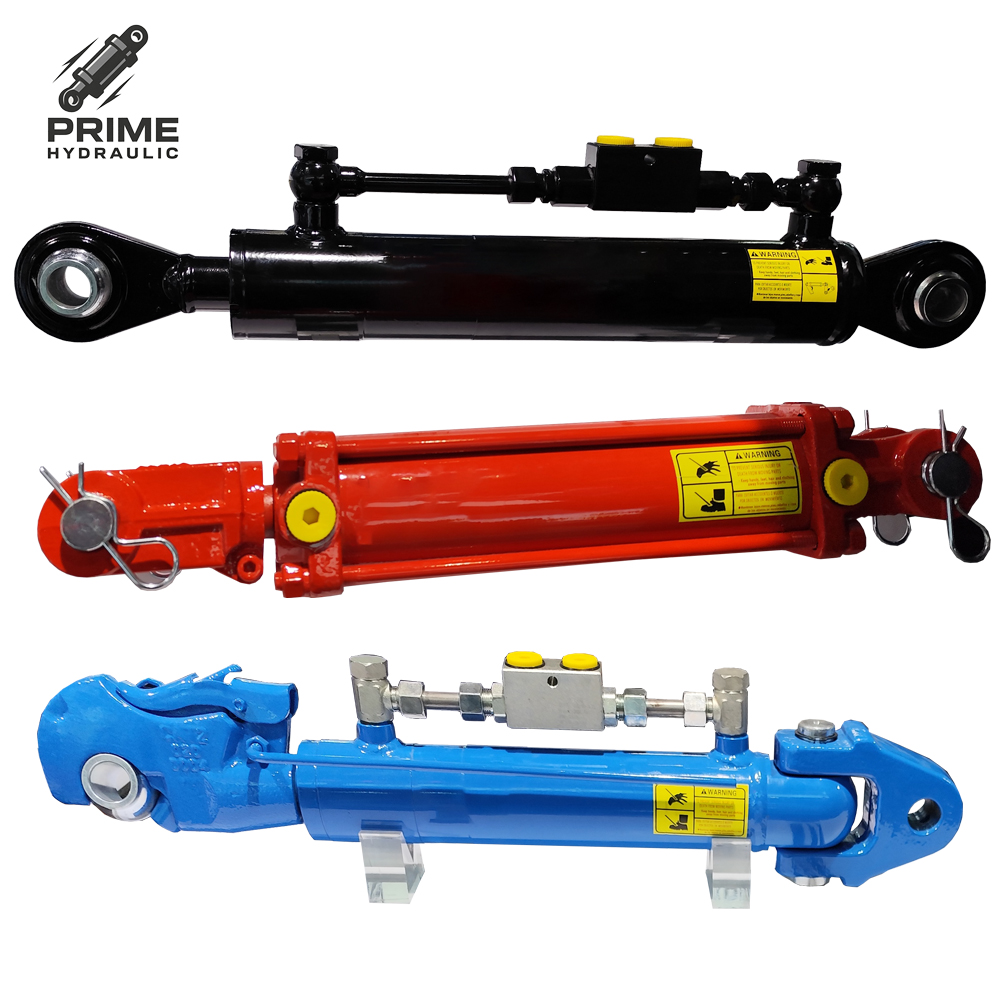

Hydraulic rod ends are widely used across industries such as agriculture (e.g., tractors, loaders), construction (excavators, backhoes), industrial automation, and off-road vehicles. Their primary function is to transmit linear force from the hydraulic cylinder to a moving part—like a bucket linkage or suspension arm—while accommodating multi-directional motion. Unlike standard ball joints, hydraulic rod ends are engineered for higher load densities and often feature reinforced spherical bearings designed for oscillating rather than continuous rotation.

Why Hydraulic Rod Ends Are Gaining Popularity

The increasing demand for durable, serviceable, and precisely engineered hydraulic components has led to growing adoption of high-performance rod ends. As machinery becomes more complex and operates under harsher conditions, manufacturers and maintenance teams are prioritizing reliability and ease of replacement. Hydraulic rod ends offer several advantages over welded or fixed couplings: they allow for fine-tuning of linkage geometry, simplify disassembly during repairs, and reduce stress concentrations caused by misalignment.

Additionally, advancements in bearing materials—such as self-lubricating PTFE liners and corrosion-resistant plating—have extended service life and reduced maintenance intervals. In mobile equipment fleets, minimizing downtime is critical, making replaceable, modular components like hydraulic rod ends increasingly valuable. This shift toward modular design and predictive maintenance strategies continues to drive their popularity in both OEM and aftermarket sectors 1.

Types and Variants of Hydraulic Rod Ends

Understanding the different types of hydraulic rod ends is essential when determining suitability for your application. Each variant offers distinct benefits depending on load direction, space constraints, and required articulation angle.

1. Male Threaded Rod Ends

These feature external threading on the shank, allowing them to screw directly into a mating component or nut. They are commonly used when space allows for axial adjustment and secure locking.

• Pros: Easy to install and adjust; compatible with lock nuts for vibration resistance.
• Cons: Exposed threads may be vulnerable to damage; not ideal in tight spaces.

2. Female Threaded Rod Ends

These have internal threading, enabling the rod end to accept a threaded shaft or stud. Often used when the connection point requires a protruding bolt or pin.

• Pros: Protects threads inside the body; better protection against contamination.
• Cons: Slightly bulkier; alignment must be precise during assembly.

3. Flush-Head vs. Heel-Style Bodies

Flush-head designs sit flat against the mounting surface, reducing profile height. Heel-style (or domed) bodies provide greater angular deflection but take up more vertical space.

• Flush-head: Ideal for low-clearance applications.
• Heel-style: Better for high-misalignment scenarios, such as suspension systems.

4. Spherical Bearing Types

The internal bearing determines performance under oscillation. Common variants include metal-on-metal, bronze liner, and PTFE-lined composite bushings.

• Metal-on-metal: High load capacity but requires regular lubrication and prone to galling.
• Bronze liner: Good wear resistance; needs periodic greasing.
• PTFE-lined: Self-lubricating, low friction, excellent for sealed environments 2.

Key Features and Specifications to Evaluate

To select the best hydraulic rod end, evaluate the following technical parameters carefully:

1. Load Capacity (Dynamic & Static)

Check both dynamic (working) and static (maximum) load ratings provided by the manufacturer. Exceeding these limits leads to deformation or failure. Dynamic loads should account for shock forces in mobile equipment.

2. Material Composition

High-strength alloy steels (e.g., 4140 or 4340) are preferred for heavy-duty use due to their fatigue resistance. Case-hardened surfaces improve wear resistance. Avoid low-carbon steel in high-load applications.

3. Thread Size and Pitch

Match the rod end’s thread to your cylinder rod or connecting hardware. Common standards include UNF, UNC, M (metric), and ACME threads. Double-check pitch and diameter before purchase.

4. Shank Diameter and Bore Size

The bore must match the cylinder rod diameter exactly. A loose fit causes play and accelerates wear. Tolerances should be within ±0.001 inches for optimal performance.

5. Articulation Angle

This refers to the maximum angular deflection allowed before binding occurs. Typical ranges are ±3° to ±15°, depending on design. Higher angles suit uneven terrain or flexible linkages.

6. Corrosion Resistance

In outdoor or washdown environments, consider zinc plating, cadmium coating, or stainless steel construction. Note that full stainless models may sacrifice some tensile strength.

7. Lubrication Requirements

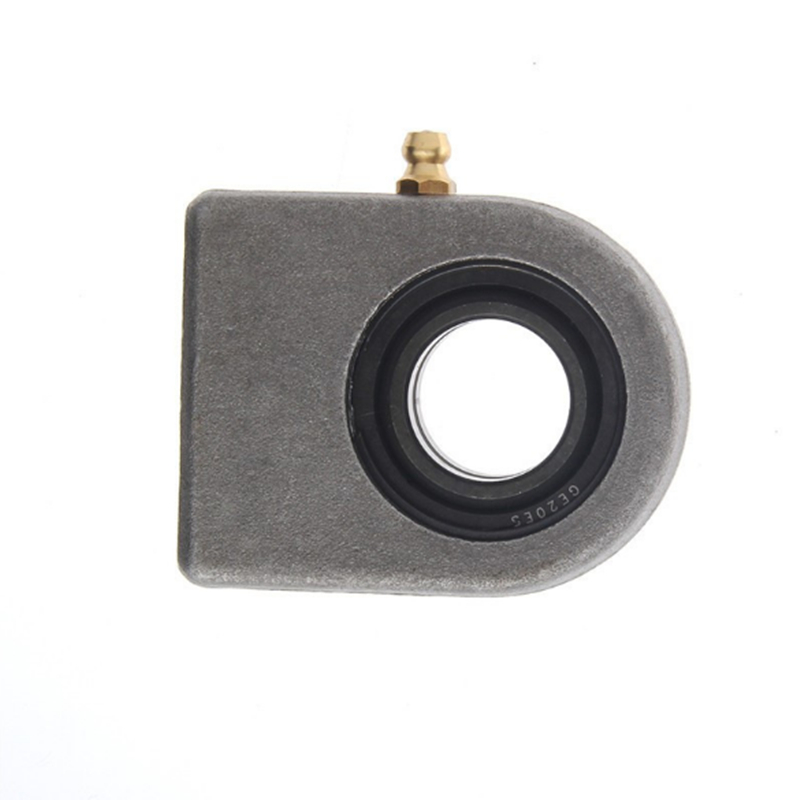

Self-lubricating (maintenance-free) rod ends save time and labor. Greaseable types require access to a zerk fitting and scheduled servicing.

Pros and Cons of Hydraulic Rod Ends

Advantages

• Misalignment Compensation: Absorbs angular deviations without transferring stress to the cylinder.
• Serviceability: Can be replaced individually without removing the entire cylinder.
• Versatility: Available in multiple sizes, threads, and configurations for retrofitting.
• Durability: High-quality units last thousands of cycles with proper maintenance.

Disadvantages

• Potential for Loosening: Vibration can cause threaded connections to back out if not properly locked.
• Wear Over Time: Spherical bearings degrade with oscillation, especially if unlubricated.
• Cost: Precision-engineered rod ends with PTFE liners or specialty coatings cost more upfront.
• Installation Sensitivity: Misaligned or improperly torqued installations lead to early failure.

How to Choose a Hydraulic Rod End: Step-by-Step Guide

Follow this structured approach to ensure you select the right hydraulic rod end for your system:

1. Identify Application Requirements: Determine load type (tensile, compressive, or combined), operating environment (dirt, moisture, temperature), and expected cycle frequency.
2. Measure Existing Components: If replacing, measure thread size, shank diameter, overall length, and socket width. Use calipers for accuracy.
3. Select Appropriate Type: Choose male/female threading based on mounting configuration. Opt for PTFE-lined bushings in inaccessible or high-cycle applications.
4. Verify Load Ratings: Ensure the rod end exceeds your maximum expected load by at least 20% for safety margin.
5. Check Compatibility: Confirm thread pitch and bore size match your cylinder rod. Adapters exist but add failure points.
6. Assess Environmental Needs: For corrosive settings, select plated or stainless options. Avoid painted finishes—they chip easily.
7. Evaluate Maintenance Access: If greasing is difficult, go with maintenance-free models.
8. Avoid These Red Flags: No published load data, vague material descriptions (e.g., “high-grade steel”), lack of certifications, or missing dimensional drawings.

Price & Market Insights

Hydraulic rod ends vary significantly in price based on size, material, and bearing technology. Small standard units (e.g., 1/2"-13 thread) range from $15 to $40. Medium-duty models ($40–$100) typically feature alloy steel and PTFE liners. Heavy-duty or custom-sized rod ends can exceed $150.

Value isn’t solely determined by price. Cheaper alternatives may use inferior heat treatment or untested bushings, leading to shorter lifespan. Invest in reputable brands or ISO-certified suppliers for mission-critical applications. Bulk purchases (10+ units) often qualify for discounts, especially through industrial distributors.

Watch for counterfeit or off-brand products sold online that mimic OEM dimensions but fail under load. Always request test reports or material certifications when ordering in volume.

Model Type	Material	Max Dynamic Load	Bearing Type	Price Range
RE-M16x1.5	Alloy Steel	18,000 N	PTFE-Lined	$35–$50
RE-F3/4"-16	Case-Hardened Steel	27,000 N	Bronze Bushing	$45–$65
RE-M1"x1.5	4140 Alloy	45,000 N	PTFE Composite	$90–$130

Top-Seller & Competitive Analysis

Leading manufacturers such as RBC Bearings, Parker Hannifin, and SKF dominate the premium segment with rigorously tested designs. Their rod ends often include detailed performance charts, traceable materials, and global support networks. Aftermarket brands like CTY and Diamond offer competitive pricing but may lack comprehensive documentation.

When comparing top sellers, focus on consistency in manufacturing tolerances and availability of technical support. Some high-volume sellers on e-commerce platforms list inaccurate specifications—always cross-reference with official catalogs or contact the supplier directly. Look for evidence of real-world testing, such as field reports or third-party validation.

Customer Feedback Synthesis

Analysis of hundreds of verified buyer reviews reveals consistent themes:

Common Praises:
Users frequently commend PTFE-lined models for requiring less maintenance and resisting seizing. Many appreciate precise threading and tight tolerances that allow direct replacement without modification. Durable finishes like black oxide or zinc-nickel plating receive positive feedback in wet environments.

Frequent Complaints:
Buyers report issues with off-brand rod ends showing lower actual strength than advertised. Some mention poor packaging leading to damaged threads during shipping. A recurring concern is inadequate articulation angle causing binding in modified suspensions. Others note missing grease fittings or difficulty accessing them in tight assemblies.

Sourcing & Supplier Tips

Purchase hydraulic rod ends from authorized distributors or certified resellers to avoid counterfeits. Major industrial suppliers like McMaster-Carr, Grainger, and Motion Industries provide reliable product data and return policies. For bulk orders, consider working directly with manufacturers or ISO 9001-certified factories.

When sourcing internationally (e.g., Alibaba), request samples first and verify material test reports. Ask for dimensional inspection reports and perform load testing if possible. Clearly define terms for returns and warranties, especially for custom-made parts.

For OEM replacements, consult your equipment manual for original part numbers. Cross-referencing ensures compatibility and avoids costly mistakes.

Maintenance, Safety & Legal Considerations

Regular inspection is vital. Check for visible wear, pitting, or elongation in the eyelet. Listen for creaking or popping noises during operation—signs of dry or failing bearings. Replace immediately if play exceeds 0.005 inches radially.

Torque threaded connections to manufacturer specifications using a calibrated wrench. Use thread locker on male ends subject to vibration. Never exceed rated loads; doing so risks catastrophic failure and potential injury.

In regulated industries (e.g., mining, transportation), ensure components meet relevant safety standards such as ANSI, ASME, or ISO 4395 for hydraulic cylinder attachments. Documentation may be required for compliance audits.

Conclusion

Choosing the right hydraulic rod end involves balancing load requirements, environmental conditions, and maintenance needs. Prioritize well-documented specifications, high-strength materials, and proven bearing technologies like PTFE lining. Whether replacing a worn unit or designing a new system, taking the time to evaluate options systematically ensures reliability and reduces long-term costs. For most industrial and mobile applications, investing in a quality rod end from a reputable source pays off in durability and uptime.

FAQs

Q: What does a hydraulic rod end do?
A: It connects a hydraulic cylinder rod to a moving part, allowing pivoting movement while transmitting force.

Q: How do I know what size hydraulic rod end I need?
A: Measure the thread size, pitch, shank diameter, and bore of your existing rod or cylinder. Compare with manufacturer specs.

Q: Can I use a hydraulic rod end in place of a ball joint?
A: Only if the load and motion profile match. Rod ends handle oscillating loads better than continuous rotation.

Q: Do hydraulic rod ends need lubrication?
A: Greaseable types require periodic lubrication; self-lubricating (PTFE-lined) models do not.

Q: Why did my hydraulic rod end fail prematurely?
A: Common causes include overload, misalignment, lack of lubrication, or using an incorrect thread/specification.
