How to Choose the Best Hydraulic Pump and Motor for Your Application

When selecting a hydraulic pump and motor system, prioritize compatibility with your machinery's pressure, flow rate, and duty cycle requirements. The best choice often depends on whether you need high torque at low speed (favoring piston motors) or cost-effective continuous operation (gear pumps and motors). A well-matched hydraulic pump hydraulic motor combination ensures efficiency, durability, and minimal downtime—especially critical in industrial, agricultural, and mobile equipment applications 1. Understanding key specifications like displacement, volumetric efficiency, and case drain flow helps avoid premature failure and mismatched performance.

About Hydraulic Pump Hydraulic Motor

Hydraulic pumps and motors are essential components in fluid power systems. A hydraulic pump converts mechanical energy into hydraulic energy by moving fluid under pressure, while a hydraulic motor does the reverse—it converts pressurized fluid into rotational mechanical force. Together, they form the core of many power transmission systems used across construction, manufacturing, agriculture, and transportation industries.

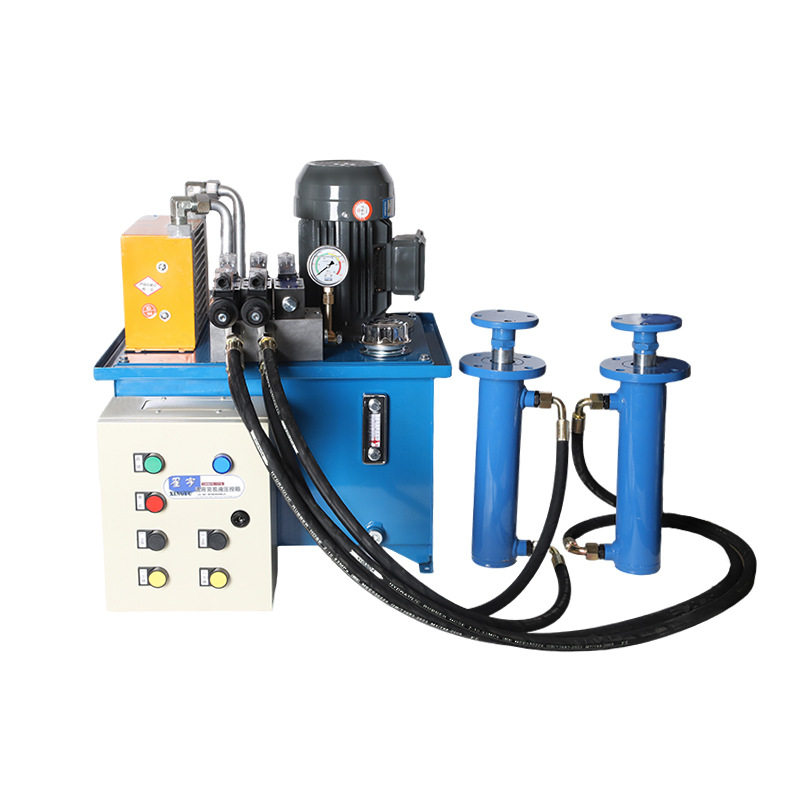

In practical terms, the hydraulic pump draws oil from a reservoir and delivers it under pressure to actuators such as cylinders or motors. When paired with a hydraulic motor, this pressurized fluid drives rotation, enabling functions like conveyor movement, winch operation, or track propulsion in heavy machinery. These systems operate based on Pascal’s Law, where pressure applied to a confined fluid is transmitted undiminished throughout the medium.

The term hydraulic pump hydraulic motor refers not to a single unit but to the integrated pairing that powers dynamic mechanical actions. Their reliability, high power density, and ability to deliver smooth torque make them preferable over electric alternatives in harsh environments or high-load scenarios.

Why Hydraulic Pump Hydraulic Motor Is Gaining Popularity

Despite advancements in electric drivetrains, hydraulic systems remain dominant in applications requiring high starting torque, variable speed control, and resilience under shock loads. One major reason for their sustained popularity is energy efficiency in intermittent-duty cycles. Unlike electric motors that may draw peak current every startup, hydraulic motors can be engaged gradually via control valves, reducing strain on the prime mover.

Additionally, modern engineering has improved sealing technologies, reduced internal leakage, and enhanced materials for wear resistance, leading to longer service intervals and better overall efficiency. Compact radial piston and axial piston designs now offer higher power-to-weight ratios, making them ideal for space-constrained mobile platforms like excavators and aerial lifts.

Another trend driving adoption is the integration of load-sensing and pressure-compensated pumps, which only deliver the required flow and pressure, minimizing wasted energy. This advancement aligns with growing demands for fuel-efficient and environmentally responsible machinery 2.

Types and Variants

Understanding the different types of hydraulic pumps and motors is crucial when evaluating options. Each design offers distinct advantages and limitations depending on application needs.

1. Gear Pumps and Motors

Gear-type units are among the most common due to their simplicity, low cost, and robustness. External gear pumps use two meshing gears to move fluid, while internal gear variants handle higher pressures with less noise.

Pros: Cost-effective, durable, tolerant of contamination
Cons: Lower efficiency at high pressures, limited adjustability, moderate noise levels

Best suited for fixed-flow applications like lubrication circuits or simple lifting mechanisms.

2. Vane Pumps and Motors

Vane systems utilize slotted rotors with sliding vanes that extend and retract against a cam ring. They offer smoother flow than gear pumps and operate more quietly.

Pros: Good efficiency, quiet operation, self-priming capability
Cons: Sensitive to fluid contamination, wear-prone vanes, limited pressure range

Ideal for medium-pressure industrial machines such as plastic injection molders or test benches.

3. Piston Pumps and Motors

Piston-based models come in axial and radial configurations. Axial piston units are compact and highly efficient, often used in variable-displacement roles. Radial piston motors excel in high-torque, low-speed applications.

Pros: High efficiency, wide pressure and flow range, excellent controllability
Cons: Higher initial cost, complex design, sensitive to maintenance quality

Favored in high-performance equipment like cranes, mining vehicles, and marine propulsion systems.

Key Features and Specifications to Evaluate

To choose the right hydraulic pump hydraulic motor setup, consider these technical parameters:

Displacement (cc/rev): Determines how much fluid is moved per revolution. Fixed displacement means constant output; variable allows adjustment based on demand.
Operating Pressure (PSI or bar): Must match system requirements. Exceeding rated pressure leads to seal failure and catastrophic damage.
Flow Rate (GPM or L/min): Influences actuator speed. Ensure pump flow matches motor input needs without exceeding relief valve settings.
Volumetric Efficiency: Measures internal leakage. Higher efficiency (>90%) reduces heat generation and energy loss.
Shaft Configuration: Check spline count, diameter, and rotation direction (clockwise vs. counterclockwise).
Mounting Style: C-face, foot mount, or custom brackets must align with existing infrastructure.
Fluid Compatibility: Verify compatibility with ISO VG 32, VG 46, or synthetic fluids, especially in extreme temperatures.

Always consult manufacturer datasheets for precise performance curves and derating information under real-world conditions.

Pros and Cons

Advantages:

High torque output even at zero speed
Smooth speed control through flow regulation
Overload protection via relief valves
Durable in dirty, wet, or high-vibration environments

Limitations:

Requires clean, properly conditioned hydraulic fluid
More complex than electric drives—requires reservoir, filters, coolers
Energy losses through heat, especially in non-load-sensing systems
Noise and potential for fluid leaks if seals degrade

Hydraulic systems are ideal when you need powerful, responsive motion control in rugged conditions. However, they're less suitable for cleanroom environments or applications demanding zero emissions.

How to Choose Hydraulic Pump Hydraulic Motor

Follow this step-by-step guide to make an informed decision:

Define Your Application Needs: Is it mobile or stationary? Continuous or intermittent duty? What torque and RPM are required?
Match Flow and Pressure Requirements: Calculate required GPM and system PSI. Add a 10–15% safety margin.
Select the Right Type: Use gear pumps/motors for simplicity and cost; piston types for precision and high load.
Check Rotation and Shaft Details: Confirm CW/CCW rotation and shaft dimensions match your drive source or load.
Evaluate Control Options: Decide between fixed or variable displacement based on speed control needs.
Verify Mounting Compatibility: Measure space constraints and interface points before ordering.
Review Fluid and Filtration Needs: Ensure your system maintains ISO cleanliness codes (e.g., ISO 4406) to prevent wear.
Avoid These Red Flags:
- Unbranded or uncertified components with no test data
- Vague specifications (e.g., “high pressure” without PSI rating)
- Lack of technical support or warranty documentation
- Deviations from standard mounting or port patterns

Price & Market Insights

Pricing varies widely based on type, capacity, brand, and features:

Gear Pumps/Motors: $80–$400 — economical for basic tasks
Vane Units: $200–$800 — mid-tier balance of cost and performance
Piston Pumps/Motors: $500–$5,000+ — premium pricing for high-efficiency, adjustable systems

Original Equipment Manufacturer (OEM) parts typically cost more than aftermarket equivalents but offer guaranteed compatibility and longer warranties. Rebuilt or remanufactured units can save 30–50%, but inspect rebuild certifications carefully. For bulk buyers, sourcing directly from authorized distributors often yields better pricing and faster lead times.

Top-Seller & Competitive Analysis

Certain brands dominate the market due to reliability and global support networks. Bosch Rexroth, Parker Hannifin, Eaton, and Kawasaki are frequently cited in industrial and mobile hydraulics.

Model	Type	Max Pressure (psi)	Flow (gpm)	Key Feature
Parker PV series	Variable Piston Pump	5,000	10–60	Load-sensing control

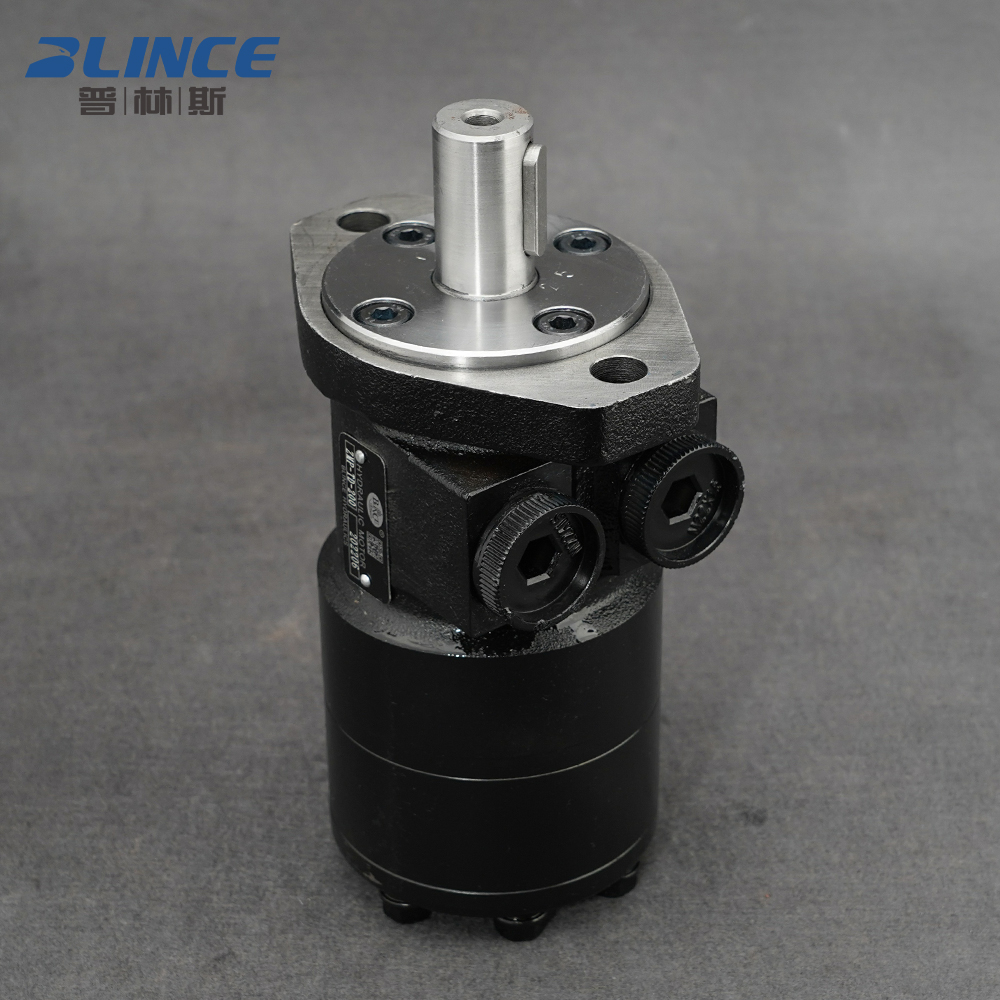

Eaton Char-Lynn 1000	Orbital Motor	3,300	15	High starting torque
Bosch Rexroth A10VSO	Variable Axial Piston	7,250	20–100	Digital displacement control
Kawasaki K3VL	Double Piston Pump	5,800	40–80	Twin circuit design

While top-tier brands command higher prices, they often provide superior efficiency, longer life, and easier access to spare parts. Aftermarket clones may appear identical but can differ in internal tolerances and material quality—verify performance curves independently.

Customer Feedback Synthesis

Analysis of user reviews reveals consistent themes:

Common Praises:

“Reliable performance under heavy loads” – users appreciate consistent torque delivery
“Easy to integrate with existing manifolds” – standardized ports improve retrofitting
“Long service life with proper filtration” – many report 5+ years of trouble-free use

Frequent Complaints:

“Leaking shaft seals after 18 months” – especially in older vane motors or poorly maintained systems
“Incorrect rotation shipped” – highlights importance of confirming specs before installation
“Noisy operation compared to electric alternatives” – gear units sometimes require sound enclosures
“Aftermarket part failed prematurely” – reinforces need for reputable suppliers

Sourcing & Supplier Tips

When purchasing hydraulic components:

Buy from authorized dealers or certified rebuilders to ensure authenticity
Request full technical documentation, including test reports and dimension drawings
For bulk orders, negotiate extended warranties or consignment inventory agreements
Consider drop-shipping partners if serving end-users directly
Inspect incoming units for shipping damage and verify model numbers against purchase orders

If importing internationally, confirm compliance with local environmental and safety standards (e.g., CE, UL, RoHS). Be cautious of unusually low prices, which may indicate gray-market goods or counterfeits.

Maintenance, Safety & Legal Considerations

Proper maintenance extends lifespan and prevents failures:

Change hydraulic fluid and filters according to OEM schedule (typically every 1,000–2,000 hours)
Monitor case drain flow—excessive flow indicates internal wear
Bleed air from the system after servicing to prevent cavitation
Use clean tools and sealed containers during fluid handling

Safety precautions include:

Relieving system pressure before disconnecting lines
Wearing protective eyewear and gloves when working with high-pressure fluid
Installing guards around rotating shafts

Legally, some jurisdictions regulate hydraulic fluid disposal due to environmental hazards. Used oil must be recycled through licensed facilities. In workplace settings, adherence to OSHA or equivalent regulations is mandatory for operator protection.

Conclusion

Selecting the right hydraulic pump hydraulic motor combination requires balancing performance, durability, and cost. Gear units offer affordability for simple tasks, while piston-based systems deliver precision and power for demanding applications. Always verify specifications against your operational needs, source from trusted suppliers, and maintain strict fluid cleanliness. By following a structured evaluation process, you can maximize uptime, reduce lifecycle costs, and ensure reliable performance across diverse industrial and mobile uses.

FAQs

What is the difference between a hydraulic pump and a hydraulic motor?
A hydraulic pump converts mechanical energy into hydraulic energy (creates flow), while a hydraulic motor converts hydraulic energy back into mechanical rotation (uses flow to create work).

Can I use a hydraulic pump as a motor?
Some pumps can function as motors in emergency or low-demand situations, but they’re not optimized for bidirectional flow or high starting torque. Dedicated motors perform better and last longer.

How do I know if my hydraulic motor is failing?
Signs include slow operation, unusual noises, excessive heat, visible leaks, or increased case drain flow. Performance drops under load are early indicators.

What fluid should I use in my hydraulic system?
Use the viscosity grade recommended by the manufacturer (e.g., ISO VG 46). Synthetic oils offer better thermal stability in extreme climates.

Are electric-hydraulic hybrids worth considering?
Yes—electro-hybrid systems use electric pumps to drive hydraulic actuators, improving energy efficiency in stop-start operations like refuse trucks or warehouse equipment.
