How to Choose the Best Hydraulic Proportional Pressure Relief Valve

When selecting the right hydraulic proportional pressure relief valve for your system, prioritize models with precise pressure control, high response frequency, and compatibility with your hydraulic fluid type and operating pressure range. A top choice for industrial applications is a solenoid-operated, electronically controlled hydraulic proportional pressure relief valve that allows real-time adjustment and integration with automated control systems 1. These valves are essential for managing dynamic load changes and preventing system damage due to overpressure. This guide covers everything you need to know—from types and specifications to reliability factors—so you can make an informed decision when shopping for a hydraulic proportional pressure relief valve.

About Hydraulic Proportional Pressure Relief Valves

A hydraulic proportional pressure relief valve is a precision control component used in fluid power systems to regulate system pressure in a continuously variable manner based on an electrical input signal. Unlike traditional on/off relief valves, which open fully once a set pressure is reached, proportional variants modulate their opening incrementally, allowing for smooth, accurate pressure management. This makes them ideal for applications requiring fine-tuned control, such as mobile hydraulics, industrial machinery, and automated manufacturing equipment.

These valves typically consist of a pilot stage controlled by a proportional solenoid and a main spool or poppet that adjusts flow based on the pilot signal. The relationship between the input current (usually 0–24 VDC or 4–20 mA) and the resulting pressure output is linear within a specified range, enabling predictable and repeatable performance 2.

Common use cases include load-sensing circuits, energy-efficient pump controls, test rigs, and robotic arms where sudden pressure spikes must be avoided. Their ability to respond dynamically to changing conditions sets them apart from fixed or manually adjustable relief valves.

Why Hydraulic Proportional Pressure Relief Valves Are Gaining Popularity

The growing demand for energy efficiency, automation, and process accuracy has driven increased adoption of hydraulic proportional pressure relief valves across industries. As manufacturers seek to reduce energy consumption and improve machine responsiveness, these valves offer a critical advantage: they allow systems to maintain only the necessary pressure, minimizing heat generation and wear.

In mobile equipment like excavators and agricultural machinery, electronic control enables better operator feedback and smoother operation. In factory automation, integration with PLCs and sensors supports predictive maintenance and adaptive control strategies. Additionally, advancements in materials and electronics have improved durability and reduced failure rates, making these valves more reliable than ever.

Another factor contributing to their rise is the trend toward Industry 4.0 and smart hydraulics. With built-in diagnostics and digital communication capabilities (e.g., CAN bus or IO-Link), modern proportional valves support real-time monitoring and remote adjustments—key features for data-driven operations.

Types and Variants

Hydraulic proportional pressure relief valves come in several configurations, each suited to different operational needs:

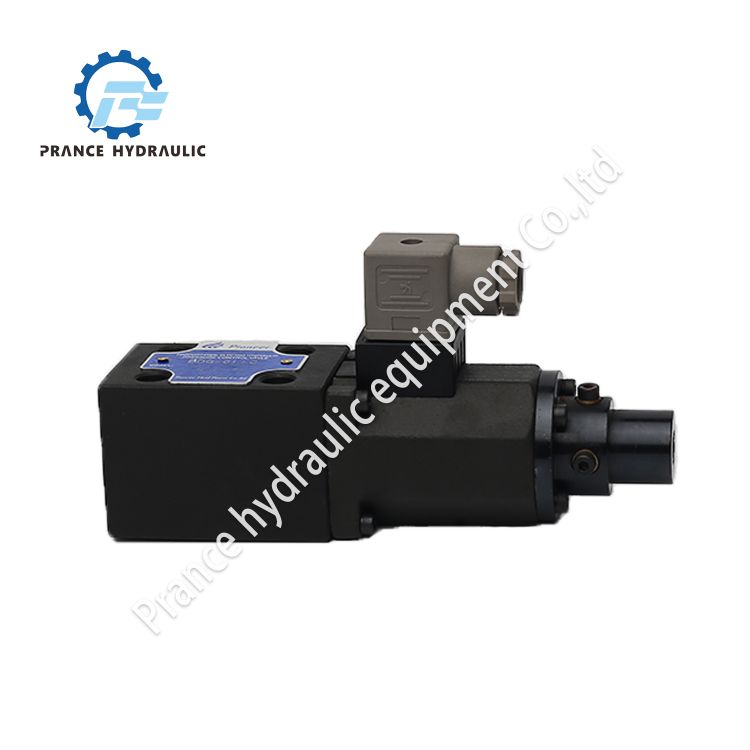

1. Direct-Acting Proportional Relief Valves

These use a single-stage design where the solenoid directly controls the poppet or spool. They are compact and respond quickly but are limited in flow capacity and maximum pressure handling.

Pros: Fast response, simple construction, lower cost
Cons: Limited to low-flow applications, less stable under high-pressure fluctuations

2. Pilot-Operated Proportional Relief Valves

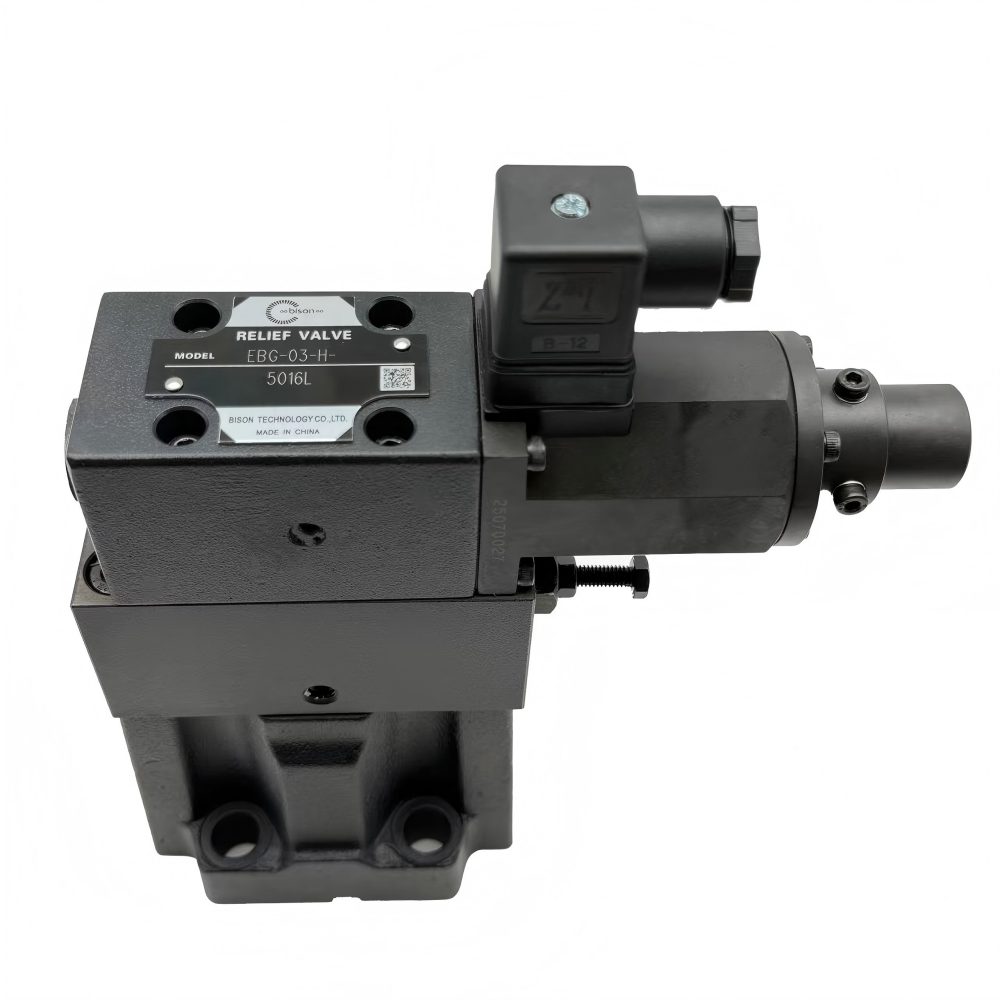

These employ a two-stage mechanism: a small proportional solenoid controls a pilot circuit, which in turn regulates the main valve. This design handles higher flows and pressures more effectively.

Pros: Higher flow capacity, better stability, suitable for heavy-duty systems
Cons: Slightly slower response, more complex, higher initial cost

3. Normally Closed vs. Normally Open

Most proportional relief valves are normally closed (NC), meaning they remain shut until energized. Some specialized versions are normally open (NO), used in fail-safe scenarios where pressure release is required upon power loss.

4. Analog vs. Digital Control

Analog-controlled valves accept continuous voltage or current signals (e.g., 0–10 V or 4–20 mA). Digital versions may include onboard microprocessors, offering programmable curves, self-diagnostics, and communication protocols like SAE J1939 or EtherCAT.

Key Features and Specifications to Evaluate

When evaluating how to choose a hydraulic proportional pressure relief valve, consider the following technical parameters:

Pressure Range: Ensure the valve’s minimum and maximum settings match your system requirements. Typical ranges span from 10 bar to over 350 bar.
Flow Capacity (L/min or GPM): Must accommodate peak system flow without excessive pressure drop.
Response Frequency: Measured in Hz, this indicates how fast the valve can react to input changes. High-frequency response (>50 Hz) is crucial for dynamic applications.
Hysteresis and Repeatability: Low hysteresis (<3%) ensures consistent performance across cycles.
Electrical Interface: Verify coil voltage (12V, 24V DC), connector type (DIN 43650, M12), and whether external amplifiers are needed.
Fluid Compatibility: Check seal materials (NBR, FKM, EPDM) against your hydraulic fluid (mineral oil, water-glycol, biodegradable).
Mounting Style: Common options include inline, subplate, or cartridge designs. Subplate-mounted valves offer easier servicing.
IP Rating: For harsh environments, select IP65 or higher to protect against dust and moisture.

Pros and Cons

Advantages

Enables precise, continuous pressure regulation
Supports energy-saving load-sensing and variable displacement pump controls
Integrates seamlessly with electronic control systems
Reduces mechanical stress and thermal buildup in the system
Allows remote or automated adjustments

Disadvantages

Higher initial cost compared to conventional relief valves
Requires stable power supply and potentially external amplifier electronics
More complex troubleshooting due to electronic components
Sensitive to contamination; demands clean hydraulic fluid (NAS 1638 Class 8 or better)
May require calibration during installation or maintenance

These valves are best suited for applications demanding high control accuracy and adaptability. However, for simple, constant-pressure systems with minimal variation, a standard relief valve may be more cost-effective and reliable.

How to Choose a Hydraulic Proportional Pressure Relief Valve

Follow this step-by-step guide to ensure you select the optimal model:

Define System Requirements: Determine operating pressure, flow rate, fluid type, and temperature range. Use manufacturer datasheets to verify compatibility.
Select the Right Type: Choose direct-acting for low-flow, fast-response needs; pilot-operated for high-pressure, high-flow systems.
Evaluate Control Signal Needs: Decide between analog (simpler) or digital (smarter, programmable) control based on automation level.
Check Mounting and Port Size: Match thread type (SAE, BSPP, BSPT) and port size (e.g., 1/4", 3/8") to existing manifolds or plumbing.
Assess Environmental Conditions: If exposed to dirt, moisture, or vibration, opt for robust housings and high IP ratings.
Review Power Supply: Confirm available voltage and current; some valves require PWM amplifiers for optimal performance.
Look for Diagnostic Features: Models with status indicators or error reporting simplify maintenance.
Avoid Red Flags: Be cautious of vendors who don’t provide full technical documentation, lack pressure/flow curves, or offer unusually low prices—these may indicate counterfeit or substandard products.

Price & Market Insights

Pricing for hydraulic proportional pressure relief valves varies significantly based on size, performance, and brand. Entry-level direct-acting models start around $150–$250, while high-performance pilot-operated units with digital electronics can exceed $800–$1,200.

Mid-range options ($300–$600) from reputable brands like Bosch Rexroth, Parker Hannifin, and Danfoss offer the best balance of reliability and functionality for most industrial users. OEMs and bulk buyers can often negotiate discounts of 15–30% through authorized distributors.

When assessing value, consider total cost of ownership—not just purchase price. A slightly more expensive valve with better efficiency and longevity may save thousands in energy and downtime over its lifespan.

Top-Seller & Competitive Analysis

Below is a comparison of widely used models in the market:

Model	Max Pressure (bar)	Flow Rate (L/min)	Control Type	Approx. Price
Bosch Rexroth 4WRZE 16	315	200	Analog	$950
Parker PH10PAA10	250	120	Analog	$420
Danfoss PVB16	350	160	Digital	$780
Yuken SPY2-03	210	60	Analog	$280

While Bosch and Parker dominate the premium segment, Yuken and HAWE offer competitive alternatives with strong performance at lower price points. Always compare actual test data rather than relying solely on published specs.

Customer Feedback Synthesis

Analysis of user reviews and field reports reveals common themes:

Positive Feedback: Users consistently praise the smooth pressure control, integration ease with PLCs, and energy savings. Many note reduced noise and vibration compared to traditional valves. Long-term reliability is frequently mentioned for branded units maintained with clean fluid.

Common Complaints: Some buyers report issues with inconsistent performance when using unregulated power supplies or dirty hydraulic oil. Others mention difficulty calibrating certain models without proprietary software. A few low-cost imports were criticized for premature coil failure or inaccurate pressure settings.

To avoid such problems, always follow manufacturer-recommended filtration standards (typically 10 μm or finer) and use regulated power sources with proper grounding.

Sourcing & Supplier Tips

Purchase from authorized distributors or certified online platforms like Motion Industries, RS Components, or McMaster-Carr to ensure authenticity. Avoid third-party marketplaces unless seller credentials and product warranties are verifiable.

For bulk purchases, request sample testing before placing large orders. Ask suppliers for performance curves, test certificates, and compliance documentation (e.g., CE, ISO 4413). When sourcing internationally, confirm voltage compatibility and customs regulations for electronic components.

If considering remanufactured or surplus units, inspect for signs of wear, verify coil resistance, and test functionality under load if possible.

Maintenance, Safety & Legal Considerations

Regular maintenance includes checking for leaks, verifying electrical connections, and ensuring fluid cleanliness. Replace filters according to schedule and monitor for abnormal noise or erratic behavior, which may indicate internal wear or contamination.

Safety-wise, always depressurize the system before servicing. Lockout/tagout procedures should be followed during maintenance. Never bypass or tamper with safety-rated valves.

From a regulatory standpoint, hydraulic systems must comply with local machinery directives (e.g., EU Machinery Directive 2006/42/EC) and pressure equipment standards. Ensure any installed valve meets applicable ISO standards such as ISO 10770-1 for testing methods and ISO 4413 for general rules.

Conclusion

Choosing the right hydraulic proportional pressure relief valve requires careful evaluation of your system's pressure, flow, control, and environmental needs. These valves offer superior precision and efficiency compared to conventional alternatives, especially in automated or variable-load applications. Focus on reputable brands, clear technical documentation, and compatibility with your existing infrastructure. By prioritizing performance metrics like response time, hysteresis, and fluid cleanliness, you can maximize reliability and return on investment. Whether you're upgrading a single machine or designing a new system, understanding what to look for in a hydraulic proportional pressure relief valve will help you make a confident, informed decision.

FAQs

Q: What is the difference between a proportional relief valve and a standard relief valve?
A: A standard relief valve opens fully at a set pressure, while a proportional valve modulates gradually based on an electrical signal, allowing precise, variable pressure control.

Q: Can I replace a manual relief valve with a proportional one?
A: Yes, provided the mounting, flow, and pressure ratings are compatible—and you have a control system to manage the electrical input.

Q: How important is hydraulic fluid cleanliness for proportional valves?
A: Critical. Contamination is a leading cause of failure. Maintain fluid cleanliness to NAS Class 8 or better using appropriate filters.

Q: Do proportional pressure relief valves need an amplifier?
A: Most do, especially analog models, to convert low-level control signals into the power needed to drive the solenoid accurately.

Q: Are there energy benefits to using a proportional relief valve?
A: Yes. By maintaining only the required pressure, they reduce wasted energy and heat generation, improving overall system efficiency.
