How to Choose the Best Hydraulic Press Frame Kit 4 Column: Ultimate Buying Guide

When choosing a hydraulic press frame kit 4 column, prioritize structural rigidity, material quality (preferably ASTM A36 or equivalent steel), and precise column alignment to ensure long-term durability and consistent force distribution. For most industrial or heavy-duty workshop applications, a C-frame or 4-post design with a minimum tensile strength of 50,000 psi offers optimal stability. If you're searching for how to choose hydraulic press frame kit 4 column effectively, focus on load capacity matching your needs—typically between 20 to 100 tons—and confirm compatibility with standard hydraulic cylinders and mounting dimensions 1. Avoid kits with vague specifications or missing engineering drawings.

About Hydraulic Press Frame Kit 4 Column

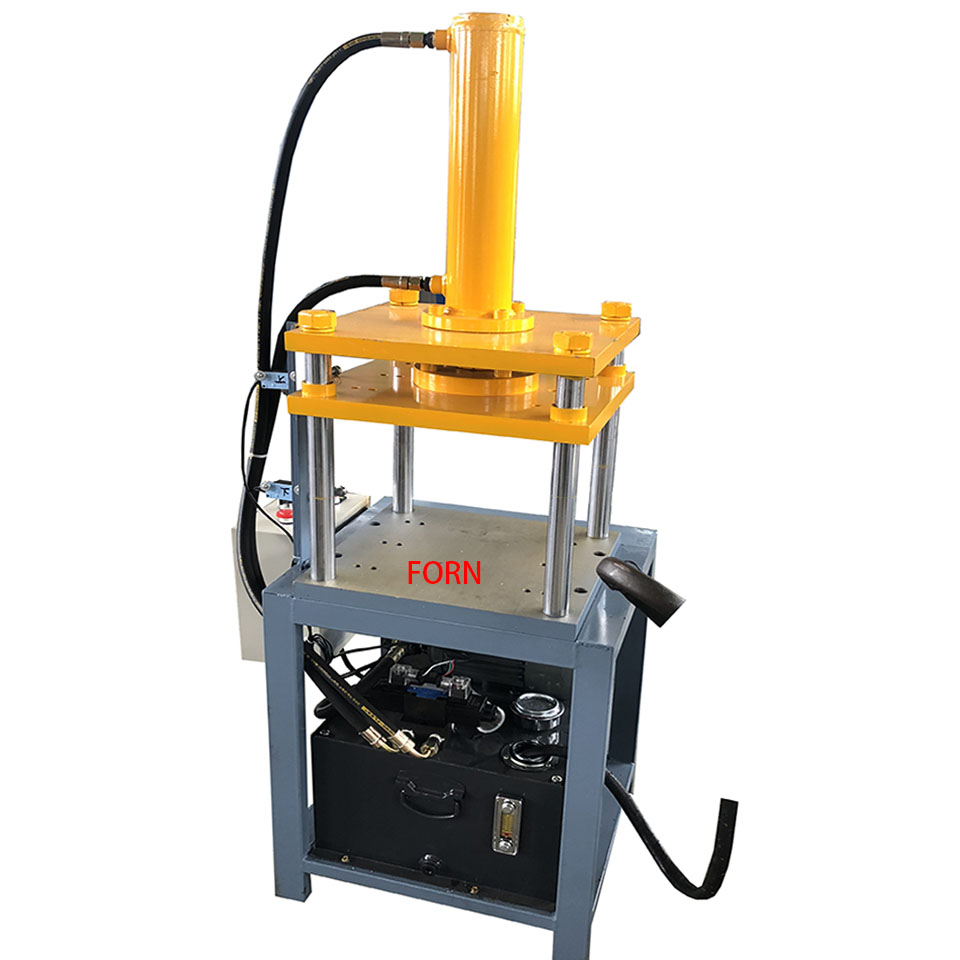

A hydraulic press frame kit 4 column is a modular assembly designed to support vertical pressing operations using hydraulic force. It consists of a top plate, bottom base plate, and four precision-ground steel columns that maintain alignment under high pressure. These kits are commonly used in metal fabrication, automotive repair, die casting, powder compaction, and industrial maintenance tasks such as bearing pressing, shaft straightening, or stamping.

Unlike complete hydraulic presses, these kits do not include pumps, hoses, or control systems—they provide only the mechanical structure. This makes them ideal for custom builds where users already have hydraulic power units or want to integrate the press into automated workflows. The four-column configuration enhances load distribution and reduces deflection compared to C-frame models, making it suitable for applications requiring high repeatability and minimal lateral drift.

Why Hydraulic Press Frame Kit 4 Column Is Gaining Popularity

The demand for hydraulic press frame kit 4 column solutions has grown significantly due to increasing interest in DIY industrial machinery, small-scale manufacturing, and in-house maintenance capabilities. Workshops and fabricators are opting for modular systems because they offer flexibility, scalability, and cost savings over pre-assembled commercial presses.

Additionally, advancements in affordable CNC machining and standardized hydraulic components have made it easier for technicians and engineers to build reliable, high-performance presses from kits. Online communities, instructional videos, and open-source designs have further fueled adoption, especially among makerspaces, vocational schools, and independent repair shops looking for what to look for in hydraulic press frame kit 4 column setups.

Types and Variants

Several configurations exist within the category of hydraulic press frame kits. Understanding their differences helps match the right type to your application.

1. Standard 4-Post (Four-Column) Frame

Pros: High rigidity, even load distribution, excellent alignment retention, scalable height adjustment.
Cons: Larger footprint, heavier weight, more complex assembly than C-frames.

Ideal for repetitive production work where precision matters. Commonly used in labs and light manufacturing.

2. Benchtop 4-Column Mini Press Kit

Pros: Compact size, lower cost, easy storage, suitable for electronics or jewelry repair.
Cons: Limited stroke length and tonnage (usually under 10 tons).

Better suited for delicate tasks like swaging connectors or assembling small gears.

3. Welded Monoblock vs. Bolted Assembly Kits

Welded Frames: Offer superior stiffness but lack adjustability; cannot be disassembled easily.
Bolted Frames: Allow field adjustments, transportability, and modular expansion—but require proper torque procedures to prevent loosening under cyclic loads.

For mobile or temporary setups, bolted variants are preferable. Permanent installations benefit from welded construction.

Key Features and Specifications to Evaluate

To make an informed decision on how to choose hydraulic press frame kit 4 column, consider the following technical parameters:

Load Capacity

Ensure the frame is rated for at least 20% above your maximum intended load to account for dynamic forces and safety margins. Most kits range from 15 to 100 tons. Verify whether the rating applies to the entire frame or just the cylinder.

Column Diameter and Spacing

Larger diameters (e.g., 1.5”–2”) resist buckling better. Wider spacing allows larger tooling access but increases overall footprint. Measure your workspace before selecting.

Material Grade and Finish

Look for frames constructed from low-carbon steel (ASTM A36) or alloy steel (like 4140), often heat-treated for added strength. Powder-coated or zinc-plated finishes help resist corrosion in humid environments.

Adjustability and Travel Height

Some kits allow adjustable crossheads via threaded nuts or locking collars. More travel height enables taller parts processing but may reduce stability if unsupported.

Mounting Interfaces

Check for T-slots, drilled holes, or universal mounting patterns compatible with common hydraulic cylinders (e.g., tie-rod or welded types). Misalignment here can lead to premature wear or failure.

Tolerance and Alignment Accuracy

Precision-ground columns should have runout tolerances below 0.002 inches per foot. Poor alignment causes uneven loading and accelerated component wear.

Pros and Cons

Advantages

Greater stability and accuracy than C-frame presses
Supports higher tonnages safely
Modular design allows integration with various hydraulic systems
Long service life when properly maintained
Cost-effective alternative to full press machines

Disadvantages

Requires separate purchase of hydraulic pump, cylinder, and controls
Assembly time and technical knowledge needed
Larger space requirement compared to compact presses
Potential for misalignment during installation if not carefully followed

This type of kit is best suited for users with some mechanical experience who need a customizable, durable press solution. It's less ideal for beginners or those needing immediate plug-and-play operation.

How to Choose Hydraulic Press Frame Kit 4 Column

Follow this step-by-step guide to avoid costly mistakes:

Define Your Application Needs: Will you press bearings, form metal, or compress materials? Determine required force, part size, and frequency of use.
Select Appropriate Tonnage: Use a safety factor of 1.5x your peak load. For example, if pressing requires 30 tons, select a 45-ton-rated frame.
Verify Dimensions: Confirm clear opening height, throat depth, and table size fit your typical workpieces.
Inspect Build Quality: Look for thick-walled tubing, clean welds (if applicable), and precision-machined contact surfaces.
Check Compatibility: Ensure the kit accepts standard hydraulic cylinders (SAE or ISO mounts) and aligns with your existing power unit.
Review Assembly Instructions: Prefer kits with detailed manuals, torque specs, and alignment guides.
Evaluate Supplier Reputation: Read customer feedback and check return policies before purchasing.

Red Flags to Avoid:

Vague product descriptions without material specs or load ratings
No engineering drawings or dimensioned diagrams
Missing tolerance information or surface finish details
Unrealistically low prices suggesting substandard materials
Lack of post-purchase support or warranty

Price & Market Insights

As of 2024, basic hydraulic press frame kit 4 column models start around $300–$500 for small benchtop versions (under 20 tons). Mid-range industrial-grade kits (30–60 tons) typically cost $800–$1,800. High-capacity or custom-fabricated units can exceed $3,000.

Higher price usually reflects better materials, tighter tolerances, and enhanced features like digital height indicators or quick-release mechanisms. However, value isn’t always tied to cost—some mid-tier brands offer excellent performance-to-price ratios. Consider total system cost: adding a quality hydraulic cylinder and pump may double initial investment.

Watch for bundled deals that include essential accessories like pressure gauges or mounting hardware, which can improve overall value.

Top-Seller & Competitive Analysis

While specific model availability varies by region and retailer, several well-regarded manufacturers produce reliable kits. Brands like HFrames, Baileigh Industrial, and Trenton Equipment are frequently cited in professional forums for durability and customer service.

Model	Tonnage	Frame Type	Price Range	Notable Features
HFrames HF-4P-50T	50 tons	Bolted 4-post	$1,200	Adjustable head, CNC-machined plates
Baileigh HP-604C	60 tons	Welded 4-column	$1,750	Integrated safety stops, powder coat finish
Trenton TK-30	30 tons	Compact 4-post	$900	Space-saving design, easy assembly

Note: Always verify current pricing and specifications directly with suppliers, as models may be updated or discontinued.

Customer Feedback Synthesis

Analysis of user reviews across major platforms reveals consistent themes:

Common Praises:

"Sturdy build quality and excellent alignment out of the box"
"Easy to assemble with included instructions"
"Great value compared to buying a full press"
"Perfect for our small shop’s daily pressing needs"

Frequent Complaints:

"Missing hardware in shipment—had to wait days for replacement"
"Poor paint finish and rust spots upon arrival"
"No technical drawings provided; had to measure everything myself"
"Hard to find compatible cylinder due to non-standard threading"

These insights highlight the importance of vendor reliability and thorough documentation. Buyers appreciate transparency and completeness in packaging and specifications.

Sourcing & Supplier Tips

Hydraulic press frame kits are available through industrial equipment distributors, online marketplaces (e.g., Amazon, eBay, Alibaba), and direct-from-manufacturer websites. For bulk purchases or reseller arrangements, contacting manufacturers directly often yields better pricing and customization options.

When sourcing internationally, verify shipping costs, import duties, and potential delays. Request photos of actual samples before committing to large orders. Upon delivery, inspect all components for damage and verify critical dimensions against stated specs.

If possible, test-fit the cylinder and platen before final assembly. Confirm thread types, pin sizes, and flatness of mounting surfaces.

Maintenance, Safety & Legal Considerations

Proper maintenance ensures longevity and safe operation:

Regularly inspect columns for scoring or bending
Lubricate threads and sliding surfaces monthly
Torque checking bolts every 50 hours of operation
Clean debris from platens after each use

Safety precautions:

Always use safety glasses and protective gear
Never exceed rated capacity
Use load cells or pressure gauges to monitor applied force

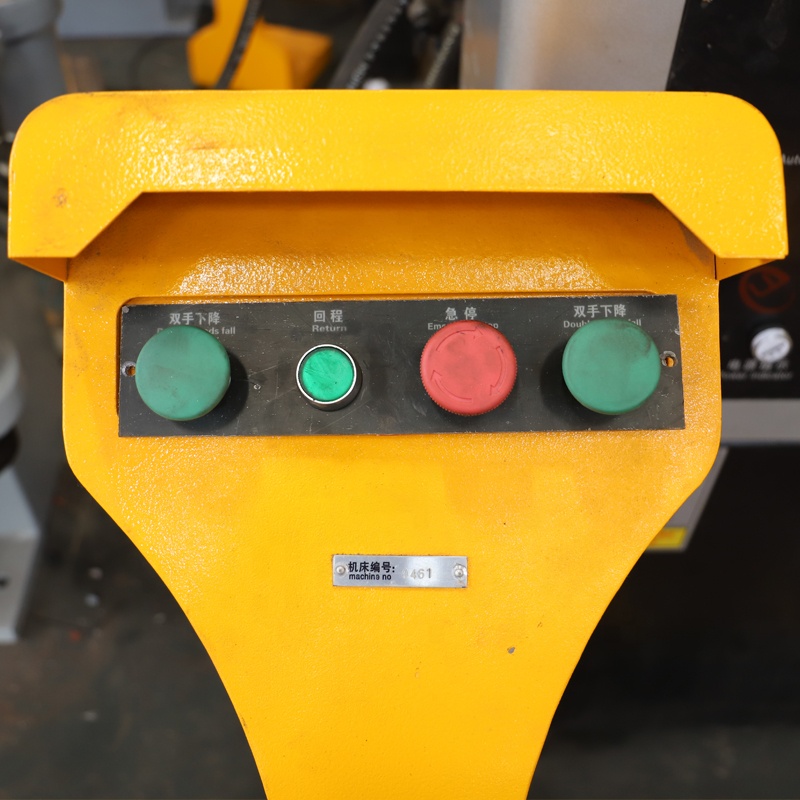

Install emergency stop mechanisms if integrating automation

Legally, while there are no universal certification requirements for DIY press frames in many regions, OSHA (in the U.S.) recommends compliance with general machine guarding standards (29 CFR 1910.212). In commercial settings, employers must ensure equipment does not pose undue risk to workers 2.

Conclusion

Choosing the right hydraulic press frame kit 4 column involves balancing performance needs, build quality, and budget. Prioritize structural integrity, precise alignment, and compatibility with your hydraulic system. Whether you’re building a custom press for a fabrication shop or upgrading a repair station, investing in a well-designed kit pays off in accuracy, safety, and durability. Focus on verified specifications, reputable suppliers, and realistic expectations based on your workload. By understanding what to look for in hydraulic press frame kit 4 column systems, you can build a powerful, reliable tool tailored to your exact requirements.

FAQs

Q: Can I use any hydraulic cylinder with a 4-column frame kit?
A: Not necessarily. Check the mounting pattern, center distance, and platen hole size to ensure compatibility. Standard tie-rod cylinders often work, but verify dimensions first.

Q: How important is column alignment in a 4-post press?
A: Critical. Even minor misalignment (over 0.002” per foot) can cause binding, uneven wear, or catastrophic failure under load.

Q: Do I need to weld the frame for better strength?
A: Not always. Well-designed bolted frames with proper preload can perform as well as welded ones and offer easier transport and adjustment.

Q: What tools are needed to assemble a hydraulic press frame kit?
A: Basic wrenches, socket set, torque wrench, level, and possibly a hoist for larger models. Some kits require drilling or tapping depending on customization.

Q: Are there safety certifications for DIY press frames?
A: While not mandatory for personal use, commercial installations should follow OSHA guidelines and local regulations regarding machine guarding and operator protection.
