How to Choose the Best Hydraulic Cylinder Test Equipment: A Complete Buying Guide

When choosing the right hydraulic cylinder test system for industrial or maintenance use, prioritize durability, pressure capacity, and ease of calibration. The best units offer portability, accurate pressure gauges, and compatibility with multiple cylinder sizes—ideal for field diagnostics and preventive maintenance. If you're searching for how to choose a hydraulic cylinder test kit, focus on adjustable load settings, built-in safety valves, and CE or ISO compliance to ensure reliability under high-pressure conditions.

About Hydraulic Cylinder Test

A hydraulic cylinder test refers to the process of evaluating the performance, integrity, and efficiency of hydraulic cylinders used in heavy machinery such as excavators, loaders, presses, and manufacturing equipment. This testing ensures that components like seals, rods, barrels, and piston assemblies function correctly under operational pressures. Testing is typically conducted using specialized rigs or portable test benches that simulate real-world loads and cycles.

These systems apply controlled hydraulic pressure to measure leakage rates, rod drift, internal bypassing, and structural fatigue. They are essential in predictive maintenance programs across industries including construction, agriculture, mining, and material handling. By identifying wear or failure risks early, technicians can prevent unplanned downtime and costly repairs.

Why Hydraulic Cylinder Test Is Gaining Popularity

The growing demand for efficient maintenance protocols has significantly increased interest in hydraulic cylinder test solutions. As industrial operators shift from reactive to proactive maintenance models, the ability to diagnose cylinder issues before catastrophic failure becomes critical. According to industry reports, up to 30% of hydraulic system failures originate from cylinder seal degradation or misalignment¹.

Additionally, rising labor and replacement part costs make repair-over-replacement more economical. Portable test kits allow service teams to evaluate cylinders on-site without disassembly, saving time and logistics expenses. Furthermore, regulatory standards in sectors like mining and offshore operations now require documented proof of hydraulic component integrity—making formalized hydraulic cylinder testing procedures mandatory rather than optional.

Types and Variants

Different types of hydraulic cylinder test equipment serve various applications, each with distinct advantages and limitations:

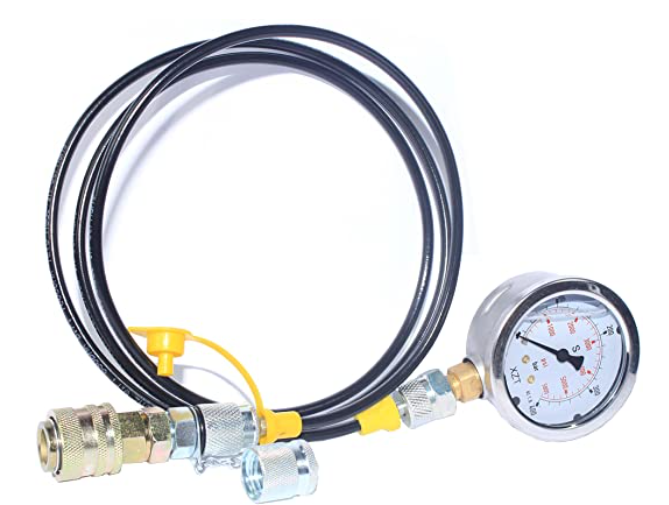

1. Portable Handheld Test Kits

Pros: Lightweight, battery-powered, easy to transport; ideal for field technicians.
Cons: Limited maximum pressure (typically up to 3,000 psi); fewer diagnostic features.
Best for: Routine checks, mobile repair services, small-to-medium-sized cylinders.

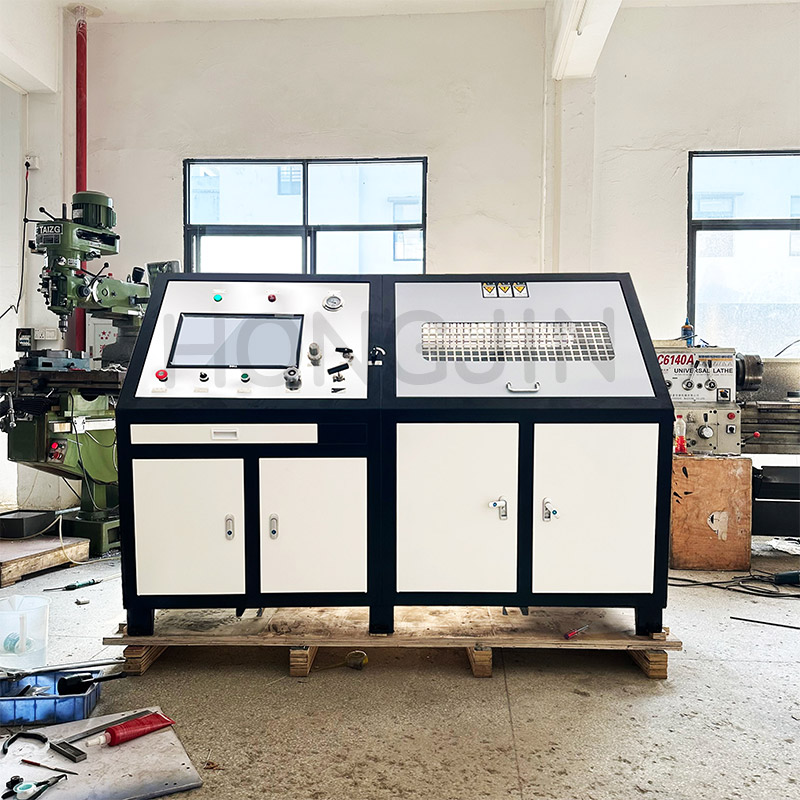

2. Benchtop Test Stands

Pros: Higher accuracy, integrated data logging, full-cycle simulation capabilities.
Cons: Not portable; requires dedicated workspace and power supply.
Best for: Repair shops, OEM facilities, detailed failure analysis.

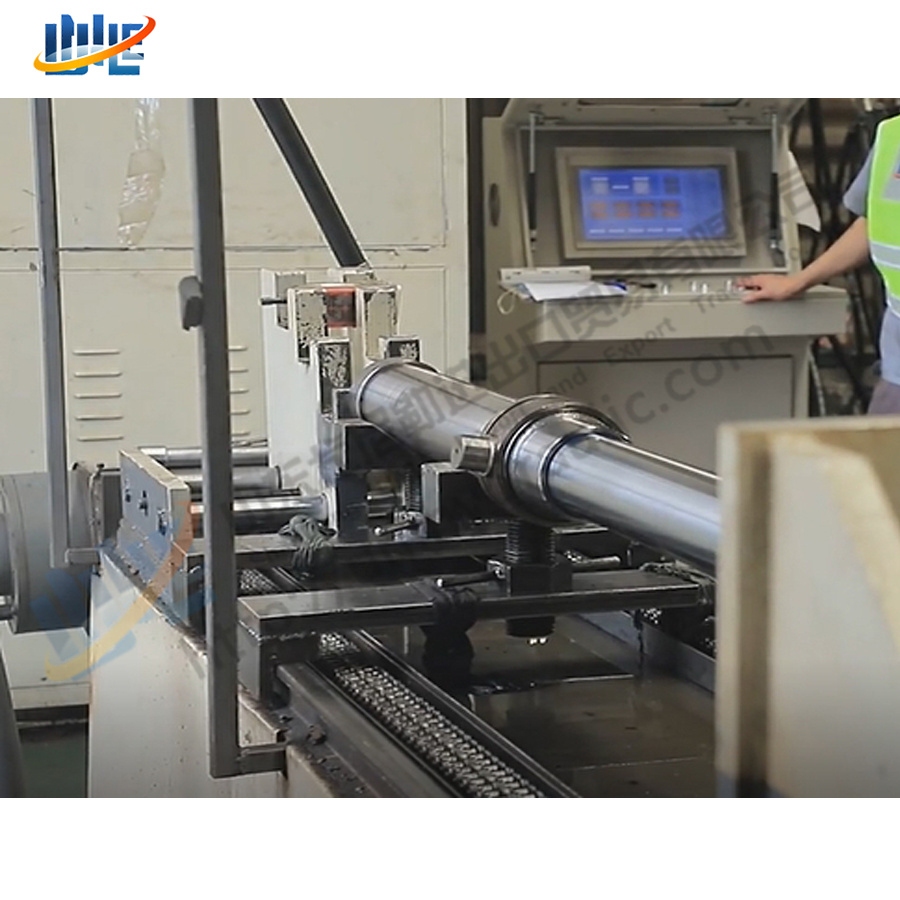

3. Fully Automated Test Systems

Pros: Programmable sequences, automatic reporting, multi-axis load simulation.
Cons: High cost ($10,000+), complex setup, needs trained personnel.
Best for: Large-scale manufacturing, quality assurance departments, R&D labs.

4. Custom-Built Rigs

Pros: Tailored to specific cylinder dimensions or force requirements.
Cons: Long lead times, higher engineering costs, limited flexibility.
Best for: Specialized applications (e.g., aerospace actuators, marine hydraulics).

Key Features and Specifications to Evaluate

To select the most suitable hydraulic cylinder test unit, consider these technical and operational parameters:

Maximum Pressure Rating: Must exceed the operating pressure of the cylinders being tested (commonly 2,500–7,000 psi). Always verify compatibility with high-pressure industrial cylinders.
Flow Rate Capacity: Measured in gallons per minute (GPM). Higher flow allows faster cycling during dynamic tests.
Pressure Gauge Accuracy: Look for ±1% FS (full scale) or better. Digital readouts with data export improve traceability.
Connection Types: Common fittings include SAE, JIC, ORFS. Adapters may be needed for legacy or international equipment.
Load Simulation: Some systems offer mechanical or hydraulic loading to mimic actual working conditions.
Safety Mechanisms: Emergency stop buttons, pressure relief valves, and burst protection hoses are essential.
Data Logging & Connectivity: USB, Bluetooth, or Ethernet ports enable report generation and compliance documentation.
Portability: Weight, handle design, and power source (AC vs. DC) affect usability in remote locations.

Pros and Cons

Advantages of Using a Hydraulic Cylinder Test System:

Reduces machine downtime through early fault detection.
Extends cylinder lifespan by enabling timely resealing or refurbishment.
Improves safety by identifying weak or damaged components before deployment.
Supports regulatory compliance and audit readiness in regulated environments.
Provides quantifiable data for maintenance records and warranty claims.

Disadvantages and Limitations:

Initial investment can be high, especially for automated systems.
Requires trained personnel to interpret results accurately.
Not all portable units can replicate extreme environmental conditions (e.g., temperature extremes).
May not detect micro-leakages without sensitive instrumentation.
Compatibility issues may arise with non-standard or obsolete cylinder designs.

How to Choose Hydraulic Cylinder Test Equipment

Selecting the right hydraulic cylinder test solution involves a structured evaluation process. Follow this step-by-step guide:

Define Your Use Case: Are you performing routine field inspections or detailed lab analysis? Field use favors portability; shop use benefits from precision.
Assess Cylinder Specifications: Note the bore size, stroke length, operating pressure, and connection type of the cylinders you service. Ensure the tester supports your largest and highest-pressure units.
Set a Realistic Budget: Entry-level kits start around $800, while advanced benchtop systems range from $3,000 to over $15,000. Balance upfront cost against long-term ROI.
Evaluate Safety Standards: Confirm the device meets recognized safety norms (e.g., ISO 4414, ANSI B93.2). Check for CE marking if importing into Europe.
Check Calibration Requirements: Most gauges need annual recalibration. Prefer models with NIST-traceable certificates and accessible service centers.
Review Warranty and Support: Look for at least a one-year warranty and responsive technical support. Availability of spare parts matters for longevity.
Avoid These Red Flags:
- No pressure relief mechanism.
- Vague or missing technical documentation.
- Use of low-grade hoses or connectors prone to bursting.
- Inconsistent customer reviews regarding durability or accuracy.

Price & Market Insights

The global market for hydraulic test equipment is segmented by functionality and automation level. Typical price ranges include:

Basic Portable Kits: $700–$1,500 — Suitable for small workshops or individual technicians.
Mid-Range Benchtop Units: $2,500–$6,000 — Offer digital monitoring, moderate automation, and better build quality.
High-End Automated Systems: $8,000–$20,000+ — Found in industrial OEMs and certified repair centers.

Value isn’t solely determined by price. Consider total cost of ownership: maintenance, calibration, training, and potential productivity gains. Brands like HydraForce, Parker Hannifin, and Enerpac offer reliable mid-to-high-end options, though generic alternatives exist at lower price points. Be cautious with extremely cheap imports—verify material quality and pressure ratings independently.

Model Type	Max Pressure	Portability	Data Logging	Approx. Price
Handheld Digital Kit	3,000 psi	High	Limited (manual entry)	$950
Benchtop Analog Stand	5,000 psi	Low	No	$3,200
Automated Test Rig	7,000 psi	None	Yes (software included)	$14,500

Top-Seller & Competitive Analysis

Leading models in the hydraulic cylinder test category differentiate themselves through build quality, software integration, and brand reputation. For example, the Parker IQAN-based test rig offers programmable sequences and cloud reporting, appealing to fleet maintenance managers. In contrast, HydraTech’s portable HT-2000 emphasizes ruggedness and simplicity for field use.

When comparing top sellers, assess not just features but also ecosystem support—availability of firmware updates, accessories, and third-party service networks. Avoid relying solely on advertised specs; consult independent user forums or trade publications for real-world performance insights.

Customer Feedback Synthesis

Analysis of buyer reviews across platforms reveals consistent themes:

Common Praises:

“Saved us hours diagnosing drift issues in excavator arms.”
“Easy setup and clear pressure readings even in noisy environments.”
“Robust construction survived repeated job site use.”

Frequent Complaints:

“Missing adapters made initial use frustrating.”
“Battery life on handheld unit lasted only 1.5 hours under load.”
“Software crashes when exporting large datasets.”
“No English manual included despite U.S. listing.”

These highlight the importance of verifying accessory inclusion, language support, and software stability before purchase.

Sourcing & Supplier Tips

When sourcing hydraulic cylinder test equipment, consider both online and direct channels:

Authorized Distributors: Offer warranties, technical support, and genuine parts. Ideal for high-value purchases.
Industrial Marketplaces (e.g., Alibaba, ThomasNet): Useful for comparing specs and pricing, but verify supplier credentials and request product certifications.
Bulk Purchases: Discounts of 10–20% may apply for orders of three or more units. Negotiate calibration services or training as part of the deal.
Dropshipping/Reselling: Possible with some suppliers, but confirm branding policies and return terms.
Pre-Shipment Inspection: For overseas orders, hire a third-party inspector to verify build quality and function before shipment.

Maintenance, Safety & Legal Considerations

Proper care ensures longevity and safe operation:

Maintenance: Regularly inspect hoses, seals, and couplings for wear. Replace hydraulic fluid annually or per manufacturer guidelines. Store in dry, temperature-controlled environments.
Safety: Always depressurize before disconnecting. Wear protective eyewear and gloves. Use safety cages when testing under high load.
Legal Compliance: In many jurisdictions, pressure testing equipment must comply with local regulations (e.g., OSHA in the U.S., PUWER in the UK). Maintain logs of calibration and operator training for audits.

Conclusion

Choosing the right hydraulic cylinder test system hinges on matching your operational needs with the correct balance of portability, accuracy, and safety. Whether you're a field technician needing a lightweight kit or a facility manager investing in automated diagnostics, prioritize verified specifications, reputable suppliers, and long-term support. Focus on models that offer scalability, compliance readiness, and proven reliability. By carefully evaluating types, features, and real-user experiences, you can make a confident, cost-effective decision that enhances both safety and productivity.

FAQs

Q: What is the most important specification to check when buying a hydraulic cylinder test unit?
A: Maximum pressure rating—it must exceed the operating pressure of the cylinders you intend to test.

Q: Can I use a hydraulic cylinder test kit to check for internal leaks?
A: Yes, most systems can detect internal bypassing by measuring drift or pressure loss over time under closed-center conditions.

Q: How often should I calibrate my hydraulic test equipment?
A: Annually is standard, but refer to the manufacturer’s recommendations. Critical applications may require semi-annual calibration.

Q: Are there safety risks involved in hydraulic cylinder testing?
A: Yes—high-pressure systems can fail catastrophically. Always follow safety protocols, use proper PPE, and ensure relief valves are functional.

Q: Do hydraulic cylinder test systems work with all types of fluids?
A: Most are compatible with standard mineral-based hydraulic oils. Check compatibility if using synthetic, water-glycol, or biodegradable fluids.
