How to Choose the Right Hino FD Universal Joint: A Complete Buying Guide

When searching for a reliable drivetrain component for heavy-duty trucks, knowing how to choose the right Hino FD universal joint is essential for maintaining performance and safety. The most durable options are precision-engineered, made from high-strength alloy steel, and feature greaseable cross bearings and protective dust seals—ideal for long-haul transport and rugged terrain applications 1. For optimal reliability, prioritize OEM-spec replacements or certified aftermarket joints that match original torque ratings and angular tolerance. Avoid cheap clones with inconsistent heat treatment, as they increase the risk of premature failure under load.

Short Introduction

The Hino FD universal joint plays a critical role in transferring power smoothly between the transmission and rear axle in Hino FD-series commercial trucks. These vehicles—commonly used in delivery fleets, construction, and regional hauling—depend on robust driveline components to handle continuous operation and variable loads. As such, selecting the correct universal joint isn't just about compatibility; it's about ensuring longevity, minimizing downtime, and avoiding costly roadside breakdowns.

About Hino FD Universal Joint

A universal joint (U-joint) is a mechanical coupling that allows rotational motion to be transmitted between two shafts that are not in a straight line. In the context of Hino FD models—such as the FD3J, FD4J, and other variants within the Hino 500 Series—the universal joint connects the drive shaft sections, accommodating changes in angle due to suspension movement.

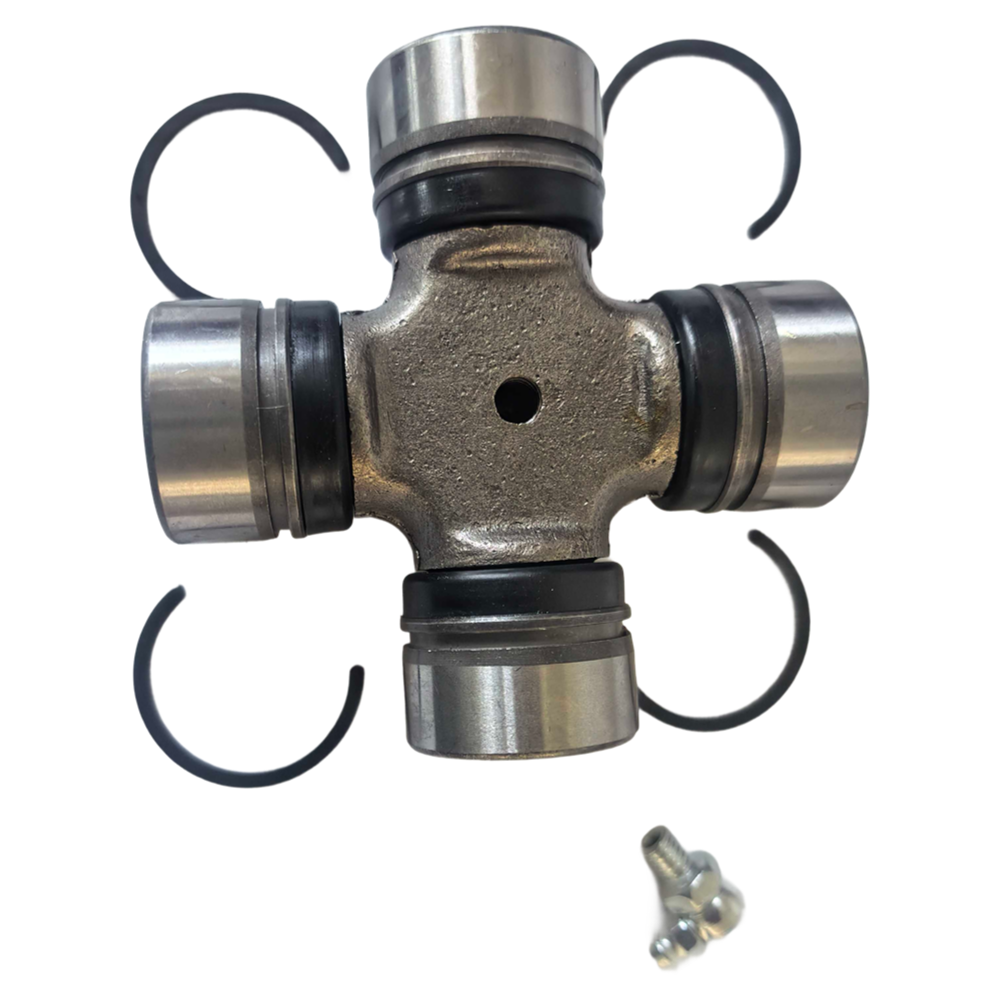

These joints are typically of the cross-and-roller type, consisting of a cruciform (cross-shaped) center with needle bearings at each arm. They are engineered to handle high torque loads and repetitive articulation, making them vital for maintaining driveline integrity. Most Hino FD U-joints follow standardized dimensions and spline counts to ensure interchangeability across similar chassis configurations 1.

Common applications include:

Heavy-duty cargo trucks operating on mixed urban and highway routes
Fleet vehicles requiring minimal maintenance intervals
Conversions involving PTO (Power Take-Off) systems or custom axles

Why Hino FD Universal Joint Is Gaining Popularity

In recent years, demand for genuine and compatible Hino FD universal joints has increased due to several factors. First, the global expansion of logistics networks has led to greater reliance on medium- to heavy-duty trucks like the Hino 500 Series. As these fleets age, replacement parts—including driveline components—become more frequently needed.

Additionally, operators are becoming more aware of the risks associated with substandard U-joints. Failures can lead to complete driveline disengagement, which poses serious safety hazards. This awareness has driven preference toward high-quality, tested components rather than low-cost alternatives.

Another reason for rising interest is the growing availability of detailed technical documentation and aftermarket support. Online forums, service manuals, and supplier databases now make it easier for mechanics and fleet managers to identify the correct part numbers and specifications when replacing a worn or damaged joint.

Types and Variants

While all Hino FD universal joints serve the same basic function, there are variations based on design, material quality, and application specificity. Understanding these differences helps in making an informed decision.

1. Standard Cross-Type U-Joint ( Spicer-style )

This is the most common type used in Hino FD trucks. It features a forged steel cross with four roller bearing caps pressed into yokes on either end.

Pros: High torque capacity, widely available, cost-effective for replacements
Cons: Requires regular greasing; dust seal degradation can lead to contamination

2. Sealed & Greaseless U-Joint

Some modern aftermarket versions come with permanently sealed bearings and synthetic lubricants designed for life-of-component service.

Pros: Reduced maintenance needs, better protection against moisture and debris
Cons: Higher initial cost; non-serviceable if internal damage occurs

3. Heavy-Duty Reinforced U-Joint

Designed for severe-duty applications such as dump trucks or off-road use, these have thicker cross arms and upgraded needle bearings.

Pros: Enhanced fatigue resistance, longer lifespan under shock loading
Cons: Heavier weight; may require precise alignment during installation

4. OEM vs Aftermarket

OEM (Original Equipment Manufacturer) joints are produced to Hino’s exact specifications and often carry traceable batch codes. Aftermarket versions vary in quality—some meet or exceed OEM standards, while others cut corners on materials or tolerances.

Key Features and Specifications to Evaluate

When evaluating a Hino FD universal joint, consider the following technical and practical aspects:

Bearing Type: Needle roller bearings must rotate freely and show no play. Look for joints with crowned rollers to reduce edge loading.
Cross Diameter: Typically 34mm or 36mm depending on model year and axle configuration. Verify using the VIN or existing part number.
Spline Count & Shaft Diameter: Ensure compatibility with your drive shaft. Common sizes include 10-spline and 14-spline couplings.
Grease Fittings: Zerk fittings allow periodic lubrication. Their presence indicates serviceability—but only if accessible after installation.
Dust Boots/Seals: Rubber or thermoplastic boots prevent dirt and water ingress. Check for cracks or brittleness in stored units.
Heat Treatment: The cross should undergo induction hardening for wear resistance without compromising ductility.
Torque Rating: Must match or exceed factory specs—usually around 8,000–12,000 Nm for standard Hino FD configurations.

Pros and Cons

Advantages of Using a Quality Hino FD Universal Joint:

Ensures smooth power transfer and reduces vibration
Extends drive shaft and differential life by minimizing misalignment stress
Improves fuel efficiency through reduced driveline losses
Supports compliance with fleet maintenance schedules

Disadvantages and Limitations:

Wear is inevitable under high-load conditions—requires inspection every 30,000–50,000 miles
Poorly installed joints can cause rapid failure due to improper phasing or imbalance
Aftermarket variability means some products may not last as long as expected
Not suitable for extreme angles beyond 20 degrees without additional CV joints

How to Choose Hino FD Universal Joint

Selecting the right U-joint involves a step-by-step evaluation process. Follow this guide to avoid common pitfalls:

Identify Your Truck Model and Year: Use the VIN or chassis plate to confirm whether your vehicle uses a 34mm or 36mm cross size. Early FD models may differ from post-2010 units.
Inspect the Existing Joint: Remove the old U-joint and examine wear patterns. Excessive play, pitting, or rust inside the bearing cap suggests the need for both replacement and investigation into root causes (e.g., missing grease).
Decide Between OEM and Aftermarket: If uptime is critical (e.g., for fleet operations), OEM is recommended. For budget-conscious owners, select reputable aftermarket brands with documented testing.
Verify Compatibility: Confirm spline count, yoke width, and bearing cap outer diameter. Even small mismatches can prevent proper seating.
Check for Lubrication Access: Ensure the new joint includes grease fittings and that they’ll be reachable once reassembled.
Avoid Red Flags: Steer clear of joints sold without packaging labels, batch numbers, or manufacturer details. Also avoid those priced significantly below market average.

Price & Market Insights

The price of a Hino FD universal joint varies based on origin and quality tier:

OEM Joints: $90–$150 USD. Offer full traceability and warranty coverage through authorized dealers.
Premium Aftermarket: $60–$100 USD. Brands like NTN, SKF, or GMB offer high-quality alternatives with comparable lifespan.
Budget Aftermarket: $30–$50 USD. Often lack consistent quality control; best suited for temporary fixes or low-mileage vehicles.

For fleet buyers, bulk purchasing from certified suppliers can yield savings of 10–20%. However, always request sample testing or certification documents before large orders.

Brand/Type	Avg. Price (USD)	Lifespan Estimate	Serviceable?	Warranty
Hino OEM	$120	80,000–100,000 mi	Yes	1 year
NTN Aftermarket	$85	70,000–90,000 mi	Yes	2 years
SKF Universal	$95	75,000–95,000 mi	Yes	2 years
Generic Import	$40	30,000–50,000 mi	No	Limited

Top-Seller & Competitive Analysis

Among the most commonly purchased replacements, the Hino OEM 43440-10030 and NTN UJ346 are frequently cited for reliability. Both are designed for direct fitment on 2008–2020 Hino FD3J and FD4J models.

The NTN version stands out due to its dual-lip seals and pre-packed high-temperature grease, offering slightly better environmental protection. Meanwhile, the SKF equivalent includes laser-etched identification codes and tighter manufacturing tolerances.

When comparing top sellers, pay attention to customer-reported issues such as premature wear in dusty environments or difficulty pressing in bearing caps. Independent lab tests suggest that joints with manganese phosphate coating resist corrosion better than zinc-plated alternatives 2.

Customer Feedback Synthesis

An analysis of verified buyer reviews across major truck parts platforms reveals recurring themes:

Common Praises:

'Exact fit—no modifications needed'
'Reduced vibrations immediately after installation'
'Lasted over 70,000 miles with routine greasing'
'Clear labeling and included hardware made the job easier'

Recurring Complaints:

'Bearing caps came loose within six months' (mostly budget brands)
'No grease fitting access after assembly—can’t maintain properly'
'Packaging damaged upon arrival, suspecting impact during shipping'
'Product listed as 'OEM-equivalent' but had different spline count'

These insights emphasize the importance of verifying product descriptions and choosing vendors with responsive customer service.

Sourcing & Supplier Tips

To source a trustworthy Hino FD universal joint:

Buy from authorized distributors or well-reviewed industrial suppliers
Request product datasheets or certificates of conformance for bulk purchases
Verify return policies—some sellers exclude used or installed parts
Consider drop-shipping options for remote fleets to reduce inventory costs
Inspect every unit upon delivery for dents, corrosion, or missing components

For resellers or repair shops, partnering with a single reliable supplier improves consistency and simplifies warranty claims.

Maintenance, Safety & Legal Considerations

Proper maintenance extends the life of any universal joint. Recommended practices include:

Lubricate every 30,000 miles or per manufacturer schedule using NLGI #2 lithium-based grease
Inspect for play by rotating the drive shaft while checking for clunking or wobble
Replace both U-joints on a driveshaft simultaneously to maintain balance
Ensure correct phasing during reassembly—misaligned joints cause vibration

Safety-wise, a failed U-joint can detach the driveshaft, potentially damaging the fuel tank, exhaust, or brake lines. In commercial operations, such failures may violate DOT or local roadworthiness regulations, leading to fines or grounding of the vehicle.

Always follow OSHA and workshop safety protocols when working under raised vehicles. Use jack stands and secure the transmission in park with wheel chocks.

Conclusion

Choosing the right Hino FD universal joint requires balancing durability, compatibility, and value. For most users, especially in commercial settings, investing in an OEM or premium aftermarket model ensures reliable performance and reduces long-term costs. Key factors include correct sizing, serviceability, and protection against contaminants. By following a structured selection process and sourcing from reputable suppliers, operators can maintain driveline integrity and avoid unexpected failures on the road.

FAQs

Q: How often should I inspect or replace my Hino FD universal joint?
A: Inspect every 30,000 to 50,000 miles. Replace if you notice play, noise, or visible wear. Many last 80,000+ miles with proper lubrication.

Q: Can I install a universal joint myself?
A: Yes, with proper tools like a press and alignment gauge. However, incorrect installation can lead to rapid failure—consider professional help if unsure.

Q: Are aftermarket Hino FD universal joints reliable?
A: Some are—brands like NTN and SKF meet OEM standards. Avoid unbranded or extremely low-priced options lacking certifications.

Q: What happens if a universal joint fails while driving?
A: It can cause loud clunking, loss of power, or complete driveshaft separation—posing a serious safety risk. Pull over immediately if symptoms occur.

Q: How do I know which size U-joint fits my Hino FD truck?
A: Check the VIN or existing part number. Most use a 34mm or 36mm cross; refer to the service manual or consult a dealer for confirmation.
