How to Choose a Handheld Enclosure Control HMI Panel Industrial Box with Cantilever Mount

When selecting a handheld enclosure control HMI panel industrial hmi panel box cantilever setup, prioritize ruggedness, environmental protection (IP65 or higher), compatibility with your control system, and ergonomic design. The ideal solution combines a durable handheld enclosure with an industrial HMI panel and a flexible cantilever mount for dynamic environments like manufacturing floors, mobile machinery, or outdoor operations. Look for models with high brightness displays, responsive touchscreens, and vibration resistance if used in heavy equipment 1. For applications requiring mobility and adjustability, a cantilever-mounted industrial HMI panel box ensures optimal viewing angles and operator comfort.

About Handheld Enclosure Control HMI Panel Industrial HMI Panel Box Cantilever

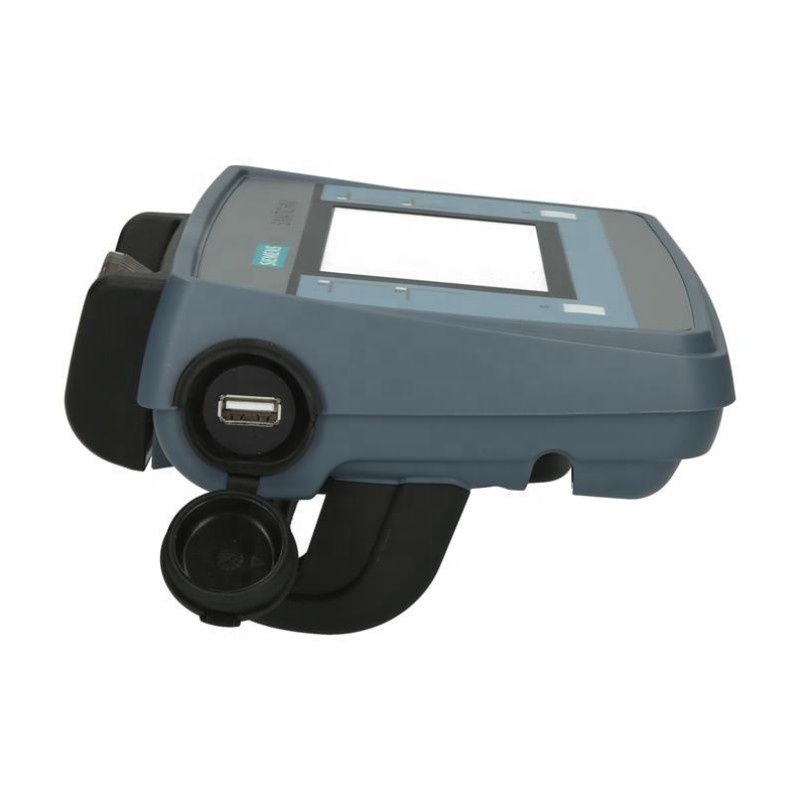

A handheld enclosure control HMI panel industrial hmi panel box cantilever refers to a complete operator interface system designed for industrial automation. It integrates three core components: a protected handheld enclosure that houses the HMI (Human-Machine Interface) panel, the industrial-grade HMI unit itself, and a cantilever-style mounting arm that allows for extended reach and flexible positioning. This configuration is commonly used in environments where fixed panels are impractical, such as on large machines, robotic arms, material handling systems, or service vehicles.

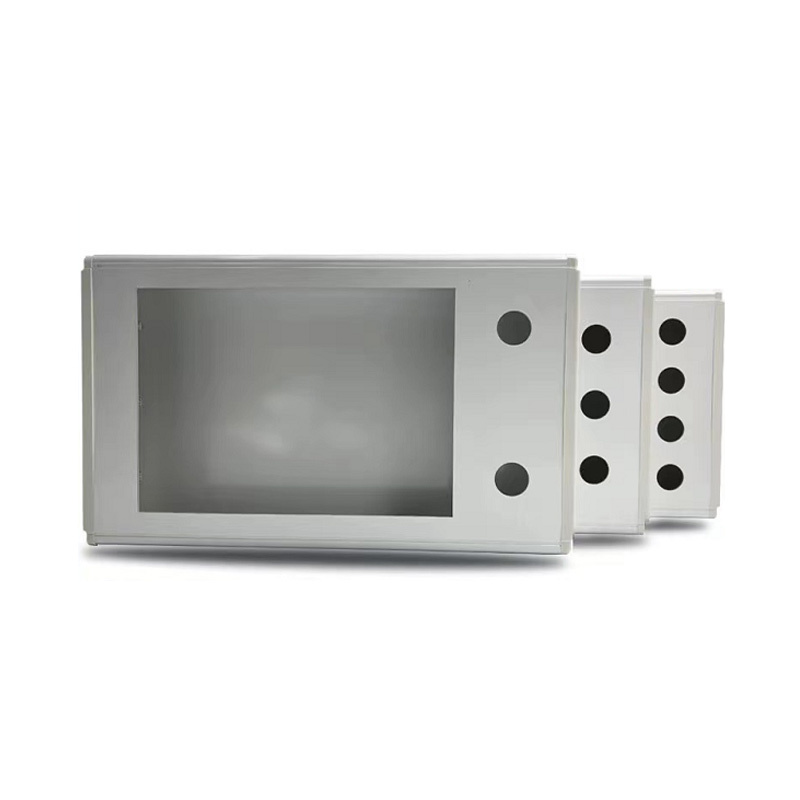

The handheld enclosure protects the HMI from dust, moisture, impacts, and electromagnetic interference. These enclosures are typically made from polycarbonate, aluminum, or stainless steel and rated to at least IP65. The HMI panel enables operators to monitor processes, input commands, view diagnostics, and adjust parameters in real time. When paired with a cantilever mount, the entire assembly can be positioned ergonomically across a wide range of motion, reducing strain and improving efficiency.

Why Handheld Enclosure Control HMI Panel Industrial HMI Panel Box Cantilever Is Gaining Popularity

Industries are increasingly adopting modular and mobile control solutions to improve operational flexibility. The demand for a handheld enclosure control HMI panel industrial hmi panel box cantilever setup has grown due to several key factors:

Mobility: Operators can move the HMI closer to the point of action, especially useful in maintenance, inspection, or multi-station workflows.
Ergonomics: Cantilever mounts reduce physical strain by allowing height and angle adjustments without fixed wall installations.
Space Efficiency: In compact or crowded facilities, swing-arm mounts save floor and panel space.
Durability: Modern enclosures withstand harsh conditions—oil, coolant, vibration, and temperature extremes—common in industrial settings.
Integration: These systems support common industrial protocols like Modbus, Profibus, Ethernet/IP, and Profinet, ensuring seamless communication with PLCs and SCADA systems 2.

Types and Variants

Several configurations exist under the umbrella of handheld enclosure control HMI panel industrial setups with cantilever mounting. Understanding their differences helps match the right type to your application.

1. Fixed-Arm vs. Articulating Cantilever Mounts

Fixed-arm models offer limited adjustability but are simpler and more cost-effective. Best suited for semi-permanent setups where the operator position rarely changes.

Pros: Lower cost, higher rigidity, easier installation.
Cons: Limited range of motion, less ergonomic flexibility.

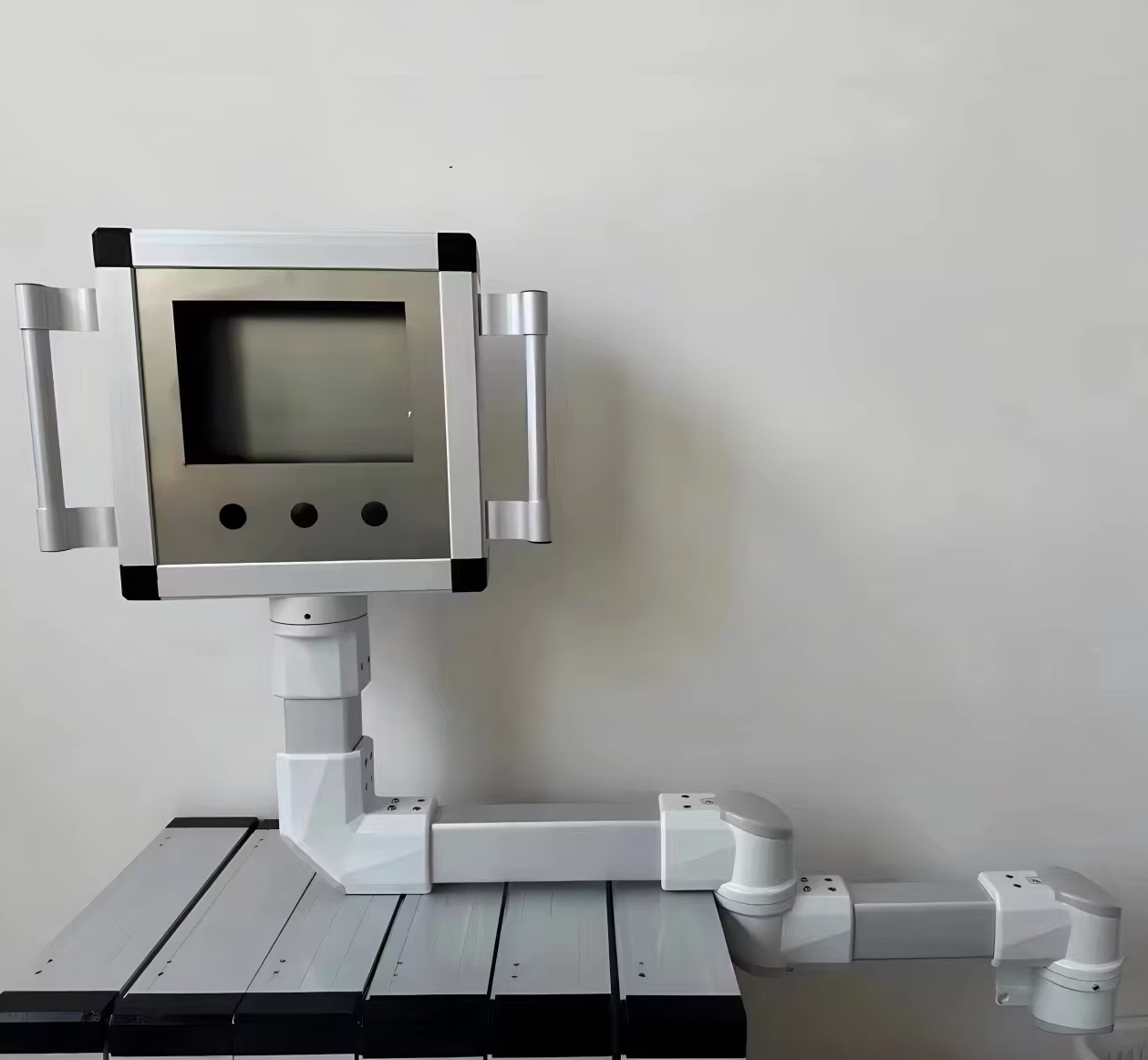

Articulating cantilevers feature multiple pivot points, enabling full repositioning. Ideal for shared workstations or complex machinery access.

Pros: Superior adjustability, better ergonomics, supports dynamic use.
Cons: Higher cost, potential for mechanical wear over time.

2. Integrated vs. Modular Systems

Integrated units come pre-assembled with the HMI, enclosure, and mount as a single product. They ensure compatibility and simplify procurement.

Pros: Plug-and-play, tested reliability, consistent warranty.
Cons: Less customization, may include unnecessary features.

Modular systems allow separate selection of enclosure, HMI, and mount. Offers maximum flexibility but requires careful compatibility checks.

Pros: Customizable, scalable, upgrade-friendly.
Cons: Longer integration time, risk of mismatched components.

3. Display Size & Technology

Common sizes range from 7” to 15”. Smaller panels suit basic control tasks; larger ones enable detailed visualization.

TFT LCD: Most common, good color reproduction, moderate sunlight readability.
LED-backlit: Improved brightness and contrast, better for low-light or variable lighting.
Resistive vs. Capacitive Touch: Resistive works with gloves and styluses; capacitive offers smoother response but may fail with wet or gloved hands.

Key Features and Specifications to Evaluate

To make an informed decision when choosing a handheld enclosure control HMI panel industrial hmi panel box cantilever, consider the following technical and usability criteria:

IP Rating: Minimum IP65 for dust-tight and water-resistant performance. IP67 adds temporary immersion protection. Verify test conditions with the manufacturer.
NEMA Rating: In North America, NEMA 4X indicates protection against corrosion, windblown dust, rain, and hose-directed water.
Display Brightness: At least 500 cd/m² for indoor use; 1000+ cd/m² recommended for outdoor or brightly lit areas.
Touchscreen Type: Choose resistive if operators wear gloves; capacitive for faster, gesture-based interaction.
Vibration & Shock Resistance: Check compliance with IEC 60068-2 standards, especially for mobile or heavy machinery applications.
Mounting Compatibility: Ensure the cantilever arm supports the weight and dimensions of your chosen HMI enclosure. Standard VESA patterns (75x75, 100x100 mm) enhance compatibility.
Cable Management: Look for internal routing channels to protect cables from wear and snagging.
Thermal Management: Sealed enclosures may require passive cooling fins or active ventilation (with filtered intakes) to prevent overheating.
Communication Interfaces: Common ports include RS-232, RS-485, USB, Ethernet, and HDMI. Confirm protocol support (e.g., Modbus TCP) matches your control network.

Pros and Cons

Advantages

Enhanced operator mobility and comfort
Improved machine accessibility in tight or complex layouts
Durable construction suitable for demanding environments
Scalable integration with existing automation systems
Reduced downtime through intuitive diagnostics and controls

Limitations

Higher initial cost than fixed panels
Potential mechanical failure in articulating joints over time
Requires secure mounting base (e.g., structural frame or wall)
Limited cable length restricts movement range
Not ideal for environments with extreme swinging or impact risks

How to Choose a Handheld Enclosure Control HMI Panel Industrial HMI Panel Box Cantilever

Follow this step-by-step guide to select the best system for your needs:

Define Your Use Case: Is it for mobile equipment, maintenance access, or operator mobility? Identify frequency of movement and typical operating environment.
Select HMI Size and Performance: Match screen size to required data density. A 10” display may be needed for process visualization; a 7” unit suffices for simple start/stop functions.
Choose the Right Enclosure: Material (plastic vs. metal), ingress protection (IP65+), and mounting style (VESA, custom bracket) must align with site conditions.
Evaluate Mount Type: Opt for articulating arms if frequent repositioning is needed. Fixed arms are sufficient for static roles.
Verify Electrical & Communication Compatibility: Ensure the HMI supports your PLC brand and network protocol. Check voltage requirements (typically 12–24 VDC).
Assess Ergonomic Needs: Test mockups if possible. Consider weight distribution and ease of adjustment.
Check Supplier Support: Look for availability of spare parts, firmware updates, and technical documentation.
Avoid Red Flags: Steer clear of products without published IP ratings, unclear warranty terms, or no third-party certification (e.g., CE, UL).

Price & Market Insights

Prices vary significantly based on configuration:

Basic Models (7” HMI + plastic enclosure + fixed arm): $300–$600
Mid-Range (10–12” HMI + aluminum enclosure + articulating arm): $800–$1,500
Premium (15”+ HMI + stainless steel + industrial-grade articulating mount): $1,800–$3,500+

Value isn’t always tied to price. Some mid-tier brands offer better software integration or customer support than premium options. Consider total cost of ownership, including maintenance, training, and potential downtime.

Top-Seller & Competitive Analysis

While specific model recommendations depend on region and vendor availability, leading manufacturers include Siemens, Allen-Bradley (Rockwell Automation), Pro-face, and Weidmüller. Third-party integrators like Schroff, EAO, and Pepperl+Fuchs also offer compatible enclosures and mounting solutions.

Brand	HMI Size	Enclosure Material	Mount Type	Approx. Price
Siemens SIMATIC IPC	12"	Aluminum	Articulating	$2,100
Allen-Bradley PanelView Plus 7	10"	Polycarbonate	Fixed	$1,400
Pro-face PS600 Series	15"	Stainless Steel	Articulating	$2,900
Weidmüller u-control	7"	Plastic	Fixed	$550

Note: Always verify current specs and pricing directly with distributors, as models change frequently.

Customer Feedback Synthesis

Analysis of user reviews across industrial forums and B2B marketplaces reveals recurring themes:

Positive Feedback:

“The cantilever arm makes it easy to service different zones on our packaging line.”
“Bright display remains visible even under factory lights.”
“Durable build—survived a fall from 1.5 meters during operation.”

Common Complaints:

“Articulating joint loosened after six months of daily use.”
“Capacitive touchscreen doesn’t work with winter gloves.”
“Cable frayed due to poor strain relief in the arm.”

These insights highlight the importance of robust mechanical design and proper component selection.

Sourcing & Supplier Tips

When purchasing, consider these sourcing strategies:

B2B Distributors: Companies like AutomationDirect, RS Components, or Grainger offer vetted products with return policies.
OEM Integration: For large-scale deployments, work directly with HMI or enclosure manufacturers for bulk pricing and customization.
Third-Party Integrators: Firms specializing in industrial enclosures can assemble custom combos of HMI, case, and mount.
Verification Steps: Request test reports for IP ratings, check return policies, and confirm software compatibility before ordering.
Batch Orders: Volume purchases often unlock discounts of 10–20%, but ensure long-term part availability.

Maintenance, Safety & Legal Considerations

Ensure safe and compliant operation by following these guidelines:

Regular Inspection: Check mounts, hinges, and cables monthly for wear or looseness.
Cleaning: Use non-abrasive wipes and manufacturer-approved cleaners to avoid damaging touchscreens or seals.
Electrical Safety: Install using proper grounding and circuit protection. Follow local electrical codes (e.g., NEC Article 409 in the U.S.).
Compliance: Confirm CE, UL, or CSA certification depending on your region. These indicate adherence to safety and EMC standards.
Operator Training: Train staff on correct handling to prevent accidental drops or overextension of the cantilever arm.

Conclusion

Selecting the right handheld enclosure control HMI panel industrial hmi panel box cantilever system requires balancing durability, functionality, and ergonomics. Prioritize IP-rated enclosures, reliable cantilever mechanics, and HMI compatibility with your control infrastructure. Whether you need a basic handheld unit for routine checks or a full-featured industrial panel for complex diagnostics, the right setup enhances productivity and safety. Focus on verified specifications, real-world feedback, and supplier reliability to make a confident investment.

FAQs

What is the difference between a handheld HMI enclosure and a fixed panel?
A handheld enclosure allows portability and flexible positioning, often mounted on a cantilever arm, while fixed panels are permanently installed and less adaptable to changing operator positions.

Can I use a capacitive touchscreen HMI with gloves?
Most standard capacitive screens do not work well with thick gloves. Opt for resistive touchscreens or industrial-grade capacitive models designed for gloved operation.

How do I protect cables in a moving cantilever setup?
Use integrated cable carriers or drag chains within the arm structure, and ensure strain relief at both ends to prevent disconnection or fraying.

Are these systems suitable for outdoor use?
Yes, if the enclosure meets IP66 or higher and the display has sufficient brightness (1000+ cd/m²). Additional sunshades may be necessary.

What should I check before buying a used industrial HMI cantilever system?
Inspect for physical damage, test all touchscreen functions, verify firmware version, and confirm compatibility with your existing control network.
