How to Choose the Best Ground Plane Antenna for Reliable Signal Performance

When selecting the best ground plane antenna for reliable VHF or UHF communication, focus on frequency compatibility, radome durability, ground plane size, and mounting flexibility. A properly tuned quarter-wave ground plane antenna with at least three elevated radials typically delivers optimal omnidirectional coverage for base station setups 1. For most users seeking improved transmission efficiency in amateur radio, marine, or public safety applications, this configuration offers predictable performance and ease of installation—making it a top choice among how to choose ground plane antenna guides.

About Ground Plane Antenna

A ground plane antenna is a type of monopole antenna that relies on a conductive surface—called the ground plane—to function as a reflective counterpart to the radiating element. Typically designed as a quarter-wavelength vertical radiator, it requires at least two or more horizontal or slightly downward-angled radials to simulate a ground reflection, enabling efficient radiation patterns. These antennas are commonly used in frequencies ranging from 30 MHz to over 1 GHz, particularly within the VHF (Very High Frequency) and UHF (Ultra High Frequency) bands.

Common applications include amateur radio base stations, FM broadcast reception, public safety communications, marine VHF systems, and certain IoT or telemetry networks. Their simple construction and consistent omnidirectional signal pattern make them ideal for fixed-location installations where uniform 360-degree coverage is needed without directional aiming.

Why Ground Plane Antenna Is Gaining Popularity

Ground plane antennas have seen renewed interest due to their reliability, low cost, and ease of tuning. As more individuals and organizations deploy private communication networks—especially in rural or off-grid environments—the demand for dependable, non-directional antennas has increased. Unlike complex beam or Yagi designs, ground planes require no rotor systems or precise alignment, reducing both setup time and maintenance needs.

Additionally, advancements in materials have led to weather-resistant radomes and corrosion-proof elements, enhancing longevity even in coastal or high-humidity areas. The rise of digital mobile radio (DMR), Automatic Packet Reporting System (APRS), and LTE-based telemetry also contributes to broader adoption across hobbyist and professional fields. Users searching for “what to look for in a ground plane antenna” often find these models meet basic performance expectations without requiring advanced RF knowledge.

Types and Variants

While all ground plane antennas share a fundamental design principle, several variations exist based on frequency band, construction method, and intended use:

• Single-Band Ground Planes: Designed for one specific frequency range (e.g., 146 MHz for 2-meter ham band). They offer excellent efficiency and narrowband optimization.
  Pros: High gain at target frequency, minimal interference.
  Cons: Limited versatility; not suitable for multi-band operation.
• Multi-Band Ground Planes: Incorporate traps or multiple radiators to operate across two or more bands (e.g., 2m/70cm combo).
  Pros: Space-saving; useful for operators using different bands.
  Cons: Reduced efficiency compared to single-band units; potential for trap failure over time.
• Collinear Ground Planes: Stack multiple radiating sections vertically to increase gain while maintaining omnidirectionality.
  Pros: Higher gain (up to 6 dBd); better long-range performance.
  Cons: Larger size; more sensitive to mounting height and nearby structures.

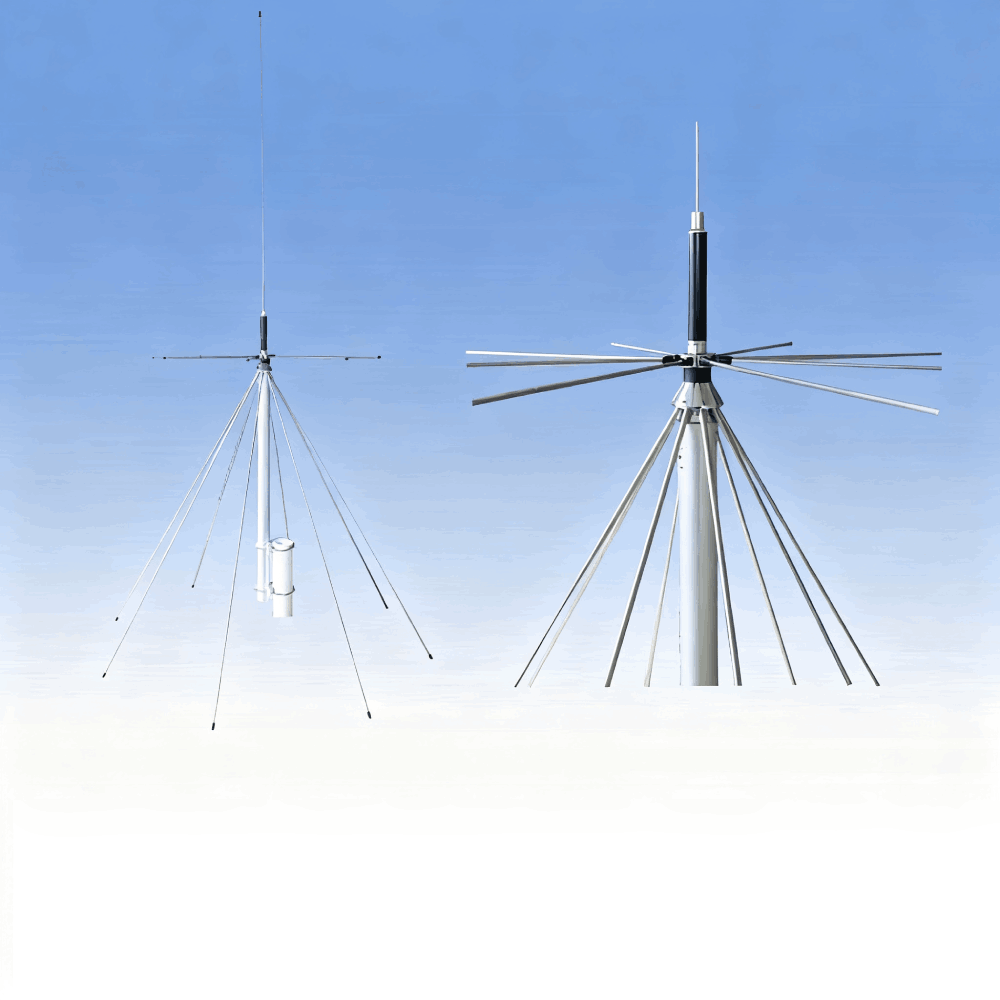

• Discone Hybrid Ground Planes: Less common, but some wideband variants combine discone characteristics with ground plane symmetry for broad spectrum coverage.
  Pros: Wide bandwidth (e.g., 100–1300 MHz).
  Cons: Lower efficiency per band; primarily used for scanning, not transmitting.

Each variant serves distinct purposes, so identifying your primary operating band(s) is critical when evaluating options.

Key Features and Specifications to Evaluate

To ensure you're making an informed decision on what to look for in a ground plane antenna, consider the following technical and practical factors:

• Frequency Range: Match the antenna’s specified range to your transmitter/receiver. Operating outside the tuned band reduces efficiency and can damage equipment.
• VSWR (Voltage Standing Wave Ratio): Look for a VSWR rating below 1.5:1 across the desired band. This indicates good impedance matching and minimal reflected power 2.
• Gain: Measured in dBi or dBd. Most standard ground planes have 0–2.15 dBd gain. Higher gain collinear types may reach 5–6 dBd but with narrower vertical beamwidth.
• Radial Configuration: At least three radials are recommended for balanced performance. Elevated radials improve radiation angle; drooping radials (10°–45° down) can enhance low-angle takeoff for DX communication.
• Impedance: Standard is 50 ohms for compatibility with most modern transceivers and coaxial cables.
• Power Handling: Important if using for transmitting. Ensure the antenna supports your maximum output (e.g., 100W for HF/VHF rigs).
• Construction Materials: Stainless steel or aluminum radiators resist corrosion. Fiberglass radomes protect internal components from moisture and UV exposure.
• Mounting Options: Check compatibility with mast, wall, or roof mounts. Some include NMO or SO-239 connectors; others require adapters.

Pros and Cons

Advantages:

• Simple, proven design with predictable performance
• Omnidirectional coverage eliminates need for rotation
• Low cost compared to directional arrays
• Easy to build or modify for DIY users
• Excellent for base stations with limited space

Limitations:

• Limited gain compared to Yagi or log-periodic antennas
• Performance drops significantly without proper radial system
• Not ideal for point-to-point links requiring directionality
• Sensitive to nearby metal objects and grounding quality
• Requires elevated installation for best results

They are best suited for general-purpose communication where signals come from various directions. Avoid them if you need long-distance focused transmission or operate in extremely noisy RF environments without filtering.

How to Choose a Ground Plane Antenna

Follow this step-by-step guide to select the right model based on your needs:

1. Define Your Frequency Needs: Are you operating on 2 meters (144–148 MHz), 70 cm (420–450 MHz), or another band? Select a single-band or dual-band model accordingly.
2. Determine Use Case: Will it be used for receiving only, transmitting, or both? Transmitters require higher power ratings and lower VSWR.
3. Evaluate Mounting Location: Rooftop, tower, or side-of-building? Ensure the mount type matches available hardware and wind load limits.
4. Check Radial Design: Prefer models with at least three radials. If installing above metal surfaces (e.g., vehicle roof), confirm whether additional radials are still needed.
5. Assess Build Quality: Look for sealed connections, UV-stable housing, and stainless fasteners—especially in humid or salty environments.
6. Verify Coaxial Compatibility: Use low-loss cable like LMR-400 or RG-8X for runs over 50 feet to minimize signal degradation.
7. Review Manufacturer Testing Data: Reputable brands provide VSWR charts and radiation patterns. Compare these before purchase.
8. Avoid Red Flags: No published specs, missing impedance data, vague frequency claims (“works up to 1 GHz”), or unrealistic gain figures (>9 dBi on small unit) indicate poor quality.

For those exploring how to choose a ground plane antenna effectively, prioritizing verified specifications over marketing language ensures long-term satisfaction.

Price & Market Insights

Ground plane antennas vary widely in price depending on brand, build quality, and features:

• Budget Tier ($20–$40): Basic single-band models with fiberglass covers and simple radials. Suitable for receive-only or low-power transmit use.
• Mid-Range ($40–$80): Better materials, lower VSWR, and often include mounting kits. Ideal for amateur radio operators needing reliable service.
• Premium ($80–$150+): Collinear designs, multi-band capability, enhanced weather sealing, and lab-tested performance metrics. Used by emergency services or commercial installations.

Value is found in mid-tier models from established manufacturers such as Comet, Diamond, or MFJ. While cheaper clones exist, they often lack consistency in tuning and durability. Always compare warranty length and customer support accessibility.

Model	Frequency Band	Gain (dBd)	VSWR	Price Range
Comet GP-15	144–148 MHz	2.15	<1.5:1	$65
Diamond X510A	144/430 MHz	4.5 (collinear)	<1.8:1	$120
MFJ-1720	2–30 MHz (HF)	0.5	<2.0:1	$70

Customer Feedback Synthesis

Analyzing user reviews across major retailers and forums reveals consistent themes:

Positive Feedback:
Users frequently praise ease of installation, stable SWR readings after setup, and noticeable improvement in both transmit clarity and receive sensitivity. Many highlight the durability of branded units exposed to harsh weather. The Comet GP series, in particular, receives commendation for consistent factory tuning and solid connector integrity.

Common Complaints:
Negative feedback centers on misleading gain claims from budget sellers, especially on online marketplaces. Some users report water ingress in poorly sealed radomes after six months outdoors. Others note difficulty achieving optimal performance when mounted too close to large metal surfaces without adjusting radial angles. A recurring suggestion is to always perform an SWR check post-installation—even with pre-tuned models.

Sourcing & Supplier Tips

Purchase from authorized dealers or well-reviewed specialty radio suppliers rather than generic e-commerce platforms when possible. Authorized vendors typically offer full manufacturer warranties and technical support. For bulk purchases (e.g., for repeater sites or fleet deployment), inquire about calibration certificates or batch testing reports.

If ordering internationally, verify connector types and voltage tolerances match your region's standards. Be cautious of counterfeit products mimicking popular brands—check packaging details and serial numbers. Upon delivery, inspect for physical damage, test continuity with a multimeter, and validate VSWR with an antenna analyzer before permanent installation.

Maintenance, Safety & Legal Considerations

Regularly inspect the antenna for loose connections, corrosion, or cracked insulation. Clean the radome with mild soap and water; avoid solvents that could degrade plastic. In lightning-prone areas, ensure the entire system is grounded via a proper lightning arrestor connected to earth ground 3.

From a regulatory standpoint, ensure your transmission complies with local licensing requirements (e.g., FCC Part 97 for amateur radio in the U.S.). While the antenna itself doesn’t require certification, unlicensed high-power use or interference-causing installations may lead to enforcement actions. Always follow local zoning rules regarding tower height and placement.

Conclusion

Choosing the right ground plane antenna involves balancing frequency needs, environmental conditions, and performance goals. For most users seeking a reliable, omnidirectional solution, a well-constructed quarter-wave model with proper radials offers excellent value. Prioritize verified specifications, reputable suppliers, and correct installation practices to maximize effectiveness. Whether you're setting up a home base station or expanding a field communication network, understanding what to look for in a ground plane antenna empowers smarter decisions and stronger connections.

FAQs

What is the ideal radial angle for a ground plane antenna?
A slight droop of 10° to 20° downward optimizes low-angle radiation for longer-distance communication while maintaining omnidirectional balance.

Can I use a ground plane antenna indoors?
Indoor use is possible but suboptimal. Building materials attenuate signals, and lack of proper grounding affects performance. Outdoor mounting is strongly preferred.

Do I need a ground plane for a ground plane antenna?
Yes—the name isn't misleading. Without a sufficient conductive counterpoise (radials or metal surface), efficiency drops dramatically, especially for transmitting.

How does height affect ground plane antenna performance?
Higher elevation increases line-of-sight range. Mount at least 1/4 wavelength above surrounding obstacles for best results.

Can I build my own ground plane antenna?
Yes, many hams construct effective versions using copper tubing and coax. Numerous online calculators help determine lengths for specific frequencies.
