How to Choose the Best Gearbox for an Agricultural Tractor: A Complete Buying Guide

When choosing a replacement or upgrade gearbox for an agricultural tractor, prioritize compatibility with your tractor’s horsepower, transmission type, and PTO requirements. Look for durable materials like cast iron, proper gear ratios for fieldwork efficiency, and sealed bearings to resist dust and moisture. Models designed for high-torque applications—such as those used in plowing or heavy tillage—are ideal for maximizing durability and reducing downtime. Always verify mounting dimensions and input/output shaft sizes match your existing system to avoid installation issues 1.

About Gearbox for an Agricultural Tractor

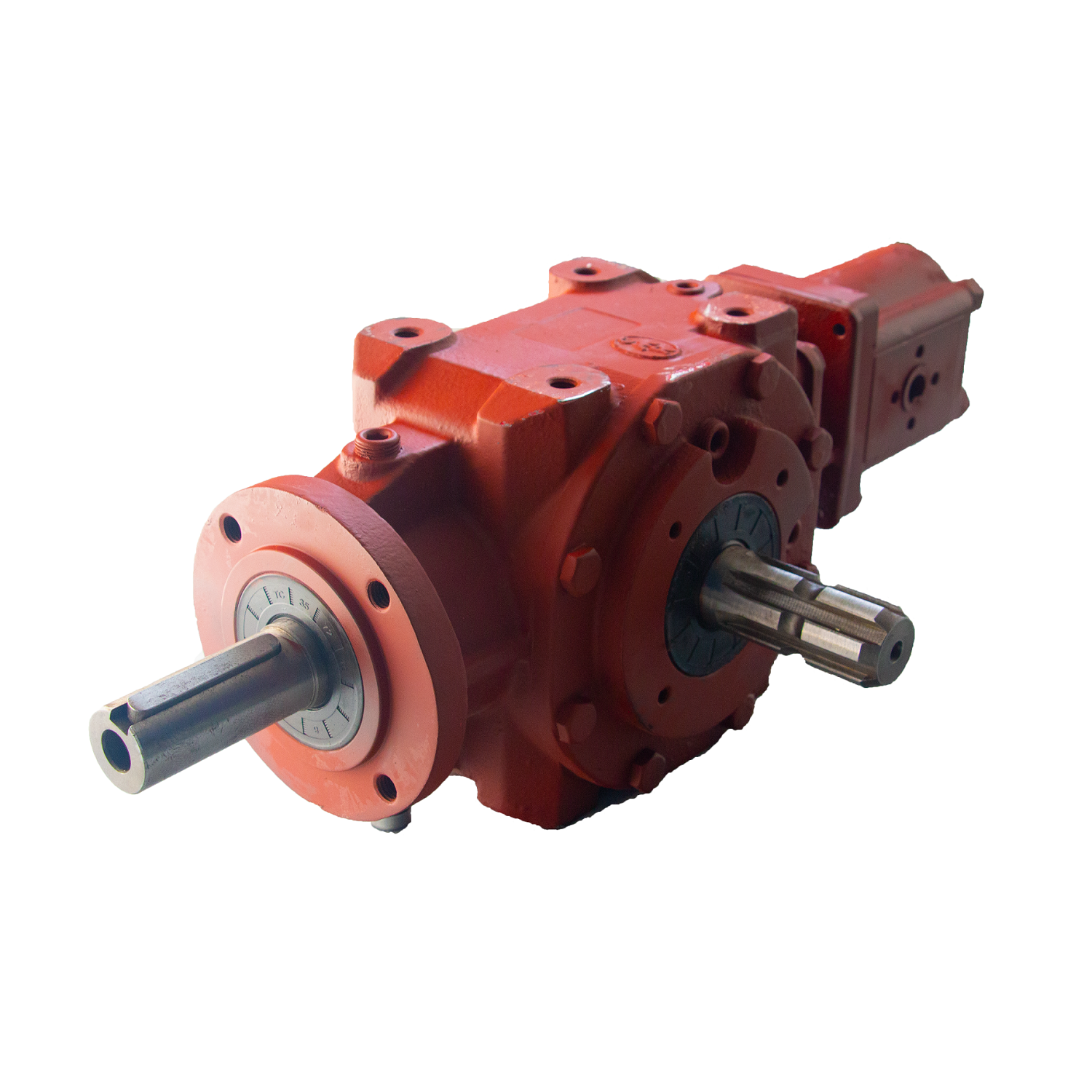

A gearbox for an agricultural tractor is a critical drivetrain component responsible for transmitting engine power to the wheels and implements via controlled gear ratios. It enables tractors to operate efficiently under variable loads by adjusting torque and speed. Found between the engine and the final drive or power take-off (PTO) system, this mechanical unit allows farmers to switch between high-speed travel and low-speed, high-torque operations such as plowing, tilling, baling, or hauling.

In modern farming equipment, gearboxes come integrated into complex transmissions but may also exist as standalone units—especially in aftermarket or auxiliary systems powering mowers, sprayers, or balers. Whether part of the main transmission or a separate PTO-driven assembly, the gearbox must withstand harsh environmental conditions, including exposure to dirt, water, temperature extremes, and constant vibration.

Why Gearbox for an Agricultural Tractor Is Gaining Popularity

Demand for reliable gearboxes in agriculture has grown due to increasing mechanization across small, medium, and large-scale farms worldwide. As labor costs rise and productivity demands intensify, farmers rely more on machinery that minimizes downtime and maximizes output. A robust gearbox directly impacts operational efficiency, fuel economy, and implement compatibility.

Additionally, aging fleets in developing regions require affordable replacements, driving interest in compatible aftermarket gearboxes. Technological improvements—like synchronized shifting, improved lubrication systems, and modular designs—have made newer models easier to maintain and integrate. Farmers are also upgrading older tractors with enhanced gearboxes to extend machine life without purchasing new equipment, making the search for a suitable gearbox for an agricultural tractor increasingly common.

Types and Variants

Gearboxes vary significantly based on design, application, and integration method. Understanding these types helps buyers select the right model for their specific needs.

1. Sliding Mesh Gearbox

Pros: Simple construction, low cost, durable under consistent load.
Cons: Requires double-clutching; difficult to shift under load; noisy operation.
Best for: Older tractor models and budget-conscious repairs.

2. Constant Mesh Gearbox

Pros: Smoother than sliding mesh; gears always engaged, reducing wear.
Cons: Still requires precise clutch control; not fully synchronized.
Best for: Mid-range tractors used in general farming tasks.

3. Synchromesh Gearbox

Pros: Easier shifting; reduces operator fatigue; prevents gear grinding.
Cons: More expensive; synchro rings can wear over time.
Best for: Frequent gear changes during transport or mixed-use operations.

4. Planetary Gearbox (for Final Drives or Reducers)

Pros: Compact, high torque density, excellent for speed reduction.
Cons: Complex internal design; harder to service independently.
Best for: Track systems, wheel hubs, or hydraulic motor integration.

5. PTO-Driven Auxiliary Gearboxes

Pros: Powers external implements; modular and adaptable.
Cons: Adds complexity; requires alignment and belt/chain maintenance.
Best for: Mowers, spreaders, pumps, and other powered attachments.

Key Features and Specifications to Evaluate

Selecting the best gearbox for an agricultural tractor requires evaluating several technical and practical factors:

Horsepower Rating: Must match or exceed the tractor's engine output. Overloading leads to premature failure.
Torque Capacity: Critical for high-resistance tasks like deep plowing or pulling heavy trailers.
Input/Output Shaft Dimensions: Measure diameter and splines to ensure compatibility with clutch and driveline components.
Mounting Configuration: Check bolt patterns, center distances, and orientation (horizontal vs vertical).
Gear Ratios: Determine speed-torque balance. Multiple forward/reverse gears improve versatility.
Lubrication Type: Oil-bath systems offer better cooling and protection than grease-lubed variants.
Sealing Quality: Look for labyrinth seals or double lip seals to prevent contamination.
Material Construction: Cast iron housings resist deformation; aluminum may be lighter but less durable under stress.
PTO Compatibility: If powering implements, confirm RPM rating (e.g., 540 or 1000 RPM) matches your equipment.

Pros and Cons

Advantages of Upgrading or Replacing a Gearbox

Restores lost performance from worn internals.
Improves fuel efficiency through optimized gearing.
Enables use of modern implements requiring specific PTO speeds.
Extends overall tractor lifespan economically.

Disadvantages and Limitations

High-quality replacements can cost $800–$3,000+, depending on complexity.
Improper installation may lead to misalignment, vibration, or rapid wear.
Aftermarket units may lack OEM-level quality control.
Not all gearboxes support retrofitting with advanced features like live PTO or creeper gears.

This solution is most suitable when repairing a damaged unit or upgrading an older tractor. However, if the entire transmission is failing, consider whether a full rebuild or replacement would be more cost-effective long-term.

How to Choose a Gearbox for an Agricultural Tractor

Follow this step-by-step guide to make an informed decision:

Identify Your Tractor Model and Year: Use the serial number to find compatible OEM specifications. Manufacturer manuals often list acceptable gearbox models.
Determine the Application: Will it handle primary propulsion, PTO duties, or both? Fieldwork demands differ from road transport.
Check Horsepower and Torque Requirements: Ensure the gearbox is rated for your engine’s peak output plus a safety margin (typically 10–15%).
Measure Physical Dimensions: Record housing length, width, shaft protrusions, and mounting points before ordering.
Verify Input and Output Specs: Confirm spline count, shaft diameter, and rotation direction (clockwise/counterclockwise).
Assess Lubrication Needs: Prefer oil-lubricated models for continuous duty cycles.
Evaluate Warranty and Support: Reputable suppliers offer at least a one-year warranty and technical assistance.
Beware of Red Flags: Avoid listings with no clear specs, missing brand information, or prices significantly below market average.

Always request a spec sheet or cross-reference part numbers using trusted catalogs. When in doubt, consult a mechanic familiar with your tractor brand.

Price & Market Insights

Pricing varies widely based on type, origin, and functionality:

Basic Replacement Units: $600–$1,200 (common for older or compact tractors).
Synchromesh or Multi-Speed Models: $1,200–$2,500.
Heavy-Duty or High-Torque Industrial Grade: $2,500–$4,000+.
Used or Refurbished Options: $300–$900, though riskier without guarantees.

OEM parts typically cost 20–40% more than aftermarket equivalents but often deliver superior fit and longevity. For budget builds or temporary fixes, reputable third-party brands like Peerless, Tuff Torq, or Eaton offer viable alternatives. Consider total cost of ownership—including maintenance, expected lifespan, and ease of repair—rather than price alone.

Model Type	Avg. Price	Horsepower Range	Best Use Case
Sliding Mesh (OEM-style)	$700	30–60 HP	Classic tractor restoration
Synchromesh Transmission	$1,800	70–120 HP	General farm operations
PTO Auxiliary Box	$1,100	N/A (driven by PTO)	Powering mowers/sprayers
Planetary Final Drive	$2,600	100+ HP	Large-scale tillage equipment

Top-Seller & Competitive Analysis

Leading manufacturers include John Deere, AGCO (Massey Ferguson), Kubota, and ZF. Aftermarket leaders such as Rockwell Automation and Bonfiglioli provide competitive options for upgrades or retrofits.

Popular models tend to feature modular designs, corrosion-resistant coatings, and standardized interfaces. For example, some top-selling units now include diagnostic ports or magnetic drain plugs for metal particle detection—an indicator of internal wear. Buyers should compare not just price and specs, but also availability of spare parts and regional service networks.

Customer Feedback Synthesis

Analysis of user reviews reveals recurring themes:

Common Praises:

"Installed easily and restored smooth shifting after years of rough gear engagement."
"Perfect match for my 1980s Ford tractor—exact dimensions and spline count."
"Significantly reduced noise compared to the old unit."

Frequent Complaints:

"Received wrong shaft configuration despite correct order—poor quality control."
"Leaked oil within three months; seal failed prematurely."
"Instructions were vague, and customer support unresponsive."

These insights highlight the importance of verifying specs pre-purchase and sourcing from vendors with responsive support teams.

Sourcing & Supplier Tips

You can source gearboxes from:

OEM dealerships (highest accuracy, premium pricing)
Authorized distributors (good balance of trust and value)
Online marketplaces (eBay, Amazon, Tractor Zoom—exercise caution)
Specialty rebuild shops (cost-effective for vintage models)

For bulk purchases or resale, consider partnering with industrial suppliers offering drop-shipping or dealer programs. Always inspect units upon arrival: check for casting defects, rotate shafts manually for smoothness, and verify labeling matches documentation. Request a certificate of conformance if buying for commercial deployment.

Maintenance, Safety & Legal Considerations

Proper upkeep extends gearbox life:

Change lubricant per manufacturer schedule (typically every 250–500 hours).
Inspect seals and gaskets regularly for leaks.
Tighten mounting bolts periodically due to vibration loosening.
Monitor operating temperature; excessive heat indicates overload or poor lubrication.

Safety-wise, always disconnect power and depressurize hydraulics before inspection. Lockout-tagout procedures are essential during maintenance.

Legally, ensure any replacement meets original equipment safety standards where applicable. In regulated markets like the EU, CE marking may be required for new components. In North America, compliance with ASAE/ANSI standards ensures interoperability and safety 2.

Conclusion

Choosing the right gearbox for an agricultural tractor involves balancing technical compatibility, durability, and value. Prioritize models that match your tractor’s horsepower, shaft dimensions, and intended workload. While OEM units offer reliability, well-reviewed aftermarket options can deliver comparable performance at lower cost. Pay close attention to sealing, lubrication, and mounting details to avoid early failures. By following a structured evaluation process and sourcing from reputable suppliers, you can ensure long-term reliability and optimal field performance.

FAQs

Q: How do I know if my tractor needs a new gearbox?
A: Signs include grinding noises, difficulty shifting, oil leaks from the transmission housing, or inability to hold gear under load.

Q: Can I install an aftermarket gearbox on an OEM tractor?
A: Yes, provided the dimensions, input/output specs, and torque ratings align. Always verify compatibility before purchase.

Q: What type of oil should I use in my agricultural tractor gearbox?
A: Use SAE 80W-90 or 85W-140 gear oil unless specified otherwise by the manufacturer. Synthetic oils offer longer life in extreme conditions.

Q: Are there universal gearboxes for tractors?
A: No true universals exist. Some modular designs offer adaptability, but precise matching to your tractor model is essential.

Q: How often should a tractor gearbox be serviced?
A: Inspect every 100 hours; change lubricant every 250–500 hours or annually, whichever comes first.
