How to Choose a Gas Flow Meter Industrial HP Manual: Buying Guide

When selecting a manual high-pressure (HP) industrial gas flow meter, prioritize accuracy, pressure rating, material durability, and compatibility with your specific gas type and operating environment. The best choice depends on your application—whether it’s for natural gas monitoring, compressed air systems, or specialty gases in manufacturing. A well-chosen gas flow meter industrial HP manual ensures reliable long-term performance under demanding conditions. Look for units with NIST-traceable calibration, rugged construction (such as stainless steel bodies), and clear manual readouts that don’t rely on external power. Avoid models without documented safety certifications or unclear measurement standards.

About Gas Flow Meter Industrial HP Manual

A gas flow meter industrial HP manual is a mechanical or electromechanical device designed to measure the volumetric or mass flow rate of gaseous media in high-pressure industrial environments. Unlike automated or digital smart meters, manual variants typically feature analog dials, mechanical registers, or direct-reading gauges that do not require electrical power to operate. These meters are commonly used in settings where continuous data logging isn't necessary, but precise, on-demand readings are essential for process control, safety checks, or maintenance routines.

Typical applications include monitoring compressed air in factory lines, measuring natural gas input in heating systems, tracking inert gas usage in welding operations, or verifying flow rates during pipeline commissioning. Because they're manually operated, these devices often serve as backup instrumentation, field verification tools, or primary meters in remote or hazardous locations where electronic systems may fail or pose explosion risks.

Why Gas Flow Meter Industrial HP Manual Is Gaining Popularity

Despite advances in digital sensing technology, there's a growing interest in manual high-pressure gas flow meters due to their reliability, simplicity, and compliance with intrinsic safety requirements. In industries like oil & gas, chemical processing, and mining, operators favor non-electric solutions in explosive atmospheres (classified zones) where even small sparks can be dangerous 1.

Additionally, supply chain disruptions and cybersecurity concerns have prompted companies to reevaluate over-reliance on connected devices. Manual meters eliminate vulnerabilities related to software failures, network outages, or firmware corruption. They also reduce lifecycle costs by avoiding battery replacements, sensor recalibrations, or IT integration expenses. This trend reflects a broader shift toward resilient, low-tech solutions in mission-critical infrastructure.

Types and Variants

Industrial manual HP gas flow meters come in several configurations, each suited to different operational needs:

1. Differential Pressure (DP) Meters with Manifold

These use an orifice plate, Venturi tube, or Pitot tube to create a pressure drop proportional to flow velocity. Operators read differential pressure via a U-tube manometer or analog gauge.

Pros: Proven technology; works with various gases; easy to install inline.
Cons: Requires regular cleaning; susceptible to clogging; less accurate at low flows.

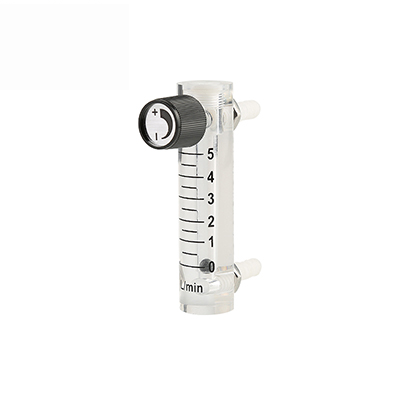

2. Variable Area (Rotameter) Meters

A float rises inside a tapered glass or metal tube as gas flows upward. The height indicates flow rate based on calibrated scales.

Pros: Simple visual reading; no power needed; good for moderate pressures.
Cons: Limited to vertical installation; fragile glass versions unsuitable for harsh sites; accuracy drops with temperature shifts.

3. Positive Displacement (PD) Meters

Gas fills and empties chambers of known volume, turning a mechanical counter. Common in diaphragm or rotary piston designs.

Pros: High accuracy across wide range; excellent for custody transfer.
Cons: Higher pressure drop; moving parts wear over time; not ideal for dirty or wet gases.

4. Turbine Flow Meters (Manual Readout)

Gas spins a rotor whose speed correlates to flow rate. Mechanical gear trains drive a local register instead of electronic outputs.

Pros: Fast response; linear output; suitable for clean, dry gases.
Cons: Sensitive to particulates; requires straight pipe runs; bearings may degrade.

Key Features and Specifications to Evaluate

To choose the right gas flow meter industrial HP manual, assess the following technical parameters:

Pressure Rating: Ensure the meter exceeds your system’s maximum working pressure. Most industrial HP models handle 150–6,000 psi; verify burst ratings too.
Flow Range: Match the minimum and maximum expected flow rates. Operating outside this range reduces accuracy.
Gas Compatibility: Confirm wetted materials (e.g., brass, 316SS, Hastelloy) resist corrosion from your gas (e.g., CO₂, H₂S, O₂).
Accuracy Class: Look for ±1% to ±2% full-scale accuracy. Higher precision matters for billing or process consistency.
Connection Type: Common options include NPT, BSPP, flanged, or compression fittings. Must match existing piping.
Calibration: Prefer units with factory calibration certificates traceable to NIST or equivalent national labs.
Temperature Range: Check if the meter operates reliably at ambient and process temperatures.
Visibility & Readability: Dials should be large, clearly marked, and readable from a safe distance.

Pros and Cons

Advantages:

No dependency on electricity or batteries
Lower total cost of ownership
Suitable for hazardous areas (Class I Div 1/2)
Fewer points of failure compared to smart meters
Easier regulatory approval in safety-sensitive sectors

Limitations:

No real-time data transmission or remote monitoring
Manual recording increases human error risk
Limited diagnostics (e.g., cannot detect leaks automatically)
Slower response than electronic sensors
May lack advanced compensation for pressure/temperature changes

Choose a manual HP gas flow meter when you need robustness, safety, and independence from digital infrastructure. Avoid them if your operation relies on automation, data analytics, or frequent remote access.

How to Choose a Gas Flow Meter Industrial HP Manual

Follow this step-by-step guide to ensure optimal selection:

Define Your Application: Is it for process monitoring, safety checks, or inventory management? This determines required accuracy and frequency of use.
Identify Gas Properties: Note composition, density, viscosity, and whether it’s corrosive or reactive.
Determine Operating Conditions: Record max/min pressure, temperature, and flow rates under normal and peak loads.
Select Appropriate Type: Use DP or rotameters for general purposes; PD meters for high accuracy; turbine for clean gas at steady flow.
Verify Compliance: Confirm adherence to relevant standards such as API, ASME B40.100, or ISO 5167.
Check Installation Requirements: Assess space constraints, orientation needs, and upstream/downstream piping.
Evaluate Supplier Support: Choose brands offering calibration reports, spare parts, and technical documentation.
Avoid Red Flags: Steer clear of vendors who don’t provide test data, lack customer service channels, or sell uncertified products.

Price & Market Insights

Manual industrial HP gas flow meters vary widely in price based on type, size, and build quality:

Budget Tier ($80–$250): Basic rotameters or small DP assemblies; often aluminum-bodied; limited warranties.
Mid-Range ($250–$800): Stainless steel PD or turbine meters; include calibration certs; suitable for most plant environments.
Premium ($800–$2,500+): Heavy-duty, ASME-coded units; exotic alloys; extended ranges; certified for custody transfer.

Value isn’t always tied to cost. Some mid-tier meters offer 90% of premium performance at half the price. However, for critical processes, investing in higher-grade models pays off through longer service life and fewer recalibrations. Always compare cost per year of operation rather than upfront price alone.

Type	Avg. Price	Accuracy	Best For
Rotameter	$100–$400	±2–5%	Visual monitoring, lab use
Differential Pressure	$200–$700	±1–3%	General industrial
Positive Displacement	$500–$1,800	±0.5–1%	Custody transfer, billing
Turbine (Manual)	$600–$2,200	±0.75–1.5%	Clean gas, high flow

Top-Seller & Competitive Analysis

Leading manufacturers include Brooks Instrument, Emerson, ABB, and Sierra Instruments. While many focus on digital offerings, their manual HP lines remain popular due to brand trust and engineering rigor.

For example, the Brooks Rotameter Series 1350 is frequently cited for its durability and ease of integration. It uses a metal tube design resistant to shock and thermal stress, making it ideal for petrochemical plants. Similarly, Emerson Daniel DP Flow Solutions are known for precision orifice plates paired with robust manifolds, often deployed in natural gas distribution networks.

When comparing top sellers, examine third-party reviews, warranty terms, and availability of replacement components. Don’t assume newer models are better—some legacy analog meters have decades-long track records of trouble-free service.

Customer Feedback Synthesis

Analysis of user reviews across industrial forums and B2B platforms reveals consistent themes:

Common Praises:

“Reliable during power outages”
“Easy to read and maintain”
“No software glitches or firmware updates needed”
“Survived harsh desert conditions for over five years”

Frequent Complaints:

“Hard to find replacement floats for older rotameters”
“Poor visibility in low-light areas”
“Inaccurate when gas contains moisture”
“Lack of built-in temperature compensation”

These insights highlight the importance of planning for long-term support and environmental protection during selection.

Sourcing & Supplier Tips

Purchase from authorized distributors or OEMs whenever possible. Reputable suppliers provide datasheets, calibration history, and compliance documentation. For bulk purchases, negotiate bundled services like on-site training or pre-installation testing.

If sourcing internationally, verify that units meet local metrology regulations (e.g., MID in Europe, Measurement Canada). Inspect shipments upon arrival: check for shipping damage, missing seals, or incorrect part numbers. Test functionality before deployment, especially after long storage periods.

Maintenance, Safety & Legal Considerations

Regular maintenance extends lifespan and ensures accuracy. Recommended practices include:

Inspect for leaks monthly using soap solution or gas detectors 2.
Clean internal passages annually or more often in dirty environments.
Re-calibrate every 12–24 months depending on usage intensity.
Replace worn gaskets, seals, or floats promptly.

Safety-wise, depressurize the line before servicing. Follow lockout/tagout (LOTO) procedures to prevent accidental release. Only trained personnel should handle high-pressure equipment.

Legally, certain applications—especially those involving public utilities or emissions reporting—require certified meters subject to periodic audits. Verify whether your jurisdiction mandates pattern approval or third-party verification.

Conclusion

Selecting the right gas flow meter industrial HP manual involves balancing performance, safety, and lifecycle cost. Prioritize models with proven durability, clear readability, and compatibility with your gas and pressure conditions. While digital alternatives offer connectivity, manual meters excel in reliability and intrinsic safety. By evaluating type, specifications, supplier reputation, and long-term support, you can make a confident, future-proof investment.

FAQs

Q: Can a manual gas flow meter work with natural gas at 1,000 psi?
A: Yes, provided the model is rated for that pressure and compatible with hydrocarbon gases. Check material compatibility and certification.

Q: How often should I calibrate a manual HP gas flow meter?
A: Typically every 12 to 24 months, depending on usage and environmental conditions. Critical applications may require more frequent checks.

Q: Are manual flow meters allowed in hazardous areas?
A: Yes, many are designed for Class I Div 1 or Div 2 locations. Look for FM, ATEX, or IECEx certifications.

Q: What should I do if the dial becomes hard to read?
A: Clean the viewing window, improve lighting, or install a magnifying lens. If internal fogging occurs, replace seals or the entire unit.

Q: Can I upgrade a manual meter to digital later?
A: Some models allow retrofitting with mechanical-to-electronic transmitters, but not all. Consult the manufacturer before assuming compatibility.
