How to Choose the Best Four Way Pallet Shuttle for Your Warehouse

When selecting a four way pallet shuttle for high-density storage systems, prioritize load capacity, shuttle compatibility with your racking type, and battery life for uninterrupted operation. The best choice depends on your warehouse throughput needs—automated shuttles excel in deep-lane storage where forklift access is limited. If you're evaluating how to choose a four way pallet shuttle, focus on models with bidirectional travel, robust construction, and scalable control systems that integrate with existing warehouse management software.

About Four Way Pallet Shuttle

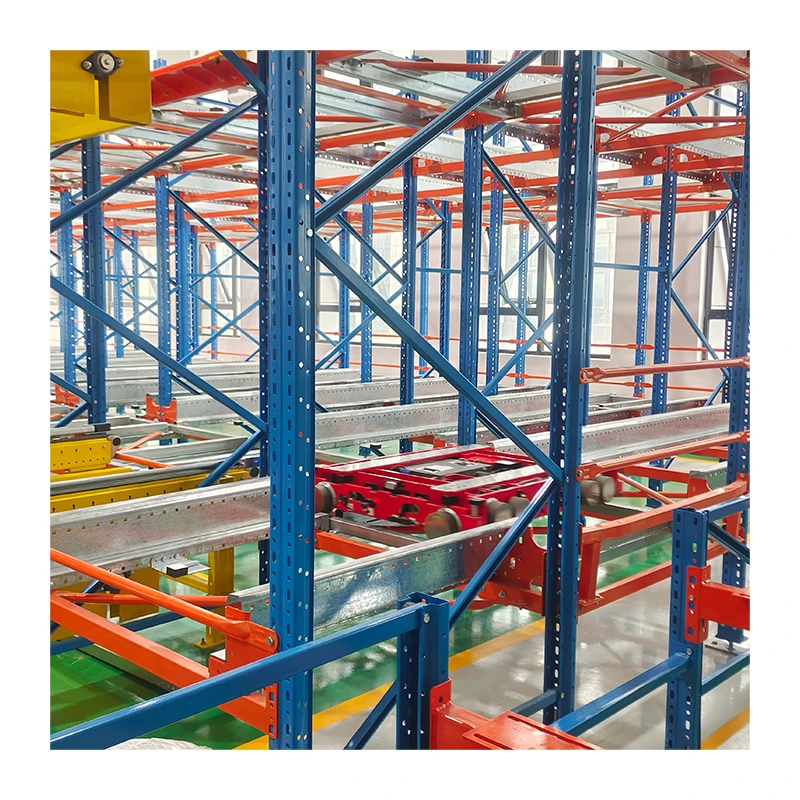

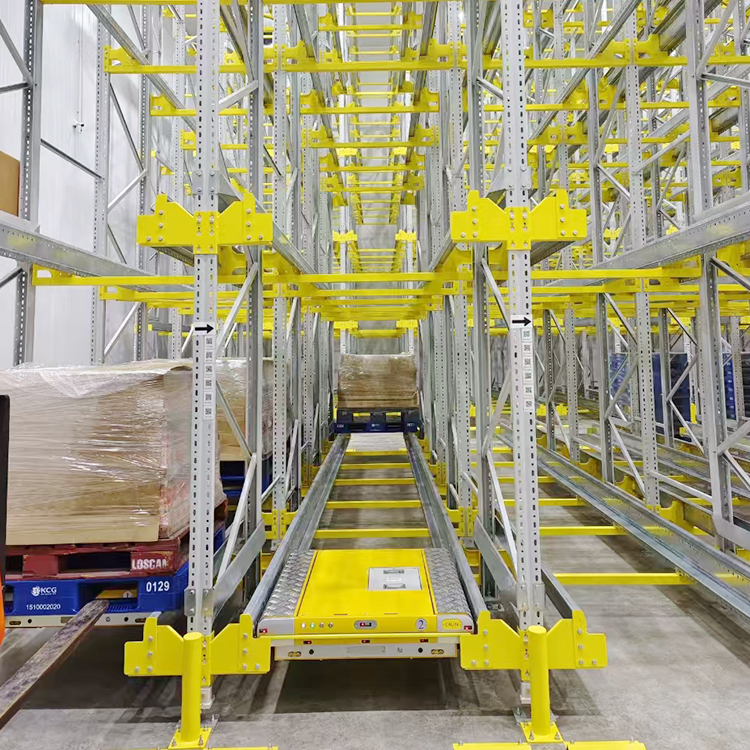

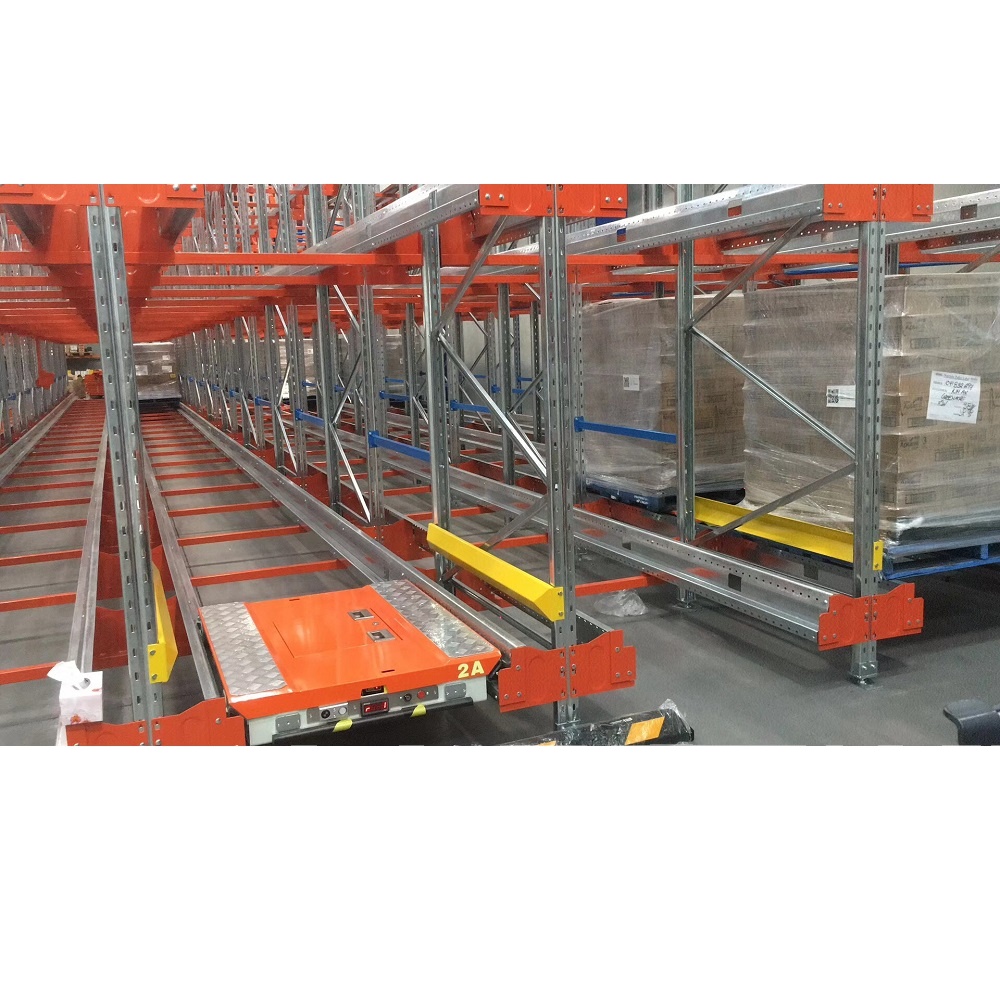

A four way pallet shuttle is a semi-automated or fully automated device designed to transport pallets within narrow-aisle, deep-lane racking systems. Unlike traditional forklifts, it operates inside the rack, moving pallets along rails or directly on beam supports. The "four way" designation refers to its ability to travel forward, backward, left, and right—enabling precise positioning across multiple lanes without repositioning the host forklift. This functionality makes it ideal for warehouses using drive-in or push-back racking configurations that require dense storage with improved accessibility.

Typically controlled via remote or integrated WMS (Warehouse Management System), these shuttles reduce labor costs and increase picking speed by minimizing forklift movements. They are commonly used in cold storage facilities, food distribution centers, and manufacturing plants where space optimization and operational efficiency are critical 1.

Why Four Way Pallet Shuttle Is Gaining Popularity

The growing demand for efficient use of vertical warehouse space has driven adoption of advanced storage solutions like the four way pallet shuttle. With rising real estate costs and increasing order volumes, companies are turning to high-density storage to maximize square footage. Traditional racking limits access to only the front pallet in each lane, but shuttles allow full utilization of deep lanes—sometimes up to 30 pallets deep—without sacrificing retrieval speed.

Additionally, advancements in battery technology and wireless communication have made shuttles more reliable and easier to deploy. Operators can now manage multiple shuttles from one interface, reducing training time and human error. In cold environments, such as refrigerated warehouses, minimizing worker exposure while maintaining throughput is another major driver behind their popularity 2.

Types and Variants

Understanding the different types of four way pallet shuttles is essential when determining which model fits your operation.

1. Manual Shuttle Systems

In manual systems, the operator uses a handheld remote to guide the shuttle into position. These are cost-effective and suitable for low-to-medium volume operations.

Pros: Lower upfront cost, easy to install, minimal integration needed.
Cons: Slower cycle times, higher labor dependency, limited scalability.

2. Semi-Automated Shuttles

Semi-automated models perform predefined tasks after initial setup. Once launched, they automatically place or retrieve pallets based on input commands.

Pros: Faster than manual systems, reduced operator fatigue, better consistency.
Cons: Higher price point, requires calibration per lane configuration.

3. Fully Automated Shuttle Systems (AS/RS Integration)

These shuttles integrate with automated storage and retrieval systems (AS/RS) and operate independently under central control software.

Pros: Highest throughput, seamless WMS integration, ideal for 24/7 operations.
Cons: Expensive installation, complex maintenance, longer ROI period.

4. Fork-Mounted vs. Standalone Units

Fork-mounted shuttles attach directly to the forklift mast and are transported into the rack. Standalone units remain inside the rack system and are retrieved remotely.

Fork-Mounted: More flexible across different racks; however, require constant forklift involvement.
Standalone: Enable true automation but must be matched precisely to racking dimensions.

Key Features and Specifications to Evaluate

To determine what to look for in a four way pallet shuttle, assess the following technical and operational parameters:

Load Capacity: Most shuttles support 1,500–3,000 kg (3,300–6,600 lbs). Ensure the shuttle exceeds your heaviest pallet weight, including dynamic loads during movement.
Travel Speed: Ranges from 10–30 m/min. Higher speeds improve throughput but may impact stability on uneven rails.
Battery Life & Charging: Look for lithium-ion batteries with at least 8 hours of runtime. Some models offer hot-swappable batteries or in-rack charging stations.
Navigation Accuracy: Precision should be within ±5 mm to prevent misalignment during loading/unloading.
Control Interface: Remote controls should be ergonomic and waterproof. Advanced systems include touchscreen panels or app-based monitoring.
Communication Protocol: Check compatibility with Wi-Fi, Bluetooth, or proprietary RF systems, especially if integrating with warehouse automation platforms.
Dust and Moisture Resistance: For cold storage or dusty environments, ensure IP65 or higher rating.

Pros and Cons

Advantages

Maximizes storage density by enabling deep-lane utilization.
Reduces reliance on skilled forklift operators.
Lowers risk of rack damage due to reduced forklift traffic inside lanes.
Improves safety by removing personnel from confined racking areas.
Scalable—from single shuttles to multi-level AS/RS deployments.

Limitations

High initial investment, particularly for automated versions.
Requires precise racking alignment; any deviation can cause jams.
Maintenance expertise may not be readily available locally.
Not suitable for mixed SKU environments with frequent changes in pallet size unless programmable settings are robust.

How to Choose a Four Way Pallet Shuttle

Follow this step-by-step guide to make an informed decision when exploring how to choose a four way pallet shuttle:

Assess Your Storage Layout: Measure lane depth, beam levels, and aisle width. Confirm whether your racking is compatible with shuttle operation (e.g., continuous rails or flat beams).
Determine Throughput Requirements: Calculate daily put-away and retrieval cycles. High-volume operations benefit more from semi- or fully automated systems.
Evaluate Load Profiles: Account for maximum pallet weight, dimensions, and center of gravity. Avoid overloading even if the shuttle lists a higher capacity.
Check Compatibility: Verify that the shuttle works with your current forklift fleet (if fork-mounted) or WMS platform (for automated units).
Review Safety Certifications: Look for CE, UL, or other regional compliance marks depending on your location.
Test Before Buying: Request a demo unit to run in your actual environment. Observe performance under real conditions.
Examine Support Infrastructure: Ask about spare parts availability, technician training, and software updates.

Red Flags to Avoid:

No clear documentation on battery replacement intervals.
Vague claims about “AI-powered navigation” without technical details.
Suppliers unwilling to provide references from similar-sized warehouses.
Pricing that seems too low—may indicate substandard materials or outdated electronics.

Price & Market Insights

As of 2024, prices for four way pallet shuttles vary significantly based on automation level and brand:

Manual Models: $3,000–$6,000 per unit.
Semi-Automated: $8,000–$15,000.
Fully Automated (with software): $20,000+ per shuttle, plus integration fees.

Mid-tier brands often offer the best value for small to mid-sized warehouses, balancing reliability and cost. Premium European manufacturers (e.g., SSI Schäfer, Dematic) lead in precision and durability but come at a premium. Chinese OEMs provide budget-friendly options, though long-term service support may be inconsistent. Always compare total cost of ownership—not just purchase price—factoring in energy use, repair frequency, and expected lifespan (typically 7–10 years with proper care).

Model Type	Avg. Price	Best For	Lifespan	Automation Level
Manual Fork-Mounted	$3,500	Small warehouses, infrequent use	5–7 years	Low
Semi-Auto Standalone	$10,000	Medium-volume distribution	8–10 years	Medium
Fully Auto w/WMS	$22,000+	Large-scale, 24/7 operations	10+ years	High

Top-Seller & Competitive Analysis

Leading brands dominate the market due to proven reliability and global support networks. Key players include:

SSI Schäfer: Known for precision engineering and seamless SAP integration. Ideal for enterprises needing end-to-end automation.
Dematic: Offers smart shuttles with predictive maintenance alerts. Strong presence in pharma and retail logistics.
Hänel: Focuses on compact, energy-efficient designs suited for cleanroom or temperature-controlled environments.
Kardex Remstar: Provides modular solutions adaptable to retrofit projects.

When comparing top sellers, examine not just specs but also software usability, update frequency, and customer service responsiveness. Independent reviews suggest that while all major brands deliver solid performance, user satisfaction often hinges on post-sale support rather than hardware alone.

Customer Feedback Synthesis

Analysis of buyer reviews across industrial forums and B2B marketplaces reveals consistent themes:

Common Praises:

“Increased our storage capacity by 40% without expanding the building.”
“Battery lasts through two shifts with moderate usage.”
“Easy to learn—even temporary staff can operate it safely.”

Frequent Complaints:

“One shuttle failed after six months; replacement part took three weeks to arrive.”
“Remote control signal drops in humid freezers.”
“Initial setup required multiple site visits from technicians.”

The most recurring issue involves connectivity problems in extreme temperatures, underscoring the importance of environmental ratings and vendor support proximity.

Sourcing & Supplier Tips

Whether purchasing individually or in bulk, consider the following:

Buy Direct vs. Distributor: Direct purchases may offer customization but lack local service. Distributors often include installation and training.
MOQs: Many manufacturers require minimum order quantities (e.g., 2–5 units) for international shipping.
Warranty: Standard is 1–2 years; extended warranties covering electronics are recommended.
Inspection: Upon delivery, verify physical condition, test basic functions, and confirm included accessories match the quote.
Customs & Compliance: For cross-border orders, ensure the product meets electrical and safety standards in your country (e.g., NRTL listing in North America).

Maintenance, Safety & Legal Considerations

Regular maintenance extends shuttle life and prevents downtime:

Clean rail contact surfaces weekly to avoid debris buildup.
Inspect wheels and drive belts monthly for wear.
Update firmware quarterly if supported.
Store batteries in dry, room-temperature environments when not in use.

Safety practices include:

Never exceed rated load limits.
Ensure aisles are clear before activation.
Use warning lights or alarms during autonomous operation.
Train all operators on emergency stop procedures.

Legally, ensure compliance with OSHA (or equivalent) regulations regarding powered industrial equipment. While shuttles themselves aren't classified as powered trucks, their integration into material handling workflows may fall under workplace safety directives.

Conclusion

Choosing the right four way pallet shuttle hinges on matching system capabilities to your warehouse’s size, throughput, and automation goals. Manual models suit smaller operations seeking incremental gains, while automated systems justify their cost in high-volume environments. Prioritize durability, compatibility, and vendor support over initial price. By carefully evaluating specifications and real-world feedback, you can implement a solution that enhances efficiency, reduces labor strain, and optimizes space utilization.

FAQs

Q: Can a four way pallet shuttle work in standard pallet racking?
A: No, it requires specially designed deep-lane or shuttle-compatible racking with continuous guides or rails for stable movement.

Q: How long does a typical shuttle battery last?
A: Most lithium-ion batteries last 6–10 hours per charge, depending on usage intensity and temperature conditions.

Q: Are four way pallet shuttles difficult to maintain?
A: Routine maintenance is simple, but repairs involving motors or control boards may require specialized technicians.

Q: Do I need special forklifts to use a pallet shuttle?
A: For fork-mounted models, yes—your forklift must support attachment mounting. Standalone shuttles do not require modifications.

Q: Can shuttles handle different pallet sizes?
A: Yes, many models feature adjustable forks or programmable settings, but always verify range limits with the manufacturer.
