How to Choose the Best Fiber Optic Single Mode 24 Core MMC Loopback

When selecting a fiber optic single mode 24 core mmc loopback for network testing or system validation, prioritize low insertion loss (typically <0.3 dB), high return loss (>55 dB), and compatibility with your existing infrastructure—especially LC/UPC or LC/APC connectors. A durable, bend-insensitive cable with proper jacketing (e.g., OFNP-rated) ensures long-term reliability in both lab and field environments. For most professional applications involving high-density single-mode systems, a factory-terminated, fully tested 24-core loopback with MMC (Multi-fiber Mated Connector) alignment offers consistent signal reflection needed for accurate diagnostics. This guide explores how to choose fiber optic single mode 24 core mmc loopback units based on performance, build quality, and use case fit.

About fiber optic single mode 24 core mmc loopback

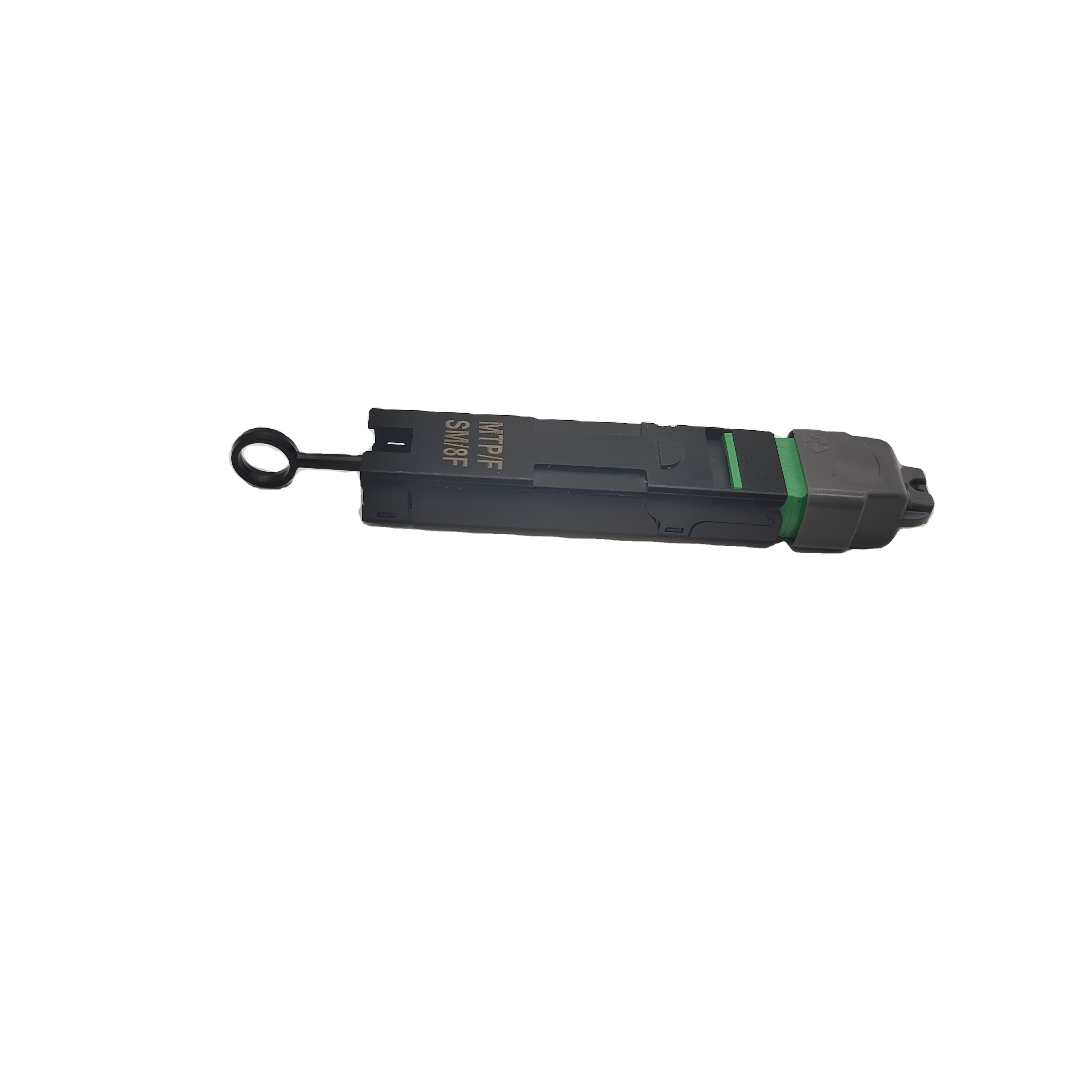

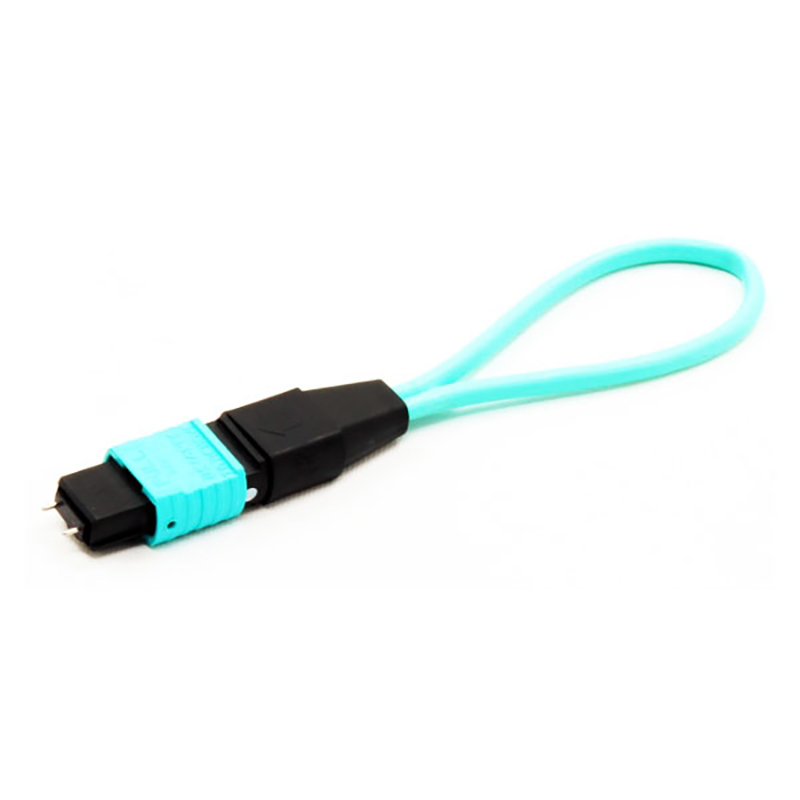

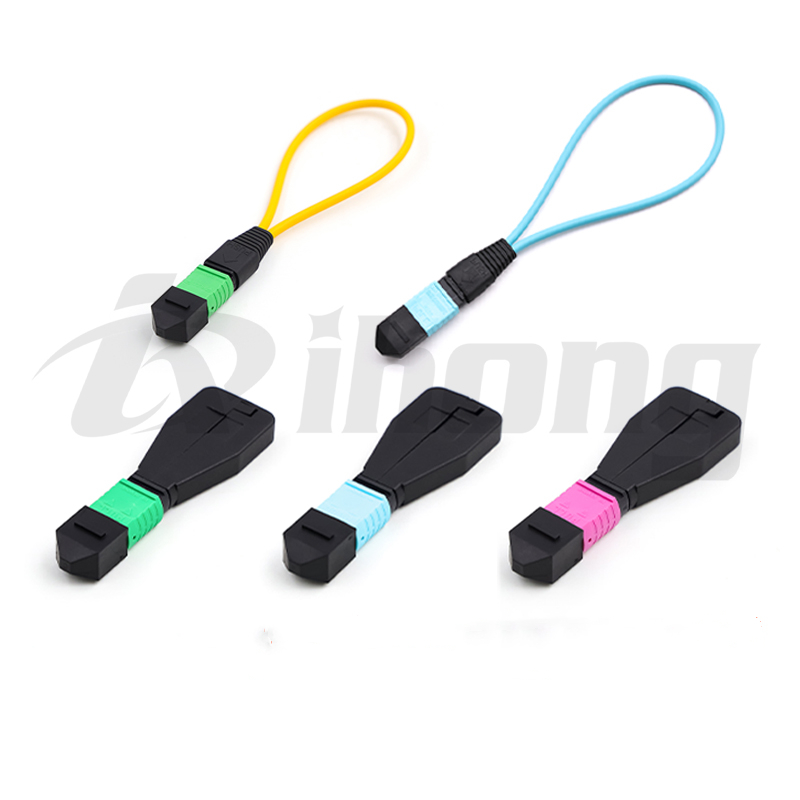

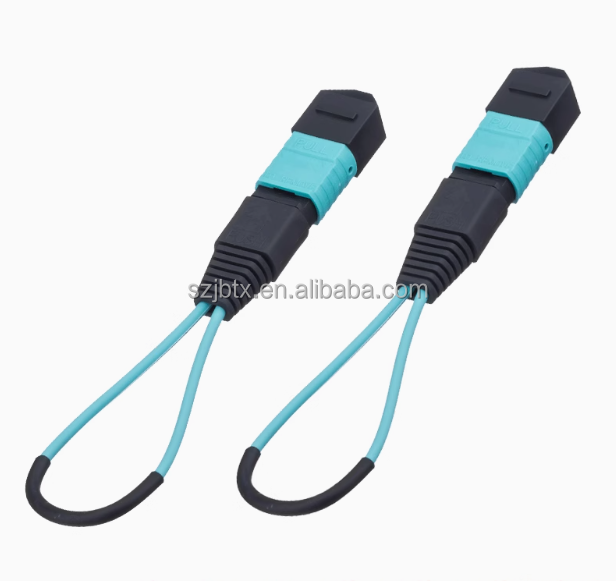

A fiber optic single mode 24 core mmc loopback is a specialized test device used primarily in optical networking to simulate a continuous link by looping transmitted signals back to the source. It consists of a 24-fiber ribbon cable terminated at both ends with multi-fiber connectors—most commonly MMC (also known as MT-RJ or MTP-compatible interfaces)—that align precisely when mated, creating a closed path for light signals. These loopbacks are designed specifically for single-mode fiber (SMF), which operates at wavelengths like 1310 nm or 1550 nm and supports long-distance, high-bandwidth communication.

Typically deployed in data centers, telecom central offices, and enterprise network labs, this device enables engineers to verify transceiver functionality, troubleshoot port issues, validate switch configurations, and conduct bit-error-rate testing without requiring external links. The 24-core configuration matches standard high-density cabling systems such as those using MPO/MTP trunk cables, making it ideal for testing parallel optics in 100G, 200G, or 400G Ethernet setups 1.

Why fiber optic single mode 24 core mmc loopback is gaining popularity

The increasing adoption of cloud computing, 5G infrastructure, and hyperscale data centers has driven demand for faster, more reliable network validation tools. As networks evolve toward higher speeds and denser architectures, traditional point-to-point testing methods become inefficient. This shift explains why the fiber optic single mode 24 core mmc loopback is seeing growing use among technicians and network operators.

These devices streamline testing procedures by allowing full-port activation across multiple lanes simultaneously. In environments where time-sensitive deployment and minimal downtime are critical—such as during equipment commissioning or firmware upgrades—a loopback can reduce diagnostic cycles significantly. Additionally, automated manufacturing processes have improved the consistency and affordability of precision-aligned MMC connectors, making these once-specialized tools more accessible to mid-tier organizations.

Types and variants

Fiber optic loopbacks come in several configurations, each suited to different testing scenarios. Understanding the distinctions helps ensure you select the right variant for your needs.

Single-Ended vs. Dual-Ended Loopbacks

Single-ended: One end features a connector; the other is sealed. Light enters through the connector, reflects internally (often via a mirror or angled polish), and returns along the same path. Common in simplex testing but not applicable to 24-core MMC arrays due to complexity.
Dual-ended: Both ends have matching MMC connectors. When connected to itself via an adapter or cassette, it forms a complete loop. Most 24-core models are dual-ended for uniform signal routing across all fibers.

Connector Polishing: UPC vs. APC

UPC (Ultra Physical Contact): Blue-colored connectors with a slight curvature. Offers good return loss (~50–55 dB). Suitable for general-purpose testing.
APC (Angled Physical Contact): Green-colored connectors with an 8° angle polish. Provides superior return loss (>60 dB), reducing reflected light. Recommended for sensitive coherent transmission systems.

Cable Jacket Ratings

OFNR (Riser-rated): Flame-resistant for vertical runs between floors.
OFNP (Plenum-rated): Higher fire safety standard for air-handling spaces. Required in many commercial buildings.

Polarity Types

Crucial for maintaining correct transmit-receive alignment in parallel optics:

Type A (Straight): Pin 1 → Pin 1
Type B (Reversed): Pin 1 → Pin 24
Type C (Pair-flipped): Each pair reversed individually

Mismatched polarity causes failed tests, so verify compatibility with your patch panels.

Key features and specifications to evaluate

To make an informed decision when choosing a fiber optic single mode 24 core mmc loopback, assess the following technical parameters:

Insertion Loss (IL): Should be under 0.3 dB per connection. Lower values indicate less signal degradation.
Return Loss (RL): Aim for >55 dB (UPC) or >60 dB (APC). High RL minimizes interference from back reflections.
Wavelength Compatibility: Confirm operation at 1310/1550 nm for single-mode systems.
Ferrule Material: Zirconia or stainless steel sleeves offer better durability than plastic.
Tensile Strength & Bend Radius: Look for cables rated for at least 100 N pull force and a minimum bend radius of 15 mm.
Test Certification: Factory-tested units with individual IL/RL reports add confidence in performance accuracy.

Pros and cons

Advantages:

Enables rapid verification of multi-port optical modules.
Reduces need for live network connections during QA.
Supports automation in production-line testing environments.
Compact and reusable across multiple systems.

Limitations:

High initial cost compared to basic jumpers.
Sensitive to contamination—dust caps and cleaning kits are essential.
Not suitable for bidirectional traffic simulation unless paired with additional hardware.
Limited flexibility if polarity or connector type doesn’t match infrastructure.

How to choose fiber optic single mode 24 core mmc loopback

Follow this step-by-step guide to ensure optimal selection:

Determine Application Needs: Are you testing QSFP28 ports? 400G DR4 modules? Ensure the loopback supports required lane count and wavelength.
Verify Connector Type: Confirm whether your gear uses MTP®-compatible MMC or another variant. Avoid generic labels like “MPO” without confirming gender and key orientation.
Check Polarity Configuration: Match Type A/B/C to your cabling standard. Misalignment leads to false failures.
Assess Environmental Requirements: Use plenum-rated (OFNP) cables in air-handling spaces; riser-rated (OFNR) elsewhere.
Review Optical Performance Data: Request test reports showing actual IL/RL values per channel, not just averages.
Evaluate Build Quality: Look for strain relief boots, robust boot design, and secure latching mechanisms.
Consider Reusability: Devices with protective caps and labeled ends last longer in shared environments.
Avoid Unbranded Vendors: Unknown manufacturers may cut corners on ferrule alignment or polishing.

Red flags include missing certification documents, inconsistent color coding, or vague product descriptions lacking detailed specs.

Price & market insights

As of 2024, prices for new fiber optic single mode 24 core mmc loopback units typically range from $120 to $300, depending on brand, connector polish, and test documentation. Basic UPC versions start around $120–$160, while APC-polished, fully certified models reach $250–$300. Refurbished or third-party alternatives may sell for $70–$110 but often lack traceable calibration or warranties.

Higher-priced options usually include serialized tracking, individual test results, and compliance with Telcordia GR-326 or IEC 61300 standards. For mission-critical applications, investing in premium-grade loopbacks pays off in reduced troubleshooting time and fewer false positives. However, for occasional use, mid-tier brands offering clear specifications and return policies represent strong value.

Top-seller & competitive analysis

Several vendors dominate the professional-grade market for 24-core single-mode loopbacks. While specific model availability varies, top performers share common traits: precise alignment, durable construction, and comprehensive testing.

Brand	Connector Type	Polish	Avg. Insertion Loss	Price Range
FS	MTP-II	APC	<0.25 dB	$240–$280
L-com (now Infinite Electronics)	MTP	UPC	<0.30 dB	$180–$210
Senko	CS/Multi-Fiber	APC	<0.20 dB	$290+
ProLabs	MTP	UPC	<0.35 dB	$150–$190

Note: Always confirm exact compatibility with your transceivers and chassis before purchase. Some OEMs lock certain ports to branded optics, potentially limiting third-party loopback usability.

Customer feedback synthesis

Analysis of user reviews across major B2B platforms reveals recurring themes:

Common Praises:

"Perfect for validating 100G line cards before deployment."
"Factory test sheet matched our lab measurements exactly. Very reliable."
"Sturdy build—survived repeated use in field testing."

Recurring Complaints:

"Received wrong polarity type (Type B instead of Type A). Had to reorder."
"No test report included despite listing on product page."
"Dust cap fell off during shipping; had to clean before use."

These highlight the importance of double-checking order details and inspecting upon delivery.

Sourcing & supplier tips

Procure from reputable suppliers specializing in fiber optics, such as FS, L-com, or Anixter. For bulk purchases (10+ units), request sample testing data and negotiate extended warranties. Consider drop-shipping partners if integrating into larger deployments.

When evaluating sellers, check:

Clear specification sheets (not marketing blurbs)
Inclusion of test reports or batch certifications
Return policies for defective or misconfigured units
Availability of technical support for compatibility questions

Avoid marketplaces with anonymous listings or unverified ratings. If buying internationally, confirm voltage/wavelength compatibility and import regulations affecting lead times.

Maintenance, safety & legal considerations

Proper care extends lifespan and ensures measurement integrity:

Always use dust caps when not in use.
Clean connectors with lint-free wipes and pure isopropyl alcohol before each use.
Inspect ferrules under a fiber scope annually or after rough handling.
Never look directly into active fiber ports—even looped signals can carry invisible laser radiation.

No special licensing is required for using loopbacks in most countries, but workplace safety regulations (e.g., OSHA in the U.S.) may require laser safety training for personnel working with Class 1M or higher optical equipment 2. Always follow local guidelines regarding electrical safety and equipment labeling.

Conclusion

Selecting the right fiber optic single mode 24 core mmc loopback hinges on matching technical specs—especially insertion loss, return loss, connector type, and polarity—to your testing environment. Prioritize units with verifiable performance data, appropriate fire ratings, and durable construction. While higher-end models command premium prices, they deliver greater reliability and accuracy in demanding applications. Whether deploying in a carrier network or enterprise data center, a well-chosen loopback simplifies diagnostics and enhances operational efficiency. By following the evaluation steps outlined above, buyers can confidently identify a solution that balances performance, longevity, and value.

FAQs

Q: Can I use a single mode 24 core mmc loopback with multimode equipment?
A: No. Single-mode loopbacks are incompatible with multimode fiber due to core size and wavelength differences. Using them together can cause inaccurate readings or damage.

Q: How do I verify my loopback is functioning correctly?
A: Connect it to a known-good transceiver and use an optical power meter to measure returned signal strength. Compare results against expected loss budgets.

Q: What’s the difference between MTP and MMC connectors?
A: MMC refers to the general multi-fiber mated connector concept; MTP is a high-performance trademarked version of MPO. Most modern 24-core loopbacks use MTP-compatible MMC housings.

Q: Do fiber optic loopbacks degrade over time?
A: Yes, especially if exposed to dust, moisture, or physical stress. Regular inspection and cleaning help maintain performance.

Q: Is calibration necessary for fiber optic loopbacks?
A: While not always mandatory, periodic verification against reference equipment ensures ongoing accuracy, particularly in regulated industries.
