How to Choose the Best Extrusion Laminating Machines: A Complete Buying Guide

When selecting extrusion laminating machines for industrial packaging or material processing, prioritize models with consistent melt control, adjustable nip pressure, and compatibility with your substrate materials. The best choice depends on production volume, film type, and required lamination strength. For high-speed operations, consider automated inline systems like blown film extrusion laminating machines 1. Evaluate energy efficiency, ease of maintenance, and safety certifications before purchasing. Avoid low-cost units lacking technical support or modular design.

About Extrusion Laminating Machines

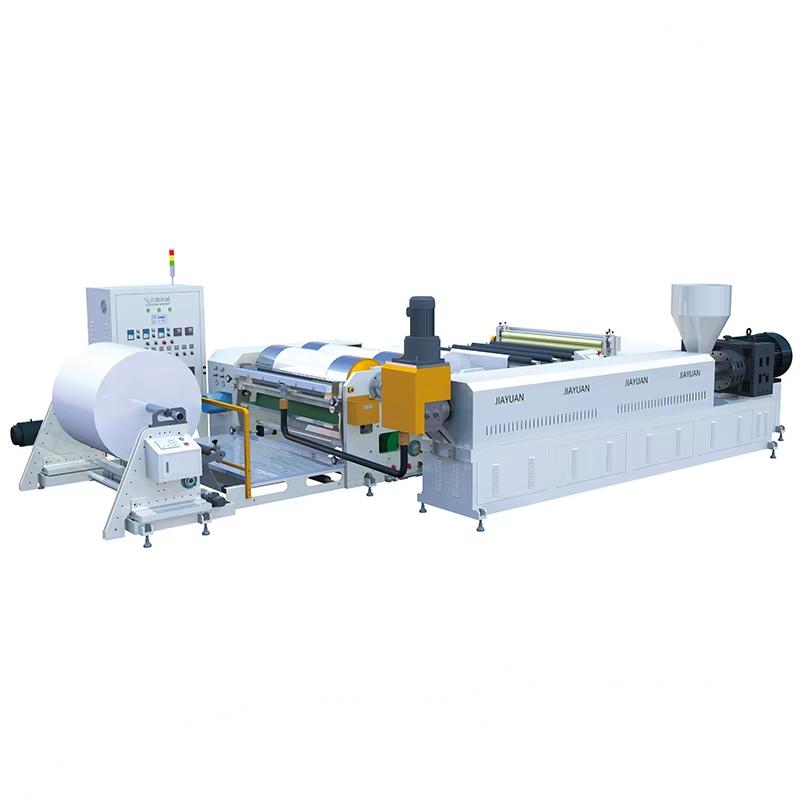

Extrusion laminating machines are industrial systems used to bond two or more layers of flexible materials—such as plastic films, foils, or paper—using a molten polymer layer (typically polyethylene) extruded directly between them. This process is widely employed in packaging industries to produce moisture-resistant, durable laminates for food, medical, and consumer goods packaging.

The core mechanism involves feeding substrates through a system where one side passes over a rubber-coated roller while molten resin is extruded from a die onto its surface. The second substrate is then pressed against it under controlled heat and pressure, forming a strong, sealed bond as the polymer cools. Unlike adhesive lamination, extrusion lamination does not require solvent-based glues, making it more environmentally friendly and cost-effective over time 2.

These machines vary significantly in size and complexity—from compact semi-automatic units suited for R&D labs to fully automated production lines capable of running at speeds exceeding 300 meters per minute. They are commonly integrated into larger converting lines that include printing, coating, or slitting stations.

Why Extrusion Laminating Machines Are Gaining Popularity

One major driver behind the growing demand for extrusion laminating machines is the shift toward sustainable packaging solutions. Since these systems use fewer chemicals and allow recyclable mono-material structures, they align well with environmental regulations and corporate sustainability goals.

Additionally, advancements in automation and digital controls have improved precision and reduced waste, increasing yield and lowering operational costs. Manufacturers seeking to reduce reliance on imported laminates are investing in domestic extrusion capabilities, especially in emerging markets.

Another factor is versatility: modern extrusion laminators can handle a wide range of substrates—including aluminum foil, metallized films, paperboard, and bioplastics—making them ideal for diverse product lines. With rising e-commerce and demand for shelf-stable packaging, companies are upgrading their lamination capacity to meet quality and throughput requirements.

Types and Variants

Understanding the different types of extrusion laminating machines helps buyers match equipment to specific production needs.

1. Inline vs. Offline Systems

Inline: Integrated directly into a continuous production line (e.g., with printing or coating). Offers higher efficiency but less flexibility.
Offline: Standalone units allowing independent operation. Ideal for small batches or multiple input sources.

Pros: Inline maximizes speed and minimizes handling; offline offers adaptability. Cons: Inline requires synchronized maintenance; offline may need additional labor.

2. Blown Film vs. Cast Film Extrusion Laminators

Blown Film: Uses a circular die to create tubular film, which is then flattened and laminated. Better for high-barrier applications.
Cast Film: Produces flat, uniform film via a slot die. Provides clearer optics and faster cooling.

Pros: Blown film allows orientation in both directions; cast film yields smoother surfaces. Cons: Blown systems are bulkier; cast requires precise temperature control.

3. Single-Side vs. Double-Side Lamination

Single-side: Applies polymer to one substrate only. Common for pouches and wraps.
Double-side: Coats both sides simultaneously, enabling three-layer structures. Used in retort packaging.

Pros: Double-side increases bonding strength; single-side reduces material usage. Cons: Double-side machines are more complex and costly.

Key Features and Specifications to Evaluate

To choose the right extrusion laminating machine, assess the following technical parameters:

Extruder Size (Screw Diameter): Measured in mm (e.g., 65mm, 90mm), this affects output rate. Larger screws suit high-volume runs.
Melt Temperature Control: Precision within ±2°C ensures consistent flow and adhesion.
Nip Roll Pressure Adjustment: Hydraulic or pneumatic systems allow fine-tuning for different substrates.
Web Width Capacity: Ranges from 600mm (lab-scale) to over 2500mm (industrial). Match to your widest roll stock.
Liner Speed (m/min): Higher speeds increase productivity but require robust tension control.
Drafting System: Pre-heats substrates to improve bond strength, especially critical when laminating paper or foil.
Automation Level: Look for PLC controls, touchscreen interfaces, auto-diagnostics, and data logging.
Safety Interlocks: Emergency stops, guarding, and ventilation for fumes are essential.

Also verify compatibility with resins such as LDPE, MDPE, EVA, or tie layers. Some machines support co-extrusion for multi-layer functional barriers.

Pros and Cons

Advantages

Lower operating cost compared to adhesive lamination due to elimination of solvents.
Stronger seals and better moisture resistance in final products.
Environmentally favorable—no VOC emissions during lamination.
High throughput potential with minimal downtime once optimized.
Ability to laminate difficult substrates like aluminum foil without delamination issues.

Limitations

High initial investment, especially for full-line automation.
Requires skilled operators for setup and troubleshooting.
Limited rework capability—errors result in scrap until settings stabilize.
Thermal sensitivity: some heat-sensitive films may distort if not properly managed.
Not suitable for very thin or stretch-prone substrates without pre-conditioning.

Extrusion lamination is best suited for medium-to-large scale operations needing durable, high-barrier packaging. It’s less ideal for short runs or highly variable job mixes unless the machine has quick-change tooling.

How to Choose Extrusion Laminating Machines

Follow this step-by-step guide to ensure you select the most appropriate model:

Define Your Application: Identify the primary substrates (e.g., PET/foil, paper/PE) and end-use requirements (e.g., retortable, freeze-thaw stable).
Determine Output Needs: Calculate required meters per minute and daily run hours to estimate necessary machine speed and extruder capacity.
Evaluate Integration Requirements: Decide whether the machine must connect to existing printing or slitting lines (inline) or operate independently (offline).
Assess Automation Needs: For 24/7 operations, prioritize machines with automatic splicing, web guiding, and remote monitoring.
Check Resin Compatibility: Confirm the extruder can process your preferred polymers and handle any additives (e.g., pigments, slip agents).
Review Safety and Compliance: Ensure the unit meets local electrical, mechanical, and emission standards (e.g., CE, UL, ISO 12100).
Verify Service and Support: Choose suppliers offering training, spare parts availability, and on-site technician access.
Request Trial Runs: If possible, test your materials on the machine before purchase to evaluate bonding quality and stability.

Red Flags to Avoid:

Vague or incomplete technical specifications.
No demonstration or reference customers provided.
Poor documentation (manuals, schematics).
Unrealistically low prices suggesting substandard components.
Lack of after-sales service network.

Price & Market Insights

Entry-level semi-automatic extrusion laminating machines start around $50,000 USD for narrow-width (≤1000mm) models with basic controls. Mid-range industrial systems (1300–1800mm width, 200+ m/min) typically range from $150,000 to $400,000. Fully integrated, high-speed lines with co-extrusion and automation can exceed $1 million.

Value tiers exist based on build quality, control sophistication, and brand reputation. European manufacturers (e.g., Germany, Italy) often command premium pricing due to precision engineering, while Asian suppliers offer competitive pricing with increasing quality standards.

Consider total cost of ownership—not just purchase price. Factor in energy consumption, maintenance frequency, operator training, and expected lifespan (typically 10–15 years with proper care). Refurbished or used machines may save costs but carry risks related to wear, outdated controls, or missing parts.

Top-Seller & Competitive Analysis

Leading brands in the extrusion laminating space include Windmoeller & Hoelscher (Germany), Bobst (Switzerland), and Hosokawa Alpine (Japan). Chinese manufacturers like Ruian Huada and Zhangjiagang PMT are gaining traction with cost-effective alternatives.

Model	Width (mm)	Max Speed (m/min)	Extruder Size	Approx. Price
Windmoeller & Hoelscher WINDLINE X	2400	350	90mm	$800,000+
Bobst Multilac	1850	280	75mm	$500,000
Hosokawa Alpine CSL	2000	300	80mm	$600,000
Zhangjiagang PMT ZL-1300	1300	200	65mm	$180,000

When comparing top sellers, note differences in control software, energy recovery systems, and user interface intuitiveness. Premium brands often provide superior long-term reliability and global service networks.

Customer Feedback Synthesis

Analysis of industry forums, trade reviews, and user testimonials reveals recurring themes:

Common Praises:

"Excellent bond consistency across foil laminations."
"Low defect rates after initial calibration."
"User-friendly HMI made operator training easier."
"Durable construction—still running after 12 years with routine servicing."

Frequent Complaints:

"Long lead times for replacement rollers or dies."
"Poor English manuals from some Asian suppliers."
"Difficult to find local technicians familiar with niche brands."
"Unexpected downtime due to sensor failures or control board issues."

Buyers emphasize the importance of post-purchase support and clarity in warranty terms. Units with modular designs receive higher satisfaction scores due to easier repairs.

Sourcing & Supplier Tips

For new purchases, consider both direct manufacturers and authorized distributors. Direct sourcing may offer customization options, while distributors often provide faster delivery and local service.

If buying in bulk or exploring private labeling, negotiate service packages and spare parts bundles. Request references from existing clients using similar materials.

For international orders, clarify shipping terms (FOB, CIF), import duties, and installation responsibilities. Use third-party inspection services (e.g., SGS, Bureau Veritas) to verify machine condition before shipment, especially for used or refurbished units.

Avoid suppliers unwilling to provide detailed CAD drawings, electrical schematics, or compliance certificates. Always confirm return policies and commissioning assistance availability.

Maintenance, Safety & Legal Considerations

Regular maintenance is crucial for performance and safety. Key tasks include:

Cleaning die lips weekly to prevent buildup.
Lubricating bearings and chains monthly.
Calibrating temperature sensors and load cells quarterly.
Inspecting belts, hoses, and electrical connections annually.

Safety protocols should cover lockout/tagout procedures, hot surface warnings, and emergency shutdown drills. Install proper ventilation to manage polymer fumes, particularly during startup or purging.

Legally, ensure the machine complies with regional machinery directives (e.g., EU Machinery Directive 2006/42/EC, OSHA standards in the U.S.). Operators must be trained on safe handling of molten polymer and moving parts. Keep records of inspections and staff training for liability protection.

Conclusion

Selecting the right extrusion laminating machine requires balancing performance, budget, and long-term operational needs. Focus on models that match your substrate mix, production speed, and integration environment. Prioritize precision control, safety features, and supplier support over lowest upfront cost. Whether choosing a high-end European system or a value-oriented Asian alternative, thorough evaluation and testing will lead to better outcomes. For most industrial users, investing in a reliable, scalable extrusion laminator pays off through improved product quality and lower operating expenses.

FAQs

What is the difference between extrusion laminating and adhesive laminating?
Extrusion lamination uses molten polymer to bond layers without glue, while adhesive lamination applies a separate bonding agent. Extrusion is faster and more eco-friendly but requires higher temperatures.

Can extrusion laminating machines handle biodegradable films?
Yes, but only if the machine offers precise temperature control and compatible drafting systems. Test specific bioplastic formulations beforehand to avoid degradation.

How often do extrusion laminators need maintenance?
Weekly cleaning and monthly lubrication are recommended. Major servicing, including alignment checks and component replacements, should occur every 6–12 months depending on usage.

Are used extrusion laminating machines worth buying?
They can be cost-effective if thoroughly inspected and accompanied by service history. However, older models may lack energy efficiency or modern safety features.

Do I need special training to operate an extrusion laminator?
Yes, operators should understand polymer behavior, web tension control, and emergency procedures. Most suppliers offer formal training programs upon installation.
