How to Choose the Best EXD Explosion Proof Junction Box for Your Needs

When selecting an EXD explosion proof junction box, prioritize models certified for your specific hazardous environment—such as Class I, Division 1 or ATEX Zone 1—and ensure they are constructed from corrosion-resistant materials like cast aluminum or stainless steel. Look for ingress protection ratings of at least IP66 and verify flame path integrity to contain internal explosions safely. For optimal performance in oil & gas, chemical plants, or mining operations, always match the enclosure’s temperature class (T-rating) and connection size to your existing system 1. Avoid uncertified suppliers and confirm third-party testing through recognized bodies like UL or IECEx.

About EXD Explosion Proof Junction Box

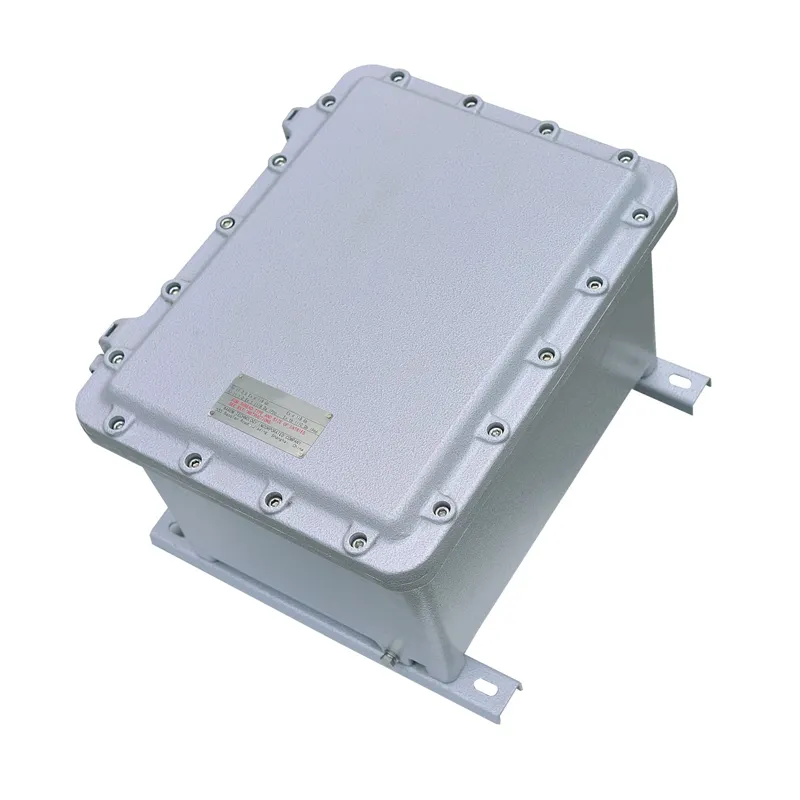

An EXD explosion proof junction box is a specialized electrical enclosure designed to withstand and contain internal explosions without allowing flames or hot gases to escape into surrounding explosive atmospheres. The “Ex d” designation refers to the European standard for flameproof enclosures under IEC 60079-1, which specifies construction requirements that prevent ignition of external flammable gases or vapors 2.

These enclosures are commonly used in environments classified as hazardous due to the presence of combustible substances—such as refineries, petrochemical facilities, grain silos, paint spray booths, and offshore platforms. Inside these boxes, wiring connections, splices, or terminal blocks are housed securely, minimizing spark risks while maintaining circuit integrity.

The core principle behind Ex d protection is containment: if an explosion occurs within the enclosure due to a spark or equipment failure, the robust housing and precisely engineered flame paths cool escaping gases below their auto-ignition temperature before they exit. This prevents chain reactions in volatile surroundings.

Why EXD Explosion Proof Junction Boxes Are Gaining Popularity

Demand for EXD-rated junction boxes has grown significantly due to stricter global safety regulations, increased automation in high-risk industries, and rising awareness of occupational hazards. As industrial processes become more complex and operate under higher pressures and temperatures, ensuring intrinsic safety in electrical installations is no longer optional.

Industries such as LNG processing, pharmaceutical manufacturing, and renewable energy (especially hydrogen production) now require reliable Ex d solutions. Additionally, advancements in material science have made modern EXD enclosures lighter, more durable, and easier to install than earlier generations, improving adoption rates across sectors.

Another factor driving popularity is international harmonization of standards. With frameworks like ATEX in Europe and NEC 500/505 in North America aligning closely with IECEx certification schemes, manufacturers can produce globally compliant products, simplifying procurement for multinational operations.

Types and Variants of EXD Explosion Proof Junction Boxes

Not all EXD junction boxes are created equal. Several variations exist based on application needs, environmental conditions, and installation methods:

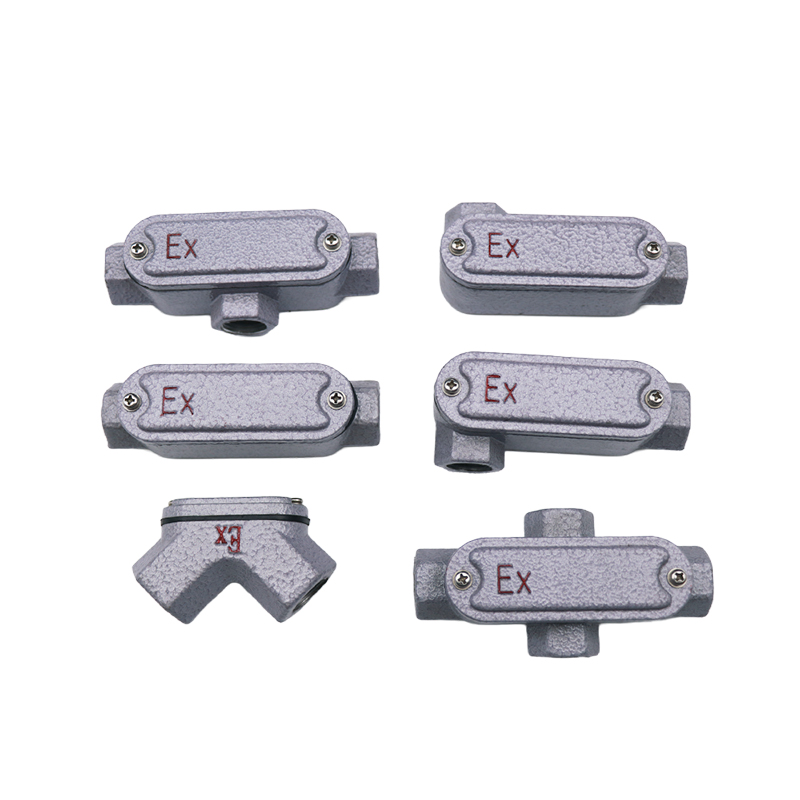

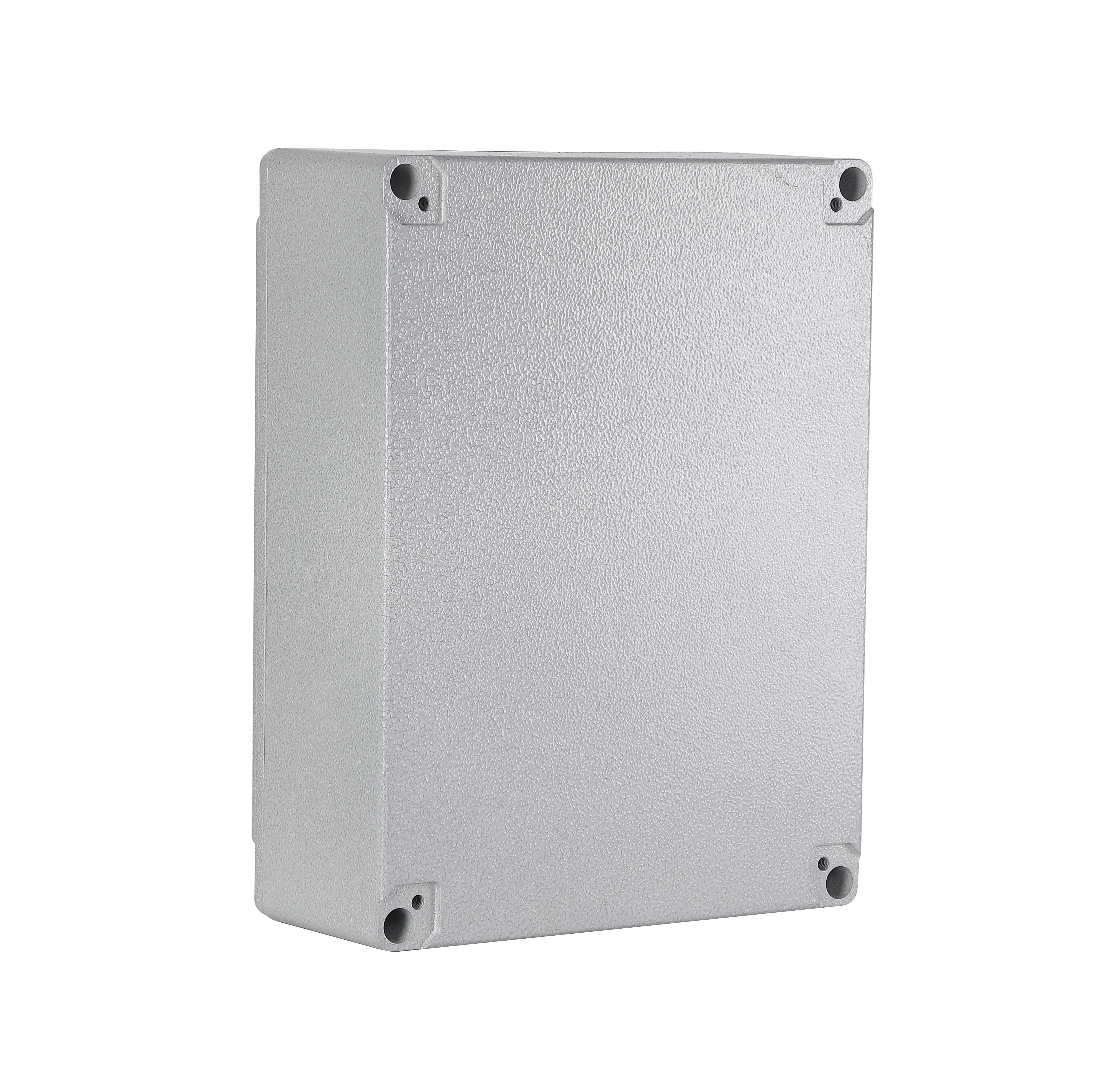

1. Cast Aluminum Enclosures

Pros: Lightweight, cost-effective, naturally corrosion-resistant when coated, excellent heat dissipation.
Cons: Less durable in highly corrosive environments unless specially treated; not suitable for marine or caustic chemical exposure without upgrades.

Ideal for general-purpose use in oil & gas facilities and indoor industrial settings.

2. Stainless Steel Enclosures

Pros: Superior resistance to rust, saltwater, acids, and extreme temperatures; long service life even in harsh outdoor or marine environments.
Cons: Significantly heavier and more expensive than aluminum; harder to modify onsite.

Best suited for offshore rigs, food processing plants, or coastal substations.

3. Ductile Iron Enclosures

Pros: Extremely strong and impact-resistant; ideal for underground mining or heavy machinery applications.
Cons: Prone to rust if coating fails; very heavy, increasing labor costs during installation.

Commonly found in coal mines and tunneling projects where mechanical stress is high.

4. Polycarbonate (Plastic) Flameproof Enclosures

Pros: Non-conductive, lightweight, resistant to many chemicals, transparent versions allow visual inspection.
Cons: Limited temperature range; susceptible to UV degradation; lower mechanical strength.

Used mainly in low-energy signal circuits or control panels where visibility matters.

Key Features and Specifications to Evaluate

To make an informed decision when buying an EXD explosion proof junction box, assess the following technical parameters:

Ingress Protection (IP) Rating: Aim for at least IP66 (dust-tight and protected against powerful water jets). In washdown or outdoor areas, IP68 may be necessary.
Temperature Class (T-Class): Must match the auto-ignition temperature of the surrounding gas group (e.g., T4 = max surface temp 135°C). Mismatched T-ratings increase ignition risk.
Flame Path Gap: Precision-machined joints must meet IEC 60079-1 tolerances to ensure proper quenching of flames. Never alter these surfaces in the field.

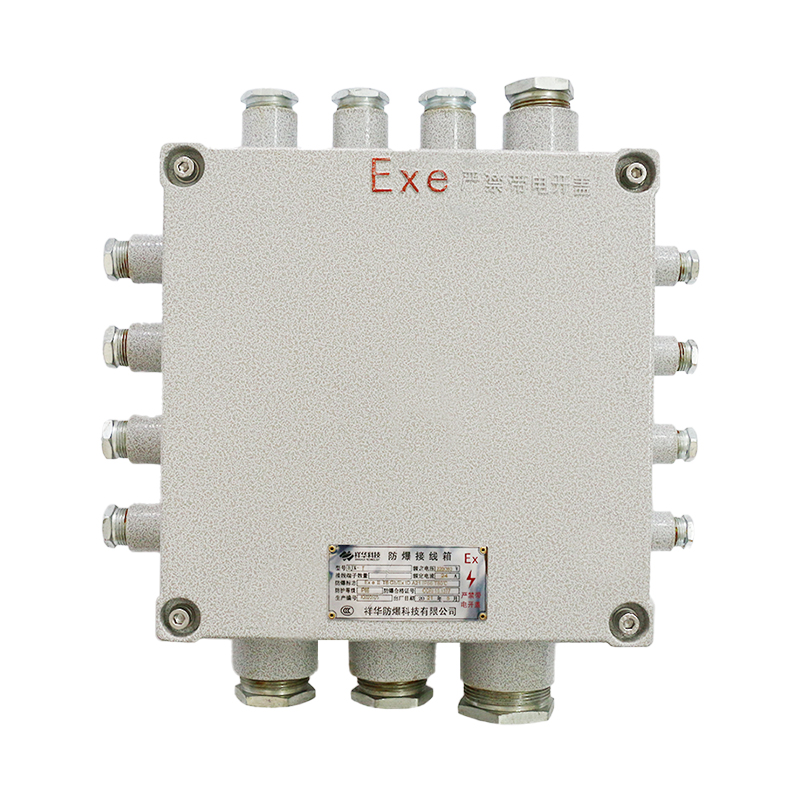

Conduit Entry Points: Check thread type (NPT, BSP), number, and orientation. Some models offer modular knockouts for flexibility.
Certifications: Look for UL 844, CSA C22.2 No. 30, ATEX Directive 2014/34/EU, IECEx, or INMETRO approvals depending on region.
Gasket Material: Silicone or EPDM seals maintain integrity over time and across temperature swings.

Pros and Cons of Using EXD Junction Boxes

Advantages

Prevents ignition in hazardous locations by containing internal explosions.
Enables safe routing and connection of power and control wiring in volatile environments.
Long-term reliability when properly installed and maintained.
Compliance with OSHA, NEC, and international safety codes.

Disadvantages

Higher initial cost compared to standard enclosures.
Heavier weight increases structural support and labor requirements.
Installation requires trained personnel familiar with hazardous area practices.
Limited availability of specialty configurations from smaller vendors.

They are best used in classified hazardous zones but unnecessary—and overly costly—in ordinary environments like offices or dry warehouses.

How to Choose an EXD Explosion Proof Junction Box

Selecting the right model involves a step-by-step evaluation:

Identify Hazard Classification: Determine whether your site falls under Class I (gases), Class II (dusts), or Class III (fibers), and the division/zone level (Div 1 vs Div 2, Zone 0–2).
Match Environmental Conditions: Consider moisture, dust, chemicals, UV exposure, and ambient temperature extremes.
Select Appropriate Material: Use stainless steel in corrosive or marine environments; aluminum for general use.
Verify Certification Marks: Confirm the product carries valid marks from recognized testing labs (UL, CSA, IECEx).
Check Dimensional Compatibility: Ensure conduit entries align with existing runs and there's enough internal space for terminations.
Review Installation Requirements: Some designs need grounding kits, bonding jumpers, or special tools for assembly.
Avoid Red Flags: Steer clear of sellers who cannot provide test reports, lack traceable batch numbers, or offer prices far below market average.

Price & Market Insights

Pricing varies widely based on material, size, and certification scope. Typical ranges include:

Basic cast aluminum models: $80–$200
Stainless steel units: $200–$600+
Customized or large multi-entry enclosures: $600–$1,200

While budget options exist, especially from overseas suppliers, cheaper units may lack rigorous quality control or full compliance documentation. Investing in reputable brands often pays off in reduced downtime and audit readiness. However, for non-critical secondary circuits, certified mid-tier models can offer good value.

Top-Seller & Competitive Analysis

Leading manufacturers such as Pepperl+Fuchs, Eaton, R. Stahl, and Emerson offer well-established EXD junction boxes known for consistency and global certification coverage. Below is a comparison of popular models:

Model	Material	IP Rating	Certifications	Approx. Price
Eaton Crouse-Hinds Series EJBA	Cast Aluminum	IP66	UL, ATEX, IECEx	$145
Pepperl+Fuchs KFD2-STC-Ex1.D	Stainless Steel	IP68	IECEx, ATEX, CSA	$420
R. Stahl 8122 Series	Ductile Iron	IP65	ATEX, UL	$310
Emerson Rosemount JBX-EP	Aluminum Alloy	IP67	UL, CSA, IECEx	$190

Each balances performance and specialization—choose based on your operational demands rather than brand alone.

Customer Feedback Synthesis

Analysis of user reviews across industrial supply platforms reveals consistent themes:

Positive feedback includes: ease of installation with pre-threaded entries, durability in wet environments, clear labeling of certification details, and reliable gasket sealing over multiple seasons.

Common complaints involve: missing hardware in shipments, difficulty sourcing replacement parts for older models, inconsistent threading standards between regions, and delayed response from some distributors regarding compliance queries.

Users emphasize the importance of working with authorized dealers to avoid counterfeit or substandard replicas that mimic genuine EXD designs but fail under pressure testing.

Sourcing & Supplier Tips

When purchasing EXD explosion proof junction boxes:

Buy from authorized distributors or directly from OEMs to ensure authenticity.
Request full product datasheets, test certificates (e.g., Factory Mutual or SGS reports), and conformity declarations.
For bulk orders, negotiate inclusion of spare gaskets, mounting kits, and bilingual labels if operating internationally.
Inspect each unit upon delivery: check for shipping damage, verify nameplate data matches order specs, and confirm seal integrity.
Avoid gray-market imports unless accompanied by verifiable third-party certification.

Maintenance, Safety & Legal Considerations

Proper maintenance ensures ongoing safety and regulatory compliance:

Inspect enclosures annually—or after any suspected impact—for cracks, corrosion, or damaged threads.
Never repaint or modify flame paths; doing so invalidates certification.
Replace worn gaskets promptly to maintain IP rating and explosion containment capability.
Follow lockout/tagout procedures before opening any enclosure in a hazardous zone.
Ensure only qualified electricians perform installation and repairs, per NFPA 70E guidelines 3.

Legally, using non-certified or improperly rated enclosures in classified areas can lead to fines, shutdowns, or liability in case of incident. Always document equipment specifications and maintenance logs for audits.

Conclusion

Choosing the right EXD explosion proof junction box hinges on matching technical specifications to your site’s hazard classification, environmental conditions, and regulatory requirements. Prioritize certified, well-constructed enclosures made from appropriate materials—aluminum for cost-efficiency, stainless steel for corrosion resistance. Evaluate ingress protection, temperature class, and conduit compatibility carefully. While upfront costs may be higher, the investment enhances worker safety, reduces fire risk, and supports long-term operational compliance. By following this guide, buyers can confidently select a reliable solution tailored to their industrial needs.

FAQs

What does 'Ex d' mean in explosion proof enclosures?
'Ex d' stands for 'Explosion-proof, flameproof' according to IEC 60079-1. It indicates the enclosure can contain an internal explosion and prevent ignition of surrounding flammable atmospheres.

Can I use an EXD junction box outdoors?
Yes, provided it has a sufficient IP rating (IP66 or higher) and is made from weather-resistant material like stainless steel or coated aluminum.

Do EXD enclosures need regular maintenance?
Yes. Inspect seals, threads, and housings periodically for damage or corrosion. Replace gaskets as needed to preserve explosion protection integrity.

Are all EXD junction boxes compatible with NPT threads?
No. Some use metric (M-thread) or BSP threads. Always verify thread type matches your conduit system before purchase.

How do I verify if an EXD box is certified?
Look for official certification marks (UL, CSA, IECEx) and request test reports from the manufacturer or supplier. Cross-check model numbers in public databases if available.
