How to Choose the Best Estop Button Illuminated Twist Release 22mm ZB4

When selecting an estop button illuminated twist release 22mm ZB4, prioritize models with certified safety ratings (such as IEC 60947-5-1), durable metal or plastic housings, clear visual indication via integrated LED illumination, and a reliable twist-to-reset mechanism. These buttons are ideal for industrial machinery requiring emergency shutdowns with manual confirmation before restart. A high IP rating (IP65 or higher) ensures dust and moisture resistance, while compatibility with standard 22mm panel cutouts simplifies installation. For most applications, choose red mushroom-head variants with latching action and proven electrical durability (rated for at least 100,000 operations). This buying guide covers everything from technical specs to supplier selection to help you make an informed decision on the right estop button illuminated twist release 22mm ZB4.

About Estop Button Illuminated Twist Release 22mm ZB4

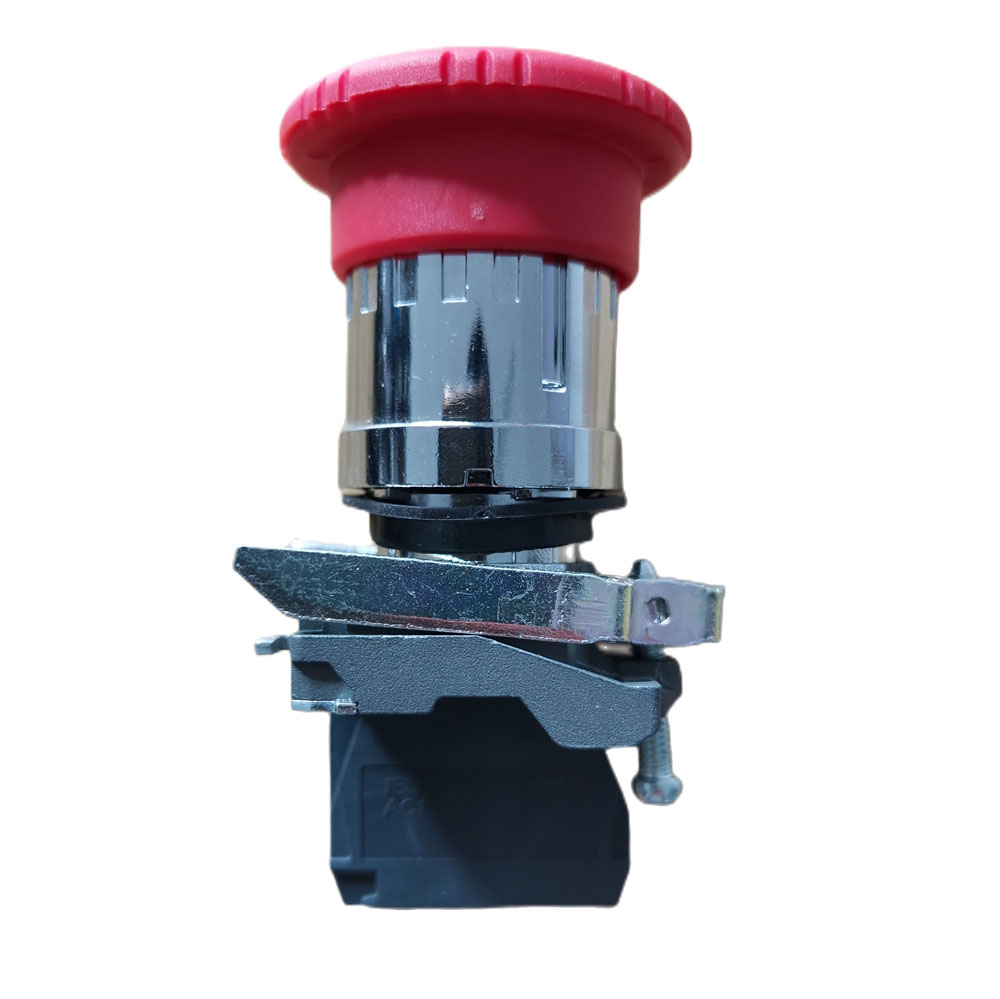

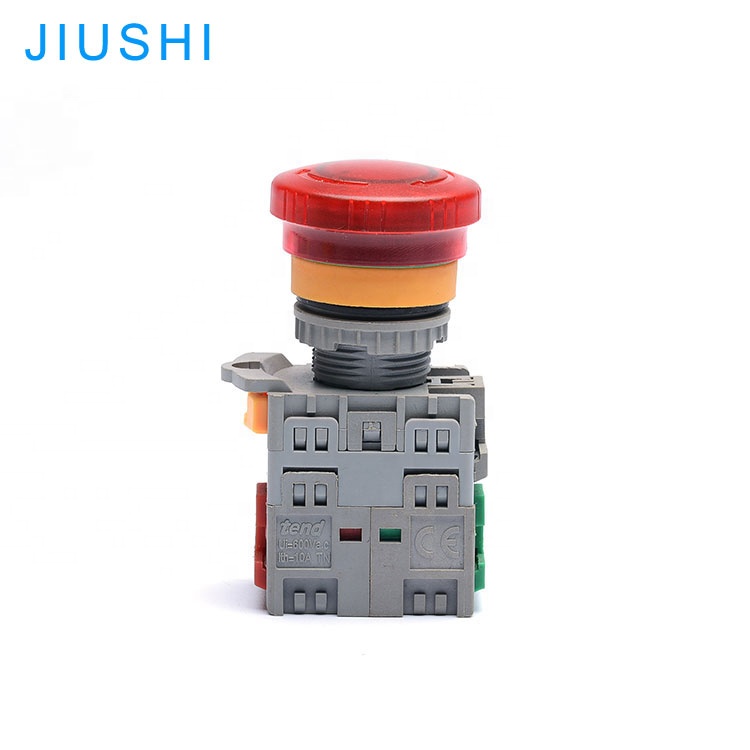

An estop button illuminated twist release 22mm ZB4 is a specialized electromechanical switch designed for emergency stop functions in industrial environments. The '22mm' refers to the standard mounting hole size, making it compatible with most control panels. The 'ZB4' designation typically refers to a product series by manufacturers like Schneider Electric, known for modular pushbutton stations and signaling devices 1. These units feature a prominent red mushroom head actuator that latches when pressed, immediately cutting power to machinery. To reset, the operator must twist the knob clockwise, ensuring intentional reactivation after an emergency.

The built-in illumination—usually LED-based—provides visual status feedback. When lit, it may indicate system readiness; when off, it can signal shutdown or fault conditions. Some models offer dual-color LEDs (e.g., green for run, red for stop) to enhance situational awareness. These components are commonly used in conveyor systems, packaging machines, CNC equipment, and automated assembly lines where rapid, unambiguous shutdown capability is critical.

Why Estop Button Illuminated Twist Release 22mm ZB4 Is Gaining Popularity

Industrial safety standards have become more stringent globally, driving demand for reliable, standardized emergency stop solutions. The estop button illuminated twist release 22mm ZB4 meets these requirements by combining mechanical reliability with intuitive operation and real-time status indication. Its growing popularity stems from several factors: increased automation in manufacturing, stricter OSHA and ISO compliance mandates, and the need for human-machine interfaces that reduce operator error.

Additionally, advancements in LED technology have made illuminated versions more energy-efficient and longer-lasting than older incandescent designs. The twist-to-release mechanism adds a layer of safety by preventing accidental restarts—a crucial feature in environments where unauthorized or unintentional machine activation could lead to injury. As factories adopt Industry 4.0 principles, integrating smart diagnostics and predictive maintenance, having visible indicators tied to emergency systems enhances overall operational transparency.

Types and Variants

While all estop button illuminated twist release 22mm ZB4 units serve the same core function, they come in various configurations based on housing material, contact configuration, voltage compatibility, and illumination options.

• Metal Housing Models: Typically made from stainless steel or aluminum, these offer superior durability and resistance to impact and corrosion. Ideal for harsh environments such as food processing plants or outdoor installations. However, they tend to be heavier and more expensive.
• Plastic Housing Models: Constructed from high-grade thermoplastics like polycarbonate, these are lighter and cost-effective. Suitable for indoor use in clean environments but less resistant to physical damage or UV exposure.
• Single vs. Dual Circuit Breakers: Some variants include both normally closed (NC) and normally open (NO) contacts. Dual-contact models allow for redundant safety circuits, enhancing system reliability.
• Illumination Options: Available in single-color (red only), dual-color (red/green), or multi-voltage LED rings. Multi-voltage types support AC/DC inputs (e.g., 12–240V), reducing inventory complexity.
• Flush vs. Extended Actuators: Flush-mounted heads prevent accidental activation; extended mushroom heads allow easier access under gloves or in tight spaces.

Each variant has trade-offs. Metal housings last longer but increase panel load. Dual contacts improve safety but require additional wiring. Always match the type to your environment and control system requirements.

Key Features and Specifications to Evaluate

To ensure you select the right how to choose estop button illuminated twist release 22mm ZB4, consider the following technical criteria:

• Contact Rating: Check maximum current and voltage ratings (e.g., 10A at 250V AC). Exceeding limits can cause contact welding or failure during emergencies.
• Electrical Life: Look for switches rated for at least 100,000 cycles. Higher-end models exceed 1 million operations.
• IP Rating: Minimum IP65 for dust-tight and water-jet protection. Use IP67 or higher in wet or washdown areas.
• Operating Temperature Range: Industrial settings may expose components to extremes. Ensure compatibility (e.g., -25°C to +70°C).
• LED Voltage Compatibility: Confirm whether the illumination circuit matches your control voltage (e.g., 24V DC, 120V AC).
• Latch Mechanism: Must require deliberate twisting action (typically 30°–45° rotation) to reset, complying with safety interlock principles.
• Certifications: Look for CE, UL, CCC, and compliance with IEC 60947-5-1 and ISO 13850 for emergency stop devices.

Also verify terminal type—screw, spring clamp, or quick-connect—and ease of wiring, especially if frequent maintenance is expected.

Pros and Cons

Advantages:

• Clear visual status through integrated lighting
• Prevents accidental restart via twist-to-release design
• Standardized 22mm mount fits most control panels
• Durable construction suitable for industrial use
• Available with global safety certifications

Disadvantages:

• Higher cost compared to non-illuminated or pull-out reset models
• More complex internal mechanism may require skilled replacement
• Brightness of LEDs may degrade over time in high-heat environments
• Limited color options for actuators (mostly red)

These buttons are best suited for medium-to-high-risk machinery where immediate shutdown and positive reset confirmation are required. They are not necessary for low-risk consumer equipment or temporary setups.

How to Choose Estop Button Illuminated Twist Release 22mm ZB4

Follow this step-by-step process when evaluating options:

1. Assess Environment: Determine exposure to dust, moisture, chemicals, or extreme temperatures. Choose IP65+ and corrosion-resistant materials accordingly.
2. Verify Electrical Requirements: Match contact ratings and LED voltage to your control system. Avoid using adapters or resistors unless specified by the manufacturer.
3. Check Safety Standards: Ensure the model complies with local regulations (e.g., OSHA in the U.S., Machinery Directive in EU).
4. Evaluate Mounting Needs: Confirm 22mm panel cutout availability. Consider flush vs. protruding head based on accessibility and risk of unintended activation.
5. Select Illumination Type: Decide between single-color (cost-effective) or dual-color (enhanced status feedback).
6. Review Replacement & Support: Prefer brands with readily available spare parts and technical documentation.
7. Avoid Red Flags: Steer clear of uncertified clones, vague specifications, or sellers who cannot provide test reports or datasheets.

If integrating into a new control panel, consult with a qualified electrician or automation engineer to ensure proper circuit design and redundancy.

Price & Market Insights

Pricing for estop button illuminated twist release 22mm ZB4 units varies widely based on brand, materials, and features. Expect to pay:

• $15–$30: Entry-level plastic-housed models from general industrial suppliers.
• $30–$60: Mid-tier metal-housed units with dual contacts and multi-voltage LEDs, often from reputable brands like Schneider, Eaton, or APEM.
• $60–$100+: High-end versions with enhanced ingress protection, extended temperature ranges, or custom labeling.

Value isn't always reflected in price alone. Cheaper models may lack long-term reliability or certification documentation. For mission-critical applications, investing in a well-known brand with proven field performance offers better total cost of ownership. Bulk purchases (50+ units) often qualify for discounts of 10%–20%, especially through authorized distributors.

Top-Seller & Competitive Analysis

Several models dominate the market due to consistent quality and wide distribution. Below is a comparison of leading options:

Model	Housing	Contacts	IP Rating	LED Voltage	Approx. Price
Schneider ZB4-BA42	Metal	Dual (NO+NC)	IP65	24V DC	$45
Eaton M22-TRR22	Plastic	Single (NC)	IP65	12–240V AC/DC	$32
APEM INC. TLH22-RG	Metal	Dual	IP67	12–48V DC	$78

Schneider’s ZB4 series leads in OEM adoption due to modularity and global support. Eaton offers budget-friendly yet compliant alternatives. APEM excels in niche applications requiring ruggedness and precision.

Customer Feedback Synthesis

Analysis of user reviews across industrial forums and B2B marketplaces reveals recurring themes:

Positive Feedback:

• “Bright, clear LED makes status easy to see from a distance.”
• “Twist-to-reset prevents kids or cleaners from restarting machines accidentally.”
• “Easy to install in existing 22mm holes—no modifications needed.”
• “Metal version survived three years in a humid bottling plant without issues.”

Common Complaints:

• “Cheap knockoffs failed within six months—stick to branded ones.”
• “LED burned out after one year when used continuously at 240V.”
• “Difficult to twist with gloves on; needs more torque.”
• “No instructions included—had to download datasheet separately.”

Reliability and build quality are the top concerns. Users emphasize sourcing from trusted vendors and verifying authenticity.

Sourcing & Supplier Tips

Purchase from authorized distributors or directly from manufacturers whenever possible. Major platforms like RS Components, Grainger, Digi-Key, and Mouser carry genuine products with full documentation 2. Avoid third-party sellers on general e-commerce sites unless they explicitly state distributor authorization.

For bulk orders, request sample units first to test fit, feel, and electrical performance. Verify return policies and warranty terms (typically 1–2 years). If importing internationally, confirm local certification equivalency (e.g., UL vs. CE marking).

Maintenance, Safety & Legal Considerations

Regular inspection is essential. Test each estop button illuminated twist release 22mm ZB4 monthly by pressing and resetting to ensure smooth latching and release. Clean the actuator surface to prevent debris buildup that could interfere with operation. Replace immediately if the button fails to latch, resets without twisting, or shows dim/flickering LEDs.

Legally, emergency stops must comply with national and international standards. In the U.S., adherence to NFPA 79 and OSHA 1910.147 is mandatory. In Europe, conformity with EN ISO 13850 ensures alignment with the Machinery Directive. Always document installation and testing procedures for audit purposes.

Conclusion

Selecting the right estop button illuminated twist release 22mm ZB4 involves balancing durability, compliance, and functionality. Prioritize certified models with robust housings, clear illumination, and a secure twist-to-reset mechanism. While premium brands may cost more upfront, their reliability and support infrastructure deliver long-term value. Whether upgrading a single machine or outfitting a production line, taking the time to evaluate specifications and source responsibly ensures safety, compliance, and operational efficiency.

FAQs

Q: What does 'twist release' mean on an estop button?
A: It means the button stays latched when pressed and requires a twisting motion to reset, preventing accidental restarts.

Q: Can I replace a non-illuminated estop with an illuminated twist release 22mm ZB4?
A: Yes, if your panel has a 22mm cutout and your control circuit supports the voltage needed for the LED.

Q: Are all 22mm estop buttons interchangeable?
A: Not necessarily—check dimensions, terminal layout, and depth to ensure fit within your enclosure.

Q: How long do the LEDs typically last?
A: Most industrial LEDs last 50,000 hours or more, depending on usage and operating conditions.

Q: Do I need a special tool to install a ZB4-style estop?
A: No—these are designed for front-mounting with a provided nut; hand-tightening is usually sufficient.
