How to Choose the Best Elevator Block Stopper Rail Clamp: A Complete Buyer's Guide

When selecting an elevator block stopper rail clamp, prioritize models made from high-tensile steel with precision-machined contact surfaces to ensure secure locking on guide rails during emergency stops. The right elevator block stopper rail clamp must match your system’s rail profile, load rating, and safety code requirements—commonly used in traction elevators to prevent free-fall by engaging the guide rail when overspeed is detected. Avoid generic clamps without certification; instead, choose units compliant with ISO 22559 or EN 81-20 standards, especially if installing in commercial or high-rise buildings 1. For most retrofit or OEM applications, a spring-applied, mechanically released design offers reliable fail-safe operation.

About Elevator Block Stopper Rail Clamp

An elevator block stopper rail clamp is a critical safety device installed within elevator systems to halt car movement during overspeed conditions or cable failure. It functions as part of the overall governor-safety gear assembly, activating when the elevator exceeds a preset speed threshold. Once triggered, the clamp forcefully engages the vertical guide rail, creating friction that brings the car to a controlled stop. These devices are essential in both passenger and freight elevators, particularly in mid- to high-rise buildings where uncontrolled descent poses serious risks.

Typically mounted on the elevator car frame, the block stopper rail clamp operates through mechanical linkage connected to the governor rope. When overspeed occurs, the governor activates a tripping mechanism that forces the clamp jaws against the guide rail. This action prevents catastrophic accidents and aligns with international safety regulations for vertical transportation systems.

Why Elevator Block Stopper Rail Clamps Are Gaining Popularity

With increasing urbanization and stricter building safety codes, demand for reliable elevator safety components like block stopper rail clamps has risen significantly. Modern building owners and maintenance contractors now place greater emphasis on preventive safety measures, especially following high-profile elevator incidents reported globally. Additionally, aging infrastructure in many cities requires retrofitting older elevators with updated safety mechanisms, driving adoption of standardized, certified clamps.

Another factor contributing to their growing use is the shift toward smart building management systems. As elevators become more integrated into IoT-enabled environments, there's a parallel need for dependable mechanical backups—like the block stopper rail clamp—that function independently of electronic controls. Their passive, fail-safe nature makes them indispensable even in digitally advanced installations.

Types and Variants

Elevator block stopper rail clamps come in several configurations, each suited to different elevator designs and operational needs. Understanding these variants helps ensure compatibility and optimal performance.

1. Single-Sided vs. Double-Sided Clamps

Single-sided: Engages one side of the guide rail. Typically used in lighter-duty applications or space-constrained setups. Less expensive but may offer lower stopping force.

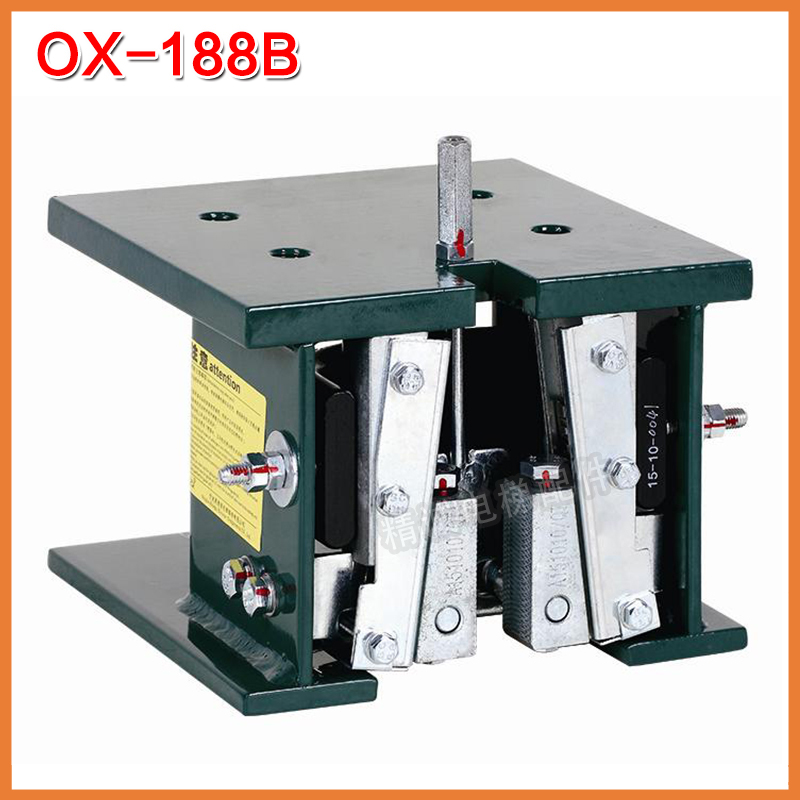

Double-sided: Applies pressure from both sides of the rail, providing balanced, higher-force braking. Preferred in heavy-load or high-speed elevators. More complex installation but superior reliability 2.

2. Spring-Applied, Mechanically Released (Fail-Safe)

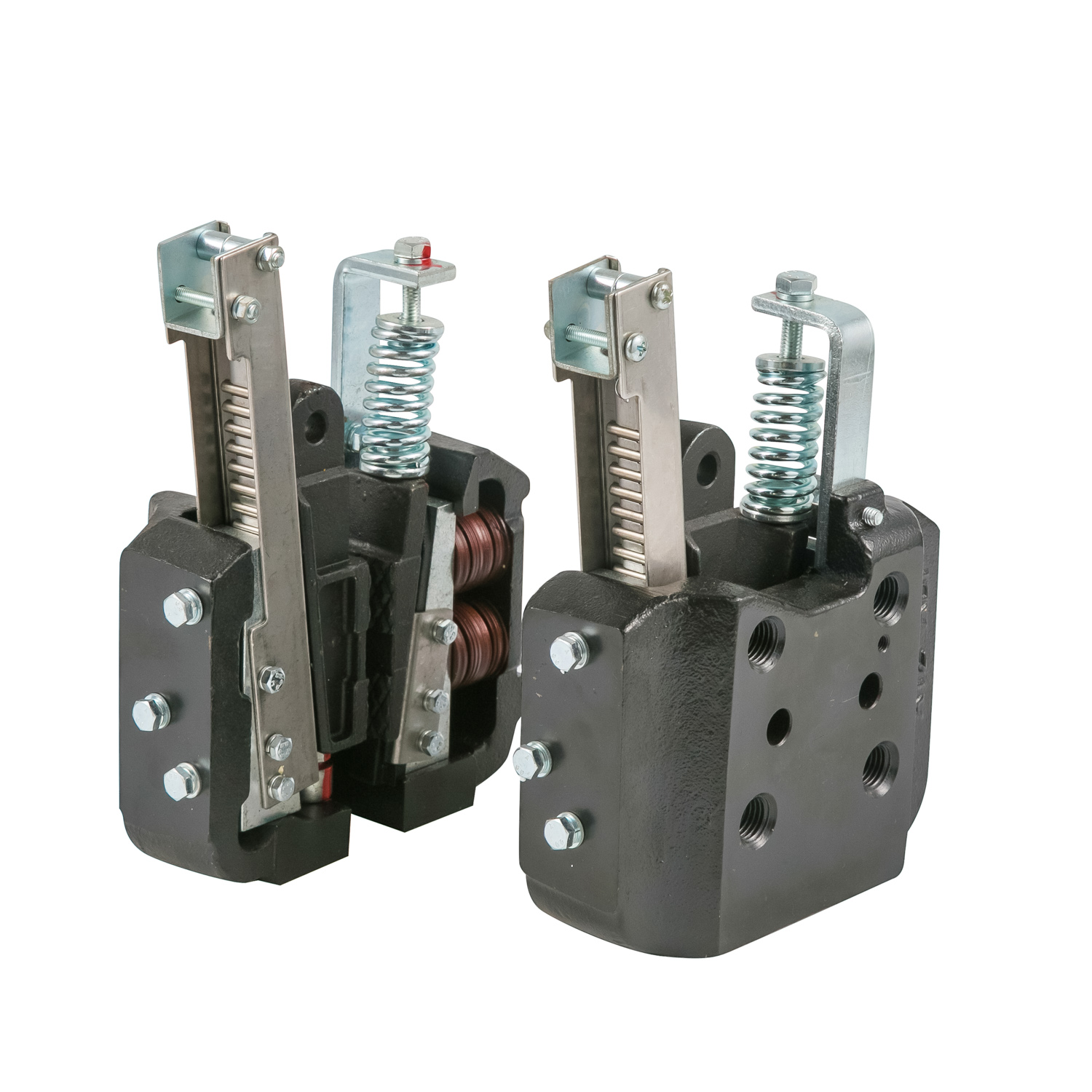

Uses compressed springs to drive the clamp onto the rail upon activation.
Held open mechanically during normal operation.
Advantage: Operates without power—ideal for emergencies.
Disadvantage: Requires precise adjustment to avoid false triggering.

3. Hydraulic/Pneumatic Assisted Clamps

Utilize fluid pressure to enhance clamping force.
Less common due to complexity and maintenance demands.
Used primarily in specialized industrial elevators.

4. Fixed Jaw vs. Floating Jaw Designs

Fixed jaw: Rigid structure; simpler but less adaptable to rail misalignment.
Floating jaw: Allows slight movement to maintain even contact under vibration or wear—better for long-term durability.

Key Features and Specifications to Evaluate

Selecting the correct elevator block stopper rail clamp involves assessing multiple technical and regulatory factors. Consider the following criteria carefully:

Rail Compatibility: Match the clamp to your guide rail type (e.g., T-shaped, rectangular). Measure rail width, height, and thickness before purchasing.
Load Capacity: Must support the maximum rated load of the elevator plus a safety margin (typically 1.5x).
Activation Speed: Should engage at speeds defined by local codes—usually between 115% and 150% of rated speed.
Material Quality: Look for forged steel or ductile iron construction with anti-corrosion treatment.
Certification: Verify compliance with EN 81-20, ASME A17.1, or ISO 22559 depending on region 3.
Adjustability: Some models allow fine-tuning of engagement force and position—useful for field calibration.
Maintenance Access: Ensure components like pivot pins and linkages are serviceable without full disassembly.

Pros and Cons

Advantages

Provides critical protection against free-fall scenarios.
No reliance on electricity or software—mechanical operation ensures reliability.
Long service life when properly maintained.
Required by most modern building safety codes.

Limitations

Improper installation can lead to premature wear or failure.
Not suitable for all rail profiles without modification.
May require periodic realignment after repeated use or seismic events.
Higher-quality units can be costly upfront.

This device is ideal for new installations, retrofits, and safety upgrades in commercial and residential buildings. However, it is not recommended for temporary lifts or material hoists unless specifically designed for such use.

How to Choose an Elevator Block Stopper Rail Clamp

Follow this step-by-step guide to make an informed decision:

Confirm System Requirements: Check your elevator’s rated speed, capacity, and guide rail dimensions. Refer to OEM manuals if available.
Determine Activation Mechanism: Choose spring-applied, mechanically released clamps for standard applications.
Verify Regulatory Compliance: Ensure the product meets regional safety standards (e.g., EN 81-20 in Europe, ASME A17.1 in North America).
Select Appropriate Type: Opt for double-sided, floating-jaw clamps in high-load or high-rise settings.
Inspect Build Quality: Examine weld points, surface finish, and moving parts for smooth operation.
Avoid products lacking test reports or third-party certification marks.
Consult a qualified elevator technician before final selection—especially for retrofit projects.

Red flags include vague specifications, absence of load ratings, or claims of “universal fit” without dimensional data. Always request detailed drawings and installation instructions prior to purchase.

Price & Market Insights

Pricing varies widely based on size, material, and certification level. Basic single-sided clamps start around $150–$300 USD, while fully certified double-sided units for heavy-duty elevators range from $600 to over $1,500. High-end OEM-branded components (e.g., from Kone, Schindler, or Otis) may exceed $2,000, mainly due to proprietary integration features.

Value tiers:

Budget: Suitable for low-speed freight elevators; limited documentation.
Mid-range: Compliant with major standards; includes test certificates and technical support.
Premium: OEM-specific designs with extended warranties and traceable manufacturing records.

For best value, consider mid-tier suppliers offering EN/ISO certification with direct engineering support. Bulk purchases (5+ units) often qualify for discounts, especially when sourced from industrial distributors or authorized dealers.

Top-Seller & Competitive Analysis

Several manufacturers dominate the global market for elevator safety components. Below is a comparison of leading brands and their typical offerings:

Brand	Type	Compliance	Approx. Price (USD)	Key Advantage
Schindler	Double-sided, spring-applied	EN 81-20, ISO 22559	$1,100	OEM integration, diagnostic readiness
Hitachi	Single-sided, adjustable	EN 81-20	$750	Compact design for tight spaces
Generic Industrial	Double-sided, fail-safe	CE-marked (self-declared)	$580	Cost-effective replacement option

Note: While OEM parts ensure perfect fit, third-party alternatives can offer significant savings—if they carry proper certification and dimensional accuracy.

Customer Feedback Synthesis

Analysis of buyer reviews across industry forums and B2B platforms reveals consistent themes:

Common Praises:

“Reliable engagement during testing.”
“Easy to install with clear markings.”
“Durable construction—no rust after two years in humid basement.”

Recurring Complaints:

“Instructions lacked torque specs for mounting bolts.”
“Jaw pads wore out quickly on older, pitted rails.”
“Received incorrect model despite providing rail dimensions.”

To avoid issues, always double-check part numbers, request pre-purchase confirmation from the seller, and inspect packaging upon delivery.

Sourcing & Supplier Tips

Procurement options include OEMs, industrial equipment distributors, and online B2B marketplaces (e.g., Alibaba, ThomasNet). For individual units, authorized distributors provide better warranty and technical support. For bulk orders (e.g., building retrofits), consider working directly with manufacturers to negotiate pricing and customization.

Tips:

Ask for sample units before large purchases.
Verify return policies and defect resolution procedures.
Request mill test reports or material certifications if using in regulated environments.
Use non-destructive testing (NDT) methods like dye penetrant inspection for critical installations.

Maintenance, Safety & Legal Considerations

Regular inspection is crucial. Industry best practices recommend checking clamps every 6–12 months for:

Wear on jaw linings
Free movement of pivots and linkages
Corrosion or deformation
Proper alignment with guide rails

Safety note: Only trained personnel should perform installation or maintenance. Never bypass or disable the governor-safety system.

Legally, most jurisdictions require annual third-party inspections of elevator safety gears, including block stopper rail clamps. Non-compliant systems may result in fines or shutdown orders. Always document repairs and replacements according to local elevator code requirements.

Conclusion

Choosing the right elevator block stopper rail clamp is a vital step in ensuring passenger safety and regulatory compliance. Focus on certified, well-engineered units that match your elevator’s rail profile and load specifications. Prioritize spring-applied, double-sided models with floating jaws for most commercial applications. Avoid uncertified or 'universal' clamps lacking verified performance data. By evaluating build quality, compliance status, and supplier reputation, you can select a reliable component that performs when it matters most.

FAQs

Q: What is the lifespan of an elevator block stopper rail clamp?
A: With regular maintenance, most clamps last 10–15 years. Jaw liners may need replacement every 3–5 years depending on usage.

Q: Can I install a block stopper rail clamp myself?
A: No. Installation must be performed by a licensed elevator mechanic familiar with safety gear calibration and testing procedures.

Q: How do I know if my clamp is compatible with my guide rail?
A: Compare rail cross-section dimensions (width, height, fillet radius) with the manufacturer’s specification sheet. When in doubt, consult technical support.

Q: Are there alternatives to traditional rail clamps?
A: Some modern elevators use polyurethane grippers or magnetic brakes, but mechanical clamps remain the most widely accepted and code-compliant solution.

Q: Do all elevators require a block stopper rail clamp?
A: Most traction and hydraulic elevators above a certain speed or height are required to have a safety gear system, which includes a rail clamp. Exceptions exist for very low-speed or dumbwaiter lifts—check local codes.
