How to Choose the Best Electric Hydraulic Rod for Your Application

When selecting the best electric hydraulic rod for industrial or mobile applications, prioritize models with high force output, durable seals, and IP65 or higher ingress protection—especially if used in wet or dusty environments. A well-chosen electric hydraulic rod actuator balances power, precision, and longevity while integrating seamlessly into existing control systems. For most users seeking reliable linear motion, a brushed DC or 3-phase AC-powered unit with built-in overload protection offers optimal performance and ease of maintenance 1.

About Electric Hydraulic Rod

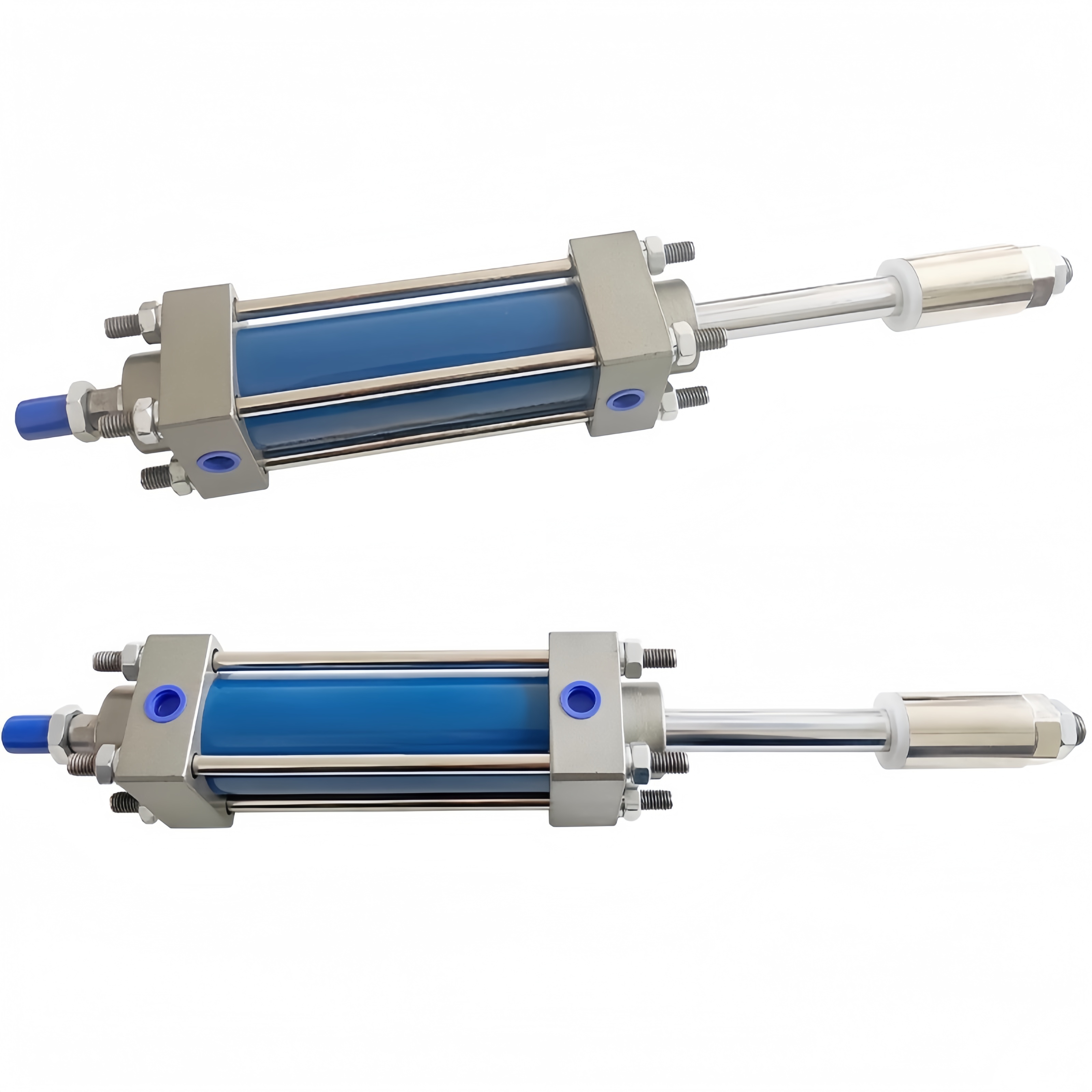

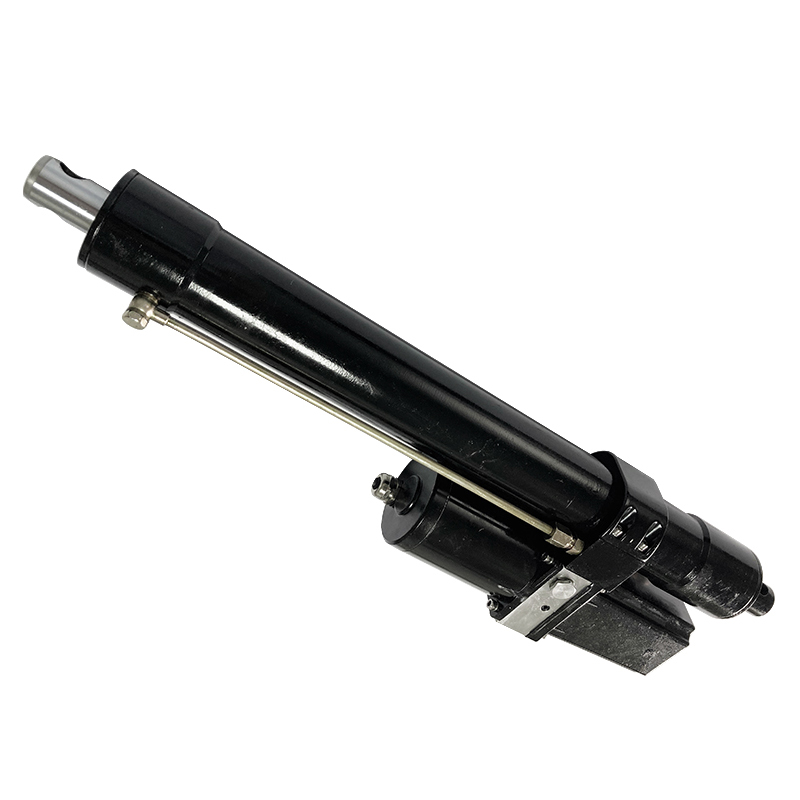

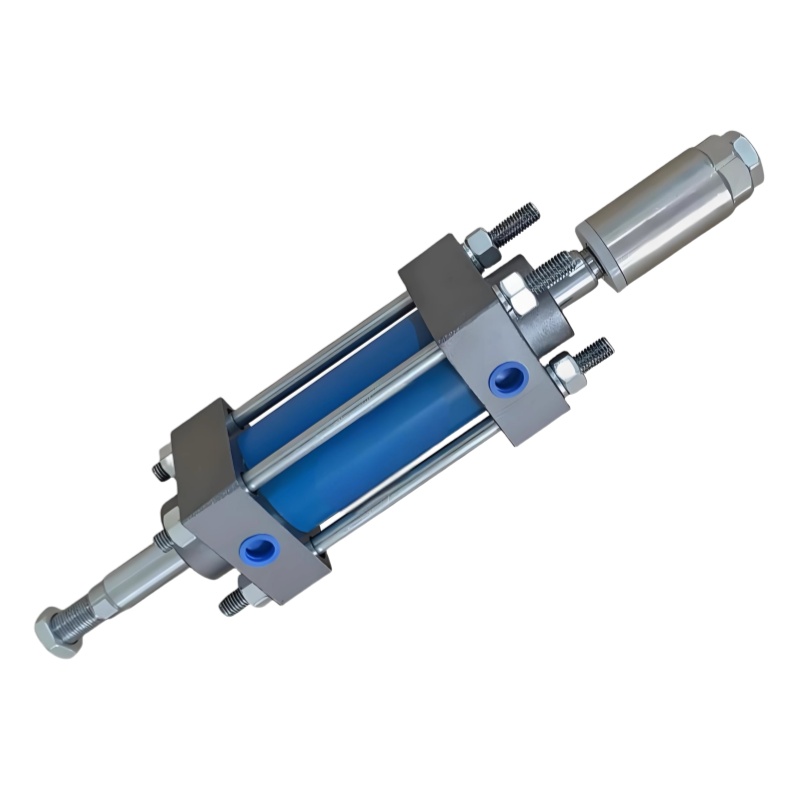

An electric hydraulic rod, also known as an electro-hydraulic linear actuator, converts electrical energy into controlled hydraulic pressure to produce powerful linear motion. Unlike traditional pneumatic or purely mechanical systems, these actuators use an electric motor to drive a hydraulic pump that pressurizes fluid within a cylinder, moving the piston rod in a precise, repeatable stroke 2. This hybrid design combines the responsiveness of electric controls with the high-force capabilities of hydraulics.

These devices are commonly found in heavy-duty applications such as construction equipment, agricultural machinery, material handling systems, and industrial automation. Typical use cases include lifting platforms, tilting mechanisms, gate controls, and valve actuation where both strength and accuracy are required. Because they do not require a centralized hydraulic power unit, electric hydraulic rods offer decentralized operation, reducing system complexity and fluid leakage risks compared to conventional hydraulic setups.

Why Electric Hydraulic Rod Is Gaining Popularity

The growing adoption of electric hydraulic rods stems from their ability to deliver high thrust forces—often exceeding several tons—while maintaining fine positional control and energy efficiency. As industries shift toward electrification and smarter machinery, these actuators provide a bridge between legacy hydraulic systems and modern digital control architectures.

Operators appreciate their plug-and-play installation; many units come pre-filled with hydraulic oil and only need electrical wiring and mounting. They eliminate the need for complex plumbing associated with central hydraulic pumps, which reduces maintenance costs and environmental hazards from oil leaks. Additionally, advancements in sensor integration allow real-time feedback on position, load, and temperature, enabling predictive maintenance and improved safety protocols.

Environmental regulations are also driving demand. With stricter emissions standards for diesel-powered hydraulic systems, especially in enclosed spaces like warehouses or underground mining operations, electric alternatives offer cleaner, quieter operation without sacrificing torque or durability.

Types and Variants

Electric hydraulic rods come in several configurations based on power source, control method, and structural design. Understanding these variants helps match the right model to your application.

1. DC-Powered vs. AC-Powered Actuators

DC-Powered: Typically run on 12V, 24V, or 48V systems. Ideal for mobile equipment powered by batteries or vehicle alternators. Advantages include portability, low-voltage safety, and compatibility with solar or off-grid power sources. However, continuous duty cycles may generate heat, requiring thermal protection.
AC-Powered: Operate on standard 110V or 230V mains power. Better suited for fixed installations like factory automation or conveyor systems. Offer higher sustained power output but require access to grid electricity and proper grounding.

2. Integrated Pump vs. External Pump Systems

Integrated (Self-Contained): The motor, pump, reservoir, and cylinder are housed in one compact unit. These are easier to install and maintain, with fewer external hoses. Common in retrofit projects and space-constrained environments.
External Pump Setup: Uses a remote hydraulic power unit connected via hoses. Allows multiple actuators to share one pump, beneficial in synchronized lifting or large-scale industrial lines. More complex to set up and prone to hose wear over time.

3. Single-Acting vs. Double-Acting

Single-Acting: Hydraulic pressure extends the rod; a spring or gravity returns it. Simpler design, lower cost, but limited control during retraction. Suitable for dump trucks or hoppers where return motion is passive.
Double-Acting: Pressure drives both extension and retraction. Provides full control in both directions, essential for precision tasks like clamping or leveling. Requires more complex valving and consumes more energy.

Key Features and Specifications to Evaluate

To make an informed decision when shopping for an electric hydraulic rod, assess the following technical parameters:

Force Output (lbs or kN): Determine the maximum static and dynamic loads the actuator must handle. Always include a safety margin (e.g., 20–30%) above peak requirements.
Stroke Length (inches or mm): Match this to your mechanical travel needs. Some models offer adjustable strokes or modular extensions.
Speed (in/sec or mm/sec): Higher speeds reduce cycle times but may compromise force delivery. Check manufacturer curves showing force-speed tradeoffs.
Duty Cycle: Expressed as percentage (e.g., 30% duty = 3 minutes on, 7 off per 10-min interval). Continuous operation demands robust cooling and oversized components.
Ingress Protection (IP Rating): Look for IP65 or higher for outdoor or washdown environments. Prevents dust and water intrusion into motor and electronics.
Mounting Style: Clevis, trunnion, flange, or threaded ends affect alignment and stress distribution. Ensure compatibility with existing brackets.
Control Interface: Options include simple on/off switches, potentiometer feedback, CAN bus, or programmable logic controller (PLC) integration. Advanced models support IoT connectivity for remote monitoring.

Pros and Cons

Advantages

High force density in compact size
No need for centralized hydraulic infrastructure
Precise position and speed control
Lower noise than air compressors or diesel pumps
Environmentally safer due to sealed oil systems

Limitations

Higher initial cost than pneumatic cylinders
Limited operating temperature range (typically -20°C to +60°C)
Potential for fluid degradation if overheated or contaminated
Not ideal for rapid cycling applications (>30 cycles/min)
Repairs often require specialized service centers

Electric hydraulic rods are best suited for medium-frequency, high-load scenarios. They’re less effective in ultra-fast packaging lines or extremely cold climates unless specifically rated.

How to Choose an Electric Hydraulic Rod

Follow this step-by-step guide to select the right model:

Define Load Requirements: Calculate total force needed, including friction and inertia. Use engineering formulas or simulation tools to estimate worst-case scenarios.
Select Power Source: Choose DC for mobile/battery systems, AC for stationary equipment. Verify voltage availability at the worksite.
Determine Stroke and Speed: Measure required displacement and acceptable timing. Avoid oversizing unnecessarily, which increases cost and energy use.
Evaluate Environmental Conditions: If exposed to moisture, chemicals, or debris, insist on stainless steel housing and high IP ratings.
Check Control Compatibility: Ensure the actuator’s input signals (analog, digital, PWM) work with your existing control panel or PLC.
Review Mounting Constraints: Confirm physical dimensions and attachment points fit within your machine frame.
Assess Safety Needs: Look for built-in features like emergency stop circuits, overload relief valves, and fail-safe braking.
Avoid Red Flags: Steer clear of brands lacking CE, UL, or ISO certifications. Be cautious of exaggerated force claims without test data. Avoid units with unclear warranty terms or no local technical support.

Price & Market Insights

Prices vary widely based on capacity and features. Basic 12V single-acting models start around $200–$400. Mid-range double-acting actuators with integrated pumps range from $600 to $1,500. High-performance industrial-grade units with smart controls can exceed $3,000.

Value tiers exist: budget options suit occasional-use applications but may lack durability. Mid-tier products from established manufacturers offer the best balance of reliability and price. Premium models justify higher costs through extended warranties, diagnostic capabilities, and corrosion-resistant materials.

To maximize value, compare total cost of ownership—not just purchase price. Consider expected lifespan, service intervals, spare part availability, and downtime impact.

Model Type	Typical Force Range	Power Source	Avg. Price	Best For
Compact DC Single-Acting	1,000–3,000 lbs	12–24V DC	$250–$400	Rural equipment, light lifts
Mid-Range Double-Acting	3,000–8,000 lbs	24V DC / 110V AC	$700–$1,200	Industrial gates, conveyors
Heavy-Duty Smart Actuator	8,000–20,000+ lbs	230V AC / 3-Phase	$2,000–$3,500	Automated plants, mining

Customer Feedback Synthesis

Analysis of user reviews across industrial forums and B2B marketplaces reveals consistent themes:

Common Praises: Customers frequently highlight ease of installation, quiet operation, and smooth motion control. Many appreciate the elimination of hydraulic hoses and centralized pumps, calling it a “game-changer” for maintenance teams. Units with position feedback sensors receive positive remarks for improving process consistency.

Frequent Complaints: Some users report premature seal failure when operated beyond stated duty cycles. Others note slow response times compared to pneumatic actuators. A recurring issue involves incompatible mounting hardware or vague wiring diagrams in entry-level models. Buyers also warn against counterfeit certifications on certain imported brands.

Sourcing & Supplier Tips

Purchase from authorized distributors or OEMs whenever possible. Reputable suppliers provide detailed datasheets, compliance documentation, and responsive technical support. For bulk orders, request sample testing before full procurement.

Consider working with suppliers offering drop-shipping or private labeling if reselling. Always verify return policies and lead times, especially for custom-stroke variants. When importing, confirm adherence to local electrical and safety codes (e.g., NEC in the U.S., IEC in Europe).

Before accepting delivery, inspect for shipping damage, check fluid levels (if accessible), and validate nameplate specifications against your order.

Maintenance, Safety & Legal Considerations

Regular maintenance extends life and ensures safe operation. Recommended practices include:

Inspect seals and wiper rings every 6 months or after 1,000 operating hours.
Monitor motor temperature and listen for unusual noises indicating cavitation or bearing wear.
Replace hydraulic fluid per manufacturer schedule (typically every 2–3 years).
Keep vents clean and ensure breather caps are functioning to prevent internal pressure buildup.

Safety precautions: Always depressurize the system before servicing. Lockout/tagout procedures should be followed during maintenance. Install protective guards if the rod operates near personnel.

Legally, ensure the product meets regional standards such as CE (Europe), UL (North America), or CCC (China). In hazardous locations, verify ATEX or IECEx certification if applicable. Non-compliant units may void insurance coverage in case of accidents.

Conclusion

Choosing the right electric hydraulic rod requires balancing force, speed, environment, and control needs. For most industrial buyers, a double-acting, self-contained unit with IP65 protection and verified load ratings delivers reliable performance. Prioritize transparency in specifications, strong customer support, and proven durability over lowest upfront cost. By carefully evaluating your operational demands and using this guide’s framework, you can confidently select an electric hydraulic rod that enhances efficiency, safety, and long-term value.

FAQs

What is the difference between an electric hydraulic rod and a solenoid actuator?
Electric hydraulic rods generate much higher forces and are better for slow, powerful movements. Solenoids are faster but limited in stroke and force, typically used for small valves or latches.

Can I replace a traditional hydraulic cylinder with an electric hydraulic rod?
Yes, in many cases. You’ll need to verify mounting dimensions, force output, and available power supply. Eliminating the central pump simplifies the upgrade but may require control system adjustments.

How long do electric hydraulic rods last?
With proper maintenance, industrial models can last 5–10 years or 10,000+ cycles. Lifespan depends heavily on duty cycle, load conditions, and operating environment.

Do electric hydraulic rods require special lubrication?
The hydraulic chamber is sealed and pre-filled. Only external pivot points (clevis pins) may need periodic greasing. Never add oil unless specified by the manufacturer.

Are there energy-efficient models available?
Yes. Modern designs incorporate variable-speed motors and regenerative braking to reduce power consumption, particularly in repetitive motion applications.
