How to Choose the Best Electric Generator Rotor and Stator: A Complete Buyer's Guide

When selecting an electric generator rotor and stator, prioritize compatibility with your generator model, material quality (especially copper windings), insulation class (F or H recommended), and precise air gap alignment. The right electric generator rotor and stator assembly ensures long-term reliability, efficient power output, and reduced maintenance costs—critical for industrial, backup, or mobile power applications. Always verify voltage rating, RPM match, core lamination integrity, and manufacturer specifications before purchase.

About Electric Generator Rotor and Stator

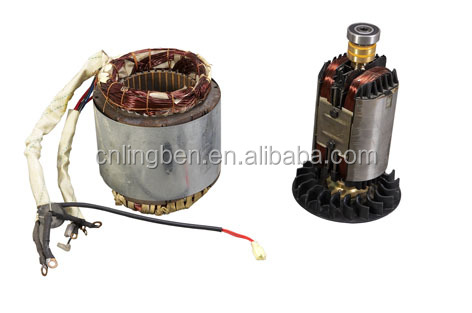

An electric generator rotor and stator are the two primary electromagnetic components responsible for converting mechanical energy into electrical energy. The rotor is the rotating part of the generator that produces a magnetic field when energized or through permanent magnets, while the stator is the stationary component containing coiled windings where electricity is induced via electromagnetic induction 1. Together, they form the heart of any AC or DC generator system.

These components are widely used across various sectors including power plants, emergency backup systems, construction sites, marine vessels, and remote off-grid installations. In industrial environments, robust rotor and stator units support continuous operation under high load. For portable generators, compact yet durable designs ensure stable output during temporary outages or outdoor events.

The performance of a generator largely depends on the precision engineering and materials used in these parts. Poorly manufactured rotors or stators can lead to inefficiencies, overheating, vibration issues, and premature failure—making informed selection essential.

Why Electric Generator Rotor and Stator Is Gaining Popularity

Demand for replacement and upgraded electric generator rotor and stator assemblies has increased due to aging infrastructure, rising energy needs, and greater reliance on backup power systems. As industries and households seek more resilient power solutions, especially in regions prone to grid instability, the need for reliable generator components grows.

Additionally, advancements in manufacturing technologies have made high-efficiency rotor-stator sets more accessible. Reconditioned and aftermarket options now offer cost-effective alternatives without sacrificing performance, appealing to budget-conscious buyers maintaining legacy equipment.

Renewable energy integration also plays a role; hybrid systems often use diesel or gas generators as backup, increasing demand for compatible, high-performance electromagnetic cores. Furthermore, modular repair strategies favor replacing only the rotor and stator instead of entire generator units, reducing downtime and capital expenditure.

Types and Variants

Different generator designs require specific rotor and stator configurations. Understanding the main types helps match components to application requirements.

1. Salient Pole vs. Cylindrical Rotor

Salient Pole Rotors: Feature protruding poles mounted on a central hub. Common in low-speed generators like hydroelectric turbines.
- Pros: Easier to manufacture, better ventilation, suitable for variable speed operations.
- Cons: Higher mechanical stress at high speeds, less balanced rotation.
Cylindrical Rotors: Smooth, solid steel shafts with distributed windings. Used in high-speed steam or gas turbine-driven generators.
- Pros: Superior balance, lower windage losses, ideal for high-RPM applications.
- Cons: More expensive to produce, requires precision machining.

2. Wound Rotor vs. Permanent Magnet Rotor

Wound Rotor: Uses electromagnets powered by DC excitation current.
- Pros: Adjustable magnetic field strength, scalable output, widely supported.
- Cons: Requires slip rings and brushes (maintenance needed), risk of excitation failure.

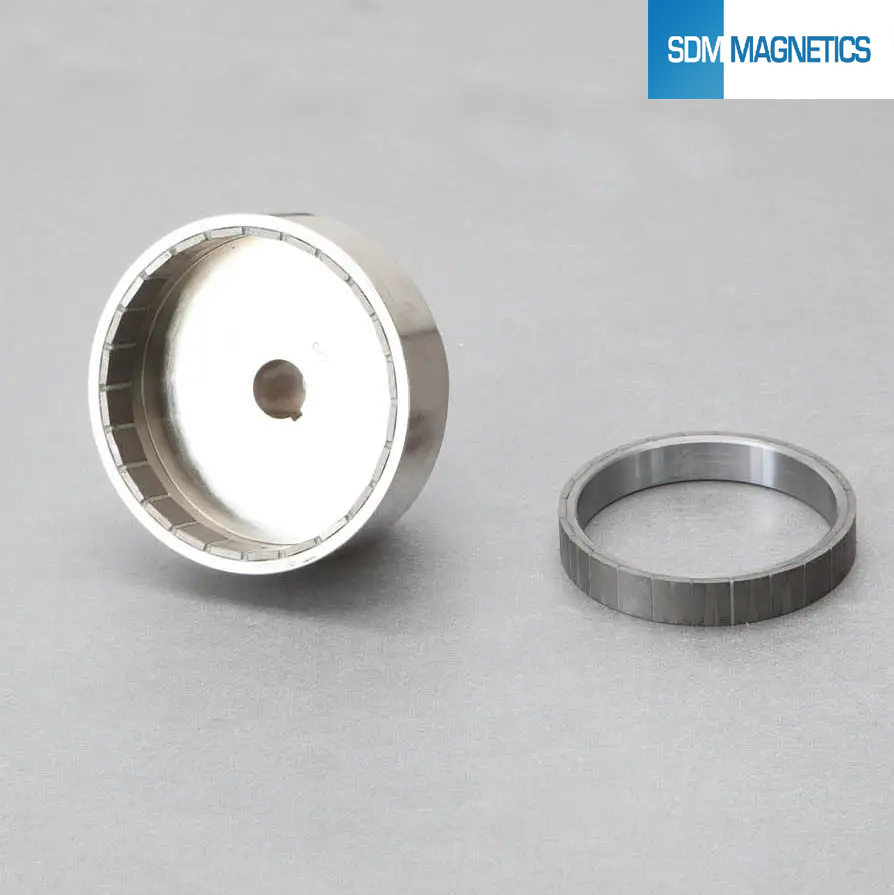

Permanent Magnet Rotor: Employs rare-earth magnets (e.g., neodymium) to generate fixed magnetic fields.
- Pros: No external excitation required, higher efficiency, smaller size.
- Cons: Costly, demagnetization risk at high temperatures, limited control over output voltage.

3. Single-Phase vs. Three-Phase Stators

Single-Phase Stators: Simpler winding configuration, typically used in small residential or portable generators.
- Pros: Lower cost, easier installation.
- Cons: Less efficient, pulsating power delivery, not ideal for heavy loads.
Three-Phase Stators: Balanced three-coil setup producing smoother, continuous power flow.
- Pros: Higher efficiency, better motor starting capability, standard in commercial/industrial settings.
- Cons: More complex wiring, slightly higher initial cost.

Key Features and Specifications to Evaluate

To make a sound decision when purchasing an electric generator rotor and stator, consider the following technical parameters:

Voltage and Frequency Rating: Match the output (e.g., 120/240V, 50Hz or 60Hz) to your existing system or regional standards.
RPM Compatibility: Ensure the rotor’s design speed aligns with your prime mover (diesel engine, turbine, etc.). Mismatched RPM causes poor voltage regulation.
Insulation Class: Look for Class F (155°C) or Class H (180°C). Higher classes tolerate heat better, extending lifespan 2.

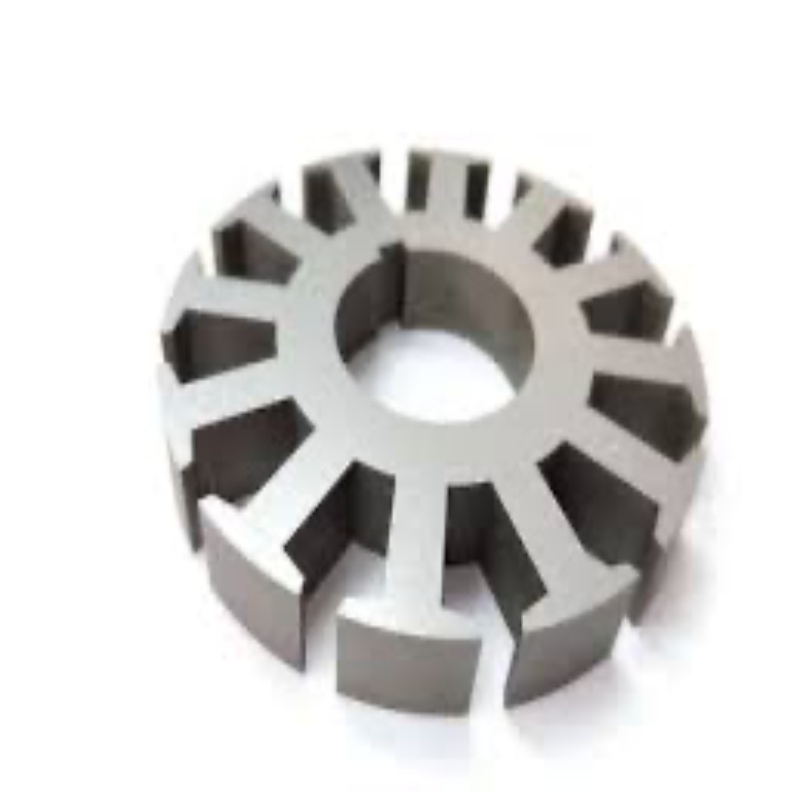

Core Lamination Quality: Thin, insulated silicon steel laminations reduce eddy current losses. Check for tight stacking and varnish coating.
Air Gap Uniformity: Critical for smooth operation. An uneven gap between rotor and stator leads to noise, vibration, and bearing wear.
Winding Material: Copper offers superior conductivity over aluminum. Verify wire gauge and turn count match OEM specs.
Protection Rating (IP Code): For harsh environments, choose IP23 or higher to resist dust and moisture ingress.
Bearings and Shaft Finish: Precision-ground shafts with sealed bearings enhance durability and alignment stability.

Pros and Cons

Advantages:

Extends life of existing generator without full replacement.
Improves efficiency if upgrading from older models.
Cost-effective solution for large industrial units.
Supports customization (e.g., rewinding for different voltages).

Disadvantages:

Requires technical expertise for installation and alignment.
Poor-quality aftermarket parts may fail prematurely.
Incompatibility risks if not matched precisely to frame size and mounting dimensions.
Limited warranty coverage on third-party or reconditioned units.

Best suited for: Industrial maintenance teams, generator rebuilders, facility managers needing long-term reliability.

Less ideal for: DIY users without tools or experience in electromechanical systems.

How to Choose Electric Generator Rotor and Stator

Follow this step-by-step guide to select the right rotor and stator set:

Identify Your Generator Model: Note make, model, serial number, and frame size. Cross-reference with OEM documentation.
Determine Power Requirements: Assess kW/kVA rating, phase type, and duty cycle (continuous vs. standby).
Select Appropriate Type: Choose based on speed (salient vs. cylindrical), excitation method (wound vs. PM), and phase (single vs. three-phase).
Verify Technical Specs: Confirm voltage, frequency, RPM, insulation class, and IP rating match your needs.
Check Physical Dimensions: Measure mounting holes, shaft diameter, length, and cooling fan configuration.
Evaluate Manufacturer Reputation: Prefer suppliers with ISO certification, test reports, and traceable quality control.
Inspect for Quality Markers: Look for clean welds, uniform windings, labeled terminals, and absence of corrosion.
Review Warranty & Return Policy: At least one year warranty is standard. Avoid sellers who don’t allow returns.

Red Flags to Avoid:

Vague product descriptions lacking technical details.
No access to datasheets or test certificates.
Prices significantly below market average—may indicate substandard materials.
Sellers refusing to provide contact information or company background.

Price & Market Insights

Pricing varies widely depending on power rating, materials, and origin:

Small Units (1–10 kVA): $200–$800. Often single-phase, used in portable or home backup systems.
Medium Units (10–100 kVA): $800–$5,000. Common in commercial buildings and light industry.
Large Units (100+ kVA): $5,000–$25,000+. Typically three-phase, wound rotor, custom-built.

New OEM parts command premium prices but offer guaranteed compatibility. Aftermarket and reconditioned units can save 30–50%, but inspect thoroughly. Chinese and Indian manufacturers dominate the global supply chain for replacements, offering competitive pricing with varying quality levels. Always request sample testing data if ordering in bulk.

Top-Seller & Competitive Analysis

Leading brands include Mecc Alte, Stamford (by Cummins), Leroy-Somer, and Marathon (by Regal Rexnord). These manufacturers adhere to international standards (IEC 60034) and provide detailed performance curves.

Brand	Type	Power Range	Insulation Class	Warranty
Mecc Alte	Three-phase, wound rotor	5–200 kVA	F (with H temp rise)	2 years
Stamford (Cummins)	Three-phase, brushless	10–300 kVA	H	2 years
Leroy-Somer	Three-phase, PM optional	8–250 kVA	F/H	1.5 years
Marathon (Regal)	Industrial three-phase	15–500 kVA	H	1 year

While OEMs lead in reliability, some aftermarket suppliers like Generac and Newage (aftermarket division) offer compatible drop-in replacements at lower costs. However, verify winding configuration and terminal box layout before assuming interchangeability.

Customer Feedback Synthesis

Analysis of user reviews across industrial forums and B2B platforms reveals consistent themes:

Common Praises:

“Exact fit for my old Stamford generator—saved thousands.”
“Efficient rewinding improved voltage stability.”
“Fast shipping and clear labeling made installation easier.”

Recurring Complaints:

“Received wrong winding configuration—had to return.”
“After six months, insulation failed under load.”
“No technical support available when alignment issues arose.”

The most satisfied customers emphasized working with suppliers who provided full specifications, drawings, and pre-sale consultation.

Sourcing & Supplier Tips

For individuals or businesses sourcing electric generator rotor and stator units:

OEM Suppliers: Best for critical applications requiring guaranteed compatibility.
Authorized Distributors: Offer genuine parts with warranty and technical support.
Aftermarket Manufacturers: Ideal for cost-sensitive repairs; verify certifications and request samples.
B2B Platforms (Alibaba, ThomasNet): Useful for bulk orders but conduct factory audits or third-party inspections.

When buying in volume, negotiate inclusion of test reports (hi-pot, resistance, balance tests). For resellers, confirm whether the supplier allows private labeling or drop-shipping.

Maintenance, Safety & Legal Considerations

Proper handling ensures longevity and compliance:

Maintenance: Regularly inspect for winding insulation degradation, loose connections, and bearing wear. Use megohmmeter testing annually.
Safety: Always de-energize and lockout-tagout (LOTO) before servicing. High-voltage windings can retain charge even when disconnected.
Installation: Follow torque specs for mounting bolts and ensure proper grounding of the stator frame.
Regulatory Compliance: In the U.S., generators must meet EPA emissions rules (if engine-coupled); electromagnetic components should comply with NEC Article 455 and IEEE 112 standards for testing.
Disposal: Copper and steel components are recyclable. Follow local environmental regulations for hazardous varnishes or insulating resins.

Conclusion

Choosing the right electric generator rotor and stator requires careful evaluation of technical specs, application demands, and supplier credibility. Prioritize compatibility, build quality, and verifiable performance data over price alone. Whether replacing worn components or upgrading system efficiency, investing in a well-matched rotor-stator set enhances reliability and reduces lifecycle costs. Always consult manufacturer documentation and consider professional installation for optimal results.

FAQs

Q: How do I know if my generator rotor and stator need replacement?
A: Signs include inconsistent voltage output, excessive heating, unusual noise, or failed insulation resistance tests.

Q: Can I replace just the stator without changing the rotor?
A: Yes, if the rotor passes inspection (no bent shaft, good windings, intact bearings). However, mismatched components may affect performance.

Q: What’s the typical lifespan of a generator rotor and stator?
A: With proper maintenance, 15–25 years. Harsh conditions or overload can shorten it significantly.

Q: Are aftermarket rotor and stator sets reliable?
A: Many are, especially from certified manufacturers. Request test reports and compare specifications closely with OEM parts.

Q: Do I need professional help to install a new rotor and stator?
A: Recommended, especially for alignment and air gap measurement. Improper installation can cause immediate damage.
