How to Choose the Best Electric Flange Heater for Boiler Systems

When selecting an electric flange heater for boiler systems, prioritize models with stainless steel or Incoloy sheathing, proper watt density (15–30 W/in²), and flange compatibility matching your pipe size (e.g., 2" to 6" ANSI). Look for UL/CSA certification, overheat protection, and IP65-rated enclosures. For high-pressure steam boilers, choose a high-temperature rating (up to 1400°F) and ensure TUV or ATEX compliance if used in hazardous environments 1. This guide covers how to choose electric flange heater for boiler setups based on performance, durability, and safety standards.

About Electric Flange Heater for Boiler

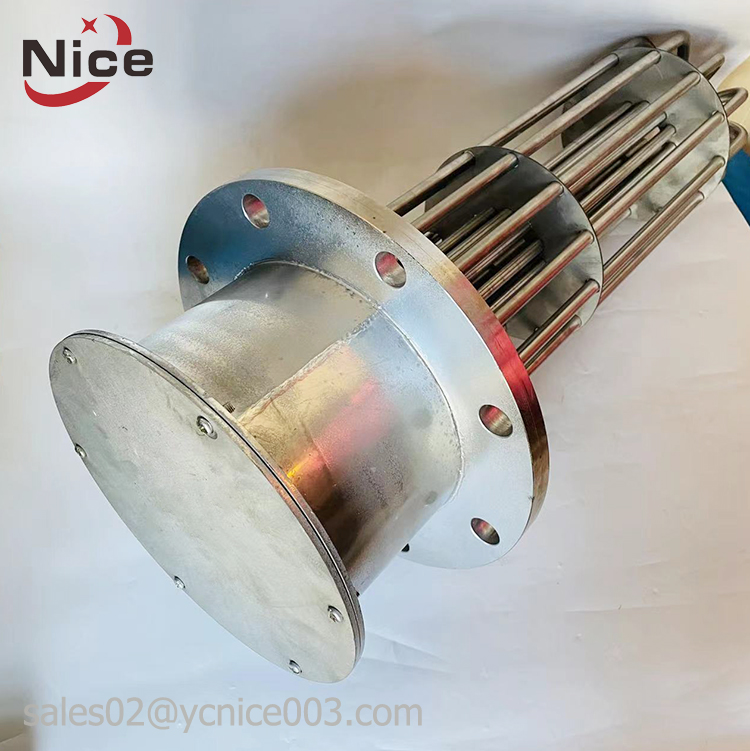

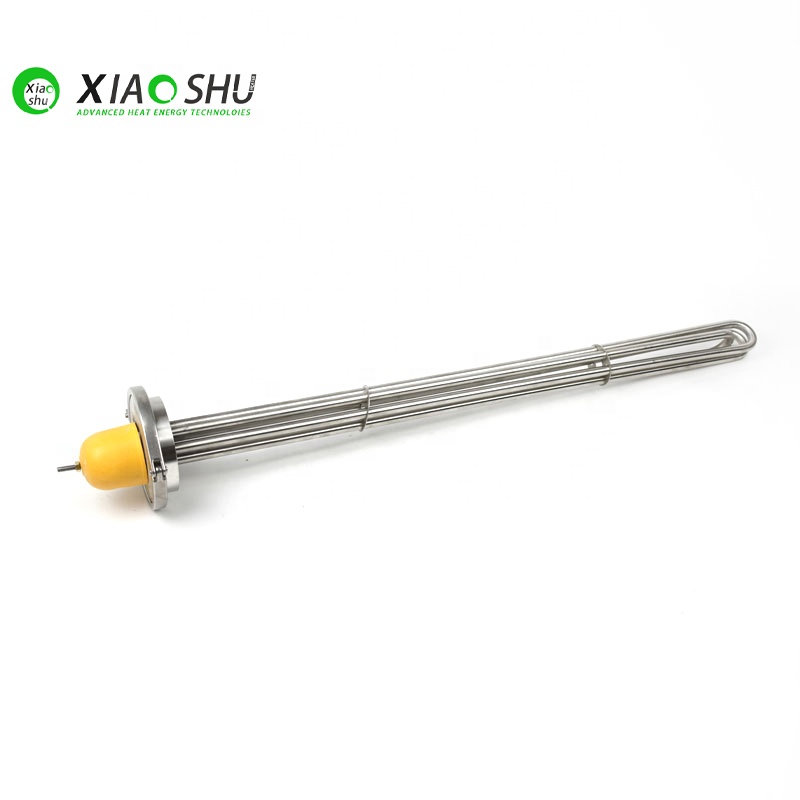

An electric flange heater is a heating element mounted directly onto a pipeline or vessel via a bolted flange connection, commonly used in boiler feedwater preheating, steam generation, and thermal fluid systems. In boiler applications, these heaters maintain optimal inlet water temperature, prevent thermal shock, and improve combustion efficiency by ensuring consistent heat input 2.

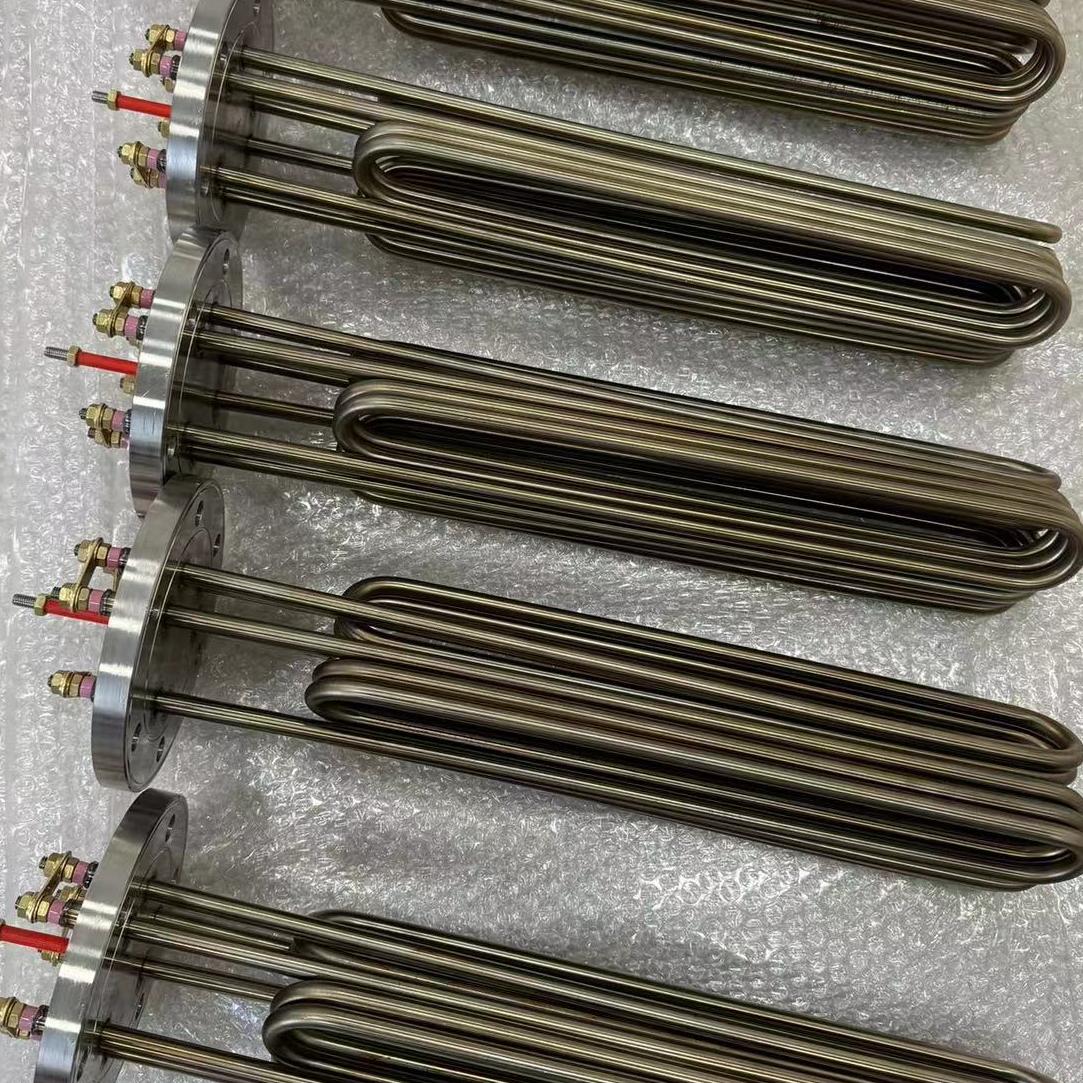

These units typically consist of tubular heating elements welded into a metal flange (usually carbon steel or stainless steel), which is then bolted between two sections of piping. They are ideal for closed-loop systems where precise temperature control is required. Unlike immersion heaters with threaded connections, flange heaters offer higher power capacities (from 3 kW up to 200+ kW) and easier maintenance due to their removable design.

Why Electric Flange Heater for Boiler Is Gaining Popularity

Electric flange heaters have become increasingly popular in industrial and commercial boiler systems due to their reliability, scalability, and low emissions. As facilities shift away from fossil-fuel-based heating toward electrification for sustainability goals, electric process heating offers a clean alternative without combustion byproducts.

Additionally, modern control systems integrate seamlessly with PLCs and SCADA networks, allowing real-time monitoring of temperature, current draw, and fault detection. This level of automation improves energy efficiency and reduces downtime. The demand for compact, modular heating solutions that can be retrofitted into existing boiler infrastructure has further driven adoption across sectors like food processing, pharmaceuticals, HVAC, and chemical manufacturing.

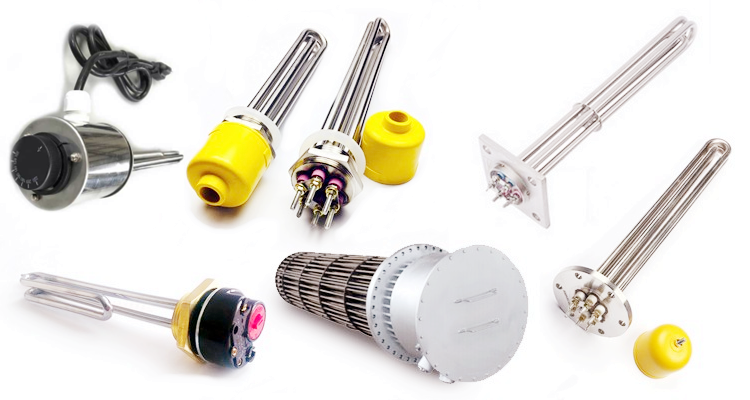

Types and Variants

Different configurations of electric flange heaters suit various boiler system requirements. Understanding these types helps match the right model to your operational needs.

1. Standard Open-Face Flange Heaters

Pros: Cost-effective, widely available, easy to install and replace.
Cons: Exposed terminals may require additional weatherproofing; less suitable for corrosive environments.

These are the most common type, featuring heating elements welded to a flat face flange with terminal housings attached directly to the back. Suitable for indoor use in dry, controlled environments such as mechanical rooms.

2. Enclosed Terminal Box Flange Heaters

Pros: Better protection against moisture and dust (IP65+), safer in wet or outdoor locations.
Cons: Slightly more expensive and bulkier than open-face models.

The terminal box is sealed and often equipped with conduit entries, making it ideal for outdoor boiler skids or humid environments. These are recommended when wiring must remain protected from environmental exposure.

3. Submerged vs. Circulation Heaters

While both use flanged mounting, submerged versions operate inside pressurized vessels, whereas circulation (or inline) heaters are installed in bypass lines. For boiler feedwater, circulation types are preferred because they allow continuous flow through the heater without direct tank immersion.

4. Material-Based Variants

Carbon Steel Flanges: Economical and strong, but prone to corrosion in moist or chemically aggressive settings.
Stainless Steel (304/316): Corrosion-resistant, hygienic, and durable—ideal for high-purity or marine environments.
Hastelloy or Inconel Elements: Used in extreme temperatures or corrosive media, though at a higher cost.

Key Features and Specifications to Evaluate

To make an informed decision when choosing an electric flange heater for boiler use, assess the following technical parameters:

Wattage and Voltage Requirements

Select a heater with sufficient wattage to raise water temperature from inlet to desired output within system flow constraints. Common voltages include 208V, 240V, 480V, and 600V three-phase. Higher voltage models reduce amperage, minimizing wire size and electrical losses.

Watt Density

This measures heat output per unit surface area (W/in²). For water heating, stay between 15–30 W/in² to avoid mineral scaling or film boiling. Exceeding this range shortens heater life, especially in hard water conditions.

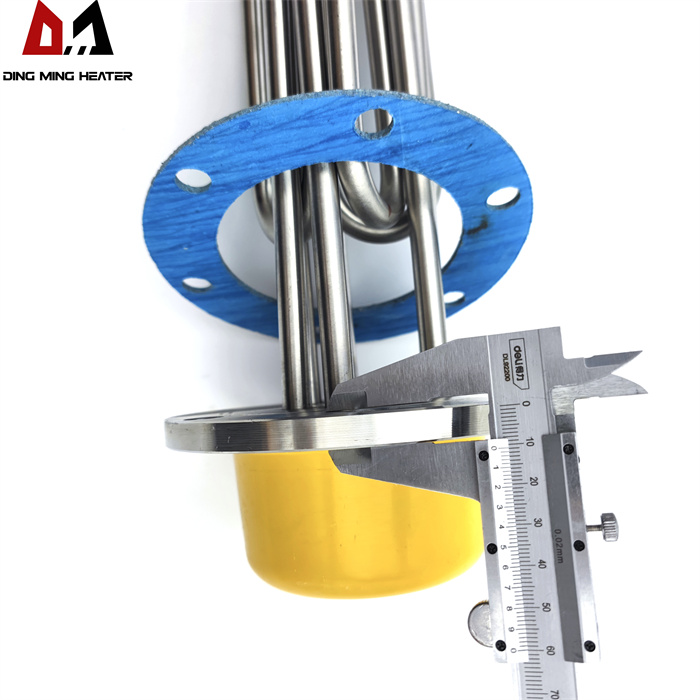

Flange Size and Rating

Match the heater’s flange to your piping standard—common sizes are 2", 3", 4", and 6" with ANSI Class 150 or 300 ratings. Ensure bolt hole patterns and gasket dimensions align precisely. Mismatched flanges cause leaks and safety hazards.

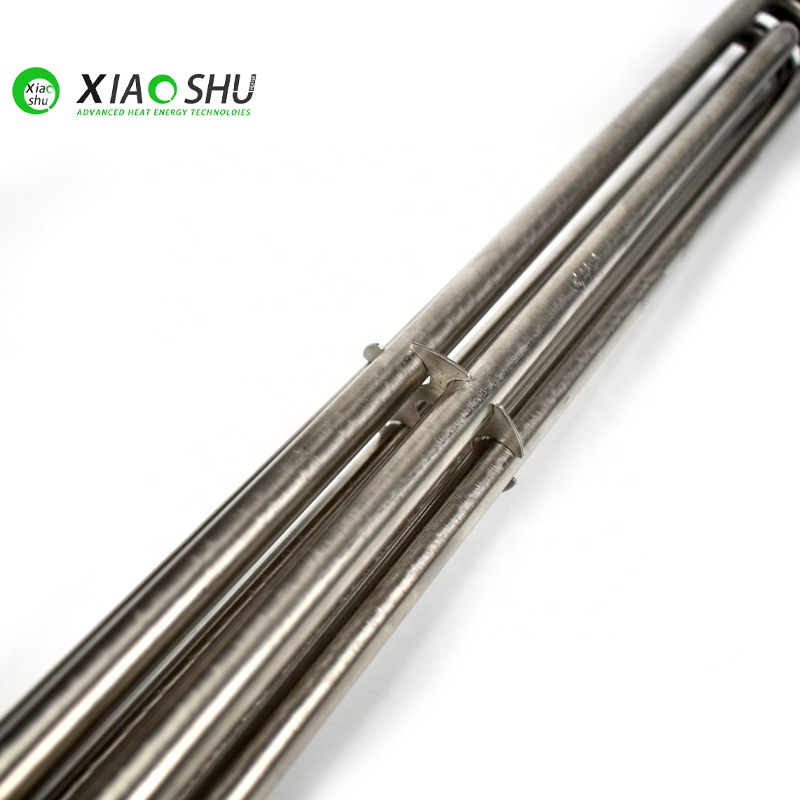

Sheath Material

Choose based on fluid chemistry:

Stainless Steel 316: General-purpose, good for potable water and mild chemicals.
Incoloy 800/840: Resists oxidation at high temps and scale buildup.
Copper-Nickel Alloys: Best for seawater or brackish feedwater.

Avoid carbon steel sheaths in oxygen-rich or alkaline water unless properly treated.

Temperature Controls and Sensors

Integrated thermostats, RTDs (Resistance Temperature Detectors), or thermocouples improve precision. Some models come with adjustable limit controls that shut off power during overtemperature events—a critical safety feature for boiler interlocks.

Agency Approvals

Look for UL, CSA, CE, or TÜV certification depending on region. For explosive atmospheres (e.g., fuel oil preheating zones), ATEX or IECEx certification may be mandatory.

Pros and Cons

Advantages

High efficiency—nearly 100% of electrical energy converts to heat.
No emissions at point of use, supporting green initiatives.
Precise temperature control enhances boiler cycle stability.
Low maintenance compared to gas-fired burners.
Can be integrated with digital building management systems.

Disadvantages

Higher operating cost in regions with expensive electricity.
Limited suitability for very large industrial boilers (>10 MMBtu/hr) unless part of a hybrid system.
Vulnerable to limescale in untreated water, reducing lifespan.
Requires stable power supply and proper circuit protection.

Best suited for: Commercial boilers (100–1,000 MBH), hot water heating loops, condensate return lines, and small-to-medium steam generators.

Not ideal for: High-flow municipal heating plants or areas with unreliable grid access.

How to Choose Electric Flange Heater for Boiler

Follow this step-by-step checklist to select the right unit:

Determine System Parameters: Measure flow rate (GPM), inlet/outlet temps, and maximum pressure. Use these to calculate required kW using online calculators or manufacturer charts.
Verify Flange Compatibility: Confirm ANSI class, diameter, bolt circle, and face type (RF or FF). Take photos of existing flanges if replacing.
Select Sheath and Flange Materials: Match to water quality and environment. For example, use SS316 in coastal areas.
Evaluate Watt Density: Keep under 30 W/in² for water; lower if scaling risk exists.
Check Electrical Supply: Ensure panel capacity supports starting current. Consider soft starters for large units.
Review Safety Features: Overtemperature protection, grounding lugs, and NEMA/IP ratings matter for long-term reliability.
Confirm Certifications: Required approvals depend on location and application (e.g., UL for U.S., CE for EU).
Avoid Red Flags: No documentation, missing test reports, non-standard threading, or vague material claims (e.g., “industrial-grade” without specs).

Price & Market Insights

Prices vary significantly based on power output, materials, and certifications. Typical ranges:

3–12 kW units: $250–$700
15–50 kW units: $800–$2,500
60–150 kW units: $3,000–$8,000+

Premium brands (like Watlow, Chromalox, or Heatec) command higher prices due to robust build quality and global support. However, many OEM manufacturers in Asia now offer competitively priced alternatives with comparable specs—though buyers should verify testing procedures and warranty terms.

For best value, consider mid-range models with clear datasheets, third-party certifications, and accessible spare parts. Avoid ultra-low-cost options lacking traceability or customer service.

Model Type	Power Range	Typical Price	Key Advantages
Open-Face Carbon Steel	3–30 kW	$250–$900	Low cost, simple replacement
Enclosed SS316	10–75 kW	$1,000–$3,500	Weatherproof, corrosion-resistant
High-Temp Incoloy	50–200 kW	$4,000–$10,000	Suitable for steam superheating

Top-Seller & Competitive Analysis

Leading brands dominate the market due to proven reliability and technical support. Key players include:

Chromalox: Known for PHB series boiler heaters with smart controllers and diagnostic outputs.
Watlow: Offers customizable flange designs with advanced sensors and IoT connectivity.
Heatec: Specializes in heavy-duty industrial models for harsh environments.
OEM Suppliers (Alibaba, ThomasNet): Provide budget-friendly alternatives; vet carefully for quality.

When comparing top sellers, focus on warranty length (prefer 1–2 years), availability of replacement elements, and ease of calibration. Also, check whether technical drawings and installation manuals are freely available before purchase.

Customer Feedback Synthesis

Analysis of user reviews across industrial forums and B2B platforms reveals recurring themes:

Common Praises

"Easy to retrofit into our old boiler loop—bolted right on."
"Precise temp control cut our gas usage by 18%."
"Stainless housing survived five years in a salty basement."

Frequent Complaints

"No manual included—had to email support for wiring diagram."
"Burned out after 8 months—probably due to hard water scaling."
"Flange didn’t match ANSI 150 spec despite listing it."

Key takeaway: Even well-built heaters fail prematurely if water treatment is neglected or specifications are misread. Always double-check compatibility and maintain feedwater quality.

Sourcing & Supplier Tips

Buy from authorized distributors or suppliers with verifiable track records. For one-off purchases, Grainger, RS Components, or MSC Industrial Supply offer reliable logistics and returns. For bulk orders, contact manufacturers directly for volume discounts and custom engineering.

If sourcing internationally, request material test reports (MTRs), calibration certificates, and sample units before full commitment. Use escrow services for large transactions, and confirm lead times—some custom builds take 6–8 weeks.

For resellers or contractors, consider stocking common sizes (e.g., 4" 30kW SS316) to reduce project delays. Ask about co-branded labeling or private labeling options if building a service brand.

Maintenance, Safety & Legal Considerations

Regular inspection prevents failures. Recommended practices:

Shut down and de-energize before servicing.
Inspect for scale buildup every 6 months; descale using approved inhibitors.
Test insulation resistance annually with a megohmmeter (should read >100 MΩ).
Replace gaskets during reinstallation to prevent leaks.

Safety protocols:

Install high-limit temperature switches wired to boiler shutdown circuits.
Ground the heater body and control panel properly.
Use lockout/tagout (LOTO) during maintenance.

Legally, ensure compliance with local codes such as NEC Article 422 (U.S.), IEC 60335 (international), or regional pressure equipment directives. In some jurisdictions, pressure-retaining heated components require registration or periodic inspection.

Conclusion

Choosing the right electric flange heater for boiler systems involves balancing technical specs, environmental factors, and lifecycle costs. Prioritize correct watt density, flange compatibility, and certified construction materials. Opt for enclosed terminal boxes in damp areas and always verify agency approvals. While premium brands offer superior support, well-vetted OEMs can deliver value for budget-conscious projects. With proper selection and maintenance, an electric flange heater enhances boiler efficiency, extends equipment life, and supports sustainable operations.

FAQs

Q: Can I use an electric flange heater on a gas-fired boiler?
A: Yes, as long as it's installed in the feedwater line or secondary loop—not in direct flame path. It can preheat incoming water to improve overall efficiency.

Q: How do I prevent scaling in hard water areas?
A: Install a water softener or use chemical descaling agents. Lower watt density (<20 W/in²) also reduces scaling risk.

Q: What happens if the heater runs dry?
A: Dry firing can destroy the elements within minutes. Always use flow interlocks or low-water cutoff switches to disable power when no fluid is present.

Q: Are explosion-proof models necessary?
A: Only if installed near flammable vapors (e.g., fuel storage rooms). Look for ATEX or Class I Div 2 rated units in such cases.

Q: Can I replace just the heating elements?
A: Most flange heaters allow element replacement without removing the entire unit—check manufacturer guidelines for compatibility and torque specs.
