How to Choose the Best Display Wall Panel for Your Needs

When selecting the best display wall panel for commercial or retail use, prioritize resolution, brightness, bezel width, and compatibility with mounting systems. For most indoor environments like stores or corporate lobbies, an LCD-based display wall panel with narrow bezels and at least 500 nits brightness offers optimal visibility and image continuity 1. If you need high impact in bright areas, consider LED video walls with fine pixel pitch. Always verify input support, scalability, and warranty terms before purchasing a display wall panel system.

About Display Wall Panel

A display wall panel refers to a multi-screen or single large-format visual setup designed to present dynamic content across retail spaces, control rooms, conference centers, transportation hubs, and digital signage networks. These panels can be configured as tiled arrays using multiple LCD or LED units, or as seamless modular LED walls. Unlike standard monitors, display wall panels are built for continuous operation (24/7), feature enhanced brightness, and support advanced tiling with minimal bezel interference.

Common applications include real-time data monitoring in command centers, promotional content in shopping malls, informational displays in airports, and immersive brand experiences in showrooms. Their durability, longevity, and ability to integrate with media players and content management software make them ideal for professional environments where reliability and clarity are critical.

Why Display Wall Panel Is Gaining Popularity

The demand for display wall panels has surged due to increased digitization across industries. Businesses seek impactful ways to communicate with customers and manage operations efficiently. High-resolution visual dashboards improve situational awareness in security and logistics, while interactive or animated content boosts engagement in retail settings.

Advancements in LED technology have made large-scale video walls more affordable and energy-efficient. Additionally, the rise of smart cities and connected infrastructure drives adoption in public information systems. According to market research, the global video wall market is projected to grow significantly over the next decade, fueled by demand in both private and public sectors 2.

Types and Variants

Understanding the different types of display wall panels helps match the right solution to your environment and goals.

LCD-Based Tiled Walls

LCD (Liquid Crystal Display) panels are among the most common choices for indoor installations. They consist of multiple flat screens arranged in a grid, often with narrow bezels to reduce visual disruption.

Pros: Cost-effective, widely available, excellent color accuracy, low power consumption.
Cons: Visible seams between panels; limited viewing angles compared to LED; not suitable for direct sunlight.

DLP (Digital Light Processing) Walls

DLP walls use projection cubes behind a screen surface. Once dominant in control rooms, they offer deep blacks and good uniformity.

Pros: Seamless appearance, long lifespan with proper maintenance, consistent brightness across large surfaces.
Cons: Bulky design requiring rear access space; higher maintenance needs (lamp replacement); largely phased out in favor of slimmer technologies.

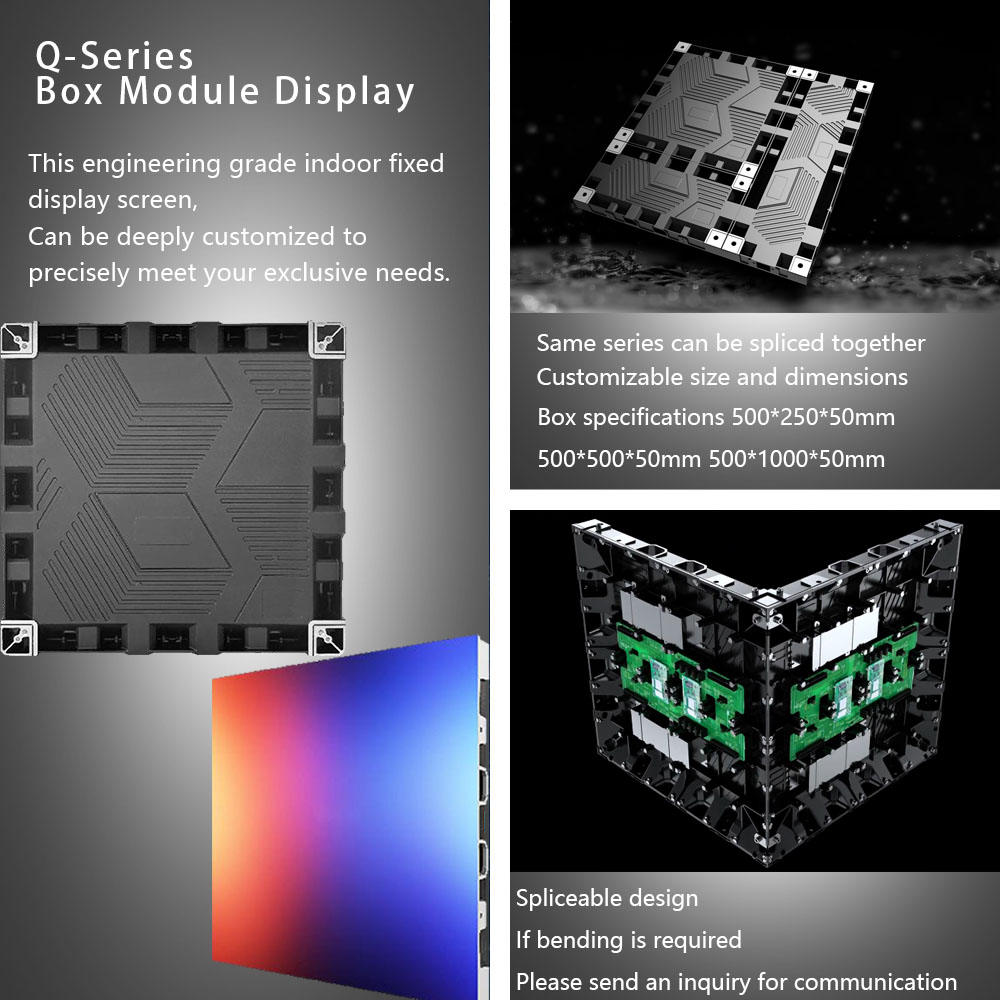

Direct-View LED Walls

These consist of individual LED modules assembled into a cohesive wall. Each pixel emits its own light, enabling true black levels and high contrast.

Pros: No bezels, excellent brightness (ideal for daylight), wide viewing angles, scalable to any size.
Cons: Higher initial cost; requires precise calibration; finer pixel pitches increase price significantly.

MicroLED and OLED Panels

Emerging options include MicroLED (still largely premium/commercial) and OLED (limited in size and durability for constant use). While offering superior image quality, these remain niche due to cost and operational constraints.

Pros: Exceptional contrast, ultra-thin profiles, no backlight bleed.
Cons: OLED susceptible to burn-in; MicroLED very expensive; both lack widespread availability for large installations.

Key Features and Specifications to Evaluate

To choose wisely, assess the following technical and functional aspects:

Resolution and Pixel Pitch

For LCD arrays, total resolution depends on the number and resolution of individual panels (e.g., 4x4 array of Full HD panels = ~16K effective resolution). In LED walls, pixel pitch (distance between pixels in millimeters) determines clarity. Lower pitch (e.g., P1.5 or P1.2) means sharper images but higher cost. Use under 2m viewing distance? Aim for ≤P1.8.

Brightness (Nits)

Measured in nits (candelas per square meter), brightness affects readability. Indoor setups typically require 350–700 nits. Outdoor or brightly lit interiors may need 1,000+ nits. Check manufacturer specs for sustained vs peak brightness.

Bezel Width (for LCD Arrays)

Narrower bezels (≤1mm) minimize visual breaks. Important for displaying continuous graphics or videos across multiple panels.

Input Options and Connectivity

Ensure support for HDMI 2.0, DisplayPort, SDI (for broadcast), and network inputs (for IP-based content delivery). Some systems support daisy-chaining or built-in media players.

Mounting and Expansion Flexibility

VESA compatibility ensures standard mounting. Consider whether the system allows future expansion—modular LED walls excel here.

Operating Hours and Durability

Look for panels rated for 50,000–100,000 hours of operation. Commercial-grade units are designed for 24/7 use, unlike consumer TVs which degrade faster under constant load.

Pros and Cons: When to Choose a Display Wall Panel

Choose a display wall panel if:

You need persistent, high-impact visual communication.
Your audience views content from various distances or angles.
You operate in a professional or industrial setting requiring reliable hardware.
You want to display real-time data, live feeds, or synchronized multimedia.

Avoid or reconsider if:

Budget is extremely tight and usage is occasional (a single large TV may suffice).
Installation space is limited or non-flat (curved or irregular walls complicate alignment).
You lack technical support for setup and calibration—especially for LED walls.
Content doesn’t benefit from large-scale presentation (e.g., static text only).

How to Choose a Display Wall Panel

Follow this step-by-step guide to make an informed decision:

Define Your Use Case: Is it for advertising, surveillance, presentations, or data visualization? This shapes size, brightness, and interactivity needs.
Measure Viewing Distance: Closer audiences require higher resolution or finer pixel pitch. A general rule: minimum viewing distance (in meters) ≈ pixel pitch (mm) × 1.5.
Select Technology Type: Prefer seamless visuals and daylight visibility? Go LED. Need cost efficiency indoors? Consider narrow-bezel LCD.
Evaluate Total Size & Layout: Determine physical dimensions and aspect ratio. Plan for service access behind the wall if needed.
Check Signal Distribution: Will you use a video wall controller, splitter, or distributed network system? Ensure compatibility with source devices.
Assess Installation Complexity: LED walls often require professional installation. LCD arrays may be DIY-friendly with proper brackets.
Review Warranty & Support: Look for at least 3 years coverage, especially for LEDs. Onsite service options add value.
Beware of Hidden Costs: Include cabling, controllers, calibration, and potential structural reinforcements in budget planning.

Red flags to avoid:

Unbranded or no-name manufacturers without published specifications.
Panels lacking EMI/RFI compliance or safety certifications (CE, UL, RoHS).
Vague claims about lifespan or brightness without test standards (e.g., ISO 9241-307).
Sellers who don't provide detailed installation guides or technical documentation.

Price & Market Insights

Pricing varies widely based on type, size, and technology:

LCD Tiled Walls: $800–$2,500 per panel (55” class), depending on bezel width and brightness.
Entry-Level LED Walls: $1,500–$4,000 per square meter (P2.5–P3 range).
Fine-Pitch LED Walls: $5,000–$15,000+ per square meter (P1.2–P1.8).
DLP Systems: Rare new units; used/refurbished available around $3,000–$8,000 for full cabinets.

Mid-range solutions often deliver the best value for small to medium businesses. Avoid cheapest options online unless specifications are verified. Reputable brands invest in thermal management, uniformity correction, and driver stability—factors that affect long-term performance.

Top-Seller & Competitive Analysis

While specific models vary by region and supplier, top-performing series include Samsung The Wall (modular MicroLED), LG Ultra Stretch Display, and NEC MultiSync® LCD video wall series. Chinese brands like Absen, Leyard, and Unilumin lead in fine-pitch LED innovation.

Model Type	Technology	Pixel Pitch / Bezel	Brightness	Approx. Price/m² or Unit
Samsung The Wall (IA)	Modular MicroLED	P0.96–P1.2	600 nits	$12,000–$18,000/m²
Absen A10	Fine-Pitch LED	P1.25	700 nits	$6,500/m²
NEC MultiSync PA553	LCD Video Wall	0.88mm bezel	500 nits	$2,200/unit (55”)
LG 55WN80C	LCD Video Wall	0.9mm bezel	450 nits	$1,900/unit

Note: Prices are estimates and fluctuate based on region and configuration. Always request quotes with full system components (controllers, mounts, cables).

Customer Feedback Synthesis

Analysis of user reviews and industry reports reveals recurring themes:

Common Praises:

High reliability in 24/7 operation (especially NEC and Samsung units).
Excellent image consistency after calibration (LED walls with factory calibration).
User-friendly setup for LCD arrays with plug-and-play controllers.
Strong customer support from major brands during installation.

Recurring Complaints:

Higher-than-expected shipping and handling fees for fragile LED modules.
Color variance between LED panels if not properly calibrated out-of-box.
Limited third-party controller compatibility with proprietary systems.
Difficulty sourcing replacement parts for lesser-known brands.

Sourcing & Supplier Tips

Purchase through authorized distributors or integrators whenever possible. They provide genuine products, professional installation services, and valid warranties. For bulk orders, negotiate bundled packages including mounting hardware and extended support.

If considering dropshipping or import from international suppliers (e.g., Alibaba), verify:
- Product certifications (CE, FCC, UL)
- After-sales service availability
- Realistic lead times and return policies
Request sample units before large investments.

For resellers or system integrators, explore OEM/ODM partnerships with established manufacturers to offer customized branding and faster turnaround.

Maintenance, Safety & Legal Considerations

Regular maintenance includes dust removal, firmware updates, and periodic brightness/color recalibration—especially for LED walls. Clean screens with non-abrasive, ammonia-free solutions.

Safety tips:

Ensure secure mounting to withstand vibrations or accidental impacts.
Provide adequate ventilation to prevent overheating.
Use surge protectors and stable power supplies.

Legally, confirm compliance with local electrical codes and fire safety regulations. In public spaces, ADA accessibility guidelines may apply if the display conveys critical information. Electromagnetic compatibility (EMC) certification ensures no interference with nearby equipment.

Conclusion

Choosing the right display wall panel involves balancing technical requirements, environment, and budget. For most indoor commercial uses, narrow-bezel LCD panels offer a practical, cost-efficient solution. For high-visibility, daylight, or seamless applications, direct-view LED walls are superior despite higher costs. Prioritize verified specifications, reputable suppliers, and long-term support. By evaluating pixel density, brightness, durability, and scalability, buyers can deploy a system that delivers lasting impact and operational value.

FAQs

What is the difference between a display wall panel and a regular TV?
Display wall panels are designed for continuous operation, have higher brightness, better heat dissipation, and support tiling with minimal gaps. Regular TVs are not built for 24/7 use and lack professional connectivity options.

Can I install a display wall panel myself?
LCD arrays with standard VESA mounts can often be self-installed with care. LED walls usually require professional help due to weight, calibration, and electrical considerations.

How long do display wall panels last?
Commercial LCD panels last 50,000–70,000 hours. LED walls can exceed 100,000 hours depending on usage and environment. Proper cooling extends lifespan.

Are there wireless display wall systems?
Most systems use wired connections for reliability. However, some support wireless transmitters for short-range content casting, though not recommended for mission-critical displays.

Do display wall panels come with content software?
Some brands include basic media player software. Advanced CMS platforms (like Scala or BrightSign) are often sold separately or via third parties.
