How to Choose a Diesel Engine Vertical Shaft Air Cooled 2 Cylinder

When selecting a diesel engine vertical shaft air cooled 2 cylinder for agricultural, construction, or industrial equipment, prioritize models with consistent thermal management, durable cast-iron sleeves, and reputable OEM support. These engines are ideal for compact machinery like water pumps, generators, and tillers due to their space-saving vertical crankshaft design and lack of radiator dependency 1. Key factors include rated output (typically 8–18 HP), fuel efficiency, noise levels, and ease of maintenance. Avoid units without accessible service points or unclear emissions compliance. For most buyers needing dependable off-grid power in moderate climates, a well-reviewed vertical shaft twin-cylinder air-cooled diesel offers optimal balance of durability and simplicity.

About diesel engine vertical shaft air cooled 2 cylinder

A diesel engine with a vertical shaft, air-cooled system, and two cylinders is a compact internal combustion engine designed primarily for mechanical drive applications where space is limited and liquid cooling systems are impractical. Unlike horizontal shaft engines that transfer power laterally, the vertical orientation allows direct coupling to machinery such as irrigation pumps, concrete vibrators, and farming implements. The air-cooled design eliminates the need for radiators, coolant lines, and water jackets, reducing complexity and potential leak points. This makes it especially useful in remote or mobile operations.

These engines typically range from 8 to 18 horsepower and operate on standard diesel fuel, offering better torque and longer service life than comparable gasoline units. They use mechanical fuel injection systems and do not require electricity for ignition, enhancing reliability in standalone setups. Common configurations include single overhead cam (SOHC) designs with gear-driven camshafts, ensuring precise valve timing and reduced maintenance intervals.

Why diesel engine vertical shaft air cooled 2 cylinder is gaining popularity

The growing demand for efficient, low-maintenance power sources in rural and off-grid settings has fueled interest in this engine type. Farmers, contractors, and small-scale manufacturers increasingly seek alternatives to electric motors and gasoline engines, particularly in regions with unreliable grid access or high fuel costs. Diesel’s superior energy density and engine longevity make these units cost-effective over time.

Additionally, environmental regulations have pushed manufacturers to improve emissions profiles. Modern versions meet Tier 4 Final standards through optimized combustion chambers and indirect injection technology, making them compliant in many markets. Their ability to run continuously under load—without overheating risks common in poorly ventilated liquid-cooled systems—adds to their appeal in constant-duty applications.

Another reason for increased adoption is modularity. Many OEMs now offer standardized mounting patterns and PTO (power take-off) compatibility, enabling integration into existing equipment with minimal modification.

Types and variants

While all share core characteristics, several variants exist based on application focus and engineering enhancements:

Standard Industrial Grade

Pros: Affordable, widely available, simple repair procedures.
Cons: Basic governor control, higher noise output, limited cold-start capability in sub-zero temperatures.
Ideal for: Water pumping, basic generator sets, non-critical machinery.

Heavy-Duty / Long-Life Series

Pros: Reinforced block casting, chrome-plated pistons, extended oil change intervals (up to 250 hours).
Cons: Higher initial cost, slightly heavier.
Ideal for: Continuous operation in mining support tools, large-scale irrigation, rental fleets.

Low-Noise / Emission-Optimized Models

Pros: Sound-dampening shrouds, improved swirl chamber design, lower particulate emissions.
Cons: Requires cleaner fuel; sensitive to poor-quality diesel.
Ideal for: Urban construction zones, residential backup power, noise-restricted areas.

Marine-Adapted Versions

Pros: Corrosion-resistant coatings, sealed electrical components (for glow plug systems), enhanced ventilation.
Cons: Not commonly available; often require import sourcing.
Ideal for: Small boat propulsion, bilge pumping stations, coastal infrastructure.

Key features and specifications to evaluate

To ensure you select the right model, consider the following technical and operational parameters:

Horsepower and RPM: Most run at 3000 or 3600 RPM. Match output to your driven equipment’s requirements. Over-sizing wastes fuel; under-sizing leads to premature wear.
Fuel Consumption: Measured in g/kWh. Efficient models consume 220–260 grams per kilowatt-hour. Verify test conditions when comparing claims.
Cooling Fins & Airflow Design: Look for deep, evenly spaced fins and an integrated centrifugal blower. Poor airflow causes hotspots and warping.
Starting Mechanism: Recoil (rope pull) is standard. Electric start adds convenience but requires battery upkeep. Pre-heating systems aid cold starts.
Lubrication System: Full-pressure oiling is superior to splash-only systems, especially under sustained load.
Mounting Configuration: Check bolt pattern (e.g., ISO 3006 or SAE #2), shaft height, and base type (3-point vs. 4-point).
Emissions Certification: Confirm compliance with local standards (e.g., EU Stage V, U.S. EPA Tier 4). Non-compliant engines may face usage restrictions.
Service Accessibility: Oil drain plug, filter location, spark plug (glow plug) access should be unobstructed.

Pros and cons

Advantages

No radiator or coolant needed—ideal for dusty or freezing environments.
High torque at low RPMs suits heavy-load applications.
Longer lifespan than gasoline equivalents due to robust construction and diesel’s lubricating properties.
Lower fire risk compared to petrol engines.
Can be adapted to run on waste vegetable oil with proper filtration and preheating (though not recommended for warranty-covered use).

Limitations

Potential for overheating if airflow is blocked or fins clogged with debris.
Louder operation than liquid-cooled counterparts.
Limited heat dissipation capacity restricts use in extremely hot climates or enclosed spaces.
Fewer aftermarket tuning options compared to automotive diesels.
Cold weather starting can be difficult without pre-heaters.

How to choose diesel engine vertical shaft air cooled 2 cylinder

Follow this step-by-step guide to make an informed decision:

Define Your Application: Is it for a generator, pump, compactor, or custom machine? Determine required shaft speed, torque, and duty cycle (intermittent vs. continuous).
Select Appropriate Power Output: Use manufacturer load charts. A safety margin of 10–15% above peak demand prevents strain.

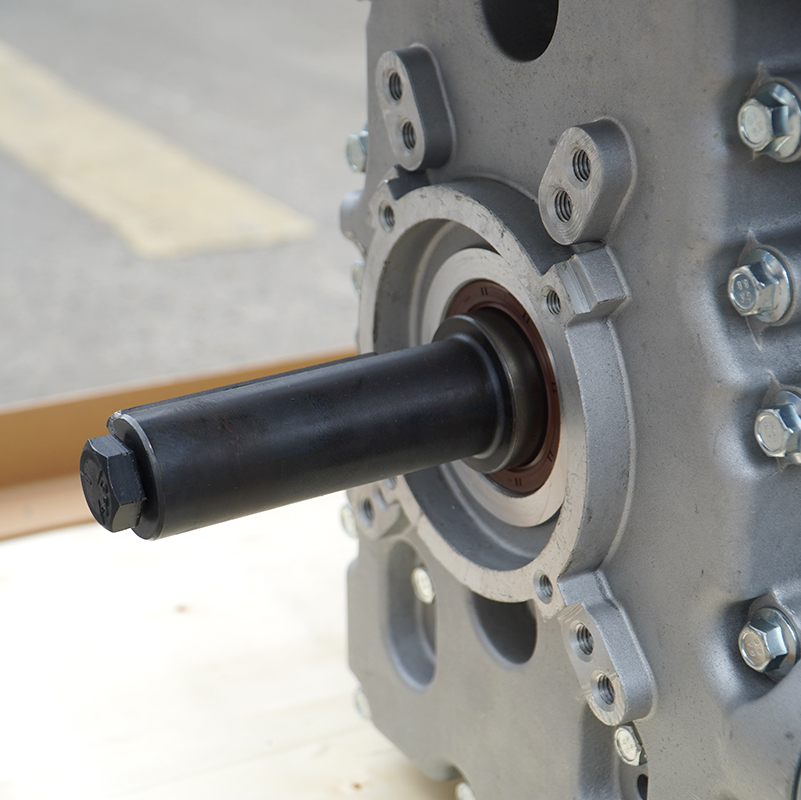

Verify Shaft Dimensions: Measure diameter (commonly 25mm or 1″) and keyway specs. Misalignment damages couplings.
Check Mounting Compatibility: Compare footprint and hole spacing with your frame. Adapters add vibration risk.
Assess Cooling Needs: Ensure adequate clearance (minimum 6 inches) around fins. Consider ambient temperature and dust exposure.
Review Fuel and Oil Requirements: Use ASTM D975 diesel and API CF-4 or higher oil. Some models specify viscosity (e.g., SAE 15W-40).
Evaluate Starting Method: For frequent use, electric start improves usability. Manual start suffices for emergency backups.
Inspect Warranty and Support: Look for minimum one-year coverage and availability of spare parts. Brands with regional service centers reduce downtime.
Avoid Red Flags: No serial number, missing certification labels, vague performance data, or no English manual indicate poor quality.

Price & market insights

As of 2024, prices vary significantly by region and build quality:

Budget Tier ($350–$550): Chinese-made units with basic features. Suitable for light, occasional use. Limited documentation and inconsistent QC.
Mid-Range ($550–$850): Better materials, full-pressure lubrication, and clearer specs. Includes brands like Lister Petter, Yanmar clones, and Indian OEMs.
Premium ($850–$1,300): Original designs from established manufacturers with proven reliability, full emissions compliance, and global support networks.

Value seekers should balance upfront cost against expected runtime. A $700 engine running 1,000 hours/year may save more long-term than a $400 unit needing replacement every 600 hours.

Model Type	HP Range	Avg. Price	Oil System	Start Method	Emissions Standard
Entry-Level	8–11	$400	Splash	Recoil	Pre-Tier 3
Mid-Spec	12–15	$650	Full Pressure	Recoil/Electric	Tier 4 Interim
High-End	16–18	$1,100	Full Pressure + Filter	Electric + Preheat	Tier 4 Final

Top-seller & competitive analysis

Popular models include the Lister CS-type derivatives, Hatz 1B40 variants, and various Weichai-based platforms. While original Lister-Petter units remain benchmarks for durability, many current 'Lister-style' engines are reverse-engineered copies with mixed reliability.

Yanmar L series clones dominate the mid-tier market due to good balance of size and output. However, verify whether the engine uses genuine Yanmar tooling or third-party casting. Differences appear in bearing quality and injector precision.

In North America, Kohler and Briggs & Stratton have exited the small industrial diesel segment, leaving room for Asian and European suppliers. Buyers report higher satisfaction with German-engineered Hatz and Italian Lombardini units despite steeper pricing.

Customer feedback synthesis

Analysis of user reviews across forums and retail sites reveals consistent themes:

Positive remarks: Longevity (some users report 8,000+ hours), ease of DIY repairs, quiet operation relative to expectations, and strong low-end torque.

Common complaints: Difficulty starting in cold weather, inadequate instruction manuals (especially translation issues), excessive vibration in budget models, and delayed spare part delivery from overseas sellers.

One recurring suggestion: invest in a high-quality air filter and fuel water separator to prevent common failure modes related to contamination.

Sourcing & supplier tips

Buy from authorized distributors or suppliers with verifiable business addresses and return policies. Online marketplaces offer competitive pricing but pose risks regarding authenticity and post-sale support.

For bulk purchases (5+ units), request sample testing reports and negotiate extended warranties. Insist on factory-sealed packaging and complete documentation.

Before accepting shipment, inspect for:
– Clean casting surfaces (no cracks or porosity)
– Proper labeling (model, serial, compliance marks)
– Freedom of moving parts (rotate flywheel manually)
– Presence of all hardware and accessories

Consider third-party inspection services for orders exceeding $2,000, especially when dealing with new suppliers.

Maintenance, safety & legal considerations

Regular maintenance extends life and ensures safe operation:

Change oil every 100–150 hours or annually, whichever comes first.
Clean cooling fins every 50 hours in dusty conditions.
Replace fuel filters every 200 hours; air filters every 100–300 hours depending on environment.
Check valve lash periodically (every 500 hours).

Safety practices include proper grounding to prevent static discharge, installing mufflers to reduce noise exposure, and using protective guards on rotating shafts.

Legally, confirm that the engine meets emissions standards applicable in your jurisdiction. In the U.S., non-road diesel engines must comply with EPA regulations; in the EU, adhere to Stage V directives. Operating non-compliant engines on public worksites may result in fines.

Conclusion

The diesel engine vertical shaft air cooled 2 cylinder remains a practical choice for decentralized mechanical power where reliability and simplicity are paramount. When choosing one, focus on verified performance data, build quality, and serviceability rather than price alone. Mid-range models from reputable producers often deliver the best lifecycle value. Ensure compatibility with your equipment, maintain according to schedule, and source from trustworthy vendors to maximize uptime and minimize operating costs.

FAQs

Can I convert a horizontal shaft diesel engine to vertical use?
Not directly. The oil sump and breather system are orientation-specific. Use only engines designed for vertical shaft operation.

How do I prevent overheating in air-cooled diesels?
Keep cooling fins clean, ensure unrestricted airflow, avoid enclosing the engine, and operate within rated load limits.

Are there hybrid or electric alternatives?
Yes, but they require stable power input. For off-grid or mobile use, diesel still offers unmatched energy density and independence.

What oil should I use?
Use API-rated CF-4, CH-4, or CI-4 diesel oil, typically SAE 15W-40. Always consult the operator’s manual for specific recommendations.

Do these engines require a warm-up period?
Yes, especially in cold weather. Run at idle for 2–3 minutes before applying full load to allow oil circulation and component expansion.
