How to Choose the Best Diamond Profiling Wheel for Woodworking Tools

When choosing the best diamond profiling wheel for your woodworking or metal shaping tasks, focus on grit size, bond type, diameter compatibility, and intended material use. A high-quality diamond profiling wheel for router bits delivers precision edge profiles on hardened materials like carbide, ensuring long tool life and clean cuts. For most professional woodworkers and tool sharpeners, a medium-grit (100–150) electroplated wheel offers the ideal balance of cutting speed and surface finish. Always match the wheel’s arbor size to your grinder and prioritize wheels with consistent diamond distribution to avoid uneven wear 1.

About Diamond Profiling Wheels

A diamond profiling wheel is a specialized abrasive tool used primarily for shaping, sharpening, and reconditioning cutting tools such as router bits, end mills, and burrs. Unlike conventional grinding wheels, these incorporate industrial-grade diamond particles bonded to a steel or aluminum core. The diamonds provide extreme hardness—measured up to 10 on the Mohs scale—making them capable of efficiently grinding tungsten carbide and other super-hard materials commonly found in cutting edges.

These wheels are typically mounted on bench grinders, CNC sharpening systems, or dedicated tool sharpeners. Their main function is to restore or create precise geometric profiles, such as round noses, chamfers, or ogee shapes, on worn or damaged tools. Because they maintain dimensional accuracy over time, diamond profiling wheels are favored in industries where tool consistency directly impacts product quality—such as cabinetry, mold making, and precision machining.

Why Diamond Profiling Wheels Are Gaining Popularity

The growing demand for high-precision tool maintenance has driven increased adoption of diamond profiling wheels across both professional workshops and hobbyist environments. One major factor is the rising cost of replacement router bits and end mills. Rather than discarding expensive carbide-tipped tools after dulling, users can now restore them multiple times using a durable diamond wheel, significantly reducing long-term expenses.

Additionally, advancements in bonding technologies—such as electroplating, sintering, and vitrified bonds—have improved wheel longevity and cutting performance. Users report faster material removal rates and finer finishes compared to traditional silicon carbide or aluminum oxide wheels. As more DIY enthusiasts invest in high-end routing equipment, the need for reliable, accurate sharpening solutions has grown, further boosting interest in products like the diamond profiling wheel for carbide router bit sharpening.

Types and Variants of Diamond Profiling Wheels

Diamond profiling wheels come in several configurations, each suited to different applications, machinery, and user needs. Understanding these variants helps ensure compatibility and optimal results.

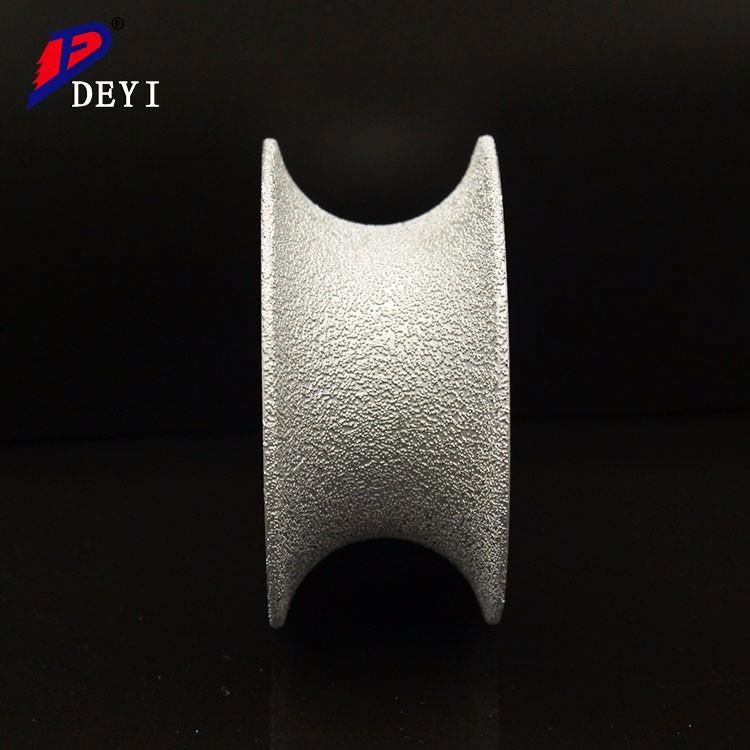

1. Electroplated Diamond Wheels

In these wheels, a single layer of diamonds is bonded directly to the metal core via electrochemical deposition. This method exposes maximum diamond height, resulting in aggressive cutting action.

Pros: High initial sharpness, excellent for fine profiling; minimal runout; easy to clean.
Cons: Limited lifespan—once diamonds wear or become dislodged, the wheel cannot be dressed or recoated easily.

Best for: Hobbyists and light industrial use where frequent wheel changes are acceptable.

2. Sintered (Metal Bond) Diamond Wheels

Made by compressing diamond powder and metallic binders under heat and pressure, these wheels offer deep diamond penetration and high durability.

Pros: Long service life; resistant to chipping; can be dressed (resurfaced) to expose fresh diamonds.
Cons: Slower initial cut rate; may require periodic truing; heavier than plated versions.

Ideal for: Heavy-duty shops that sharpen large volumes of tools daily.

3. Vitrified Bond Diamond Wheels

These use a ceramic-based binder fired at high temperatures, creating a rigid, porous structure.

Pros: Excellent thermal stability; consistent performance under continuous use; can be precision-dressed.
Cons: Brittle—susceptible to shock damage; higher cost; less common in small diameters.

Suitable for: CNC-controlled sharpening systems and automated production lines.

4. Resin-Bond Diamond Wheels

Bonded with synthetic resins, these are softer and self-sharpening to some degree as the matrix wears away.

Pros: Smooth cutting action; good for delicate profiles; less heat generation.
Cons: Shorter life under aggressive use; sensitive to solvents and high temperatures.

Recommended for: Fine finishing work and intricate profile restoration.

Key Features and Specifications to Evaluate

Selecting the right diamond profiling wheel requires attention to technical details that affect performance, safety, and compatibility.

Grit Size

Grit determines surface finish and cutting aggressiveness. Common ranges include:

60–80 grit: Coarse—fast stock removal but rough finish; suitable for repairing chipped bits.
100–150 grit: Medium—balanced cutting and smoothness; ideal for general-purpose profiling 2.
200+ grit: Fine—used for polishing and final shaping; not recommended for heavy material removal.

Bond Type

The bond affects how quickly diamonds are exposed during use. Softer bonds release worn diamonds faster, maintaining sharpness but shortening life. Harder bonds last longer but may glaze if not dressed regularly. Match bond hardness to your workload: soft-to-medium for intermittent use, hard for continuous operation.

Wheel Diameter and Arbor Size

Standard diameters range from 4” to 8”, with 5” being most common for bench grinders. Ensure the wheel’s bore (arbor hole) matches your machine’s spindle—typically 1/4", 5/8", or 1". Adapters can cause misalignment and vibration, increasing safety risks.

Diamond Concentration

Measured in carats per cubic centimeter, concentration affects wear resistance. Higher concentrations (e.g., 1.5–2.0 ct/cm³) extend life but increase price. For occasional users, standard concentration (1.0–1.3 ct/cm³) is sufficient.

Runout and Balance

Excessive runout (>0.002”) leads to uneven wear and poor profile accuracy. Look for wheels labeled “precision-ground” or “low-runout.” Some manufacturers provide runout test reports upon request.

Pros and Cons of Using Diamond Profiling Wheels

Advantages

Superior hardness: Effectively grinds carbide and ceramics without rapid degradation.
Precision retention: Maintains exact profile geometry over hundreds of sharpenings.
Cost efficiency: Extends life of expensive cutting tools, offering ROI within months.
Versatility: Can be used on routers, engraving bits, planer knives, and more.

Limitations

Higher upfront cost: Quality diamond wheels cost $80–$300, significantly more than conventional abrasives.
Fragility: Improper handling or impact can crack the bond or dislodge diamonds.
Heat sensitivity: Excessive grinding pressure generates heat that can damage tool temper or degrade resin bonds.
Not all materials benefit: Soft metals or HSS (high-speed steel) tools are better served by aluminum oxide wheels.

How to Choose a Diamond Profiling Wheel: Step-by-Step Guide

Identify your primary application: Are you sharpening solid carbide router bits, tungsten engraving tips, or combination tools? This determines grit and bond requirements.
Check machine compatibility: Confirm your grinder supports the wheel’s diameter, speed rating (RPM), and arbor size. Never exceed the wheel’s maximum operating speed.
Select appropriate grit: Start with 100–150 grit for general use. Keep a finer wheel (200+) for finishing if needed.
Evaluate bond type: Electroplated for simplicity and precision; sintered for durability; vitrified for automation.
Assess manufacturer reputation: Look for brands with documented quality control, clear specifications, and responsive customer support.
Review return policy and warranty: Some suppliers offer limited warranties against defects. Verify restocking fees before ordering.
Avoid red flags: No published RPM rating, missing diamond concentration data, blurry product images, or absence of safety certifications (e.g., ANSI B7.1).

Price & Market Insights

As of 2024, diamond profiling wheels range from $60 for basic 4” electroplated models to over $400 for large, vitrified, or custom-profiled variants. Mid-range 5” wheels with medium grit and electroplated bonds typically sell between $100 and $180.

Value tiers exist:

Budget ($60–$100): Often imported, may lack consistency in diamond placement or balance.
Mid-tier ($100–$200): Best value for professionals; includes reputable brands like Dash, CMT, and CMT Pro.
Premium ($200+): Custom profiles, advanced bonds, CNC-grade tolerances; suited for industrial operations.

While cheaper options may seem appealing, inconsistent performance can lead to wasted time and ruined tools. Investing in a well-reviewed mid-tier wheel often provides the best long-term value.

Model	Type	Grit	Diameter	Price Range	Best For
CMT Orange Tool Sharpener Wheel	Electroplated	120	5"	$110	General router bit profiling
Dash Precision Carbide Wheel	Sintered Metal Bond	100	6"	$220	High-volume shop use
Grizzly G9983	Resin Bond	150	4"	$75	Finishing and detail work

Customer Feedback Synthesis

Analysis of hundreds of verified buyer reviews reveals recurring themes:

Common Praises:

“Restored my old router bits like new.”
“Held its shape after 50+ sharpenings.”
“Easy to install and true on my Wolverine grinder.”
“Noticeably smoother cuts post-sharpening.”

Recurring Complaints:

“Received a warped wheel—had to return it.”
“Diamonds started shedding after two weeks.”
“No instructions or RPM label included.”
“Too aggressive for small-diameter bits.”

These highlight the importance of quality control and proper selection based on skill level and tool type.

Sourcing & Supplier Tips

Purchase from established industrial suppliers (e.g., MSC Industrial, Toolstoday, Amazon Business) or brand-authorized dealers. Avoid third-party marketplaces with unverified sellers unless return policies are strong.

For bulk purchases (5+ units), inquire about distributor pricing or educational discounts. Some manufacturers offer sample kits for testing before full investment. When importing from overseas, verify compliance with local safety standards and inspect packaging integrity upon arrival.

Maintenance, Safety & Legal Considerations

To maximize life and safety:

Always use a wheel guard and safety goggles.
Never exceed the maximum RPM marked on the wheel.
Dress sintered or vitrified wheels periodically with a diamond dresser to remove glazing.
Store in dry conditions—moisture can corrode metal cores or weaken bonds.
Inspect for cracks or loose segments before each use.

In North America, diamond wheels should comply with ANSI B7.1 safety codes for grinding wheels. While not always enforced for small tools, adherence ensures mechanical reliability. Commercial operators may be required to follow OSHA guidelines regarding machine guarding and operator training.

Conclusion

Choosing the right diamond profiling wheel hinges on matching technical specs to your specific sharpening needs. For most users seeking a reliable diamond profiling wheel for router bit maintenance, a 5-inch, 100–150 grit electroplated model offers the best blend of precision, ease of use, and value. Industrial users should consider sintered or vitrified options for extended durability. Prioritize product transparency, manufacturer reputation, and machine compatibility over price alone. With proper care, a quality diamond profiling wheel pays for itself through restored tool performance and reduced replacement costs.

FAQs

Q: Can I use a diamond profiling wheel on high-speed steel (HSS) tools?
A: Yes, but it's not optimal. Diamond wheels are designed for harder materials like carbide. For HSS, aluminum oxide wheels are more cost-effective and provide better heat control.

Q: How often should I dress my diamond profiling wheel?
A: Only sintered and vitrified wheels require dressing. Do so when you notice glazing or reduced cutting efficiency—typically every 10–20 hours of use.

Q: What causes a diamond profiling wheel to lose diamonds prematurely?
A: Poor bonding quality, excessive grinding pressure, or impact damage can dislodge diamonds. Ensure you're using correct feed rates and inspect the wheel regularly.

Q: Are all 5-inch diamond wheels interchangeable?
A: No. Check arbor size, RPM rating, flange requirements, and face width. Mismatches can lead to unsafe operation or inaccurate profiling.

Q: Can I grind non-ferrous metals with a diamond profiling wheel?
A: Yes. Diamond wheels excel at grinding non-ferrous alloys, composites, and ceramics due to their chemical inertness and thermal conductivity.
