How to Choose the Right Corolla 2005 Transmission Driving Gear

When searching for a reliable replacement or upgrade, knowing how to choose the right corolla 2005 transmission driving gear is essential for maintaining smooth shifting and long-term drivetrain health. The most important factor is ensuring compatibility with your specific transmission model—either the U340E or U241E automatic transmission commonly found in 2005 Toyota Corollas. Always verify the gear’s tooth count, spline count, and bore diameter before purchase. Opt for OEM-equivalent or high-grade reinforced steel gears from reputable manufacturers to avoid premature wear. If you're experiencing slipping, delayed engagement, or grinding noises during gear changes, replacing the driving gear may resolve these issues 1. Avoid cheap aftermarket units with poor heat treatment, as they can fail within months.

About Corolla 2005 Transmission Driving Gear

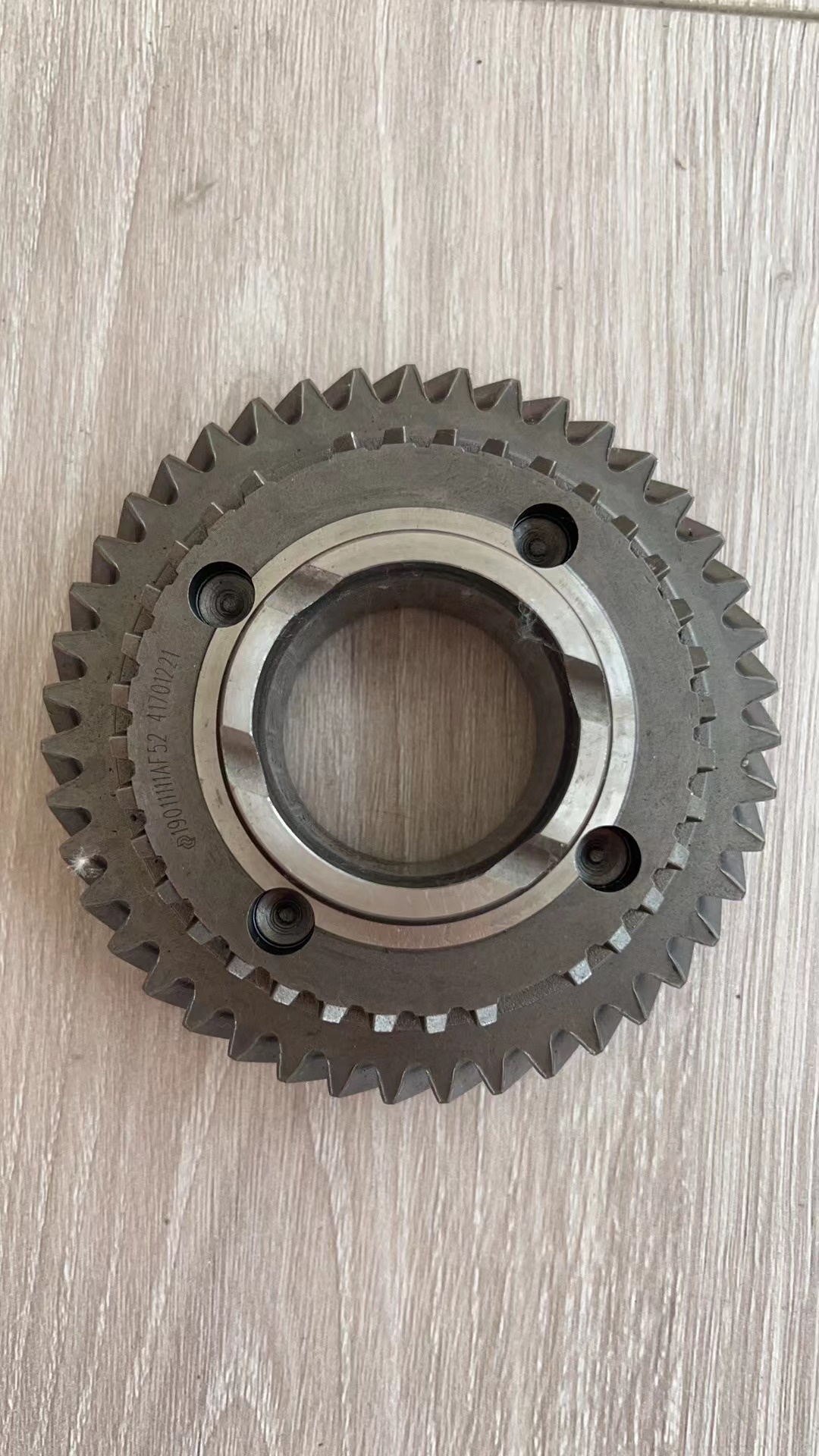

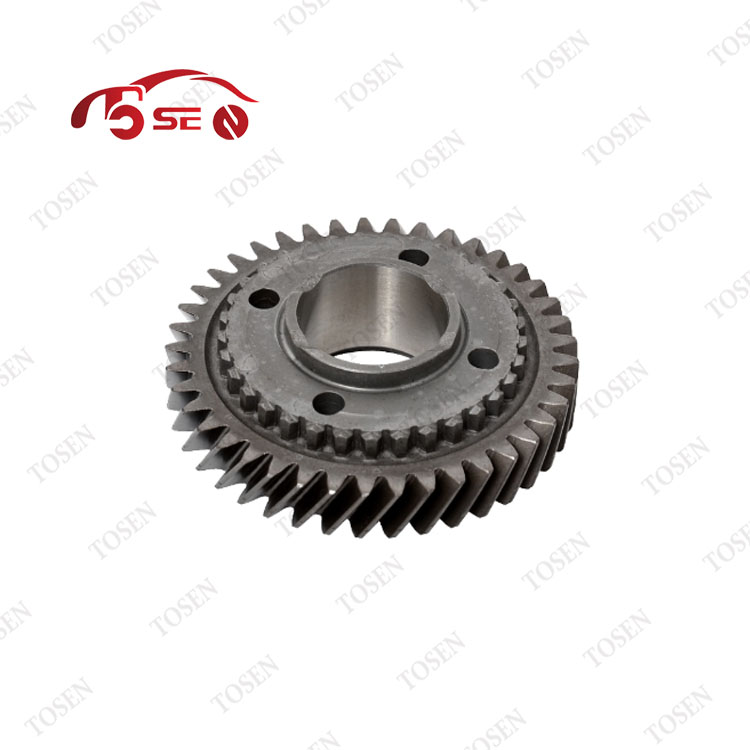

The transmission driving gear in a 2005 Toyota Corolla is a critical internal component located within the automatic transmission assembly. It plays a central role in transferring torque from the engine to the output shaft by engaging with the driven (output) gear. This gear is part of the planetary gearset that enables smooth shifting across multiple speeds—typically four forward gears in the 2005 Corolla’s U340E or U241E transmissions.

Driving gears are usually mounted on the input shaft and rotate whenever the torque converter is engaged. Their primary function is to initiate gear reduction ratios necessary for acceleration, cruising, and deceleration. Because this part operates under constant mechanical stress and high temperatures, its material quality, precision machining, and alignment are vital to transmission longevity.

This component is most relevant when rebuilding or repairing a worn or damaged transmission. Symptoms such as erratic shifting, loss of drive in certain gears, or abnormal whining noises often trace back to gear wear or chipped teeth. While not typically replaced individually without full inspection, sourcing the correct driving gear is crucial during overhauls.

Why Corolla 2005 Transmission Driving Gear Is Gaining Popularity

Despite being nearly two decades old, the 2005 Toyota Corolla remains a popular commuter vehicle worldwide due to its reliability and low maintenance costs. As these vehicles age, transmission components like the driving gear begin to show wear, leading to increased demand for replacement parts. Enthusiasts and DIY mechanics are increasingly searching for terms like “how to choose corolla 2005 transmission driving gear” or “best corolla 2005 auto trans driving gear,” indicating growing interest in repair rather than replacement.

Another reason for rising popularity is the cost-effectiveness of rebuilding versus replacing an entire transmission. A new factory transmission can cost $1,500–$2,500 installed, while a rebuild using quality individual components—including a new driving gear—can save hundreds. Additionally, online marketplaces and forums have made it easier for users to source individual transmission parts, increasing awareness about specific components like the driving gear.

Furthermore, some owners modifying their Corollas for improved durability or towing capacity seek reinforced internal gears. Although not common, upgraded steel alloys or nitrided surface treatments offer better resistance to pitting and fatigue, especially in hot climates or stop-and-go traffic.

Types and Variants

Transmission driving gears for the 2005 Corolla come in several variants based on transmission type, manufacturing standard, and material composition.

1. OEM Original Equipment Manufacturer Gears

These are produced by Toyota or licensed suppliers and match the exact specifications of the factory-installed part. They are designed for optimal fit, balance, and durability under normal driving conditions.

Pros: Guaranteed compatibility, precise tolerances, heat-treated for durability.
Cons: Higher price point; sometimes only available through dealerships.

2. Aftermarket Standard Gears

Manufactured by third-party companies such as Aisin, ATP, or Cardone, these aim to replicate OEM performance at a lower cost.

Pros: More affordable, widely available online.
Cons: Quality varies significantly between brands; some lack proper heat treatment.

3. Reinforced or Performance Gears

Made from higher-grade alloy steels and sometimes featuring surface hardening (e.g., nitriding), these are built for heavier loads or extended service life.

Pros: Increased strength, longer lifespan under stress.
Cons: Overkill for daily drivers; limited availability.

4. Used or Salvage Yard Gears

Retrieved from decommissioned transmissions in junkyards. Often sold as part of a core rebuild kit.

Pros: Lowest cost option; environmentally friendly reuse.
Cons: Unknown wear history; risk of hidden damage or misalignment.

It's important to note that there are different gear configurations depending on whether your Corolla has the 1.8L (2ZZ-GE) engine with U340E transmission or the 1.8L (1ZZ-FE) with U241E. The driving gears differ slightly in spline count and engagement pattern 2.

Key Features and Specifications to Evaluate

To ensure you select the correct and durable corolla 2005 transmission driving gear, evaluate the following technical parameters:

Transmission Model Compatibility: Confirm if your car uses U340E or U241E. This determines gear dimensions and mounting.
Spline Count: Typically 24 or 26 splines on the input shaft—must match exactly.
Outer Diameter and Tooth Profile: Must align with the driven gear to prevent noise and uneven wear.
Material Type: Look for SAE 8620 or similar case-hardened steel for durability.
Heat Treatment: Proper carburizing or nitriding improves surface hardness and fatigue resistance.
Bore Diameter: Should precisely fit the input shaft without play.
Weight and Balance: Imbalanced gears cause vibration and bearing wear.

Always cross-reference the part number with your VIN or existing transmission tag before ordering. Reputable sellers provide detailed spec sheets or reference charts.

Pros and Cons

Advantages of Replacing the Driving Gear:

Restores smooth shifting performance.
Prevents further transmission damage caused by metal shavings.
Extends the life of a rebuilt transmission.
More economical than replacing the whole unit.

Disadvantages and Limitations:

Requires complete transmission disassembly—labor-intensive.
Not a standalone fix if other internal components (clutches, bands, valve body) are worn.
Poor-quality gears can fail quickly, causing repeat repairs.
Availability of exact-match parts may be limited over time.

Replacing the driving gear is best suited for vehicles undergoing full transmission rebuilds or showing specific gear-related symptoms. It is not recommended as a quick fix for vague shifting problems without professional diagnosis.

How to Choose Corolla 2005 Transmission Driving Gear

Follow this step-by-step guide to make an informed decision:

Identify Your Transmission: Check your VIN via a Toyota dealer or use online lookup tools to confirm U340E vs U241E.
Inspect the Old Part: If accessible, remove and examine the current gear for wear patterns, chipped teeth, or scoring.
Match Critical Dimensions: Note spline count, bore size, and outer diameter.
Select Material Quality: Prioritize case-hardened steel over unmarked or soft metal units.
Choose a Reputable Brand: Stick with OEM, Aisin, or well-reviewed aftermarket suppliers.
Verify Return Policy: Ensure the seller accepts returns in case of mismatch.
Avoid Red Flags: No product images, missing specs, prices far below average, or vague descriptions.

If unsure, consult a transmission specialist or refer to a factory service manual before purchasing.

Price & Market Insights

Prices for a corolla 2005 transmission driving gear vary based on origin and quality:

OEM Toyota: $80–$150
Premium Aftermarket (Aisin, ATP): $60–$100
Budget Aftermarket: $30–$50 (higher risk of defects)
Used/Salvage: $20–$40 (no warranty)

While OEM parts are more expensive, they often provide better long-term value due to consistent quality control. For DIY rebuilds, investing in a high-quality driving gear prevents costly rework. Beware of listings claiming “OEM quality” without brand verification—always check packaging and part numbers.

Top-Seller & Competitive Analysis

The following table compares top-performing options available in the market:

Brand	Type	Price Range	Compatibility	Warranty
Toyota OEM	Original Equipment	$120	U340E, U241E	Lifetime (with installation proof)
Aisin	Aftermarket Premium	$90	U340E	12 months
ATP Transmission Parts	Aftermarket Standard	$75	U241E	18 months
Junkyard Auto Parts Co.	Used/Salvage	$35	Varies	30-day return

OEM and Aisin models lead in customer satisfaction due to reliability and precise fitment. ATP offers solid value with good warranty coverage. Used parts should only be considered if budget-constrained and inspected prior to purchase.

Customer Feedback Synthesis

Analyzing real buyer reviews reveals consistent themes:

Common Praises:

“Installed the OEM gear and my shifting issues disappeared.”
“Precise fit—no wobble or noise after rebuild.”
“Great value from Aisin; feels just like original.”

Frequent Complaints:

“Received wrong spline count—had to return.”
“Gear started making whining noise after two months.”
“No instructions or specs included—hard to verify fit.”

The most recurring issue is incorrect fitment due to lack of model specificity in product titles. Buyers also report dissatisfaction with unlabeled Chinese-made gears that degrade rapidly.

Sourcing & Supplier Tips

When sourcing a corolla 2005 transmission driving gear:

Buy from authorized distributors or trusted auto parts retailers like RockAuto, CarParts.com, or Toyota dealership parts counters.
For bulk purchases (e.g., repair shops), consider wholesale suppliers like AutoZone Commercial or WorldPac.
Request high-resolution images of the actual part, not stock photos.
Ask for the manufacturer’s part number and compare it with OEM references.
Inspect upon arrival: check for burrs, misalignment, or rust.

If importing internationally, verify customs regulations and potential import duties. Also, confirm return policies for defective or incorrect items.

Maintenance, Safety & Legal Considerations

Once installed, the driving gear requires no separate maintenance but depends on overall transmission health. Follow these guidelines:

Change transmission fluid every 60,000 miles using Toyota Type T-IV or equivalent.
Avoid aggressive driving during break-in period after rebuild.
Use jack stands properly when working under the vehicle—never rely solely on lifts.
Dispose of old transmission fluid responsibly per local environmental regulations.
No federal safety standards regulate individual transmission components, but all repairs must comply with state emissions and safety inspection rules.

Conclusion

Choosing the right corolla 2005 transmission driving gear involves careful attention to compatibility, material quality, and supplier reputation. The best choice is typically an OEM or premium aftermarket unit from Aisin or ATP, matched precisely to your U340E or U241E transmission. Avoid low-cost, unverified parts that may compromise your rebuild. Always verify spline count, bore size, and heat treatment before installation. With proper selection and professional handling, a new driving gear can restore smooth operation and extend your Corolla’s service life for years.

FAQs

Q: How do I know if my Corolla 2005 needs a new transmission driving gear?
A: Signs include unusual grinding or whining noises during gear changes, slipping out of gear, or visible metal debris in the transmission fluid.

Q: Can I replace the driving gear without removing the transmission?
A: No—this requires complete disassembly of the transmission, which should be done by a trained technician or experienced DIYer.

Q: Are aftermarket driving gears reliable?
A: High-quality brands like Aisin and ATP are generally reliable, but avoid no-name or unbranded gears with unclear specifications.

Q: What fluid should I use after replacing the driving gear?
A: Use Toyota Genuine ATF Type T-IV or an equivalent high-quality Dexron-VI compatible fluid with friction modifiers.

Q: Is it worth rebuilding a 2005 Corolla transmission?
A: Yes, if the rest of the vehicle is in good condition. A proper rebuild with quality parts like a new driving gear is often cheaper than replacement.
