How to Choose a Common Rail Injector Valve Grinding Machine: Expert Buying Guide

When selecting the best common rail injector valve grinding machine for precision diesel fuel system repair, prioritize models with CNC-controlled automation, high spindle accuracy (±0.001mm), and compatibility with Bosch, Delphi, and Denso injectors. A reliable machine should offer consistent surface finish (Ra < 0.2µm), modular fixturing, and built-in measurement systems—critical for restoring high-pressure common rail injectors used in modern commercial vehicles and heavy machinery 1. Avoid basic manual grinders if you're servicing Tier 4 or Euro VI engines, as they lack the repeatability needed for tight tolerances.

About Common Rail Injector Valve Grinding Machines

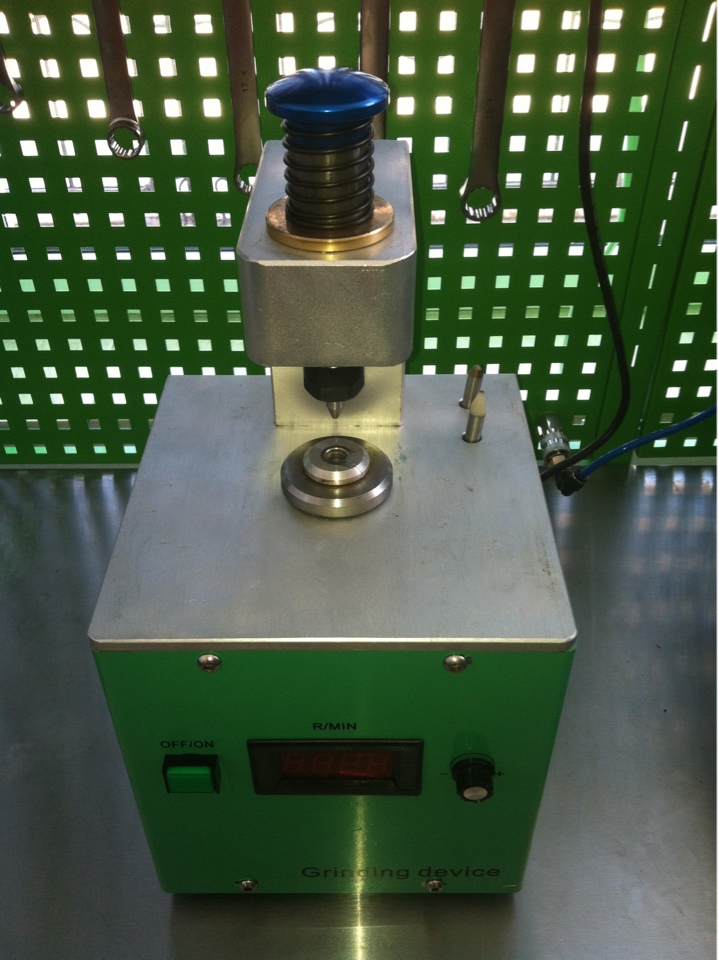

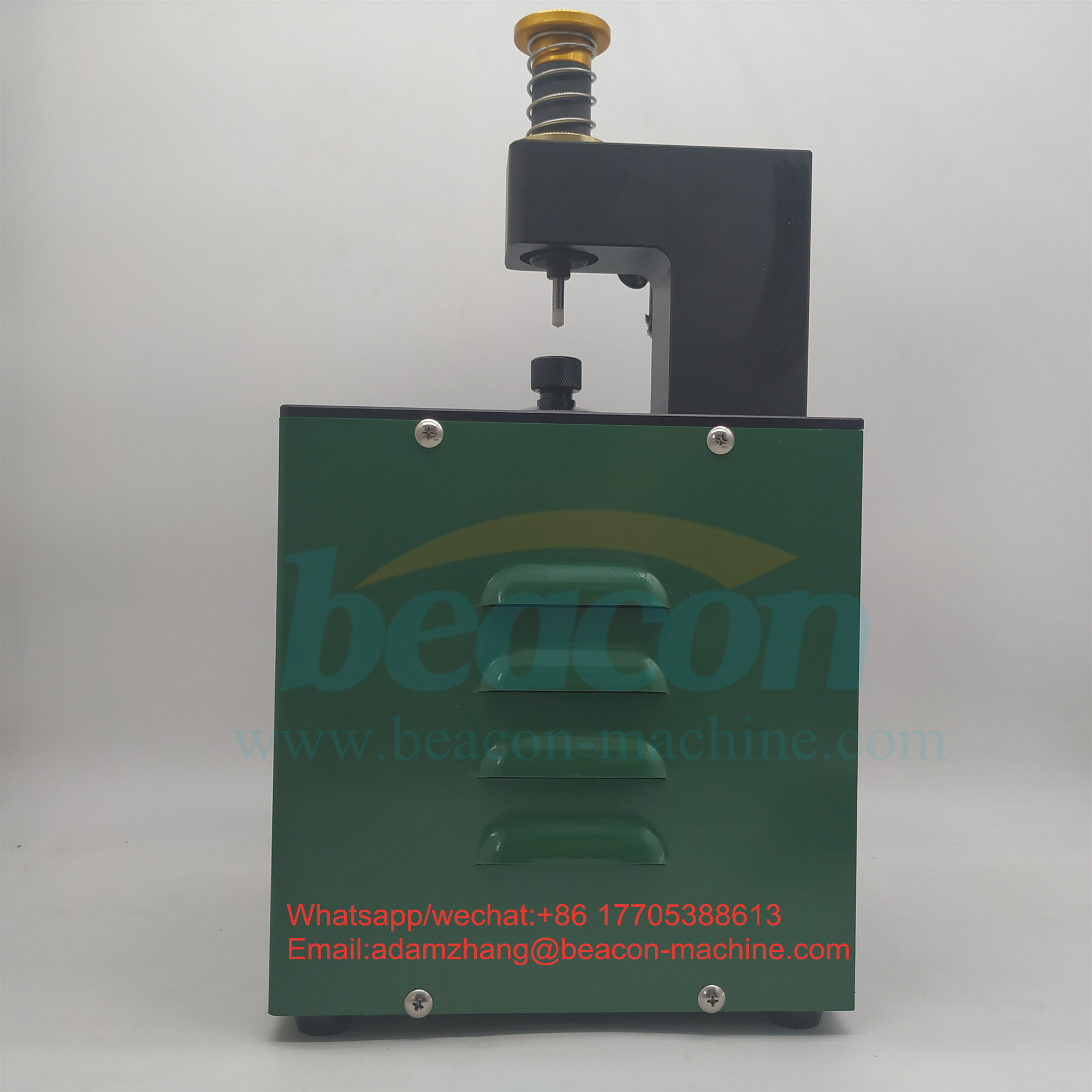

A common rail injector valve grinding machine is a specialized precision tool used to resurface and recondition the critical sealing surfaces of diesel fuel injectors, particularly those operating in high-pressure common rail systems. These systems, now standard in most modern diesel engines—from passenger cars to construction equipment—operate at pressures exceeding 2,000 bar, demanding micron-level accuracy in injector components 2.

The injector valve, often referred to as the nozzle needle or pintle, must maintain perfect contact with its seat to prevent leakage and ensure accurate fuel metering. Over time, carbon buildup, erosion, and wear compromise this seal, leading to poor combustion, increased emissions, and reduced engine performance. Instead of replacing expensive injectors, technicians use valve grinding machines to restore these surfaces to OEM specifications.

These machines are primarily used in professional diesel repair shops, remanufacturing facilities, and fleet maintenance centers. They support sustainability by extending injector life and reducing waste, aligning with growing industry trends toward cost-effective, eco-conscious repairs.

Why Common Rail Injector Valve Grinding Machines Are Gaining Popularity

The rising complexity and cost of modern diesel injection systems have driven demand for precision rebuilding tools. As emission standards tighten (e.g., Euro VI, EPA Tier 4), manufacturers rely on ultra-precise fuel delivery, making injector performance more critical than ever. A single faulty injector can trigger diagnostic codes, derate engine power, or fail emissions testing.

Replacing injectors can cost $300–$1,000 each, whereas reconditioning via grinding costs a fraction. This economic incentive, combined with improved machine accessibility, has led to wider adoption among independent repair shops. Additionally, advancements in automation and digital measurement integration have made these machines easier to operate and more reliable.

Online training resources and global parts availability have further lowered entry barriers, enabling smaller workshops to offer injector services in-house rather than outsourcing.

Types and Variants

Common rail injector valve grinding machines come in several configurations, each suited to different shop sizes, skill levels, and service volumes.

1. Manual Grinder Systems

These are entry-level units where the operator manually controls the grinding head and feed rate using handwheels. Alignment and pressure depend heavily on technician skill.

Pros: Low initial cost ($1,500–$3,000), compact size, minimal maintenance.
Cons: Inconsistent results, steep learning curve, not suitable for high-volume or precision work.

Best for hobbyists or shops handling occasional light-duty injector repairs.

2. Semi-Automatic Machines

These feature motorized grinding spindles with preset angles and depth stops. The operator loads the injector and initiates the cycle, but setup still requires manual calibration.

Pros: Better repeatability than manual models, moderate price ($3,000–$6,000), widely supported with fixtures.
Cons: Requires regular calibration, limited adaptability to new injector types without upgrades.

Ideal for small-to-midsize repair shops performing routine injector maintenance.

3. Fully Automatic CNC Machines

Computer Numerical Control (CNC) grinders automate the entire process, including alignment, grinding, and post-process measurement. Programs are stored for different injector brands and models.

Pros: High precision (±0.001mm), fast cycle times, minimal operator dependency, excellent for high-volume shops.
Cons: High cost ($8,000–$20,000+), requires technical training, sensitive to environment (dust, vibration).

Suitable for remanufacturers, dealership service centers, and large fleets.

4. Hybrid Measurement-Integrated Systems

The latest generation combines grinding with inline optical or tactile measurement. After grinding, the machine verifies tip geometry and seat angle before approving the part.

Pros: Closed-loop quality control, reduces rework, ensures compliance with OEM specs.
Cons: Very high cost, limited vendor support, may require software subscriptions.

Used in certified rebuild facilities and ISO-compliant operations.

Key Features and Specifications to Evaluate

When evaluating a common rail injector valve grinding machine, consider the following technical and operational factors:

Spindle Accuracy: Look for runout less than 0.001mm. High-quality air or ceramic bearings are preferred over standard ball bearings.
Adjustable Angle Range: Must support angles from 60° to 120° to accommodate various injector designs (e.g., Bosch vs. Denso).
Digital Depth Control: Micron-level adjustment ensures precise material removal. Avoid analog dials; opt for digital readouts or encoder feedback.
Fixturing Compatibility: Verify the machine includes or offers adapters for major injector brands (Bosch CRIN, Delphi DCR, Denso HP3).
Vibration Damping: A granite base or anti-vibration table improves surface finish and longevity.
Coolant System: Integrated coolant delivery prevents overheating and extends wheel life. Consider recirculating filters for cleanliness.
User Interface: For CNC models, assess ease of programming. Touchscreen interfaces with preloaded profiles save time.
Grinding Wheel Options: Diamond or CBN (cubic boron nitride) wheels last longer and provide finer finishes than aluminum oxide.

Additionally, check whether the manufacturer provides technical documentation, calibration tools, and software updates.

Pros and Cons: When to Buy and When to Rethink

Advantages:

Significant long-term savings compared to replacing injectors.
Enables in-house repair capability, reducing turnaround time.
Supports environmental goals by minimizing electronic waste.
Precision grinding restores performance closer to OEM standards than replacement aftermarket units.

Limitations:

High upfront investment, especially for CNC models.
Requires trained personnel—poor operation can destroy injectors.
Not all damaged injectors are repairable (e.g., cracked bodies, severely eroded seats).
Maintenance demands: spindle care, wheel dressing, and calibration must be scheduled regularly.

Only invest if you handle at least 10–15 injectors per month. For lower volumes, outsourcing may remain more economical.

How to Choose a Common Rail Injector Valve Grinding Machine

Follow this step-by-step guide to make a confident purchase:

Assess Your Volume and Injector Types: Catalog the injectors you service most (e.g., Bosch CR3, Denso 044). Ensure the machine supports them via available fixtures.
Determine Automation Level: If you lack experienced staff, lean toward semi-automatic or CNC models with guided workflows.
Verify Technical Support: Ask about training, phone/email support, and spare part lead times. Avoid brands with no local distributors.
Check Calibration Requirements: Some machines need annual certification. Confirm if this is user-performable or requires factory return.
Review Upgrade Path: Can firmware or hardware be updated for future injector types? Lock-in to obsolete platforms is a risk.
Test Before Buying: If possible, run a demo unit with your actual injectors. Measure consistency across multiple grinds.
Avoid Red Flags: No documentation, vague specifications, non-standard fixturing, or requests for full payment upfront.

Also, confirm warranty terms (minimum 1 year), return policy, and shipping conditions—machines are fragile and must be properly crated.

Price & Market Insights

Pricing varies significantly based on automation and brand:

Manual Models: $1,500–$3,000 — Suitable for startups or low-volume use.
Semi-Automatic: $3,000–$6,000 — Best value for growing shops needing reliability.
CNC Systems: $8,000–$15,000 — Standard for professional rebuilders.
Integrated Metrology Systems: $15,000–$25,000+ — Premium tier for compliance-focused operations.

European and Japanese brands (e.g., Wolf, KS Tools) tend to command higher prices but offer superior build quality. Chinese-made machines have improved in recent years but vary widely in consistency—choose only established exporters with verifiable customer references.

Consider total cost of ownership: factor in grinding wheels ($80–$200 each), coolant, calibration tools, and potential downtime.

Model Type	Avg. Price	Precision (Runout)	Best For
Manual Grinder	$1,500–$3,000	±0.003 mm	Occasional use, learning
Semi-Auto	$3,000–$6,000	±0.002 mm	Small repair shops
CNC	$8,000–$15,000	±0.001 mm	High-volume rebuilders
Metrology-Integrated	$15,000+	±0.0005 mm	Certified remanufacturers

Top-Seller & Competitive Analysis

Leading brands include Wolf (Germany), EDCO (USA), and Kienzle (Germany), known for durability and technical support. Chinese manufacturers like Sinopec and CNBM offer competitive pricing but require careful vetting.

Top-selling models typically feature:

Modular fixture kits for multi-brand support
Digital angle and depth displays
CE or ISO certification
Available CNC retrofit options

When comparing top sellers, focus on after-sales service rather than just features. A slightly older model with strong local support is often better than a cutting-edge machine with no nearby technicians.

Customer Feedback Synthesis

Analysis of user reviews across forums and B2B marketplaces reveals recurring themes:

Positive Feedback:

"Restored injectors perform like new—no more misfires."
"Saved over $10,000 in replacement costs within six months."
"CNC interface is intuitive; my technician was trained in two days."

Common Complaints:

"Fixture for Denso injectors arrived missing—delayed setup by three weeks."
"Spindle failed after eight months; replacement cost nearly half the machine price."
"Software crashes during updates; no remote support available."

Reliability of fixturing and responsiveness of technical support emerge as decisive factors in satisfaction.

Sourcing & Supplier Tips

Buy from authorized dealers or directly from manufacturers when possible. For international purchases:

Confirm voltage compatibility (110V vs. 220V).
Clarify import duties and customs clearance responsibility.
Request a video inspection before shipment.
Negotiate inclusion of first-year consumables (wheels, coolant).

For bulk buyers or distributors, inquire about white-labeling, training programs, and co-marketing support. Always inspect upon delivery—note any shipping damage immediately for insurance claims.

Maintenance, Safety & Legal Considerations

Maintain your machine with a regular schedule:

Clean coolant filters weekly.
Dress grinding wheels monthly to maintain flatness.
Calibrate spindle alignment quarterly using a test arbor.
Lubricate moving parts per manufacturer guidelines.

Safety practices include wearing eye protection, using proper ventilation for coolant mist, and securing loose clothing/hair near rotating parts.

Legally, ensure compliance with local machinery safety regulations (e.g., OSHA in the U.S., CE in Europe). If selling rebuilt injectors, document processes to meet liability standards. Some regions require certification for emissions-related repairs.

Conclusion

Selecting the right common rail injector valve grinding machine requires balancing precision, automation, cost, and support. For most professional diesel repair operations, a semi-automatic or CNC model with verified compatibility for Bosch, Delphi, and Denso injectors offers the best return on investment. Prioritize build quality, technical documentation, and access to spare parts over lowest price. With proper training and maintenance, these machines can deliver years of reliable service, turning costly injector replacements into profitable rebuilds.

FAQs

What is the most important specification in a common rail injector valve grinding machine?
The spindle runout accuracy—ideally ±0.001mm or better—is critical for achieving the required surface finish and sealing integrity in high-pressure injectors.

Can I use one machine for both Bosch and Denso injectors?
Yes, but only if the machine includes or offers compatible fixturing kits. Verify adapter availability before purchasing.

How often do grinding wheels need replacement?
Diamond or CBN wheels typically last 500–1,000 cycles depending on usage and material. Regular dressing helps extend life.

Is CNC automation worth the extra cost?
If you process more than 10 injectors weekly, yes. CNC reduces human error, increases throughput, and improves consistency.

Are Chinese-made grinding machines reliable?
Some are, but quality varies. Choose brands with proven export history, third-party certifications, and accessible customer support.
