How to Choose the Best COF Bonding Machine: Buying Guide 2026

When choosing the right COF bonding machine for your electronics manufacturing needs, prioritize precision, thermal control, and compatibility with fine-pitch substrates. A high-quality COF (Chip-on-Film) bonding machine ensures reliable interconnects in display driver applications, especially for OLED and LCD panels. For most mid-to-high-volume production environments, look for models offering real-time temperature feedback, programmable pressure settings, and vision alignment systems to achieve optimal yields 1. Avoid low-cost units lacking calibration support or software traceability if long-term reliability is critical. This guide covers essential selection criteria, types, cost expectations, and common pitfalls to help you make an informed decision on how to choose a COF bonding machine that fits your technical and operational requirements.

About COF Bonding Machine

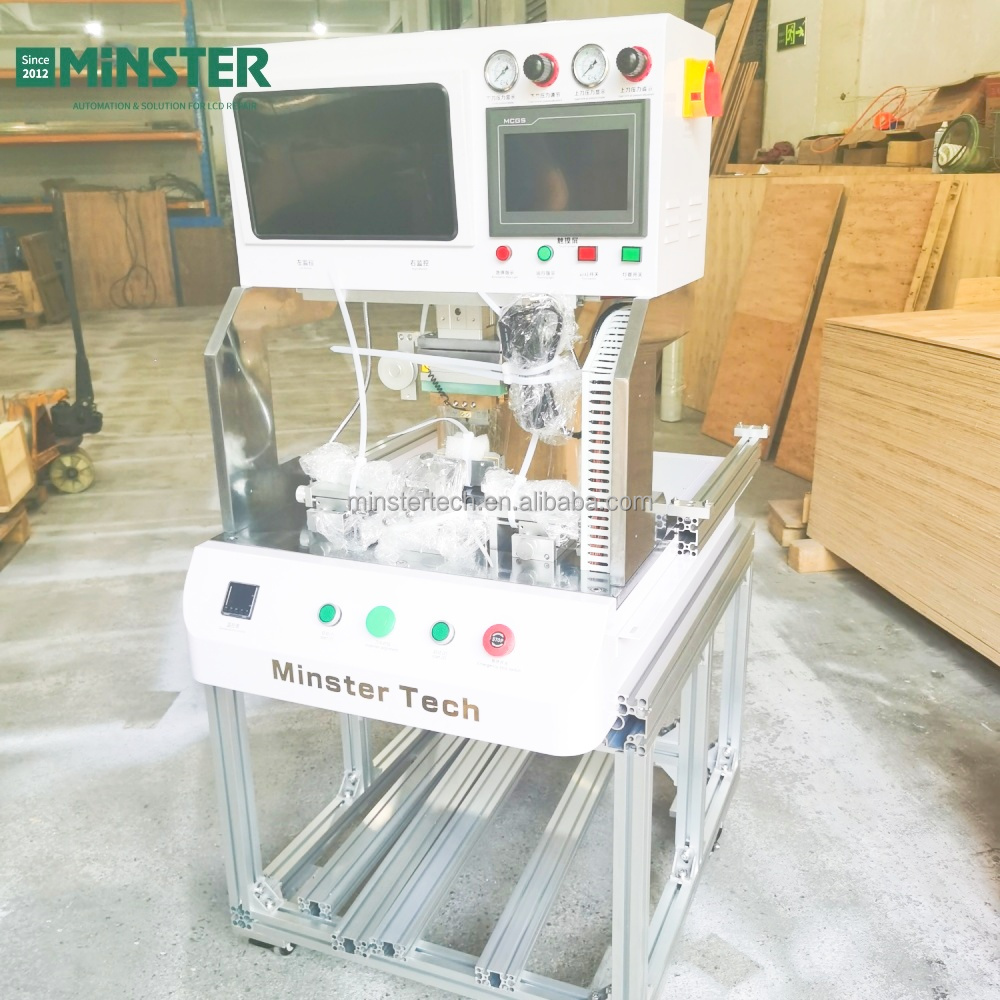

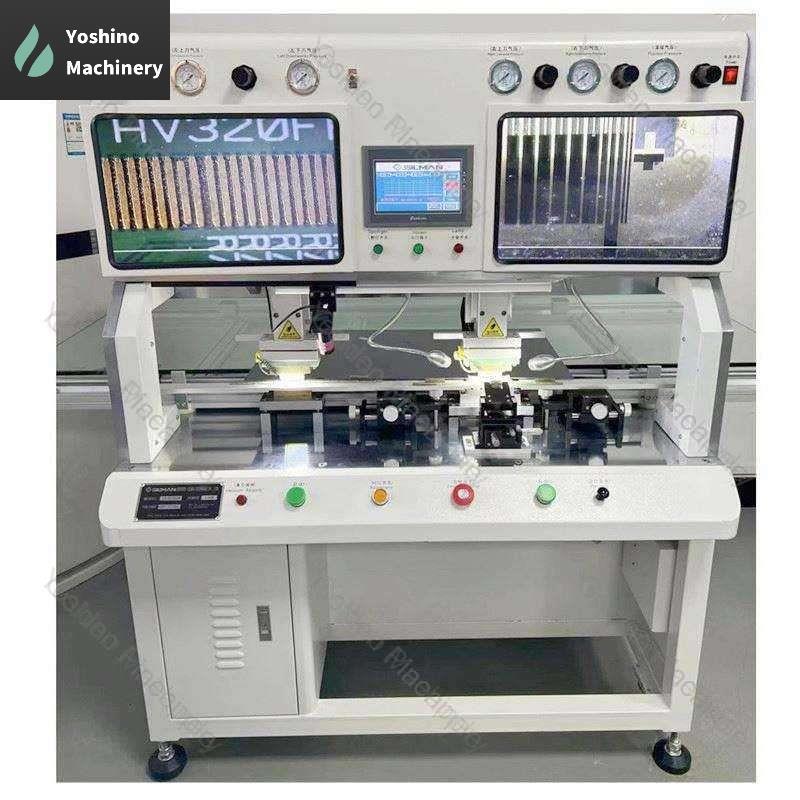

A COF bonding machine is a specialized piece of equipment used in semiconductor packaging and display manufacturing to attach integrated circuits directly onto flexible printed circuits (FPCs), commonly known as tapes or films. The process, called Chip-on-Film (COF), involves thermocompression bonding where heat, pressure, and time are precisely controlled to form electrical and mechanical connections between the silicon die and metal traces on the polyimide substrate.

These machines are widely used in producing components for smartphones, tablets, automotive displays, and wearable devices. Unlike traditional PCB-mounted chips, COF allows for ultra-compact designs by eliminating rigid carriers and enabling direct integration into curved or narrow bezels. The core function of a COF bonding system includes accurate chip placement, alignment under magnification, and applying calibrated thermal energy through a thermode or heater stage.

Why COF Bonding Machine Is Gaining Popularity

The rising demand for slimmer, higher-resolution displays has accelerated adoption of COF technology across consumer electronics. Manufacturers seek ways to minimize bottom bezels in smartphones—a trend popularized by flagship models from Samsung and Apple—which relies heavily on COF-packaged driver ICs. As panel designs shift toward bezel-less formats, COF offers superior space efficiency compared to COG (Chip-on-Glass).

Beyond aesthetics, COF improves signal integrity due to shorter interconnect paths and reduces assembly complexity in mass production. According to industry reports, the global flexible electronics market, which includes COF applications, is projected to grow significantly over the next decade 2. This growth drives investment in automated, high-throughput COF bonding solutions capable of handling sub-20µm pitch interconnections reliably.

Types and Variants

COF bonding machines come in several configurations based on automation level, application scale, and technical capability:

Manual COF Bonding Machines

Pros: Lower initial cost; suitable for R&D, prototyping, or low-volume repair work.
Cons: Operator-dependent accuracy; slower cycle times; limited data logging or process control.

Ideal for labs or small workshops needing flexibility without full automation.

Semi-Automatic Systems

Pros: Combines human oversight with motorized stages and digital controls; better repeatability than manual units.
Cons: Still requires skilled technicians; throughput capped by manual loading/unloading.

Commonly found in pilot lines or medium-scale production setups.

Fully Automatic COF Bonders

Pros: High throughput; integrated vision systems; automatic defect detection; compatible with factory MES integration.
Cons: High capital cost; complex maintenance; may require cleanroom conditions.

Used in large-scale display fabs where yield consistency and traceability are paramount.

Dual-Head & Multi-Station Models

Pros: Increased productivity via parallel processing; ideal for multi-chip modules.
Cons: Expensive; larger footprint; more intricate calibration needs.

Best suited for advanced packaging facilities working on high-density interconnects.

Key Features and Specifications to Evaluate

Selecting the right machine means evaluating these critical parameters:

Alignment Accuracy: Look for sub-micron precision (±1–3 µm). High-end systems use CCD cameras with pattern recognition algorithms.
Thermal Control: Temperature stability within ±1°C and rapid response heaters improve bond quality.
Bond Force Range: Adjustable from 0.1N to 50N depending on chip size and tape thickness.
Cycle Time: Manual units take 60–90 seconds per bond; automatic systems can achieve under 30 seconds.
Software Interface: Intuitive UI with recipe storage, error logging, and SPC (Statistical Process Control) output.
Vision System: Magnification levels (10x–200x), auto-focus, and overlay comparison features enhance placement accuracy.
Connectivity: Support for Ethernet, USB, or RS-232 enables remote monitoring and data export.

Also verify compatibility with common tape formats (e.g., 16mm, 25mm widths) and driver IC sizes up to 15mm × 15mm.

Pros and Cons

Advantages:

Enables compact, lightweight electronic designs.
Improves thermal dissipation compared to stacked packages.
Supports high-frequency signal transmission with minimal parasitic effects.
Reduces overall module height—critical for foldable devices.

Limitations:

High sensitivity to misalignment and contamination.
Requires trained operators and strict environmental controls.
Initial setup and tooling costs can be prohibitive for small firms.
Limited rework options once bonding is complete.

COF bonding is best suited for stable, high-volume production runs rather than frequent design changes or prototype iterations.

How to Choose a COF Bonding Machine

Follow this step-by-step checklist when evaluating options:

Define Your Application: Are you doing repairs, prototyping, or volume production? Match machine type accordingly.
Assess Pitch Requirements: Fine-pitch bonding (below 30µm) demands higher-end optics and motion control.
Check Calibration Options: Ensure the supplier provides NIST-traceable calibration certificates and field service support.
Evaluate Software Capabilities: Can it store multiple recipes? Does it log bonding parameters per unit?
Review Spare Parts Availability: Heating elements, tips, and camera modules wear out—confirm local availability.
Ask About Training: Proper operation affects yield; request hands-on training with purchase.
Verify Warranty Terms: Minimum one year parts and labor; extended warranties may cover sensors and controllers.
Beware of 'No-Name' Brands: Avoid machines without clear documentation, CE marking, or safety certifications.

Avoid vendors who cannot provide sample test results or user references. Request video demonstrations of actual bonding cycles before committing.

Price & Market Insights

Pricing varies widely based on functionality:

Entry-level manual units: $8,000 – $15,000 USD
Semi-automatic systems: $20,000 – $40,000 USD
Fully automatic lines: $60,000 – $150,000+ USD

Value isn't just about upfront cost. Consider total cost of ownership—including consumables, downtime risk, technician training, and upgrade potential. Mid-tier semi-auto systems often offer the best balance for growing manufacturers needing scalability without enterprise-level investment.

Asian suppliers (especially from China, South Korea, and Taiwan) dominate the mid-range market, while Japanese and German brands lead in ultra-high precision niches. Be cautious with extremely low-priced imports—they may lack EMI shielding, proper grounding, or fail electromagnetic compatibility (EMC) standards.

Model Type	Avg. Price	Accuracy (±µm)	Throughput (units/hr)	Best For
Manual Benchtop	$10K	5–10	20–40	R&D, repair
Semi-Auto Single Head	$30K	2–3	60–100	Small batch production
Fully Auto Dual Station	$100K	1–2	180+	Mass production

Top-Seller & Competitive Analysis

Leading brands include Shibaura Mechatronics, ASM Pacific Technology, and Hirata Corporation, known for robust automation and tight process control. In the mid-tier segment, companies like Shinkawa, Bonder Technology Group, and SEKI offer competitive alternatives with strong after-sales networks.

Popular models such as the Shibaura HM-800 series emphasize stability and ease of integration, while newer entrants focus on touchscreen interfaces and modular expansion. When comparing top sellers, assess not only specs but also software update frequency, spare part turnaround time, and presence of local technical support.

Some budget-friendly alternatives perform well in controlled environments but may lack diagnostic tools or remote troubleshooting capabilities. Always compare warranty coverage and service SLAs (Service Level Agreements) alongside hardware features.

Customer Feedback Synthesis

Analysis of user reviews and industry forums reveals consistent themes:

Common Praises:

High bonding yield (>99%) when properly maintained.
User-friendly software with intuitive workflow navigation.
Reliable alignment systems reducing operator fatigue.
Good vendor responsiveness for firmware updates and calibration.

Frequent Complaints:

Long lead times for replacement heating tips.
Difficulty sourcing third-party accessories.
Proprietary software limiting customization.
Sudden failures in older units due to outdated controller boards.

Buyers often note that initial performance exceeds expectations, but long-term dependability hinges on regular preventive maintenance and access to skilled support staff.

Sourcing & Supplier Tips

For individual buyers or small businesses, consider purchasing refurbished or demo units from authorized distributors to reduce costs. Reputable suppliers will recondition machines, replace worn components, and provide limited warranties.

If sourcing internationally, confirm voltage compatibility (110V vs 220V), plug types, and whether EMC compliance (e.g., FCC, CE) has been certified for your region. Use trade assurance platforms like Alibaba’s Verified Suppliers program to mitigate fraud risks when ordering from overseas.

For bulk purchases or OEM integration, negotiate service contracts upfront. Ask about consignment stocking agreements for critical spares. Verify return policies and inspection windows—some suppliers allow 7–14 days for functional testing upon delivery.

Maintenance, Safety & Legal Considerations

Regular maintenance is crucial. Recommended practices include:

Weekly cleaning of optical lenses and bonding tools.
Monthly verification of temperature sensor accuracy.
Quarterly recalibration of force sensors and XY stages.
Annual full-system diagnostics by qualified engineers.

Safety precautions must include proper grounding, use of anti-static wrist straps, and adequate ventilation if flux fumes are generated during rework. Operators should receive training on emergency stop procedures and hot surface warnings.

Legally, ensure the machine meets applicable industrial safety standards such as IEC 60204-1 (safety of machinery) and ISO 13849 (control systems). If exporting finished products, confirm that the bonding process complies with IPC-AC-62A or J-STD-001 guidelines for acceptability of electronic assemblies.

Conclusion

Choosing the best COF bonding machine requires balancing technical requirements, production volume, and long-term supportability. For those asking what to look for in a COF bonding machine, focus on alignment precision, thermal stability, software functionality, and vendor reputation. Manual systems serve well for development work, while automated solutions deliver value in consistent, high-yield manufacturing. By understanding the differences between types, evaluating key specifications, and reviewing real-world user experiences, you can select a system that supports both current needs and future scalability. Always validate claims with live demos and check service terms before finalizing any purchase.

FAQs

What does COF stand for in bonding machines?
COF stands for Chip-on-Film, a packaging method where a semiconductor die is bonded directly onto a flexible circuit film, commonly used in display driver applications.

Can a COF bonding machine handle different chip sizes?
Yes, most modern systems support various chip dimensions through interchangeable tooling and adjustable vision templates—verify range with manufacturer specs.

Is special training required to operate a COF bonder?
While basic operation can be learned quickly, achieving high yields requires training in alignment techniques, parameter tuning, and preventive maintenance.

How often should a COF bonding machine be calibrated?
Ideally every 6–12 months, or after major component replacements. Critical production environments may require quarterly checks.

Are there alternatives to COF bonding for display drivers?
Yes, COG (Chip-on-Glass) is an alternative, but it limits bezel reduction. TCP (Tape Carrier Package) is another option, though less compact than COF.
